Barko HARVESTER 240B User manual

®
OPERATOR’S MANUAL
®
1 Banks Avenue • Superior • WI • 54880
Phone: [phone] • 715-395-6700
Fax: [phone] • 715-392-9348
Web: www.barko.com Email: [email protected]
MANUAL P/N
REVISION
DATE
Serial Number Range:
Machine Serial Number:
NOTE:
This Operator’s Manual includes precautions and procedures for safely operating your BARKO machine. This manual includes
limited service, repair and parts information. Separate BARKO Parts and Service Manuals are available from your BARKO
dealer or from BARKO directly.
Engine, attachment and other component information may be limited in this manual. See separate manufacturer manual(s)
which accompanies this BARKO machine from the factory.
The information and illustrations in this manual have been approved as accurate at the time of printing. However, this manual
may contain information on options not present on your loader. BARKO Hydraulics, LLC reserves the right to make changes
and improvements in its product at any time without notice or obligation.
800-00471
A
06/03/2019
HARVESTER
240B / 260B
240B- 11924023679 thru
260B- 11926023635 thru

®
SUPERIOR • WI • USA • www.barko.com
NOTE:
The beginning of each chapter has its own detailed table of contents.
MANUAL Table of Contents
CH-10 GENERAL INFORMATION 10-1
USE GENUINE BARKO PARTS 10-3
HYDRAULIC PRESSURE WARNING 10-4
INTRODUCTION 10-5
KNOW YOUR BARKO 10-7
SAFETY SUMMARY 10-8
WELDING SAFETY 10-13
FIRE PREVENTION 10-14
BARKO DEALER NET 10-16
ABBREVIATIONS 10-18
CH-13 MACHINE OVERVIEW 13-1
MODEL DESCRIPTION- 240B, 260B 13-3
COMMON SERVICE PARTS 13-10
MACHINE SERVICE 13-12
NEW MACHINE BREAK-IN 13-27
OPERATION 13-28
TRANSPORTING 13-39
MACHINE STORAGE 13-40
CH-18 DECALS 18-1
BOOM DECALS 18-2
CAB DECALS 18-2
SHROUD DECALS 18-5
POWER PACKAGE DECALS 18-6
CH-22 ELECTRICAL 22-1
ELECTRICAL PANEL 22-3
CH-26 HVAC 26-1
GENERAL HVAC SYSTEM 26-3
HEATER-A/C UNDER-SEAT UNIT 26-5
CH-40 CAB 40-1
OPERATOR SEAT 40-2
CAB ROOF EGRESS 40-4
HARVESTER SIDE CONSOLE 40-5
IQAN MD4 DISPLAY 40-8
RADIO / STEREO 40-41
CAB SLIDE OPERATION 40-42
CH-43 PLATFORM 43-1
PLATFORM- HARVESTER 43-3

®
SUPERIOR • WI • USA • www.barko.com
CH-46 LOWER FRAME 46-1
SIDE FRAME AY- D5 & D6 46-2
CH-50 SHROUDING 50-1
SHROUDING OVERVIEW 50-3
GULLWING DOOR 50-6
CH-60 POWER PACKAGE 60-1
CUMMINS TIER-4 DIESEL ENGINE 60-2
CH-70 HYD & FUEL RESERVOIR 70-1
RESERVOIR- HYD & FUEL 70-3
CH-80 OPTIONS 80-1
PROHEAT PRE-HEAT SYSTEM 80-2
VACUUM PUMP 80-4

®
THIS PAGE INTENTIONALLY BLANK
®
SUPERIOR • WI • USA • www.barko.com

CHAPTER
1 BANKS AVE • SUPERIOR • WI • USA • www.barko.com
(P) 800-544-6532 • (F) 800-772-2448 • [email protected]
®
OPERATOR
GENERAL INFORMATION
10
Table of Contents- CHAPTER 10
USE GENUINE BARKO PARTS 10-3
HYDRAULIC PRESSURE WARNING 10-4
INTRODUCTION 10-5
OTHER RESOURCES 10-6
UNAUTHORIZED PRODUCT CHANGES 10-6
KNOW YOUR BARKO 10-7
SAFETY SUMMARY 10-8
OPERATION ON SLOPED TERRAIN 10-12
WELDING SAFETY 10-13
FIRE PREVENTION 10-14
BARKO DEALER NET 10-16
PARTS TAB 10-16
MANUALS TAB 10-16
SERVICE TAB 10-17
ABBREVIATIONS 10-18
800-10004

THIS PAGE LEFT INTENTIONALLY BLANK

10-3
Remember, use only...
* GENUINE BARKO PARTS *
NOTE
This Operator’s Manual has limited parts information. A BARKO
Parts Manual will have detailed parts lists and illustrations that may
assist in performing routine maintenance.
A BARKO Service Manual will have detailed service and
maintenance procedures which will assist servicing your BARKO
machine or attachment.
This Operator’s Manual must be with the machine at all times.
Purchase BARKO Parts and/or Service Manuals
from your authorized BARKO dealer.
BARKO HYDRAULICS, LLC
1 Banks Avenue
Superior, WI 54880
715-395-6700
www.barko.com
OPERATOR’S
®

10-4
WARNING
!
Raising hydraulic pressure on this
machine above the factory approved
settings may cause death, severe
injury or property damage and will
void the warranty.
The consequences of increasing hydraulic
pressure are serious. The function of the relief
valves is to provide a fuse action to protect the
machine and the operator from overloading. When
overloaded, the machine can become stressed to a
level where parts fracture causing death, severe injury
or property damage. This is an extremely
dangerous practice.
Accordingly, you are advised that the pressure
settings of this machine are limited to the factory
approved settings. Pressures in excess of these
settings render each and all Barko warranties null and
void and constitute an obvious misuse and abuse of
our product.
BARKO HYDRAULICS, LLC
OPERATOR’S
®

10-5
®
INTRODUCTION
Model and Serial Numbers are found on the Data Plate of your machine and/or
attachment. Machines and Attachments each have their own unique S/N's. Locations of the
612/830/930/937 LH rear of front frame
Your BARKO machine has been designed and manufactured with the highest quality of
materials and care in workmanship. This Operator’s Manual is intended to assist you in safe
operation and maintaining your BARKO to keep it in peak condition. A BARKO Operator’s Manual must
be with the machine at all times. Separate Parts and Service Manuals can be obtained from your
BARKO Dealer.
Understand the correct servicing procedures before servicing your BARKO machine or
attachment. It is important to know the correct operating and servicing procedures of the machine and
all safety precautions to prevent the possibility of property damage and/or personal injury or death.
REFER TO A BARKO SERVICE MANUAL for detailed service schedules and procedures.
PHONE: [phone]
EMAIL: [email protected]
Right or left hand is determined when positioned in the machine from the normal
Cylinders- The port location off center viewed from butt of cylinder.
Pump and Motor Rotation- Determined by viewing from the shaft end.
1. Right Hand (RH) or Left Hand (LH)
Know the following information before ordering parts or servicing your BARKO machine:
All parts for your BARKO machine or attachment may be ordered from your nearest BARKO
Dealer. If you are not certain of the dealer's location check our website or contact BARKO Customer
Service for assistance:
operator's seat position behind the boom or lifting arms.
WEB: www.barko.com/dealer-locator
2. Model and Serial Numbers ---- IMPORTANT!
data plate on popular BARKO models are:
70/80/110 LH or RH head plate
240/260/270 On head right side of main lift cylinder
295/495/595 RH on lower frame below platform
service procedures in this manual before servicing your BARKO machine or attachment.
It is your responsibility to know and understand ALL safety warnings and follow safe
Cylinders- ID numbers stamped on gland.
may be machine/serial number specific.
machine or attachment. BARKO warranties are included with the Operators manual and
It is your responsibility to know and understand the factory warranty for your BARKO
4. Safe Working Practices & Procedures
Grapples- Front or side head plate
3. Warranty
PAR T NO 53 9-00667
06/03/2019
Updated
OPERATOR’S

10-6
®
INTRODUCTION (continued...)
ŸSociety of Automotive Engineers (SAE) www.sae.org
ŸAssociation of Equipment Manufacturers (AEM) www.aem.org/groups/product-specific/forestry-
equipment-council-foec/
As a professional trained operator you are responsible for safety, both your own and that of
your co-workers. Your knowledge and use of all safety practices and correct servicing procedures in
this manual, and your good judgement, can be a major factor in preventing some of the thousands of
injuries and deaths caused by industrial accidents each year.
A professional operator should also be familiar with the information contained in other applicable
sources such as:
DON'T FORGET - SAFETY FIRST!
ŸOccupational Safety and Health Administration (OSHA) www.osha.gov/SLTC/logging/
ŸForest Resource Association (FRA) www.forestresources.org
ŸNational Timber Harvesting and Transportation Safety (THATS) Foundation
www.loggingsafety.com
ŸAmerican National Standards Institute (ANSI) www.ansi.org
The installation of any unauthorized attachment or changes made of any kind to this BARKO product
could affect the products ability to perform as originally intended. The products integrity, stability and it's
ability to perform safely could be at serious risk!
UNAUTHORIZED PRODUCT CHANGES:
As owner / operator of this machine, BARKO advises you that NO CHANGES ARE TO BE MADE TO
ITS PRODUCTS INCLUDING DELETIONS OR ADDITIONS OTHER THAN A BARKO APPROVED
OPTION. Any unauthorized alterations to this BARKO machine may nullify and void your BARKO
factory warranty as well as component manufacturer warranties. KNOW YOUR WARRANTY!
Contact BARKO or your BARKO dealer for information on maximum permissible operating weights and
the effects of additional options may have on your machine. Weight and stability are important factors
when considering the addition of options or attachments. BARKO will not be held responsible for
any situation that may arise resulting from any unauthorized field changes to its products.
06/03/2019
Updated
OPERATOR’S

10-7
®
KNOW YOUR
The following is a list of 10 important safety precautions and warnings you
should read through and understand before operating or servicing your machine.
Don't assume that because you know the control functions of other similar machinery, that
you can run and/or service the BARKO machine. All machines differ in some ways, and these
differences must be noted and acknowledged. Read this manual thoroughly and understand all
safety, operating, and servicing procedures before using the machine.
Know how to put your machine in a zero energy state for purposes of inspection,
maintenance, or repair.
Clear operating area of all obstacles and personnel before operating machine.
Never approach power lines with any part of the machine or load! Current in a high voltage
power line may arc some distance to jump from the wire to a nearby "ground".
KEEP WELL CLEAR!
Allow only the operator on the machine. Keep riders off. Riders on machine are subject to
injury such as being struck by foreign objects and being thrown off the machine. Riders also
obstruct the operator's view, resulting in the machine being operated in an unsafe manner.
Never use a boom or attachment for a work platform or personnel carrier. Serious injury or
death may result.
When machine is not operating or when leaving cab, boom or lift arm and attachment must
be lowered to the ground. Failure to do so may allow boom or attachment to move, causing
property damage, injury, or death.
Do not tamper with any hydraulic line when it is pressurized. Escaping fluid under pressure
can penetrate the skin, causing serious injury. Relieve pressure before unhooking hydraulic or
other lines. Tighten all connections before applying pressure. Keep hands and body away from
pinholes and nozzles which eject fluids under high pressure. Use a piece of cardboard to search
for leaks.
If any fluid is injected into the skin, seek professional medical attention immediately!
Under no circumstances should any modifications be made to BARKO machinery without
factory authorization. Any modifications may void the warranty. This machine was designed to
do a specific job and alterations could result in property damage, injury or death.
Replace any safety decals that are faded, torn, missing, illegible, or otherwise damaged.
See your machine's Decals section for decal kits applicable to your machine and for locations of
all decals.
Don’t stop here, read on...
®
1.
2.
3.
4
5.
6.
7.
8.
9.
10.
06/03/2019
Updated
OPERATOR’S

10-8 ®
SAFETY SUMMARY- HARVESTER
Failure to follow safety precautions in this manual can result in personal injury and/or property damage.
Carefully read safety cautions below and within this manual. Heed all decals mounted to machine.
ŸDANGER indicates a hazardous situation that, if not avoided, WILL result in
death or serious injury.
ŸWARNING indicates a hazardous situation that, if not avoided, COULD result in
death or serious injury.
ŸCAUTION indicates a hazardous situation that, if not avoided, COULD result in
minor to moderate personal injury or damage to machine.
ŸNOTICE indicates a possible property or machine damage message or a
special point of interest emphasized in this manual.
Do not operate or work on machine until you:
ŸRead and understand machine manuals, safety decals,
employer work rules, and applicable government
regulations.
ŸAre trained and qualified in safe machine operation and
maintenance.
ŸConsult supervisor to explain any unclear instructions
and warnings.
ŸContact Barko to replace lost manuals.
Wear required personal protective equipment at all
times to help prevent personal injury. Do not wear
loose fitting clothing or personal articles, loose or
uncovered long hair, or jewelry.
DANGER
!
WARNING
!
CAUTION
!
NOTICE
WARNING
!
WARNING
!
WARNING
!
Always maintain 3-point contact with handles and
steps when mounting or dismounting. Never jump on
or off machine. Do not rush. Walk, do not run.
WARNING
!
Always wear seat belt when operating or running
machine.
Remember to buckle up!
CAUTION
!
Remove or secure all personal or maintenance items
such as lunch buckets, chains, shovels, tools, etc.,
before moving or operating machine.
CAUTION
!
Use caution when checking items beyond your reach.
Use an approved safety ladder.
06/03/2019
Updated
OPERATOR’S

10-9
®
SAFETY SUMMARY (continued...)
CAUTION
!
Use only approved hydraulic fluid in hydraulic oil
reservoir and only approved diesel fuel in fuel
reservoir. Other fluids will cause machine damage.
WARNING
!
Combustible and flammable fluids can cause
death or severe injury.
ŸDo not smoke or permit open flames near fuels or
hydraulic fluids.
ŸDo not fill the tanks to capacity, allow room for fluid
expansion.
ŸDo not remove the fuel cap or refuel while engine is
hot, running or without proper ventilation.
ŸNever use fuel for cleaning purposes. Clean up any
fluid spills immediately.
DANGER
!
Improper electrical connections will cause battery
explosion, combustion or electrical component
damage, and may result in death or severe injury.
Voltages vary per model. Know your machine.
NOTICE
Grease all boom / lifting arm, cylinder, and turntable
bearing and pinion points daily.
WARNING
!
Improper machine transport can cause death, severe
injury or property damage.
Before transporting:
ŸLower and secure boom/attachment to truck/trailer bed.
ŸRaise stabilizers if equipped.
ŸShut down machine to a zero energy state.
WARNING
!
Mechanically connected controls will cause
movement of components at all times - EVEN IF
PUMP OR ENGINE IS NOT OPERATING. Always be
certain that boom and attachment are properly supported
or resting on firm ground before stopping engine to
minimize chance of accidental movements of components
causing death, severe injury or property damage
WARNING
!
If machine malfunctions during operation, stop
machine motion as quickly as possible, lower boom
or lifting arms to the ground and shut down the
machine. Service or repair the machine as needed
before running or operating again.
WARNING
!
CALIFORNIA Proposition 65 Warning
Diesel engine exhaust and some of its constituents are
known to the State of California to cause cancer, birth
defects, and other reproductive harm.
NOTICE
Maintain all components of engine exhaust system to
meet noise and exhaust standards.
WARNING
!
Hot exhaust pipe can cause severe burns. Do not
touch exhaust pipe when hot or when engine is running.
WARNING
!
Loose or over-torqued bolts can cause death, severe
injury, or property damage. Maintain proper bolt torque.
Visually check bolts daily. Refer to service sections for
specific torques and intervals.
06/03/2019
Updated
OPERATOR’S

10-10 ®
SAFETY SUMMARY (continued...)
Improper load handling and/or hydraulic pressure
loss can cause load to impact cab guard, resulting in
death or severe injury.
ŸDo not rely on guard alone for personal protection. Use
safe and proper load handling techniques.
ŸDo not operate machine with damaged or unsecured
guard or cab.
ŸDo not repair damaged guard. Replace with factory-
authorized guard.
ŸDo not modify guard without factory authorization.
ŸDo not operate before conducting Pre-Start
Maintenance Inspection. Check hydraulic components
for leaks, loose fittings or damage.
CAUTION
!
Transparent material such as safety glass must
be replaced when it is cracked or broken, or
when vision is obscured due to scratches.
CAUTION
!
*** WINDSHIELD DAMAGE HAZARD ***
ŸCleaning solutions will scratch and damage
Polycarbonate windshields.
ŸClean Polycarbonate windshields with water only.
WARNING
!
High pressure hydraulic fluid can penetrate skin
causing death, gangrene or other severe injury. Seek
immediate medical help to remove fluid.
ŸKeep hands and body away from areas ejecting fluid.
Use piece of cardboard to check for leaks. Wear
proper hand and eye protection.
ŸRelieve hydraulic pressure before loosening any
hydraulic connections.
ŸTighten all hydraulic connections before applying
hydraulic pressure.
WARNING
!
If this machine is equipped with electric motor driven
Auxiliary Oil Cooler, be sure battery is disconnected
before going near cooler fan. If battery is not
disconnected, fan may come on at any time causing
severe injury.
DANGER
!
FLYING DEBRIS will cause death or severe injury. Do
not start up a mulching or cutting attachment until all
personnel are 500 feet from attachment and on opposite
side of machine from where debris and cutting chips will
be thrown from attachment. Shut down attachment when
not in use.
WARNING
!
Hot and pressurized fluid can cause severe burns.
Let system cool before removing any caps, then remove
caps slowly.
WARNING
!
06/03/2019
Updated
OPERATOR’S

10-11
®
SAFETY SUMMARY (continued...)
REDUCE THE RISK OF CHAIN SHOT:
ŸNever downgrade from the laminated
polycarbonate safety glass used on your BARKO
Harvester or Processor.
ŸNever use the attachment where the saw blade or
chain are directly inline with the cab.
ŸFollow the safety guidelines, operation and
maintenance procedures outlined in the attachment
manufacturer’s manual supplied with your BARKO
machine.
ŸEnsure the chain or blade speed does not exceed
the manufacturer’s rating.
ŸDo not modify safety guards.
ŸInspect for worn sprockets and cutting teeth.
ŸEnsure proper lubrication and keep saw teeth
sharp.
ŸMake certain bystanders are 500’ away when
attachment is running.
CHAIN SHOT: Chain shot is the high velocity separation
and ejection of a piece or pieces of saw chain from the
end of a broken loop of saw chain in mechanized timber
harvesting. Chain shot typically originates near the drive
end of the cutting system, but can also originate from the
guide bar tip area. In either case, it poses the same risk of
serious injury or death to the machine operator, ground
personnel and bystanders.
Never approach power lines with any part of the
machine. Current in a high voltage line may arc some
distance to jump from the wire to a nearby "ground".
KEEP WELL CLEAR!
Harvester and Feller-Buncher blades will cause death
or severe injury. Do not start up these attachments until
all personnel are 500 feet away. Shut down attachment
when not in use.
Allow only the operator on the machine. Keep riders
off. Riders on machine are subject to death or injury from
being struck by foreign objects and being thrown from
machine. Riders also obstruct the operator's view,
resulting in machine being operated in an unsafe manner.
Never use a boom attachment for a work platform or
personnel carrier.
DANGER
!
DANGER
!
DANGER
!
WARNING
!
A moving machine will cause death or severe injury.
Stay clear! Make sure you are always in clear view of the
operator.
DANGER
!
06/03/2019
Updated
OPERATOR’S

10-12 ®
SAFETY SUMMARY (continued...)
SAFE OPERATION ON SLOPED TERRAIN
When you work on slopes there are several important points to consider:
ŸAlways use a seat belt when provided.
ŸSpeed of travel or working tools – higher speeds or sudden starts and stops can tend to make the machine
less stable
ŸTerrain – soft ground, slopes, uneven surfaces (stumps, fallen trees and slash, rocks, valleys/rises, drop-offs or
ledges, overhangs), changing soil types, moisture, ice and snow affect the machine stability. Irregular terrain
must be traveled at slower speeds.
ŸDirection of travel - Avoid operating the machine across the slope. When possible travel up or down slopes.
Place the heaviest end of the machine uphill and keep the load low to the ground. Turning uphill with an
articulated machine can increase the chance of tip-over.
ŸLoads and shifting loads – Do not overload. Keep the load low and close to the machine. Contact with
overhead wires, trees, fallen trees or the ground can cause the load to shift unexpectedly and reduce stability.
ŸMachine configuration – Will affect the weight distribution, the stability, the operating performance, and the
machine control on slopes.
ŸVisibility – irregular, snow-covered or slash-covered terrain can reduce visibility in the path of the tracks or
wheels and to the surrounding area, the load, other vehicles, obstacles, and people.
ŸCondition of the machine – Machine control and performance when operating on slopes may require special
machine maintenance or more frequent intervals. Fluid levels, track tension or tire inflation pressure can affect
machine control on slopes.
ŸDo not operate a machine on a slope without proper training. Learn the stability limits of the machine by first
working on gentle slopes. Gain experience and improve skills over time by gradually increasing the angle of
slopes on which you are working. As operating conditions change make the appropriate decisions and
adjustments to maintain safe machine operation.
Always lower boom to ground and shut down engine
before leaving cab. If necessary to work on machine
with lifted boom, securely support machine and
attachment.
Falling boom or load will cause death or severe injury.
Stay clear if boom or load are not grounded. Clear all
persons from area of operation and machine movement.
Never move boom or loads over the heads of other
persons.
Keep hands and body clear of gears, rollers and the
crawler track. Severe injury or death can occur if you are
caught within the moving components of the crawler lower
frame.
WARNING
!
DANGER
!
DANGER
!
06/03/2019
Updated
OPERATOR’S

10-13
®
WELDING SAFETY
Any unauthorized welding, alterations,
additions or modifications made to BARKO
machinery will void warranty. This machine was
designed to do a specific job and alterations could
result in death, severe injury or property damage.
If BARKO-Authorized welding must be done, refer
to service manual for welding procedure. If
procedure is not followed electrical and structural
damage may occur.
PRE-WELDING CHECKLIST:
ŸClean machine
ŸDisconnect battery cables
ŸCover rubber hoses, battery, and other flam-
mable parts
ŸUnplug the engine ECU, then disconnect all
cables connected to the alternator
ŸDisconnect all electronics, controllers,
screens, monitors, etc. (MD3, MDL, radios,
etc.)
ŸHave a fire extinguisher readily available
Never ground an arc welder through turntable
or boom bearings as arcing may occur causing
bearing damage.
Always connect the welder ground cable to the
component to be welded, and as close as possible
to the weld site. The clamp must never be
connected to the engine or in such a way that
current can pass through a bearing.
SAFE WELDING SET-UP:
WELDING PRECAUTIONS:
DO NOT weld on any structural member unless
specifically authorized by BARKO Hydraulics.
DO NOT weld spacer blocks to truck/trailer
frame!
DO NOT weld on or straighten a ROPS / FOPS!
DO NOT weld on accumulators or any other
components that may be pressurized!
Always wear appropriate PPE when welding:
ŸWelding helmet, face shield, or goggles
ŸRespirators
ŸFire/Flame resistant clothing and aprons
ŸEar muffs, ear plugs
ŸBoots, gloves
WARNING
!
WARNING
!
WARNING
!
06/03/2019
Updated
OPERATOR’S

10-14 ®
FIRE PREVENTION
Always keep a fire extinguisher and first aid kit where
they can be easily reached in case of fire and keep
these items properly maintained.
ŸOperating personnel should be instructed on what to
do in case of fire and be required to demonstrate how
to use fire extinguisher and fire suppression equipment.
ŸAny portable fire extinguisher or fire suppression
system carried on the machine that has been used,
should be recharged or replaced before the machine
resumes operating. Fire extinguisher manufacturers
recommended service intervals should be followed.
Allow machine to cool down by idling the engine for a
while before shut-down. Many engine and transmission
fires start after shut-down.
Do not use the machine in areas with explosive dust
or gases that can be ignited by arcs, sparks, hot
components, or exhaust fumes.
Read the Engine Manual that comes with every
machine for complete engine operating and engine
safety instructions.
Before adding fuel, shut down the engine and allow it
to cool. Never smoke while handling fuel or working on
either the fuel or the hydraulic system.
Inspect daily all fuel and hydraulic oil tubes, hoses,
and fittings for damage and leakage. Tighten or
replace as necessary. Always clean fluid spills.
Do not use ether or starting fluids on diesel engines
with glow plugs. These starting aids can explode and
injure bystanders.
Inspect the machine daily for flammable debris,
removing any twigs, leaves, straw, rags, fluid spills or
leaks, dirt or grime. Pay special attention to areas such
as the engine, engine cooling system, exhaust system,
battery, electrical connections, brake systems, transmission
/drivetrain, fuel system and hydraulic system. Clean as
often as necessary to help prevent overheating and
combustion.
The electrical system (battery, electrical connections,
etc.) can be a source of arcs or sparks if damaged or
incorrectly maintained. Daily inspect all electrical wiring
and connections for damage. Keep the battery terminals
clean and tight. Replace or repair any damaged part.
Use proper battery connection and disconnection
procedures.
This machine may have several components which are at high temperatures under normal operating
conditions, such as the engine, exhaust system, brake system and transmission.
ŸClean the machine often. High pressure washing of the machine is suggested every 1000 hours (or 6 months)
and always after a spill.
The following list of hazards provides information which will help to prevent fires:
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
WARNING
!
Before doing welding of any kind, clean machine and
disconnect battery cables.
ŸCover rubber hoses, battery, and other flammable
parts.
ŸNever ground an arc welder or electrical accessories
through turntable or boom bearings as arcing may
occur causing bearing damage.
Do not weld on any structural member unless specifically
authorized by Barko Hydraulics. Any unauthorized welding
or welding procedures will void the warranty, and may
cause structural damage.
06/03/2019
Updated
OPERATOR’S

10-15
®

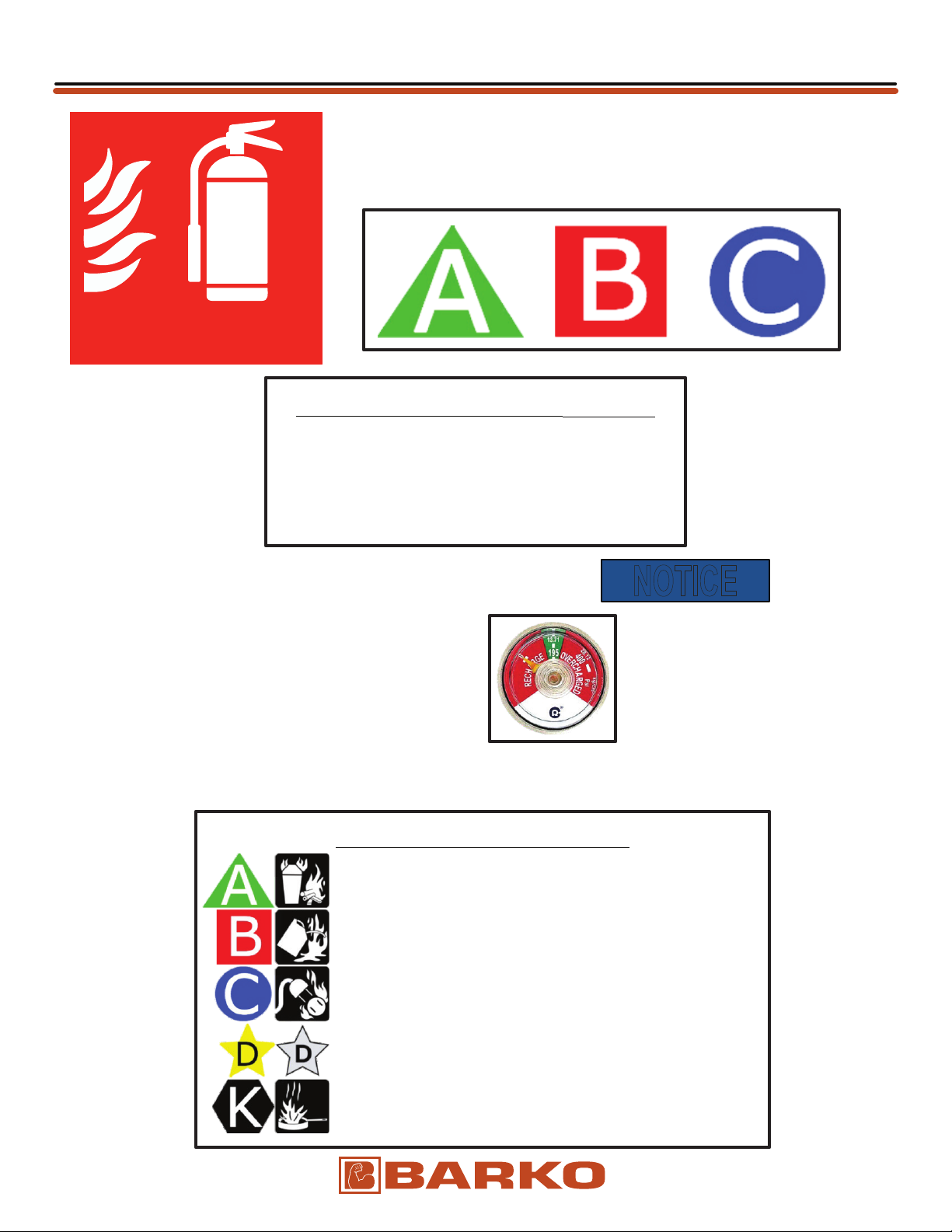

FIRE PREVENTION (continued...)
FIRE
EXTINGUISHER
NOTICE
Fig-01
(typical gauge)
FIRE EXTINGUISHER
Make sure you have the proper fire extinguisher that is labeled A (wood,
trash), B (gas, grease, oil, paint) and C (electrical).
FIRE & FIRE EXTINGUISHER TYPES
IN CASE OF A FIRE REMEMBER P-A-S-S
ŸP PULL the pin
ŸA AIM at the base of the fire
ŸS SQUEEZE the lever
ŸS SWEEP extinguisher from side to side
FIRE EXTINGUISHER SERVICE AND INSPECTION
Have recharged or replace fire extinguisher
immediately after any use.
ŸPartial discharge may cause the fire extinguisher to
leak.
ŸInspect monthly for possible damage.
ŸCheck the safety pin to be intact.
ŸMake sure the label instructions are clean and legible.
ŸCheck the needle indicator for designated pressure
levels.
The green area is the "charged
zone". During cold temperatures the
indicator may read on the low side of
the green. During hot temperatures it
may read high in the green. A true
reading may be checked by placing
the fire extinguisher in a normal room
temperature of 70 degrees for several
hours. See Fig-01.
TYPE A
Ÿfires involving solid materials such as wood, paper or
textiles
TYPE B
Ÿfires involving flammable liquids such as petrol, diesel
or oils
TYPE C
Ÿfires involving live electrical apparatus
TYPE D
Ÿfires involving metals
TYPE K
Ÿfires involving cooking oils such as in deep-fat fryers
06/03/2019
Updated
OPERATOR’S

10-16
