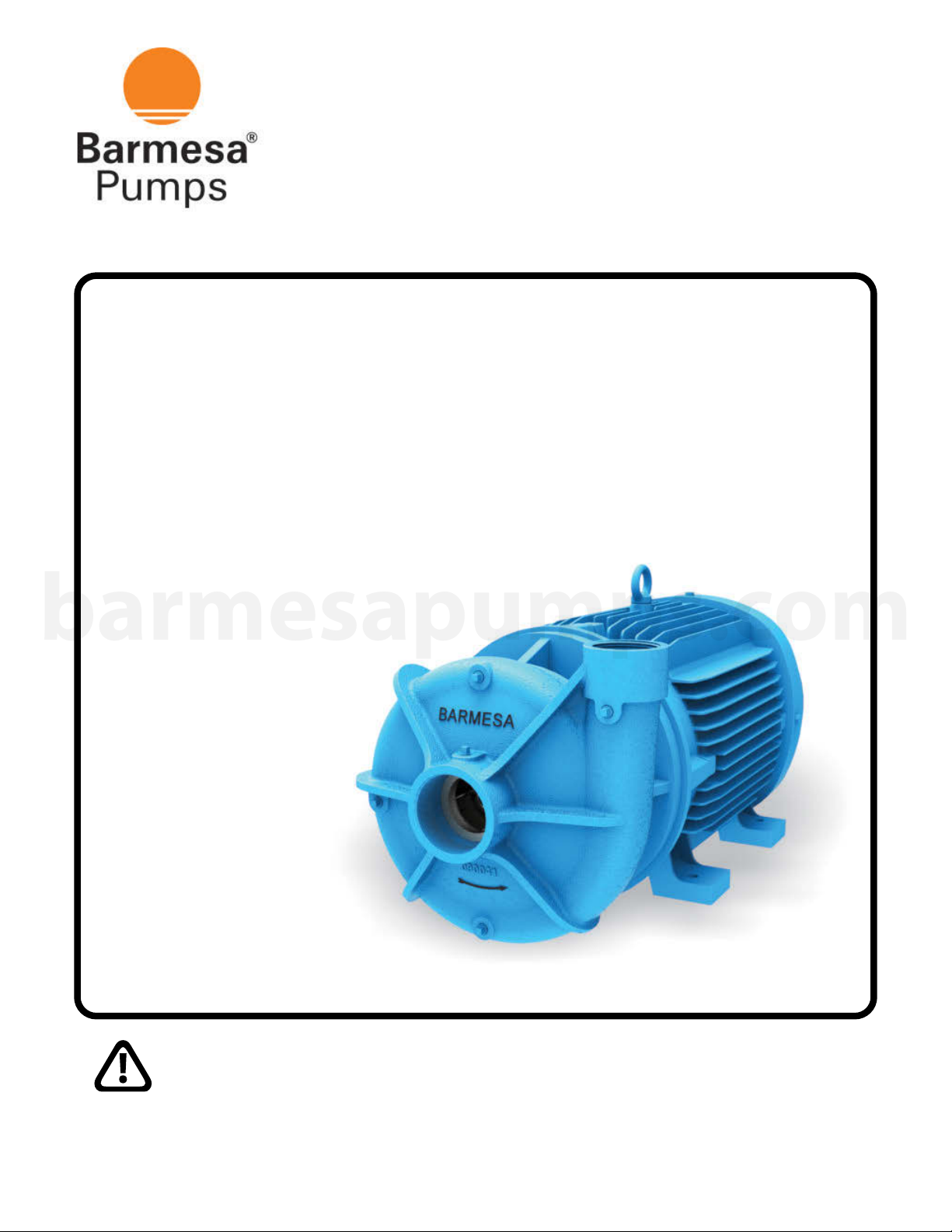

Barmesa Pumps IA1-2-4 Instruction manual

Installation, Operation &
Maintenance Manual
End Suction Centrifugal Pumps
IA
2 - 125 HP @
1750 & 3500 RPM
IMPORTANT! - Read all instructions in this manual before operating or servicing
a pump.
barmesapumps.com

01
General Safety Information
Before installation, read the following
instructions carefully. Failure to
follow instruction and safety
information could cause serious
bodily injury, death and/or property
damage. Each Barmesa product is
carefully inspected to insure proper
performance. Closely following these
instructions will eliminate potential
operating problems, assuring years
of trouble-free service.
IMPORTANT! - Barmesa Pumps is not
responsible for losses, injury or
death resulting from failure to
observe these safety precautions,
misuse, abuse or misapplication of
pumps or equipment.
Installation, wiring, and
junction connections must be in
accordance with the National Electric
Code and all applicable state and local
codes. Requirements may vary
depending on usage and location.
WARNING
I n s t a l l a t i o n a n d
servicing is to be conducted by
qualified personnel only.
WARNING
D o n o t p u m p
hazardous materials (flammable,
caustic, etc.) or use these pumps in
water over 95º F. Do not exceed
m a n u f a c tu re r s re c o m m e n d e d
maximum performance, as this could
cause the motor to overheat.
WARNING
C a r e f u l l y r e a d
instruction manuals supplied with
motor or engine before operating or
servicing.
WARNING
A L L R E T U R N E D
P R O D U C T S M U S T B E
CLEANED, SANITIZED, OR
DE CO N TA MIN AT ED P RI O R TO
SHIPMENT, TO INSURE EMPLOYEES
WILL NOT BE EXPOSED TO HEALTH
HAZ ARDS IN HANDLING SAID
MATERIAL. ALL APPLICABLE LAWS
AND REGULATIONS SHALL APPLY.
Keep clear of suction and
discharge openings. Do not
insert fingers in pump with
power connected; the impeller can
cause serious injury.
Always wear eye protection
when working on pumps. Do
not wear loose clothing that
may become entangled in moving
parts.
Pumps build up heat
and pressure during
operation. Allow time
fo r p u m p s t o c o o l
DANGER
before handling or servicing the
pu m p o r any acce s sor y i t ems
associated with or near the pump. Do
not block or restrict the discharge
pipe/hose.
T h i s p u m p i s n o t
i n t e n d e d f o r u s e i n
swimming pools or water
installations where there is
DANGER
human contact with pumped fluid.
Risk of electric shock. To
reduce risk of electric shock,
always disconnect pump
from power source before
DANGER
handling any aspect of the pumping
system. Lock out power and tag.
“Caution” indicates a
potentially hazardous situation
which, if not avoided, MAY result in
minor or moderate injury.
CAUTION
Do not lift, carry or
hang pump by the electrical
ca b le s . D am age t o t he
electrical cables can cause
DANGER
shock, burns or death. Never handle
connected power cords with wet
hands. Use appropriate lifting device.
“Warning” indicates
an imminenty hazardous situation
which, if not avoided, MAY result in
death or serious injury.
WARNING
“Danger” indicates an
imminently hazardous situation
which, if not avoided, WILL result in
death or serious injury.
DANGER
Failure to permanently
ground the pump, motor and
controls before connecting
to power can cause shock,
DANGER
burns or death.
1 Phase Models
Amps: Volts:
3 Phase Models
Amps L1-2: Volts L1-2:
Amps L2-3: Volts L2-3:
Amps L3-1: Volts L3-1:
Model Number: _____________________
Serial: ____________
PHASE: ______ HP: __________________
IMPORTANT! - Prior to installation,
record Model Number, Serial, Amps,
Voltage, Phase and HP from pump
name plate for the future reference.
Also record the Voltage and Current
Readings at Startup:
WARNING If engine driven, never
operate in an enclosed
buildi ng o r area where
e x h a u s t g a s e s c a n
accumulate, or near a building where
gases can seep inside; always take
provisions for adecuate ventilation.
Do not breathe exhaust
fumes when working in the area of the
engine. (Exhaust gases are odorless
and deadly poison.)
WARNING
WARNING Never add fuel to the
tank while the engine is
running. Stop engine and
allow to cool.
Do not smoke while refueling the
engine. Do not refuel near open
flame.
barmesapumps.com

SUCTION: 1½" - 8" NPT or flange horizontal.
DISCHARGE: 1" - 6" NPT or flange vertical.
LIQUID TEMPERATURE: 95 °F (35 °C) max.
VOLUTE: Cast iron ASTM A-48 class 30.
INTERMEDIATE COUPLING: Cast iron ASTM A-48 class 30.
IMPELLER: Cast iron ASTM A-48 class 30 or stainless steel 304. Investment casting, dynamically
balanced.
SEAL: Mechanical, type 01. Ceramic stationary part, carbon ring seal and exclusion in the
rotating part. Buna-N elastomer and stainless steel spring.
SHAFT SLEEVE: Stainless steel.
O-RINGS: Buna-N.
MOTOR: High quality premium efficiency TEFC or ODP electric motors, 1 & 3 phases, 60 Hz,
NEMA, with rated output from 2 up to 125 HP, 1750 & 3500 RPM and frame sizes
from 182 JM to 405 JM.
HARDWARE: Carbon steel.
PAINT: Air dry enamel, water based.
02

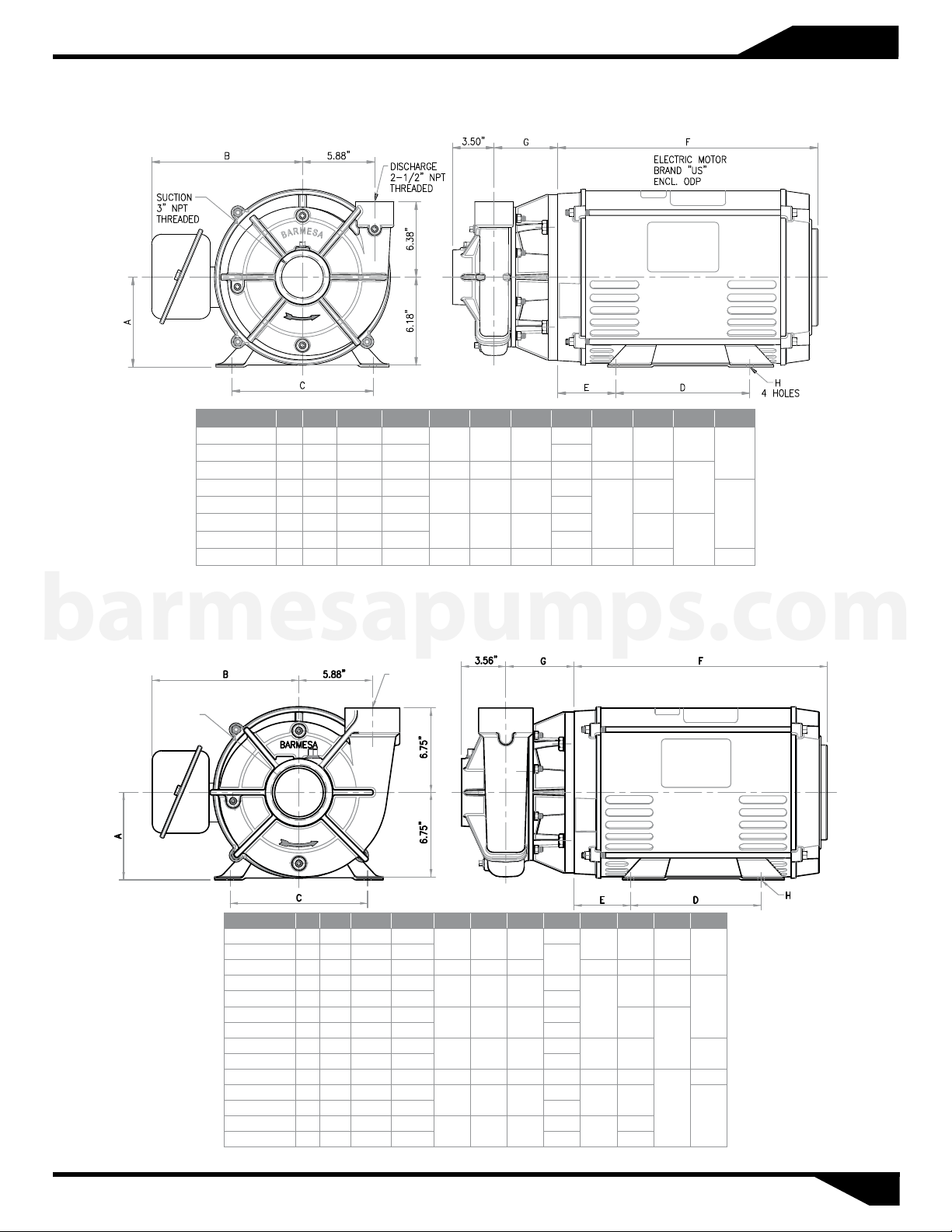

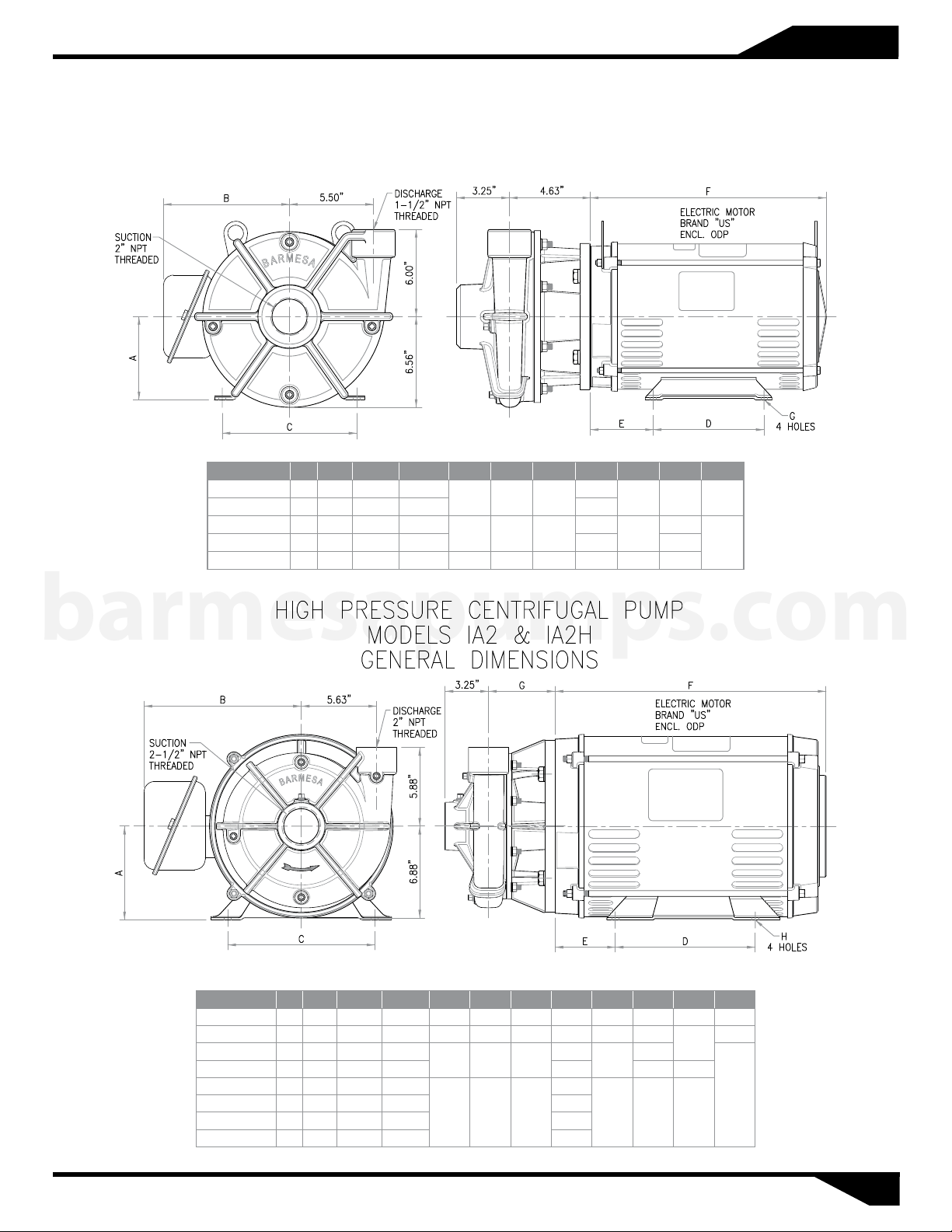

Specifications & Dimensions
barmesapumps.com

03
Recommendations, Warnings & Installation
Receiving inspection
Upon receiving the pump, it should
be inspected for damage or
shortages. If damage has occurred,
file a claim immediately with the
company that delivered the pump. If
the manual is removed from the
packaging, do not lose or misplace.
Storage
Any product that is stored for a
period longer than six (6) months
from the date of purchase should be
bench tested prior to installation. A
bench test consists of, checking the
impeller to assure it is free turning
and a run test to assure the motor
(and switch if provided) operate
properly.
Service Stations
To find the nearest Barmesa Pumps
authorized service shop, please
directly contact your distributor or
the factory.
The anchors of the motor are to be
anchor, on a raised base,
approximately 4", this to prevent
accumulated water from entering the
motor.
**See Friction Table in pipes and
fittings to determine the dimensions of
the suction and discharge.
At any time exceeding six (6) months,
but no more than twenty four (24),
the equipment must be stored in a
controlled area, keeping it away from
contact with rain, dust, etc., and the
temperature is maintained between
43-104 °F. If there is a possibility of
high humidity (coastlines, etc.), the
entire unit must be sprayed with
antioxidant liquid.
Installation
The pump should be as close as
possible to the liquid to be pumped,
with a minimum number of
couplings, adapters, etc., in order to
reduce friction on the suction side.
The suction and discharge piping
must be perfectly aligned in the
pump volute and supported
independently using support or
anchors, this to prevent excessive
load on the volute.
A successful operation depends on
the calculation of the friction loss in
the suction, considering acceptable
limits. The minimum suction pipe size
to use can be determined by
comparing the NPSH available at the
pump suction against the NPSH
required by the impeller, as shown in
the performance curves.
Usually, we recommend using a pipe
diameter of ½" to 1" greater as that of
the suction volute or body.
4"
Motor
Anchors
Eccentric
reducer
Vacuum gauge
Pippe
support
Straight pipping as short
as possible, but not less
than 6 times the
"D" diameter
Perfectly
sealed joints
Appropriate size "D"
to avoid the excess
of friction
As close
as possible
4x "D"
min.
1x "D"
min.
Strainer
Suction
valve
Figure 1 Proper installation.
A strainer or sieve should be installed
in the suction to prevent the entry of
objects. The strainer must have a free
entry area at least three times the
pipe diameter. Usually a suction valve
is combined with a strainer. (Figure 1)
Use pipe or hose reinforced
sufficiently robust to prevent
collapsing by the difference in
atmospheric pressure. Check for leaks
at all joints.
Suction
barmesapumps.com

04
Installation
1" 1 1/4" 1 1/2" 2" 2 ½" 3" 4" 5" 6" 8" 10"
30 4.54 8
37 6.86 1.77 10
45 9.62 2.48 12
57 16.2 4 1.53 15
68 20.6 5.22 2.42 18
76 25.1 6.34 2.94 20
95 38.7 9.6 4.48 1.2 0.54 25
113 54.6 13.6 6.26 1.82 0.75 30
151 95 23.5 10.79 3.1 1.28 40
170 119 29.4 13.45 3.85 1.6 45
189 146 36 16.4 4.67 1.94 0.66 50
208 43.2 19.7 5.51 2.33 0.79 55
227 51 23.2 6.59 2.72 0.92 60
246 59.6 27.1 7.7 3.17 1.07 65
265 68.8 31.3 8.86 3.63 1.22 70
284 78.7 35.8 10.15 4.14 1.39 75
303 89.2 40.5 11.4 4.66 1.57 80
322 100 45.6 12.6 5.27 1.77 85
360 125 56.5 15.8 6.49 2.18 0.57 95
378 138 62.2 17.4 7.11 2.39 0.62 100
416 75.25 21.05 8.55 2.88 0.75 110
454 88.3 24.7 10 3.37 0.88 120
530 119 33.2 13.5 4.51 1.17 0.38 140
568 137.5 38.1 15.45 5.16 1.33 0.43 150
605 156 43 17.4 5.81 1.49 0.48 160
643 48.55 19.65 6.54 1.67 0.54 170
681 54.1 21.9 7.28 1.86 0.6 180
757 66.3 26.7 8.9 2.27 0.73 0.3 200
833 80 32.2 10.07 2.72 0.87 0.35 220
908 95 38.1 12.6 3.21 1.03 0.41 240
984 111 44.5 14.7 3.74 1.2 0.48 260
1060 128 51.3 16.9 4.3 1.38 0.56 280
1135 146 58.5 19.2 4.89 1.58 0.63 300
1324 79.2 26.1 6.55 2.11 0.85 350
1514 103 33.9 8.47 2.72 1.09 0.27 400
1892 52.5 13 4.16 1.66 0.42 500
2082 63.2 15.7 4.94 2 0.5 550
2271 74.8 18.6 5.88 2.34 0.59 0.19 600
2649 101 25 7.93 3.13 0.79 0.25 700
2838 28.7 9.07 3.59 0.91 0.29 750
3028 32.4 10.22 4.04 1.02 0.32 800
3217 36.6 11.56 4.5 1.13 0.36 850
3406 40.8 12.9 5.05 1.27 0.41 900
3595 45.5 14.35 5.61 1.42 0.45 950
3785 50.2 15.8 6.17 1.56 0.5 1000
4163 19.15 7.41 1.87 0.6 1100
4542 22.5 8.76 2.2 0.7 1200
4920 26.45 10.2 2.56 0.81 1300
LITERS
PER
MINUTE
PIPING DIAMETER GALLONS
PER
MINUTE
NOTE: The values in this table refer to frictions and clean water pipes and hoses smooth
walls. As used pipe and / or hose rough walls increase the values about 50% to 100%.
Table 1 Friction in meters x 100 m of piping.
barmesapumps.com

05
Installation
Table 1 Equivalent length in meters of straight pipe and valve connections for calculating friction.
1" 1 1/2" 2" 2 ½" 3" 4" 5" 6"
STANDARD 90°
ELBOW 0.84 1.07 1.22 1.68 1.98 2.44 3.35 4.12 4.88
MEDIUM RADIUS
ELBOW 90° 0.69 0.92 1.07 1.37 1.68 2.14 2.75 3.51 4.27
LONG RADIUS
ELBOW 90° 0.54 0.69 0.84 1.07 1.37 1.6 2.14 2.75 3.36
STANDARD 45°
ELBOW 0.38 0.54 0.61 0.77 0.92 1.15 1.53 1.83 2.29
STANDARD TEE 1.68 2.29 2.75 3.36 4.28 5.19 6.71 8.23 10.1
ANGLE GLOBE VALVE
(OPEN) 3.97 5.49 6.71 8.23 10.7 12.2 16.8 21.3 25.9
GLOBE VALVE (OPEN) 7.93 10.7 13 16.8 21.3 24.4 35.1 42.7 48.8
GATE VALVE (OPEN) 0.19 0.25 0.29 0.38 0.43 0.54 0.69 0.84 1.07
INCREASER 1.21 1.52 1.82 2.74 3.35 4.26 6.09 7.92 10.1
REDUCER 0.3 0.3 0.3 0.61 0.61 0.9 1.21 1.21 2.13
SUCTION VALVE 0.91 1.21 1.52 2.13 2.74 3.35 4.87 6.4 7.92
DESCRIPTION DIAMETER PART 1 1/4"
barmesapumps.com

06
Installation
Air pocket
Concentric
reducer
Air leaks A valve in the suction pipe
is not recommended
Long piping
“D”
Vortex
Without
strainer
Too much
height
Less than
4x “D”
Piping elbow immediately
installed after the suction
Figure 2 Wrong installation.
Suction Height - suction pipe should
have a slope of 0.39" per 3.3 ft of
suction. Never exceed 16.4 ft suction,
considering friction. (Figure 3)
Positive/Drowned Suction - A gate
valve is installed in the suction pipe
to service the pump (Figure 4). Volute
or body have plugs, and these must
be removed to allow trapped air to
escape.
0.39" of inclination
per 3.28 ft
CORRECT INCORRECT
Air pocket
Figure 3 Inclination.
Check valve
(completely open)
CORRECT
“D”
6x “D” min.
Pressurized water
Figure 4 Positive suction.
A retention valve in the suction pipe
is not recommended. If required,
better install the valve in the
discharge pipe.
INCORRECT
Valve partially
closed
Figure 5 Positive suction.
Use pipe or hose reinforced
sufficiently robust to prevent
destruction due to high pressure.
Discharge pipe
Because the cost of energy or BHP
necessary to overcome the friction
generated by using a smaller
diameter pipe, a larger diameter
discharge pipe is commonly used
than that required by the volute or
body.
barmesapumps.com

Due to the cost of energy or BHP
necessary to overcome the friction
generated by using a smaller
diameter pipe, a larger diameter
discharge pipe is commonly used
than the required by the volute or
body.
07
Installation & Operation
In order to determine the optimal
size of the piping, compare the total
cost of the equipment's operation
(cost of the pump, control
equipment, piping and energy
consumption). By increasing the
discharge diameter reasonably, it
reduces the required BHP due to the
low friction. Perform different tests
using several piping diameters until
you find the more convenient.
The pipe, valves, etc. should be
perfectly align with the volutes
suction and discharge centerlines,
this to avoid any excessive loads on
the pumps volute. If needed, install
new expansive joints to protect the
pump from excessive thermal or
pressure forces.
Safety shutoff
valve
Swing check valve
could cause a
“water hammer”
Expansive
joint
Service valve.
Service valve
Retarded action
check valve
INCORRECTCORRECT
Figure 6 Discharge piping.
Install the foot valve at the suction
pipe (Figure 1) and fill with liquid the
superior part of the pump´s body.
Sometimes air is trapped inside the
body, to remove it you should uncap
the male plug until the liquids spills
out. Re-install the male plug using a
sealant.
IMPORTANT! - Do not
operate pump without
priming first. Operating dry
will damage seal.
Pre-Operation
1.Check Voltage and Phase -
Compare the voltage and phase
information stamped on the
pump name plate.
2.Check Pump Rotation - Improper
motor rotation can result in poor
pump performance and can
damage the motor and/or pump.
Check rotation on three phase
units by momentarily applying
power and observe the "kickback".
4.Priming - Every centrifugal pump
must be primed (suction pipe and
pump´s body should have liquid),
before operating.
Kickback should always be in a
counter-clockwise direction as
viewed from motor end or opposite
to impeller rotation. Impeller rotation
is counter-clockwise as viewed from
bottom of pump.
3.Name Plate - Record the
information from the pump name
plate to drawing in front of manual
for future reference.
barmesapumps.com

Starting
When starting for the first time your
equipment check that the discharge
valve is 90% closed. Gradually open
the valve until the motor runs at full
load (amperage plate). Never allow
the amperage consumed by the
pump exceeds the maximum
permitted by the engine.
Mechanical Seal - To inspect or
replace the shaft seal, remove the
body and impeller. If any part shows
wear or damage, replace both parts
(stationary seat and rotary part). The
rotating seal parts may be stuck
together with the shaft, this happens
when the seal has been assembled
for a long time.
If the mechanical seal does not leak
and there is need to open the pump
for inspection or cleaning, DO NOT
remove the seal, remove the spring
only if the impeller needs to be
removed. Once a seal has been in
operation is very difficult to remove
and reassembly without creating a
seal leak.
IMPORTANT! - Always
unplug the pump before
applying maintenance,
service or repair to avoid
electric shock.
Handle seal parts with
extreme care. DO NOT
damage lapped surfaces.
08
Operation & Maintenance
Mechanical seal
Mechanical seals installed in this
pumps are lubricated by water,
therefore the pump should not be
operated dry. You will find the
appropriate seal for each use and
liquid to be pumped, check with your
Barmesa Pumps distributor for more
information.
Stuffing box*
If the pump has graphite packing
(stuffing box) consider the following:
ŸWhen the pump is placed into
operation, the liquid will drip from
the stuffing box; if this does not
happen, loosen the nuts on the
stuffing box until dripping occurs.
ŸOnce the pump has operated for a
reasonable period and the
dripping has not decreased to “a
few drops per minute", it is
necessary to tighten the nuts
stuffing box. If tightening the nuts
the required drip is not achieved,
the graphite packing rings must be
replaced.
ŸAfter a few minutes of operation,
gradually tighten the nuts until the
dripping decreases but not cease.
Frame*
All pumps come with factory
lubricated bearings. It is very
important to have oil in the oil tank.
(Use oil DTE26). Change the oil every
1,000 hours of operation, considering
a daily operation of 8 hours.
It is important not to overfill the oil
tank because it would cause an
increase in pressure by heating,
affecting the bearings and seals. In
normal operation, the frame
temperature increases 122 °F above
ambient temperature.
*For Barmesa pumps with universal
transmission.
Flexible coupling*
All pumps operated through flexible
coupling or by pulleys and belts must
be perfectly aligned to ensure
smooth operation. In no case
problems occur with flexible
couplings if the pump-motor
alignment is correct. All pumps are
manufactured following this
condition.
Maintenance
Body and Impeller - All pump parts
are removable by removing nuts and
bolts. For body maintenance,
disconnect the suction and
discharge, and remove the body of
the intermediate coupling. For
maintenance of the impeller is not
necessary to remove the suction or
discharge, simply remove the body
nuts; this would uncover the impeller.
Examine and replace if it shows wear
or damage.
When the impeller requires
replacement, remove the screw of
the shaft, and using a puller, remove
the impeller being careful not to
abuse the keyway of the shaft.
Disassembly
Mechanical Seal - Perform the steps
above. Remove the rotating part. It
may be necessary to remove the
intermediate link to remove the
stationary seat. To do this, remove the
nuts and washers that attach the
coupling to the motor. When
removing the coupling, the steady
part will move towards the front seat
of the shaft and the sleeve. If the seat
does not yield itself, push from the
rear of the coupling.
Reassembly
Mechanical Seal - Identify all parts of
Figures 7 and 8. The ring (6) and seat
(1) are perfectly polished, so care
must be taken not to scratch or
smudge. The cleaning during the
assembly process is very important.
IMPORTANT! - All parts
must be clean before
reassembly.
barmesapumps.com

1 - Ceramic seat
2 - Seal seat Buna-N
3 - Inox. retainer
4 - Inox. jacket
5 - Inox. spring
6 - Carbon ring
7 - Elastomer Buna-N
8 - Inox. washer
2
1
3
6
4
5
7
8
Figure 7 Mechanical Seal - Sectional View.
Intermediate
coupling
Shaft
sleeve
Shaft
Seal
stationary
Seal
rotating
member
Seal
spring
Impeller
Impeller
lockwasher
Lockwasher Hex.
screw
Figure 8 Mechanical Seal - Assembly.
09
Service
Step 1: Install the intermediate
coupling if it was previously
removed. Make sure the shaft and
cavities, where will it seats, are clean.
The shaft sleeve should not be sharp,
but a radius of about 1/32”. It is
recommended that lightly polish the
area of the shaft. If the shaft and it
radius are perfectly polished, the seal
can be relatively easily installed.
Step 2: Install the seat assembly (1
and 2) on the inside of the
intermediate coupling, using an SAE
No. 90 oil in rubber parts. This
assembly should be done only
manually, meaning without the use
of an instrument.
Step 3: Install the rotating portion of
the seal without the spring. Lubricate
the shaft and the inside of the seal
with three or four drops of SAE No. 10
oil. With clean, dry hands, insert the
rotating portion to the shaft, sliding
it abuts the stationary seat. Once the
seal is in place, insert the spring (5).
Step 4: Place the impeller and
washers; tighten the hex screw.
Maintenance
Flexible Coupling - Universal type
pumps generally use 2 different types
of flexible couplings: the "Lovejoy"
type with rubber spider, and the
"Steelflex" type "F" with grids buffer.
The first mentioned coupling requires
no lubrication, the second does
require lubrication at least every
twelve months. If the second type of
coupling is exposed to excessive
moisture, extreme temperatures,
sudden loads applications, etc., it
should be lubricated more often. For
more information on the type of
lubricant consult your distributor.
Flexible Coupling
"Lovejoy" type - To remove, just
loosen the set screws on the hub. To
reinstall, align the shaft and tighten
the set screws. Should take in
consideration a clearance of 1/16"
(1.574 mm) between jaws. As
mentioned earlier, a good alignment
is essential for optimal operation.
"Steelflex" type - Identify the parts
in Figure 10. The most relevant issue
in the assembly of a coupling of this
type is the clearance point that
should be left between the hubs; to
determine this see Table 3.
Disassembly
Flexible Coupling
ŸSeparate coupling covers,
removing the nuts and bolts. Be
sure not to damage the seal.
ŸTo remove the grid, use a round
bar or a screwdriver to fit the
curves of the grid.
ŸInsert the tool into the open end of
the grid toward the curved end,
pry out gradually. Alternate
procedure on each side to pop out
half of the grating.
ŸRepeat for each side until it clears
the grid.
ŸIf you need to remove the hubs,
loosen the set screws if the model
has them.
Assembly
Flexible Coupling
ŸIf the hubs are removed, adjust
shaft shims.
barmesapumps.com

10
Service
ŸMount hubs on the shaft, leaving
the faces flush with the shaft ends.
ŸTighten the set screws if the model
has them.
ŸDetermine the required clearance
using Table 3. Using a spacer bar
with the obtained thickness, insert
between the hubs at the the same
depth and in 90 ° intervals.
ŸUse a feeler gauge to measure the
gap between the space bar and
hub face. The difference between
the maximum and minimum must
not exceed the specified angular
limit.
ŸCheck that the pump-motor
alignment is correct, resting one
square object straight (ruler) at 90°
intervals. Check the clearance with
a feeler gauge.
ŸProceed to tighten the anchor and
check alignment and clearance
again; if necessary, repeat the
process from the beginning until
you get a proper alignment.
ŸInsert the joint by the clearance
between the hubs and rest it on
any of the covers. Lubricate the
slots and clearance with as much
grease as possible.
ŸFill the spaces between the grid
and around it with grease. Remove
excess.
ŸOil the seals to slide on the hubs,
align and assemble the covers,
leaving a displacement of 180 °
between the lubrication holes.
ŸTighten the screws of the covers
and check for proper assembly of
the seals.
Socket head
set screw
Coupling
hubs
Rubber
spider
Figure 9 "Lovejoy" coupling.
ŸTo insert the grid, note that their
segments are radial. To extend as
little as possible, go partially
inserting segments using a soft
mallet. Once the segments are in
position, push them to the bottom
of the grids.
The grid the inner faces (INT) and
external (EXT) are marked for easy
identification.
ŸFit the covers with the seals (lightly
greased) on the shaft.
1
6
2345
Figure 10 "Steelflex" type F coupling.
1 - Screws, nuts and washers
2 - Cover halves
3 - Gear hubs
4 - Grid members
5 - Gasket
6 - Seal rings
barmesapumps.com

11
Service
Table 3 Coupling installation.
NOTE 1: “X” is the difference between the measures of the clearance, taken at opposite
ends of the hub flanges.
NOTE 2: the values of the parallel offset may be absorbed by the articulation between
the hubs and the grid. In any case, the lifetime of the couplings will increase with a
minimum maintenance if a precision alignment is performed.
ANGULAR MAX
RECOMMENDED
ANGULAR
TOTAL AXIAL
3 1/8" 0.026" 0.005" 0.015" 0.005" 0.156"
4 1/8" 0.028" 0.005" 0.02" 0.007" 0.188"
5 1/8" 0.033" 0.005" 0.02" 0.007" 0.188"
6 1/8" 0.038" 0.005" 0.02" 0.007" 0.188"
7 1/8" 0.045" 0.005" 0.02" 0.007" 0.188"
8 1/8" 0.052" 0.01" 0.03" 0.01" 0.25"
9 1/8" 0.057" 0.01" 0.04" 0.01" 0.25"
10 3/16" 0.063" 0.01" 0.04" 0.01" 0.375"
11 3/16" 0.071" 0.01" 0.04" 0.01" 0.375"
12 3/16" 0.078" 0.012" 0.04" 0.012" 0.375"
13 3/16" 0.091" 0.012" 0.04" 0.012" 0.375"
14 1/4" 0.098" 0.012" 0.045" 0.012" 0.5"
15 1/4" 0.1" 0.012" 0.045" 0.012" 0.5"
16 1/4" 0.1" 0.012" 0.045" 0.012" 0.5"
17 1/4" 0.105" 0.012" 0.045" 0.012" 0.5"
18 1/4" 0.125" 0.012" 0.045" 0.012" 0.5"
MISALIGNMENT
HUB GAP
COUPLING SIZE
MECHANICAL
PARALLEL OFFSET
MAX PARALLEL
RECOMMENDED
“X”
barmesapumps.com

Drawings
barmesapumps.com
MODEL HP RPM PHASE FRAME A B C D E F G
IA1-2-4 2 1735 3 145JM 3.5" 5.5" 5" 2.75" 12" 0.34"
IA1-3-2 3 3510 3 182JM 4.5"
IA1-5-2 5 3490 3 184JM
IA1-7.5-2 7.5 3515 3 213JM 5.25" 7.6" 8.5" 4.25" 13.5" 0.41"
4.5" 6.88" 7.5" 3.63" 11.81" 0.41"
5.5"
MODEL HP RPM PHASE FRAME A B C D E F G H
IA1½-5-2 5 3490 3 184JM 4.5" 6.88" 7.5" 3.63" 11.81"
IA1½-7.5-2 7.5 3515 3 213JM 13.25"
IA1½-10-2 10 3505 3 215JM 7" 14.75"
IA1½-15-2 15 3530 3 254JM 8.25" 19.06"
IA1½-20-2 20 3525 3 256JM 10" 19.65"
IA1½H-3-4 3 1740 3 182JM 4.5" 6.88" 7.5" 4.5" 3.63" 11.81" 4.25" 0.41"
IA1½H-15-2 15 3530 3 254JM 8.25" 19.06"
IA1½H-20-2 20 3525 3 256JM 10" 19.65"
IA1½H-25-2 25 3525 3 284JM 9.5"
IA1½H-30-2 30 3525 3 286JM 11"
6.25" 10" 10" 4.5" 4.54"
0.53"
7" 11.75" 11" 4.75" 20.5" 5.18"
0.41"
5.25" 7.6" 8.5" 4.25"
4.54"
6.25" 10" 10" 4.5" 0.53"
5.5" 4.25"
HIGH PRESSURE CENTRIFUGAL PUMP
MODEL IA1½ & IA1½H
GENERAL DIMENSIONS
12

Drawings
barmesapumps.com
HIGH PRESSURE CENTRIFUGAL PUMP
MODEL IA1½XH GENERAL DIMENSIONS
MODEL HP RPM PHASE FRAME A B C D E F G
IA1½XH-3-4 3 1750 3 182JM 4.5"
IA1½XH-5-4 5 1730 3 184JM 5.5"
IA1½XH-15-2 15 3530 3 254JM 8.25" 19.06"
IA1½XH-20-2 20 3525 3 256JM 10" 19.65"
IA1½XH-25-2 25 3525 3 284JM 7" 11.75" 11" 9.5" 4.75" 20.5"
4.5" 6.88" 7.5" 3.63" 11.81" 0.41"
6.25" 10" 10" 4.5" 0.53"
MODEL HP RPM PHASE FRAME A B C D E F G H
IA2-2-4 2 1735 3 145JM 3.5" 6.88" 5.5" 5" 2.75" 12" 4.03" 0.34"
IA2-10-2 10 3505 3 215JM 5.25" 7.6" 8.5" 7" 4.25" 14.75" 0.41"
IA2-15-2 15 3530 3 254JM 8.25" 19.06"
IA2-20-2 20 3525 3 256JM 10" 19.65" 4.03"
IA2-25-2 25 3525 3 284JM 9.5"
IA2-30-2 30 3525 3 286JM 11"
IA2H-25-2 25 3525 3 284JM 9.5"
IA2H-30-2 30 3525 3 286JM 11"
4.28"
6.25" 10" 10" 4.5"
0.53"
7" 11.75" 11" 4.75" 20.5" 5"
13

Drawings
barmesapumps.com
HIGH PRESSURE CENTRIFUGAL PUMP
MODEL IA2½ GENERAL DIMENSIONS
MODEL HP RPM PHASE FRAME A B C D E F G H
IA2½-3-4 3 1740 3 182JM 4.5"
IA2½-5-4 5 1730 3 184JM 5.5"
IA2½-10-2 10 3505 3 215JM 5.25" 7.6" 8.5" 7" 4.25" 15"
IA2½-15-2 15 3530 3 254JM 8.25"
IA2½-20-2 20 3525 3 256JM 10"
IA2½-25-2 25 3525 3 284JM 9.5"
IA2½-30-2 30 3525 3 286JM 11"
IA2½-40-2 40 3530 3 324JM 8" 14.75" 12.5" 10.5" 5.25" 22.25" 0.69"
4.5" 6.88" 7.5" 3.63" 11.81" 4.47" 0.41"
4.72"
6.25" 10" 10"
4.75"
19.31"
0.53"
7" 11.75" 11" 20.5" 5.44"
SUCTION
4" NPT
THREADED
DISCHARGE
3" NPT
THREADED
ELECTRIC MOTOR
BRAND "US"
ENCL. ODP
4 HOLES
HIGH PRESSURE CENTRIFUGAL PUMP
MODEL IA3 & IA3H
GENERAL DIMENSIONS
MODEL HP RPM PHASE FRAME A B C D E F G H
IA3-3-4 3 1740 3 182JM 4.5"
IA3-5-4 5 1730 3 184JM
IA3-7.5-4 7.5 1750 3 213JM 5.25" 7.6" 8.5" 4.25" 13.5" 4.78"
IA3-15-2 15 3530 3 254JM 8.25" 19.31"
IA3-20-2 20 3525 3 256JM 10" 19.94"
IA3-25-2 25 3525 3 284JM 9.5"
IA3-30-2 30 3525 3 286JM 11"
IA3-40-2 40 3530 3 324JM 10.5"
IA3-50-2 50 3530 3 326JM 12"
IA3H-30-2 30 3525 3 286JM 7" 11.75" 11" 11" 4.75" 20.5" 0.53"
IA3H-40-2 40 3530 3 324JM 10.5"
IA3H-50-2 50 3530 3 326JM 12"
IA3H-60-2 60 3565 3 364JM 11.25" 23"
IA3H-75-2 75 3565 3 365JM 12.25" 24"
0.69"
5.46"
8" 14.75" 12.5" 5.25" 22.25"
0.69"
9" 16.31" 14" 5.88"
4.5" 6.88" 7.5" 3.63" 11.81" 4.53" 0.41"
5.5"
6.25" 10" 10"
4.75"
5.53"
0.53"
7" 11.75" 11" 20.5"
5.46"
8" 14.75" 12.5" 5.25" 22.25"
14

Drawings
barmesapumps.com
HIGH PRESSURE CENTRIFUGAL PUMP
MODEL IA4 GENERAL DIMENSIONS
SUCTION
6" NPT
DISCHARGE
4" NPT
4 HOLES
MODEL HP RPM PHASE FRAME A B C D E F G
IA4-40-2 40 3530 3 324TSC 24" 10.5"
IA4-50-2 50 3530 3 326TSC 25.5" 12"
IA4-60-2 60 3565 3 364TSC 28" 11.25"
IA4-75-2 75 3555 3 365TSC 29" 12.25"
IA4-100-2 100 3560 3 405TSC 30.5" 13.75" 6.38" 16" 10"
IA4-125-2 125 3570 3 444TSC 37.75" 14.5" 8.75" 18" 11" 18.75" 0.81"
5" 12.5" 8" 12" 0.66"
5.75" 14" 9" 16.5" 0.66"
15

Parts List
barmesapumps.com
IA1
ITEM QTY. DESCRIPTION # PART
ELECTRIC MOTOR, 200-230/460, ODP
2 HP, 1750 RPM, 3 PH, FRAME 145T JM
3 HP, 3510 RPM, 3 PH, FRAME 182T JM
5 HP, 3490 RPM, 3 PH, FRAME 184T JM
7.5 HP, 3515 RPM, 3 PH, FRAME 213T JM
INTERMEDIATE COUPLING, FOR 2 TO 5 HP 03010028
INTERMEDIATE COUPLING, FOR 7.5 HP 03010018
3 1 VOLUTE CASE 03090038
IMPELLER IA1-3-2, Ø5.75" 03140031
IMPELLER IA1-5-2, Ø6.81" 03140031B
IMPELLER IA1-2-4 & IA1-7.5-2, Ø7.50" 03140031C
5 1 SHAFT SLEEVE 30400808
6 1 SLINGER 92010014
7 1 MECHANICAL SEAL 31030131
8 1 O-RING 92010033
9 1 IMPELLER'S SCREW 91010345C
10 1 LOCK WASHER 3/8" SS 91010061
11 1 IMPELLER WASHER 30400418
12 1 SHAFT KEY 30400631
13 8 STUD 3/8-16X 1.50" 91010303
14 8 HEX NUT 3/8" 91010413
15 8 LOCK WASHER 3/8" STEEL 91010012
CAP SCREW 3/8-16 X 1.25" 91010243
CAP SCREW 1/2-13 X 1.50" 91010263
LOCK WASHER 3/8" STEEL 91010012
LOCK WASHER 1/2" STEEL 91010014
18 5 PIPE PLUG 1/4" NPT 93010143
1 1
2 1
4 1
16 4
17 4
16

Parts List
IA1½
ITEM QTY. DESCRIPTION # PART
ELECTRIC MOTOR, 200-230/460, ODP
5 HP, 3490 RPM, 3 PH, FRAME 184T JM
7.5 HP, 3515 RPM, 3 PH, FRAME 213T JM
10 HP, 3505 RPM, 3 PH, FRAME 215T JM
15 HP, 3530 RPM, 3 PH, FRAME 254T JM
20 HP, 3525 RPM, 3 PH, FRAME 256T JM
INTERMEDIATE COUPLING, FOR 5 HP 03010028
INTERMEDIATE COUPLING, FOR 7.5 TO 15 HP 03010018
INTERMEDIATE COUPLING, FOR 20 HP 03010051
3 1 VOLUTE CASE 03090039
IMPELLER IA1½-5-2, Ø6.22" 03140032
IMPELLER IA1½-7.5-2, Ø7.13" 03140032B
IMPELLER IA1½-10-2, Ø8.00" 03140032C
IMPELLER IA1½-15 & 20-2, Ø9.00" 03140032E
SHAFT SLEEVE, FOR 5 TO 10 HP 30400808
SHAFT SLEEVE, FOR 15 & 20 HP 30400812
SLINGER, FOR 5 TO 10 HP 92010014
SLINGER, FOR 15 & 20 HP 92010016
MECH. SEAL, FOR 5 TO 10 HP 31030131
MECH. SEAL, FOR 15 & 20 HP 31030133
8 1 O-RING 92010033
IMPELLER'S SCREW, FOR 5 TO 10 HP 91010345C
IMPELLER'S SCREW, FOR 15 & 20 HP 91010351
LOCK WASHER, 3/8" SS, FOR 5 TO 10 HP 91010061
LOCK WASHER, 1/2" SS, FOR 15 & 20 HP 91010062
IMPELLER WASHER, FOR 5 TO 10 HP 30400418
IMPELLER WASHER, FOR 15 & 20 HP 30400416
SHAFT KEY, FOR 5 TO 10 HP 30400631
SHAFT KEY, FOR 15 & 20 HP 30400633
13 8 STUD 3/8-16X 1.50" 91010303
14 8 HEX NUT 3/8" 91010413
15 8 LOCK WASHER 3/8" 91010012
CAP SCREW, 3/8-16 X 1.25" FOR 5 TO 10 HP 91010243
CAP SCREW, 1/2-13 X 1.50" FOR 15 & 20 HP 91010263
LOCK WASHER, 3/8" STEEL, FOR 5 TO 10 HP 91010012
LOCK WASHER, 1/2" STEEL, FOR 15 & 20 HP 91010014
18 5 PIPE PLUG 1/4" NPT 93010143
16 4
17 4
1 1
2 1
4 1
5 1
6 1
7 1
9 1
10 1
11 1
12 1
ITEM QTY. DESCRIPTION # PART
ELECTRIC MOTOR, 200-230/460, ODP
3 HP, 1740 RPM, 3 PH, FRAME 182T JM
15 HP, 3530 RPM, 3 PH, FRAME 254T JM
20 HP, 3525 RPM, 3 PH, FRAME 256T JM
25 HP, 3530 RPM, 3 PH, FRAME 284T JM
30 HP, 3525 RPM, 3 PH, FRAME 286T JM
INTERMEDIATE COUPLING, FOR 3 HP 03010028
INTERMEDIATE COUPLING, FOR 15 HP 03010018
INTERMEDIATE COUPLING, FOR 20 HP 03010051
INTERMEDIATE COUPLING, FOR 25 & 30 HP 03010020
3 1 VOLUTE CASE 03090039B
IMPELLER IA1½H-15-2, Ø7.94" (SHAFT Ø1¼") 03140065
IMPELLER IA1½H-20-2, Ø8.63" (SHAFT Ø1¼") 03140065B
IMPELLER IA1½H-25 & 30-2, Ø9.00" 03140065C
IMPELLER IA1½H-3-4, Ø9.00" (SHAFT Ø7/8") 03140032G
SHAFT SLEEVE, FOR 3 HP TO 20 HP 30400808
SHAFT SLEEVE, FOR 25 TO 30 HP 30400812
SLINGER, FOR 3 HP TO 20 HP 92010014
SLINGER, FOR 25 & 30 HP 92010016
MECH. SEAL, FOR 3 TO 20 HP 31030131
MECH. SEAL, FOR 25 & 30 HP 31030133
8 1 O-RING 92010033
IMPELLER'S SCREW, FOR 3 TO 20 HP 91010345C
IMPELLER'S SCREW, FOR 25 & 30 HP 91010351
LOCK WASHER, 3/8" SS, FOR 3 TO 20 HP 91010061
LOCK WASHER, 1/2" SS, FOR 25 & 30 HP 91010062
IMPELLER WASHER, FOR 3 TO 20 HP 30400418
IMPELLER WASHER, FOR 25 & 30 HP 30400416
SHAFT KEY, FOR 3 TO 20 HP 30400631
SHAFT KEY, FOR 25 & 30 HP 30400633
13 8 STUD 3/8-16X 1.50" 91010303
14 8 HEX NUT 3/8" 91010413
15 8 LOCK WASHER 3/8" 91010012
CAP SCREW, 3/8-16 X 1.25" FOR 3 HP 91010243
CAP SCREW, 1/2-13 X 1.50" FOR 15 & 20 HP 91010263
CAP SCREW, 5/8-11 X 1.50" FOR 25 & 30 HP 91010282
LOCK WASHER, 3/8" STEEL, FOR 3 HP 91010012
LOCK WASHER, 1/2" STEEL, FOR 15 & 20 HP 91010014
LOCK WASHER, 5/8" STEEL, FOR 25 TO 30 HP 91010015
18 5 PIPE PLUG 1/4" NPT 93010143
11 1
12 1
16 4
17 4
5 1
6 1
7 1
9 1
10 1
1 1
2 1
4 1
IA1½H
17
barmesapumps.com

Parts List
IA2½ IA2H
ITEM QTY. DESCRIPTION # PART
ELECTRIC MOTOR, 200-230/460, ODP
3 HP, 1740 RPM, 3 PH, FRAME 182T JM
5 HP, 1730 RPM, 3 PH, FRAME 184T JM
10 HP, 3505 RPM, 3 PH, FRAME 215T JM
15 HP, 3530 RPM, 3 PH, FRAME 254T JM
20 HP, 3525 RPM, 3 PH, FRAME 256T JM
25 HP, 3525 RPM, 3 PH, FRAME 284T JM
30 HP, 3525 RPM, 3 PH, FRAME 286T JM
40 HP, 3530 RPM, 3 PH, FRAME 324T JM
INTERMEDIATE COUPLING, FOR 2 HP, 1750 RPM 03010028
INTERMEDIATE COUPLING, FOR 10 & 15 HP, 3500 RPM 03010018
INTERMEDIATE COUPLING, FOR 20 HP, 3525 RPM 03010051
INTERMEDIATE COUPLING, FOR 25 & 30 HP, 3525 RPM 03010020
3 1 VOLUTE CASE 03090041
IMPELLER IA2½ FOR 3 HP, Ø9.00" (SHAFT Ø7/8") 03140034K
IMPELLER IA2½ FOR 5 HP, Ø9.00" (SHAFT Ø7/8") 03140034K
IMPELLER IA2½ FOR 10 HP, Ø6.94" (SHAFT Ø7/8") 03140034
IMPELLER IA2½ FOR 15 HP, Ø6.94" (SHAFT Ø1¼") 03140034
IMPELLER IA2½ FOR 20 HP, Ø7.69" (SHAFT Ø1¼") 03140034B
IMPELLER IA2½ FOR 25 HP, Ø8.44" (SHAFT Ø1¼") 03140034C
IMPELLER IA2½ FOR 30 HP, Ø8.88" (SHAFT Ø1¼") 03140034D
IMPELLER IA2½ FOR 40 HP, Ø9.00" (SHAFT Ø1¼") 03140034E
SHAFT SLEEVE, FOR 3 & 10 HP 30400808
SHAFT SLEEVE, FOR 15 TO 40 HP 30400812
SLINGER, FOR 3 TO 10 HP, Ø1¼" 92010014
SLINGER, FOR 15 TO 40 HP, Ø1¾" 92010016
MECH. SEAL, FOR 3 TO 10 HP 31030131
MECH. SEAL, FOR 15 TO 40 HP 31030133
8 1 O-RING 92010033
IMPELLER'S SCREW, FOR 3 TO 10 HP 91010345C
IMPELLER'S SCREW, FOR 15 TO 40 HP 91010351
LOCK WASHER, 3/8" SS, FOR 3 TO 10 HP 91010061
LOCK WASHER, 1/2" SS, FOR 15 TO 40 HP 91010062
IMPELLER WASHER, FOR 3 TO 10 HP 30400418
IMPELLER WASHER, FOR 15 TO 40 HP 30400416
SHAFT KEY, FOR 3 HP TO 10 HP 30400631
SHAFT KEY, FOR 15 TO 40 HP 30400633
13 8 STUD 3/8-16X 1.50" 91010303
14 8 HEX NUT 3/8" 91010413
15 8 LOCK WASHER 3/8" 91010012
CAP SCREW, 3/8-16 X 1.25" FOR 3 & 5 HP 91010243
CAP SCREW, 1/2-13 X 1.50" FOR 10 TO 20 HP 91010263
CAP SCREW, 5/8-11 X 1.50" FOR 25 TO 40 HP 91010282
LOCK WASHER, 3/8" STEEL, FOR 3 & 5 HP 91010012
LOCK WASHER, 1/2" STEEL, FOR 10 TO 20 HP 91010014
LOCK WASHER, 5/8" STEEL, FOR 25 & 40 HP 91010015
18 5 PIPE PLUG 1/4" NPT 93010143
16 4
17 4
7 1
9 1
10 1
11 1
12 1
1 1
2 1
4 1
5 1
6 1
ITEM QTY. DESCRIPTION # PART
ELECTRIC MOTOR, 200-230/460, ODP
25 HP, 3525 RPM, 3 PH, FRAME 284T JM
30 HP, 3525 RPM, 3 PH, FRAME 286T JM
2 1 INTERMEDIATE COUPLING, FOR 25 & 30 HP 03010020
3 1 VOLUTE CASE 03090040B
IMPELLER IA2H-25-2, Ø8.63" 03140034H
IMPELLER IA2H-30-2, Ø9.00" 03140034I
5 1 SHAFT SLEEVE 30400812
6 1 SLINGER 92010016
7 1 MECHANICAL SEAL 31030133
8 1 O-RING 92010033
9 1 IMPELLER'S SCREW 91010351
10 1 LOCK WASHER 1/2" SS 91010062
11 1 IMPELLER WASHER 30400416
12 1 SHAFT KEY 30400633
13 8 STUD 3/8-16 X 1.50" 91010303
14 8 HEX NUT 3/8" 91010413
15 8 LOCK WASHER 3/8" 91010012
16 4 CAP SCREW 5/8-11 X 1.50" 91010282
17 4 LOCK WASHER 5/8" STEEL 91010015
18 5 PIPE PLUG 1/4" NPT 93010143
1 1
4 1
18
barmesapumps.com

Parts List
IA3 IA3H
ITEM QTY. DESCRIPTION # PART
ELECTRIC MOTOR, 200-230/460, ODP
3 HP, 1740 RPM, 3 PH, FRAME 182T JM
5 HP, 1730 RPM, 3 PH, FRAME 184T JM
7.5 HP, 1750 RPM, 3 PH, FRAME 213T JM
15 HP, 3530 RPM, 3 PH, FRAME 254T JM
20 HP, 3525 RPM, 3 PH, FRAME 256T JM
25 HP, 3525 RPM, 3 PH, FRAME 284T JM
30 HP, 3525 RPM, 3 PH, FRAME 286T JM
40 HP, 3530 RPM, 3 PH, FRAME 324T JM
50 HP, 3530 RPM, 3 PH, FRAME 326T JM
INTERMEDIATE COUPLING, FOR 3 TO 5 HP, 1750 RPM 03010028
INTERMEDIATE COUPLING, FOR 7.5 HP, 3500 RPM 03010018
INTERMEDIATE COUPLING, FOR 15 & 20 HP, 3500 RPM 03010051
INTERMEDIATE COUPLING, FOR 25 TO 50 HP, 3525 RPM 03010020
3 1 VOLUTE CASE 03090042
IMPELLER IA3 FOR 3 HP, Ø7.50" (SHAFT Ø7/8") 03140035I
IMPELLER IA3 FOR 5 HP, Ø8.40" (SHAFT Ø7/8") 03140035J
IMPELLER IA3 FOR 7.5 HP, Ø9.00" (SHAFT Ø7/8") 03140035H
IMPELLER IA3 FOR 15 & 20 HP, Ø6.94" (SHAFT Ø1¼") 03140035B
IMPELLER IA3 FOR 25 HP, Ø7.50" (SHAFT Ø1¼") 03140035C
IMPELLER IA3 FOR 30 HP, Ø8.00" (SHAFT Ø1¼") 03140035D
IMPELLER IA3 FOR 40 HP, Ø8.75" (SHAFT Ø1¼") 03140035E
IMPELLER IA3 FOR 50 HP, Ø9.00" (SHAFT Ø1¼") 03140035F
SHAFT SLEEVE, FOR 3 TO 7.5 HP 30400808
SHAFT SLEEVE, FOR 15 TO 50 HP 30400812
SLINGER, FOR 3 TO 7.5 HP, Ø1¼" 92010014
SLINGER, FOR 15 TO 50 HP, Ø1¾" 92010016
MECH. SEAL, FOR 3 TO 7.5 HP 31030131
MECH. SEAL, FOR 15 TO 50 HP 31030133
8 1 O-RING 92010033
IMPELLER'S SCREW, FOR 3 TO 7.5 HP 91010345C
IMPELLER'S SCREW, FOR 15 TO 50 HP 91010351
LOCK WASHER, 3/8" SS, FOR 3 TO 7.5 HP 91010061
LOCK WASHER, 1/2" SS, FOR 15 TO 50 HP 91010062
IMPELLER WASHER, FOR 3 TO 7.5 HP 30400418
IMPELLER WASHER, FOR 15 TO 50 HP 30400416
SHAFT KEY, FOR 3 HP TO 7.5 HP 30400631
SHAFT KEY, FOR 15 TO 50 HP 30400633
13 8 STUD 3/8-16X 1.50" 91010303
14 8 HEX NUT 3/8" 91010413
15 8 LOCK WASHER 3/8" 91010012
CAP SCREW, 3/8-16 X 1.25" FOR 3 & 5 HP 91010243
CAP SCREW, 1/2-13 X 1.50" FOR 7.5 TO 20 HP 91010263
CAP SCREW, 5/8-11 X 1.50" FOR 25 TO 50 HP 91010282
LOCK WASHER, 3/8" STEEL, FOR 3 & 5 HP 91010012
LOCK WASHER, 1/2" STEEL, FOR 7.5 TO 20 HP 91010014
LOCK WASHER, 5/8" STEEL, FOR 25 & 50 HP 91010015
18 1 PIPE PLUG 1/2" NPT 93010142
19 3 PIPE PLUG 1/4" NPT 93010143
17 4
9 1
10 1
11 1
12 1
16 4
2 1
4 1
5 1
6 1
7 1
1 1
ITEM QTY. DESCRIPTION # PART
ELECTRIC MOTOR, 200-230/460, ODP
30 HP, 3525 RPM, 3 PH, FRAME 286T JM
40 HP, 3530 RPM, 3 PH, FRAME 324T JM
50 HP, 3530 RPM, 3 PH, FRAME 326T JM
60 HP, 3565 RPM, 3 PH, FRAME 364T JM
75 HP, 3565 RPM, 3 PH, FRAME 365T JM
2 1 INTERMEDIATE COUPLING, FOR 30 TO 75 HP, 3500 RPM 03010020
3 1 VOLUTE CASE 03090042
IMPELLER IA3H FOR 30 HP, Ø7.50" (SHAFT Ø1¼") 03140066B
IMPELLER IA3H FOR 40 HP, Ø7.94" (SHAFT Ø1¼") 03140066C
IMPELLER IA3H FOR 50 HP, Ø8.50" (SHAFT Ø1¼") 03140066D
IMPELLER IA3H FOR 60 TO 75 HP, Ø9.0" (SHAFT Ø1¼") 03140066E
5 1 SHAFT SLEEVE, FOR 30 TO 75 HP 30400812
6 1 SLINGER, FOR 30 TO 75 HP, Ø1¾" 92010016
7 1 MECH. SEAL, FOR 30 TO 75 HP 31030133
8 1 O-RING 92010033
9 1 IMPELLER'S SCREW 91010351
10 1 LOCK WASHER, 1/2" SS 91010062
11 1 IMPELLER WASHER 30400416
12 1 SHAFT KEY, FOR 30 TO 75 HP 30400633
13 8 STUD 3/8-16X 1.50" 91010303
14 8 HEX NUT 3/8" 91010413
15 8 LOCK WASHER 3/8" 91010012
16 4 CAP SCREW, 5/8-11 X 1.50" 91010282
17 4 LOCK WASHER, 5/8" STEEL 91010015
18 1 PIPE PLUG 1/2" NPT 93010142
19 3 PIPE PLUG 1/4" NPT 93010143
1 1
4 1
19
barmesapumps.com
