Barmesa Pumps BCS Series Instruction manual

Installation, Operation &
Maintenance Manual
End-Suction Centrifugal
Stainless Steel Pumps
IMPORTANT! - Read all instructions in this manual before operating or servicing
a pump.
Last update: 07/15/2021
BCS series
0.5 HP @ 1750 RPM
0.75-3 HP @ 3500 RPM
BCSF series
0.5-5 HP @ 1750 RPM
3-20 HP @ 3500 RPM
barmesa.com

1
General Safety Information
Before installation, read the following
instructions carefully. Failure to
follow instruction and safety
information could cause serious
bodily injury, death and/or property
damage. Each Barmesa product is
carefully inspected to insure proper
performance. Closely following these
instructions will eliminate potential
operating problems, assuring years
of trouble-free service.
IMPORTANT! - Barmesa Pumps is not
responsible for losses, injury or
death resulting from failure to
observe these safety precautions,
misuse, abuse or misapplication of
pumps or equipment.
Installation, wiring, and
junction connections must be in
accordance with the National Electric
Code and all applicable state and local
codes. Requirements may vary
depending on usage and location.
WARNING
I n s t a l l a t i o n a n d
servicing is to be conducted by
qualified personnel only.
WARNING
D o n o t p u m p
hazardous materials (flammable,
caustic, etc.) or use these pumps in
water over 160 °F. Do not exceed
ma nu fa c tu rer s r eco mm en de d
maximum performance, as this could
cause the motor to overheat.
WARNING
C a r e f u l l y r e a d
instruction manuals supplied with
motor or engine before operating or
servicing.
WARNING
A L L R E T U R N E D
P R O D U C T S M U S T B E
CLEANED, SANITIZED, OR
DE CO N TA M I N AT E D P R I OR TO
SHIPMENT, TO INSURE EMPLOYEES
WILL NOT BE EXPOSED TO HEALTH
HAZ ARDS IN HANDLING SAID
MATERIAL. ALL APPLICABLE LAWS
AND REGULATIONS SHALL APPLY.
Keep clear of suction and
discharge openings. Do not
insert fingers in pump with
power connected; the impeller can
cause serious injury.
Always wear eye protection
when working on pumps. Do
not wear loose clothing that
may become entangled in moving
parts.
Pumps build up heat
and pressure during
operation. Allow time
for p u mp s to co ol
DANGER
before handling or servicing the
pum p o r a ny a ccess o r y it e ms
associated with or near the pump. Do
not block or restrict the discharge
pipe/hose.
T h i s p u m p i s n o t
i n t e n d e d f o r u s e i n
swimming pools or water
installations where there is
DANGER
human contact with pumped fluid.
Risk of electric shock. To
reduce risk of electric shock,
always disconnect pump
from power source before
DANGER
handling any aspect of the pumping
system. Lock out power and tag.
Indicates a potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
CAUTION
Do not lift, carry or
hang pump by the electrical
cab les. D am a ge to the
electrical cables can cause
DANGER
shock, burns or death. Never handle
connected power cords with wet
hands. Use appropriate lifting device.
Indicates an immi-
nently hazardous situation which, if
not avoided, MAY result in death or
serious injury.
WARNING
Indicates an immi-
nently hazardous situation which, if
not avoided, WILL result in death or
serious injury.
DANGER
Failure to permanently
ground the pump, motor and
controls before connecting
to power can cause shock,
DANGER
burns or death.
IMPORTANT! - Prior to installation,
record Model Number, Serial, Amps,
Voltage, Phase and HP from pump
name plate for the future reference.
Also record the Voltage and current
readings at startup:
Model Number: _____________________
Serial: _____________________________
PHASE: ______ HP: __________________
3 Phase Models
Amps L1-2: Volts L1-2:
Amps L2-3: Volts L2-3:
Amps L3-1: Volts L3-1:
barmesa.com

2
Specifications & Dimensions
SUCTION: 1¼" or 1½" NPT horizontal.
DISCHARGE: 1" or 1¼" NPT vertical.
SPHL SLD HNDLG: Up to 3/8" diameter.
MAX. WORKING PRESSURE : 175 PSIG.
MAX TEMPERATURES: 250 °F (121 °C).
BODY: AISI 316 stainless steel.
INTERMEDIATE COUPLING: Cast iron.
IMPELLER: Open, AISI 316 stainless steel.
MECHANICAL SEAL: Type 01. Carbon/silicon-carbide faces, Viton® elastomers and 316 stainless steel
metal parts.
SEAL PLATE: AISI 316 stainless steel.
SHAFT SLEEVE: AISI 316 stainless steel.
O-RINGS: Viton®.
MOTOR: NEMA standard 56J frame motors from 0.75 to 3 HP at 3500 RPM and 0.5 HP at 1750
RPM. Open drip-proof and totally enclosed fan-cooled. Single phase 115/230 V (3 HP
model is 230 V only). Built in overload with auto reset provided. Three phase
208–230/460 V. Overload protection must be provided.
HARDWARE: AISI 304 stainless steel.
PAINT: Solvent based enamel (only intermediate coupling).
4BCS SERIES
2.50
1.59
SINGLE PHASE ONLY
6.31
MAX.
6.50
2.50L
1¼ NPT (OPTIONAL)
2.88
3.38
SUCTION
DISCHARGE
WC
MAX.
0.41 DIA HOLES
4 PLACES
3.50
X
4.12
2.942.94
6.75
4.88
MAX.
R
2.66
Dimensions and Weights –Determined by Pump
L R W X
BCS 1 x 1¼-5 1 x 1¼ 3.75 0.94 3.01 4.62 17
BCS 1¼ x 1½-5 1¼ x 1½ 3.62 1.06 2.88 4.56 17
WEIGHT MAX.
OF PUMP
DIMENSIONS
MODEL SIZE
Available Motor Weights and Dimensions
ODP TEFC ODP TEFC
0.5 16 21 19 18 10.5
0.75 19 24 21 21 11
1 22 26 23 21 11.38
1.5 28 35 27 27 12.06
2 33 39 32 33 13
3 38 47 36 42 14
HP C MAX.
LENGTH
SINGLE PHASE THREE PHASE
NOTES:
1. Pumps will be shipped with top vertical discharge as standard, for other
orientations, remove casing bolts, rotate to desired position, and tighten
3/8" bolts to 24 lbf-ft.
2. Dimensions in inches, weight in pounds.
3. Not to be used for construction purposes unless certified.
4. Motor dimensions may vary with motor manufacturers.
* Weight is liquid end only. For complete pump, add weight of applicable
motor.
barmesa.com

3
Specifications & Dimensions
SUCTION: 2" or 3"NPT horizontal.
DISCHARGE: 1½" or 2" NPT vertical.
MAX. WORKING PRESSURE : 130 PSIG.
MAX TEMPERATURES: 250 °F (121 °C).
BODY: AISI 316 stainless steel.
INTERMEDIATE COUPLING: Cast iron.
IMPELLER: Closed, AISI 316 stainless steel.
MECHANICAL SEAL: Type 12. Carbon/silicon-carbide faces, Viton® elastomers and 316 stainless steel
metal parts.
SEAL PLATE: AISI 316 stainless steel.
SHAFT SLEEVE: AISI 316 stainless steel.
O-RINGS: Viton®.
MOTOR: NEMA standard JM shaft extension from 3 to 20 HP at 3500 RPM and 0.5 to 5 HP at
1750 RPM. Single phase motors are 115/208–230 V. Three phase motors are
208–230/460 V. Overload protection must be provided.
HARDWARE: AISI 304 stainless steel.
PAINT: Solvent based enamel (only intermediate coupling).
4BCSF SERIES
AB
APPROX. Z
X
EE
A
D
G
APPROX. MAX.
17⁄8W BG C
MAX.
O
MAX.
FF
B
H HOLES (4)
R
L
D
Motor Frames
* With 215 JM shaft extension.
(ODP = Open Drip Proof )
(TEFC = Totally Enclosed Fan Cooled)
ODP TEFC ODP TEFC
145 JM -- -- 3 --
182 JM 3 -- 5 3
184 JM 5 3 7½ 5
213 JM -- 5 10 7½
215 JM -- -- 15 10/15
254 JM* -- -- 20 20
256 JM* -- -- 25 20
SINGLE PHASE THREE PHASE
MOTOR HORSEPOWER
FRAME
Liquid End Dimensions and Weights
D W X R Z
BCSF 1½ x 2-6 1½ x 2 4⁷⁄₃₂ 4¼ 5 2½ 3½ 35
BCSF 1½ x 2-8 1½ x 2 5¼ 4¼ 5½ 2½ 4¼ 50
BCSF 2 x 3-7 2 x 3 5¼ 4¼ 6 3 4¼ 50
MODEL SIZE DIMENSIONS WEIGHT
PUMP
(All dimensions are in inches and weight in pounds. Do not use for
construction purposes.)
NOTE: Calculate total approximate weight by adding pump and
motor weights.
barmesa.com

4
Specifications & Dimensions
Motor Dimensions and Weights
ODP TEFC ODP TEFC
145 7 5⁷⁄₈ 6 5³⁄₈ 6¹⁄₈ 3½ 2³⁄₄ 2½ 7/16 11/32 9 7¼ -- -- 39 --
182 5³⁄₄ 5⁷⁄₈ 6³⁄₄ 2¼ 75 -- 69 62
184 6³⁄₄ 6³⁄₈ 7¼ 90 82 78 74
213 7 7¼ 8 -- 124 114 117
215 8½ 8 8³⁄₄ 3½ -- -- 136 147
254 10½ 9¹⁄₈ 10 4¹⁄₈ -- -- 205 256
256 12 10 10³⁄₄ 5 -- -- 221 --
SINGLE PHASE THREE PHASE
10½ 9¹⁄₁₆ 5¼
12³⁄₈ 10¹¹⁄₁₆ 6¼
3³⁄₄ 9/16
13/32
9⁵⁄₈ 9¼
2³⁄₄
4¼
5/8
10⁵⁄₈ 11¼
5 17/32 10⁷⁄₈ 13⁵⁄₃₂
9 8¹⁄₈ 4½
G H L O
MAX.
BG C
MAX. D E FFRAME JM A AB B
(All dimensions are in inches and weight in pounds. Do not use for construction purposes.)
Pumps will be shipped with top vertical discharge position as standard. For other orientations remove casing bolts, rotate discharge to
desired position, replace and tighten bolts to 35 lbf-ft. Discharge may extend below motor mounting surface when using bottom horizontal
position; adequate clearance must be provided. Standard casing will not be drilled and tapped for drain plugs; if tappings for 1/4" NPT drain
plugs are required, order as options.
4BCSF SERIES
barmesa.com

5
Recommendations & Warnings
4Receiving inspection
Upon receiving the pump, it should
be inspected for damage or
shortages. If damage has occurred,
file a claim immediately with the
company that delivered the pump. If
the manual is removed from the
packaging, do not lose or misplace.
4Storage
Any product that is stored for a
period longer than six (6) months
from the date of purchase should be
bench tested prior to installation. A
bench test consists of, checking the
impeller to assure it is free turning
and a run test to assure the motor
(and switch if provided) operate
properly.
4Service Stations
To find the nearest Barmesa Pumps
authorized service shop, please
directly contact your distributor or
the factory.

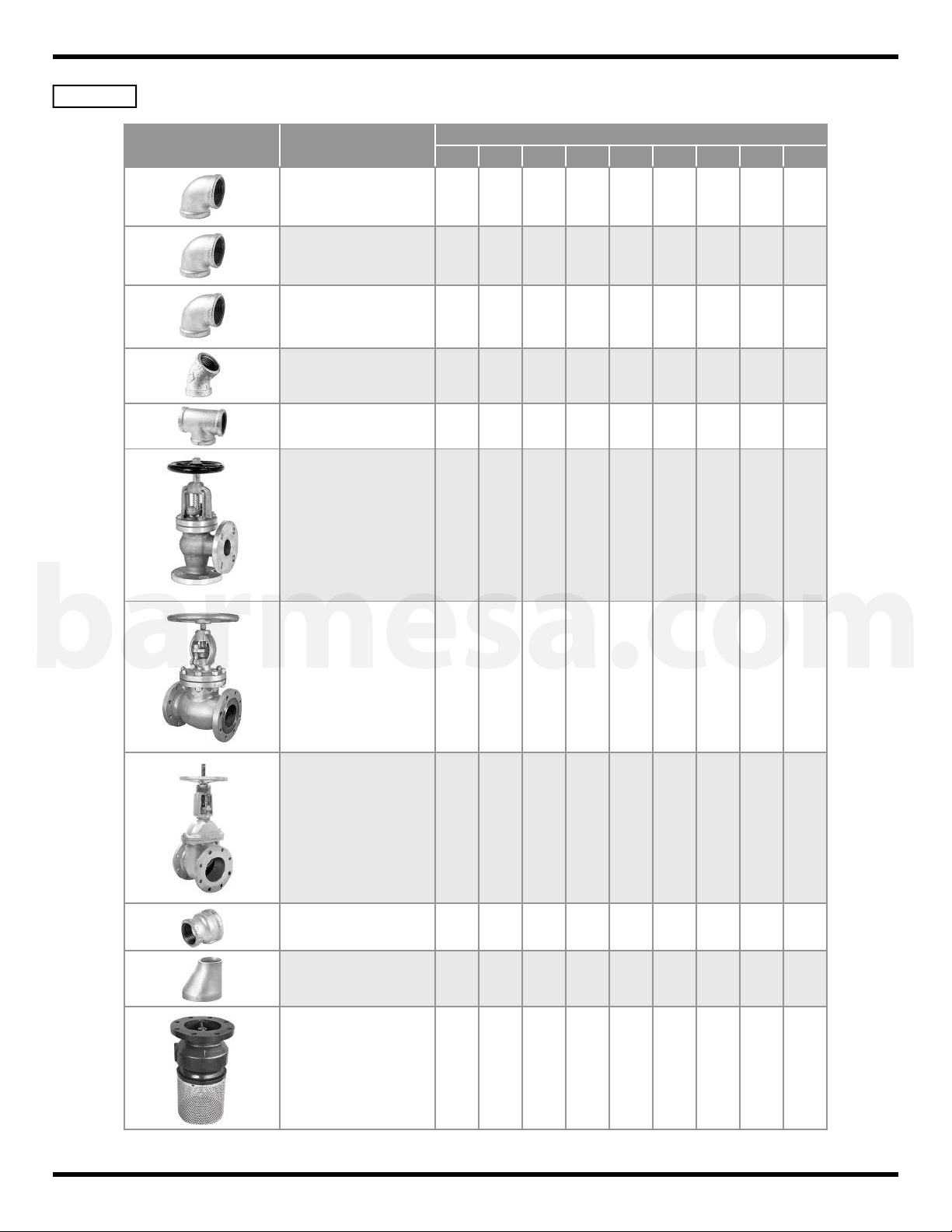

**See friction table in pipes and fittings
to determine the dimensions of the
suction and discharge. (Page 7)
At any time exceeding six (6) months,
but no more than twenty four (24),
the equipment must be stored in a
controlled area, keeping it away from
contact with rain, dust, etc., and the
temperature is maintained between
43-104 °F. If there is a possibility of
high humidity (coastlines, etc.), the
entire unit must be sprayed with
antioxidant liquid.
4Installation

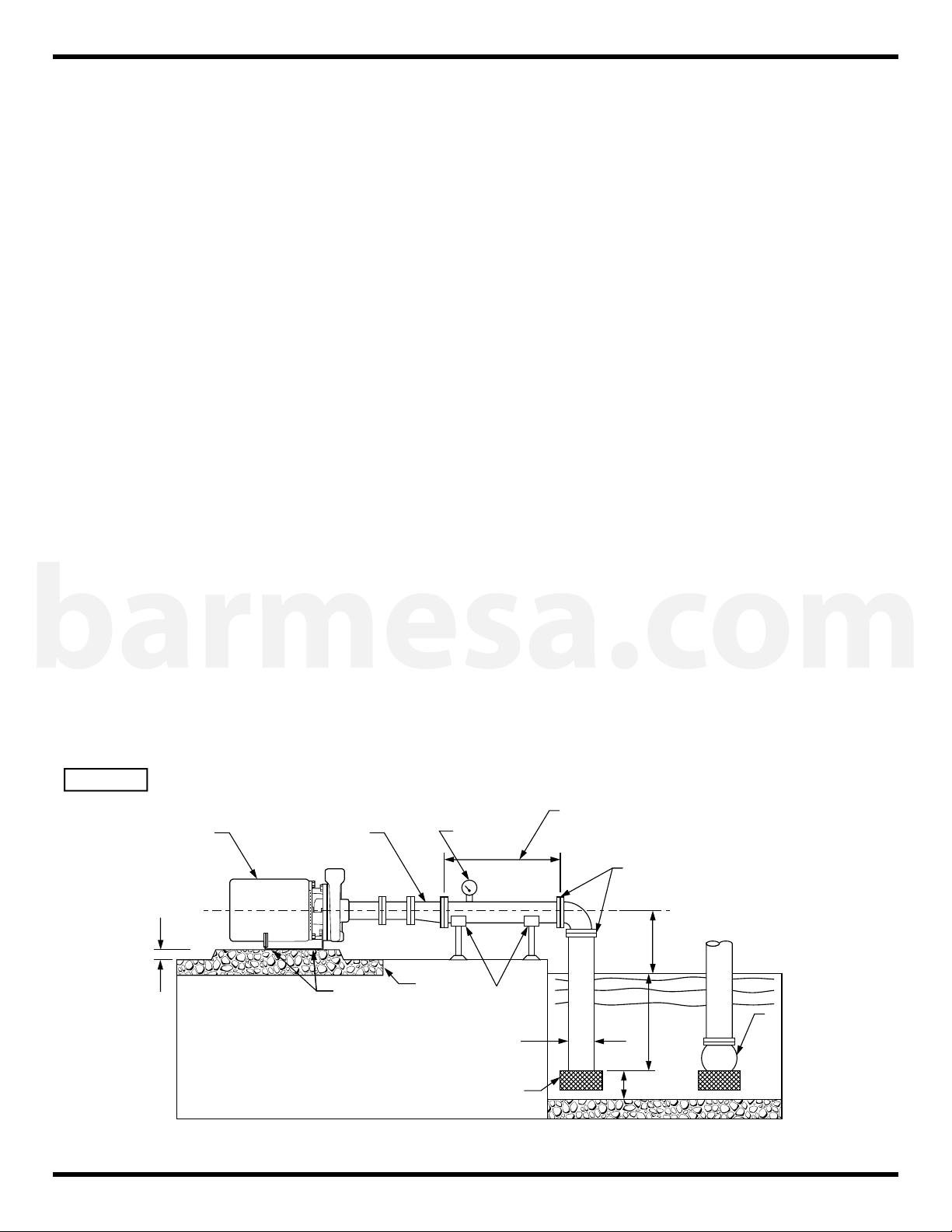

(See Figure 1 for better reference). The
pump should be as close as possible
to the liquid to be pumped, with a
minimum number of couplings,
adapters, etc., in order to reduce
friction on the suction side.
A successful operation depends on
the calculation of the friction loss in
the suction, considering acceptable
limits. The minimum suction pipe size
to use can be determined by
comparing the NPSH available at the
pump suction against the NPSH
required by the impeller, as shown in
the performance curves.
Usually, we recommend using a pipe
diameter of 1/2" to 1" greater as that
of the suction volute or body.
A strainer or sieve should be installed
in the suction to prevent the entry of
objects. The strainer must have a free
entry area at least three times the
pipe diameter. Usually a suction valve
is combined with a strainer Figure 1.
Use pipe or hose reinforced
sufficiently robust to prevent
collapsing by the difference in
atmospheric pressure. Check for leaks
at all joints.
4Suction
The anchors of the motor are to be
anchor, on a raised base,
approximately 4", this to prevent
accumulated water from entering the
motor.
The suction and discharge piping
must be perfectly aligned in the
pump volute and supported
independently using support or
anchors, this to prevent excessive
load on the volute.
Figure 1 Proper installation.
Motor
Anchors Base Pipe
support
Eccentric
reducer Vacuum
gauge
Straight pipping as short as possible, but not less
than 6 times the "D" diameter
Perfectly sealed joints
As close As close
as possibleas possible
As close
as possible
Strainer
Appropriate size "D"
to avoid the excess
of friction
1 "D"
min
4 "D"
min
SuctionSuction
valvevalve
Suction
valve
4"
"D"
barmesa.com

6
Installation
Suction height - Suction pipe should
have a slope of 0.39" per 3.3 ft of
suction. Never exceed 16.4 ft suction,
considering friction. (Figure 3)
Positive/Drowned Suction - A gate
valve is installed in the suction pipe
to service the pump (Figure 4). Volute
or body have plugs, and these must
be removed to allow trapped air to
escape.
Use pipe or hose reinforced
sufficiently robust to prevent
destruction due to high pressure.
4Discharge pipe
Due to the cost of energy or BHP
necessary to overcome the friction
generated by using a smaller
diameter pipe, a larger diameter
discharge pipe is commonly used
than the required by the volute or
body.

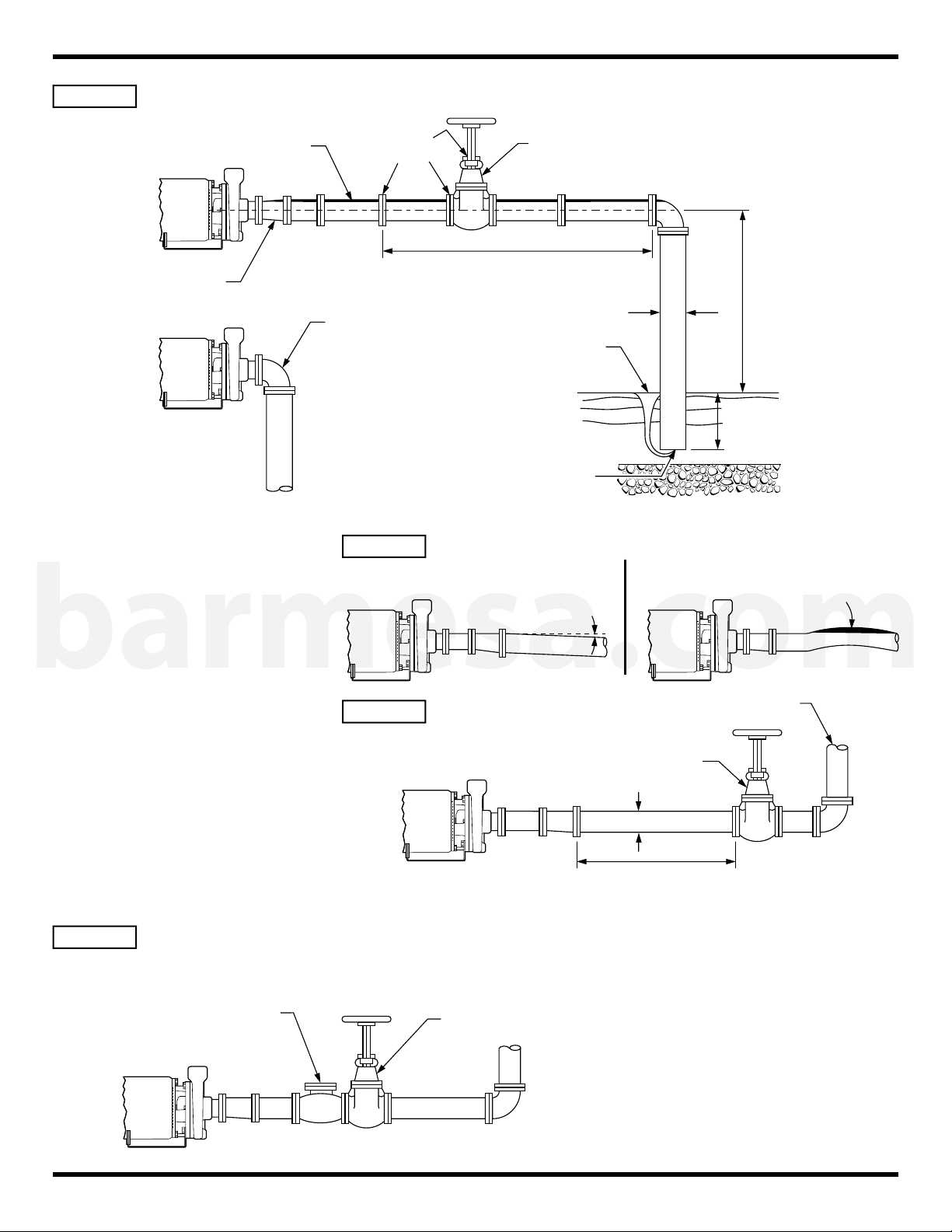

Figure 2 Wrong installation.
Without
strainer
Vortex
"D"
Too much
height
Less than
4 "D"
Long piping
Concentric
reducer
Air
pocket Air
leaks
A valve in the suction pipe
is not recommended
Piping elbow immediately
installed after the suction
Figure 3 Inclination
Correct
0.39" of inclination
per 3.28 ft
Incorrect
Air pocket
Figure 4 Positive suction
Check valve
(completely open)
"D"
6 "D" min.
Pressurized water
Correct
Figure 5 Positive suction
A retention valve in the suction pipe
is not recommended. If required,
better install the valve in the
discharge pipe.
Valve partially
closed
Incorrect
barmesa.com

7
Installation & Operation
In order to determine the optimal
size of the piping, compare the total
cost of the equipment's operation
(cost of the pump, control
equipment, piping and energy
consumption). By increasing the
discharge diameter reasonably, it
reduces the required BHP due to the
low friction. Perform different tests
using several piping diameters until
you find the more convenient.
The pipe, valves, etc. should be
perfectly align with the volutes
suction and discharge centerlines,
this to avoid any excessive loads on
the pumps volute. If needed, install
new expansive joints to protect the
pump from excessive thermal or
pressure forces.
Install the foot valve at the suction
pipe and fill with liquid the superior
part of the pump's body. Sometimes
air is trapped inside the body, to
remove it you should uncap the male
plug until the liquids spills out. Re-
install the male plug using a sealant.
IMPORTANT! - Do not
operate pump without
priming first. Operating dry
will damage seal.
4Pre-Operation
1.Check Voltage and Phase -
Compare the voltage and phase
information stamped on the
pump name plate.
2.Check Pump Rotation - Improper
motor rotation can result in poor
pump performance and can
damage the motor and/or pump.
Check rotation on three phase
units by momentarily applying
power and observe the "kickback". 4.Priming - Every centrifugal pump
must be primed (suction pipe and
pump's body should have liquid),
before operating.
Kickback should always be in a
counter-clockwise direction as
viewed from motor end or opposite
to impeller rotation. Impeller rotation
is counter-clockwise as viewed from
bottom of pump.
3.Name Plate - Record the
information from the pump name
plate to drawing in front of manual
for future reference.
Figure 6 Discharge piping
Correct Incorrect
Expansive
joint
Service valve
Expansive
joint
Service valve Retarded action
check valve
Safety shutoff
valve
Swing check valve
could cause a
"water hammer"
IMPORTANT! - SEVERE
DAMAGE MAY RESULT IF
THE PUMP WORKS IN
WRONG SENSE.
barmesa.com

8
IMPORTANT! - When the
pump starts and once the
rotation has been verified,
if it detects under water
flow or pressure it will be
necessary to calibrate the
space between the impeller
and its pump housing.
When you start your equipment for
the first time, check that the valve in
the discharge is 90% closed. Open
the valve gradually until the engine
works at full load (plate amperage).
Never allow the amperage consumed
by the pump to exceed the maximum
allowed by the motor.
4Mechanical seal
The mechanical seals installed in the
pumps are lubricated by water,
therefore the pump should not be
operated dry. You will find the
appropriate seal for each use and
liquid to be pumped, consult your
BARMESA distributor for more
information.
Operation & Maintenance
Perform this step by removing spacer
shims that are installed between the
housing and the coupling. The shims
work to maintain the required
nominal spacing of 0.015" to 0.020"
between the impeller and the inner
wall of the housing due to the natural
wear and tear that occurs. The pump
has 4 factory installed spacer shims
and four more parts. The 0.005" shim
is transparent and without a
perforation mark, the 0.010" shims
has a perforation mark, the 0.015"
shims has two perforation marks and
the 0.020" shims has three
perforation marks. If necessary, start
by removing the 20 and 15
thousandth shims and check if the
flow and pressure of your pump is as
desired.
IMPORTANT! - Always
disconnect the pump before
applying maintenance,
service or repair to avoid
electric shock.
4Maintenance
If the mechanical seal does not leak
and there is a need to open the
pump for inspection or cleaning, DO
NOT remove the seal, only remove
the spring if the impeller had to be
removed. Once a seal has been in
operation it is very difficult that when
removing and reassembling it does
not show leaks.
4Disassembly
Drain and rinse the system. Remove
the 4 screws from the case and
remove the case. Check the
conditions of the shims and replace
them if necessary. Remove the
impeller; the impeller compresses the
spring of the mechanical seal and is
prepared for the impeller to jump off
the shaft when unscrewed; to
remove it, you must turn it
counterclockwise while holding the
shaft with a screwdriver at the rear of
the engine. Remove the rotating part
of the mechanical seal by sliding it
through the sleeve, be careful with
the faces of the mechanical seal as it
is fragile when handling. Remove the
screws that secure the seal plate to
the adapter and the screws that hold
the coupling to the motor.
IMPORTANT! - Handle seal
parts with extreme care.
DO NOT DAMAGE polished
surfaces.
4Reassembly
Assemble the adapter assembly, seal
plate, sleeve, mechanical seal and
housing in reverse order of
disassembly. Always check that O-
ring gaskets are in good condition, or
if necessary, replace them.
The adapter must be screwed to the
motor with the identification plate
facing up, then screw the seal plate to
the adapter, replace the sleeve,
applying liquid screw fastener on the
end that goes to the motor and
sliding it along the arrow. Verify that
the faces of the mechanical seal do
not show cracks or bumps, that if so,
you will need to replace it. Position it
carefully by sliding it through the
sleeve, place the spring on the
mechanical seal and screw the
impeller clockwise. Screw the casing
and pump base.
IMPORTANT! - All parts
must be clean before
reassembly.
barmesa.com

9
Friction Table
1" 1 1/4" 1 1/2" 2" 2 ½" 3" 4" 5" 6" 8" 10"
30 4.54 8
37 6.86 1.77 10
45 9.62 2.48 12
57 16.2 4 1.53 15
68 20.6 5.22 2.42 18
76 25.1 6.34 2.94 20
95 38.7 9.6 4.48 1.2 0.54 25
113 54.6 13.6 6.26 1.82 0.75 30
151 95 23.5 10.79 3.1 1.28 40
170 119 29.4 13.45 3.85 1.6 45
189 146 36 16.4 4.67 1.94 0.66 50
208 43.2 19.7 5.51 2.33 0.79 55
227 51 23.2 6.59 2.72 0.92 60
246 59.6 27.1 7.7 3.17 1.07 65
265 68.8 31.3 8.86 3.63 1.22 70
284 78.7 35.8 10.15 4.14 1.39 75
303 89.2 40.5 11.4 4.66 1.57 80
322 100 45.6 12.6 5.27 1.77 85
360 125 56.5 15.8 6.49 2.18 0.57 95
378 138 62.2 17.4 7.11 2.39 0.62 100
416 75.25 21.05 8.55 2.88 0.75 110
454 88.3 24.7 10 3.37 0.88 120
530 119 33.2 13.5 4.51 1.17 0.38 140
568 137.5 38.1 15.45 5.16 1.33 0.43 150
605 156 43 17.4 5.81 1.49 0.48 160
643 48.55 19.65 6.54 1.67 0.54 170
681 54.1 21.9 7.28 1.86 0.6 180
757 66.3 26.7 8.9 2.27 0.73 0.3 200
833 80 32.2 10.07 2.72 0.87 0.35 220
908 95 38.1 12.6 3.21 1.03 0.41 240
984 111 44.5 14.7 3.74 1.2 0.48 260
1060 128 51.3 16.9 4.3 1.38 0.56 280
1135 146 58.5 19.2 4.89 1.58 0.63 300
1324 79.2 26.1 6.55 2.11 0.85 350
1514 103 33.9 8.47 2.72 1.09 0.27 400
1892 52.5 13 4.16 1.66 0.42 500
2082 63.2 15.7 4.94 2 0.5 550
2271 74.8 18.6 5.88 2.34 0.59 0.19 600
2649 101 25 7.93 3.13 0.79 0.25 700
2838 28.7 9.07 3.59 0.91 0.29 750
3028 32.4 10.22 4.04 1.02 0.32 800
3217 36.6 11.56 4.5 1.13 0.36 850
3406 40.8 12.9 5.05 1.27 0.41 900
3595 45.5 14.35 5.61 1.42 0.45 950
3785 50.2 15.8 6.17 1.56 0.5 1000
4163 19.15 7.41 1.87 0.6 1100
4542 22.5 8.76 2.2 0.7 1200
4920 26.45 10.2 2.56 0.81 1300
LITERS
PER
MINUTE
PIPING DIAMETER GALLONS
PER
MINUTE
NOTE: The values in this table refer to frictions and clean water pipes and hoses smooth
walls. As used pipe and / or hose rough walls increase the values about 50% to 100%.
Table 1 Friction in meters x 100 m of piping.
barmesa.com

10
Friction Table
Table 2 Equivalent length in meters of straight pipe and valve connections for calculating friction.
1" 1½" 2" 2 ½" 3" 4" 5" 6"
STANDARD 90°
ELBOW 0.84 1.07 1.22 1.68 1.98 2.44 3.35 4.12 4.88
MEDIUM RADIUS
ELBOW 90° 0.69 0.92 1.07 1.37 1.68 2.14 2.75 3.51 4.27
LONG RADIUS
ELBOW 90° 0.54 0.69 0.84 1.07 1.37 1.6 2.14 2.75 3.36
STANDARD 45°
ELBOW 0.38 0.54 0.61 0.77 0.92 1.15 1.53 1.83 2.29
STANDARD TEE 1.68 2.29 2.75 3.36 4.28 5.19 6.71 8.23 10.1
ANGLE GLOBE VALVE
(OPEN) 3.97 5.49 6.71 8.23 10.7 12.2 16.8 21.3 25.9
GLOBE VALVE (OPEN) 7.93 10.7 13 16.8 21.3 24.4 35.1 42.7 48.8
GATE VALVE (OPEN) 0.19 0.25 0.29 0.38 0.43 0.54 0.69 0.84 1.07
INCREASER 1.21 1.52 1.82 2.74 3.35 4.26 6.09 7.92 10.1
REDUCER 0.3 0.3 0.3 0.61 0.61 0.9 1.21 1.21 2.13
SUCTION VALVE 0.91 1.21 1.52 2.13 2.74 3.35 4.87 6.4 7.92
DESCRIPTION DIAMETER PART 1¼"
barmesa.com

11

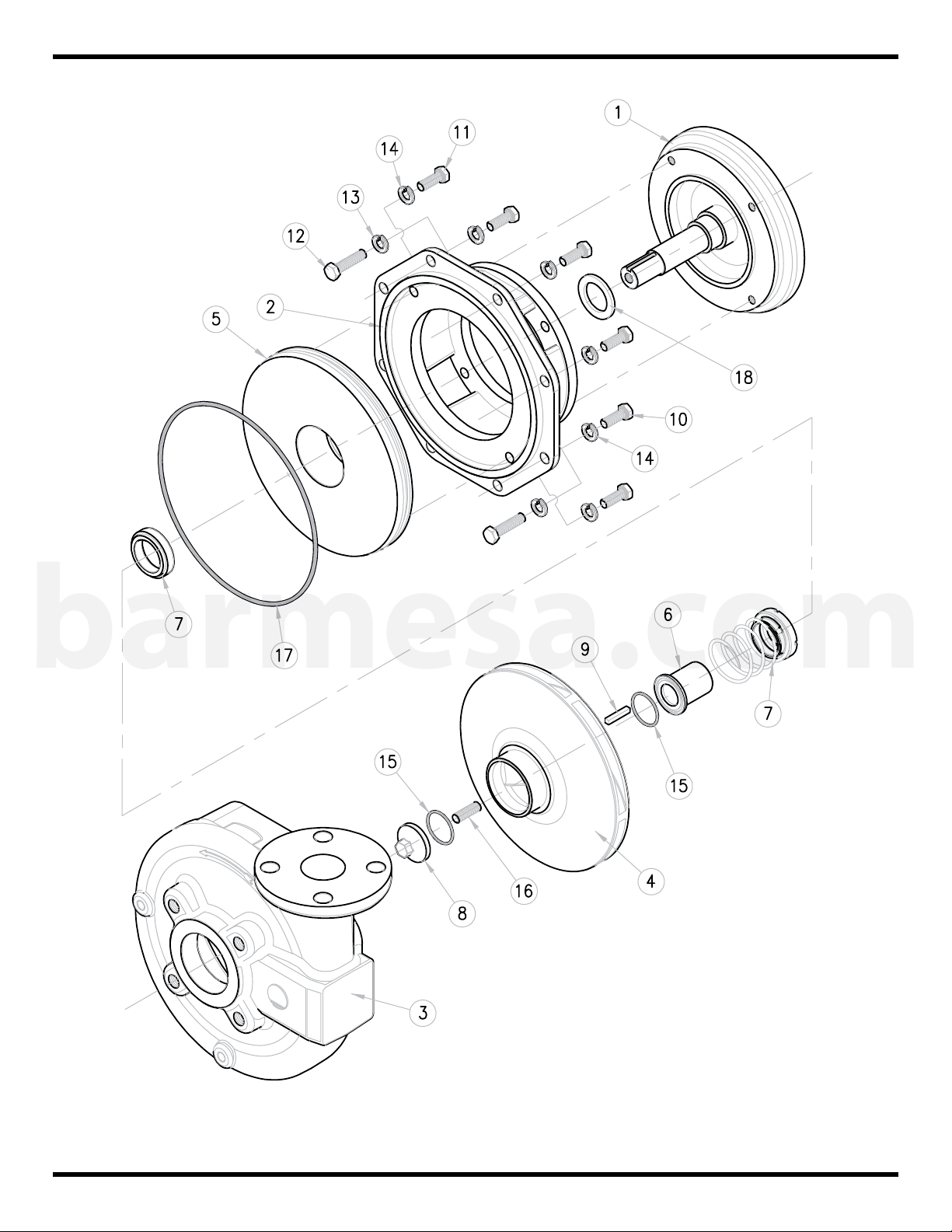

Spare Parts
To request a replacement please provide the model and serial number as shown on the nameplate, and the description and part
number as shown in the parts list.
4BCS
barmesa.com

12
Parts List
4BCS
To request a replacement please provide the model and serial number as shown on the nameplate, and the description and part
number as shown in the parts list.
ITEM PART # DESCRIPTION QTY. MATERIAL
1 Electric motor, frame 56 1 Not included
2 03020038 Adapter 5" (frame 56J) 1 Cast iron
03090101 Housing 1 x 1¼ - 5 1 CF8M
03090102 Housing 1¼ x 1½ - 5
03140237 Impeller BCS (Ø 5.38") 1 CF8M
03140237B Impeller BCS (Ø 5.13")
03140237C Impeller BCS (Ø 5.00")
03140237D Impeller BCS (Ø 3.38")
03140237E Impeller BCS (Ø 4.50")
03140237G Impeller BCS (Ø 4.25")
03140237H Impeller BCS (Ø 3.94")
03140237I Impeller BCS (Ø 3.75")
03140237J Impeller BCS (Ø 3.50")
5 03180031 Seal plate BCS 1 CF8M
6 30400840B Shaft sleeve BCS 1 316 SS
7 31030287 Mechanical seal Ø 7/8" 1 0114SVP6SS
8 30400530 Base BCS 1 Steel
9 92010030H Edge trim 1 Buna
10 91010345C Hex. screw 3/8" x 1¼" 4 304 SS
11 91010242 Hex. screw 3/8" x 1" 4 Steel
12 91010342B Hex. screw 1/4" x 3/4" 2 304 SS
13 91010066 Spring washer 1/4" 2 304 SS
14 91010012 Spring washer 3/8" 4 Steel
15 91010061 Spring washer 3/8" 4 304 SS
16 92010361 Shim set 1 Plastic
17 92010030F Impeller gasket # 0-015 1 Viton®
18 92010042 Housing gasket # 2-251 1 Viton®
19 92010011 Deflector washer 1 Buna N
20 94010061E Identification plate BCSF 1 Aluminum
21 91010192 Rivet #001628 2 Stainless steel
3
4
barmesa.com

13
Spare Parts
4BCSF AK 4½"
MECHANICAL SEALMECHANICAL SEAL
ROTATORY PARTROTATORY PART
MECHANICAL SEAL
ROTATORY PART
MECHANICAL SEALMECHANICAL SEAL
STATIONARY PARTSTATIONARY PART
MECHANICAL SEAL
STATIONARY PART
To request a replacement please provide the model and serial number as shown on the nameplate, and the description and part
number as shown in the parts list.
barmesa.com

14
Parts List
To request a replacement please provide the model and serial number as shown on the nameplate, and the description and part
number as shown in the parts list.
4BCSF 1½ x 2-6, with flange 4½"
ITEM PART # DESCRIPTION QTY. MATERIAL
1 Electric motor, shaft JM & flange 4½" 1 Not included
2 03020039 Adapter 143-184JM 1 Cast iron
3 03090103 Housing 1½ x 2 - 6 1 CF8M
4 03140238 Impeller Ø 6" 1 CF8M
5 03180032 Seal plate 6" 1 CF8M
6 30400827 Shaft sleeve BCSF 1 316 SS
7 31030288 Mechanical seal Ø 1¼", C/S/V/316 1 0120SVP6SS
8 30400910 Impeller nut 1 CF8M
9 30400631 Key 3/16" x 3/16" x 1¼" lg. 1 AISI 1018 CS
10 91010345B Hex. screw 3/8" x 1" 4 304 SS
11 91010345C Hex. screw 3/8" x 1¼" 2 304 SS
12 91010413 Hex. screw 3/8" x 1¼" 4 Steel
13 91010012 Spring washer 3/8" 4 Steel
14 91010061 Spring washer 3/8" 6 304 SS
15 92010030G Impeller gasket # 0-025 2 Viton®
16 91010305B Screw 3/8" UNC x 1.19" lg. 1 Galv. steel
17 92010040H Housing gasket # 2-257 1 Viton®
18 92010014 Deflector washer 1 Buna N
19 94010061E Identification plate BCSF 1 Aluminum
20 91010192 Rivet #001628 SS 2 Stainless steel
ITEM PART # DESCRIPTION QTY. MATERIAL
1 Electric motor, shaft JM & flange 4½" 1 Not included
2 03020042 Adapter 143-184JM 1 Cast iron
3 03090105 Housing 1½ x 2 - 8 1 CF8M
4 03140240 Impeller Ø 8" 1 CF8M
5 03180034 Seal plate 8" 1 CF8M
6 30400827 Shaft sleeve BCSF 1 316 SS
7 31030288 Mechanical seal Ø 1¼", C/S/V/316 1 0120SVP6SS
8 30400910 Impeller nut 1 CF8M
9 30400631 Key 3/16" x 3/16" x 1¼" lg. 1 AISI 1018 CS
10 91010345B Hex. screw 3/8" x 1" 8 304 SS
11 91010345C Hex. screw 3/8" x 1¼" 2 304 SS
12 91010413 Hex. screw 3/8" x 1¼" 4 Steel
13 91010012 Spring washer 3/8" 4 Steel
14 91010061 Spring washer 3/8" 10 304 SS
15 92010030G Impeller gasket # 0-025 2 Viton®
16 91010305B Screw 3/8" UNC x 1.19" lg. 1 Galv. Steel
17 92010041B Housing gasket # 2-265 1 Viton®
18 92010014 Deflector washer 1 Buna N
19 94010061E Identification plate BCSF 1 Aluminum
20 91010192 Rivet #001628 2 Stainless steel
4BCSF 1½ x 2-8, with flange 4½"
barmesa.com

15
ITEM PART # DESCRIPTION QTY. MATERIAL
1 Electric motor, shaft JM & flange 4½" 1 Not included
2 03020040 Adapter 143-184JM 1 Cast iron
3 03090104 Housing 2x3-7 1 CF8M
4 03140239 Impeller Ø 7" 1 CF8M
5 03180033 Seal plate 7" 1 CF8M
6 30400827 Shaft sleeve BCSF 1 316 SS
7 31030288 Mechanical seal Ø1¼", C/S/V/316 1 0120SVP6SS
8 30400910 Impeller nut 1 CF8M
9 30400631 Key 3/16" x 3/16" x 1¼" lg. 1 AISI 1018 CS
10 91010345B Hex. screw 3/8" x 1" 8 304 SS
11 91010345C Hex. screw 3/8" x 1¼" 2 304 SS
12 91010413 Hex. screw 3/8" x 1¼" 4 Steel
13 91010012 Spring washer 3/8" 4 Steel
14 91010061 Spring washer 3/8" 10 304 SS
15 92010030G Impeller gasket # 0-025 2 Viton®
16 91010305B Screw 3/8" UNC x 1.19" lg. 1 Galv. Steel
17 92010041A Housing gasket # 2-261 1 Viton®
18 92010014 Deflector washer 1 Buna N
19 94010061E Identification plate BCSF 1 Aluminum
20 91010192 Rivet #001628 SS 2 Stainless steel
Parts List
To request a replacement please provide the model and serial number as shown on the nameplate, and the description and part
number as shown in the parts list.
4BCSF 2 x 3-7, with flange 4½"
barmesa.com

16
Spare Parts
To request a replacement please provide the model and serial number as shown on the nameplate, and the description and part
number as shown in the parts list.
4BCSF AK 8½"
MECHANICAL SEALMECHANICAL SEAL
ROTATORY PARTROTATORY PART
MECHANICAL SEAL
ROTATORY PART
MECHANICAL SEALMECHANICAL SEAL
STATIONARY PARTSTATIONARY PART
MECHANICAL SEAL
STATIONARY PART
barmesa.com

17
Parts List
To request a replacement please provide the model and serial number as shown on the nameplate, and the description and part
number as shown in the parts list.
ITEM PART # DESCRIPTION QTY. MATERIAL
1 Electric motor, shaft JM & flange 8½" 1 Not included
2 03020043 Adapter 213-256JM 1 Cast iron
3 03090105 Housing 1½ x 2-8 1 CF8M
4 03140240 Impeller Ø 8" 1 CF8M
5 03180034 Seal plate 8" 1 CF8M
6 30400827 Shaft sleeve BCSF 1 316 SS
7 31030288 Mechanical seal Ø 1¼", C/S/V/316 1 0120SVP6SS
8 30400910 Impeller nut 1 CF8M
9 30400631 Key 3/16" x 3/16" x 1¼" lg. 1 AISI 1018 CS
10 91010345B Hex. screw 3/8" x 1" 8 304 SS
11 91010345C Hex. screw 3/8" x 1¼" 2 304 SS
12 91010262B Hex. screw 1/2" x 1¼" 4 Steel
13 91010014 Spring washer 1/2" 4 Steel
14 91010061 Spring washer 3/8" 10 304 SS
15 92010030G Impeller gasket # 0-025 2 Viton®
16 91010305B Screw 3/8" UNC x 1.19" lg. 1 Galv. steel
17 92010041B Housing gasket # 2-265 1 Viton®
18 92010014 Deflector washer 1 Buna N
19 94010061E Identification plate BCSF 1 Aluminum
20 91010192 Rivet #001628 SS 2 Stainless steel
4BCSF 1½ x 2-8, with flange 8½"
ITEM PART # DESCRIPTION QTY. MATERIAL
1 Electric motor, shaft JM & flange 8½" 1 Not included
2 03020041 Adapter 213-215JM 1 Cast iron
3 03090104 Housing 2x3-7 1 CF8M
4 03140239 Impeller Ø 7" 1 CF8M
5 03180033 Seal plate 7" 1 CF8M
6 30400827 Shaft sleeve BCSF 1 316 SS
7 31030288 Mechanical seal Ø 1¼", C/S/V/316 1 0120SVP6SS
8 30400910 Impeller nut 1 CF8M
9 30400631 Key 3/16" x 3/16" x 1¼" lg. 1 AISI 1018 CS
10 91010345B Hex. screw 3/8" x 1" 8 304 SS
11 91010345C Hex. screw 3/8" x 1¼" 2 304 SS
12 91010262B Hex. screw 1/2" x 1¼" 4 Steel
13 91010014 Spring washer 1/2" 4 Steel
14 91010061 Spring washer 3/8" 10 304 SS
15 92010030G Impeller gasket # 0-025 2 Viton®
16 91010305B Screw 3/8" UNC x 1.19" lg. 1 Galv. steel
17 92010041A Housing gasket # 2-261 1 Viton®
18 92010014 Deflector washer 1 Buna N
19 94010061E Identification plate BCSF 1 Aluminum
20 91010192 Rivet #001628 SS 2 Stainless steel
4BCSF 2 x 3-7, with flange 8½"
barmesa.com

18
Risk of electric shock. Always disconnect the pump from the power source before handling inspections or repairs.
Troubleshooting Chart
PROBLEM PROBABLE CAUSE CHECK
- Threaded joints in the suction tightness.
- Gaskets for no wear.
- The mechanical seal for leaks.
- The drain plug has leaks.
- The vacuum gauge may be leaking.
2. Insufficient liquid in the
pump casing. - That the pump's body is filled with water.
3. Low operating speed. - The motor speed (RPM).
- Impeller rotates freely.
- Internal parts are clean.
5. Mechanical defect. - That the internal parts are not worn.
B) The pump does not prime,
the vacuum gauge reading
indicates higher than normal.
1. Pipe clogged suction. - The suction line is clean.
1. The pump speed is very
low. - The voltage is correct.
2. Mechanical defects. - The internal parts for wear.
- The discharge is clear of obstructions.
- That the discharge valves operate correctly.
1. suction dynamic level
too high.
- When the pump is operating, never lacks
water in the suction.
- For leaks in suction piping, flanges and
gaskets.
- That there is no vortex effect at the end of
the suction, this lack of water.
- That screws are tight at the base.
- There are no cracks in the base.
- The dynamic level is not too high
- That the pumping capacity is not too much.
- The pump is operating in the range of NPSHR
- If reducing flow makes the noise gone, then
the problem is in the point above; partially
close the discharge valve.
- The bearings for wear.
- That there is oil in the deposit.
- The impeller does not have any foreign
material.
- The pump is operating in the range.
- That the alignment is correct.
1. Low voltage. - The voltage is correct.
- The amperage of the plate is not exceeded.
- There is no foreign material that may force
the impeller.
- That the motor is suitable for the pump.
2. Overload.
A) The pump does not prime,
the vacuum gauge indicates a
lower reading than normal.
F) The pump priming pumps
well and satisfactorily but noisy.
E) The pump loses its priming
during operation, vacuum
gauge reading drops to zero.
G) Motor overload.
4. Vibration.
1. Pump base is loose.
2. Cavitation.
3. Bearings.
2. The pump is sucking air.
D) The pump priming good
vacuum gauge reading is
almost normal, reading the
manometer is greater.
1. Discharge obstructed.
1. Air leak in the suction
system.
4. Bound pump.
C) The pump priming good
vacuum gauge reading is
normal, the manometer
indicates a lower pressure than
normal.
NOTE: Barmesa Pumps assumes no responsibility for damage or injury due to disassembly in the field. Disassembly of the pumps or supplied accessories other
than at Barmesa Pumps or its authorized service centers, automatically voids warranty.
barmesa.com

19
barmesa.com
