Barmesa Pumps 2BEH-SS Series Instruction manual

Installation, Operation &
Maintenance Manual
Submersible Effluent Pumps
2BEH-SS
0.5 & 1 HP @ 3500 RPM
IMPORTANT! - Read all instructions in this manual before operating or servicing
a pump.
barmesapumps.com

Before installation, read the following
instructions carefully. Failure to
follow instruction and safety
information could cause serious
bodily injury, death and/or property
damage. Each Barmesa product is
carefully inspected to insure proper
performance. Closely following these
instructions will eliminate potential
operating problems, assuring years
of trouble-free service.
01
General Safety Information
IMPORTANT! - Barmesa Pumps is not
responsible for losses, injury or
death resulting from failure to
observe these safety precautions,
misuse, abuse or misapplication of
pumps or equipment.
Installation, wiring, and
ju nc t io n co nn ec t io ns m us t be in
accordance with the National Electric
Code and all applicable state and local
codes. Requirements may vary depending
on usage and location.
WARNING
I n s t a l l a t i o n a n d
servicing is to be conducted by
qualified personnel only.
WARNING
D o n o t u s e t h e s e
pumps in water over 104º F. Do not
exceed manufacturers recommended
maximum performance, as this could
cause the motor to overheat.
WARNING
Ground Fault Circuit
Interrupter (GFCI) to be used with
plug-in type power cord.
WARNING
A L L R E T U R N E D
P R O D U C T S M U S T B E
CLEANED, SANITIZED, OR
DECO N TA M I N ATED P R I O R TO
SHIPMENT, TO INSURE EMPLOYEES
WILL NOT BE EXPOSED TO HEALTH
HAZARDS IN HANDLING SAID
MATERIAL. ALL APPLICABLE LAWS
AND REGULATIONS SHALL APPLY.
Keep clear of suction and
discharge openings. Do not
insert fingers in pump with
power connected; the rotating cutter
and/or impeller can cause serious
injury.
Always wear eye protection
when working on pumps. Do
not wear loose clothing that
may become entangled in moving
parts.
Pumps build up heat
and pressure during
operation. Allow time
fo r p u mp s t o c o ol
DANGER
before handling or servicing the
p u m p o r a n y a ccessor y i t e m s
associated with or near the pump.
T h i s p u m p i s n o t
i n t e n d e d f o r u s e i n
swimming pools or water
installations where there is
DANGER
human contact with pumped fluid.
Risk of electric shock. To
reduce risk of electric shock,
always disconnect pump
from power source before
DANGER
handling any aspect of the pumping
system. Lock out power and tag.
Do not lift, carry or
hang pump by the electrical
c a b l e s . D a m a g e t o t h e
electrical cables can cause
DANGER
shock, burns or death. Never handle
connected power cords with wet
hands. Use appropriate lifting device.
S u m p a n d s e w a g e
pumps often handle materials which
could cause illness or disease. Wear
adequate protective clothing when
working on a used pump or piping.
Never enter a basin after it has been
used.
WARNING
Failure to permanently
ground the pump, motor and
controls before connecting
to power can cause shock,
DANGER
burns or death.
These pumps are not to
be installed in locations
classified as hazardous in
accordance with the National
Electric Code, ANSI/NFPA 70.
DANGER
The Uniform Plumbing
Code (UP C) states that sewage
systems shall have an audio and visual
alarm that signals a malfunction of the
systems, that are required to reduce
the potencial for property damage.
WARNING
1 Phase Models
Amps: Volts:
3 Phase Models
Amps L1-2: Volts L1-2:
Amps L2-3: Volts L2-3:
Amps L3-1: Volts L3-1:
Model Number: _____________________
Serial: ____________
PHASE: ______ HP: __________________
IMPORTANT! - Prior to installation,
record Model Number, Serial, Amps,
Voltage, Phase and HP from pump
name plate for the future reference.
Also record the Voltage and Current
Readings at Startup:
WARNING
"Danger" indicates an
imminently hazardous situation
which, if not avoided, WILL result in
death or serious injury.
"Warning" indicates
an imminenty hazardous situation
which, if not avoided, MAY result in
death or serious injury.
"Caution" indicates a
potentially hazardous situation
which, if not avoided, MAY result in
minor or moderate injury.
DANGER
CAUTION
barmesapumps.com

MODEL PART No. HP VOLTS PHASE RPM
(Nominal)
MAX
AMPS
LOCKED
ROTOR AMPS
NEMA
CODE
CORD
SIZE
CORD
TYPE
CORD
O. D.
WEIGHT
(pounds)
2BEH512SS 62170651 0.5 115 1 3500 11 23 F 14/3 SJTOW 0.39" 82
2BEH102SS 62170652 1 230 1 3500 8.2 13.8 B 14/3 SJTOW 0.39" 84
2BEH103SS 62170653 1 200/230 3 3500 5.4 21.2 K 12/4 SOW 0.6" 84
2BEH104SS 62170654 1 460 3 3500 2.8 20.7 K 12/4 SOW 0.6" 84
02

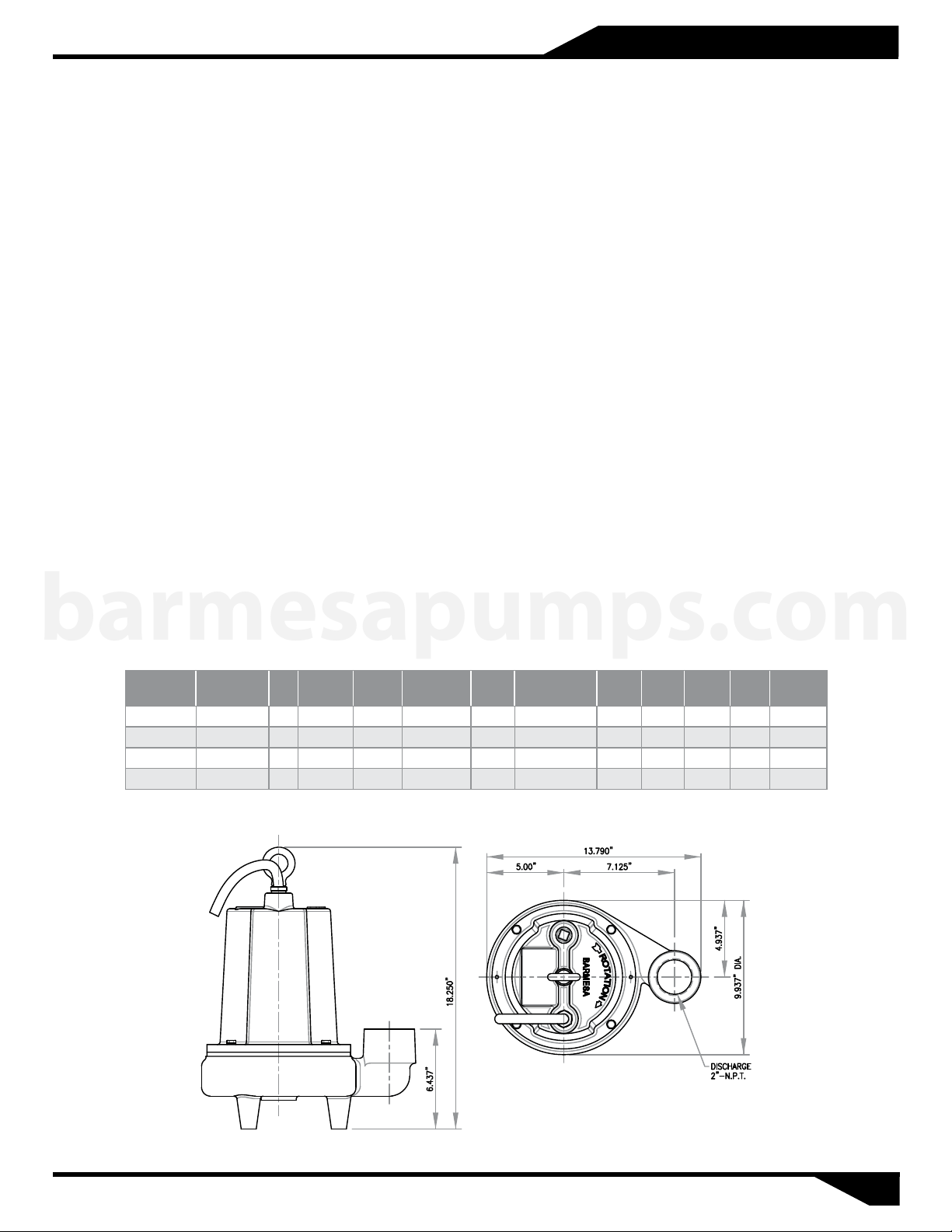

Specifications & Dimensions
DISCHARGE: 2" NPT, vertical.
SPHERICAL SLD HNDLG: 3/4"
LIQUID TEMPERATURE: 104° F (40° C) max.
VOLUTE: Cast iron ASTM A-48 class 30.
MOTOR HOUSING: Cast iron ASTM A-48 class 30.
SEAL PLATE: Cast iron ASTM A-48 class 30.
IMPELLER: 2 vane, open, with vanes on back side, dynamically balanced ISO G6.3. Bronze 85-5-
5-5.
SHAFT: 416 series stainless steel.
HARDWARE: 300 series stainless steel.
SQUARE RINGS: Buna-N.
PAINT: Air dry enamel, water based.
SEAL: Inboard, single mechanical, oil filled chamber. Silicon carbide, Buna-N elastomer,
with stainless steel hardware.
CORD ENTRY: 15 ft of neoprene cord SJO 14/3, sealed against moisture.
UPPER BEARING: Ball, single row, oil lubricated, for radial load.
LOWER BEARING: Ball, single row, oil lubricated, for radial and axial loads.
MOTOR: Single phase: NEMA L, permanent split capacitor, oil filled, with overload
protection in motor.
Three phase: NEMA B, oil filled. Requires overload protection to be included in
control panel.
OPTIONAL EQUIPMENT: Additional cord, tungsten carbide seal, slide rail coupling (SRC-2).
barmesapumps.com

Receiving inspection
Upon receiving the pump, it should
be inspected for damage or
shortages. If damage has occurred,
file a claim immediately with the
company that delivered the pump. If
the manual is removed from the
packaging, do not lose or misplace.
Storage
Any product that is stored for a
period longer than six (6) months
from the date of purchase should be
bench tested prior to installation. A
bench test consists of, checking the
impeller to assure it is free turning
and a run test to assure the motor
(and switch if provided) operate
properly.
Controls
Manual models require a separate
approved pump control device or
panel for automatic operation. Be
sure the electrical specification of the
control selected properly match the
electrical specifications of the pump.
Submergence
The pump should always be
operated in the submerged
condition. The minimum sump liquid
level should never be less than above
the pump’s volute (See Figure 1).
Discharge Piping
Discharge piping should be as short
as possible and sized no smaller than
the pump discharge. Do not reduce
the discharge pipe size below that
which is provided on the pump.
Both a check valve and a shut-off
valve are recommended for each
pump. The check valve is used to
prevent backflow into the sump. The
shut-off valve is used to manually
stop system low during pump
servicing.
Liquid Level Controls
The level control(s) should be
mounted on the discharge piping, a
cable rack or float pole. The level
control should have adequate
clearance so it cannot hang up in it’s
swing and that the pump is
completely submerged when the
level control is in the "Off" mode. By
adjusting the cord tether the control
level can be changed. One cycle of
operation should be observed, so
that any potential problems can be
corrected.
Electrical Connections
Power cable:
The power cable mounted to the
pump must not be modified in any
way except for shortening to a
specific application. Any splice
between the pump and the control
panel must be made in accordance
with the electric codes. It is
recommended that a junction box, if
used, be mounted outside the sump
or be of at a minimum Nema 4
construction if located within the wet
well. DO NOT USE THE POWER
CABLE TO LIFT PUMP.
Overload Protection:
Single Phase - The stator in-winding
overload protector used is referred to
as an inherent overheating protector
and operates on the combined effect
of temperature and current. This
means that the overload protector
will trip out and shut the pump off if
the windings become too hot, or the
load current passing through them
becomes too high.
03
Recommendations and Warnings
The sump, basin or lift station shall
be sealed and vented in accordance
with local plumbing codes. This
pump is designed to pump
sewage, effluent or wastewater,
non-explosive and non-corrosive
liquids and shall NOT be installed
in locations classified as hazardous
in accordance with the National
Electrical Code (NEC) ANSI/NFPA
70 or Canadian Electric Code (CEC).
The pump should never be installed
in a trench, ditch, or hole with a dirt
bottom. The legs will sink into the
dirt and the suction will become
plugged.
The installation should be at a
sufficient depth to ensure that all
plumbing is below the frost line. If
this is not feasible, remove the check
valve and size the basin to
accommodate the additional
backflow volume.
barmesapumps.com
Installation
There are two methods of installing
effluent pumps:
1. In a Flex-Hose system, most
commonly used in interceptor
tanks, and
2. A slide rail in a package system or
concrete wet well, which allows
the pump(s) to be installed or
removed without requiring
personnel to enter the wet well.
It is recommended that the level
control float should be set to insure
that the liquid in the sump never
drops below the top of the motor
housing or a minimum level of 7"
above the basin floor.
Always rely upon a Certified
Electrician for installation.
Figure 1
Recommended
Submergence Level
Minimum
Submergence Level
7"
Bottom of Feet

IMPORTANT! - The overload will then
automatically reset and start the
pump up after the motor cools to a
safe temperature. In the event of an
overload, the source of this condition
should be determined and corrected
immediately.
If current through the temperature
sensor exceeds the values listed, an
intermediate control circuit relay
must be used to reduce the current
or the sensor will not work properly.
TEMPERATURE SENSOR ELECTRICAL
RATINGS
Volts Continuous
Amperes
Inrush
Amperes
110-120 3.00 30.0
220-240 1.50 15.0
Wire Size:
If longer power cable is required
consult a qualified electrician for
proper wire size.
04
Installation & Service
DO NOT ALLOW THE
PUMP TO CYCLE OR RUN IF AN
OVERLOAD CONDITION OCCURS.
WARNING
Pre-Operation
1.Check Voltage and Phase -
Compare the voltage and phase
information stamped on the
pump name plate.
3.Name Plate - Record the
information from the pump name
plate to drawing in front of
manual for future reference.
a)Inspect motor chamber for oil
level and contamination.
b)Inspect impeller and body for
excessive build-up or clogging.
c)Inspect motor, bearings and shaft
seal for wear or leakage.
No lubrication or maintenance is
required. Perform the following
checks when pump is removed from
operation or when pump
performance deteriorates:
Maintenance
NOTE: Item numbers in ( ) refer to
Figure 6 and 7.
Servicing
After leak is repaired, dispose of old
oil properly, and refill with new oil.
4.Insulation Test - An insulation
(megger) test should be
performed on the motor. Before
the pump is put into service. The
resistance values (ohms) as well
as the voltage (volts) and current
(amps) should be recorded.
5.Pump-Down Test - Be sure pump
has been properly wired, lowered
into the basin, sump or lift station,
check the system by filling with
liquid and allowing the pump to
operate through its pumping
cycle. The time needed to empty
the system, or pump-down time
along with the volume of water,
should be recorded.

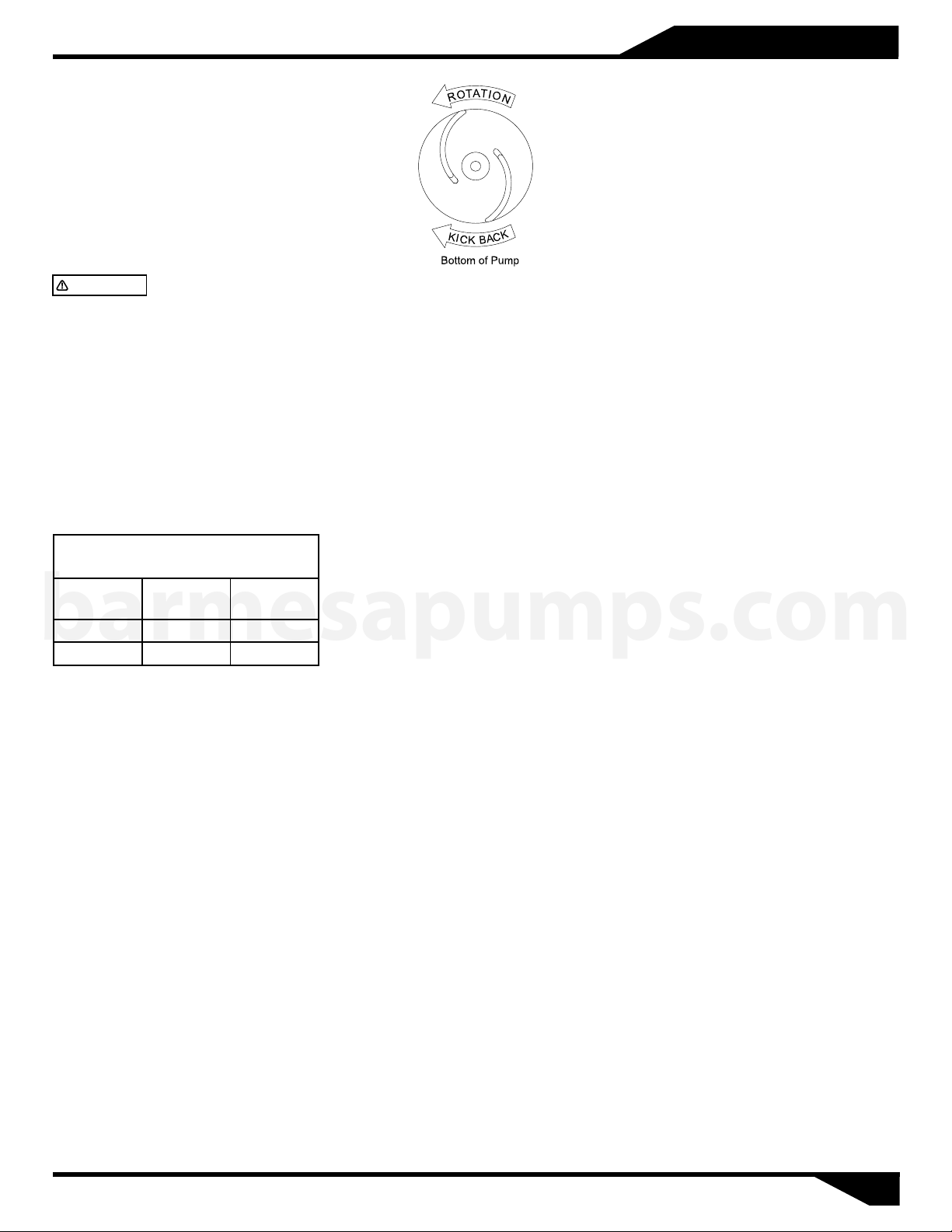

2.Check Pump Rotation - Improper
motor rotation can result in poor
pump performance and can
damage the motor and/or pump.
Incorrect rotation for Single-Phase
pumps is unlikely. Impeller
rotation is counter-clockwise as
viewed from bottom of pump.
Cooling Oil - Anytime the pump is
removed from operation, the cooling
oil in the motor housing should be
checked visually for oil level and
contamination. To check oil, set unit
upright. Remove pipe plug (16) from
housing (4). With a flashlight, visually
inspect the oil in the housing (4) to
make sure it is clean and clear, light
amber in color and free from
suspended particles. Milky white oil
indicates the presence of water. Oil
level should be just above the motor
when pump is in vertical position.
Oil Testing
ŸDrain oil into a clean, dry
container by placing pump on it’s
side, remove pipe plug (16), from
housing (4).
ŸCheck oil for contamination using
an oil tester with a range to 30
kilovolts breakdown.
ŸIf oil is found to be clean and
uncontaminated (measuring
above 15 kV breakdown), refill the
housing.
ŸIf oil is found to be dirty or
contaminated (or measures below
15 kV breakdown), the pump
must be carefully inspected for
leaks at the shaft seal, cable
assembly, square ring and pipe
plug, before refilling with oil. To
locate the leak, perform a
pressure test.
barmesapumps.com

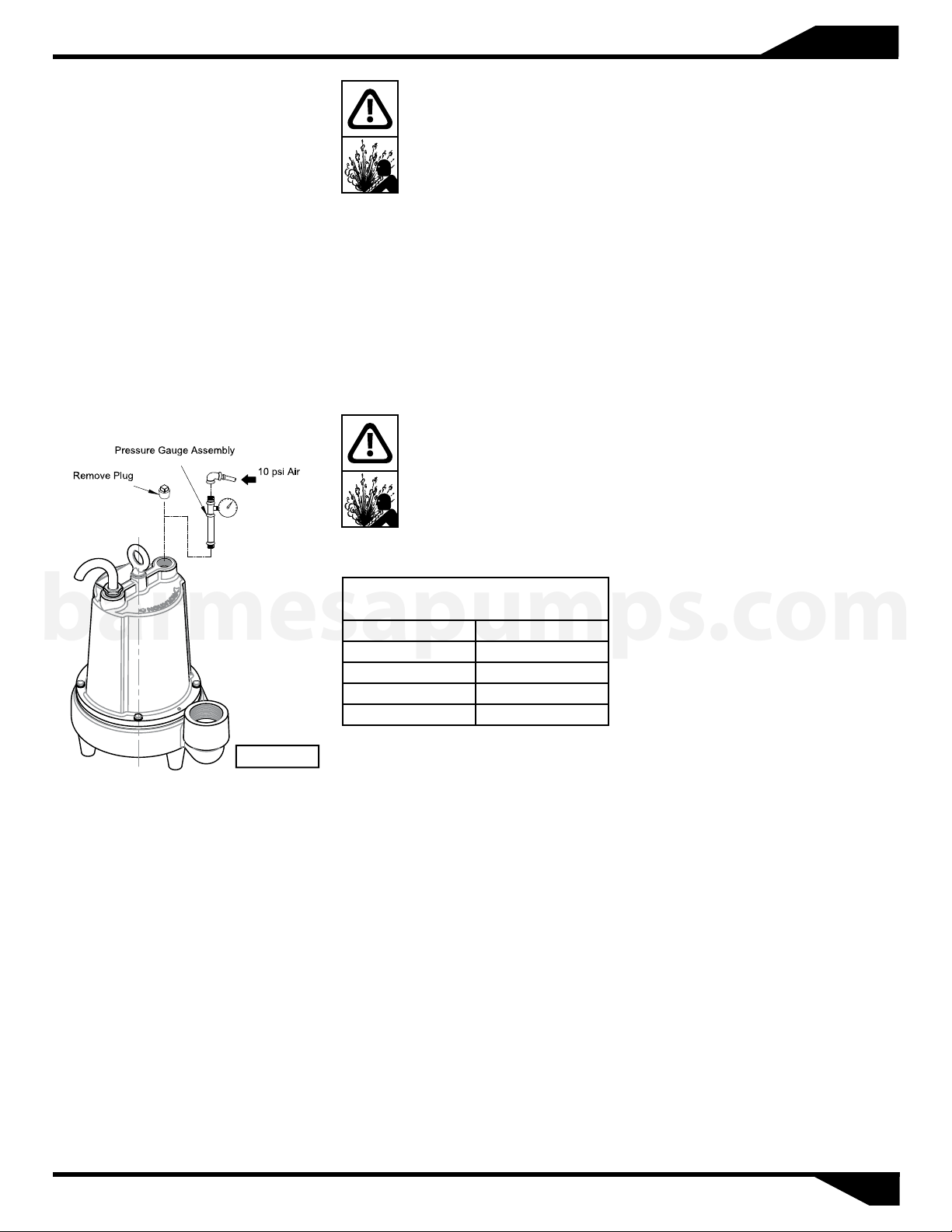

Pressure Test (If oil has been
drained) - Remove pipe plug (16)
from housing (4). Apply pipe sealant
to pressure gauge assembly and
tighten into hole. Pressurize motor
housing to 10 PSI. Use soap solution
around the sealed areas and inspect
joints for "air bubbles".
If, after five minutes, the pressure is
still holding constant, and no
"bubbles" are observed, slowly bleed
the pressure and remove the gauge
assembly. Replace oil. Leek must be
located and repaired if pressure does
not hold.
Pressure Test (If oil has NOT been
drained) - Oil should be at normal
level. Remove pipe plug (16) from
housing (4). Apply pipe sealant to
pressure gauge assembly and tighten
into hole. Pressurize motor housing
to 10 PSI. Use soap solution around
the sealed areas above the oil level
and inspect joints for "air bubbles".
For sealed areas below oil level, leeks
will seep oil. If, after five minutes, the
pressure is still holding constant, and
no "bubbles", oil seepage is
observed, slowly bleed the pressure
and remove the gauge assembly.
Replace oil. Leek must be located and
repaired if pressure does not hold.
Oil Replacement - Set unit upright
and refill with new cooling oil as per
table below. Fill to just above motor,
but below capacitor as an air space
must remain in the top of the
housing to compensate for oil
expansion. Apply pipe thread
compound to threads of pipe plug
(16) then assemble to housing (4).
Cooling Oil
Recommended Supplier/Grade
BP Enerpar SE100
Conoco Pale Parafin 22
Mobile D.T.E. Oil Light
Shell Canada Transformer-10
Texaco Diala-Oil-AX
Disassembly and Assembly
Impeller, V-ring and Volute:
1. Disconnect power.
05
Service
Pressure builds up extremely
fast, increase pressure by
"TAPPING" air nozzle. Too
much pressure will damage
seal. DO NOT exceed 10 PSI.
DO NOT overfill oil.
Overfilling of housing with oil
can create excessive and
dangerous hydraulic pressure
which can destroy the pump
and create a hazard.
Overfilling oil voids warranty.
To reassemble:
4. Clean the threads with thread
locking compound cleaner. Apply
removable Loctite® 242 or equivalent
to shaft threads.
2. Remove cap screws (8) and lock
washers (9) vertically lift motor,
housing and seal plate assembly from
volute (1). Clean out volute (1) if
necessary.
3. Inspect gasket (12) and replace if
cut or damaged.
4. Clean and examine impeller (2), for
cracks or breakage and replace if
required. To remove impeller (2),
remove impeller nut (10), place a flat
screwdriver in the slot of the end of
the shaft to hold the shaft stationary
while unscrewing the impeller (2).
Figure 2
5. Screw impeller (2) onto the shaft
hand tight while using a screwdriver
in the slot at the end of the shaft to
hold it stationary.
6. Install impeller nut (10) and
tighten. Rotate impeller to check for
binding.
7. Position gasket (12) on volute
flange and position impeller and
motor housing assembly on volute
(1).
8. Position lock washer (9) on cap
screw (8) and screw into volute (1).
Torque to 100 in-lbs. Check for free
rotation of impeller.
Motor, Capacitor and Bearings:
1. Place pump upright on blocks
or piece of PVC pipe, to avoid
resting unit on shaft.
2. Disassemble volute and
impeller as stated and drain oil
from housing.
3. Loosen gland nut (19) and slide
up cord along with washers (20)
and grommet (21).
4. Remove socket head screws (15)
from seal plate (3).
5. Slide motor housing (4) up
cable (18) until wire connectors
(24) are exposed. NOTE wire
connections for reassembly.
6. Disconnect cable leads from
motor leads and remove motor
housing (4) and o-ring (11),
replace if cut or damaged.
barmesapumps.com

7. Check motor capacitor (29) with an
Ohm meter by first grounding the
capacitor by placing a screwdriver
across both terminals and then
removing screwdriver. Connect Ohm
meter (set on high scale) to terminals.
If needle moves to infinity (∞) then
drifts back, the capacitor is good. If
needle does not move or moves to
infinity (∞) and does not drift back,
replace capacitor (29).
06
Service
8. Inspect motor winding for shorts
and check resistance values. Check
rotor for wear. If rotor or the stator
windings are defective, the complete
motor must be replaced.
9. Disconnect capacitor leads from
capacitor (29). Remove v-ring (13)
and spacer (14) from seal plate (3).
Remove bolts from motor stator (6)
and lift stator up from rotor. Loosen
conduit bushing (25) and remove
motor rotor, bearing and seal
assembly from seal plate (3).

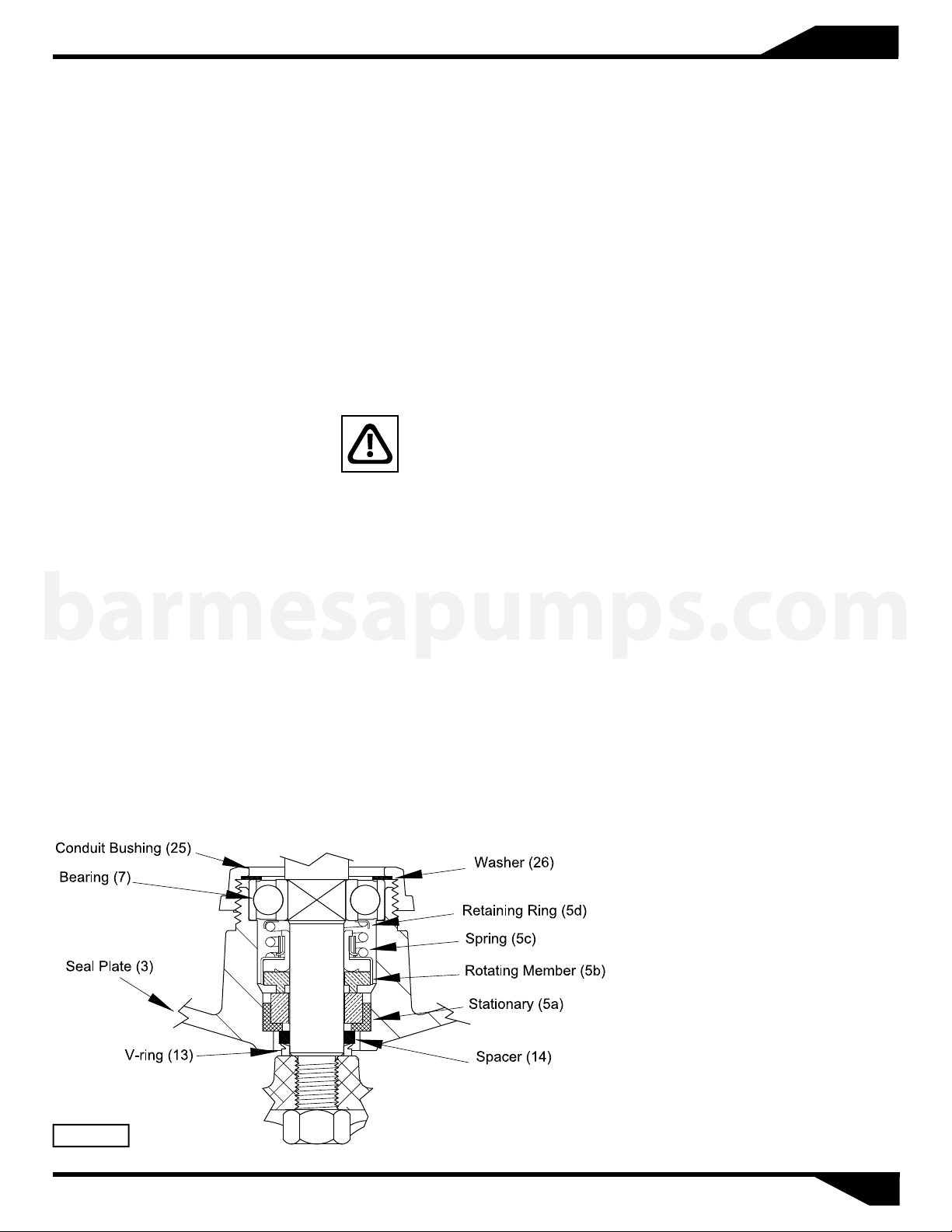

Seal:
Remove rotating member (5b), spring
(5c) and retaining ring (5d), from
shaft (see Figure 3). Inspect for signs
of uneven wear pattern on stationary
member, chips and scratches on
either seal face. Replace the complete
seal if any part is damaged.
DO NOT interchange seal
components, replace the entire
shaft seal (6). If replacing seal,
remove stationary from seal plate (3)
by prying out with flat screwdriver.
Bearing:
Examine bearing (7) and replace if
worn. Remove bearing (7) from shaft
using a wheel puller, if replacement is
required. The washer bushing (26)
and conduit bushing (25) can now be
removed.
IMPORTANT! - All parts
must be clean before
reassembly. Handle seal
parts with extreme care. DO NOT
damage lapped surfaces.
Reassembly
2. Press seal’s (5) stationary member
(5a) firmly into seal plate (3), using a
seal tool or pipe. Nothing should
come in contact with the seal face
except the seal tool. Be sure the
stationary is in straight. Lightly oil
(Do not use grease) shaft and inner
surface of bellows.
Shaft Seal:
1. To reassemble, clean seal cavity in
seal plate (3) and oil.
Figure 3
3. Slide retaining ring (5d) and spring
(5c) over shaft and let rest on
bearing. Lightly oil (Do not use
grease) shaft, bullet and inner srface
of bellows on rotating member (5b).
See Figure 3.
4. With lapped surface of rotating
member (5b) facing outward, slide
over seal tool and unto shaft, making
sure spring (5c) is seated in retaining
ring (5d) and spring (5c) is lined up
on rotating member (5b) and not
cocked or resting on bellows tail.
5. Place conduit bushing (25) and
washer (26) onto shaft.
6. Slide rotor/shaft (6) with bearing
(7) and seal (5) into seal plate (3) until
bearing (7) seats into seal plate.
7. Locate washer (26) into place on
bearing and tighten conduit bushing
(25) onto seal plate (3).
8. Place stator (6) over rotor (6), lining
up motor bolts with holes in seal
plate (3).
9. Position capacitor (29) on motor
with clamp (30) and reconnect
capacitor leads.
10. Torque motor bolts to 17 in-lbs.
Set square ring (11) in grove on seal
plate (3).
11. Lower motor housing (4) down
onto seal plate (3) while aligning
holes and stringing motor leads
through the cord entry bore.
12. Place socket head screws (15)
through seal plate (3) into housing
(4) and torque to 60 in-lbs.
13. Reconnect motor leads, as shown
in Figure 5.
barmesapumps.com

07
Service
SINGLE-PHASE 115/230V AC
POWER CORD 3x14
G T1 T2
G L1 L2
GREEN
BLACK
WHITE
MOTOR LEADS
CAPACITOR
Cable Motor Lead Number
Green Green
Black 1
White 2
Flag terminal Capacitor
Flag terminal Capacitor
Figure 5
THREE-PHASE 208/230V AC
POWER CORD 4x12
G T1 T7 T2 T8 T3 T9 T4 T5 T6
G L1 L2 L3
GREEN
BLACK
RED
WHITE
MOTOR LEADS
Cable Motor Lead Number
Green Green
Black 1 and 7
Red 2 and 8
White 3 and 9
4, 5 and 6 together
Figure 5
T2 T3 T4 T7 T5 T8 T6 T9
G L2 L3
RED
WHITE
MOTOR LEADS
T1
L1
BLACK
G
G
GREEN
THREE-PHASE 460V AC
POWER CORD 4x12
Cable Motor Lead Number
Green Green
Black 1
Red 2
White 3
4 and 7 together
5 and 8 together
6 and 9 together
Figure 5
Cable Assembly:
14. Check power cord (18) for cracks
or damage and replace if required.
Insert one washer (20), grommet (21),
washer (20) into motor housing (4).
Apply pipe sealant to gland nut (19)
and screw into motor housing (4).
Torque gland nut to (19) to 15 ft. lbs.
to prevent water leakage (See Figure
4). Refill the cooling oil and replace
pipe plug (16).
Figure 4
Wire
18
19
20
21
15. Insert spacer (14) and v-ring (13)
into seal plate (3) and reassemble
remaining parts per "Impeller, V-ring
and Volute" section on page 7.
barmesapumps.com

08

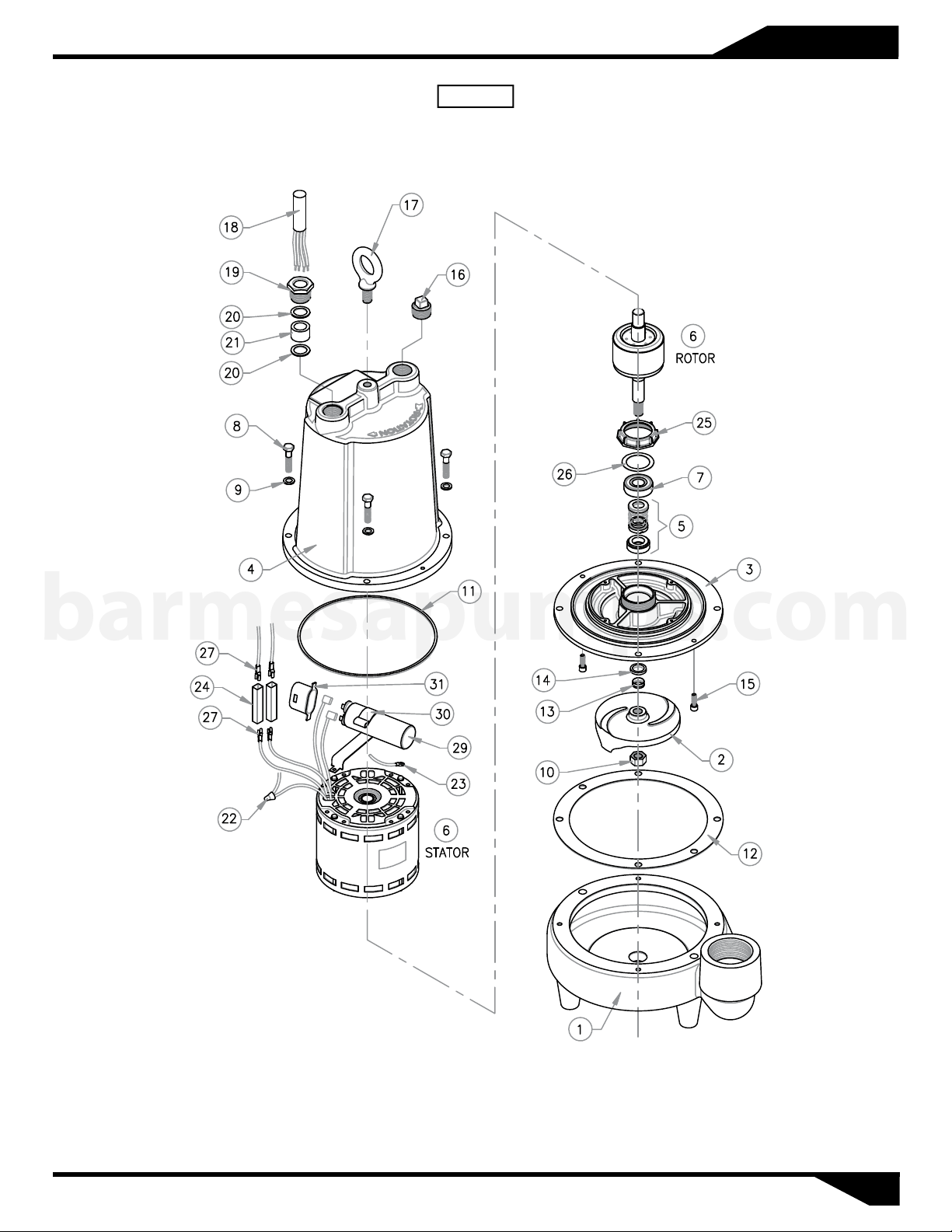

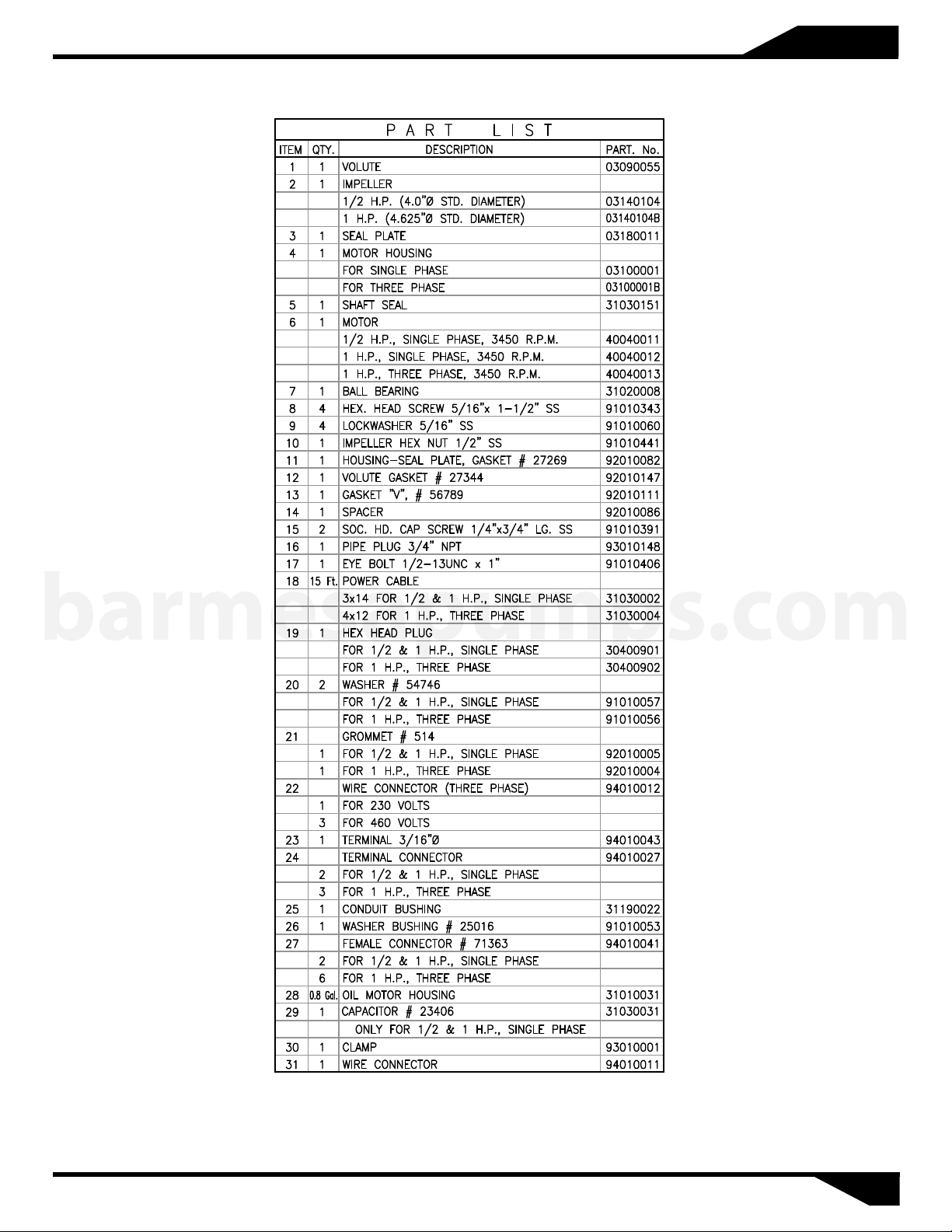

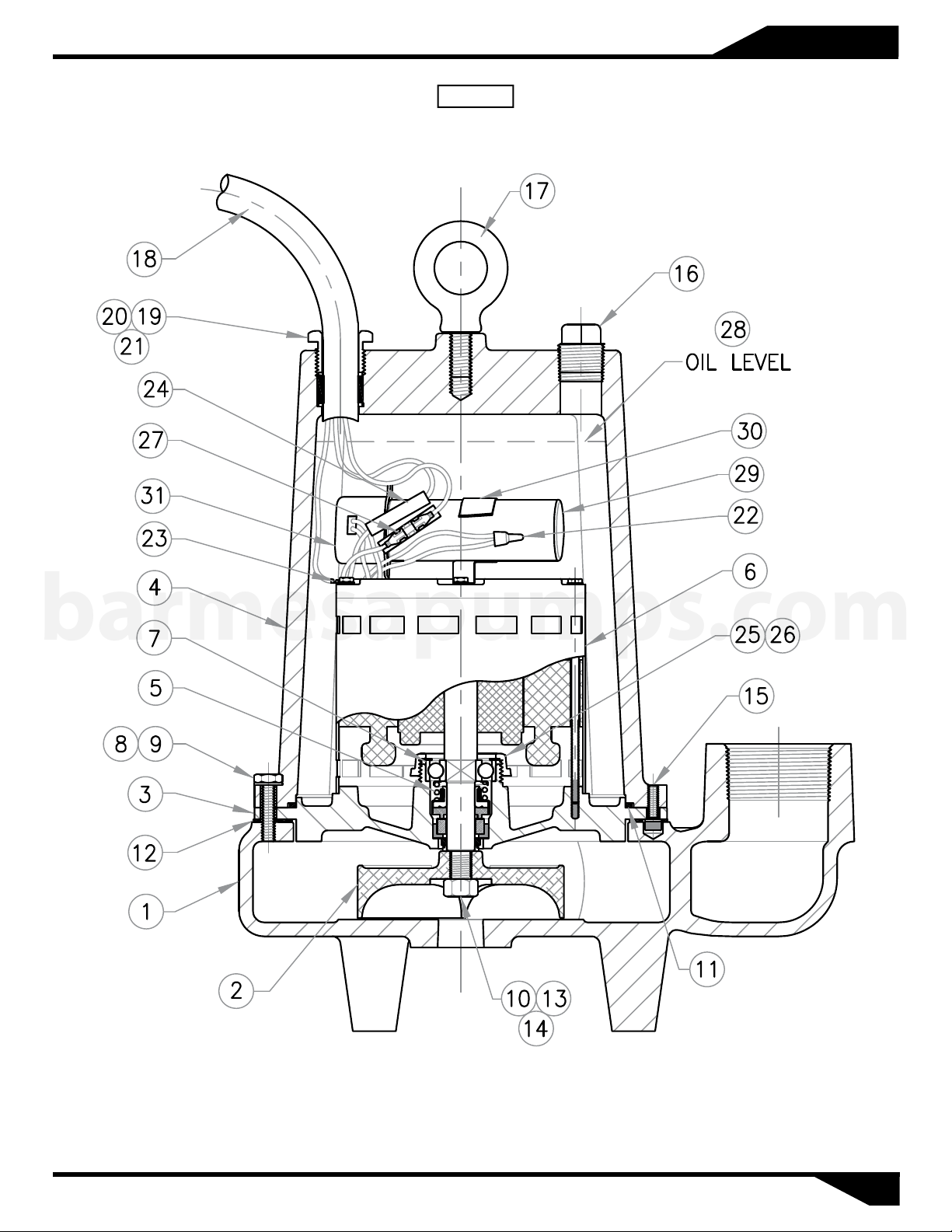

Repair Parts
barmesapumps.com
Figure 6
For Repair Part Please supply: Model Number and Serial as shown on
Name Plate, and Part Description and Part Number as shown on Parts List.

09
Repair Parts
Figure 7
barmesapumps.com
For Repair Part Please supply: Model Number and Serial as shown on
Name Plate, and Part Description and Part Number as shown on Parts List.

10
Parts List
barmesapumps.com
For Repair Part Please supply: Model Number and Serial as shown on
Name Plate, and Part Description and Part Number as shown on Parts List.

Risk of electric shock. Always disconnect the pump from the power source before handling inspections or repairs.
Symptom Possible Cause(s) Corrective Action
Pump will not run
1. Poor electrical connection, blown fuse, tripped
breaker or other interruption of power;
improper power supply
2. Motor or switch inoperative (go to manual
operation)
2a. Float movement restricted
2b. Switch will not activate pump or is defective
2c. Defective motor
3. Insuffi cient liquid level
1. Check all electrical connections for security.
Have electrician measure current in motor leads,
if current is within ± 20% of locked rotor Amps,
impeller is probably locked. If current is 0,
overload may be tripped. Remove power, allow
pump to cool, then re-check current.
2a. Reposition pump or clean basin as required to
provide adaquate clearance for float
2b. Disconnect level control. Set ohmmeter for a
low rang, such as 100 ohms full scale and
connect to level control leads. Actuate level
control manually and check to see that
ohmmeter shows zero ohms for closed switch
and full scale for open switch. (Float Switch)
2c. Check winding insulation (Megger Test) and
winding resistance. If check is outside of range,
dry and re-check. If still defective, replace per
service instructions.
3. Make sure liquid level is above the pump
4. Re-check all sizing calculations to determine
proper pump size.
5. Check discharge line for restrictions, including
ice if line passes through or into cold areas.
6. Remove and examine check valve for proper
installation and freedom of operation
7. Open valve
8. Check impeller for freedom of operation,
security and condition. Clean impeller cavity
and inlet of any obstruction
9. Loosen union slightly to allow trapped air to
escape. Verify that turn-off level of switch is set
so that the suction is always flooded. Clean vent
hole
10. Check rotation. If power supply is three phase,
reverse any two of three power supply leads to
ensure proper impeller rotation
11. Repair fixtures as required to eliminate leakage
12. Check pump temperature limits and fluid
temperature
13. Replace portion of discharge pipe with flexible
connector or tighten existing piping.
14. Turn to automatic position
15. Check for leaks around basin inlet and outlets
Pump will not turn off
2a. Float movement restricted
2b. Switch will not activate pump or is defective
4. Excessive inflow or pump not properly sized for
application
9. Pump may be air locked causing pump not to flow
14. H-O-A switch on panel is in "HAND" position
Pump hums but doesn’t run
1. Incorrect low voltage
8. Impeller jammed or loose on shaft, or inlet
plugged
Pump delivers insufficient capacity
1. Incorrect low voltage
4. Excessive inflow or pump not properly sized for
application
5. Discharge restricted
6. Check valve partially closed or installed backwards
7. Shut-off valve closed
8. Impeller jammed or loose on shaft, or inlet
plugged
9. Pump may be air locked causing pump not to flow
10. Piping fixtures leaking or discharge before the
nozzle
Pump cycles too frequently or runs periodically
when f ixtures are not in use
6. Check valve partially closed or installed backwards
11. Fixtures are leaking
15. Ground water entering basin
Pump shuts of f and turns on independent of
switch, (trips thermal overload protector).
CAUTION! Pump may start unexpectedly.
Disconnect power supply.
1. Incorrect low voltage
4. Excessive inflow or pump not properly sized for
application
8. Impeller jammed or loose on shaft, or inlet
plugged
12. Excessive water temperature (internal
protection only)
Pump operates noisily or vibrates excessively
2c. Worn bearings, motor shaft bent
5. Debris in impeller cavity or broken impeller
10. Pump running backwards
13. Piping attachments to building structure too
loose or rigid
NOTE: Barmesa Pumps assumes no responsibility for damage or injury due to disassembly in the field. Disassembly of the pumps or supplied accessories other
than at Barmesa Pumps or its authorized service centers, automatically voids warranty.
11
Troubleshooting Chart
barmesapumps.com
