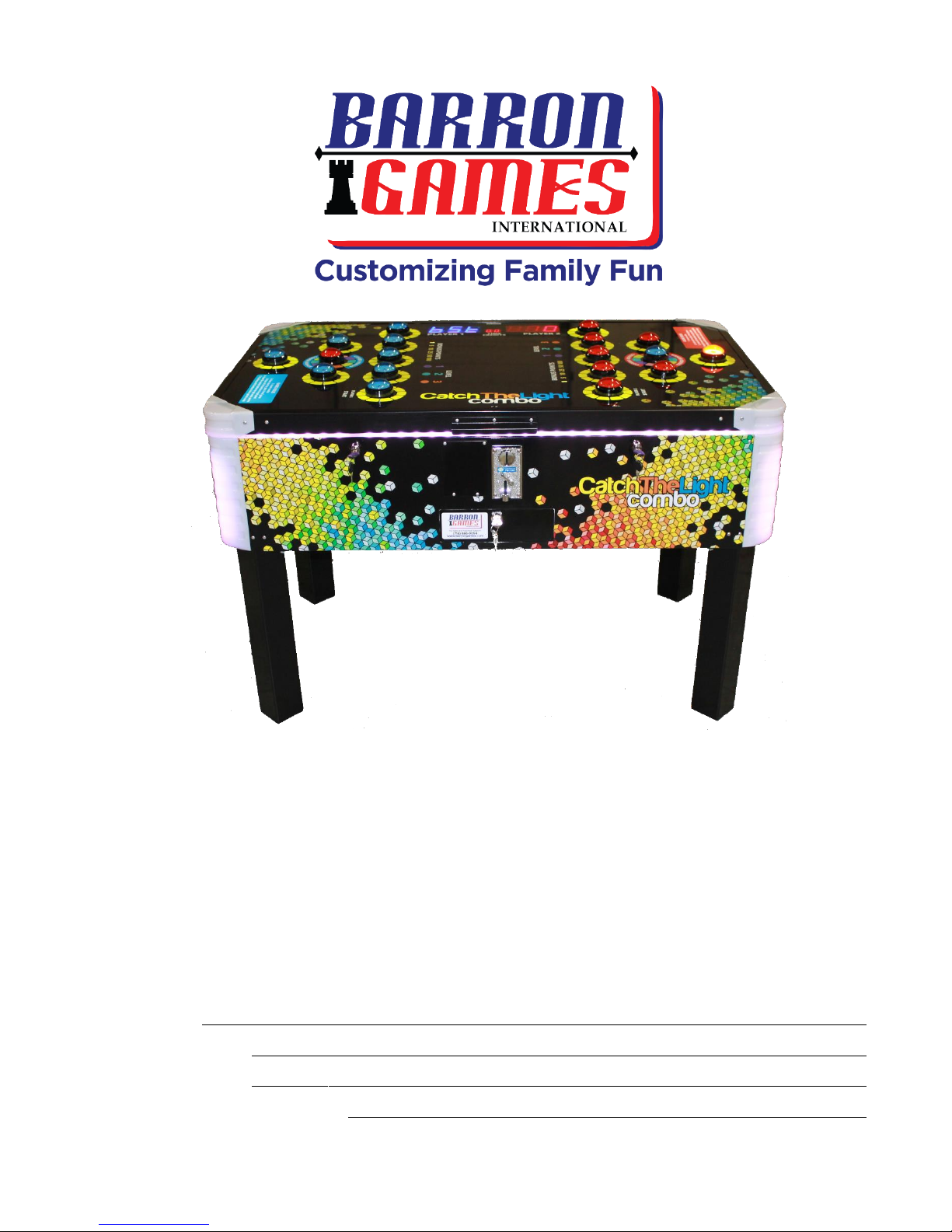

Barron Games Catch the Light Combo User manual

SKU#: BG-CCL007
Catch the Light Combo
Instruction Manual
Assembly, Operation, and Care Instructions
Serial #:
Distributed By:
Sales Person:
Technical Service #:
[phone]
v.070616

Catch the Light Combo
Instruction Manual
Inspect Immediately after
Transporting the Product
After receiving the shipment, inspect the product thoroughly to ensure
that it has been shipped with care. Before turning the power on, please
check the following:
Check the cabinet for damage or shifting that may have occurred
during shipping. Are there any dented portions or defects (cuts, etc.)
on the external surfaces of the cabinet?
Are all the legs intact?
Do the power supply voltage and frequency requirements meet with
those of the location (110V/220V)?
Are all wires linked correctly and securely connected to each other?
If coupled in an incorrect manner, the connection will not be made
accurately and it could cause not only irreparable damage to the
machine, but also is a potential fire hazard. DO NOT INSERT
CONNECTORS FORCIBLY.
Check that the all the cables, including power cables, are undamaged.
Do power cables or other wires have any splices, cuts, or dents?
Have you been provided with all of the associated accessories? Tip:
Most of the pieces required to assemble the table are shipped within
the table. Use your table keys to unlock the table and check parts for
damage or other problems.
Can all doors/lids be opened with the accessory keys? Can doors/lids
be firmly closed? Does the coin box key open the coin box(es)?

Catch the Light Combo
Instruction Manual
[e-mail] 1 For assistance call: 1+[phone]
Safety Instructions
This equipment may contain hazardous voltage which can cause electrical
shock. Only qualified personnel* should work inside the equipment.
*Note: Keep reading for a list of qualified personnel.
To maintain personal safety and the safe operation of this product, read the
entire manual before using it. The following instructions are intended for the
users, operators, and the personnel in charge of the operation of the
machine. Be sure to keep this manual close to the product or in a
convenient place for future reference.
IMPORTANT NOTICES
This product is intended for indoor use only
This is NOT a child’s toy; adult supervision is required for children to play this
game. Children under 106 cm (roughly 3.5 ft) in height should not approach
the table while it is in use, as this could be hazardous.
Do not sit, climb, or lean on the table. Do not place anything, including
people, on the top of the playfield surface.
Do not drag the table when moving it, as this could damage the legs, cabinet
beyond repair.
Do not place any food or drinks on the table. Use the cup holders, if provided.
This game features flashing lights which may not be suitable for
photosensitive epilepsy.

Catch the Light Combo
Instruction Manual
[e-mail] 2 For assistance call: 1+[phone]
Definition of Site Maintenance Personnel
or Other Qualified Individuals
Replacing parts, maintenance inspections, and troubleshooting should be carried out by Site
Maintenance Personnel or other Qualified Professionals. This manual includes directions
for potentially dangerous procedures which should only be performed by professionals with
appropriate and specialized knowledge.
The Site Maintenance Personnel or other Qualified Professionals mentioned in this
manual are defined as follows:
Site Maintenance Personnel: Individuals with experience in maintaining amusement
equipment, vending machines, etc., working under the supervision of the owner and/or
operator of this product. Maintenance Personnel frequently service machines within
amusement facilities or similar premises by carrying out everyday procedures such as:
assembly, maintenance inspections, and replacement of units or replaceable parts.
oActions Approved for Site Maintenance Personnel: Machine assembly, maintenance
inspection, and replacement of units or replaceable parts.
Other Qualified Professionals: Personnel employed by the amusement equipment
manufacturer. Personnel may also have been involved in design, production, testing, or
maintenance of said amusement equipment. This individual should have either graduated
from a technical school or hold similar qualifications in electrical, electronics, or mechanical
engineering.
oActions Approved for Other Qualified Professionals: Assembly, maintenance,
inspection, and replacement of units or replaceable parts for amusement equipment
and/or vending machines, including repair or adjustments of electrical, electronic, or
mechanical parts.
WARNING
Servicing and maintenance work of the contents herein stated should be performed
by the SERVICEMAN stipulated as per IEC Standard. Those who do not have technical
expertise and knowledge other than the SERVICEMAN are not allowed to perform
the work herein stated. Executing the aforementioned work by such non-technical
personnel can cause serious accidents that may endanger life.

Catch the Light Combo
Instruction Manual
[e-mail] 3 For assistance call: 1+[phone]
Before Using This Product
Please be sure to read the following before using this machine, in order to ensure the safe
operation of this product. The following instructions are intended for users, operators, and
personnel in charge of the operation and maintenance of the machine. After carefully reading
and sufficiently understanding the warning displays and cautions, please handle the machine
appropriately. Be sure to keep this manual for future reference.
Qualified Personnel: Only personnel who have technical expertise should perform the work
stated herein to avoid hazardous situations. The instructions state that site maintenance
personnel should be the only personnel performing work. Please perform maintenance work in
accordance with the stated instruction; provided instructions for maintenance work are to
minimize risk and prevent accidents. Failing to perform work as stated within the Instruction
Manual may potentially be dangerous to both maintenance personnel and users.
Be sure to turn off the power before working on the machine. To prevent electric
shock, be sure to turn the power off before carrying out any work that requires direct contact
with the interior of the product. If the work is to be performed in the power-on status, the
Instruction Manual will state to do so.
Be sure to ground the Earth Terminal. This is not required in the case where a power
cord with earth/ground is used.
Ensure the power supply used is equipped with an Earth Leakage Breaker. This
product does not incorporate an Earth Leakage Breaker. Using a power supply which is not
equipped with an Earth Leakage Breaker can cause a fire when or if earth leakage occurs.
Before installing the product, check for electrical specifications; the product must
meet the requirements. Ensure the product is compatible with the power supply voltage
and frequency requirements of the location. Using any electrical specifications that are
different from the designated specifications can cause a fire and/or electric shock.
Install and operate the product where appropriate lighting is available, allowing
warning and safety labels to be read clearly. To ensure customer safety, labels and
printed instructions describing potentially hazardous situations are applied to places where
risk for potential accidents are increased.
If any label is peeled off, apply it again immediately. Please contact Barron Games
Technical Support at 1+716-866-0054 or email [email protected] if you are in need of
new stickers or parts. Visit www.BarronGames.com for more information about Barron Games’
Parts and Service Department.

Catch the Light Combo
Instruction Manual
[e-mail] 4 For assistance call: 1+[phone]
INSTALLATION AND MAINTENANCE SAFETY
This product is an indoor game machine. Do not install it outside. Even
indoors, avoid installing it in the places mentioned below, so as to avoid causing
a fire, electric shock, machine malfunction, or even death. Do not install or
maintain this product in/on/within/near:
places subject to rain or water leakage, places subject to high humidity, or in
the proximity of an indoor swimming pool, shower, steam room, etc.
places subject to direct sunlight, places subject to high temperatures, or in the
proximity of heat dispensing units or portable heating devices.
places filled with inflammable gas, within the vicinity of highly flammable or
volatile chemicals, or other hazardous materials.
dusty places.
sloped surfaces.
places subject to any type of violent impact.
the vicinity of anti-disaster solutions, such as fire exits and extinguishers.
places where the operating (ambient) temperature range is not 5°C to 30°C
(41°F to 86°F).
places near water or spray from water (such as a jet wash, hot tub, or
swimming pool).
To ensure maximum safety for the users and service personnel,
ensure that where the product is operated has sufficient
lighting to allow all safety labels to be read clearly. Operation
under insufficient lighting is not advised.

Catch the Light Combo
Instruction Manual
[e-mail] 5 For assistance call: 1+[phone]
ASSEMBLY
1. Read this Instruction Manual carefully before assembling or playing.
2. Ensure that there is sufficient space to place and shift the product prior to
assembly
3. Two adults are recommended to assemble the product.
4. Inspect and ensure all parts are securely attached before rotating the table.
5. Please Note: Children and pets should be kept away from assembly and game
pieces; this table contains small parts and balls that could be a potential choking
hazard.
6. This machine is supplied with a full range of accessories to help you get started
right away. Key sets for 2 locks, a preinstalled SD card, 4 legs, and 12 leg bolts
should be included with your table.
TOOLS NEEDED
Catch the Light Combo Instruction Manual
Ratchet or Wrench
*Note: Please retain the original packaging, so that it may be used for storage or transport later.

Catch the Light Combo
Instruction Manual
[e-mail] 6 For assistance call: 1+[phone]

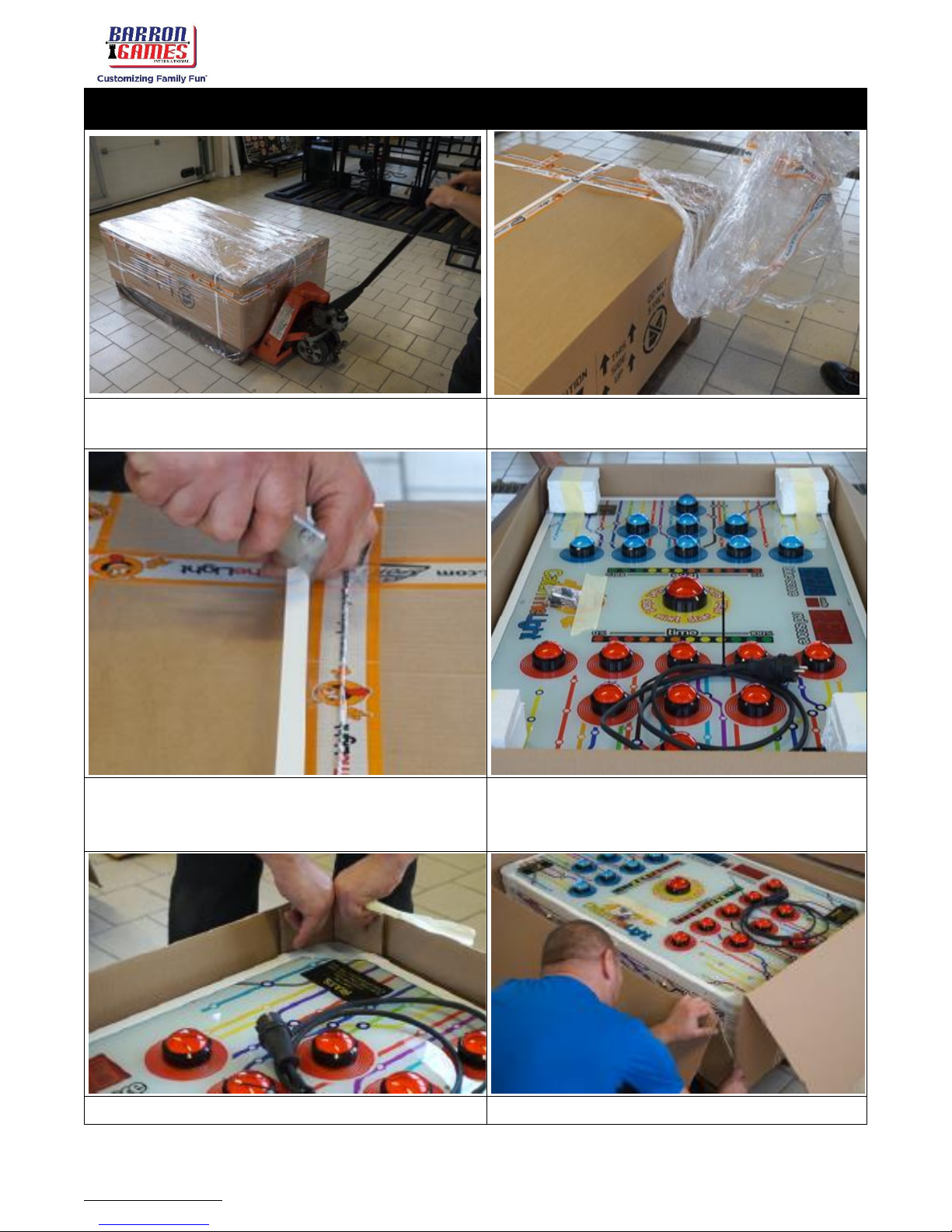

Assembly –Step 1(Unpack the Game)
1. Place the machine near the desired location.
2. Remove the shrink/stretch wrap from the
package.
3. Cut the safety belt. Warning: The safety belt is
very taut and can harm you if it snaps back
while you’re cutting it. Use caution.
4. Cut the packaging tape and open the box
and gently remove the Styrofoam spacers.
Note: Your model table may be styled differently.
5. Remove the cardboard corner shields.
6. Cut down the corners of the cardboard.

Catch the Light Combo
Instruction Manual
[e-mail] 7 For assistance call: 1+[phone]

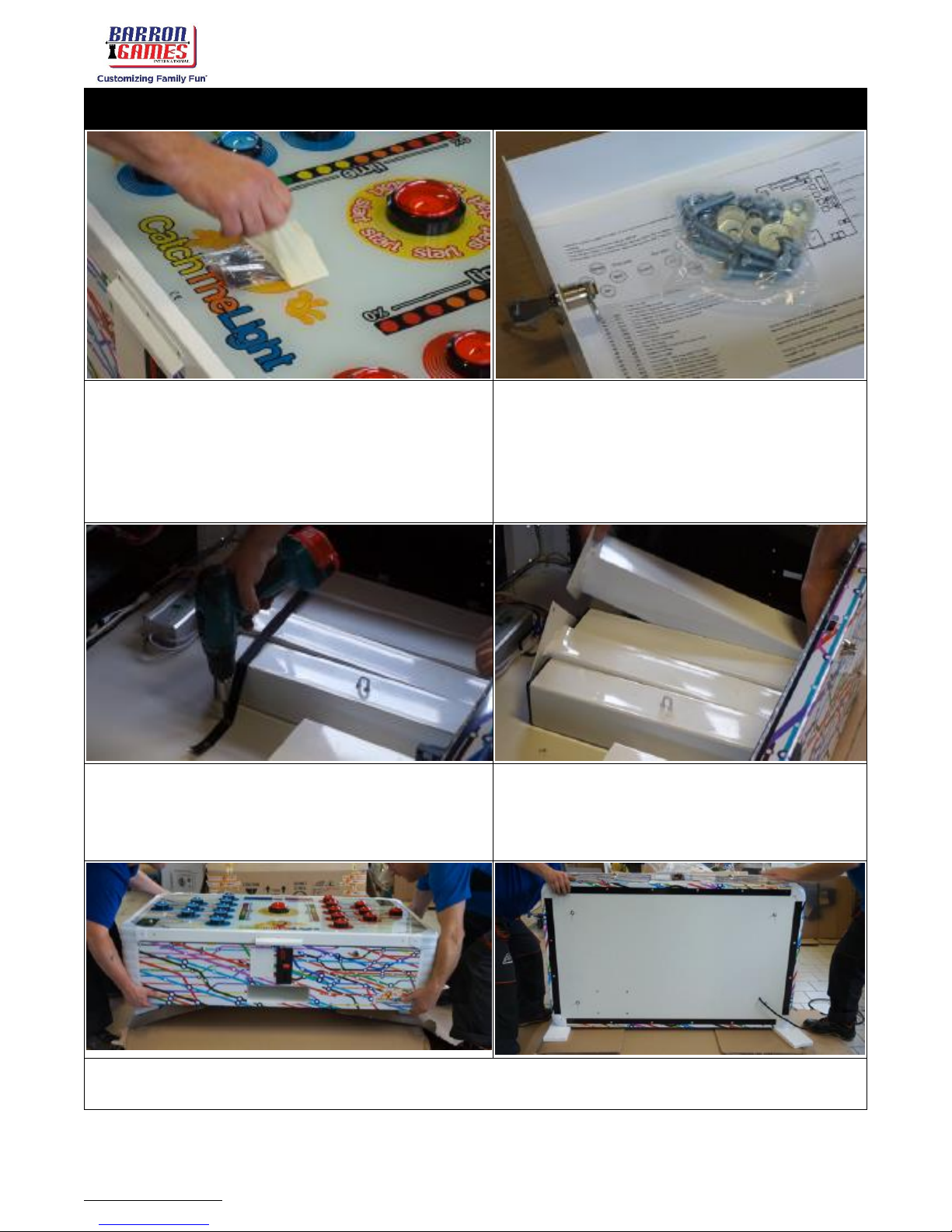

Assembly –Step 2(Assemble the Table)
1. A set of keys will be taped to the top or bottom
of the table, gently remove the tape and collect
the keys. Each keyhole has a different key. Once
turned the lock mechanism will pop open. The
locks will remain unlocked until the mechanism
is pushed back in.
2. Unlock the money box and remove it from
the machine. Inside the box you will find a
set of screws and a settings menu
description (also included in instruction manual)
3. Open the machine. All 4 legs will be on the right
hand side. Unscrew the 8 screws that mount the
safety tape securing the legs inside the machine.
4. Remove the legs from the internal cabinet.
Close the machine. Make sure that both
locks are pushed closed and the keys are
not inside the table.
5. Flip the machine so it stands on the side with the hinges. The locks should now be on the top of
the cabinet.

Catch the Light Combo
Instruction Manual
[e-mail] 8 For assistance call: 1+[phone]

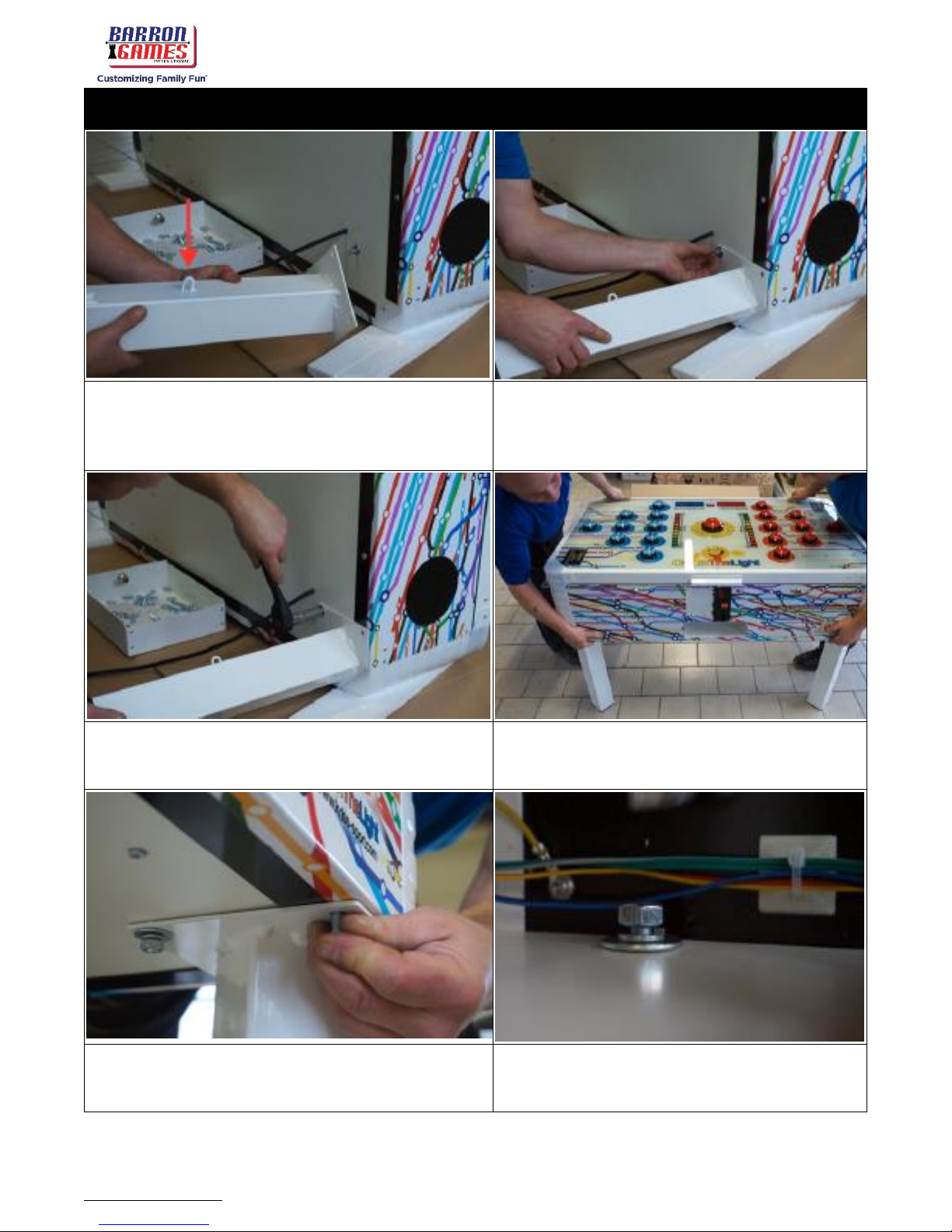

Assembly –Step 2(Assemble the Table)
6. Install the legs. Notice that one of the legs is
different; there is an eyelet on the side. This leg goes
on the side with the cord, the eyelet acts as a guide
once the table is assembled.
7. To secure the bolt: place an expanded pad, a
spring pad, then a nut. When tightening the
nut, make sure that all the other holes on the
leg are aligned with the holes on the table.
8. At this point, only use one mounting point per leg
until the table is upright.
9. When all 4 nuts (one per leg) are tightly
secured, flip the table back to the correct
standing position.
10. Open the machine and insert the additional screws
(two more on each leg) from under the table.
11. Place an expanded pad, a spring pad, and then
the nut. Proceed to tighten all 12 mounting
points (4 bolts from Step 7 and 8 from Step 10)

Catch the Light Combo
Instruction Manual
[e-mail] 9 For assistance call: 1+[phone]
Assembly –Step 2(Assemble the Table)
12. Close the machine. Make sure that both locks are
pushed closed and the keys are not inside the table.
13. Insert the money box back into the machine,
close the lock and remove the key.
14. Cut the zip tie on the power cord being very careful
not to cut or damage the cord.
15. Check to make sure the machine is not cold. If it
is, wait an extra 30 minutes to warm it to room
temperature before plugging in.
16. Connect the machine to the power outlet. It should start and be ready to program.
Assembly –Step 3(Program the Game)
Operation Modes
1. OFF
2. Normal operation mode
a. Standby
b. Waiting for START
c. Game
3. Settings
4. Software update
Software Regulated Features
•Volume
•Credit settings
•Ticket dispenser settings
•Free-play mode
•Button lit time
•Lit buttons limit
•Clear active credits
•Default settings recovery

Catch the Light Combo
Instruction Manual
[e-mail] 10 For assistance call: 1+[phone]
Assembly –Step 3 (Program the Game)

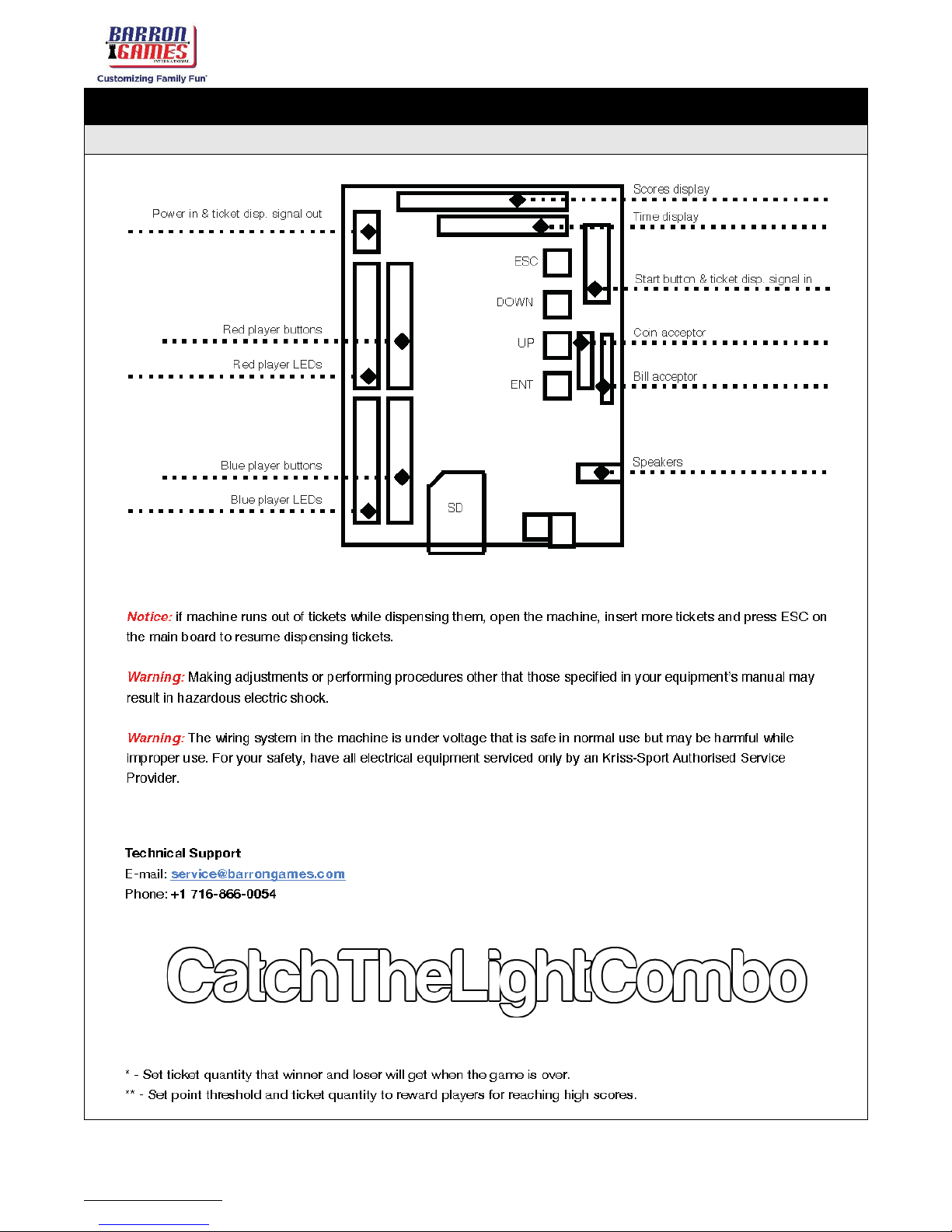

How to Browse the Settings Menu

Catch the Light Combo
Instruction Manual
[e-mail] 11 For assistance call: 1+[phone]
Assembly –Step 3 (Program the Game)
How to Browse the Settings Menu

Catch the Light Combo
Instruction Manual
[e-mail] 12 For assistance call: 1+[phone]
Assembly –Step 3(Program the Game)
How to exit the settings and apply the changes
1. All values are stored immediately after making
changes. You don’t have to reboot the machine in
order to apply changes.
2. Browse menu using the UP and DOWN buttons.
3. To exit the menu, press ESC or restart the
machine.
How to read counters
Counters can display large numbers (up to 6 digits)
and are using both score displays. For example,
when reading tickets counter, you may see:
002 on the left display
491 on the right display
This means that the machine gave 2,491 tickets.
The number on the “credit display” is just an order
number of this settings menu position and it’s not
relevant to the counter value.
How to adjust the volume level
1. Turn ON the machine and wait for normal operation
mode.
2. Open machine and locate main board.
3. Use UP to navigate to position VPL in settings
menu.
4. Press ENT and use UP and DOWN buttons to
adjust volume value.
5. After adjusting press ENT to confirm new setting.
6. Press ESC to go back to normal operation mode.
How to replace the SD card
1. Turn the machine OFF, open the cabinet, and
locate the SD card on the main board.
2. Press the card and it will pop out of the socket.
3. Pull the existing card out.
4. Insert the new card securely.
5. Close the machine and turn it off.
How to update the SD card
1. Turn the machine ON and check the current
software version on the credit display. Version
number is displayed only when the machine is
initializing.
2. Turn the machine OFF, open the cabinet, and
locate the SD card on the main board.
3. Press the card and it will pop out of the socket.
4. Pull the existing card out.
5. Connect the card to your computer using a card
reader or insert it directly into a computer with a
built-in reader.
WARNING: Do not use MAC OSX. Macintosh
operating system creates hidden indexing files
and all connected drives. Those files can corrupt
the main board.
NOTICE: Make sure your card reader is high
quality and the USB cable can power the reader.
Some low-quality card readers need additional
power supply to work correctly.
6. Check if the SD card is an old .hex file. If so,
select the file and move it to the trash bin.
7. Move a new .hex file onto the card. (Note: a new
.hex file can be requested via
[e-mail]
8. Use your operating system hardware removal tool
to safely remove the SD card from the reader.
Remove the SD card.
9. Put the SD card back into the socket on the main
board of the game.
10. Turn on the machine and wait for the update
procedure to complete.
11. When updating the displays on the table will read
,,BOOT’’ then ,,ENDBOOT’’ and finally ,,INIT’’
12. After initializing, the machine will start normally.

Catch the Light Combo
Instruction Manual
[e-mail] 13 For assistance call: 1+[phone]
Assembly –Step 4(Operating the Game)
Connecting a Card Swipe Machine
Use 10 pin ribbon wire which is connected to the coin acceptor.
Debit card reader must send impulses:
time of impulse: 100 ms
time of break: 200 ms
Connect impulse from card system to pin number 10 and GND card system to pin number 1 (red color)
Use settings in menu:
PL4 - how many credits for each impulse from Debit card reader
1 pin (red ) is GND
2 pin is 12V DC
How to Play the Game
1. Insert payment and choose an end to play. (Skip this step if set to FREE PLAY)
2. To play one player:
a. Press the illuminated start button on the players left.
b. Wait for the countdown to begin. The game will give you a few moments to allow a second player to join.
3. To play two player versus:
a. Press the illuminated button on the players far left.
b. Players will have 5 seconds (countdown on the table top) to press start on the other side of the table.
c. Once both players have joined the game, a new countdown will start, after a few moments, the first
round will begin.
4. Game Objective: Press all the lit buttons until the time in each of 3 rounds runs out. Game difficulty can be
set by the operator.
5. When the Combo Bonus button is lit: quickly hit it for a cumulative bonus point reward at the end of each
round.
6. If a non-lit button is pressed: points will be deducted from that players score.
7. Play 3 Rounds: there will be a few second pause in between each of three rounds.
8. Tickets are rewarded at the end of the third round when the game is over. Redemption is optional and
ticket redemption option settings can be changed in the settings menu.

Catch the Light Combo
Instruction Manual
[e-mail] 14 For assistance call: 1+[phone]
After Installing the Game
1. Check the voltage regularly to avoid a short circuit or potential fire. Do not
overload the circuit.
2. Keep the power cord out of areas with busy foot traffic to ensure the safety of
users and the machine.
3. Keep children away from all power sources and power supply units. Children
should always be under adult supervision while using the machine. Youth under
120cm (roughly 4ft) in height should not operate this machine.
4. Regular maintenance should be performed on the machine to ensure that it is
clean, smooth, and debris-free (see section “Care and Maintenance”).
5. Do not use any sharp instruments on any part of the machine as it may cause
irreparable damage.
6. Remove and replace any piece or part that becomes damaged.
7. Turn off the game and have it inspected by an electrician or service technician
if it is operating abnormally.
8. Contact an electrician or service technician if your product experiences the
following:
Power Failure
Liquid or Objects Found Near/Inside Electronic Components
Abnormal Sounds Coming from the Cabinet
9. Use caution while transporting.
10. Do not use outdoors or in damp areas.
11. Take extra care when handling the surface.

Catch the Light Combo
Instruction Manual
[e-mail] 15 For assistance call: 1+[phone]
Care and Maintenance
1. Always connect the machine to a grounded electrical outlet.
2. Always turn OFF the power and unplug the power supply to the game before
opening or replacing any parts. When unplugging the machine from an
electrical outlet, grasp the plug, not the cord.
3. Caution: Always use digital multimeter, logic tester, or oscilloscope for testing
integrated circuits. Do not connect or disconnect any of the integrated circuits
while the machine is ON. Do not install any fuse that does not meet the
specified rating.
4. Use a soft cloth and product-specific polishing spray to clean the cabinet and
play surface. Household window cleaner may be used to clean the top of the
game (surface). Do not apply cleaner or any other liquid directly onto the
machine, instead, apply it to the cloth and then wipe the surface. We’ve found
that a microfiber cloth works great to remove dirt and fingerprints with ease.
5. Dust, grime, and other debris can collect inside the body of your table over
time. Vacuum out the inside cavity frequently. The easiest way to access the
inside of the table is to unlock both locks and lift the top of the cabinet like a
trunk. It should stay open once it has reached maximum height. Opening the
cabinet will also give you access to excess dust that may have built up inside
the machine over time. NEVER ATTEMPT to clean the cabinet while the game
is operating.
6. Clean any dirt or debris from the main PC Board with a soft brush or dry cloth.
NEVER USE WATER OR OTHER LIQUIDS. Always be sure to turn off or
unplug the machine before opening the PC Board panel.
7. Periodically check the functionality of the coin mechanisms and empty coin
boxes.
8. If applicable, check the functionality of the ticket dispensers and restock.
9. Perform maintenance work in accordance with these instructions. Be sure to
always turn off the power before servicing the machine.

Catch the Light Combo
Instruction Manual
[e-mail] 16 For assistance call: 1+[phone]
Troubleshooting
Having trouble assembling your new table?
Call our experts in the Parts and Service Department (1+716-866-0054) or email [e-mail] and
we will be happy to assist you!
Machine Won’t Turn On:
1. Check if the power outlet is working correctly.
2. Check if the power supply inside the machine is functioning (a green LED will be illuminated).
3. Check if the power in connector is connected correctly to the main board.
No Sound:
1. Check to make sure the volume setting is not set to 0.
2. Check to see if the speakers are connected correctly to the main board and connectors are secured properly
to each speaker.
3. Check if SD card is plugged in correctly.
4. Check if files on the SD card are in the top directory and have corec names (game_sta.mp3, game1.mp3, -
game5.mp3, winner.mp3)
Need to Fix and Replace a Button:
For step-by-step video instructions visit: https://youtu.be/Taq6kUH6g0M.
1. Unmount the switch with LED from the button from below.
2. Unscrew the nut from the button. The nut may be glued to prevent self-unscrewing
3. Push out the button from below.
4. Check if the button cover is broken; if so, replace it.
5. Squeeze two plastic elements to release inner element and push it out. Notice that the spring is most likely
to jump out. Try to grab it before completely removing the inner element.
6. Push the spring and squeeze the white plastic elements to block it from popping out. Then place the inner
element in the new button cover.
7. Put the soft washer on the button and install the button back in the glass.
8. Screw the nut back in and tighten it.
9. Install the switch with the LED back inside the button.
Need to Replace Switch and Switch Adapter:
For step-by-step video instructions visit: https://youtu.be/J8ccAI7JeJY.
1. Turn the switch counter-clockwise to remove it from the button.
2. The old button and the new button may have different switch adapters and different mounting systems.
3. The old button has the lock and switch adapter with locking pins. The new button will have locking pins and
a switch adapter with a lock.
4. When changing the switch adapter, start with removing the LED.
5. Bend the adapter in order to remove the switch.
6. Place the switch in the new adapter and bend it again to lock it in position.
7. Plug in the LED and insert it back into the button chamber.
8. The new adapter will only work with the new buttons. It will not fit the old buttons. Old adapters will only
work with old buttons and not fit the new buttons.
Need to Upgrade Button Backlight (make brighter):
For a step-by-step video instruction visit: https://youtu.be/FDosX-on5rA.
1. Remove the switch and take the LED bulb out.
2. Squeeze the two plastic parts together to remove the button. Don’t forget about the spring inside. Remove
the spring as well.

Catch the Light Combo
Instruction Manual
[e-mail] 17 For assistance call: 1+[phone]

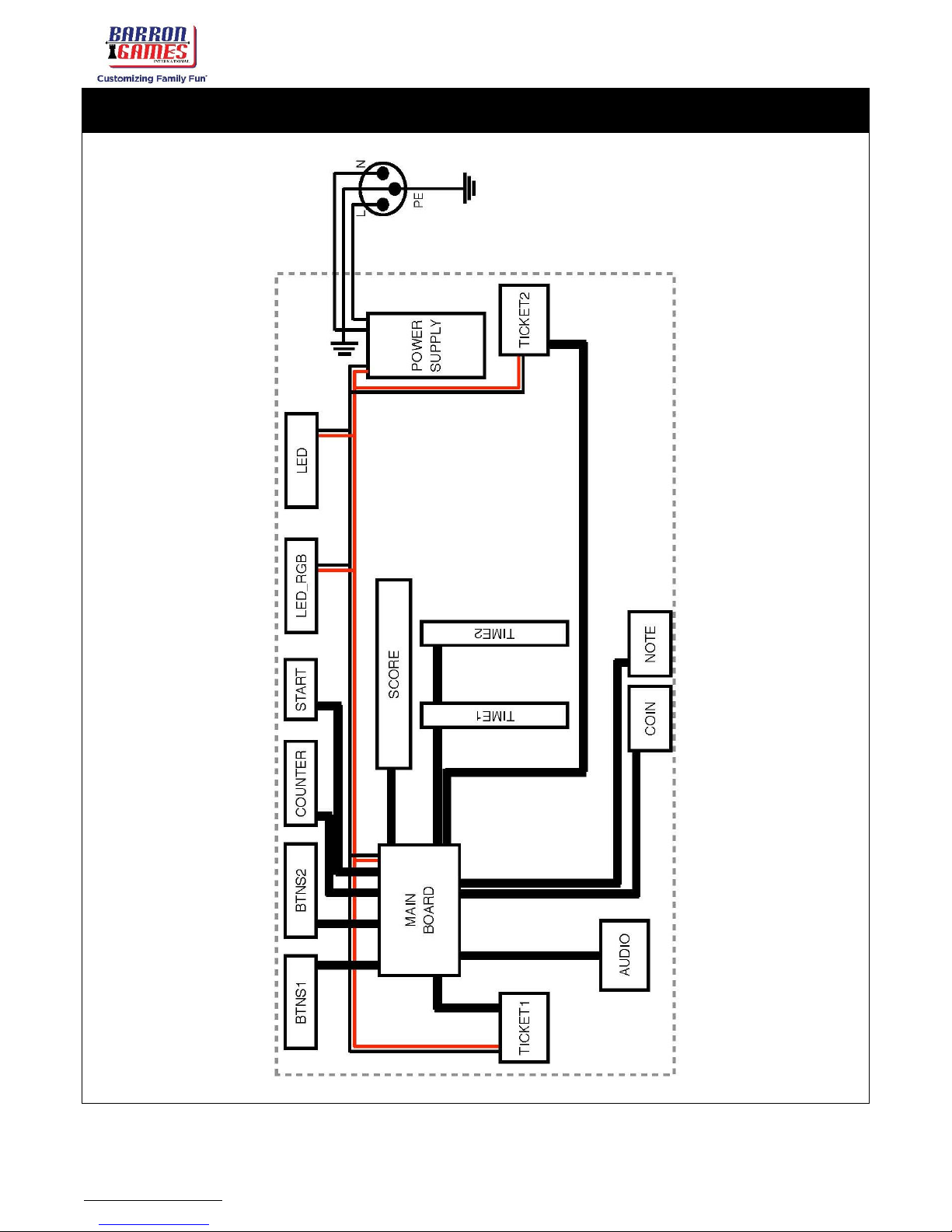

Electronic Diagrams

Catch the Light Combo
Instruction Manual
[e-mail] 18 For assistance call: 1+[phone]

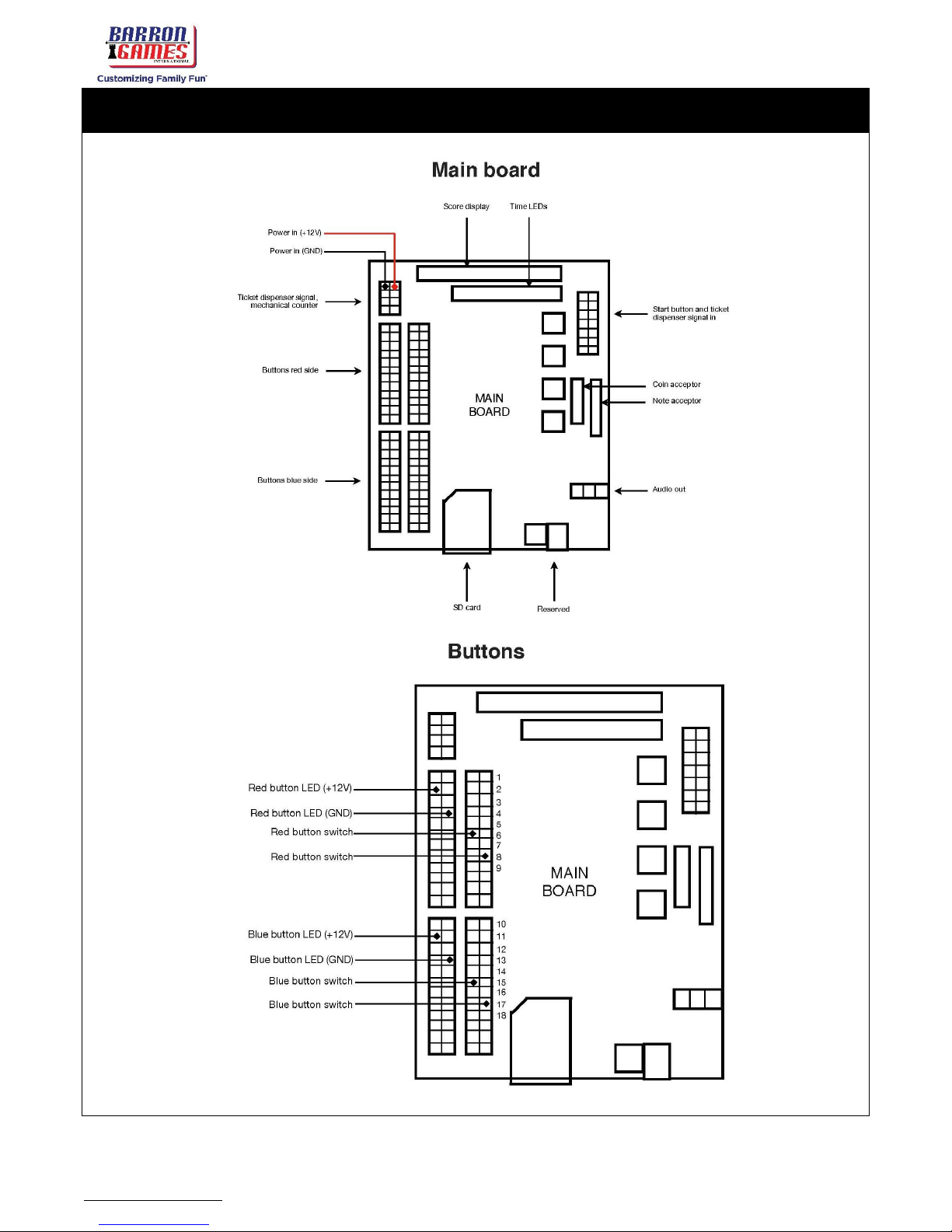

Electronic Diagrams
