Bartec Polaris Remote 15" User manual

User Manual
POLARIS BASIC 5.7" up to 12.1" Zone 1/Zone 21

User Manual - TRANSLATION
POLARIS BASIC

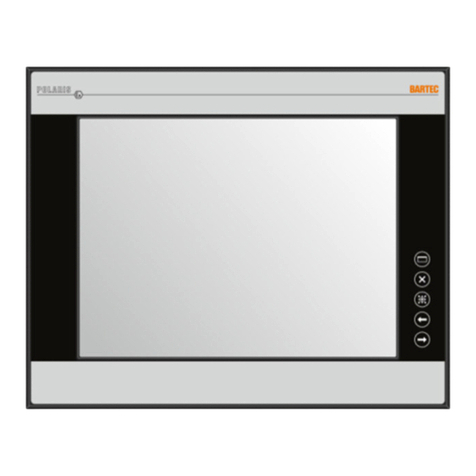

POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Type 17-71V1-….
ATEX / IECEx / CSA
Zone 1 and Zone 21
Document no. 11-71V1-7D0004 / 236275
Revision 5 / Status: 30 June 2017
Reservation: Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
Content Pages
English 1-45
GmbH
Max-Eyth-Straße 16
Phone: [phone]
Support:
[e-mail]
97980 Bad Mergentheim
Fax: [phone]
Download:
http://automation.bartec.de
GERMANY
Internet:
www.bartec.de

Table of Contents POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Technical data subject to change.
06/2017
1. Basic safety instructions.................................................................................................................... 1
1.1 Notes on this manual ................................................................................................................ 1
1.1.1 Languages.................................................................................................................... 2
1.1.2 Changes in the document............................................................................................. 2
1.2 Handling the product................................................................................................................. 2
1.3 Intended use ............................................................................................................................. 2
1.3.1Exclusive purpose ........................................................................................................ 2
1.3.2 Unintended use ............................................................................................................ 3
1.4 Duties of the operator................................................................................................................ 3
1.5 Safety information ..................................................................................................................... 3
1.5.1 General......................................................................................................................... 3
1.6 General safety information for operation................................................................................... 3
1.6.1 Maintenance ................................................................................................................. 3
1.6.2 Servicing....................................................................................................................... 4
1.6.3 Inspection ..................................................................................................................... 4
1.6.4 Repairs ......................................................................................................................... 4
1.6.5 Commissioning ............................................................................................................. 4
1.7 Labelling, test certificate and standards.................................................................................... 4
1.8 Warranty.................................................................................................................................... 4
2. Product description............................................................................................................................. 6
2.1 Definition ................................................................................................................................... 6
2.2 Schematic design...................................................................................................................... 7
3. Explosion protection and approvals ................................................................................................. 8
4. Technical data.................................................................................................................................... 10
4.1 General data ........................................................................................................................... 10
4.1.1 Characteristics POLARIS Panel PC 5.7".................................................................... 11
4.1.2 Characteristics POLARIS Panel PC 10.4".................................................................. 11
4.1.3 Characteristics POLARIS Panel PC 12.1".................................................................. 12
4.2 USB Ex i Memory stick............................................................................................................ 12
4.2.1 Explosion Protection................................................................................................... 12
4.2.2 General Data .............................................................................................................. 12
4.3 Product labelling...................................................................................................................... 13
5. Transport, Storage, Scope and Assembly...................................................................................... 14
5.1 Transport................................................................................................................................. 14
5.2 Intermediate storage ............................................................................................................... 14
5.3 Scope of delivery..................................................................................................................... 14
5.3.1 Accessories optional................................................................................................... 14
5.4 Assembly................................................................................................................................. 15
5.4.1 Installation options...................................................................................................... 15
6. Installation.......................................................................................................................................... 16
6.1 Requirements.......................................................................................................................... 16
6.2 Mechanical installation............................................................................................................ 17
6.2.1 Installation in 2G-/2D-enclosure ................................................................................. 17
6.2.2 Installation as a System Solution in the Stainless Steel Enclosure ............................ 19
6.2.3 Floor mounting stainless steel enclosure.................................................................... 20
6.2.4 Wall mounting Stainless steel enclosure .................................................................... 20

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1" Table of Contents
Technical data subject to change.
06/2017
6.3 Electrical installation................................................................................................................ 21
6.3.1 Installation guidelines ................................................................................................. 21
6.4 Terminal compartments .......................................................................................................... 22
6.5 PE conductor connection ........................................................................................................ 23
6.6 Ex e terminal compartments ................................................................................................... 24
6.6.1 Cable entries .............................................................................................................. 24
6.6.2 Supply voltage terminal assignment).......................................................................... 24
6.6.3 Ethernet terminal assignment..................................................................................... 25
6.6.4 RS422/RS485 interface (optional).............................................................................. 25
6.6.5 PROFIBUS-DP interface (optional) ............................................................................ 27
6.6.6 TTY interface (optional) .............................................................................................. 28
6.6.7 RS232 interface (optional).......................................................................................... 29
6.7 Ex i terminal compartment ...................................................................................................... 30
6.7.1 Ex i USB interface for BARTEC Ex i memory stick..................................................... 30
6.7.2 Connection of a BARTEC BCS 160ex hand scanner (optional) ................................... 31
6.8 EMC (Electromagnetic compatibility) ...................................................................................... 32
6.8.1 Voltage supply (DC variants)...................................................................................... 32
6.8.2 Back-up fuse............................................................................................................... 33
6.8.3 Interference suppression ............................................................................................ 33
6.8.4 Shielding..................................................................................................................... 33
6.8.5 Connection of shielding .............................................................................................. 33
6.8.6 Examples of shielding connections............................................................................. 34
7. Commissioning.................................................................................................................................. 35
7.1 Final inspection ....................................................................................................................... 35
8. Operation............................................................................................................................................ 36
8.1 Operating system.................................................................................................................... 36
8.2 Configuration/Setup ................................................................................................................ 36
9. Faults and troubleshooting .............................................................................................................. 38
10. Maintenance, inspection, repair....................................................................................................... 39
10.1 Maintenance intervals ............................................................................................................. 39
10.2 Inspection................................................................................................................................ 39
10.3 Maintenance and repair work.................................................................................................. 39
10.3.1 Instructions for Repairs............................................................................................... 40
11. Disposal.............................................................................................................................................. 40
12. Dispatch and packaging instructions.............................................................................................. 40
13. Accessories, spare parts.................................................................................................................. 41
14. Order numbers................................................................................................................................... 42
15. Additional information ...................................................................................................................... 43
16. Declaration of conformity................................................................................................................. 44

blank

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Basic
safety instructions
Technical data subject to change.
06/2017 EN 1/45
1. Basic safety instructions
1.1 Notes on this manual
Read carefully before putting the devices into operation.
The user manual is a fixed part of the product. It must be kept in the direct vicinity of the
device and the installation, operating and servi
ce staff must have access to it at all
times.
The user manual contains important information, safety instructions and test certificates
which are necessary for the perfect function of the device in operation.
The user manual is directed at all individuals
concerned with the commissioning,
handling and servicing of the product. The applicable guidelines and standards for
areas with gas and dust atmosphere (2014/34/EU, EN/IEC 60079-17 and
EN/IEC 60079-19) must be observed when conducting this work.
Knowledge
of the safety and warning information in this user manual and the strict
compliance with it is essential for safe installation and commissioning. Accidents,
injuries and material damage can be avoided by circumspect handling and
systematically following the instructions.
The examples, tables, and figures provided in this user manual are for illustration
purposes. Due to the different requirements of the respective application, the BARTEC
company cannot assume responsibility or liability for actual use based on the examples
and figures.
The BARTEC company reserves the right to carry out technical changes at any time.
In no event will BARTEC company be responsible or liable for indirect or consequential
damages resulting from the use or application of this user manual.
Safety instructions and warnings are specially highlighted in these operating instructions
and marked by symbols.
DANGER
DANGER
describes a directly imminent danger. If not avoided, death or severe injury
will be the consequence.
WARNING
WARNING
describes a possibly imminent danger. If not avoided, death or severe injury
may be the consequence.
CAUTION
CAUTION
describes a possibly imminent danger. If not avoided, mild or slight injury
may be the consequence.

Basic
safety instructions
POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 2/45 Technical data subject to change.
06/2017
ATTENTION
ATTENTION describes a possibly damaging situation. If not avoided, the plant or
objects in its vicinity may be damaged.
Important information on effective, economical & environmentally compliant handling.
1.1.1 Languages
The original user manual with safety information is written in English. All other available
languages are translations of the original user manual.
The user manual is available in German and English. If further languages are required,
these must be requested from BARTEC or stated on placing an order.
1.1.2 Changes in the document
BARTEC reserves the right to change the content of this document without notification.
No warranty is assumed for the correctness of the information. In cases of doubt, the
German safety instructions apply
because it is not possible to rule out errors of
translation or printing. In the case of legal disputes, the “General Terms and Conditions
of Business” of the BARTEC GmbH also apply.
The current versions of the datasheets, operating instructions, certificates and EU
declarations of conformity can be downloaded from www.bartec.de
or may be
requested directly from BARTEC GmbH.
1.2 Handling the product
The product described in these operating instructions has been tested and left the
factory in perfect condition as regards meeting safety requirements. To maintain this
condition and ensure that this product operates perfectly and safely, it may be used
only in the manner described by the manufacturer. Appropriate transportation, suitable
storage and careful operation are also essential for the perfect and safe operation of
this product. The POLARIS must be installed properly and securely if it is to work
perfectly and correctly.
The safe and perfect mounting of the POLARIS is a precondition for faultless and
correct operation.
1.3 Intended use
1.3.1 Exclusive purpose
It is used exclusively in combination with operating devices which satisfy the
requirements for Overvoltage Category I.
The POLARIS BASIC series have been designed
specially for use in hazardous
(potentially explosive) areas in Zone 1 or Zones 21.
It is essential to observe the permissible operational data for the device being used.

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Basic
safety instructions
Technical data subject to change.
06/2017 EN 3/45
1.3.2 Unintended use
Any other use is not in accordance with the intended purpose and can cause damage
and accidents. The manufacturer will not be liable for any use beyond that of its
exclusive intended purpose.
1.4 Duties of the operator
The owner/managing operator undertakes to restrict permission to work with the
POLARIS to people who:
–are familiar with the basic regulations on safety and accident prevention and
have been instructed in the use of the POLARIS;
–have read and understood the documentation, the chapter on safety and the
warnings.
The owner/managing operator must check that the safety regulations and accident
prevention rules valid for the respective application are being observed.
1.5 Safety information
1.5.1 General
–Take the device out of the hazardous area before wiping it with a dry cloth or
cleaning it!
–Do not open devices in a hazardous area.
–The general statutor
y regulations or directives relating to safety at work,
accident prevention and environmental protection legislation must be observed,
e.g. the German industrial health and safety ordinance (BetrSichV) or the
applicable national ordinances.
–In view of the risk of dangerous electrostatic charging, wear appropriate clothing
and footwear.
–Avoid the influence of heat that is higher or lower than the specified temperature
range.
–Protect the device from external influences! Do not expose the device to any
caustic/aggressive liquids, vapours or mist! In the event of malfunctioning or
damage to the enclosure, take the device out of the potentially explosive area
immediately and bring it to a safe place.
1.6 General safety information for operation
1.6.1 Maintenance
The p
ertinent erection and operating provisions for electrical systems must be
observed! (e
.g. Directive RL 2014/34/EU, BetrSichV and nationally applicable
ordinances EN 60079-14, IEC 60079-14 and the series DIN VDE 0100)!
Observe the national waste disposal regulations when disposing of materials.

Basic
safety instructions
POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 4/45 Technical data subject to change.
06/2017
1.6.2 Servicing
No constant servicing will be necessary if operated correctly under consideration of the
assembly instructions and environmental conditions. See Chapter "Service, inspection,
repair" in this respect.
1.6.3 Inspection
According to EN/IEC 60079-17 and EN/IEC 60079-
19, the operator of electrical
systems in potentially explosive atmospheres is obliged to have these inspected by an
electrician to ensure correct condition.
1.6.4 Repairs
Repairs to explosion-proof equipment may only be performed by persons authorized by
BARTEC, who must employ the latest technological practices, observe the
manufacturer's instructions and use only original spare parts. The applicable
regulations are to be observed here.
1.6.5 Commissioning
It
must be checked that all components and documents are available before
commissioning.
1.7 Labelling, test certificate and standards
The device features an explosion protection label, as well as a test certificate. For an
explanation of the symbols and information used, see chapter 4 "Technical data".
The POLARIS BASIC series complies with Directive 2014/34/EU on equipment and
protective systems intended for use in potentially explosive atmospheres (ATEX
Directive). For information on standards that must b
e observed, see chapter 3
"Explosion protection and approvals".
1.8 Warranty
WARNING
Explosion protection cannot be guaranteed if non-specified components are
used.
Do not make any changes or perform any reconstruction work on the device.
Use only original spare parts.
The manufacturer provides a full warranty exclusively for the spare parts it supplies.
When using parts from third parties, there is no guarantee that they have been designed
or manufactured to handle the requisite stress or offer the requisite degree of safety.

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Basic
safety instructions
Technical data subject to change.
06/2017 EN 5/45
As a fundamental rule, our “General Conditions of Sale and Delivery” apply. These are
made available to the owner/managing operator at the latest on formation of a contract.
Guarantee and liability claims for personal injury and damage to property are excluded
if they are due to one or more of the following reasons
–Use of the POLARIS for a purpose other than that for which it is intended.
–Incorrect installation, commissioning, operation and maintenance.
–Non-compliance with the instructions in the manual with respect to transport,
storage, assembly, commissioning, operation and maintenance.
–Structural modifications without our prior authorisation.
–Inadequate monitoring of components that are subject to wear
–Repairs done incorrectly.
–Disasters due to the effects of foreign matter or Act of God (events outside
human control).
BARTEC grants a warranty period of one year on the POLARIS series, starting from
the BARTEC delivery date. The warranty period for accessories is 1 year from the date
of delivery. This warranty covers all parts of the delivery and is limited to the free-of-
charge replacement of or repair of the defective parts by BARTEC. The packaging
supplied should ideally be retained for this purpose (return shipping). If necessary and
following written consultation, the products should be sent to us with an RMA form. No
claims may be submitted for repair work to be performed at the installation location.

Product description POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 6/45 Technical data subject to change.
06/2017
2. Product description
2.1 Definition
The POLARIS BASIC Panel PCs have been consistently developed from the BAT
Series, and permit downwards compatibility. The latest TFT technology with very high
viewing angle is used for the display.
These unit sizes have been designed as “Human Machine Interface” for convenient
–controllers on simple machinery such as mixers, dryers or fuelling stations
–operation of more complex machinery and simple systems such as reactors,
centrifuges or ball mills
Illustration 1: POLARIS BASIC - Series
With the POLARIS BASIC Series it is possible to connect directly to the potentially
explosive area process visualisations without additional intrinsically safe separator cards.
The laying of blue lines for intrinsically safe circuits is dropped. A separate wiring of the
data line is not necessary.
The POLARIS BASIC Series can be directly connected to the PROFIBUS-DP or the
communication interface of the control station.
Available features include e. g. RS422/RS485, PROFIBUS-DP, RS232 or TTY. An
intrinsically safe USB interface for a USB Ex i-memory stick enables the device
configuration’s easy transferability.
Illustration 2: USB Ex i memory stick

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1" Product description
Technical data subject to change.
06/2017 EN 7/45
The creation of a visualisation is carried out using the “BMS-Graf-pro” Version 6.xxx
program package which has been specially developed for this purpose.
Illustration 3: Visualisation software BMS-Graf-pro Version 6.xxx
Standard assembly of the POLARIS BASIC Series is mounting on the front panel which
can be performed quickly and easily. On request we also supply the POLARIS BASIC
Series as turn-key system solution in a stainless steel enclosure for wall and floor
mounting. Customised designs are possible on request.
Illustration 4: Types of enclosure
2.2 Schematic design
Illustration 5: Simple set-up

Explosion protection and
approvals
POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 8/45 Technical data subject to change.
06/2017
3. Explosion protection and approvals
POLARIS BASIC
Type 17-71V1-….
ATEX
Ex protection type
II 2G Ex eb qb [ib op pr] IIC T4 bzw.
II 2G Ex db eb qb [ib op pr] IIC T4
II 2D Ex tb IIIC T120°
-20 °C ≤ Ta ≤ 60 °C
Certification
IBExU 05 ATEX 1117 X
Standards in accordance with
EMC Directive 2014/34/EU
EN 60079-0:2012+A11:2013
EN 60079-1:2007
EN 60079-5:2007
EN 60079-7:2007
EN 60079-11:2012
EN 60079-28:2007
EN 60079-31:2014
IECEx
Ex protection type
Ex db eb qb [ib op pr] IIC T4
Ex tb IIIC T120 °C
Certification
IECEx IBE 11.0007X
Standards
in accordance with
EMC Directive 2014/34/EU
IEC 60079-0:2011 Edition: 6
IEC 60079-1:2007-04 Edition: 6
IEC 60079-5:2015 Edition: 4
IEC 60079-7:2006-07 Edition: 4
IEC 60079-11:2011 Edition: 6
IEC 60079-28:2006-08 Edition: 1
IEC 60079-31:2013 Edition: 2
Special conditions The intrinsically safe circuits and the enclosure are
galvanically connected. The equipotential bonding
must be guaranteed at the installation of the
intrinsically safe circuits.
High charging mechanisms at the operation surface
of th
e Visual units respectively accessories (for
example pneumatic particle transport) must be
excluded at the application. The degree of
protection (IP code) must be ensured by the
installation of the units in enclosures (IP code).
CSA
Ex protection type
Class I, Zone 1
(A)Ex d e q [ib op pr] IIC T4; Gb
Class II, Zone 21
(A)Ex tb IIIC T120 °C; Db
Certification
CSA 15.70010166

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
Explosion protection and
approvals
Technical data subject to change.
06/2017 EN 9/45
Further test certificates
INMETRO
11/UL-BRHZ-0131X
Customs Union Russia (EAC)
TC RU C-DE.GB06.B.00334
Korea
KTL 14-KB4BO-0258X
India
CCEs P261984
More test certificates
www.bartec.de
EU-conformity
RoHS-Directive
2011/65/EU
Standards
in accordance with
EMC Directive 2014/30/EU
EN/IEC 61000-6-2:2005
EN 61000-6-4:2007 + A1:2011
IEC 61000-6-4:2006 + A1:2010
EN 60529:1991 + A1 2000 + A2 :2013
IEC 60529:1989 + A1 1999 + A2 :2013
Electrical safety
EN/IEC 61010-1:2010
Product labelling
0044

Technical data POLARIS BASIC- for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 10/45 Technical data subject to change.
06/2017
4. Technical data
4.1 General data
Construction
Front panel fitting, optional turn-key system
solutions in a stainless steel enclosure as
floor or wall mounting.
Computer capacity
Processor 500 MHz
256 MB RAM
Compact Flash 512 MB
Power supply
DC 24 V ±10 %
Max. power consumption
Pmax < 30 W
Relative air humidity
5 to 95 % non-condensing
Vibration
0.7 G/1 mm; 5 Hz-500 Hz pulse in all 3 axes
Shock
15 G, 11 ms pulse in all 3 axes
Material
Front
Rear
Polyester foil on anodized aluminium plate
(conditionally UV-resistant)
sheet steel bichromated
Permissible ambient temperature
Storage/Transport
Operation
-20 °C to +50 °C
0 °C to +50 °C
Protection class
Front
Rear
IP66
IP54
Optional approved accessories
Ex-i memory stick
Below +10 °C the unit has to be heated in order to guarantee the lifetime of the backlight illumination.

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1" Technical data
Technical data subject to change.
06/2017 EN 11/45
4.1.1 Characteristics POLARIS Panel PC 5.7"
Display
5.7" graphics-capable TFT colour display
262,144 colours
QVGA resolution 320 x 240 pixels
Brightness 400 cd/m2
Visible surface approx. 116 mm x 88 mm
Contrast 400:1
Antireflection coating glass pane
Backlighting
CFL technology
Service life approx. 50,000 hours (at +25 °C)
Keyboard (short-stroke keys)
Alphanumeric key block
4 cursor keys
6 special keys
10 function keys able to be labelled with LEDs
Interface (Basic version)
1 x Ex e RS422/RS485
1 x Ex i USB for Ex i memory stick
Dimensions
(width x height x depth) 335 mm x 199 mm x approx. 130 mm
Wall cut-out
(width x height) 321 mm x 179 mm ± 0,5 mm
Weight
approx. 10 kg
4.1.2 Characteristics POLARIS Panel PC 10.4"
Display
10.4" graphics-capable TFT colour display
262,144 colours
VGA resolution, 640 x 480 pixels
Brightness 450 cd/m2
Visible surface approx. 211 x 158 mm
Contrast 600:1
Antireflection coating glass pane
Backlighting
CFL technology,
Service life approx. 50,000 hours (at +25 °C)
Keyboard (short-stroke keys)
Alphanumeric key block
4 cursor keys
10 special keys
12 function keys able to be labelled with LEDs
Interface (Basic version)
1 x Ex e RS422/RS485
1 x Ex i USB for Ex I memory stick
Interface (optional)
1 x Ex i Supply module for
hand-held scanner
Dimensions (width x height x depth)
400 mm x 246 mm x approx. 130 mm
Wall cut-out
(width x height)
386 mm x 226 mm ± 0.5 mm
Weight
approx. 14 kg

Technical data POLARIS BASIC- for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 12/45 Technical data subject to change.
06/2017
4.1.3 Characteristics POLARIS Panel PC 12.1"
Display
12.1" graphics-capable TFT colour display
262,144 colours
SVGA resolution, 800 x 600 pixels
Brightness 350 cd/m2
Visible surface approx. 249 x 188 mm
Contrast 400:1
Antireflection coating glass pane
Backlighting
CFL technology,
Service life approx. 50,000 hours (at +25 °C)
Keyboard (short-stroke keys)
Alphanumeric key block
4 cursor keys
12 special keys
16 function keys able to be labelled with LEDs
Interface (Basic version)
1 x Ex e RS422/RS485
1 x Ex i USB for Ex i memory stick
Interface (optional)
1 x Ex i Supply module for hand-held scanner
Dimensions (width x height x depth)
440 mm x 275 mm x approx. 130 mm
Wall cut-out (width x height)
425 mm x 255 mm ± 0,5 mm
Weight
approx. 18 kg
4.2 USB Ex i Memory stick
4.2.1 Explosion Protection
Type
17-71VZ-5000/0100
Ex protection type ATEX
II 2G Ex ib IIC T4
-20 °C ≤ Ta ≤ 60 °C
Certification
IBExU 05 ATEX 1117 X
Standards
EN 60079-0:2012
EN 60079-11:2012
Ex protection type IECEx
Ex ib IIC T4
Certification
IECEx IBE 11.0007X
Standards
IEC 60079-0:2011 Edition: 6
IEC 60079-11:2011 Edition: 6
4.2.2 General Data
Product type
USB flash drive
Storage capacity
64 MB / FAT 16 system
Dimensions
(width x height x depth) approx. 92 mm x 22 mm x 7,2 mm
Weight
28 g
Material Enclosure
Anodized aluminum

POLARIS BASIC - for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1" Technical data
Technical data subject to change.
06/2017 EN 13/45
4.3 Product labelling
Example:
Type label with label
ATEX and IECEx
IMMETRO
type label
Warnings on the
device
Warning on terminal
compartment!
License sticker depending on the operating system
Test sticker
Since 01.01.2016, all devices of the POLARIS BASIC series are deliver
ed with an
operating system: "Free DOS". "Free DOS" is an MSDOS compatible operating
system, which falls under GNU (General Public License) and is thus freely available.
No license sticker is required.

Transport, storage,
scope and assembly
POLARIS BASIC- for Zone 1/21
POLARIS Panel PCs 5.7" / 10.4" / 12.1"
EN 14/45 Technical data subject to change.
06/2017
5. Transport, Storage, Scope and Assembly
5.1 Transport
A written report of any transport damage or missing items must be given to the
appointed forwarder and to BARTEC GmbH immediately on receipt of the delivery.
Damage caused by incorrect storage and transport shall not fall within the warranty
provisions of BARTEC GmbH.
CAUTION
This device is heavy (10-18 kg).
There is a risk of injury if it is lifted or moved incorrectly.
You will need help from others when transporting it.
5.2 Intermediate storage
ATTENTION
Damage to property through incorrect storage!
Comply with the correct storage temperatures.
Keep the POLARIS free of moisture.
5.3 Scope of delivery
1 x POLARIS Panel PC
1 x Reinforcement frame
1 x Set of mounting clamps
1 x User manual POLARIS BASIC – Panel PC
Not enclosed
–Assembly Material,
–Cable for voltage supply and data line
5.3.1 Accessories optional
–Enclosure and supporting system for wall and floor mounting
