Barton 94023 Original instruction manual
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 94023
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
AUTOMATIC ICE MAKER
IMPORTANT SAFETY INFORMATION
1
GENERAL SAFETY WARNINGS
When using electrical appliances, basic safety precautions should be followed to reduce the
risk of re, electric shock, and injury to persons or property. Read all instructions before using
any appliance.
SAFETY
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all instructions before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Use this appliance only for its intended purpose as described in this owner’s manual.
This ice-maker must be properly installed in accordance with the installation instructions before it is
used.
This unit must be positioned so that the plug is accessible. DO NOT run cord over carpeting or other
heat insulators. DO NOT cover the cord. Keep cord away from trafc areas, and DO NOT submerge
in water. No other appliance should be plugged into the same outlet, and be sure that the plug is fully
inserted into the receptacle.
DO NOT use an extension cord as it may overheat and cause a risk of re. If you must use an extension
cord, use 16AWG minimum size and rated no less than 1875 watts.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualied person in order to avoid a hazard.
Disconnect the mains plug from the supply socket when not in use for a long term, where supply
connection is via mains plug.
Remove power plug or disconnect from the mains before cleaning or servicing the appliance. NOTE: If
for any reason this product requires service, we strongly recommend that a certied technician perform
the service.
NEVER unplug you unit by pulling on the power cord. Always grasp the plug rmly and pull straight out
from the outlet.
DO NOT use your unit outdoors. Keep the unit away from direct sunlight and make sure that there is at
least 6 inches of space between the back of your unit and wall and keep the front free. Keep ventilation
opening in the appliance enclosure or in the built-in structure, clear of obstruction.
DO NOT tip over the unit which will cause abnormal noisy and make the ice-cube size abnormal. And
seriously, it may cause water leakage from the unit.
If the unit is brought in from outside in the winter season, give it a few hours to warm up to room
temperature before plugging it in.
DO NOT use other liquid to make the ice-cube other than water.
DO NOT clean your ice maker with ammable uids. The fumes can create a re hazard or explosion.
IMPORTANT SAFETY INFORMATION
2
DANGER! Risk Of Fire or Explosion. Flammable Refrigerant Used. DO NOT Use Mechanical Devices
To Defrost Ice Maker. DO NOT Puncture Refrigerant Tubing.
DANGER! Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained
Service Personnel. DO NOT Puncture Refrigerant Tubing.
CAUTION! Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s
Guide Before Attempting To Install or Service This Product. All Safety Precautions Must be Followed.
CAUTION! Risk Of Fire Or Explosion. Dispose Of Property In Accordance With Federal Or Local
Regulations. Flammable Refrigerant Used.
CAUTION! Risk Of Fire Or Explosion. Due To Puncture Of Refrigerant Tubing; follow Handling
Instructions Carefully. Flammable Refrigerant Used.
The ice maker should be installed in accordance with the safety standard for Refrigeration Systems,
ASHRAE15. The ice maker shall not be installed in corridors or hallways of public buildings.
If the unit needs to be maintained, replacement components and servicing shall be done by factory
authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or
improper service.
IMPORTANT: The wires in this mains lead are colored in accordance with the following
code:
GREEN OR GREEN WITH YELLOW STRIP:
WHITE:
BLACK:
To avoid a hazard due to instability of the appliance, it must be placed at an even or at surface.
GROUNDING
NEUTRAL
LIVE
WARNING! DO NOT damage the refrigerant circuit.
WARNING! Children should be supervised to ensure that they DO NOT play with the appliance.
WARNING! This appliance must be earthed. And use the 110-120V/60Hz earthed power supply.
SAVE THESE WARNINGS
3
RATINGS
NOTE: TESTED AT 70°F ROOM TEMPERATURE AND 50°F WATER TEMPERATURE.
SPECIFICATIONS
4
MAIN UNIT
1. Top cover
2. Door for ice taking
3. Ice-making & its water tank assembly: Including ice-making evaporator, water tank,
water pump
and some detecting parts
4. Front panel
5. Operation panel
6. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running.
7. Water draining port. Normal plugged with the cap. When need to drain the water,
unplug the cap and connect the white drain pipe.
8. Water inlet port for water supply: Use to connect the water supply pipe.
Accessory: 2 meters long and white color water drain pipe.
water quick connector of the water faucet, 6.35mm diameter and white color water supply
pipe (3 meters long).
INFORMATION
ICE-MAKER WATER TANK PARTS
A. Water dividing pipe with nine little holes, water will ow out from these little holes. If no
water ows out, it can be disassembled and cleaned.
B. Evaporator (ice-making module)
C. Ice full detecting board: Use to detect the inner cabinet is full of ice or not, and to check the
ice-harvest process is over or not.
D. Water tank
E. Water supplying pipe
F. Cover board on the right side of the evaporator
G. Water level switch installing plate
H. Water drain pipe of the water tank: When ice-making, this pipe should be clamped in the slot of
the water tank wall; And when draining, this pipe should be pulled out.
I. Water pump
J. Water level detecting switch
5
INFORMATION
OPERATION PANEL
A. “TIMER CLEAN” Button: Quickly press this button once, to enter the Timer setting program; And press
this button for more than 5 seconds, to enter the Cleaning program.
B. “ON/OFF”button: When the unit is off, press this button to turn on the unit; And during the Self-cleaning
program, or normal ice-making state, press this button to turn off the unit at once; And also if the unit is set
with the Timer, press this button to cancel the Timer setting. When the unit is making the ice cube, press
this button for more than 5 seconds, the unit will switch to ice harvest process by force.
C. LCD Display Window:
1. Environmental temperature display and ice making time countdown display: Display ice-making
time countdown with ‘M’ as the unit display and display environmental temperature with ‘F’ as the unit
display.
2. Making ice and deice symbol display: The machine is making ice when the symbol rotate and the
machine is deice when the symbol ash.
3. Automatic self-cleaning symbol display
4. On/off symbol display
5. Error code display: E1 means the environmental temperature sensor is damaged. E2 means
ice making anomaly or there is a refrigerant leak.
6. Water ow in and water shortage display: the arrow ashing indicates that the machine is in the
water, the whole symbol is bright to indicate that the machine is short of water.
7. Ice full alarm: the machine will making ice again when you take out the ice.
8. Setting display: Display timing switch machine with the H as unit display; display ice making time setting
with M as unit display. D&E “+” “-”button: Use to adjust the ice-making process duration period length, the
default setting is zero, 1 minute adding or decreasing per each pressing of “+” or “-” button. Also to adjust
the delay time of the timer, the default setting is zero, 1 hour adding or decreasing per each pressing of “+”
or “-” button.
6
INFORMATION
7
UNPACKING YOUR ICE MAKER
1. Remove the exterior and interior packaging. Check if all the accessories, including instruction manual, ice
scoop, white water supplying hose, 1/4 inches to 1/2 inches water quick connector and the water draining
pipe, etc., are inside or not. If any parts are missing, please contact our customer service.
2. Remove the tapes for xing the door and inner cabinet, ice scoop, etc.. Roughly clean the inner cabinet
& ice scoop with wet cloth.
3. Put the ice maker on a level & at oor, without direct sunlight and other sources of heat (i.e.: stove,
furnace, radiator). Make sure that there is at least 8 inches gap between the air outlet and the obstacles,
and at least 2 inches between Left/Right side and the wall.
4. Allow 4 hours for the refrigerant uid to settle before plugging the ice maker in if the unit maybe fall upside
down during shipping or transportation.
5. The appliance must be positioned so that the plug is accessible.
WARNING: Only use drinking water. For manual water supplying, ll with potable water only. For automatic
water supplying, connect to the potable main water supply only.
INSTALLATION LOCATION REQUIREMENT
A) This unit is not for outdoor use. Keep the proper room temperature and inlet water temperature according
to above specication table. Otherwise it will affect the ice making performance.
B) This unit should not be located near any heat resource.
C) The unit should be located on a rm & level foundation at normal counter top height.
D) There must be at least 6 inches clearance at rear side for connection and 8 inches clearance in front to
open the door and keep good air circulation.
E) Do not put anything on the top of the ice maker.
OPERATION
8
To ensure proper ventilation for your ice maker, the front of the unit must be completely unobstructed.
Allow at least 6” clearance at rear, and 2” of two sides for proper air circulation. Allow about 20 inches
high space at top to ll water freely from unit top when using manual water supply way and for proper
air circulation. The installation should allow the ice maker to be pulled forward for servicing if necessary.
When installing the ice maker under a counter, follow the recommended spacing dimensions shown above.
Place electrical and drain xtures in the recommended locations as shown. Choose a well-ventilated area
with temperatures above 50 Fahrenheit and below 90 Fahrenheit. This unit MUST be installed in an area
protected from some elements, such as wind, rain, water spray or drips. The temperature of the water
supplying should be between 41 Fahrenheit and 77 Fahrenheit for proper operation.
ELECTRICAL REQUIREMENT & CONNECTIONS
WARNING: THIS UNIT MUST BE GROUNDED
ELECTRIC SHOCK HAZARD
Plug into a grounding wall outlet.
Never remove the ground prong.
Use separate power supply or receptacle.
Never use an adapter.
Never use an extension cord.
Failure to follow these instructions can result in death, re, or electrical shock.
Before you move your ice maker into its nal location, it is important to make sure you have the proper
electrical connection. It is recommended that a separate circuit, serving only your ice maker, be provided.
Use receptacles that cannot be turned off by a switch or pull chain. If the supply cord or plug to be replaced,
it should be done by a qualied service engineer. This appliance requires a standard 110-120Volt, 60Hz
electrical outlet with good grounding means.
RECOMMENDED GROUNDING METHOD
For your personal safety, this appliance must be properly grounded. This appliance is equipped with a
power supply cord with a grounding plug. To minimize possible shock hazard, the cord must be plugged
into a mating grounding-type wall receptacle, grounded in accordance with the National Electrical Code
and local codes and ordinances. If a mating wall receptacle is not available, it is the personal responsibility
of the customer to have a properly grounding wall receptacle installed by a qualied electrician.
CLEANING YOUR ICE MAKER BEFORE FIRST USING
1. Open the ice taking door.
2. Clean with diluted detergent, warm water and a soft cloth.
3. Repeatedly clean the water contacting inner parts, use the water or the wet clothe to scrub the relevant
parts, then use the dry clothe to dry them.
4. You can pull the Water drain pipe of the water tank indicating “H” in above illustration to drain out the
cleaned water in the water tank, then next to clean inner ice-storing bin, till all of inner parts are cleanly,
then drain out all of the cleaned water from the water drain port located at unit back indicating “8”in above
illustration. And must to install back the water drain pipe of the water tank and the cap of the unit water drain
port, otherwise, the unit will not make the ice normally. And suggest that you should discard the ice-cube
made by the rst ice making cycle after cleaning. Note: Please see the section “Water Drainage” in this
manual to drain out the cleaned water.
5. The outside of the ice maker should be cleaned regularly with a mild detergent solution and warm water.
6. Dry the interior and exterior with a clean soft cloth.
OPERATION
9
RECOMMENDED GROUNDING METHOD
IMPORTANT: Be sure to use the new hose-sets supplied with the appliance to connect to water mains and
that old hose-sets should not be reused.
1. Connect the water supplying hose to the unit (For automatic water supplying). Step 1: First remove the
clipper on the water inlet port for main water supplying (indicated in the following illustration “B”) located at
unit back, then pushing inwards the anti-dusty plug, use your other hand’s nger to press the out circle to
x the anti-dusty plug, then take down the anti-dusty plug; Step 2: Insert the one end of the white water
supplying hose into the water inlet port, and push inward completely, and install back the clipper, then water
supplying hose connection is completed.
2. CONNECTING THE WATER DRAINAGE PIPE: Pull out the water drainage cap with black color (indicated
in above illustration), then connect the white drainage pipe included in accessory, again connect the other
end of this drainage to the main water drainage pipeline. Make sure not to set the drainage pipe too high.
3. Connect the water hose to the water faucet of the water main supply system (For automatic water
supplying). First, install the supplied water quick-connector(from 1/4 to 1/2 inch, with black sealing circle)
to the water faucet by screw thread; Second, remove the clipper from the water quick-connector, insert the
another end of the water hose into this quick-connector port completely, then install back the clipper, also
this step is completed. Note: The water faucet should be supplied by the customer himself.
IMPORTANT: The water pressure of main water supply system must be 0.04-05 MPa at least and 0.6
Mpa at largest. If the pressure is too big (like bigger than 0.8 Mpa), it should be installed with pressure
decreasing valve rst.
NOTE: If you set the unit supplied by manual water lling, don’t need to do step 1 and 3. If you choose
the automatic water supplying, the ice maker requires a continuous water supply with pressure 1-6 Bar as
required in above specication table.
OPERATION
10
DISPLAY CONTROLS
1. Starting up: Plug in the power plug, the symbol will ash in the display window,press the ON/OFF
button on the control panel, the machine will start to make ice when the external pipe add water to reach
the standard level on the water tank through the electromagnetic water valve, then the symbol will change
to light on always in display window and symbol rotate; The ambient temperature will be displayed in the
upper left of the display window “80F” means the ambient temperature is 80F, several minutes later,the
ashing numbers will be displayed in the ambient temperature display area,the ashing number “10M”
means still need 10minutes to nish this ice making cycle.
2. Every ice making cycle nished, enter deicing process,the symbol ash, the external pipe can add
water to the water tank through the electromagnetic valve and the arrow on the symbol will ash until
the water reach the standard level, then the symbol extinguish, the unit enter the next ice making cycle.
When the water can not reach the standard level,the symbol is always bright,the unit stop working. After
water shortage,the unit needs to be restarted,otherwise it will start up automatically after 15 minutes.
NOTE: Each ice making cycle is around 11-20 minutes,the ice making time will be changed according to
the ambient temperature and the water temperature change. Especially the rst ice making cycle,the ice
making cycle will be longer because of the high water temperature in the water tank but the ice making
cycle is not over 30 minutes.
3. Adjust the ice thickness : Press the “+” “-” button on the control panel to adjust the ice thickness. The
number in the bottom left of the display window is the setting of the ice making time, default is “0”, press
“+” button one time the ice making time will add one minutes, the ice will be thicker. Press “-” button one
time the ice making time will reduce one minutes,the ice will be thinner. Restart the machine it will go back
to default “0”. NOTE: The time currently set only changes the next and subsequent ice making cycle.
4. When the symbol lights up, the machine will stop working, it will work again after you take out the ice.
5. Shut down the unit: During the unit making ice, press the “ON/OFF” button on the control panel,
the unit shut down and into standby mode. If you press “ON/OFF” longer than 5S during ice making,
then the unit enters the deicing process directly, this function can help remove the ice on the ice
plate. Press “ON/OFF” to shut down the machine. Condition display 5H, means the machine will shut
down automatically after 5 hours, the “H” in the display screen indicates that the machine currently
has timing function, and the number in front will be smaller and smaller. Until it becomes zero.
6. Timing Setting: Setting range: 1-24 hours
Time Shutdown: When the unit is running, it can set up the timing shutdown. Time on: When the unit is on
standby, you can set the unit with ON-TIMER. How to set up the timer: Press the TIMER button, the default
timing time is “1H” in display window, then press “+” button to adjust the timing time you need,every time you
press the “+” button, the time add 1 hour; Press “-” button can reduce the timing time. During the process of
time adjustment, The “H” in the lower corner of the number will ash, then after 5 seconds ashing without
pressing, the “H” letter will change from ashing to always displaying, means the timer program has been
completed. In standby condition display 5H, it means the unit will start automatically after 5 hours; In ice
making condition display 5H, it means the machine will shut down automatically after 5 hours, the “H” in
the display screen indicates that the machine currently has timing function, and the number in front will be
smaller and smaller. Until it becomes zero, the timing ends, and the machine enters the mode you need.
OPERATION
11
AUTOMATIC SELF-CLEANING PROGRAM
START THE SELF-CLEANING PROGRAM: After connecting all of the water pipe, plug on the main
power supply plug, then press “TIMER /CLEAN”button on control panel for more than 5 seconds,
to enter the Self-Cleaning program. And the “ ”symbol will always be on during this period, the left
digit will indicate the left time. The total duration time is 20 minutes for one self-cleaning program.
8. CANCEL THE SELF-CLEANING PROGRAM: It takes about 20 minutes to complete one self-cleaning
program. When the program is over, the system will be in standby mode automatically. And also you can
press the “ON/OFF” button on control panel to cancel the self-cleaning program by force.
How to Cancel Timer:
When the unit has a timing, the display window will display “XX H”, press TIMER button, the timing
is cancelled after the number on the screen and “H” are extinguished. When the unit has a timing, the
display area in the lower left corner will display the timing time and the ice making setting time and the
display content will be switched every 5S.

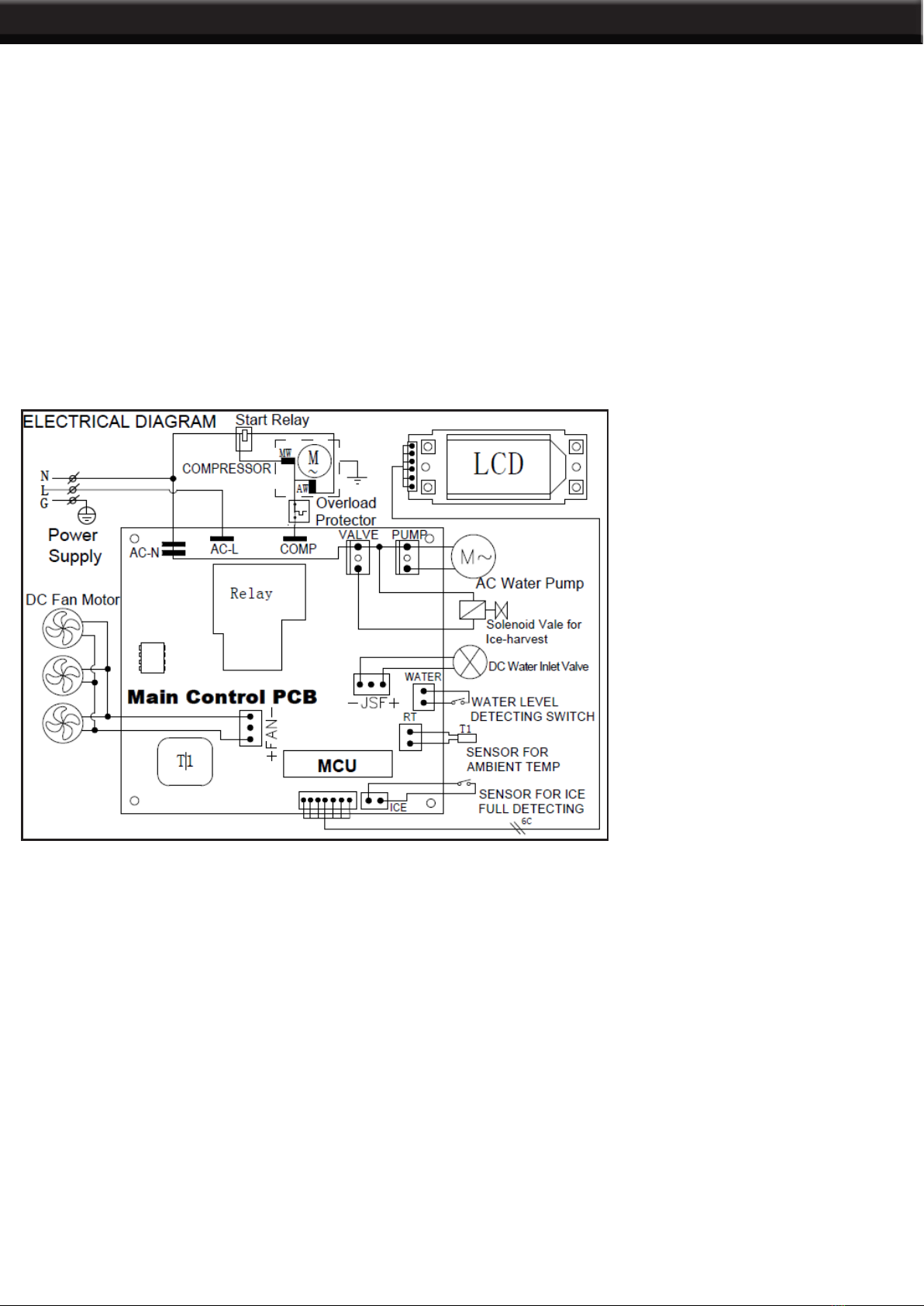

WIRING DIAGRAM
Your new ice maker may make sounds that are not familiar to you. Most of the new sounds are normal.
The following describes the kinds of sounds that might be new to you and what may be making them.
• You will hear a swooshing sound when the control valve opens to let water ow into the water tank for
each ice-making cycle.
• Rattling noises may come from the ow of the refrigerant or the water line. Items stored on top of the ice
maker can also make noises.
• The high-efciency compressor may make a pulsating or high-pitched sound.
• Water running from the water tank to the evaporator plate may make a splashing sound.
• Water running from the evaporator to the water tank may make a splashing sound.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant owing in your ice maker.
• You may hear air being forced over the condenser by the condenser fan. During the harvest cycle, you
may hear the sound of ice cubes falling into the ice storage bin.
• When you rst start the ice maker, you may hear water running continuously. The ice maker is
programmed to run a rinse cycle before it begins to make ice.
OPERATION
PREPARING THE ICE MAKER FOR LONG STORAGE
If the ice maker will not be used for a long time, or is to be moved to another place, it will be necessary to
drain out all of the water in the system.
1. Allow all of the ice cubes have been ejected from the evaporator of ice maker.
2. Turn off the unit, and unplug the power cord.
3. Drain out all of the water inside the unit according to section “Water Drainage”. When all of the water has
been drained out, to install back the water drain pipe of the water tank..
4. Disconnect the water drainage pipe to the main drain pipeline or oor drain, plug on the drain cap again.
5. Drop the door open to allow for circulation and prevent from molding and mildewing.
6. Leave the power cord disconnected until ready to reuse.
7. Dry the interior & wipe the outside of the unit.
8. Put a plastic bag on the unit to resist out dust & dirty.
CLEANING & MAINTENANCE
WARNING: Before carrying out any cleaning or maintenance operations, unplug the ice maker from the
main power supply electricity. (EXCEPTION: Ice maker self-cleaning program). Do not use any alcohol
or fume for cleaning or sanitizing of the ice maker. It may cause cracks on the plastic parts. Ask a trained
service person to check and clean the condenser at least once a year, in order to let the unit work properly.
This appliance must be cleaned by use of a water jet.
12
Periodic cleaning and proper maintenance will ensure efciency, top performance, hygienic, and long life.
The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if
you have pets, or the unit is used outdoors, or there are other special considerations.
NEVER keep anything in the ice storage bin that is not ice: Objects like wine and beer bottles are not only
unsanitary, but also it’s labels may slip off and obstruct the drain pipe.
EXTERIOR CLEANING
The door and cabinet may be cleaned with a mild detergent and warm water solution such as 28g of dish
washing liquid mixed with 7.5L of warm water. Do not use solvent-based or abrasive cleaners. Use a soft
sponge and rinse with clean water. Wipe with a soft clean towel to prevent water spotting. The side steel
plate can discolor when exposed to chlorine gas and should be cleaned. Clean the steel plate with a mild
detergent and warm water solution and a damp cloth. Never use abrasive cleaning agents.
OPERATION
13
INTERIOR CLEANING
FOR ICE STORAGE BIN
The ice storage bin should be sanitized occasionally. Clean the bin before the ice maker is used for the rst
time and reused after stopping for an extended period of time. It is usually convenient to sanitize the bin
after the ice making system has been cleaned, and the storage bin is empty.
1. Disconnect power to the unit.
2. Open the door and with a clean cloth, wipe down the interior with a sanitizing solution made of 28g of
household bleach or chlorine and 7.5L of hot water (95 °F to 115 °F).
3. Rinse thoroughly with clear water. The waste water will be drained out through the drain pipe.
4. Reconnect power to the unit.
The ice scoop should be washed regularly. Wash it just like any other food container.
NEVER use solvent cleaning agents or abrasives on the interior. These cleaners may transmit a poor taste
to the ice cubes or damage the interior of the machine.
ICE MAKING PARTS CLEANING
During the using, periodically to clean these main system of your ice-maker. During the using,
periodically to clean these main system of your ice-maker.
1. Repeat above step to clean the water tank and other inner parts of the unit.
2. Especially, to the water dividing pipe on the evaporator, when the compressor and the water pump run
normally, but if there is no water owing out from the water dividing pipe or the water owing is very small,
please discharge this water dividing pipe to clean carefully. Clean each little holes on the water dividing
pipe displayed in the following illustration, make sure each hole is not clogged by something, then install
back to the original location.
3. The length of cleaning period is related to your water quality. And drain the water more frequently, the
unit and its water pump can work much longer.
4. When there are ice cubes on the surface of the evaporator, but can’t fall off easily, do not use the
mechanical substance to remove it by force; Only press the “ON/FF” button for more than 5 seconds, the
unit will enter the ice melting process, after some while, the big ice-cubes will fall down, then turn off the
unit and unplug the power cord to clean the surface of the evaporator.
5. For the water tank and ice-full detecting plate
Also the water tank and the ice-full detecting plate is very important to keep your ice cube hygienic. Put
mixture of neutral cleaner & water into a clean water jet, then spray to all the inner surface of tank & the ice
detecting plate. Wipe these surfaces as far as possible with a clean cloth. And then, spray the surfaces with
clean water, wiping with a dry clean cloth. Then drain out the cleaned water in the water tank by pulling out
the Water drain pipe of the water tank indicating “H” in above illustration. When all of the cleaned water has
been drained out, to install back the water drain pipe of the water tank.
MAINTENANCE
SUGGESTION: After cleaning the interior parts and install back to its respective position, and return
machine to work, discard rst batch of ice.
SYSTEM CLEANING USING NU-CALGON NICKLE SAFE ICE-MACHINE CLEANER
Minerals that are removed from water during the freezing cycle will eventually form a hard scaly deposit in
the water system. Cleaning the system regularly helps remove the mineral scale buildup. How often you
need to clean the system depends upon how hard your water is. With hard water of 4 to 5 grains/liter, you
may need to clean the system as often as every 6 months.
1. Turn off the ice maker. Keep the ice maker connect to the main water supply and drainpipe. But shut off
the water faucet of main water supply.
2. Open the door and scoop out all of the ice cubes. Either discard them or save them in an ice chest or
cooler.
3. Making the cleaning solution. Please mix the Nu-Calgon Nickle Safe Ice Machine Cleaner with water to
make the cleaning solution. Use a plastic or stainless container with more than 4 liters capacity, mix 300 ml
Nu-Calgon Nickle Safe Ice-machine Cleaner with 2.8 liters warm water about 120 °F-140 °F, Then divide
them for 2 shares equally in 2 cups. It is better to keep the temperature of each cup of the cleaning solution.
4. Check to be sure that the water drain pipe of the water tank has been installed properly in the slot of the
tank wall. Then Pour one cup of Nickel-Safe Ice Maker Cleaning Solution into the water tank. Wait about
for 5 minutes.
5. Turn on the power to the ice maker, then press “TIMER/ CLEAN”button on control panel for more than
5 seconds, to enter the self-Cleaning program. Same as above explanation, the water pump runs for 8
minutes and stops for 3 minutes, one cycle, again one cycle. The total duration time is 20 minutes for one
self-cleaning program. During this process, the TIMER symbol will always be on during this period, and the
digit window will indicate the time left.
6. After 20 minutes of one self-cleaning program completing, pull out the drain pipe of the water tank, drain
the cleaning solution down to the lower ice storage bin. Shake the unit slightly to drain out all of the cleaning
solution completely. Then install back the drain pipe to the slot of the water tank.
7. Repeat steps 4--6 to clean the ice making assembly system again.
8. Then open the water faucet of the main water supply, Let the water ow in
the unit. And press the TIMER/CLEAN button on control panel for more than
5 seconds, to enter the self-Cleaning program. Same as above explanation,
the water pump runs for 8 minutes and stops for 3 minutes, one cycle,
again one cycle. The total duration time is 20 minutes for one self-cleaning
program. During this process, the Timer symbol will always be on during this
period, and the digit window will indicate the left time. Through this process,
It will rinse the water dividing pipe, evaporator, water pump, silicone pipe,
and water tank, etc..
14
9. After one self-cleaning program complete, then pull out the drain pipe of the water tank, drain the
cleaning solution down to the lower ice storage bin, also shake the unit slightly to drain out all of the water
completely. Then install back the drain pipe to the water tank slot tightly.
10. Repeat the step 8-9 again for 2 times.
11. Following the above program to clean the ice storage bin .
12. Then this special cleaning program nish, you can return to the regular ice making mode. And suggest
to discard the rst batch of ice cube.
MAINTENANCE
15
CLEANING SUGGESTION
1) DAILY CLEANING
The ice shovel, door and the water dividing pipe should be cleaned by yourself per each day. At the end of
every day, rinse the ice shovel and wipe the both sides of the door with a clean cloth.
2) SEMI-MONTHLY CLEANING
The ice shovel, ice bin, water tank, the ice-full detecting plate and the surface of the evaporator are to be
cleaned by yourself semi-monthly according to interior cleaning program.
3) SEMI-ANNUAL CLEANING
All the components & surfaces exposed to water or ice cubes, like ice storage bin, water tank, door,
evaporator, water pump, silicone tube, water dividing pipe, etc. should be cleaned by Using Nu-Calgon
Nickle Safe Ice-machine Cleaner per each 6 months. They should be cleaned by the serviceman according
to ice making assembly system cleaning program.
ERROR INDICATOR
A) Ambient temp sensor breakdown----- Display E1 in digital window.
B) The machine not make ice or the gas leak ----Display E2 in digital window
C) Magnetic control switch cutoff----“Full” light will be on when plugging on or just turning on the unit.
And it will delete the breakdown display if this switch is electric shorted.
D) During the ice making process, press the “ON/OFF” button for more than 5 seconds, the unit
Start to enter the ice harvest program. And after the ice harvest program,it continue to enter the ice
making process.
MAINTENANCE
16
TROUBLESHOOTING
17
PARTS DIAGRAM
18
PARTS LIST
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
19
WARRANTY
PRODUCT MADE IN CHINA
Table of contents
Other Barton Ice Maker manuals
