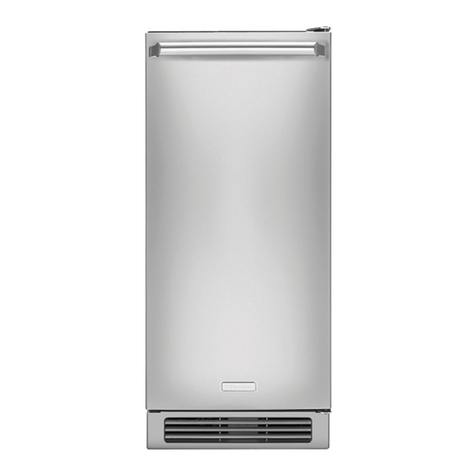

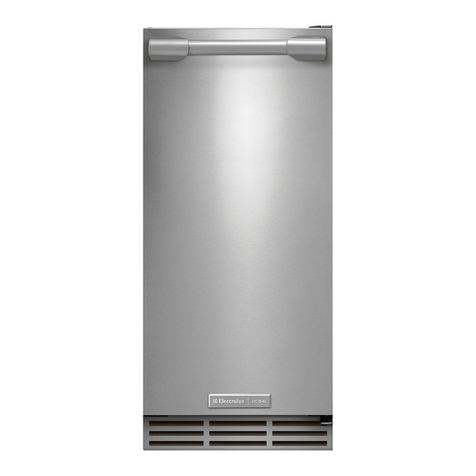

Electrolux E15IM60GP User manual

Product No. E15IM60GPS0 E15IM60GSS0
Series Professional Designer
Market North America North America
Color stainless steel stainless steel
Volts 120 120
Owner's Guide 241927600 241927600
e15im60ep.eps BEI15IM55GS0.eps SEI15IM55GS0.eps 42247.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995508685
08/03/25
(EN/SERVICE/KC)
099
ICE MAKER
Model No.
E15IM60GP /
E15IM60GS
Copyright ©2008 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995508685 E15IM60GP / E15IM60GS
03/08 2
CABINET,DOORS

E15IM60GP / E15IM60GS Publication No: 5995508685
# Functional Parts 3 03/08
* Non-Illustrated Parts
CABINET,DOORS
Model Index: AE15IM60GP (E15IM60GPS0)
BE15IM60GS (E15IM60GSS0)
POS. NO PART NO. DESCRIPTION
1 # 75304465614 A B Thermistor, quick connect, white
2 # 75304465594 A B Control Board, printed circuit
6 # 75304465615 A B Thermistor, liquid line, black
7 75304465616 A B Base Plate, liner
8 # 75304465617 A B Display Assembly, blue LED
9 75304465618 A B Panel, control display, glass
10 75304465619 A B Housing, control display
11 75304465620 A B Screw, 8-18 X 0.75, Plastite
28 75304446590 A B Door Closer
29 75304446594 A B Pin, pivot post, hinge
30 75304446664 A B Hinge, top, w/pivot pin
31 75304446665 A B Hinge, bottom, w/pivot pin
32 75304446666 A B Plate, door pivot, with screws
33 75304446667 A B Panel, back
34 # 75304446668 A B Gasket, door
42 75304446611 A B Plug, hinge holes, top/bottom
44 # 75304446637 A - Door Assembly, Professional, with handle
44 # 75304446638 - B Door Assembly, Designer, with handle
46 75304446674 A B Grille, kick plate
50 # 75304465596 A B Power Cord, electric svce
51 75304446677 A B Scoop, ice
55 75304465621 A B Bushing, back panel, black

Publication No: 5995508685 E15IM60GP / E15IM60GS
03/08 4
SYSTEM

E15IM60GP / E15IM60GS Publication No: 5995508685
# Functional Parts 5 03/08
* Non-Illustrated Parts
SYSTEM
Model Index: AE15IM60GP (E15IM60GPS0)
BE15IM60GS (E15IM60GSS0)
POS. NO PART NO. DESCRIPTION
3 # 75304465590 A B Valve, water, solenoid
3* 75304446678 A B Nut, compression, with sleeve
3* 75304446680 A B Water Line Assy
4 # 75304446642 A B Tube, process
7 # 75304446643 A B Motor, condenser fan
8 # 75304446644 A B Fan Blade, condenser fan
9 75304465591 A B Receptacle, water dispersal
10 75304446646 A B Trough, water
11 75304446647 A B Cover, evaporator
12 75304446648 A B Cover, pump
15 75304465592 A B Pump, water, circulation
15* 75304446652 A B Wiring Harness, water pump
17 75304446653 A B Standpipe
19 75304446606 A B Leveling Leg, screw
20 75304446654 A B Elbow, 90 degree, brass
22 75304446655 A B Hook, ice scoop
24 # 75304465593 A B Compressor Assy, w/electricals, includes dryer
24*# 75304446658 A B Drier-filter
24*# 75304446659 A B Overload Protector, compressor
24*# 75304446660 A B Relay, compressor
35 # 75304446669 A B Condenser
36 # 75304446670 A B Evaporator Assy, w/tubing
37 # 75304446671 A B Tube, drain
37* 75304446679 A B Clamp, tube
39 # 75304446672 A B Tube, preformed
40 # 75304446673 A B Tubing, drain
49 # 75304465595 A B Valve, Hot Gas, w/coil & dryer

Publication No: 5995508685 E15IM60GP / E15IM60GS
03/08 6
WIRING DIAGRAM
WATER
PUMP
Lawrence
BIN
COND
12 6
FUSE
CLEAR ICE MAKER WIRING DIAGRAM
42247 D
GREEN
BLACK (HOT)
WHITE (NEUTRAL)
1
10
CONTROL
BOARD
MODEL
PLUG
7 1
THERMISTER
REED
JUMPER
(GROUND)
TO DISPLAY
WASTE WATER PUMP
JUMPER PLUG
WITHOUT
P60 WASTE PUMP
GREEN
(GROUND)
BLACK
WHITE
PINK
PINK
PINK
PINK
FAN
HOT GAS
VALVE
WATER
VALVE
GREEN
(GROUND)
WHITE
WHITE WHITE
(NEUTRAL)
WHITE
WHITE
BLUE (HOT)
YELLOW
BLACK/YELLOW
PURPLE
BROWN
WHITE
WHITE
BLACK
OVERLOAD
NEUTRAL
HOT
RELAY
EMBRACO
COMPRESSOR
GREEN
(GROUND)
