Welcome to the Quick Install Guide for Basler’s PowerPack for Micros-
copy. Find details about each component and step-by-step instructions
on how to set up your microscope camera.
Microscopy enables visualization of structure and function of the most
diverse and smallest objects. With this PowerPack by Basler, you can rely
on highest image quality, whether you use this digital microscope camera in
your leisure activities, in routine or research applications.
Crisp colors, clear contrast, high resolution and dynamic range.
Exact image reproduction and color fidelity.
Outstanding performance stability and accuracy.
You have decided for equipment from a worldwide leading
company in vision technology – Basler AG.
More than 25 years of experience in machine vision.
Quality made in Germany.
3-year warranty.
We trust that this PowerPack for Micros-
copy enables you to experience most
reliable and reproducible observation,

Basler AG
An der Strusbek 60–62
22926 Ahrensburg
Germany
All material in this publication is subject to change without notice and is
copyright Basler AG.

5
TABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Quick Install Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Correct Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Authorized Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Other Items to Be Observed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
DELIVERED PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Parts by Variant of the Basler PowerPack for Microscopy . . . . . . . . . . 13
SOFTWARE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Requirements before Installing the Software . . . . . . . . . . . . . . . . . . . . . . .15
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the Basler Microscopy Software . . . . . . . . . . . . . . . . . . . . . . . . . .17
Additional Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6
TABLE OF CONTENTS
HARDWARE INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Requirements before Installing the Hardware . . . . . . . . . . . . . . . . . . . . . 20
Installing a Basler Microscopy Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Basler Microscopy pulse Cameras and Adapters . . . . . . . . . . . . . . . . . . 25
Basler Microscopy ace Cameras and Adapters . . . . . . . . . . . . . . . . . . . . 26
Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SUPPORT, REPAIR, AND DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Technical Support and Camera Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

INTRODUCTION
7
INTRODUCTION
Quick Install Guide
This Quick Install Guide for the Basler PowerPack for Microscopy applies to
all variants of the Basler PowerPack for Microscopy. The document provides
information about installing the Basler Microscopy Software and the Basler
Microscopy camera included in a Basler PowerPack for Microscopy.
Software use and camera operation are described in an online help that is
included with the Basler Microscopy Software.
Note: Read the Quick Install Guide carefully before installing software
and camera. All components involved in the installation are indicated in
Figure 1 and Figure 2.

8
INTRODUCTION
Correct Use
Basler Microscopy cameras are digital cameras used to acquire images of
what is "seen" by a microscope. Each camera must be firmly mounted on a
microscope and must be connected to a computer via the delivered USB 3.0
cable. On the same computer, the Basler Microscopy Software must be
installed. The software may only be used with a Basler Microscopy camera
(one camera per software installation).
The images are sent to the computer via the USB 3.0 cable for display,
storage, and possible further processing.
Basler Microscopy cameras may only be used with light microscopes.
The cameras are designed for indoor use in e.g. laboratories and educational
institutions. The cameras can be used for a variety of fields such as
diagnostics, biomedical research, materials science, and education.
Authorized Users
Persons installing and using the parts included in a Basler PowerPack for
Microscopy and related components must be adults, must be familiar with
the requirements for safely using current supplied via a USB 3.0 interface,
and must follow the safety instructions given in this document. Minors may
only operate a camera when supervised by qualified adults.

SAFETY INSTRUCTIONS
9
SAFETY INSTRUCTIONS
Electric Shock Hazard: Risk of Burn or Death.
The power supply in the PC, used for supplying camera power, must meet
the Safety Extra Low Voltage (SELV) and Limited Power Source (LPS)
requirements.
If you use a powered hub or powered switch, they must meet the SELV and
LPS requirements.
Never use a damaged USB 3.0 cable. If the cable is damaged, immediately
discard the cable. Obtain a replacement cable from your camera sales
representative.
Fire Hazard: Risk of Fire and Burn.
The power supply in the computer, used for supplying camera power, must
meet the Limited Power Source (LPS) requirements.
If you use a powered hub or powered switch, they must meet the LPS
requirements.
Be careful not to allow liquid, flammable, or metallic material inside of the
camera housing. If operated with any foreign matter inside, the camera may
fail or cause a fire.
DANGER
WARNING

10
SAFETY INSTRUCTIONS
Damage Hazard: Risk of Damaging the Camera.
You must supply camera power that complies with the Universal Serial Bus
2.0 or 3.0 specifications (Basler Microscopy pulse) or with the Universal
Serial Bus 3.0 specification (Basler Microscopy ace).
Make sure the camera microscope adapter (Figure 2) does not reach too far
into the camera body. Otherwise, the camera’s IR cut filter (color cameras)
or the sensor (mono cameras) can be damaged.
Never try to directly connect a Basler Microscopy pulse camera (with CS-
mount) to the C-mount of a camera microscope adapter. The camera and
the adapter can be damaged. In addition, the adapter will not have the
correct length, resulting in inferior image quality. Always use the CS-mount
to C-mount adapter ring between a Basler Microscopy pulse camera and a
camera microscope adapter with C-mount.
Do not operate the camera in the vicinity of strong electromagnetic fields.
Avoid electrostatic charging.
Do not open the housing. Touching internal components may damage them.
If the camera is not installed, store it in its original packaging.
NOTICE

SAFETY INSTRUCTIONS
11
Contamination Hazard: Risk of Contaminating the Camera.
Never apply compressed air to the camera. This can easily contaminate
optical components, particularly the sensor.
Avoid collecting dust on the camera’s IR cut filter or sensor:
Make sure the camera is pointing down every time you remove the plastic
cap or the camera microscope adapter. Always put the plastic cap in
place when the camera is not installed.
Do not touch the IR cut filter or sensor except when cleaning. They can
be contaminated and the filter can break when pressure is applied.
Cleaning Instructions
Try to avoid cleaning at all. Clean only when absolutely necessary.
Before cleaning, cut off power to the camera by disconnecting the USB 3.0
cable.
Cleaning the camera housing:
Use a soft, dry cloth. To remove severe stains, use a soft cloth damped
with a small quantity of neutral detergent, then wipe dry. You must use a
cloth that will not generate static charge during cleaning (cotton is a
good choice).
Do not use aggressive solvents to clean the housing. Otherwise, the
surface finish can be damaged.
NOTICE

12
SAFETY INSTRUCTIONS
Disinfection: Sparsely apply an ethanol-free mild disinfectant to a soft
cloth, wipe the camera exterior, and then wipe dry.
Cleaning the IR cut filter:
To remove only minor stains, use a high-quality lens cleaning cloth.
Clean with extreme caution to avoid breaking the filter or damaging the
sensor.
To remove more substantial stains contact your camera sales
representative for further advice.
Cleaning the sensor:
Use a soft, lint-free cloth dampened with a small amount of window
cleaner.
Because electrostatic discharge can damage the sensor, you must use a
cloth that won’t generate static during cleaning (cotton is a good
choice).
After cleaning, make sure the cleaning liquid has evaporated before
reconnecting the USB 3.0 cable.
Other Items to Be Observed
Follow the safety instructions.
Do not remove the camera’s serial number label.
Do not use the round connector on a Basler Microscopy ace camera
(Figure 2).
Before using the camera, read the related documentation.

DELIVERED PARTS
13
DELIVERED PARTS
The selection of parts (Figure 1) delivered with a Basler PowerPack for
Microscopy depends on the included camera model.
The available camera models of the Basler Microscopy pulse and Basler
Microscopy ace cameras and related specifications are given in the
Specifications section of this document.
Parts by Variant of the Basler PowerPack for Microscopy
Selection A, B is common to all PowerPack variants.
Selection Aincludes a Basler Microscopy pulse camera and related
parts.
Selection Bincludes a Basler Microscopy ace camera and related parts.
Note: A camera microscope adapter (Figure 2) is necessary for
connecting microscope and camera. The adapters, however, vary with
microscope design. Therefore, no such adapter is delivered with a Basler
PowerPack for Microscopy. To obtain a suitable adapter, contact your
microscope sales person. See the Hardware Installation section for
requirements that apply to camera microscope adapters.
For measuring distances in a sample you must have calibrated the
microscope. For this purpose, you need a microscope calibration slide.
However, none is included in a PowerPack. To obtain a calibration slide,
contact your microscope sales person.

14
DELIVERED PARTS

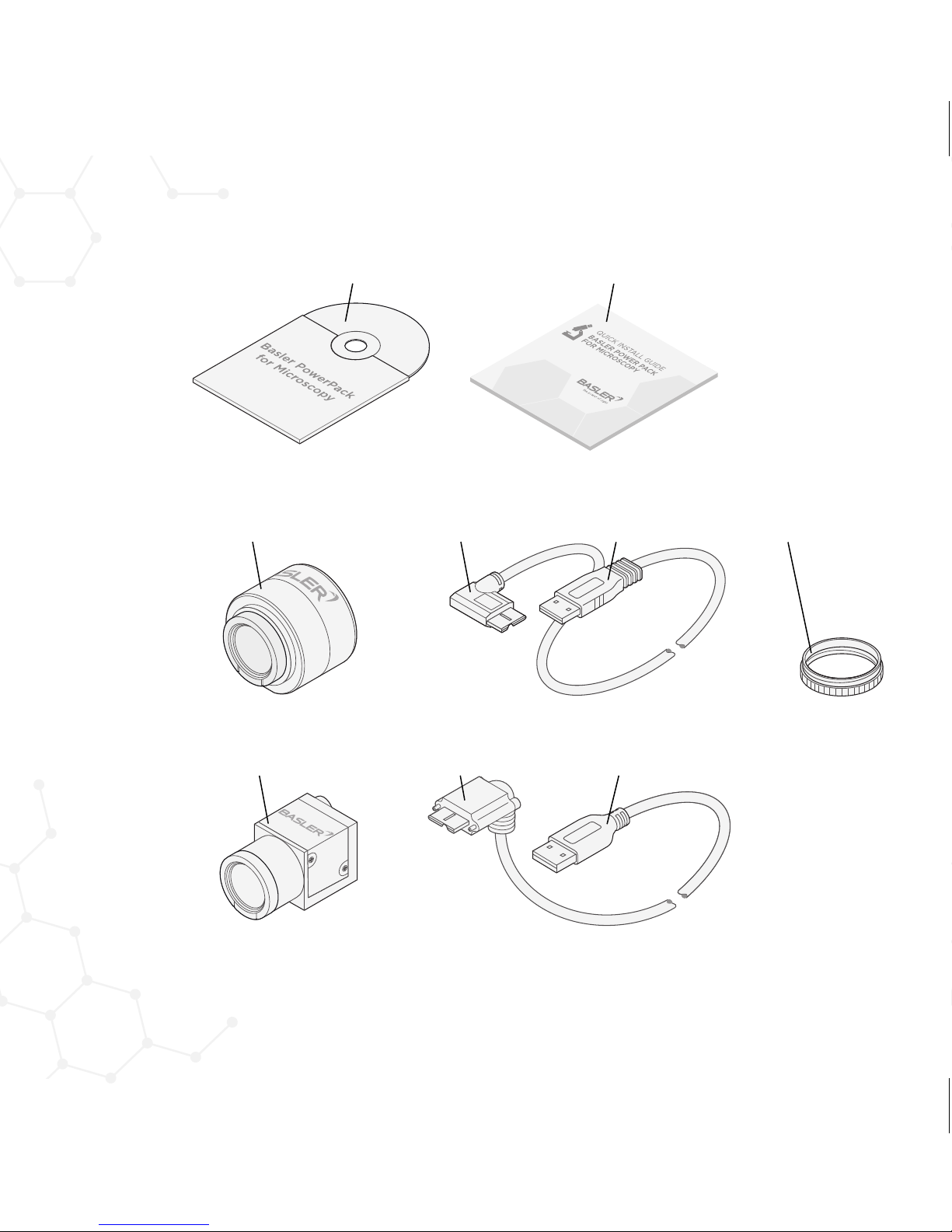

Fig. 1: Delivered Parts According to Variants A and B of the Basler PowerPack for Microscopy
A, B
B
A
DVD with Basler Microscopy Software Quick Install Guide
USB 3.0 Micro-B plug,
angled left, connects
to the pulse camera
Basler Microscopy
pulse camera with
plastic cap
CS-mount to
C-mount
adapter ring
USB 3.0 A plug,
connects to the
computer
USB 3.0 Micro-B plug,
angled down, connects
to the ace camera
Basler Microscopy
ace camera with
plastic cap
USB 3.0 A plug,
connects to the
computer

SOFTWARE INSTALLATION
15
SOFTWARE INSTALLATION
This section includes the instructions for installing the Basler Microscopy
Software. The software is used for controlling a Basler Microscopy camera
and for image acquisition and analysis. The software also includes an online
help for using the camera and the software.
The software must be installed on a computer before connecting the
camera.
Requirements before Installing the Software
One of the following operating systems (32-bit or 64-bit) is installed on
the computer: Windows 7, 8.1, or 10.
The latest USB host controller driver is installed.
Check the host controller chipset that is used on your computer. If
necessary, obtain the latest applicable driver and install it on your
computer. USB host controller drivers for common chipsets are included
on the supplied DVD.
You have administrator rights for the computer.
Note: Each Basler Microscopy Software installation can only be used for
one Basler Microscopy camera. Multiple cameras can’t be used with one
software installation.

16
SOFTWARE INSTALLATION
Recommendations
Use of a USB 3.0 interface on the computer is strongly recommended.
Note: You can distinguish USB A ports (present on the computer) by the
color of the insert: The insert is white for a USB 2.0 port and blue for a
USB 3.0 port. USB 3.0 connectors bear this label:
For a Basler Microscopy pulse camera, you can use a USB 2.0
interface on the computer but the camera’s performance can then
be distinctly decreased. Basler strongly recommends to use the
USB 3.0 interface.
For a Basler Microscopy ace camera, you can only use the USB 3.0
interface on the computer.
Of the USB 3.0 host controller chipsets tested, the following were found
to work well:
Renesas Gen1
Renesas Gen2
Fresco Logic FL1100
Intel 7 Series/C216
Intel 8/9/100 Series
Intel C220/C610 chipset family

SOFTWARE INSTALLATION
17
Installing the Basler Microscopy Software
1. Make sure all requirements listed above are met, the computer is
running, and all programs are closed.
2. Make sure there is no previous version of Basler Microscopy Software
installed. If there is, uninstall the software.
3. Insert the DVD from the Basler PowerPack for Microscopy in the
computer.
4. Display the list of folders and files included on the DVD.
5. Click the Setup folder.
The window of the InstallShield Wizard opens.
6. Click the Run button to start the Setup.exe file.
A window with the software license text is displayed.
7. Read the software license text.
Note: You must accept the terms and conditions of the software license
text. Otherwise, you will not be able to use the software and the Basler
Microscopy camera.
To accept, activate the Yes, I a ccept… radio button.
Note: You can exit the installation procedure at any stage by clicking
the Exit button.

18
SOFTWARE INSTALLATION
Click the Next button.
A window opens allowing you to select a language for the
appearance of the software on the screen.
If you don’t accept, activate the No, I don’t accept… radio button.
Click the Next button.
The installation procedure is ended. The software is not installed.
8. Select the desired language from the drop down list (English is the
default language).
9. Click the Next button.
A window opens asking for information about you as the user.
10. Enter your name and the name of your company.
11. Click the Next button.
A window opens asking you to choose the path to the destination
location, i.e. to the location where you want to install the software.
12. As a default, C:\Program Files\Basler Microscopy Software\ is shown.
This path will in many cases apply. If you want to store the software at a
different location, enter the new desired path (you can click the Browse
button to browse for the new location).
13. Click the Next button.
A window opens allowing you to check the previous installation settings.

SOFTWARE INSTALLATION
19
14. Decide if you want to check the previous installation settings.
If you want to check the previous installation settings, click the Back
button to return to windows of previous steps. If desired, you can
change the settings and return to this step by clicking the Next
button as many times as necessary.
If you do not want to check the previous installation settings and if
you want to start the copying and therefore installing the files, click
the Next button.
A Setup-Status window opens. The software is copied from the DVD
to your computer.
When the copying is complete a Complete window opens, informing
that the software was successfully installed.
15. To finish the installation, click the Finish button.
The Basler Microscopy Software is installed.
16. For smooth operation, close the software, boot your computer, and start
the software again.
The installation process is complete.
Additional Software
A Basler Video Recording Software is included on the
supplied DVD.
Further useful software applications can be found on:
www.imaginghub.com/projects

20
HARDWARE INSTALLATION
HARDWARE INSTALLATION
The available camera models of the Basler Microscopy pulse and ace
cameras are listed in the Specifications section of this document.
The hardware installation involves attaching a Basler Microscopy camera to
a microscope via a camera microscope adapter, adjusting the orientation of
the adapter with the mounted camera, and connecting the camera to a
computer via a USB 3.0 cable.
Requirements before Installing the Hardware
Make sure to meet the following requirements before installing the
hardware:
The microscope provides some fixture (a trinocular tube or an eyepiece)
for attaching a camera microscope adapter.
A suitable camera microscope adapter is present that meets these
requirements:
The adapter is suitable for your microscope.
The adapter has a C-mount on the camera end.
For best results, length and magnification factor of the adapter are in
accord with the effective sensor diagonal of the camera (see the
Specifications section in this document).
To obtain a suitable adapter, contact your microscope sales person.
There will be sufficient free space around the camera for efficient heat
dissipation.
