Operating Manual

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 1 -
Table of Contents
Table of Contents .................................................................................................. - 1 -
Safety Instruction .................................................................................................. - 2 -
1. Overview ........................................................................................................... - 3 -
1.1 About This Manual ................................................................................... - 3 -
1.2 Product Description .................................................................................. - 3 -
1.3 Product Applications ................................................................................. - 4 -
2. Technique Parameters ........................................................................................ - 5 -
2.1 Optical Parameters .................................................................................... - 5 -
2.2 Model Test Indicators ................................................................................ - 5 -
2.3 Test Condition ........................................................................................... - 6 -
2.4 Technical Data Sheet ................................................................................. - 6 -
3. Panel Interface and Menu System Description ................................................... - 7 -
3.1 Front Panel ............................................................................................... - 7 -
3.1.1 Indicator Description ....................................................................... - 7 -
3.2 Rear Panel ................................................................................................ - 8 -
3.3 Power Module .......................................................................................... - 8 -
3.3.1 220V Power Module ....................................................................... - 8 -
3.3.2 48V Power Module ......................................................................... - 8 -
3.4 Menu Operation ........................................................................................ - 9 -
3.4.1 Main Menu ...................................................................................... - 9 -
3.4.2 Display Menu ................................................................................ - 10 -
3.4.3 Set Menu ....................................................................................... - 11 -
3.4.4 Alarm Menu .................................................................................. - 12 -
3.4.5 AGC Mode .................................................................................... - 12 -
3.4.6 MGC Mode ................................................................................... - 12 -
3.4.7 Frequency Adjust ITU in DWDM.................................................. - 12 -
3.4.8 SBS Suppression Adjustment ........................................................ - 13 -
4. Installing the the Optical Transmitter ............................................................... - 13 -
4.1 Receiving and Inspecting ........................................................................ - 13 -
4.2 Precautions ............................................................................................. - 13 -
4.3 Mounting the Equipment......................................................................... - 14 -
4.3.1 Mounting the Equipment in the Rack............................................. - 14 -
4.3.2 Connecting the RF Cables ............................................................. - 14 -
4.3.3 Connecting the Optical Fiber Cables ............................................. - 14 -
4.3.4 Connecting the Ethernet Cable ...................................................... - 15 -
4.3.5 Connecting Power ......................................................................... - 15 -
5. Communication Setup ..................................................................................... - 16 -
5.1 RS232 Communication Interface Description ......................................... - 16 -
5.2 Set up the Hyper Terminal....................................................................... - 16 -
5.3 Operating Parameters Configuration ....................................................... - 17 -
5.4 Remote Monitoring: SNMP .................................................................... - 20 -

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 2 -
5.5 WEB Network Management ................................................................... - 21 -
6. Maintenance and Troubleshooting ................................................................... - 23 -
6.1 Cleaning Fiber Optic Connectors ............................................................ - 23 -
6.1.1 Cleaning Patch Cord or Pigtail Fiber Optical Connectors ............... - 24 -
6.2 Troubleshooting ...................................................................................... - 24 -
6.3 Disclaimer .............................................................................................. - 25 -
Safety Instruction

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 3 -
1. Overview
1.1 About This Manual
This instruction manual is a complete guide to install and operate the (1RU)
1550nm external modulated optical transmitter. Please read the entire manual before
beginning installation.
This manual applies to the external modulated optical transmitter.
• Chapter 1 gives general information about the 1550nm external modulated optical
transmitter.
• Chapter 2 describes the complete technical specifications of the equipment.
• Chapter 3 describes the front/rear panel interfaces and menu system.
• Chapter 4 tells you how to install the external modulated optical transmitter.
• Chapter 5 tells you the communication setting of the equipment.
• Chapter 6 describes maintenance and what to do in the event of problems.
1.2 Product Description
This optical transmitter is a 1550nm DFB laser external modulated transmitter. It
is specially developed for the CATV signal that satisfies HFC network, and the
long-distance transmission of cable phone and cable data.
Working principle
It has 7 function modules: RF control, DFB laser, optical modulator, SBS control,
CSO control, communication/display control and power supply.
Automatic gain control circuit (AGC) or manual gain control circuit (MGC)
amplifies the RF signal. AGC or MGC control makes the optical modulator maintain a
suitable input level. Use the detected RF root-meansquare(RMS)-total power to
calculate the optical modulation index(OMI).
In general we recommend using the AGC function, and special users can use the
MGC function to adjust the CNR/CSO/CTB performance indexes.
The core of transmitter is the optical modulator. The 1550nm signal input the
optical modulator, make the laser intensity changed follow the external RF signal
voltage, and then generate the AM optical signal.

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 4 -
Stimulated Brillouin Scattering (SBS) occurs, when the optical input power is
greater than a certain threshold value. SBS generate the lower frequency
backscattered light which will attenuate the transmission light and return to the laser
while destroying its performance. Causing optical power fluctuation, generates large
noise, and seriously deteriorates the system carrier to noise ratio (CNR). To improve
the SBS threshold, this optical transmitter adopts SBS control technology which is
independent researched and developed by ourselves. The threshold value can be set up
to 19dBm.
The optical modulator has a two-way optical signal output. Parts of that signal
are routed to an InGaAs photodiode. This detection of the optical signal has two
functions:
1) Detect whether the laser is normal working. Once the output optical power is
2dB lower than standard power, alarm will be set off.
2) Detect CSO distortion to optimize the bias point of the optical modulator. For
working normal the detector circuit needs at least two carrier signal inputs with an
interval of 24MHz. There is a CSO initialization program in the boot process. If the
CSO install failed, the RF indicator will flash red, see details in 6.2 Troubleshooting.
Block Diagram
1.3 Product Applications
• High-performance long-distance transmission
• High-power distribution network
• Redundancy loop architecture
• FTTx network
• RFOG application
• DWDM network

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 5 -
2. Technique Parameters
2.1 Optical Parameters
Item Unit Value
Optical Wavelength nm 1545～1560 (or specified by the user)
Side-mode Suppression ratio dB >30
Relative Intensity Noise dB/Hz <-160
Wavelength Adjustment
Range GHz +/-50GHz
Optical Power dBm 2*5, 2*7, 2*8, 2*9, 2*10
SBS Threshold Value dBm +13～+19 (Continuously adjustable)
Laser Linewidth MHz 0.3
2.2 Model Test Indicators
Test Model C42 D59 D84 D84
Channel Plan CENELEC42 PAL D59 PAL D84 PAL D
Channel Number
TV/FM/QAM64 42/0/0 59/0/0 84/0/0 30/0/48
Bandwidth Noise 5 5 5 5
CNR Tx/Rx 55.5 54.0 52.5 54.5
CNR Link 1 55.0 53.5 52.0 54.0
CNR Link 2 53.0 52.5 50.5 52.5
CNR Link 3 50.5 50.5 49.0 51.0
CSO Tx/Rx and Link 1 64 65 65 70
CSO Link 2 63 65 65 70
CSO Link 3 62 64 63 65
CTB 65 65 65 68

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 6 -
2.3 Test Condition
First stage
EDFA
First
paragraph
fiber length
Second
stage
EDFA
Second
paragraph
fiber length
RX SBS
(dBm)
Tx/Rx No No No no 0dBm 13.5
Link 1 No 35km no no 0dBm 13.5
Link 2 16dBm 65km no no 0dBm 16
Link 3 13dBm 50km 13dBm 50km 0dBm 13.5
Rx with 8 pA/ÖHz input noise current density; EDFA with 5dB noise figure; RF input level at 80
dBμV / TV channel;
2.4 Technical Data Sheet
Item Unit Technical Parameters
RF range MHz 47～1003
RF flatness dB +/-0.75
RF return loss dB >16
RF input impedance Ω 75
RF input connector type F type
Rated input level dBµV 80
Input level range dBµV 78~96 (AGC mode, modulating signal)
AGC control range dB +3～-3
MGC adjustable range dB 0~15
Optical connector SC/APC, FC/APC
Operating temperature °C -5～45
Storage temperature °C -30～+70
Power Source
Specification V 90～265VAC
36～72VDC
Consumption W ≤60
Dimension mm 483(L) × 455(W) × 44(H)
Total Weight kg 5.5

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 7 -
3. Panel Interface and Menu System Description
3.1 Front Panel

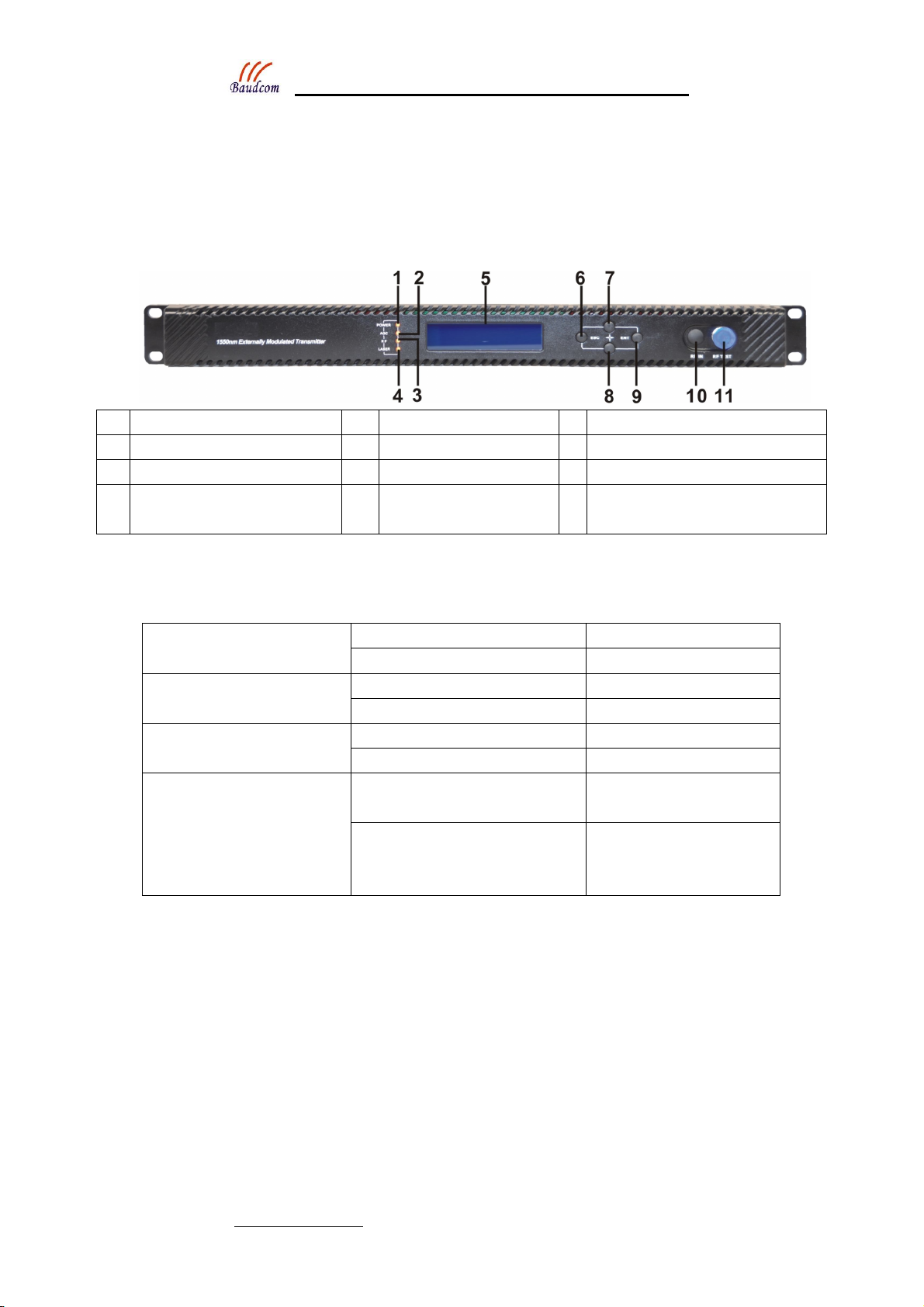

1
Power indicator 2 AGC indicator 3 RF modulation degree indicator
4
Laser indicator 5 LCD 6 ESC key
7
UP key 8 DOWN key 9 Enter key
10
RF input port (or on the rear
panel, optional) 11
-20dB RF input test port
3.1.1 Indicator Description
Power indicator One power supply LED yellow
Two power supplies LED green
AGC indicator AGC mode LED green
MGC mode LED off
RF modulation degree
indicator
Normal LED green
Abnormal LED flash red
Laser indicator
Bias current, cooling current and
output power are all normal LED green
At least one of bias current,
cooling current and output power
is abnormal
LED flash red

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 8 -
3.2 Rear Panel

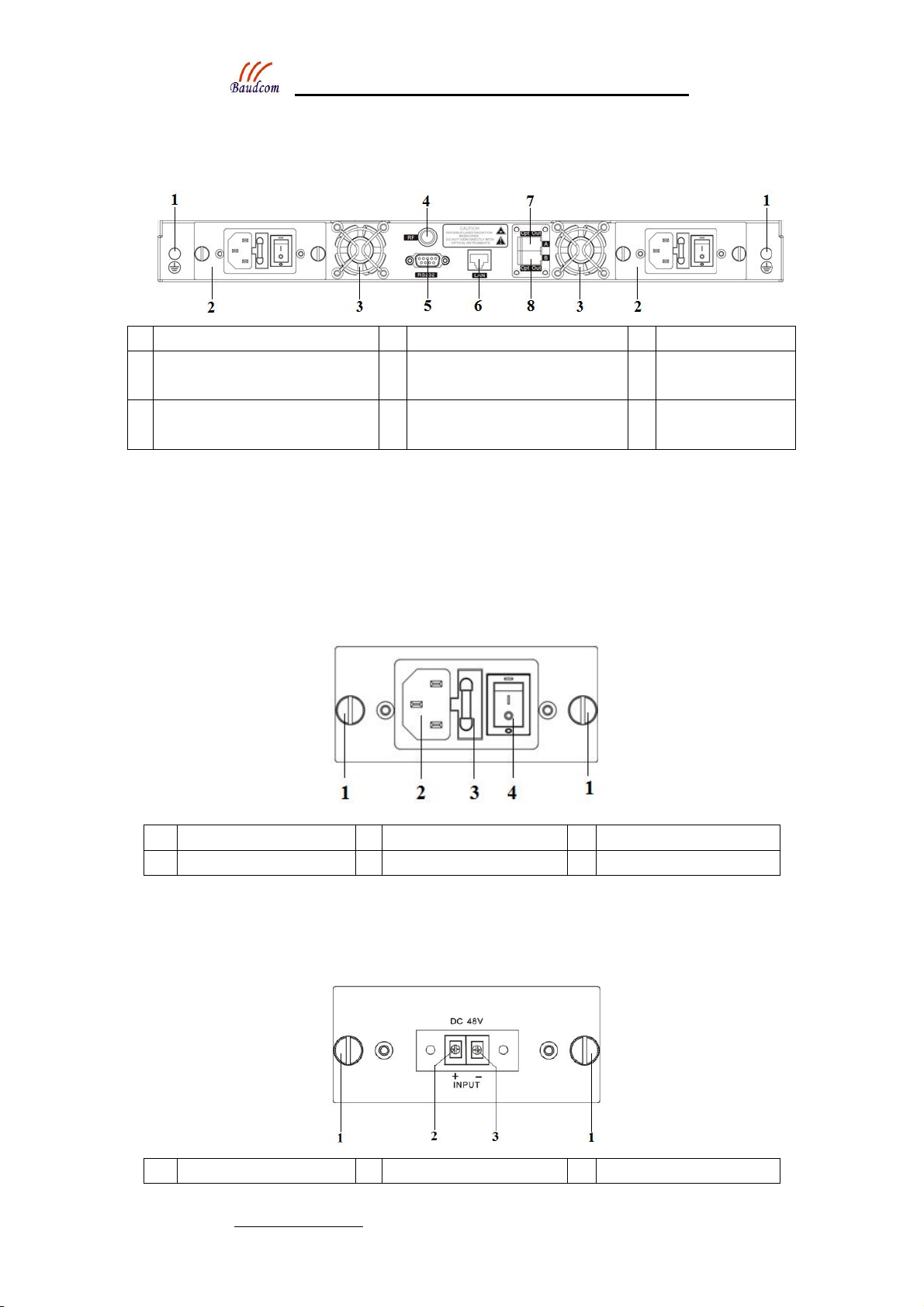

1
Ground stud 2 Power module 3 Fan
4
RF input port (or on the front
panel, optional) 5
RS232 interface 6 LAN interface
7
Optical output interface A (or
on the front panel, optional) 8
Optical output interface B (or
on the front panel, optional)
3.3 Power Module
3.3.1 220V Power Module
1
Mounting screws 2 220V power outlet 3 Fuse
4
Power switch
3.3.2 48V Power Module
1
Mounting screws 2 + Positive terminal block
3
- Negative terminal block

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 9 -
3.4 Menu Operation
3.4.1 Main Menu
Displayed parameters Comments
Boot display
1.Disp Parameters Menu one: Display parameters
2.Set Parameters Menu two: Set parameters
3.Alarm Status Menu three: Alarm status

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 10 -
3.4.2 Display Menu
Displayed
parameters Comments Displayed parameters Comments
Laser Output Output optical power +24V Read: +24V monitor voltage
Laser Bias Laser current +12V Read: +12V monitor voltage
RF CSO CSO monitor voltage -12V Read: -12V monitor voltage
RF Source The current RF signal source LASER： Laser status
Laser Cooling
Cooling current SBS Module
Temp： SBS module temperature
OMI(rms) Total modulation degree BOX Temp： Overall temperature
RF Mode RF control mode MCU Temp： MCU temperature
AGC Adjusted value with AGC mode S/N： Serial number
MGC Adjusted value with MGC mode Version： Version number
+5V Read: +5V monitor voltage Work Time: Work time
-5V Read: -5V monitor voltage

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 11 -
3.4.3 Set Menu
Displayed parameters Comments Remarks
Select RF input signal source Select RF input signal
Analong&digital full analog signal or analog
and digital mixed signal
Digital full digital signal
Set RF MODE Set RF control mode MGC and AGC two modes selectable
Set AGC Set MGC Set RF adjusted value Adjustable range 0~15dB with MGC mode
Adjustable range -3~+3dB with AGC mode
Set SBS Suppression Set SBS value Range 13~19dBm, 0.5dB stepping
Set ITU Set optical wavelength
Range ±50GHz
Set Channel Distance Set channel distance 6MHz, 7MHz, 8MHz
Set LASER Set laser status ON/OFF
Set IP Address Set IP address
Set Mask Set subnet mask
Set Gateway Set gateway
Set Trap1 Address Set trap1 address
Set Trap2 Address Set trap2 address
Set Buzzer Alarm Set buzzer alarm ON/OFF
Restore Factory Cfg Restore factory
settings

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 12 -
3.4.4 Alarm Menu
The displayed alarm content Comment
RF IN Status HIGH（LOW） The RF input signal is high (low)
Laser Bias HIGH（LOW） The laser bias current is high (low)
Laser TEC
HIGH
The laser cooling current is high
Output Power Status HIGH（LOW） The output optical power is high (low)
-5V Status HIGH（LOW） The -5V voltage is high (low)
+5V Status HIGH（LOW） The +5V voltage is high (low)
+12V Status HIGH（LOW） The +12V voltage is high (low)
-12V Status HIGH（LOW） The -12V voltage is high (low)
+24V Status HIGH（LOW） The +24V voltage is high (low)
Laser OFF The laser is off
CSO Initialization failed The CSO initialization is failed
Power invalid LEFT（RIGHT ） The left (right) power is invalid
3.4.5 AGC Mode
This mode is the recommended mode and also the standard operation.
The optical transmitter will automatically adjust to the optimal gain while the input
level is in the working range (see the technical data sheet). And the specified OMI
(rms) modulation index will be automatic gain control.
3.4.6 MGC Mode
Special users, who need to adjust system CNR/CSO/CTB performance indexes to
satisfy the specified requirements, can use this mode. The amplification gain
attenuation range 0-15dB.
(Not recommend).
3.4.7 Frequency Adjust ITU in DWDM
To help DWDM applications, it can adjust optical wavelength. The adjustable range is
±100GHz, 50GHz stepping. The button on the front panel or the Ethernet interface
will complete the adjustment.
λ=c/f, c is the speed of light. It is the constant value.
c=299792458m/s, f is the frequency, its unit is Hz; eg frequency 193400GHZ, the
corresponding wavelength is 1550.12nm.
In the 1545-1560nm band, the frequency distance and the wavelength distance is very
similar to linear relationship.
50GHz frequency distance reflects to wavelength is very approximate to 0.4nm width;

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 13 -
As the same, 100GHz frequency distance reflects to wavelength is very approximate
to 0.8nm width.
3.4.8 SBS Suppression Adjustment
SBS value is very important in 1550nm long-distance transmission system. Stable
continuous coherent light source, add +6 dBm optical power in the standard single
mode fiber may occur SBS phenomenon. Ultrahigh SBS threshold will reduce CNR
and CSO low-frequency indicators.
High SBS threshold will also influence self phase modulation (SPM) and reduce
high-frequency CSO indicator.
When meet the conditions, as far as possible to use a low threshold SBS.
4. Installing the Optical Transmitter
4.1 Receiving and Inspecting
As you unpack your unit, inspect the shipping container and equipment for damage.
Save the shipping material for future use. If the container or the equipment is
damaged, notify both the freight carrier and us.
CAUTION: To protect yourself from potential injury and to protect the
equipment from further damage, do not perform any
operational tests if the equipment appears to be damaged.
4.2 Precautions
Heed the following precautions when working with the equipment.
Warning
Read the installation instructions before connecting the system to
the power source.
Attention Avant de brancher le système sur la source
d'alimentation,consulter les directives d'installation.
Warnung Vor dem Anschließen des Systems an die Stromquelle die
Installationsanweisungen lesen.
Warning
The plug-socket combination must be accessible at all times,
because it serves as the main disconnecting device.
Attention
La combinaison de prise de courant doit être accessible à tout
moment parce qu'elle fait office de système principal de
déconnexion.

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 14 -
Warnung Mit Wechselstrom betriebenes Modell: Der Netzstecker muss
jederzeit leicht zugänglich sein.
4.3 Mounting the Equipment
4.3.1 Mounting the Equipment in the Rack
Mounting the Equipment in the standard 19 inch equipment rack:
1. Place the equipment in the rack.
2. Use four screws fixed the mounting lug on its front panel to the rack.
3. Reliably ground the equipment. The ground terminal is on the rear panel.
4. Visually inspect each key (button) on the front panel to ensure that it is not trapped
under the edge of its hole. If a key is trapped, tap the key to enable it to move freely.
4.3.2 Connecting the RF Cables
Verify the RF input F connector type according to the ordering information, then
screw on the matched RF cable.
4.3.3 Connecting the Optical Fiber Cables
It has two output optical connectors.
DANGER: The fiber carries invisible laser radiation. AVOID DIRECT
EXPOSURE TO BEAM. Never operate the unit with a
broken fiber or with a fiber connector disconnected.
1. Verify the matched its fiber cable connector type according to the ordering
information.
2. Verify that the fiber cable connector has been cleaned properly. If the fiber cable
connector needs to be cleaned, follow the cleaning procedure outlined in “Cleaning
Patch Cord or Pigtail Fiber Optical Connectors”.
3. Verify that the optical connector has not been exposed to any contamination.
NOTE: Any contamination of optical connector can significantly degrade
optical link performance. This degradation will most likely
manifest itself as poor signal-to-noise (SNR) performance.
4. Note to butt the nick of the connectors and align them accordingly.

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 15 -
4.3.4 Connecting the Ethernet Cable
You can connect it to your TCP/IP network in order to monitor and control the
transmitter remotely. After you complete the installation procedures described in this
chapter, you can use a network management system (NMS) to monitor and control the
equipment.
To connect the equipment, you must use a shielded and grounded Category 5 Ethernet
cable.
To connect the Ethernet cable:
1. Connect an Ethernet cable to the transmitter’s RJ-45 Ethernet port and to your
TCP/IP network. The Ethernet port is on the built-in transponder of the transmitter.
2. Verify that the green Link LED is illuminated, indicating that there is a connection.
The Link LED is above the Ethernet port on the rear panel.
4.3.5 Connecting Power
The is available in an AC power model or DC power model. After mounting the
equipment in a rack, follow the power connection procedure below for the model that
you are installing.
The AC-powered equipment has two optional power supplies 110V and 220V:
110V power supply has two 110 VAC (50/60 Hz) input connector that requires input
voltage from 90 to 130 VAC, at 50 to 60 Hz single phase. The AC power plug is
located on the rear panel.
220V power supply has two 220 VAC (50/60 Hz) input connector that requires input
voltage from 150 to 265 VAC, at 50 to 60 Hz single phase. The AC power plug is
located on the rear panel.
The DC-powered equipment has two -48 VDC input connectors that require input
voltage from -36 to -72 VDC. The DC input connectors are located on the rear panel.
Turn on the power source. It takes about 60 seconds for all systems to operate. When
connect one power supply, the power indicator is yellow; when connect two power
supplies, the power indicator is green.

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 16 -
5. Communication Setup
5.1 RS232 Communication Interface Description
Adopt DB9 standard connector, the pin definitions as follow:
1: No Connect
2: TX
3: RX
4: No Connect
5: GND
6: No Connect
7: No Connect
8: No Connect
9: No Connect
The serial communication uses the standard NRZ form, 1 starts bit, 8 data bits, 1
stop bit and the baud rate is 38400.
5.2 Set up the Hyper Terminal

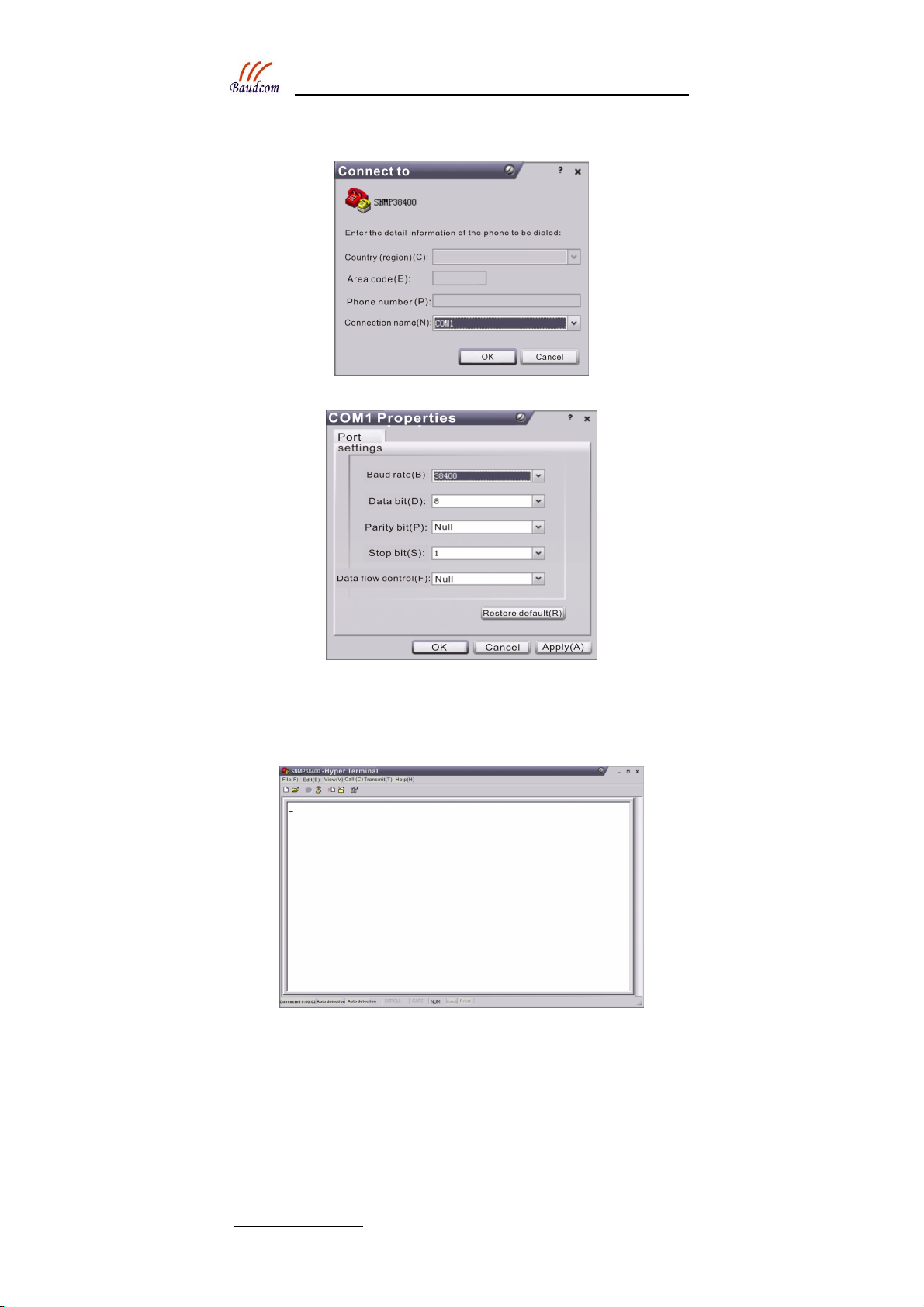

If you have not setup the Hyper Terminal in your Windows system, follow the steps:
Click “start menu program accessorycommunicationHyper Terminal”:
This results in the following screen:

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 17 -
Then you input your connection name, such as “SNMP38400”，and choose the serial
port to connect with your equipment. As follows:
Press the “OK” button shows the configuration page of serial port. As follows:
Change the serial port configuration to 38400-baud rate, 8 data bits, no parity bit, 1
stop bit, no data flow control, press the “OK” button, you have set up the Windows
serial port Hyper Terminal.
You can click “filesave” menu to save this configuration of Hyper Terminal for
later using.
5.3 Operating Parameters Configuration
Under the condition of power off, use the serial port lines to connect the RS232 port
with the computer port. Open the Windows Hyper Terminal which you have set up.

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 18 -

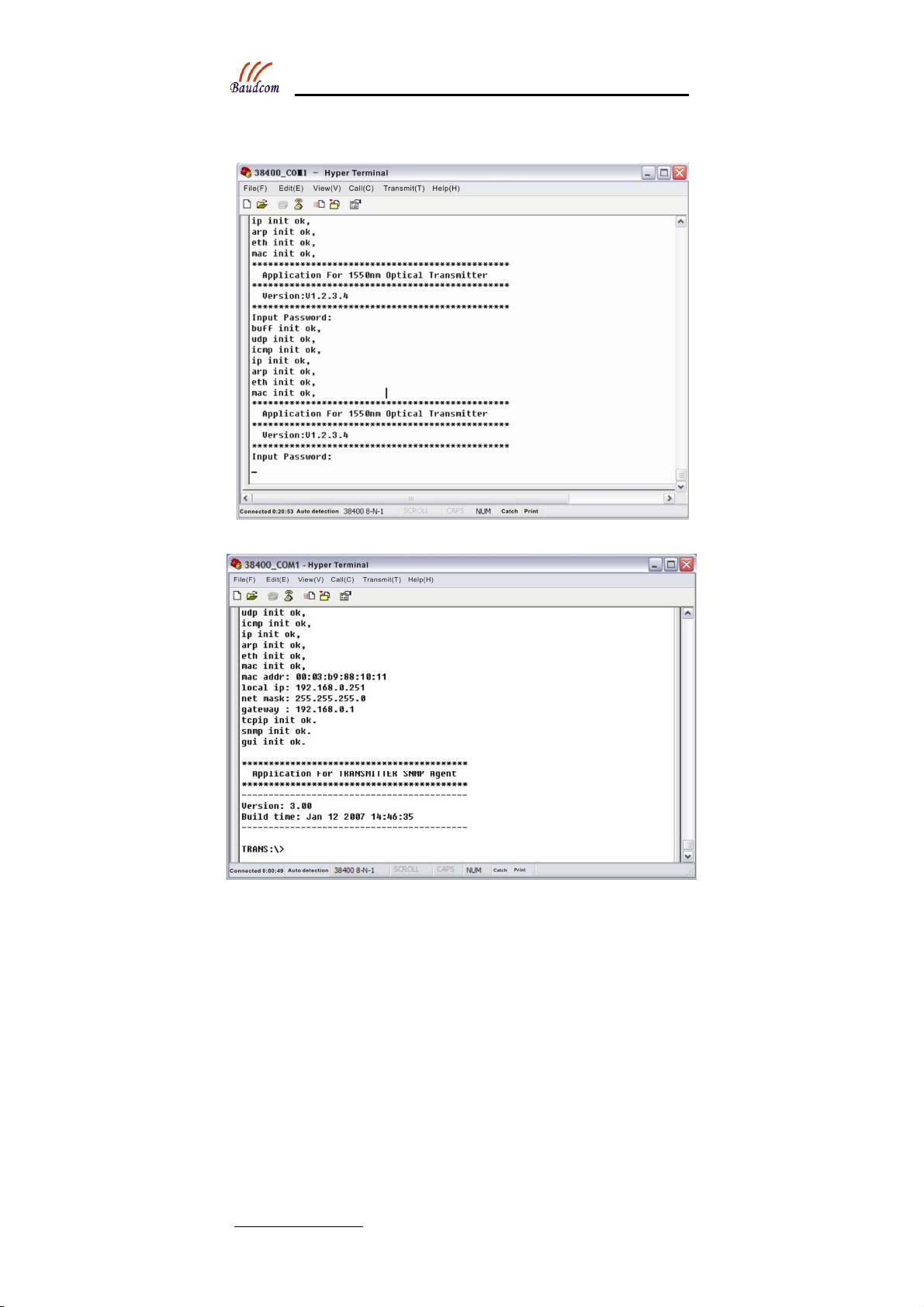

Then turn on the power, you will see the page as follows. Enter the password to enter
the configuration interface.
Enter the password, display the following screen:

1550nm external modulated optical transmitter operating manual
Website: www.baudcom.com.cn Tel：[phone] Email: [e-mail]
- 19 -
You can input your command in this page, and then configure the operating parameter
of the application program.
System supports the following commands:
help
ethcfg
settrap
community
List
Restore
Specific using as follows：

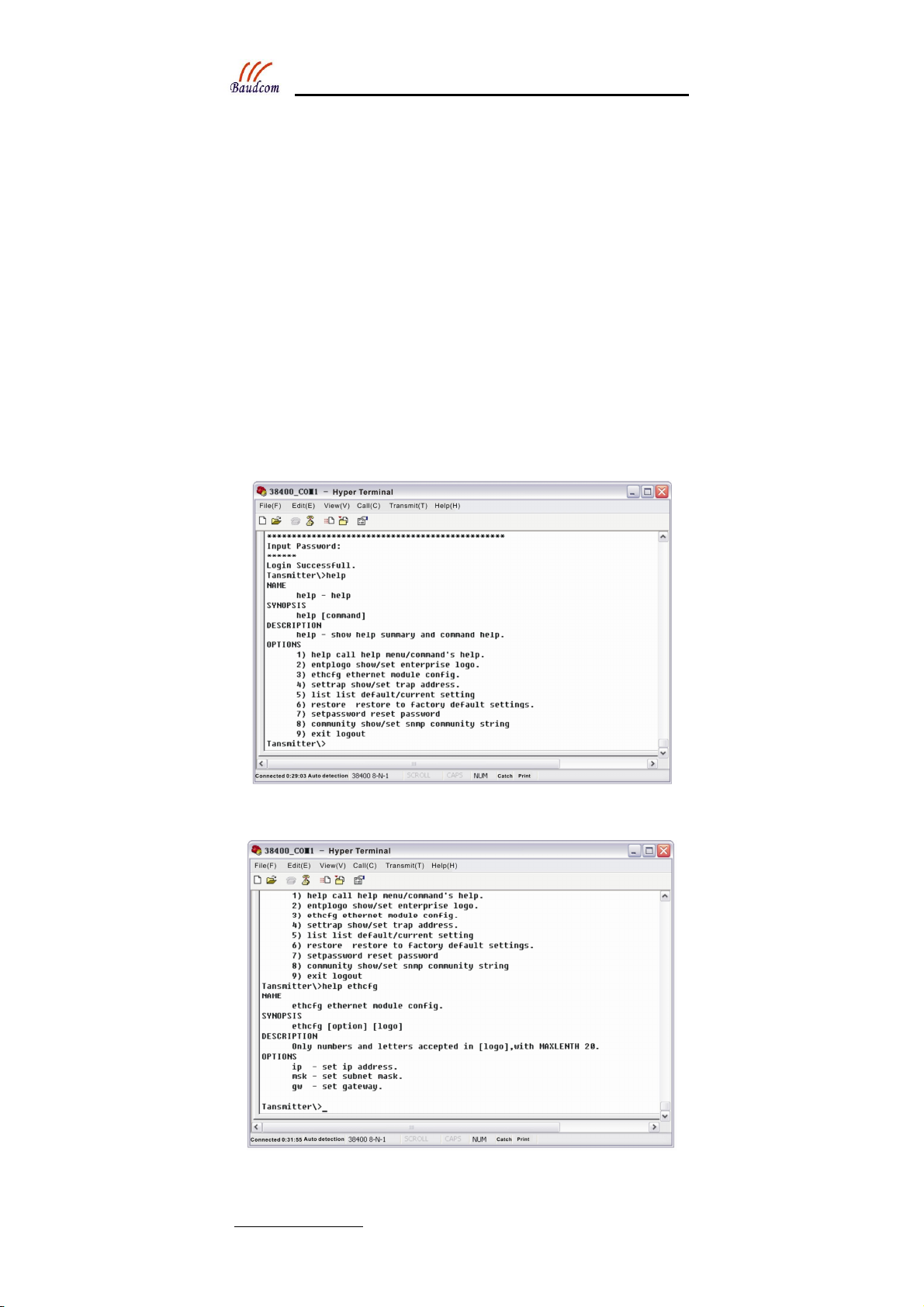

help
This command shows current application program version, program name and the
internal commands list of the system as follows:
You can also use the “help” command to show help information of other commands,
such as “help ethcfg”，ethcfg’s help information appears as follows:
List internal commands of the system;
Configure the Ethernet operating parameters;
Configure the aim host IP address of the SNMP Trap;
Configure the SNMP group name;
List system default parameters or user updated parameters;
Restore the factory default values;
