Bauhn AOA-908 User manual

Model Number AOA-908
Digital Indoor/Outdoor Antenna
INSTRUCTION MANUAL
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS

21300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Welcome
Congratulations on choosing to buy a Bauhn®product.
All products brought to you by Bauhn® are manufactured to the highest standards
of performance and safety and, as part of our philosophy of customer service
and satisfaction, are backed by our comprehensive 1 Year Warranty. We hope
you will enjoy using your purchase for many years to come.

3
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Digital Indoor/Outdoor Antenna
Warranty Details
The product is guaranteed to be free from defects in workmanship and
parts for a period of 12 months from the date of purchase. Defects that
occur within this warranty period, under normal use and care, will be
repaired, replaced or refunded at our discretion. The benefits conferred
by this warranty are in addition to all rights and remedies in respect
of the product that the consumer has under the Competition and
Consumer Act 2010 and similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the
Australian Consumer Law. You are entitled to a replacement or refund
for a major failure and to compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.

41300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Contents
Welcome 2
Warranty Details 3
General Safety Instruction 5
Product Overview 6
Getting Started 7
Installation 8
Other Useful Information 11
Repair and Refurbished Goods or Parts Notice 15

5
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
General Information and Safety Instructions
Read this manual thoroughly before first use and keep it in a safe place for future
reference, along with the completed warranty card, purchase receipt and carton.
The safety precautions enclosed herein reduce the risk of fire, electric shock and
injury when correctly adhered to.
Always follow basic safety precautions and accident prevention measures when
installing and using electrical equipment, including the following:
• Correctvoltage:Make sure your local outlet voltage and circuit frequency
correspond to the voltage indicated on the rating label of the AC adaptor.
• Safeconnection:Insert the adaptor plug firmly into a properly earthed mains
socket. Do not alter the plug.
• Protectfrommoisture:To protect against electric shock, do not immerse
the cord or plug in water or other liquid. Ensure your hands are dry before
installation and before handling the plug.
• Protecttheadaptorpowercord: Do not kink or damage the power cord.
Keep the cord away from heated surfaces.
• Usagerestrictions:This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge unless they have been given supervision
or instructions concerning use of the appliance by a person responsible for
their safety.
• Children:Supervise young children to ensure they do not play with the
antenna.
• Damage:Check the adaptor and cords regularly for visible damage. Do
not use it if the cord is damaged. A damaged cord must be replaced by the
manufacturer, an authorised service centre or similarly qualified personnel
in order to avoid any hazards. Incaseofdamage,contactouraftersales
supportlinetoarrangereturnorrepairofthedamagedproduct.
• Thunderstorms:Stop using this antenna and turn off the power during
thunderstorms.
• Afteruse:Turn off the power when the antenna is not in use.
• Poorreception:If reception is poor, try changing the position of the antenna.
• Position:Do not place the antenna near large metal objects or appliances that
could create interference.
• Liability: We accept no liability for any eventual damages or injury caused by
noncompliance with these instructions.

61300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS

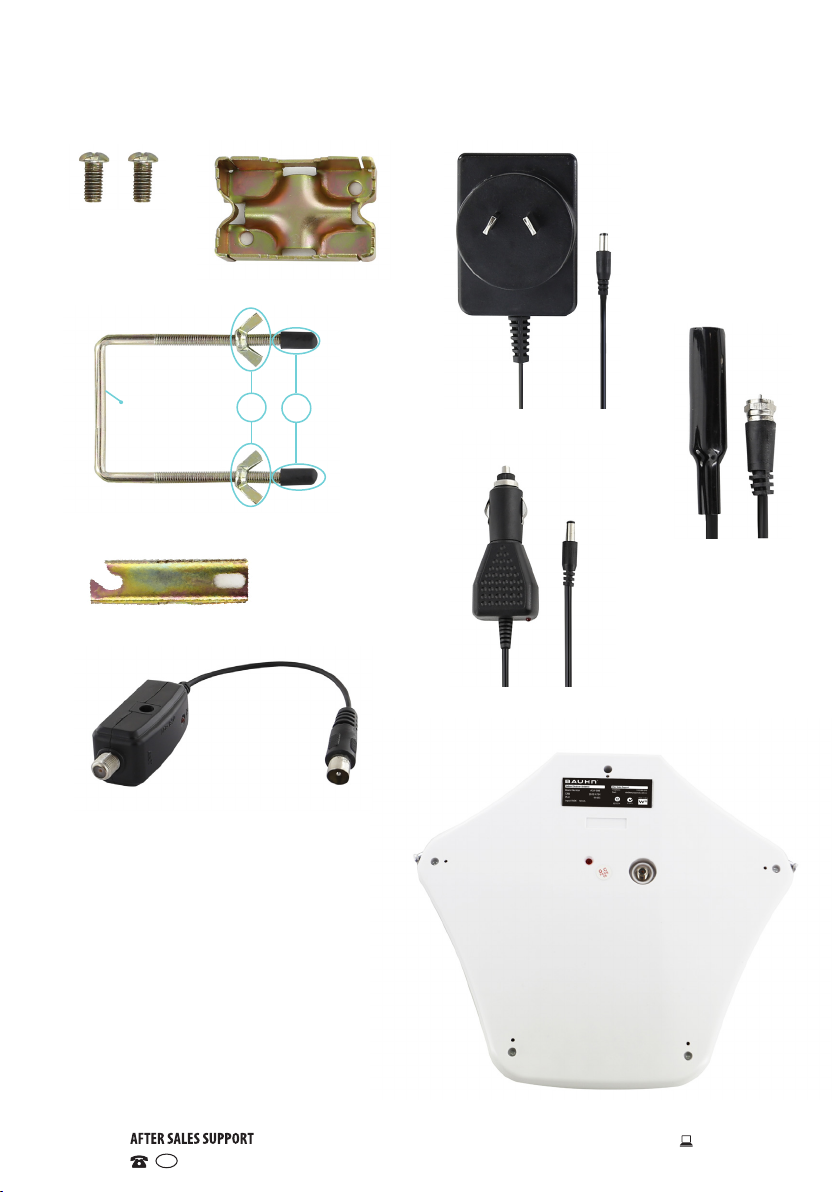

Product Overview
1 Screws Ø5x10mm (2x)
2 Angle-M
3 a. U-Bar
b. Wing nuts (2x)
c. Rubber caps (2x)
4 Angle-B
5 Power Inserter
6 AC adaptor
7 Car adaptor
8 Coaxial cable
9 Antenna
1
2
3
c
b
a
4
5
9
6
7
8

7
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Getting Started
Introduction
Your new Bauhn®Indoor/Outdoor antenna can be easily mounted, vertically or
horizontally, in your home or caravan. It is weather resistant, which means water
splashing from any direction will have no harmful effect.
The Bauhn®Indoor/Outdoor antenna is ideal for most weak to medium signal
areas. The antenna is capable of receiving the following signals:
• Local digital terrestrial signals, analog signals and FM radio signals
• Local and regional UHF and VHF signals
• Both horizontal and vertical signals
The Bauhn®Indoor/Outdoor antenna consists of the parts pictured opposite,
which must be assembled according to the instructions on the following
pages. The antenna can be mounted onto a mast (not included), which can be
purchased from your local hardware store.
AntennaBasics
Variables unrelated to product performance can affect reception. These include
obstacles and terrain between the transmitter and your antenna, radiated energy
from electronic components and building materials such as stucco or aluminium
panelling. To ensure proper reception, please consider these factors during
installation.

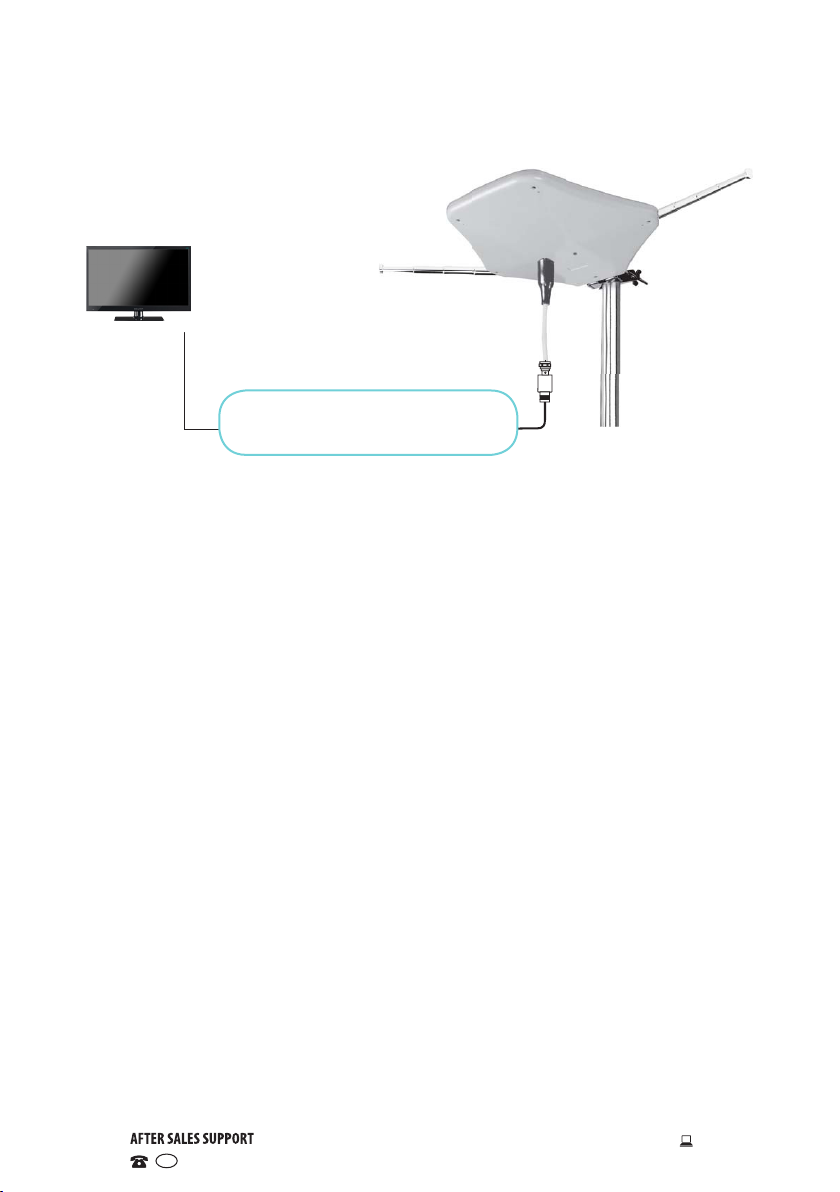

InstallationExample
TV
POWERINSERTER

81300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Installation
Step-by-stepinstallationguide
Unpack the antenna and accessories but keep all packaging materials until you
have made sure your new antenna is undamaged and in good working order.
Plastic wrapping can be a suffocation hazard for babies and young children, so
ensure all packaging materials are out of their reach.
Using the illustration of all parts (page 6) as a guide, start assembling the antenna
to mount it onto a mast (diameter of the mast should be 15-56mm) as follows:
Fig. 1
Fig. 2
3. If you are mounting the antenna vertically, place
the U-bar against the Angle-M, as shown in
Fig. 2.
1. Remove the rubber caps and wing nuts from
the U-bar.
2. If you are mounting the antenna horizontally,
place the U-bar against the Angle-M, as
shown in Fig. 1.
4. While holding the U-Bar and Angle-M together,
fix Angle-M to the back of the antenna using
the two screws (supplied), as shown in Fig. 3.
Fig. 3

9
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Installation (Cont.)
5. Put the U-Bar around the antenna mast (not supplied) (Fig. 4), then put
Angle-B on the U-Bar (Fig. 5). Lock it in place with the wing nuts and put on
the rubber caps (Fig. 6).
Fig. 4 Fig. 5 Fig. 6
6. Take the coaxial cable, pull back the
insulation cover that covers the Male
F-type connector and connect it to the
antenna (Fig. 7). Push the insulation
cover into the antenna and secure it
(Fig. 8).
7. Connect the other Male F-type connector
to the ANT socket of the amplifier
(Fig. 9). Then connect the AC or car
adaptor to the power inserter and connect
the adaptors to power (Fig. 10).
The power inserter should always be
located indoors.
Fig. 7
Fig. 8
Fig. 9
Fig. 10

10 1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Installation (Cont.)
8. Connect the PAL (Male) connector of the power inserter with the TV
(Fig. 11).
9. Turn on the power to the power inserter.
10. Turn the TV on and tune it. If necessary, adjust the antenna to the proper
height for the best reception and fix the wing nuts firmly.
Forbestreception
Adjust the antenna set-up according to the horizontal or vertical signals received.
Place the antenna in different positions until you find the best reception results.
This will vary according to the signal strength in your area.
POWERINSERTER
TV
Fig. 11

11
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Other Useful Information
Technicalspecications
VHFFrequency 170-230MHz
UHFFrequency 470-860MHz
Channels 6-12, 21-69
VHFGain 20±3dB
UHFGain 25±3dB
Impedance 75 ohm
Maximumoutputlevel 95 dBu
Mastdiameter 20-55mm
ACAdaptor Input: 230-240V AC~50Hz 55mA, Output: 12V DC
100mA
CarAdaptor Input: 12/24V DC 1.5A, Output: 12/24V DC

12 1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS

13
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS

14 1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS

15
1300 886 649 Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
AUS
Repair and Refurbished
Goods or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to
be returned to the supplier for repair.
Please be aware that if your product is capable of retaining user-generated data
(such as files stored on a computer hard drive, telephone numbers stored on
a mobile telephone, songs stored on a portable media player, games saved on
a games console or files stored on a USB memory stick) during the process of
repair, some or all of your stored data may be lost. Werecommendthatyousave
thisdataelsewherepriortosendingtheproductforrepair.
You should also be aware that rather than repairing goods, we may replace them
with refurbished goods of the same type or use refurbished parts in the repair
process.
Pleasebeassuredthough,refurbishedpartsorreplacementsareonlyused
wheretheymeetTempo’sstringentqualityspecications.
If at any time you feel your repair is being handled unsatisfactorily, you may
escalate your complaint. Please telephone us on 1300 886 649 or write to us at:
Tempo (Aust) Pty Ltd ABN 70 106 100 252
PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086
Tempo Help Desk: 1300 886 649 (Aust)
(Operating Hours: Mon-Fri 08:30AM to 06:00PM EST)
Email: [email protected]g
Digital Indoor/Outdoor Antenna

Model: A0A-908 Product Code: 44485 02/2015
www.tempo.org
1300 886 649
AUS
Warrantyreturns
Should you for any reason need to return this product
for a warranty claim, make sure to include all accessories
with the product.
Productdoesnotwork?
If you encounter problems with this product, or if it fails
to perform to your expectations, make sure to contact
our After Sales Support Centre on 1300 886 649 before
returning it to the store for a refund.
