Bauhn webOS ATV58UHDW-0322 User manual

User Manual
AFTER SALES SUPPORT
1300 002 534
tempo.org/support
MODEL: ATV58UHDW-0322 PRODUCT CODE: 708412 03/2022
AUS
MODEL: ATV58UHDW-0322
”
58”

2
Welcome
Congratulations on your purchase!
This manual tells you all you need to know about using your new BAUHN®product.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by BAUHN®are manufactured to the highest standards of performance and safety and,
as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.
Domestic use only: This product is intended for indoor domestic use only. It is not suitable for commercial, industrial
or outdoor use. Do not use this product for anything other that its intended purpose, and only use it as described in
this manual.
We hope you will enjoy using your purchase for many years to come.

3
Contents
Welcome 2
Unpack and Prepare 4
What's in the Box 4
Important Tips 5
Attaching the Stand 6
Wall-Mounting the TV 7
Connect to Power 8
Connect your Antenna 8
Controls and Connections 9
Get to Know your TV 9
Buttons on the TV 9
Ports on the TV 10
Remote Control 12
Setup 12
Using the Remote Control 13
Remote Pairing 13
Magic Remote 14
Pairing the Remote 16
On-Screen Set Up 17
LG ThinQ App 18
Advanced Controls
(TV Setting Menus) 19
Picture 21
Sound 24
Programmes 26
Connection 28
General 30
Accessibility 34
Support 35
High Dynamic Range (HDR) 36
Smart TV 37
Web Browser 38
TV Guide 39
Recording 40
Using Instant Recording 41
Using the TV Scheduler 41
Programme Scheduling 42
Manual Scheduling 42
Using Live Playback
(Real-time Playback) 42
USB Mode 43
Set Up 43
Viewing Photos and Videos 44
Photo Player 44
Video Player 45
Playing Music 46
Music Player 46
Troubleshooting 47
Specications 50
Compliance and
Responsible Disposal 51
Warranty Information 52
Repair and Refurbished
Goods or Parts Notice 53

4 | UNPACK AND PREPARE
See the flap of the box
for how to handle the TV
without damaging it!
Unpack and Prepare
What's in the Box
In the box you will find:
A. 58" 4K Ultra HD Smart TV
B. Magic Remote
C. AA Activ Energy Batteries (2)
D. TV Stands (2)
E. Screws for TV Stands (4)
F. Warning Sheet
G. TV Toppling Safety Message
H. Quick Start Guide
I. Warranty Certificate
J. General Safety Warnings
K. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Someone to help you lift and install your TV
• Antenna cable (to watch live TV)
• Broadband internet connection (to use smart apps)
Before installing your new TV, check you have everything needed.
E

UNPACK AND PREPARE | 5
Important Tips
• Place the TV on a level surface.
• Place the TV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from the TV.
• Unplug the TV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing the TV in place.
• Keep liquid, children and pets away from the TV at all times.

6 | UNPACK AND PREPARE
Unless you are wall-mounting the TV, you will need to
attach its stand/legs.
1. Lay the TV face-down on a soft, flat surface (like the
sofa, or a towel on a table) larger than the TV itself.
2. Match the stands to the installation points on the
underside of the TV.
3. Attach the stands to the TV at the installation points
using the screws provided. (Grab a screwdriver for
this bit).
Attaching the Stand
• This TV is heavy! We recommend asking
someone to help you lift it.
• Unplug the TV from the power outlet before
installing or removing the stand.
• DO NOT place the TV standing upright without
its stand attached; it could damage the remote
sensor at the bottom of the TV.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps for
securing the TV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.

UNPACK AND PREPARE | 7
400mm
Back of the TV
400mm
Wall-Mounting the TV
The TV comes with holes on the back panel for use with
wall-mounting brackets (bracket not included).
Use four standard M6*10mm screws (or longer,
depending on the mounting bracket) to wall-mount this
TV (screws are not included).
• Unplug the TV from the power outlet
before wall-mounting.
• Contact a professional for assistance with
wall-mounting the TV.
Required
• VESA Mounting
Bracket
• 4 x M6*10mm
screws (or longer
as required)
The screws in the package are for securing the TV stand
only. If you are wall-mounting the TV, consult a qualified
installer for advice on bracket support and wall support.

8 | UNPACK AND PREPARE
Free-to-airTVinHD(HighDenition)
High Definition (HD) channels
provide the best viewing quality and
are available with a digital antenna
connection.
TV channels in Ultra HD resolution are
not currently available in Australia.
Therefore when you watch HD
broadcast signals on an Ultra HD TV,
the picture can appear 'soft' and lacks
the detail you see when watching the
same content on an HD TV.
Connect to Power
Make sure the TV is switched off at the power outlet
until you have finished connecting your cables.
Connect your Antenna
Antenna cable not included.
Don't forget to plug in the TV
to the power outlet. Leave
the power switched off until
installation is finished.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels

CONTROLS AND CONNECTIONS | 9
Controls and Connections
Buttons on the TV
Get to Know your TV
1
3
5
7
6
4
2
1. SOURCE: Change the input source.
2. MENU: Enter the settings menu.
3. VOL +: Increase volume level.
4. VOL -: Decrease volume level.
5. CH+: Select the next channel.
6. CH-: Select the previous channel.
7. /I : Switch the TV on or to standby.
On/Standby light and Remote sensor
Back of TV

10 | CONTROLS AND CONNECTIONS
Ports on the TV
1USB
STORAGE
Plug in a USB stick/drive to PVR record and pause live TV. Play
media files stored on your USB storage device (supported file
codecs and extensions may vary). Update the TV software via USB.
Note: Time-shift function requires a USB-HDD for storage.
2
HDMI
Use a high-speed
HDMI cable for
best picture and
sound quality.
SOUND
COMPUTER
All-digital connection between the TV and any HDMI device.
Supports Ultra HD. Requires a HDMI cable (not included).
3
Headphone
Jack
SOUND
Connect to your headphones, amplifier or audio device, using an
AUX cable (not included).
1 3
2

CONTROLS AND CONNECTIONS | 11
4LAN
INTERNET
Connect to your broadband modem using an Ethernet cable
(not included).
5OPTICAL
SOUND
Connect an external digital audio device. Use an Optical cable
(not included) to connect the unit with an amplifier, soundbar or
other audio decoding device for digital audio signal output.
6
(CVBS)
VIDEO IN
You can use this to connect your DVD player. Supports
Standard Definition (SD) picture quality. Requires an AV cable
(not included).
7AUDIO IN
SOUND
You can use this to connect Audio to your TV for AV or
Component video inputs. Requires an AV cable (not included).
8ANTENNA IN
FREE TO-AIR
TV
Connect your antenna for live TV. (Antenna cable not included).
47
5 2 8
6 1

12 | REMOTE CONTROL
Setup
Insert two AA size batteries according to the polarity
markings (+/-) inside the compartment. Make sure the
batteries are correctly aligned and properly pushed into
place.
Precautions When Using Batteries
• Do not use old and new batteries together.
• Do not use different types of batteries (e.g.
Manganese and Alkaline batteries) together.
• Remove the batteries from the remote if you do not
intend to use it for a long time.
• When discarding used batteries, follow any
guidelines for recycling and disposal of batteries
that apply in your local area.
• Keep batteries away from children and pets.
• Never throw batteries into a fire or expose them to
extreme heat.
Remote Control
AA size
batteries
included
1
2
3

REMOTE CONTROL | 13
Using the Remote Control
To use the remote, point it towards the remote sensor
at the front of the TV. The remote will not operate if its
path is blocked.
The remote has a range of up to about 5 metres from
the TV at an angle of up to 30 degrees to either side of
the sensor, as illustrated below.
Image is an
example only.
Remote sensor
location on TV
may vary.
Remote Hints and Tips
• Do not drop, step on or otherwise
impact the remote control. This
may damage the parts or lead to
malfunction.
• Do not place objects between the
remote control and the remote sensor.
• Do not use this remote control while
simultaneously operating a remote
control for other devices.
5m
Remote Pairing
This remote control uses both Bluetooth®and IR
(infrared) to send its commands to the TV.
• You can use this remote control via IR for
most operations.
• To use advanced operations like voice
search, you need to pair the TV with the
remote control. See page 16 for more
information on pairing your remote.

14 | REMOTE CONTROL
Magic Remote
: Switch the TV to On or Standby
Microphone
NUMBER BUTTONS: Key in a TV channel
number
LIST : Display channel list
0/QUICK ACCESS: Press and hold to view
quick access edit screen
: Mute/unmute the sound
+ - : Turn the volume up/down
: Go to the HOME page (Smart TV)
: Switch the main set top box to
On or Standby
AD / SAP : Press to display
additional buttons/settings. Press
and hold for audio description
: Change to the next/
previous channel
: Press and hold to speak when
using the voice recognition function
: Press to enter the quick
settings menu. Press and hold to
enter the main settings menu

REMOTE CONTROL | 15
/ / / : Press the UP/DOWN/
LEFT/RIGHT buttons to navigate
SCROLL WHEEL/OK BUTTON:
Scroll up/down and press to confirm
selection
: Return to previous. Press and
hold to exit
: Launch the Netflix app
/ / / RED/GREEN/
YELLOW/BLUE: Functions are
according to the on-screen display
MOVIES: Search for movies
/GUIDE: Launch TV Guide
(SOURCE): Select the input
source and enter the HOME
dashboard
: Launch the Amazon Prime
Video app
: Play selection
: Pause selection

16 | REMOTE CONTROL

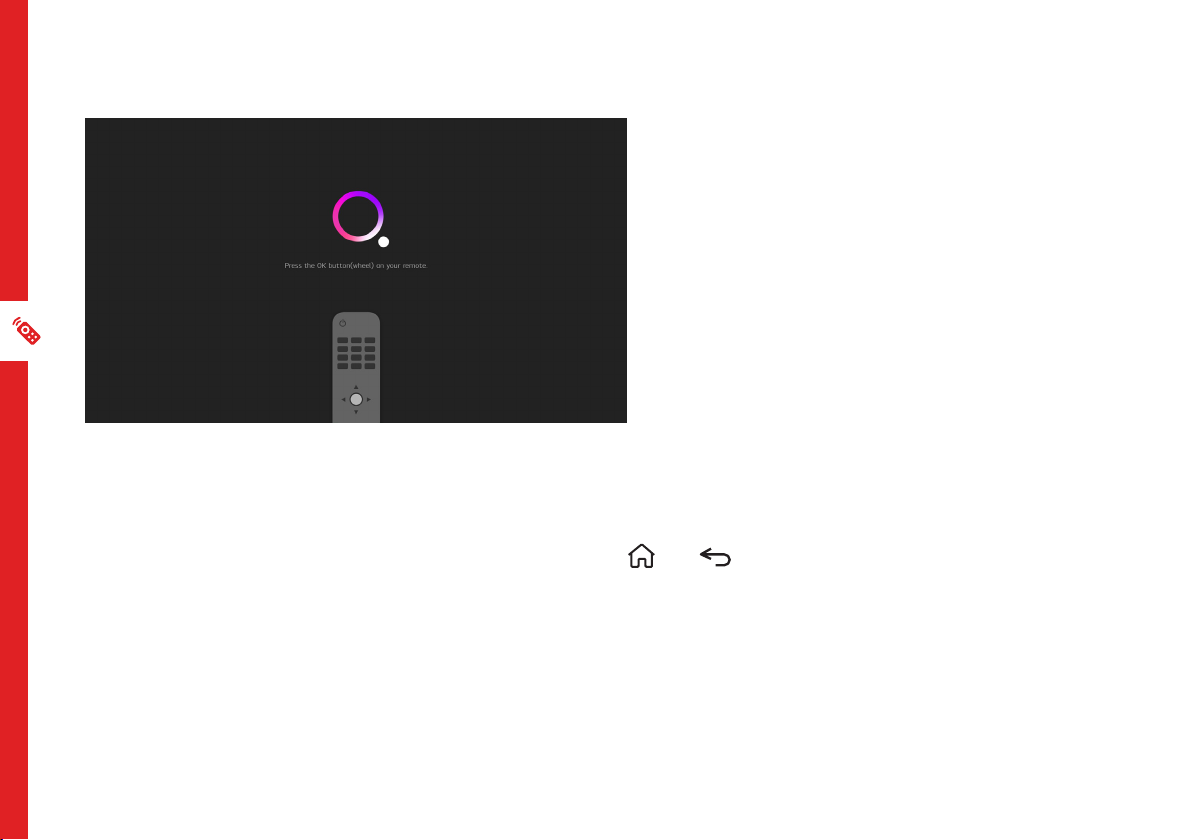

During the first time setup process, when the screen shown above appears, point the remote control
towards the IR sensor of the TV and press the SCROLL WHEEL/OK button to pair the remote.
If pairing is unsuccessful, turn the TV off and turn back on and pair again.
To unpair the remote, when the TV is on, press and hold the and buttons for 5 seconds
(until the remote's LED is blinking), and the remote will automatically unpair with the TV.
Pairing the Remote

ON-SCREEN SET UP | 17
Make sure the TV is plugged
in at the power socket and
switched on. Press the button
to turn on the TV.
On-Screen Set Up
Make sure equipment is properly connected (as shown on pages
10-11) before connecting the TV to power.
If you are using a wired network, connect an ethernet cable to
the TV. The TV will automatically connect to the Internet.
If you are using a wireless connection, select 'Wi-Fi Network'.
The TV will scan for nearby wireless networks. Make sure that
the TV is within the range of your wireless modem/router, and
you have your Wi-Fi password handy. Select your network,
enter network password using the on-screen keyboard and
select ENTER. Press OK to connect.
Or, you can connect to the internet later by going to the User
Menu settings.
4
2.
First Time Setup menu
When you turn the TV on for the first time, the First Time
Setup menu will appear.
Follow the prompts using the / / / / SCROLL
WHEEL/OK buttons to select your preferences. You will
be guided through:
If you make an error, you can update your preferences in
the settings menu later.
On/Standby light is WHITE
in standby mode.
On/Standby light is OFF
when the TV is on.

18 | ON-SCREEN SET UP
1. On your smart phone, search and download the LG ThinQ app from the Play Store/App store
(alternatively, scan the QR code below):
You can use the LG ThinQ app to control key TV functions instead of the remote control.
Note: you need an Android device running Android 4.3 or higher to use the app.
For Android For iOS
LG ThinQ App
2. After app has downloaded and installed, open up the app. Ensure that both your smart phone and TV
are using the same Wi-Fi network.
3. Select TV and it will automatically search for nearby TV.
4. A PIN will appear on your TV screen, enter the PIN on your smart phone tap "Done."
5. Select "LINK" on your smart phone to complete registration.
You can now use the app to control key TV functions.

TV SETTING MENUS | 19
Menu Navigation Buttons Once you have programmed
any settings, the unit will
retain them in its memory
until you change then, even
after turning the TV off.
Advanced Controls
(TV Setting Menus)
Function Remote Button
Display the quick menu
Display the main menu then SCROLL
WHEEL/OK BUTTON
Enter a sub menu SCROLL WHEEL/OK
BUTTON
Adjust a value / / /
Return to the previous menu
Exit a menu Hold
Press the then SCROLL WHEEL/OK BUTTON to
display the TV settings menu. See the guide below for
all the other buttons you'll need to use to adjust and
change your settings. Menus Index
Picture 21
• Picture Mode:
• Backlight, Contrast, Brightness,
Sharpness, Colour, Tint, Colour
Temperature, Advanced Controls,
Picture Options, Apply To All Inputs,
Reset
• Aspect Ratio Settings
• Energy Saving
• Additional Settings:
• Eye Comfort Mode, HDMI Ultra
HD Deep Colour, Instant Game
Response

20 | TV SETTING MENUS
Sound 24
• Sound Mode:
• Balance, Ultra Surround,
Equalizer, Reset
• Sound Out
• Additional Settings:
• TV Installation Type, Volume
Mode, DTV Audio Setting,
AV Sync Adjustment, HDMI
Input Audio Format, LG
Sound Sync, Digital Sound
Out
Programmes 26
• Programme Tuning
• Programme Manager
• Subtitle Language
• Audio Language
• Dual Mono
• HbbTV
Connection 28
• TV Name
• Network Connection
Settings:
• Wired Connection
(Ethernet), Wi-Fi Connection
• Device Connection Settings
• Mobile Connection
Management
General 30
• AI Service>AI
Recommendation
• Language
• Location
• Time
• Safety
• Account Management
• Home Settings
• Additional Settings:
• Settings Help, Menu
Transparency, Screen
Saver, No Signal Image, Eco
Mode, Quick Start+, Standby
Light
Accessibility 34
• Audio Description
• Audio Description
Volume
• High Contrast
• Grayscale
• Invert Colours
• Hard of Hearing
• Subtitles
Support 35
• Software Update
• TV Information
• Notifications
• Additional Settings:
• User Agreements, Legal
Notice, Open Source
Software Notice, Set ID
• Reset to Initial Settings
High Dynamic Range 36
(HDR)
!
