BAUKER SBC30 User guide

ORIGINAL INSTRUCTION MANUAL
SBC30
PETROL BRUSH CUTTER WITH
MULTI TOOLS

EN-2
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
PRODUCT SAFETY
WARNING! READ ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in, re
and/or serious injury. This product should not be operated by those
who are unfamiliar with the manual.
Save these instructions and forward the product only together with
this instruction manual.
SAVE THESE INSTRUCTIONS
GENERAL SAFETY WARNINGS
1. Keep people away from work area.
This trimmer is intended for use by gardening professionals.
Keep children, animals and bystanders at least 50 feet
(15meters) away from work area. Do not allow children or
untrained individuals to use this unit. Keep all parts of your
body away from any moving part.
2. Personal safety
Always wear suitable safety equipment to protect your eyes,
ears, hands, legs and feet. Tie back long hair. Switch off engine
before examining or clearing the cutting head.
3. Clothing
Wearing protective clothing also reduces this risk and severity
of injury from thrown debris or contact with the cutting
attachment. Wear the cutter harness, gloves, a long-sleeved
shirt, long pants, and sturdy boots with non-lip soles. Adjust the
tool harness so that the machine feels comfortable and well
balanced.
4. Look after the machine
When not in use, store in a dry, high place or keep locked up
out of children’s reach.
5. Check before use
Before use always ensure that the tool is not damaged, if in
doubt contact the helpline.
6. Do not operate this unit when you are tired,
ill, or under the inuence of alcohol, drugs, or
medication. A moment of inattention while operating the

EN-3
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
cutter may result in serious personal injury.
7. Working environment
Objects thrown by the trimmer can cause serious injury. Before
operating the trimmer, carefully inspect the area and remove
any broken glass, pieces of wire, and other loose objects –
which can be thrown or entangled in the cutting head. A re
extinguisher must be available for use nearby. Do not operate
in poor light conditions.
8. Use the product only for its intended purpose as
described.
Do not overreach as this can result in loss of balance or
exposure to hot surfaces. Keep proper footing and balance at
all times. This enables better control in unexpected situations.
9. Exhaust danger
Never operate petrol engines indoors or in conned spaces.
Pay special attention to doorways and air conditioning inlets.
Do not allow the exhaust gases to enter buildings. The exhaust
gases fumes contain gasses that can kill. Do not touch areas
around the exhaust or cylinder as these parts become very hot
during operation.
10. Fuel Safety
Warning: This product requires unleaded petrol and 2-stroke
oil, ratio 1:40.
a) Always handle fuel with care. It is highly ammable.
b) Use only an approved container for fuel storage and mixing.
c) Never mix petrol/ oil in the machine fuel tank.
d) Do not smoke, and avoid sparks and ames near fuel or unit.
e) Avoid spillage of fuel or oil. Wipe up all spillages as quickly as
possible.
f) Mix fuel outdoors where there are no sparks or ames.
g) Do not inhale fuel fumes.
h) Move at least 3 meters (10 feet) from refueling position before
starting the engine. Stop the engine and allow to fully cool
before refueling or storing the machine.
i) Never use exposed light bulbs while refueling.
j) Change your clothes if you spill fuel on yourself.
k) Keep petrol and oil away from eyes. If petrol or oil comes in
contact with eyes, wash them immediately with clean water. If
irritation is still present, seek immediate medical help.

EN-4
11. Transport, handling and storage of the unit
a) Switch off the engine when you cross roads or gravel paths.
b) Always clean and maintain before storing, pay special attention
to the guards and cutting attachments.
c) Before transporting the unit in a vehicle - stop the engine and
allow it to cool. Empty the fuel tank and securely locate the unit.
d) When removing the tool from a vehicle or from storage, be
careful not to drop the engine on the ground as this may
severely damage the fuel tank.
e) Never drag the tool across the ground, or throw it to the
ground - this is highly dangerous and will damage the fuel tank,
causing the fuel to leak, possibly causing re.
f) Remember when moving the equipment to lift it the entirely
from the ground.
12. Start and commissioning of the unit
a) For units with a clutch, check that the cutting attachments stop
turning when the engine is at idles speed.
b) Read instructions on lling of fuel and oil, especially concerning
re precautions and to carburetor adjustment section.
c) Always switch off the engine and allow it to cool before making
any adjustments
d) Make sure all guards, straps, debris shield and handles are
properly and securely attached.
13. Injuries by rotating parts
Do not touch rotating or moving parts until they have come to a
complete stop.
Do not remove wrapped twigs or other debris from moving or
rotating parts when the engine is running. Switch off the engine
before attempting maintenance.
14. Transport, handling and storage of the unit
Cleaning and maintenance before storage and transport,
including the use of guards on cutting attachments.
15. Maintain a rm grip, with thumbs and ngers
encircling the handles, with both hands on the
handles and position your body and arm to allow
you to resist kickback forces. Kickback forces can be
controlled by the operator, if proper precautions are taken.
16. Look around the engine for signs of oil or petrol.
Wipe up any spills before starting the engine.

EN-5
17. Check that all fasteners, guards and handles etc
are in place and secure. Tighten as necessary.
18. Check the fuel level. Starting with a full tank will help to
eliminate or reduce operating interruptions for refueling.
MAINTENANCE AND REPAIR
1. Check the air lter. A dirty air lter will restrict airow to the
carburetor, reducing engine and cutting performance.
2. Check the throttle cable. The cable must be correctly adjusted
and operate smoothly for good throttle control.
3. Replace any damaged parts. Use only the manufacturer’s
recommended replacement parts and accessories.
4. Make sure the guards are properly installed and securely
fastened..
5. For your safety repair should be carried out by a qualied
person. Contact the helpline for details of approved service
agents.
ADDITIONAL SAFETY WARNINGS FOR BRUSH
CUTTER
1. Never use the cutter in rain or damp weather.
2. Do not use the blade above 5 cm (2 inches) from the ground.
3. If the brush cutter starts to vibrate excessively switch off and
contact the Helpline for advice.
4. Replace cutting blade if cracked, chipped, or damaged in
any way. Be sure the blade is properly installed and securely
fastened. Failure to do so can cause serious injury.
5. Keep away from cutting blade. Even after the engine has
stopped, the cutting blade will spin for several seconds. Please
wait until the engine and cutting blade has fully stopped before
putting the machine down or accessing the cutting area.
6. Turn the engine off when not cutting. If you stop cutting for any
reason, always stop and switch off the engine. Never leave the
machine running and unattended.

EN-6
ADDITIONAL SAFETY WARNINGS FOR GRASS
TRIMMER
1. Never use the trimmer in rain or damp weather. Avoid cutting
wet grass as you may slip.
2. Always keep feet and hands well away from the cutting line,
take special care when starting.
3. Replace cutting head if cracked, chipped, or damaged in any
way. Be sure the line spool is properly installed and securely
fastened. Failure to do so can cause serious injury.
4. Make sure all guards, straps, debris shield and handles are
properly and securely attached.
5. Keep away from cutting lines. Even after the engine has
stopped, the trimmer line will spin for several seconds. Please
wait until the engine and cutting head has fully stopped before
putting the machine down or accessing the trimming area.
6. Turn the engine off when not trimming. If you stop trimming for
any reason, always stop and switch off the engine. Never leave
the machine running and unattended.
IMPORTANT
Read carefully before use
Keep for future reference
Safe operating practices
Training
Provide the following instruction:
Become familiar with the owner’s manual before attempting to
operate the equipment.
Preparation
WARNING:
a) This hedge trimmer can cause serious injuries. Read the
instructions carefully for the correct handling, preparation,
maintenance, starting and stopping of the hedge trimmer.
Become familiar with all controls and the proper use of the
hedge trimmer.
b) Never allow children to use the hedge trimmer.
c) Beware of overhead power lines.

EN-7
d) Avoid operating while people, especially children, are nearby.
e) Dress properly! Do not wear loose clothing or jewellery, which
can be caught in moving parts. Use of sturdy gloves, non-skid
footwear and safety glasses is recommended.
f) Use extra care when handling fuels. They are ammable and
the vapours are explosive. The following points should be
observed.
– Use only an approved container.
– Never remove the fuel cap or add fuel with the power source
running. Allow engine and exhaust components to cool down
before refuelling.
– Do not smoke.
– Never refuel indoors.
– Never store the hedge trimmer or fuel container inside where
there is an open ame, such as near a water heater.
– If fuel is spilled, do not attempt to start the power source, but
move the hedge trimmer away from the spillage before starting.
– Always replace and securely tighten the fuel cap after
refuelling.
– If the fuel tank is drained, this should be done outdoors.
g) If the cutting mechanism strikes any foreign object or the
hedge trimmer starts making any unusual noise or vibration,
shut off the power source and allow the hedge trimmer to stop.
Disconnect the spark plug wire from the spark plug and take
the following steps:
– inspect for damage;
– check for, and tighten, any loose parts;
– have any damaged parts replaced or repaired with parts having
equivalent specications
h) Wear ear protection.
i) Wear eye protection.
Operation
a) Stop the engine before
– cleaning or when clearing a blockage,
– checking, carrying out maintenance or working on the hedge
trimmer,
– adjusting the working position of the cutting device,
– leaving the hedge trimmer unattended.

EN-8
b) Ensure that the hedge trimmer is correctly located in a
designated working position before starting the engine.
c) While operating the hedge trimmer, always ensure that the
operating position is safe and secure, especially when using
steps or a ladder.
d) Do not operate the hedge trimmer with a damaged or
excessively worn cutting device.
e) To reduce re hazards, keep the engine and silencer free of
debris, leaves and excessive lubricant.
f) Always ensure that all handles and guards are tted when
using the hedge trimmer. Never attempt to use an incomplete
hedge trimmer or one tted with an unauthorized modication.
g) Always use two hands to operate a hedge trimmer tted with
two handles.
h) Always be aware of your surroundings and stay alert for
possible hazards of which you may not be aware due to the
noise of the hedge trimmer.
Maintenance and storage
a) When the hedge trimmer is stopped for servicing, inspection or
storage, shut off the power source, disconnect the spark plug
wire from the spark plug and make sure all moving parts have
come to a stop. Allow the hedge trimmer to cool before making
any inspections, adjustments, etc.
b) Store the hedge trimmer where the fuel vapour will not reach
an open ame or spark. Always allow the hedge trimmer to cool
down before storing.
c) When transporting or storing the hedge trimmer, always t the
cutting device transport guard.
SAFETY WARNINGS FOR POLE HEDGE TRIM-
MER
1. Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold material
to be cut when blades are moving. Make sure the
switch is off when clearing jammed material. A
moment of inattention while operating the pole hedge trimmer

EN-9
may result in serious personal injury.
2. Carry the pole hedge trimmer by the handle with
the cutter blade stopped. When transporting or storing
the pole hedge trimmer always t the cutting device cover.
Proper handling of the pole hedge trimmer will reduce possible
personal injury from the cutter blades.
3. Hold the machine by insulated gripping surfaces
only, because the cutter blade may contact hidden
wiring. Cutter blades contacting a "live" wire may make
exposed metal parts of the power tool "live" and could give the
operator an electric shock.
4. Check the hedge for foreign objects, e.g. wire fences.
5. Use both hands when operating the pole hedge trimmer. Using
one hand could cause loss of control and result in serious
personal injury.
6. Keep the machine a sufcient distance away from overhead
electrical power lines.
WARNING!
The saw is intended only for the cutting of wood.
The engine group is intended only for use with the
recommended cutting equipment.
Before using the machine, read the operating
instructions carefully to understand all of the content.
Failure to follow all instructions listed below may
result in re and/or serious injury.
Only use this machine for usage specically
mentioned in this manual.
READ THE INSTRUCTIONS
GENERAL SAFETY WARNINGS
Plan ahead
1. Read this manual carefully until you completely understand
and can follow all safety rules, precautions, and operating
instructions before attempting to use the unit.

EN-10
2. Restrict the use of your saw to adult users who understand and
can follow safety rules, precautions, and operating instructions
found in this manual.
3. Wear protective gear. Always use steel toed safety footwear
with non-slip soles; snug-tting clothing; heavy-duty, non-slip
gloves; eye protection such as non-fogging, vented goggles or
face screen; an approved safety hard hat; and sound barriers
(ear plugs or mufers) to protect your hearing. Regular users
should have hearing checked regularly as chain saw noise can
damage hearing. Secure hair above shoulder length.
4. Keep all parts of your body away from the chain when the
engine is running.
5. Keep children, bystanders, and animals a minimum of 10
meters away from the work area. Do not allow other people or
animals to be near the chain saw when starting or operating the
chain saw. If necessary use warning signs to keep on lookers
at a distance.
6. Do not handle or operate a chain saw when you are fatigued,
ill, or upset, or if you have taken alcohol, drugs, or medication.
You must be in good physical condition and mentally alert.
Chain saw work is strenuous. If you have any condition that
might be aggravated by strenuous work, check with your doctor
before operating a chain saw.
7. Carefully plan your sawing operation in advance. Do not start
cutting until you have a clear work area, secure footing, and, if
you are felling trees, a planned retreat path. Do not operate the
chainsaw near a naked ame or spilled fuel. After re-fueling,
always wipe off any spilled fuel, move the chainsaw away from
the fueling point before starting the engine.
Operate your saw safely
1. The chain saw must be held with the right hand on the rear
handle and the left hand on the front handle. Do not operate
a chain saw with one hand. Serious injury to the operator,
helpers, bystanders or any combination of these persons may
result from one-handed operation. A chain saw is intended for
two-handed use. Always maintain a rm foothold. Ensure you
are able to STOP the engine quickly if necessary.
2. Operate the chain saw only in a well-ventilated outdoor area.

EN-11
3. Do not operate saw from a ladder or in a tree.
4. Make sure the chain will not make contact with any object while
starting the engine. Never try to start the saw when the guide
bar is in a cut.
5. Do not put pressure on the saw at the end of the cut. Applying
pressure can cause you to lose control when the cut is
completed.
6. Stop the engine before setting the saw down.
7. Do not operate a chain saw that is damaged, improperly
adjusted, or not completely and securely assembled. Always
replace bar, chain, hand guard, or chain brake immediately if it
becomes damaged, broken or is otherwise removed.
8. With the engine stopped, hand carrys the chain saw with the
mufer away from your body, and the guide bar and chain to
the rear, preferably covered with a scabbard.
Physical condition
You must be in good physical condition and mental health and not
under the inuence of any substance (drugs, alcohol), which might
impair vision, dexterity or judgment.
Proper clothing
Clothing must be sturdy and snug-tting, but allow complete
freedom of movement. Avoid loose-tting jackets, scarfs, neckties,
jewelry, ared or cuffed pants, or anything that could become
entangled with the saw or brush.
Protect your hands with gloves when handling saw and saw chain.
Heavy-duty, nonslip gloves improve your grip and protect your
hands.
Good footing is most important in chain saw work.
Wear sturdy boots with nonslip soles. Steel-toed safety boots are
recommended.
Proper eye protection is a must. Non-fogging, vented goggles and a
face screen is recommended. Their use reduces the risk of eye and
facial injury.
Wear an approved safety hard hat to protect your head. Chain saw
noise may damage your hearing.
Always wear noise protection equipment (ear plugs or ear muffs) to
protect your hearing.

EN-12
Continual and regular users should have their hearing checked
regularly.
MAINTAIN THE SAW IN GOOD WORKING ORDER
1. Have all chain saw service performed by a qualied service
dealer with the exception of the items listed in the maintenance
section of this manual. For example, if improper tools are
used to remove or hold the ywheel when servicing the clutch,
structural damage to the ywheel can occur and cause the
ywheel to burst.
2. Make certain the saw chain stops moving when the throttle
trigger is released.
Carburetor adjustment
1. Never modify your saw in any way.
2. Keep the handles dry, clean, and free of oil or fuel mixture.
3. Keep fuel and oil caps, screws, and fasteners securely
tightened.
4. Use only qualied accessories and replacement parts as
recommended.
Handle fuel with caution
1. Do not smoke while handling fuel or while operating the saw.
2. Eliminate all sources of sparks or ame in the areas where fuel
is mixed or poured. There should be no smoking, open ames,
or work that could cause sparks. Allow engine to cool before
refueling.
3. Mix and pour fuel in an outdoor area on bare ground; store
fuel in a cool, dry, well ventilated place; and use an approved,
marked container for all fuel purposes. Wipe up all fuel spills
before starting saw.
4. Move at least 3 meters from fueling site before starting engine.
5. Turn the engine off and let saw cool in a non-combustible
area, not on dry leaves, straw, paper, etc. Slowly remove fuel
cap and refuel unit.
6. Store the unit and fuel in an area where fuel vapors cannot
reach sparks or open ames from water heaters, electric
motors or switches, furnaces, etc.

EN-13
POLE SAW SAFETY WARNINGS
1. Do not use the machine when the operator is tired, ill or under
the inuence of alcohol or other drugs.
2. To reduce the risk, please keep bystanders at a safe distance
from the machine during its operation.
3. Be aware of the dangerous of operating positions, as well as
the risk of being struck by falling branches or branches that,
having hit the ground, rebound, the operator may be struck
by falling branches or by those that rebound after hitting the
ground. Remove the branches in sections.
4. Keep a rm footing and balance during operating. Use the
harness provided.
5. Keep the machine a sufcient distance away from overhead
electrical power lines.

EN-14

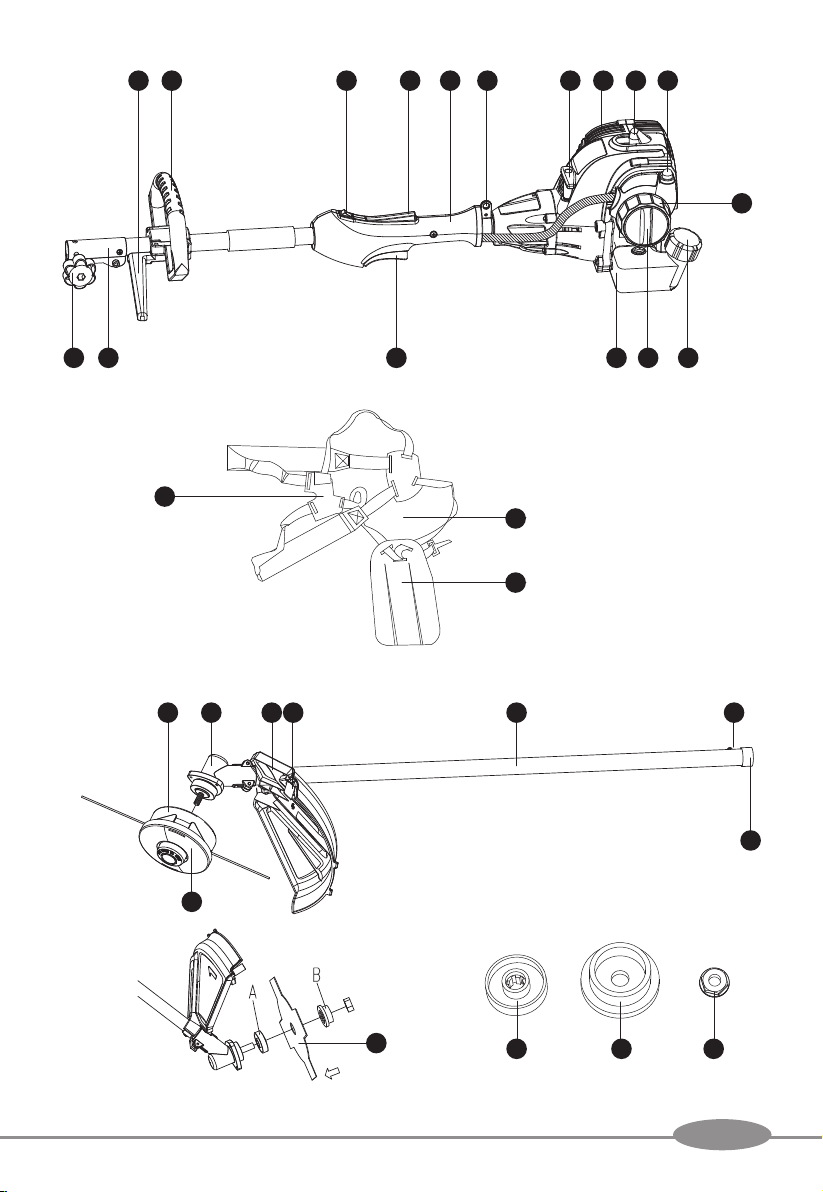

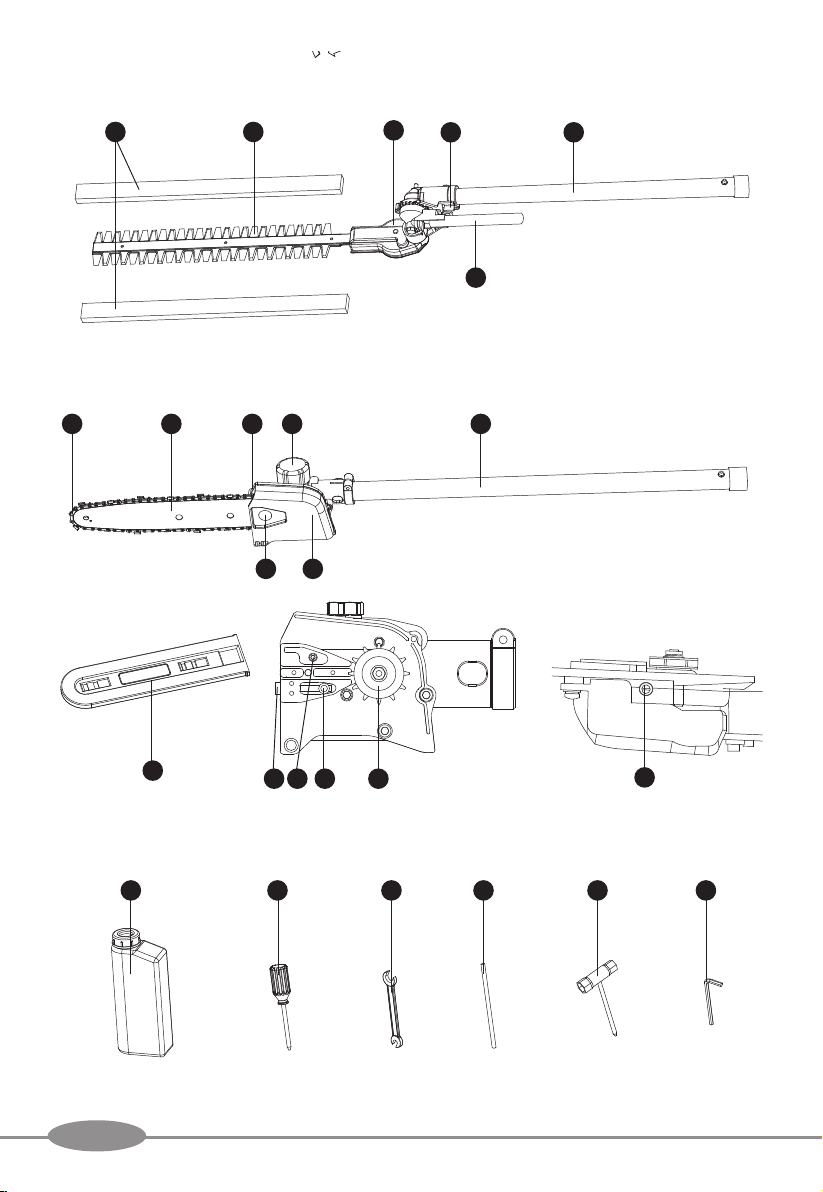

COMPONENT LIST
1. STEP GUARD
2. AUXILIARY HANDLE
3. IGNITION SWITCH ON/OFF
4. THROTTLE INTERLOCK
5. MAIN HANDLE GRIP
6. HARNESS RING
7. RECOIL STARTER HANDLE
8. BACK COVER
9. SPARK PLUG CONNECTOR
10. PRIMER
21. TRIMMER HEAD
22. GEAR BOX
23. CUTTING OR TRIMMING GUARD
24. LINE CUTTER
25. BRUSH CUTTER/GRASS TRIMMER SHAFT
26. ROUND BUTTON
33. BLADE PROTECTION SHEATH
34. HEDGING BLADE
35. GEAR BOX
36. LOCKING LEVER
39. SAW CHAIN
40. GUIDE BAR
41. CHAIN OIL TANK
42. CHAIN OIL TANK CAP
43. CHAIN SAW SHAFT
44. COVER
45. LOCKING NUT
52. MIXTURE FUEL TANK
53. SLOTTED SCREWDRIVER
54. OPEN-END WRENCH
BRUSH CUTTER/GRASS TRIMMER
POLE HEDGE TRIMMER ATTACHMENT
POLE CHAIN SAW ATTACHMENT
TOOLS
11. SDS CHOKE LEVER
12. FUEL TANK CAP
13. AIR FILTER COVER
14. FUEL TANK
15. THROTTLE TRIGGER
16. CLAMP
17. LOCKING KNOB
18. HARNESS
19. LEG PAD
20. QUICK-RELEASE MECHANISM
27. SOFT CAP
28. BUMPER
29. CUTTING BLADE
30. BACKING FLANGE
31. LOCKING FLANGE
32. SAFETY NUT
37. HEDGE TRIMMER SHAFT
38. HANDLE FOR ADJUSTING THE
CUTTING BAR
46. GUIDE BAR COVER
47. BOLT
48. TENSION SCREW
49. TENSION PIN
50. DRIVE SPROCKET
51. LUBRICATING OIL ADJUSTMENT NUT
55. SPINDLE LOCK ROD
56. SOCKET SPANNER
57. HEX KEY

EN-15
1 2 3 4 5 6 7 8 9 10
11
121314
21 22 23 24 25 26
18
19
29 30 31 32
33
39 40 41 42 43
4445
34 35 36 37
52 53 54 55 56 57
49 50
20
27
28
4748
46 51
151617
38

EN-16
1 2 3 4 5 6 7 8 9 10
11
121314
21 22 23 24 25 26
18
19
29 30 31 32
33
39 40 41 42 43
4445
34 35 36 37
52 53 54 55 56 57
49 50
20
27
28
4748
46 51
151617
38

EN-17

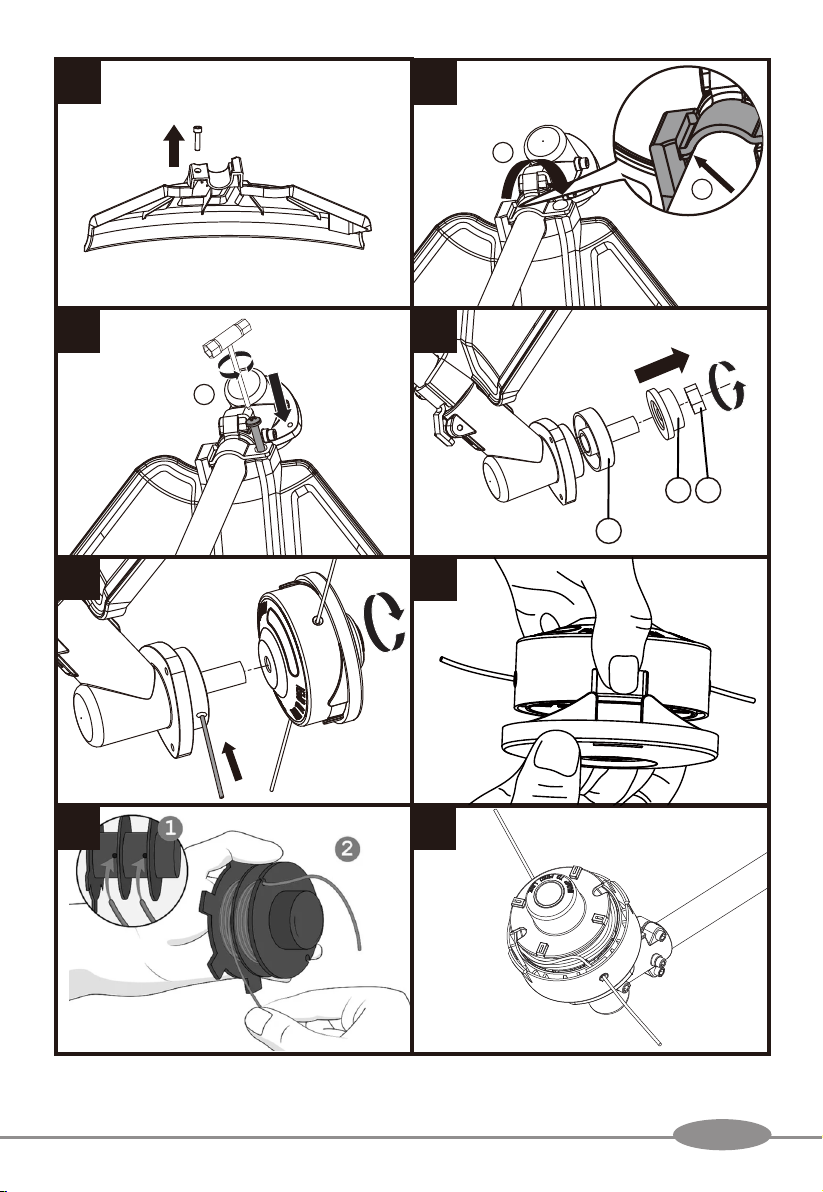

2
1
1
3
30
1
2
1
2
2
B3
B4 B5
B1
B2
A2
A3
A1
31 32

EN-18
a
A
2-4mm
1
2
3
1 2
loose
tighten
1
2
3
21
H1
1
2
G2
F11 G1
b
c
a
lock
loose
H4 H5
H2 H3
B6 B7 B8
F3
F1 F2
E1 E2
D1 D2
F9 F10
F7 F8
F5 F6
F4
I2 I3
H8 I1
H6 H7
2
1
30
31
32
C2
C1

EN-19
a
A
2-4mm
1
2
3
1
2
loose
tighten
1
2
3
21
H1
1
2
G2
F11 G1
b
c
a
lock
loose
H4 H5
H2 H3
B6 B7 B8
F3
F1 F2
E1 E2
D1 D2
F9 F10
F7 F8
F5 F6
F4
I2 I3
H8 I1
H6 H7
2
1
30
31
32
C2
C1

EN-20
a
A
2-4mm
1
2
3
1
2
loose
tighten
1
2
3
21
H1
1
2
G2
F11 G1
b
c
a
lock
loose
H4 H5
H2 H3
B6 B7 B8
F3
F1 F2
E1 E2
D1 D2
F9 F10
F7 F8
F5 F6
F4
I2 I3
H8 I1
H6 H7
2
1
30
31
32
C2
C1
