CF772 Brush Cutt
OPERATOR’S MANUAL
Issue Date: October 2022

TABLE OF CONTENTS
1 INTRODUCTION ��������������������������������������������������������������������������������������������������������������������������������� 1
1�1 Overview�������������������������������������������������������������������������������������������������������������������������������������� 1
1�2 Intended Use And Foreseeable Misuse������������������������������������������������������������������������������������ 1
2 SAFETY������������������������������������������������������������������������������������������������������������������������������������������������ 2
2�1 Safety Alert Symbol And Safety Words����������������������������������������������������������������������������������� 2
2�2 Operational Hazards������������������������������������������������������������������������������������������������������������������� 2
Prepare For Emergencies ���������������������������������������������������������������������������������������������������������� 3
Replace Safety Signs ����������������������������������������������������������������������������������������������������������������� 3
Do Not Allow Riders ������������������������������������������������������������������������������������������������������������������� 3
Lower Operating Speed ������������������������������������������������������������������������������������������������������������� 3
Avoid Rollover ���������������������������������������������������������������������������������������������������������������������������� 3
Avoid Powerlines & Underground Utilities ������������������������������������������������������������������������������ 3
Detach Safely ������������������������������������������������������������������������������������������������������������������������������ 4
Hazards From Modifying Equipment ���������������������������������������������������������������������������������������� 4
2�3 Maintenance Hazards����������������������������������������������������������������������������������������������������������������� 5
3 SAFETY SIGNS����������������������������������������������������������������������������������������������������������������������������������� 6
4 OPERATION ���������������������������������������������������������������������������������������������������������������������������������������� 8
4�1 Preparation For Use ������������������������������������������������������������������������������������������������������������������� 8
4�2 Removing Skids Or Blocks�������������������������������������������������������������������������������������������������������� 8
4�3 Hydraulic Connections �������������������������������������������������������������������������������������������������������������� 9
4�4 Machine Components ���������������������������������������������������������������������������������������������������������������� 9
4�5 Attaching/Detaching����������������������������������������������������������������������������������������������������������������� 10
4�6 First Time User Tips ����������������������������������������������������������������������������������������������������������������� 10
4�7 Field Operation ��������������������������������������������������������������������������������������������������������������������������11
5 SERVICE AND MAINTENANCE������������������������������������������������������������������������������������������������������ 12

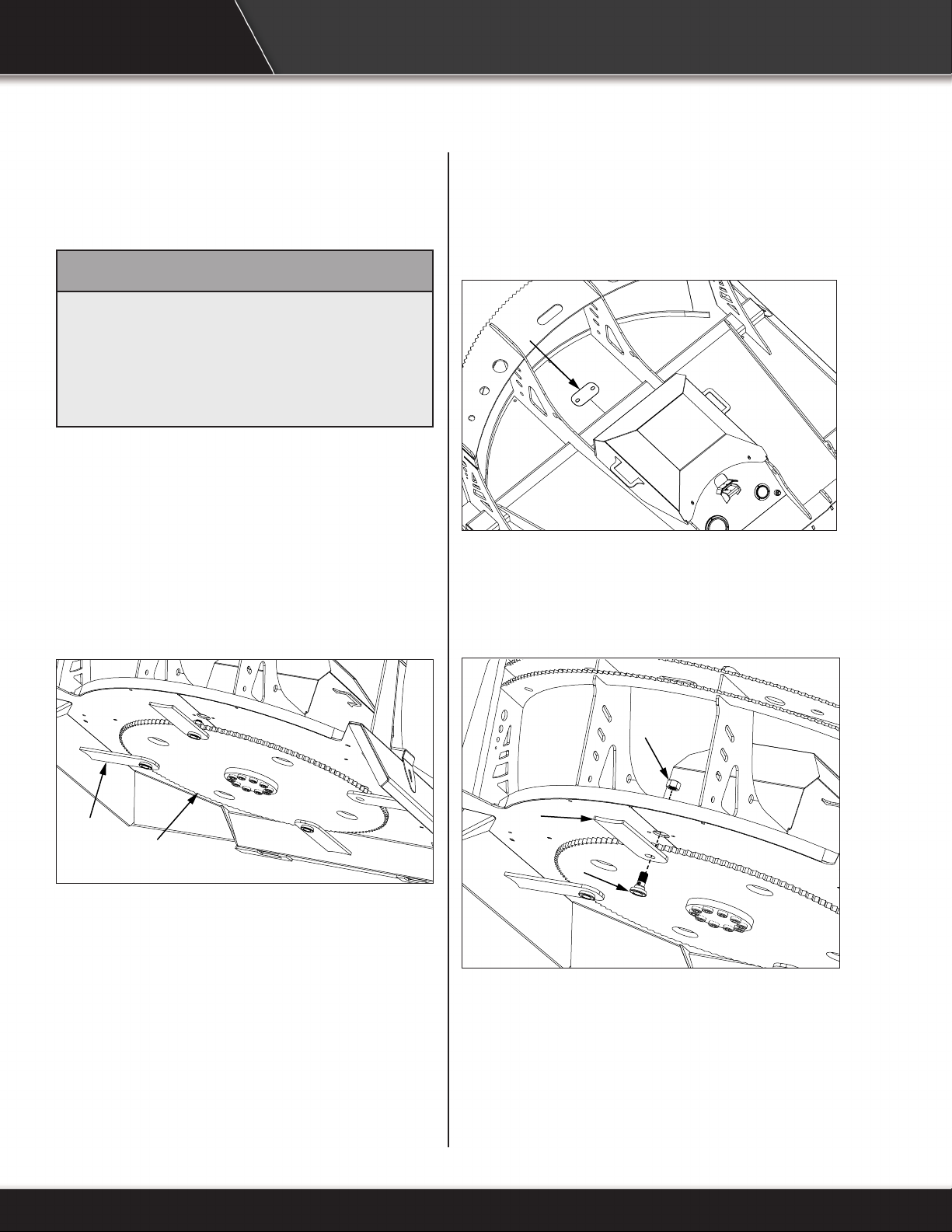

5�1 Replace Blades ������������������������������������������������������������������������������������������������������������������������� 12
5�2 Replace Spider�������������������������������������������������������������������������������������������������������������������������� 13
5�3 Inspections�������������������������������������������������������������������������������������������������������������������������������� 14
5�4 Motor Shaft Seal ����������������������������������������������������������������������������������������������������������������������� 15
6 TROUBLESHOOTING ���������������������������������������������������������������������������������������������������������������������� 16
BAUMALIGHT ATTACHMENT WARRANTY������������������������������������������������������������������������������������� 17
ii

1 INTRODUCTION
Congratulations on your choice of a Baumalight
Skid Steer Brush Cutt to complement your brush
cutting operation. This equipment has been
designed and manufactured to meet the needs of
a discriminating buyer for ecient brush cutting.
The Brush Cutt has four blades and can cut a
path 72 inches wide. The unique blade design
reduces the brush to mulch. Controlling the Brush
Cutt is done completely from the cab of the skid
steer providing the ability for precise control and
operator comfort.
Safe, ecient and trouble free operation of your
Brush Cutt requires that you and anyone else
who will be operating or maintaining the Brush
Cutt, read and understand the Safety, Operation,
Maintenance and Troubleshooting information
contained within the Operator’s Manual.
This manual covers the CF772 Baumalight Skid
Steer Brush Cutt. Use the Table of Contents as a
guide to locate required information.
Keep this manual handy for frequent reference
and to pass on to new operators or owners. Call
your Baumalight dealer, distributor or the factory
if you need assistance, information or additional
copies of the manuals.
OPERATOR ORIENTATION - The directions left,
right, front and rear, as mentioned throughout this
manual, are as seen from the skid steer driver’s
seat and facing in the direction of travel.
The brush cutter is designed to be used by
experienced operators, trained in the safe
operation of a skid steer and trained in the hazards
related to using the brush cutter and the safe use
of the cutter for the intended purpose. Operators
will require personal protective equipment to
reduce the risk from some hazards that cannot be
completely eliminated or controlled by the design
of the tool.
Care is required to ensure that the brush cutter
tool will not come across metallic objects, stones
or other materials.
Brush Cutt tools are not designed for use in
hazardous atmospheres where there is a risk
of re or explosion due to ammable gases or
vapors. Use in hazardous, explosive atmospheres
is prohibited.
Serious injury or death of the operator or bystanders
may be caused if the tool is misused. Misuse may
also cause damage to the machine carrying the
implement.
1�2 Intended Use And Foreseeable
Misuse
1�1 Overview
1

2 SAFETY
You must read, understand and follow the
instructions given by the operating unit
manufacturers, as well as the instructions in this
manual.
The safety information in this manual is denoted by
the safety alert symbol:
^
This symbol means ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!
The level of risk is indicated by the following signal
words:
^^ DANGER
DANGER - Indicates a hazardous
situation, which, if not avoided, WILL
result in death or serious injury�
^ WARNING
WARNING - Indicates a hazardous
situation, which, if not avoided, could
result in death or serious injury�
^ CAUTION
CAUTION - Indicates a hazardous
situation, which, if not avoided, could
result in minor or moderate injury�
NOTICE
NOTICE - Indicates a situation that could
result in damage to the equipment or
other property�
2�1 Safety Alert Symbol And Safety
Words
^ WARNING
Use brush cutter only for the designed
applications�
Any other use may result in personal
injury, damage to equipment and may
void the warranty�
^ WARNING
Prevent serious injury or death�
Verify brush cutter is attached to
excavator before operation or transport�
^ WARNING
Protect from ying debris.
Wear proper safety glasses, goggles,
or a face shield to protect from ying
debris�
Carefully read all safety messages in this manual
and on equipment safety signs. Keep safety signs
in good condition and replace missing or damaged
safety signs.
New equipment components and repair parts must
include the current safety decal.
Learn how to properly operate equipment.
NEVER operate or work around this equipment
without proper instruction, while fatigued or under
the inuence of alcohol, prescription or non-
prescription medication or if feeling ill.
Keep your equipment in proper working condition.
Know the regulations and laws that apply to you
and your industry. This manual is not to replace
any regulations or laws. Additional information
2�2 Operational Hazards
2

may be found at: www.asae.org or www.osha.gov.
If you do not understand any part of this manual,
contact Baumalight at 866-820-7603.
Prepare For Emergencies
• Be prepared in case of emergencies.
• Keep a re extinguisher and rst aid kit close
to the machine.
• Keep emergency phone numbers close to your
phone.
• Know your address so emergency services
can locate you if an emergency arises.
Replace Safety Signs
• Replace missing or damaged safety signs.
• Safety signs are identied in Section 3 of this
manual.
• Replacement safety signs are available from
your Baumalight dealer.
Do Not Allow Riders
• NEVER lift or carry anyone with brush cutter.
• NEVER use brush cutter as a work platform.
• NEVER allow passengers on brush cutter.
Lower Operating Speed
• Lower operating speed while loading, unloading
or performing heavy operations.
• Keep load low and move at slow speeds on
rough or uneven terrain.
Avoid Rollover
The equipment may rollover, resulting in death or
serious injury. To help prevent rollover:
• Travel at a slow speed.
• Avoid sharp turns & sudden movement on
slopes.
• Carry loads close to the ground.
• Avoid holes, ditches and other obstructions
which may cause equipment to rollover.
• Balance load so weight is evenly distributed
and load is stable.
• Use caution when operating on slopes and do
not operate on excessively steep slopes.
• Do not exceed load capacity of equipment.
Avoid Powerlines & Underground
Utilities
^^ DANGER
Prevent electrocution�
Death or serious injury can result if
equipment comes near or contacts
power lines�
Electrocution can occur without direct
contact�
3

DO NOT leave the operator’s seat if any part of the
equipment contacts electric lines or cables.
Detach Safely
Detach brush cutter on a rm and level surface.
Brush cutter may fall over if detached on sloping
or soft surface. Be sure people, livestock and pets
are clear of machinery.
Raised Attachment
^ WARNING
Crushing hazard�
Raised, unsupported brush cutter can
fall, resulting in death or serious injury�
Never enter the area under a raised
brush cutter�
A raised brush cutter can lower unexpectedly,
resulting in death or serious injury.
NEVER enter area under a raised brush cutter.
Lower brush cutter to ground, engage parking
brake, shut o engine and remove key before
servicing.
Avoid Loud Noise
^ WARNING
Prolonged exposure to loud noise can
cause impairment or loss of hearing�
Wear a suitable hearing protective device
such as earmus or earplugs to protect
against objectionable or uncomfortable
loud noises�
Hazards From Modifying Equipment
Do not make any alterations to your brush
cutter. Altering the equipment may cause unsafe
conditions and may void the manufacturer’s
warranty.
Avoid Wood Dust Inhalation
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
4

2�3 Maintenance Hazards
Before servicing, park machine on a rm and
level surface, set parking brake, chock wheels,
and place a “Do Not Operate” tag on control
panel. Read and understand this manual. If you
do not understand any part of the manual, contact
Baumalight at 866-820-7603.
Always wear face and/or eye protection, safety
shoes, and other protective equipment appropriate
for the job.
Do not make unauthorized modications. Contact
Baumalight at 866-820-7603 before you weld, cut/
drill holes, or make any other modications.
Always use Baumalight replacement parts.
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
^ WARNING
Crushing hazard�
Before performing inspections, service
or maintenance:
• Park machine on rm, level surface.
• Engage parking brake�
• Turn engine o and remove key.
• Place “Do Not Operate” tag on
control panel�
^ WARNING
Entanglement hazard�
Keep clear of moving components�
Wear proper protective equipment
appropriate for the job�
^ WARNING
Burn hazard�
Hot and high pressure hydraulic oil�
Allow oil to cool before servicing�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
5

3 SAFETY SIGNS
A. D005253 ^ WARNING - Pressurized uid
hazard. Pressurized uids can penetrate the
skin. Do not check for leaks with your hands.
Keep back a safe distance when pressurized.
D005253
B. D005262 ^WARNING - P65 warning
information.
WARNING: This product can expose you to chemicals
including 1,3-Butadiene and lead, which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
D005262
The two and four panel safety decals are pictorial
and have a yellow background. The panel with a
triangle indicates the potential hazard. The panel
without a triangle indicates how to avoid the hazard.
If any of the decals are missing, are damaged, or
if you do not understand the decal, please contact
your dealer.
E
B
A
E
E
CD
6

C. D005252 ^WARNING - Read and understand
safety signs on the machine and operating
instructions in this manual before operating
machine.
D005252
D. D005521 ^WARNING - Remove key before
servicing.
D005517
E. D005255 ^WARNING - Rotating blade
hazard. Keep back 75 m while machine
is operating. Wait for blade to stop before
approaching machine.
D005255
75 M
7

^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
Although the cutter has been carefully inspected
and checked prior to shipment from manufacturer,
it is recommended that the unit be thoroughly
inspected.
Check all bolts for tightness and remove all
shipping tags, bags, skids, and blocking.
Remove any masking materials axed during
painting. Inspect the skid-steer and any accessory
equipment to Verify that nameplates and all safety
warning, caution signs and decals provided with
the equipment are in place and clearly visible.
Visually inspect the unit before each start up.
Check for loose or missing parts and any damage
that may have occurred during moving or shipping.
Review all skid steer pre-start instructions, and
ensure that all recommended steps and procedures
have been followed.
4 OPERATION
4�1 Preparation For Use 4�2 Removing Skids Or Blocks
If the cutter is shipped on a skid it will be in a vertical
position and must be lowered to horizontal position
before use. Due to the weight of the machine,
CAUTION must be taken when doing this. Use
an appropriate lifting device to lower machine into
operating position, failure to do so could result in
serious injury or death.
Always keep the weight of the machine in mind.
Never position body in line of impact or in anyway
underneath the machine.
8

4�3 Hydraulic Connections
^ WARNING
Pressurized uids can penetrate the
skin�
Disconnect and lock out power source
before disconnecting and/or connecting
hydraulic hoses�
The cutter is equipped with three hoses. You must
connect the pressure, return and case drain hoses
from cutter to skid steer hydraulic couplers.
If cutter is not equipped with hydraulic couplers,
install couplers and connect your skidsteer
pressure, return and case drain hoses to the cutter
hoses. Install your couplers to the hoses listed in
the table below.
Fitting Size Hose Description Qty.
3/4 JIC FM Pressure & Return 2
3/8 JIC FM Case Drain 1
Identify the pressure port hose and connect your
hoses to the cutter hoses.
Motor pressure port is B port on block (A port on
motor).
Maximum allowable case pressure is 100 psi, case
drain is required.
4�4 Machine Components
C
B
A
D
E
F
G
A. Hydraulic Motor
B. Quick Attach
C. Push Bar
D. Working Pressure Gauge
E. Case Pressure Gauge
F. Zero Leak Relief Valve
G. CuttingBlades
9

1. Read ALL safety instructions.
2. Verify hydraulic lines are clear of pinch areas.
3. Verify there is sucient visibility and
maneuverability to move up to the cutter.
4. Verify pins are secure in the correct position.
5. Attach skid steer to cutter. See skid steer
Operator’s Manual.
6. Connect hydraulic hoses.
7. Move to a clear open area to test functions.
^ WARNING
Never position unit so that rotating
blades are visible to operator�
4�5 Attaching/Detaching
Traveling at slower speeds will provide more
ecient performance.
Operate in slightly rolled back possession, this
leaves more room for discharge allowing more
tolerance for an unskilled operator.
^ WARNING
Turn o engine and remove key before
leaving operator’s seat�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
4�6 First Time User Tips
10

^WARNING
Prevent serious injury or death caused
by unexpected movement:
1� Park skid steer on a level surface�
2� Engage skid steer park brake�
3� Disengage hydraulic drive�
4� Shut o engine and remove key.
^WARNING
Never operate brush cutter when other
people are in the vicinity� Debris can be
thrown several feet from cutting area�
Keep all shields in place�
Do not allow riders on skid steer�
Never approach brush cutter before
rotor has come to a complete stop�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
4�7 Field Operation
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
1. Attach cutter to skid steer. See Attaching/
Detaching in this section.
2. Check the area you plan on working for any
large stones or metal objects. Hitting these
objects is very dangerous and will decrease the
life of your blades and the machine in general.
3. The blades must be free to rotate before you
start hydraulic oil ow. The blades need to be
running at full speed before you start cutting
brush.
4. If the blades stop rotating, raise deck a few
inches until blades are rotating at full speed.
If blades do not start rotating immediately after
deck has been raised, stop oil ow on skid
steer, lock all controls and check that blades
are able to rotate freely.
5. If the brush is not as ne as desired, try slowing
your travel speed or continuously travel the
same path until brush is shredded to the
desired level.
6. When you are nished, stop oil ow and idle
skid steer for a few minutes to allow skid steer
engine to cool before shut down.
11

5 SERVICE AND MAINTENANCE
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
1. Park cutter on a level surface.
2. Lower cutter to the ground.
3. Shut o skid steer engine, remove key and
lockout control panel.
4. Inspect blades (A) and blade carrier (B) for
wear and damage. Do not replace just one
blade. Replacing only blade can cause cutter
to be out of balance. Replace blades in pairs.
A
B
5�1 Replace Blades
5. Remove access cover (C).
C
6. Rotate blade carrier by hand so blade nut (D)
is under access hole.
7. Remove nut (D), bolt (E) and blade (A).
D
F
E
8. Install new blade in reverse order of removal.
Tighten nut to 795 lb-ft (1078 Nm) of torque.
9. Repeat steps 6-8 for other blades.
Note: Parts breakdown can be found on
Baumalight’s website. www.baumalight.com
12

^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
1. Park cutter on a level surface.
2. Lower cutter to the ground.
3. Shut o engine, remove key and lockout
control panel.
4. Remove cutting blades. See Section 5.1.
5. Remove socket head screws (A).
6. Remove mounting plate (B) and blade carrier
(C).
A
B
C
7. Install blade carrier (C), mounting platre (B)
and socket head scrwws (A).
8. Tighten nscrews (A) to 339 lb-ft (469 Nm) of
torque.
Note: Parts breakdown can be found on
Baumalight’s website. www.baumalight.com
5�2 Replace Blade Carrier 5�2 Check Gearbox Oil
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
1. Park cutter on a level surface.
2. Lower cutter to the ground.
3. Shut o engine, remove key and lockout
control panel.
4. Remove cover (A).
A
13

^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
Check bolts and cutting blades every 2 hours of
use. DO NOT continue operation if damage is
found.
Check hydraulic hoses and ttings for leaks.
5�3 Inspections
5. Remove plug (B) oil level should be at the
bottom of plug hole.
6. If necessary, add a generic gear oil through
one of the ll plugs (C) until oil is at the bottom
of plug hole (B). Install plugs.
B
C
C
Change oil in gearbox every 1000 hours or every
year of use. Capacity is 1 liter of gear oil.
14

5�4 Motor Shaft Seal
The cutter is equipped with a case drain line that
is to be routed to the skid steer hydraulic reservoir.
It is normal for a hydraulic motor to have a slight
amount of internal leakage.
The case drain line will allow this internal leakage to
be returned to the reservoir, preventing excessive
pressure on the motor seal.
If the case drain line is not connected or becomes
obstructed, the zero leak relief valve will vent the
pressurized hydraulic oil to the atmosphere. The
zero leak relief valve will self reset after hydraulic
pressure reduced.
^ WARNING
Pressurized uids can penetrate the
skin�
Keep bystanders away from machine
during operation�
Atiny, almost invisible leak can penetrate
the skin, thereby requiring immediate
medical attention�
If hydraulic oil is coming out of the zero leak relief
valve, shut down machine immediately. Inspect the
case drain line connection and lines. Contact your
dealer if case drain lines and connection are good.
NOTICE
Environmental hazard�
Clean up any spilled hydraulic oil
immediately�
A properly installed case drain protected by a zero
leak relief valve will save the work of replacing the
motor shaft seal and also improve the eciency of
your hydraulic system.
15

6 TROUBLESHOOTING
PROBLEM CHECK SOLUTION
Rotor does not spin. Rotor jammed. Remove material from rotor. See
Clearing Jams.
Low oil level. Check oil level in skid steer. Add if
necessary.
Low oil ow. Check ow control on skid steer. See
your dealer.
Can rotor be turned by
hand with the hydraulics
disconnected?
If yes, check for a stuck relief valve.
If no, determine if the rotor is stuck or
the motor or over hung load adaptor are
stuck.
If the motor or overhung load adaptor is
stuck, remove and determine cause of
problem.
Rotor rotates slow or sluggish. Low oil. Check oil level in skid steer. Add if
necessary.
Oil lter plugged. Replace skid steer oil lter.
Relief valve not set
properly. Set relief pressure 2500 - 3500 psi.
Low oil ow. Check ow control on skid steer. See
your dealer.
Excessive vibration. Cutting blades worn or
missing.
Replace worn, broken or missing
blades.
Debris lodged in rotor. Remove debris.
Hydraulic oil coming out of zero
leak relief valve.
Case drain connector for
proper connection and
line for obstructions or
pinched line.
Connect case drain line if not connected.
Replace line if damage, obstructed or
pinched.
Combo coupler seals on
skid steer.
Combo coupler seals may be leaking,
allowing pressurized uid to escape to
the case drain line.
16

BAUMALIGHT ATTACHMENT WARRANTY
This product is warranted to be free of defects in materials and workmanship under normal use and
service, for a period of one year from the date of purchase. This warranty covers parts and labor, but does
not cover misuse, negligence or dealer travel time.
Replacement of individual parts vs. assemblies are at the discretion of the manufacturer.
Baumalight products when purchased new are automatically registered for warranty on the date of
purchase.
Warranty claims must include the bill of sale to the original purchaser.
This product must be operated and maintained in accordance with the Operating and Maintenance
Instructions supplied with this unit.
Under no circumstances will the manufacturer be liable for any consequential damage or expense of any
kind, including loss of prots. The manufacturer is under no circumstances liable for carrier unit damage
of any kind. The manufacturer is not liable for the maintenance of the product.
This warranty is extended only to the original purchaser and there never is any warranty on anything sold
through auction.
Units are to be returned at the customer’s expense to the nearest Authorized Service Center. Damage in
transit is not covered by warranty.
The work may be performed by the end user, if they are a qualied mechanic.
The Manufacturer’s Liability is limited to repair of the product and/or replacement of parts and is given to
the purchaser in lieu of all other remedies including incidental and consequential charges. There are no
warranties, expressed or implied other than those specied herein. For the nearest Authorized Service
Center call the manufacturer.
Model Number: ___________ S/N:_______________
Date of Purchase: _____________ Owner’s Name__________________________________
17

MTB MFG INC.
CORPORATE HEADQUARTERS
4575 Powell Rd.,
Wallenstein, Ontario Canada
N0B 2S0
Phone - 519.698.9864
Toll Free - 866.820.7603
Fax - 519.698.1087
www�baumalight�com
