Baumalight BRUSHFOX 4800Xtreme User manual

4800Xtreme And 5400Xtreme Brush Cutter
Operators Manual
Issue Date: July 2023

Table Of Contents
1 INTRODUCTION ��������������������������������������������������������������������������������������������������������������������������������� 3
1�1 Overview�������������������������������������������������������������������������������������������������������������������������������������� 3
1�2 Intended Use And Foreseeable Misuse������������������������������������������������������������������������������������ 3
2 SAFETY������������������������������������������������������������������������������������������������������������������������������������������������ 4
2�1 Safety Alert Symbol And Safety Words����������������������������������������������������������������������������������� 4
2�2 Operational Hazards������������������������������������������������������������������������������������������������������������������� 4
Prepare For Emergencies ���������������������������������������������������������������������������������������������������������� 5
Replace Safety Signs ����������������������������������������������������������������������������������������������������������������� 5
Do Not Allow Riders ������������������������������������������������������������������������������������������������������������������� 5
Lower Operating Speed ������������������������������������������������������������������������������������������������������������� 5
Avoid Rollover ���������������������������������������������������������������������������������������������������������������������������� 5
Avoid Powerlines & Underground Utilities ������������������������������������������������������������������������������ 5
Detach Safely ������������������������������������������������������������������������������������������������������������������������������ 6
Hazards From Modifying Equipment ���������������������������������������������������������������������������������������� 6
2�3 Maintenance Hazards����������������������������������������������������������������������������������������������������������������� 7
3 SAFETY SIGNS����������������������������������������������������������������������������������������������������������������������������������� 8
4 OPERATION �������������������������������������������������������������������������������������������������������������������������������������� 10
4�1 Preparation For Use ����������������������������������������������������������������������������������������������������������������� 10
4�2 Hydraulic Connections ������������������������������������������������������������������������������������������������������������ 10
4�3 Machine Components ���������������������������������������������������������������������������������������������������������������11
4�4 Attach Brush Cutter�������������������������������������������������������������������������������������������������������������������11
4�5 Transporting�������������������������������������������������������������������������������������������������������������������������������11
4�6 First Time User Tips ����������������������������������������������������������������������������������������������������������������� 12
4�7 Field Operation ������������������������������������������������������������������������������������������������������������������������� 12
4�8 Detach Brush Cutter����������������������������������������������������������������������������������������������������������������� 13
5 SERVICE AND MAINTENANCE������������������������������������������������������������������������������������������������������ 14
5�1 Inspect Blades, Cutting Teeth And Carrier����������������������������������������������������������������������������� 14
5�2 Replace Blades ������������������������������������������������������������������������������������������������������������������������� 14
5�3 Replace Teeth���������������������������������������������������������������������������������������������������������������������������� 15
5�4 Replace Carrier ������������������������������������������������������������������������������������������������������������������������� 16
5�5 Inspections�������������������������������������������������������������������������������������������������������������������������������� 17
6 TROUBLESHOOTING ���������������������������������������������������������������������������������������������������������������������� 18
7 WARRANTY��������������������������������������������������������������������������������������������������������������������������������������� 19
2

1 Introduction
Congratulations on your choice of a Brushfox
Brush Cutter to complement your brush cutting
operation. This equipment has been designed and
manufactured to meet the needs of a discriminating
buyer for ecient brush cutting.
The unique blade design reduces the brush
to mulch. Controlling the brush cutter is done
completely from the cab of the excavator providing
the ability for precise control and all day operator
comfort.
Safe, ecient and trouble free operation of your
brush cutter requires that you and anyone else
who will be operating or maintaining the brush
cutter, read and understand the Safety, Operation,
Maintenance and Troubleshooting information
contained within the Operator’s Manual.
This manual covers the 4800Xtreme and
5400Xtreme Brushfox Brush Cutter. Use the
Table of Contents as a guide to locate required
information.
Keep this manual handy for frequent reference
and to pass on to new operators or owners. Call
your Brushfox dealer or distributor if you need
assistance, information or additional copies of the
manuals.
OPERATOR ORIENTATION - The directions left,
right, front and rear, as mentioned throughout this
manual, are as seen from the excavator driver’s
seat and facing in the direction of travel.
The brush cutter is designed to be used by
experienced operators, trained in the safe operation
of a excavator and trained in the hazards related to
using the brush cutter and the safe use of the cutter
for the intended purpose. Operators will require
personal protective equipment to reduce the risk
from some hazards that cannot be completely
eliminated or controlled by the design of the tool.
Care is required to ensure that the brush cutter
tool will not come across metallic objects, stones
or other materials.
Brush cutters are not designed for use in hazardous
atmospheres where there is a risk of re or
explosion due to ammable gases or vapors. Use
in hazardous, explosive atmospheres is prohibited.
Serious injury or death of the operator or bystanders
may be caused if the tool is misused. Misuse may
also cause damage to the machine carrying the
implement.
1�2 Intended Use And Foreseeable
Misuse
1�1 Overview
3

2 Safety
You must read, understand and follow the
instructions given by the operating unit
manufacturers, as well as the instructions in this
manual.
The safety information in this manual is denoted by
the safety alert symbol:
^
This symbol means ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!
The level of risk is indicated by the following signal
words:
^^ DANGER
DANGER - Indicates a hazardous
situation, which, if not avoided, WILL
result in death or serious injury�
^ WARNING
WARNING - Indicates a hazardous
situation, which, if not avoided, could
result in death or serious injury�
^ CAUTION
CAUTION - Indicates a hazardous
situation, which, if not avoided, could
result in minor or moderate injury�
NOTICE
NOTICE - Indicates a situation that could
result in damage to the equipment or
other property�
2�1 Safety Alert Symbol And Safety
Words
^ WARNING
Use brush cutter only for the designed
applications�
Any other use may result in personal
injury, damage to equipment and may
void the warranty�
^ WARNING
Prevent serious injury or death�
Verify brush cutter is attached to
excavator before operation or transport�
^ WARNING
Protect from ying debris.
Wear proper safety glasses, goggles,
or a face shield to protect from ying
debris�
Carefully read all safety messages in this manual
and on equipment safety signs. Keep safety signs
in good condition and replace missing or damaged
safety signs.
New equipment components and repair parts must
include the current safety decal.
Learn how to properly operate equipment.
NEVER operate or work around this equipment
without proper instruction, while fatigued or under
the inuence of alcohol, prescription or non-
prescription medication or if feeling ill.
Keep your equipment in proper working condition.
2�2 Operational Hazards
4

Know the regulations and laws that apply to you
and your industry. This manual is not to replace
any regulations or laws. Additional information
may be found at: www.asae.org or www.osha.gov.
If you do not understand any part of this manual,
contact Brushfox at 844-692-5800.
Prepare For Emergencies
• Be prepared in case of emergencies.
• Keep a re extinguisher and rst aid kit close
to the machine.
• Keep emergency phone numbers close to your
phone.
• Know your address so emergency services
can locate you if an emergency arises.
Replace Safety Signs
• Replace missing or damaged safety signs.
• Safety signs are identied in Section 3 of this
manual.
• Replacement safety signs are available from
your Brushfox dealer.
Do Not Allow Riders
• NEVER lift or carry anyone with brush cutter.
• NEVER use brush cutter as a work platform.
• NEVER allow passengers on brush cutter.
Lower Operating Speed
• Lower operating speed while loading, unloading
or performing heavy operations.
• Keep load low and move at slow speeds on
rough or uneven terrain.
Avoid Rollover
The equipment may rollover, resulting in death or
serious injury. To help prevent rollover:
• Travel at a slow speed.
• Avoid sharp turns & sudden movement on
slopes.
• Carry loads close to the ground.
• Avoid holes, ditches and other obstructions
which may cause equipment to rollover.
• Balance load so weight is evenly distributed
and load is stable.
• Use caution when operating on slopes and do
not operate on excessively steep slopes.
• Do not exceed load capacity of equipment.
Avoid Powerlines & Underground
Utilities
^^ DANGER
Prevent electrocution�
Death or serious injury can result if
equipment comes near or contacts
power lines�
Electrocution can occur without direct
contact�
DO NOT leave the operator’s seat if any part of the
equipment contacts electric lines or cables.
5

Detach Safely
Detach brush cutter on a rm and level surface.
Brush cutter may fall over if detached on sloping
or soft surface. Be sure people, livestock and pets
are clear of machinery.
Raised Attachment
^ WARNING
Crushing hazard�
Raised, unsupported brush cutter can
fall, resulting in death or serious injury�
Never enter the area under a raised
brush cutter�
A raised brush cutter can lower unexpectedly,
resulting in death or serious injury.
NEVER enter area under a raised brush cutter.
Lower brush cutter to ground, engage parking
brake, shut o engine and remove key before
servicing.
Avoid Loud Noise
^ WARNING
Prolonged exposure to loud noise can
cause impairment or loss of hearing�
Wear a suitable hearing protective device
such as earmus or earplugs to protect
against objectionable or uncomfortable
loud noises�
Hazards From Modifying Equipment
Do not make any alterations to your brush
cutter. Altering the equipment may cause unsafe
conditions and may void the manufacturers
warranty.
Avoid Wood Dust Inhalation
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
6

2�3 Maintenance Hazards
Before servicing, park machine on a rm and
level surface, set parking brake, chock wheels,
and place a “Do Not Operate” tag on control
panel. Read and understand this manual. If you
do not understand any part of the manual, contact
Brushfox at 844-692-5800.
Always wear face and/or eye protection, safety
shoes, and other protective equipment appropriate
for the job.
Do not make unauthorized modications. Contact
Brushfox at 844-692-5800 before you weld, cut/
drill holes, or make any other modications.
Always use Brushfox replacement parts.
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
^ WARNING
Crushing hazard�
Before performing inspections, service
or maintenance:
• Park machine on rm, level surface.
• Engage parking brake�
• Turn engine o and remove key.
• Place “Do Not Operate” tag on
control panel�
^ WARNING
Entanglement hazard�
Keep clear of moving components�
Wear proper protective equipment
appropriate for the job�
^ WARNING
Burn hazard�
Hot and high pressure hydraulic oil�
Allow oil to cool before servicing�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
7

3 Safety Signs
A. D005126 ^ WARNING - Pressurized uid
hazard. Pressurized uids can penetrate the
skin. Do not check for leaks with your hands.
Keep back a safe distance when pressurized.
D005253
B. D005262 ^WARNING - P65 warning
information.
WARNING: This product can expose you to chemicals
including 1,3-Butadiene and lead, which are known to the state of
California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov.
D005262
The two and four panel safety decals are pictorial
and have a yellow background. The panel with a
triangle indicates the potential hazard. The panel
without a triangle indicates how to avoid the hazard.
If any of the decals are missing, are damaged, or
if you do not understand the decal, please contact
your dealer.
E
E
A
B
E
E
DC
8

C. D005125 ^WARNING - Read and understand
safety signs on the machine and operating
instructions in this manual before operating
machine.
D005252
D. D005517 ^WARNING - Remove key before
servicing.
D005517
E. D005223 ^WARNING - Rotating blade
hazard. Keep back 75 m while machine
is operating. Wait for blade to stop before
approaching machine.
D005255
75 M
9

^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
Although the cutter has been carefully inspected
and checked prior to shipment from manufacturer,
it is recommended that the unit be thoroughly
inspected.
Check all bolts for tightness and remove all
shipping tags, bags, skids, and blocking.
Remove any masking materials axed during
painting. Inspect the skid-steer and any accessory
equipment to Verify that nameplates and all safety
warning, caution signs and decals provided with
the equipment are in place and clearly visible.
Visually inspect the unit before each start up.
Check for loose or missing parts and any damage
that may have occurred during moving or shipping.
Review all excavator pre-start instructions, and
ensure that all recommended steps and procedures
have been followed.
4 Operation
4�1 Preparation For Use 4�2 Hydraulic Connections
^ WARNING
Pressurized uids can penetrate the
skin�
Disconnect and lock out power source
before disconnecting and/or connecting
hydraulic hoses�
Brushfox does not provide the hydraulic
hoses that connect brush cutter motor/valve
and motor case drain to excavator hydraulic
system�
The installer must determine a safe routing for
the hydraulic hoses to prevent damage�
Installer provided hoses are not covered by the
Brushfox warranty�
1. Remove tting caps. Connect supply hose
from excavator to A port on valve (if equipped
with valve) or B port on motor.
2. Connect return hose to excavator to B port
on valve (if equipped with valve) or A port on
motor.
3. Connect case drain hose from excavator to
case drain connector on motor. Install any
covers that were removed.
10

4�3 Machine Components
A. Debris Guard
B. Hydraulic Motor
C. Cutting Teeth
D. Cutting Blades
E. Blade Carrier
A
A
B
A
D
D
D
C
C
AE
^ WARNING
To prevent injury or machine damage
put transmission in park�
Never position yourself between
excavator and cutter�
Only experienced and properly trained
operator may operate excavator and
cutter�
1. Read and follow all safety instructions.
2. Attach excavator to cutter. See excavator
operators manual.
3. Connect hydraulic hoses. Verify hydraulic
hoses are clear of pinch areas and moving
parts.
4. Move to a clear open area to test functions.
4�5 Transporting
1. Verify all reectors and Slow Moving Vehicle
(SMV) sign are visible.
2. Verify hydraulics to cutter are disengaged.
3. Raise cutter slightly o the ground.
4. Travel at a reasonable and safe speed.
4�4 Attach Brush Cutter
11

^WARNING
Prevent serious injury or death caused
by unexpected movement:
1� Park excavator on a level surface�
2� Engage excavator park brake�
3� Disengage hydraulic drive�
4� Shut o engine and remove key.
^WARNING
Never operate brush cutter when other
people are in the vicinity� Debris can be
thrown several feet from cutting area�
Keep all shields in place�
Do not allow riders on excavator�
Never approach brush cutter before
cutting blades have come to a complete
stop�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
4�7 Field Operation
Operate all functions in a clear area low speed to
get a good feel for the controls before you actually
move into any brush.
Choose low density brush and move into it slowly,
do not expect to get the rst area done fast.
Move cutter into brush slowly until you have a
better feel how much the unit can take.
Each operator must experiment to nd a technique
that works for them in their application.
Although it is best to mulch when it is dry, the
machine works well in wet conditions. However,
you must travel slower to do the same quality
mulching. It may be necessary to clean the
machine more frequently to prevent clogging.
^ WARNING
Turn o engine and remove key before
leaving operator’s seat�
^WARNING
Drilling, sawing, sanding or machining
wood products can expose you to wood
dust, a substance known to the State of
California to cause cancer�
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection� For more information go to
www�P65Warnings�ca�gov/wood�
^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
4�6 First Time User Tips
12

^WARNING
Wear an approved dust mask or
respirator�
Follow local, state and federal
regulations�
1. Attach cutter to excavator. See Attach Brush
Cutter in this section.
2. Check the area you plan on working for any
large stones or metal objects. Hitting these
objects is very dangerous and will decrease the
life of your blades and the machine in general.
3. Verify cutter is operating smoothly and move
cutter into brush. When mulching standing
brush, angle cutter up and away from cab. This
will protect the operator and carrier from ying
debris. The cutting blades should not be visible
from the operator compartment. Attempting
to mulch top-down by raising the cutter
horizontally will result in the cutter throwing
debris towards the operator.
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Lockout excavator before clearing jams�
4. If cutter stalls, stop movement, slightly raise
cutter and allow cutting blades to regain speed.
Slow movement into brush to prevent further
stalling.
5. Blades will continue to spin freely when
hydraulic power is disengaged. The cutter can
be set on the ground and the cutting blades will
gradually slow to a stop.
4�8 Detach Brush Cutter
^ WARNING
Prevent death or serious injury caused
by unexpected movement:
6� Park on a level surface�
7� Lower cutter to ground�
8� Engage parking brake�
9� Shut o engine and remove key.
1. Park excavator on a level surface.
2. Lower cutter to the ground.
3. Shut o engine and remove key.
4. Disconnect hydraulic hoses.
5. Detach excavator from cutter. See excavator
Operators Manual.
13

5 Service And Maintenance
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
1. Park excavator on a level surface.
2. Lower cutter to the ground.
3. Shut o engine, remove key and lockout
control panel.
4. Inspect blades (A), blade carrier (B) and teeth
(C) for wear and damage.
A
A
A
B
C
C
5. Replace worn or damaged parts.
5�1 Inspect Blades, Cutting Teeth
And Carrier
5�2 Replace Blades
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
1. Park excavator on a level surface.
2. Lower cutter to the ground.
3. Shut o engine, remove key and lockout
control panel.
Note: Do not replace just one blade. Replacing
only one blade can cause cutter to be out of
balance. Replace all three blades.
4. Note blade orientation before removal. Remove
nut (A), bolt (B) and blade (C).
A
B
C
5. Install new blade in reverse order of removal.
Tighten nut to 450 lb-ft (610 Nm) of torque.
6. Repeat steps 1-2 for other two blades.
14

5�3 Replace Teeth
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
1. Park excavator on a level surface.
2. Lower cutter to the ground.
3. Shut o engine, remove key and lockout
control panel.
4. Note tooth orientation before removal. Remove
nut (A) and tooth (C).
A
B
5. Install new tooth in reverse order of removal.
Tighten nut to 150 lb/ft (204 Nm) of torque.
6. Repeat steps 1-2 for other teeth as needed.
15

5�4 Replace Carrier
^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
1. Park excavator on a level surface.
2. Lower cutter to the ground.
3. Shut o engine, remove key and lockout
control panel.
^ WARNING
Crush hazard�
Carrier weight is approximately xx lbs
(xx Nm)�
Plana safe handling procedure before
removing carrier,
4. Remove bolts (A), plate (B) and carrier (C).
A
C
B
5. Remove blades and teeth from carrier and
install on new carrier. See sections 5.2 and 5.3.
6. Install carrier (C), plate (B) and bolts (A).
7. Tighten bolts (A) to 230 lb-ft (312 Nm) of torque.
16

^ WARNING
Moving parts can crush and cut�
Keep clear of moving components�
Follow lockout procedure before
servicing�
Check bolts, cutting blades and teeth every 2 hours
of use. DO NOT continue operation if damage is
found.
Check hydraulic hoses and ttings for leaks.
Verify there are no links missing or damaged in
chain curtain. The machine can be very dangerous
with missing chains. Replace chains as needed.
5�5 Inspections
17

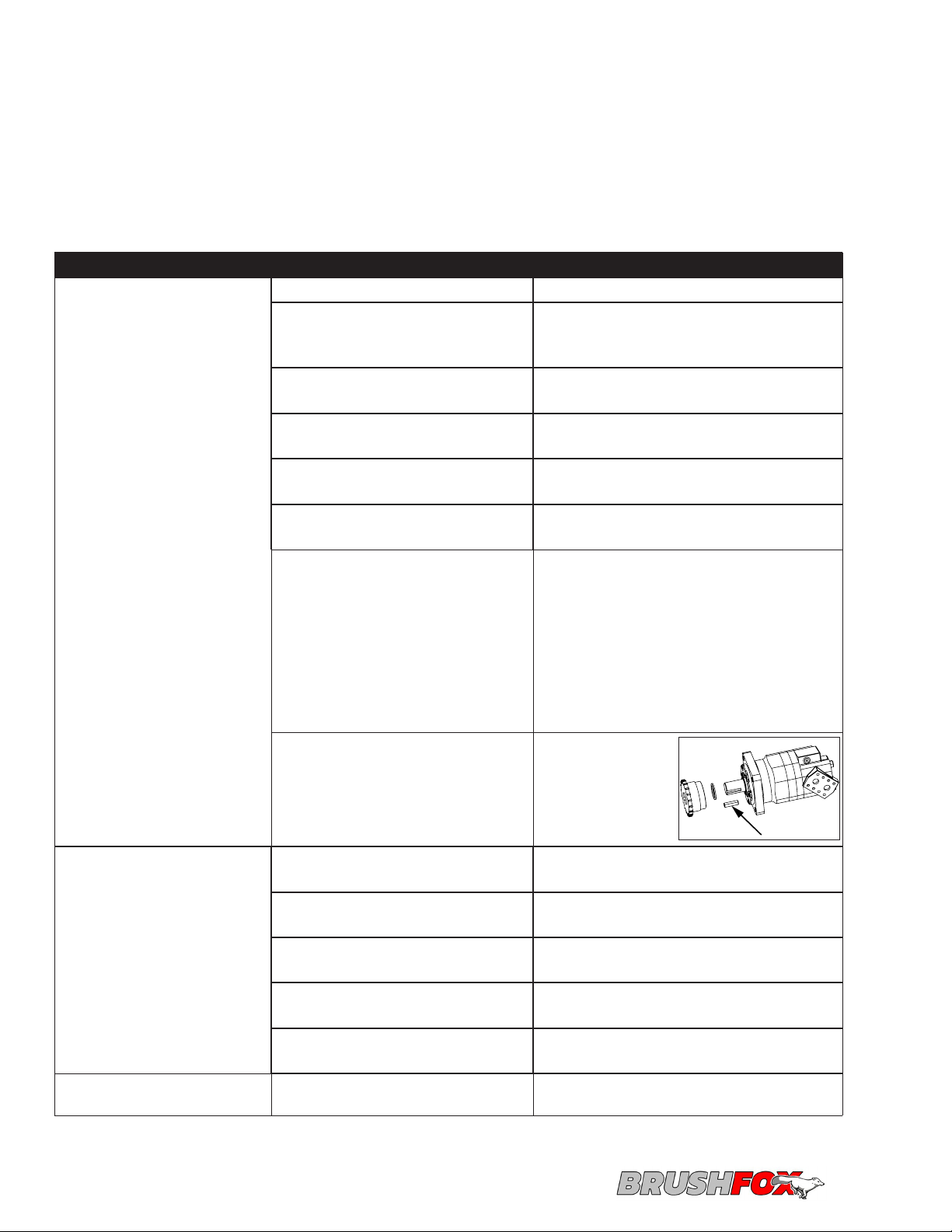

6 Troubleshooting
PROBLEM CHECK SOLUTION
Cutting blades do not spin. Verify coupler is not broken. Install new coupler if broken.
Cutting blade housing has caked-
on debris. Debris may restrict
rotation.
Clean housing if debris is found.
Low excavator hydraulic oil level. Check excavator hydraulic oil level. Add
if necessary.
Excavator hydraulic oil lter
plugged.
Replace excavator hydraulic oil lter.
Excavator relief valve not set
properly.
Set relief valve. Pressure should be
between 2,500 and 3,500 psi.
Not enough oil ow from
excavator.
Check excavator ow control. See your
dealer.
Does cutting blade carrier
turn with equal resistance in
both directions with hoses
disconnected?
If it turns easier backward
(reverse rotation from normal
cutting direction), anti-cavitation
valve may be stuck open.
If cutting blade carrier can be turned,
anti-cavitation valves may be stuck
open.
Remove and clean anti-cavitation
valves.
Shaft keyway may be sheared
o.
Replace keyway.
Cutting blades low on
power.
Low excavator hydraulic oil level. Check excavator hydraulic oil level. Add
if necessary.
Excavator hydraulic oil lter
plugged.
Replace excavator hydraulic oil lter.
Excavator relief valve not set
properly.
Set relief valve. Pressure should be
between 2,500 and 3,500 psi.
Relief valve on valve block may
be stuck open.
Remove and clean relief valve.
Not enough oil ow from
excavator.
Check excavator ow control. See your
dealer.
Excessive vibration. Cutting blades worn or missing. Replace worn, broken or missing
blades.
18

7 Warranty
Brushfox, LLC warrants each new machine manufactured by us to be free from defects in material and
workmanship for a period of two years from date of delivery to the original purchaser.
Our obligation under this warranty is to replace free of charge, at our factory or Dealer locations, any part
proven defective within the stated warranty time limit.
All parts must be returned freight prepaid and adequately packaged to prevent damage in transit. This
warranty does not cover:
1. New products which have been operated in excess of rated capacities or negligence.
2. Misuse, abuse, accidents or damage due to improperly routed hoses.
3. Machines which have been altered, modied or repaired in any manner not authorized by our company.
4. Previously owned equipment.
5. Any ground engaging tools in which natural wear is involved, i.e. tooth tips, cutting teeth, etc.
6. Normal maintenance.
7. Fork tines.
8. Hydraulic motors that have been disassembled in any manner.
Any spindle damage is considered to be the result of operator abuse and is not covered under warranty.
In no event will the Sales Representative, Dealer location, Brushfox, LLC, or any other company aliated
with it or them be liable for incidental or consequential damages or injuries, including but not limited to
the loss of prot, rental or substitute equipment or other commercial loss. Purchaser’s sole and exclusive
remedy being as provided here in above.
Brushfox, LLC must receive immediate notication of defect and no allowance will be made for repairs
without our consent or approval.
This warranty is in lieu of all other warranties, express or implied by law or otherwise, and there is no
warranty of merchantability or tness purpose.
No agent, employee, or representative of Brushfox, LLC has any authority to bind Brushfox, LLC to any
warranty except as specically set forth herein. Any of these limitations excluded by local law shall be
deemed deleted from this warranty; all other terms apply.
This warranty may not be enlarged or modied in any manner except in writing signed by an executive
ocer of Brushfox, LLC to improve its products whenever it is possible and practical to do so. Brushfox,
LLC reserves the right to make changes and or add improvements at any time without incurring any
obligation to make such changes or add such improvements to products previously sold.
19

Brushfox, LLC
16150 Lee Road
Suite 210
Fort Meyers, FL
Phone: 844-692-5800
www�Brushfox�com
20
This manual suits for next models
1
Table of contents
Other Baumalight Brush Cutter manuals
Popular Brush Cutter manuals by other brands

AL-KO
AL-KO BC 500 Li 48 Operator's manual

Husqvarna
Husqvarna 123HD65X Operator's manual

Scheppach
Scheppach BC52PB Translation from the original instruction manual

Jonsered
Jonsered FC2256 Operator's manual

Woodstar
Woodstar BCW52P Translation from the original instruction manual

Stiga
Stiga B 26 J Operator's manual
