Baumalight S14 User manual

STUMP BLASTER S14 And S18
OPERATOR’S MANUAL
Issue Date: Sep 2016

TABLE OF CONTENTS
SECTION DESCRIPTION PAGE
1
1.1
1.2
2
2.1
2.2
2.3
3
3.1
3.2
4
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
5
5.1
5.2
5.3
5.4
5.5
5.6
6
7
Introduction
Overview
Intended Use
Safety
Safety Alert Symbol and Safety Words
Operational Hazards
Maintenance Hazards
Safety Signs
Safety Signs - S18
Safety Signs - S14
Operation
Preparation for Use
Machine Components
Attach To Skid Steer
Detach From Skid Steer
Transporting
Carbide Teeth Break-in
First Time User Tips
Field Operation
Service and Maintenance
Replace Cutting Teeth - S18
Rotate Cutting Teeth - S14
Replace Cutting Teeth - S14
Replace Tooth Holder - S14
Replace Spider
Maintenance
Troubleshooting
Warranty
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
............
1
1
2
3
3
4
8
10
10
12
14
14
15
16
16
17
17
18
19
20
20
21
21
22
22
23
24
25
ii

1 INTRODUCTION
Congratulations on your choice of a Baumalight Skid Steer Stump Grinder to complement your stump grinding operation. This
equipment has been designed and manufactured to meet the needs of a discriminating buyer for efficient grinding of stumps.
This new and unique design allows us to build it very economically and makes it a very compact unit for storage and transport. The
self feeding design of the frame and enhanced visibility make the stump grinder easy and efficient to operate. Hydraulic controls
are easy to adjust and operate from most skid steer loaders.
The debris shield is standard equipment on all stump grinders. It is recommended that the stump grinder never be operated with
out one.
Safe, efficient and trouble free operation of your Stump Grinder requires that you and anyone else who will be operating or
maintaining the Stump Grinder, read and understand the Safety, Operation, Maintenance and Troubleshooting information
contained within the Operator’s Manual.
This manual covers the Baumalight Skid Steer Stump Grinder,
models S14 and S18. Use the Table of Contents as a guide to
locate required information.
Keep this manual handy for frequent reference and to pass
on to new operators or owners. Call your Baumalight dealer,
distributor or the factory if you need assistance, information or
additional copies of the manuals.
OPERATOR ORIENTATION - The directions left, right, front and
rear, as mentioned throughout this manual, are as seen from
the skid steer driver’s seat and facing in the direction of travel.
1.1 Overview
1

The stump grinder is designed to be used by experienced operators, trained in the safe operation of a
tractor and trained in the hazards related to using the stump grinder and the safe use of the grinder for
the intended purpose. Operators will require personal protective equipment to reduce the risk from some
hazards that cannot be completely eliminated or controlled by the design of the tool.
Care is required to ensure that the stump grinder tool will not come across metallic objects, stones or
other materials.
Stump grinder tools are not designed for use in hazardous atmospheres where there is a risk of re or
explosion due to ammable gases or vapors. Use in hazardous, explosive atmospheres is prohibited.
Serious injury or death of the operator or bystanders may be caused if the tool is misused. Misuse may
also cause damage to the machine carrying the implement.
1.2 Intended Use And Foreseeable Misuse
2

2 SAFETY
You must read, understand and follow the
instructions given by the operating unit
manufacturers, as well as the instructions in this
manual.
The safety information in this manual is denoted by
the safety alert symbol:
^
This symbol means ATTENTION! BECOME ALERT!
YOUR SAFETY IS INVOLVED!
The level of risk is indicated by the following signal
words:
^ DANGER
DANGER - Indicates a hazardous
situation, which, if not avoided, WILL
result in death or serious injury.
^ WARNING
WARNING - Indicates a hazardous
situation, which, if not avoided, could
result in death or serious injury.
^ CAUTION
CAUTION - Indicates a hazardous
situation, which, if not avoided, could
result in minor or moderate injury.
NOTICE
NOTICE - Indicates a situation
that could result in damage to the
equipment or other property.
2.1 Safety Alert Symbol and Safety Words
3

2.2 Operational Hazards
^ WARNING
Prevent serious injury or death.
Read and understand this manual
before operating stump grinder.
Always stop engine and remove key
before leaving operators seat.
Never allow anyone near the stump
grinder during operation.
Travel at a safe speed.
^ WARNING
Prevent serious injury or death from
moving parts.
Moving parts can crush and
dismember.
Do not operate without guards and
shields in place.
Disconnect and lockout power source
before adjusting or servicing.
^ WARNING
Use stump grinder only for the
designed applications.
Any other use may result in personal
injury, damage to equipment and may
void the warranty.
^ WARNING
Prevent serious injury or death.
Verify stump grinder is locked to
quick attach hitch before operation or
transport.
^ WARNING
Protect from ying debris.
Wear proper safety glasses, goggles,
or a face shield to protect from ying
debris.
Carefully read all safety messages in this manual
and on equipment safety signs. Keep safety
signs in good condition and replace missing or
damaged safety signs.
New equipment components and repair parts
must include the current safety decal.
4

Learn how to properly operate equipment. NEVER
operate or work around this equipment without proper
instruction, while fatigued or under the inuence of
alcohol, prescription or non-prescription medication
or if feeling ill.
Keep your equipment in proper working condition.
Know the regulations and laws that apply to you
and your industry. This manual is not to replace any
regulations or laws. Additional information may be
found at: www.asae.org or www.osha.gov.
If you do not understand any part of this manual,
contact Baumalight at 866-820-7603.

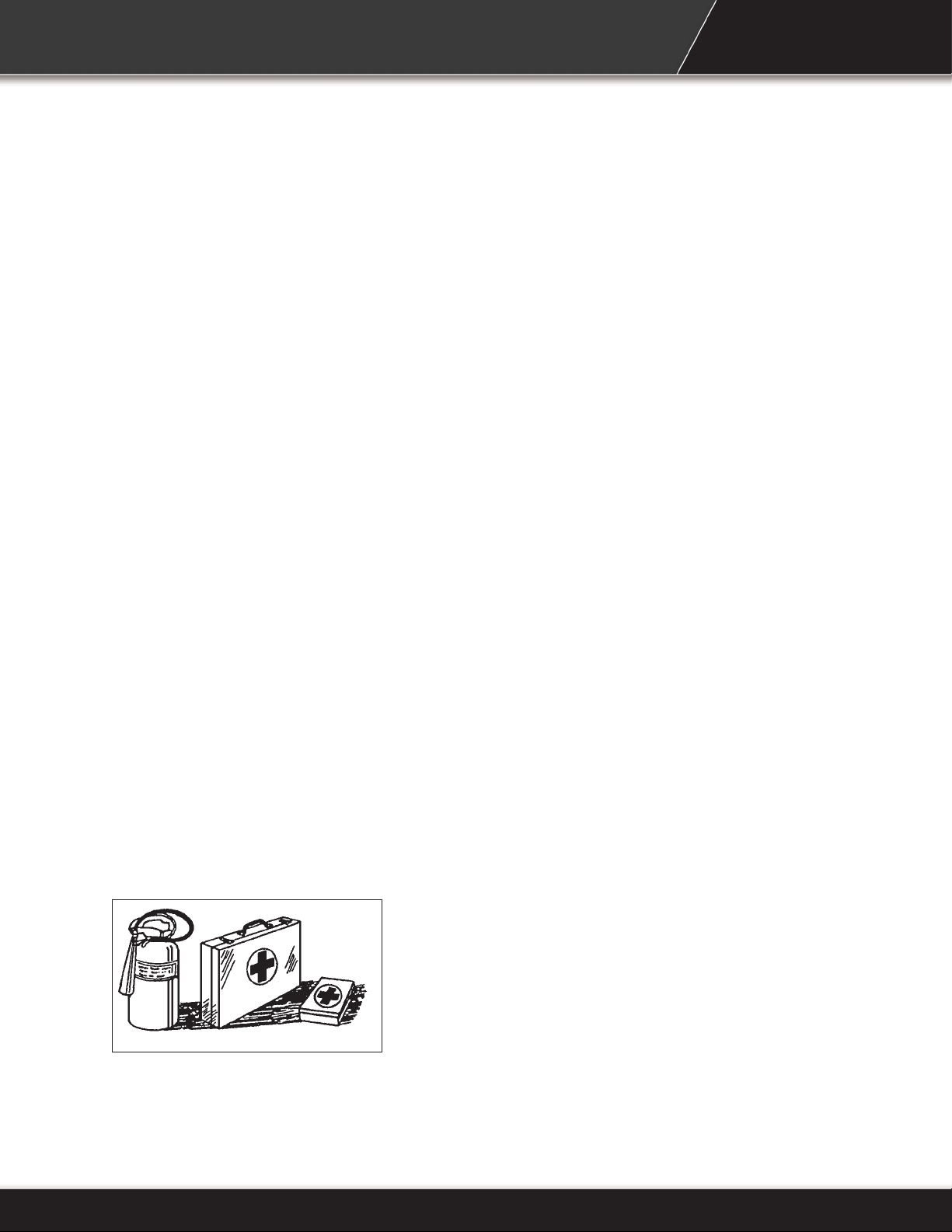

Prepare for Emergencies
• Be prepared in case of emergencies.
• Keep a re extinguisher and rst aid kit close to
the machine.
• Keep emergency phone numbers close to your
phone.
• Know your address so emergency services can
locate you if an emergency arises.
Replace Safety Signs
• Replace missing or damaged safety signs.
• Safety signs are identied in Section 3 of this
manual.
• Replacement safety signs are available from
your Baumalight dealer.
Do Not Allow Riders
• NEVER lift or carry anyone with stump grinder.
• NEVER use stump grinder as a work platform.
• NEVER allow passengers on stump grinder.
Lower Operating Speed
• Lower operating speed while loading, unloading
or performing heavy operations.
• Keep load low and move at slow speeds on
rough or uneven terrain.
Avoid Rollover
The equipment may rollover, resulting in death or serious injury.
To help prevent rollover:
• Travel at a slow speed.
• Avoid sharp turns & sudden movement on slopes.
• Carry loads close to the ground.
5

• Avoid holes, ditches and other obstructions which may
cause equipment to rollover.
• Balance load so weight is evenly distributed and load is
stable.
• Use caution when operating on slopes and do not
operate on excessively steep slopes.
• Do not exceed load capacity of equipment.
Avoid Powerlines &
Underground Utilities
• Check clearance before raising equipment.
• Have local utilities locate and mark under
ground wires, cables, pipelines and other
hazards before grinding.
^ DANGER
Prevent electrocution.
Death or serious injury can result if
equipment comes near or contacts
power lines.
Electrocution can occur without direct
contact.
DO NOT leave the operator’s seat if any part of
the equipment contacts electric lines or cables.
Detach Stump Grinder
Safely
Detach stump grinder on a rm and level surface.
Stump grinder may fall over if detached on unlevel or
soft surface. Be sure people, livestock and pets are
clear of machinery.
Relieve hydraulic pressure before disconnecting
hydraulic hoses.
Raised Attachment
^ WARNING
Crushing hazard.
Raised, unsupported stump grinder can
fall, resulting in death or serious injury.
Never enter the area under a raised stump
grinder.
A raised stump grinder can lower unexpectedly,
resulting in death or serious injury.
NEVER enter area under a raised stump grinder
unless stump grinder is properly and safely
supported.
Lower stump grinder to ground, engage parking
brake, shut off engine and remove key before
servicing.
6

Hazards from Modifying
Equipment
Do not make any alterations to your stump grinder.
Altering may cause your equipment to be unsafe and
may void the manufacturers’ warranty.
Avoid High Pressure Fluids
^ WARNING
Pressurized uids can penetrate the skin.
Hydraulic hoses can fail from age, damage
and exposure.
Use body and face protection while
searching for leaks. A tiny, almost invisible
leak can penetrate the skin, thereby
requiring immediate medical attention.
Use wood or cardboard to detect hydraulic
leaks, never use your hands.
Escaping uid under pressure can penetrate the skin
causing serious injury.
Prevent the hazard by relieving pressure before
connecting or disconnecting hydraulic lines. Verify all
connections are tight before applying pressure.
Search for leaks with a piece of cardboard or wood.
Protect hands and body from high pressure uids. If
an accident occurs, see a doctor immediately. Any
uid injected into the skin must be surgically removed
within a few hours or serious infection may result.
Doctors unfamiliar with this type of injury should
reference a knowledgeable medical source.
Avoid Wood Dust
Inhalation
^ WARNING
Wear an approved respirator (N95 Type
as a minimum).
Follow local, state and federal
regulations.
The health effects from exposure to wood dust
are due to chemicals in the wood or chemical
substances in the wood created by bacteria,
fungi, or molds.
Avoid Loud Noise
^ WARNING
Prolonged exposure to loud noise can
cause impairment or loss of hearing.
Wear a suitable hearing protective
device such as earmuffs or earplugs
to protect against objectionable or
uncomfortable loud noises.
7

2.3 Maintenance Hazards
Maintenance
Before servicing, park machine on a rm and
level surface, set parking brake, chock wheels,
and place a “Do Not Operate” tag on control
panel. Read and understand this manual. If you
do not understand any part of the manual, contact
Baumalight at 866-820-7603.
Always wear face and/or eye protection,
safety shoes, and other protective equipment
appropriate for the job.
Do not make unauthorized modications. Contact
Baumalight at 866-820-7603. Before you weld,
cut/drill holes, or make any other modications.
Always use Baumalight replacement parts.
^ WARNING
Moving parts can crush and cut.
Keep clear of moving components.
Follow lockout procedure before
servicing.
^ WARNING
Crushing hazard.
Before performing inspections, service
or maintenance:
Park machine on rm, level surface.
Engage parking brake.
Turn engine off and remove key.
Place “Do Not Operate” tag on control
panel.
^ WARNING
Entanglement hazard.
Keep clear of moving components.
Wear proper protective equipment
appropriate for the job.
^ WARNING
Burn hazard.
Hot and high pressure hydraulic oil.
Allow oil to cool before servicing.
8

9

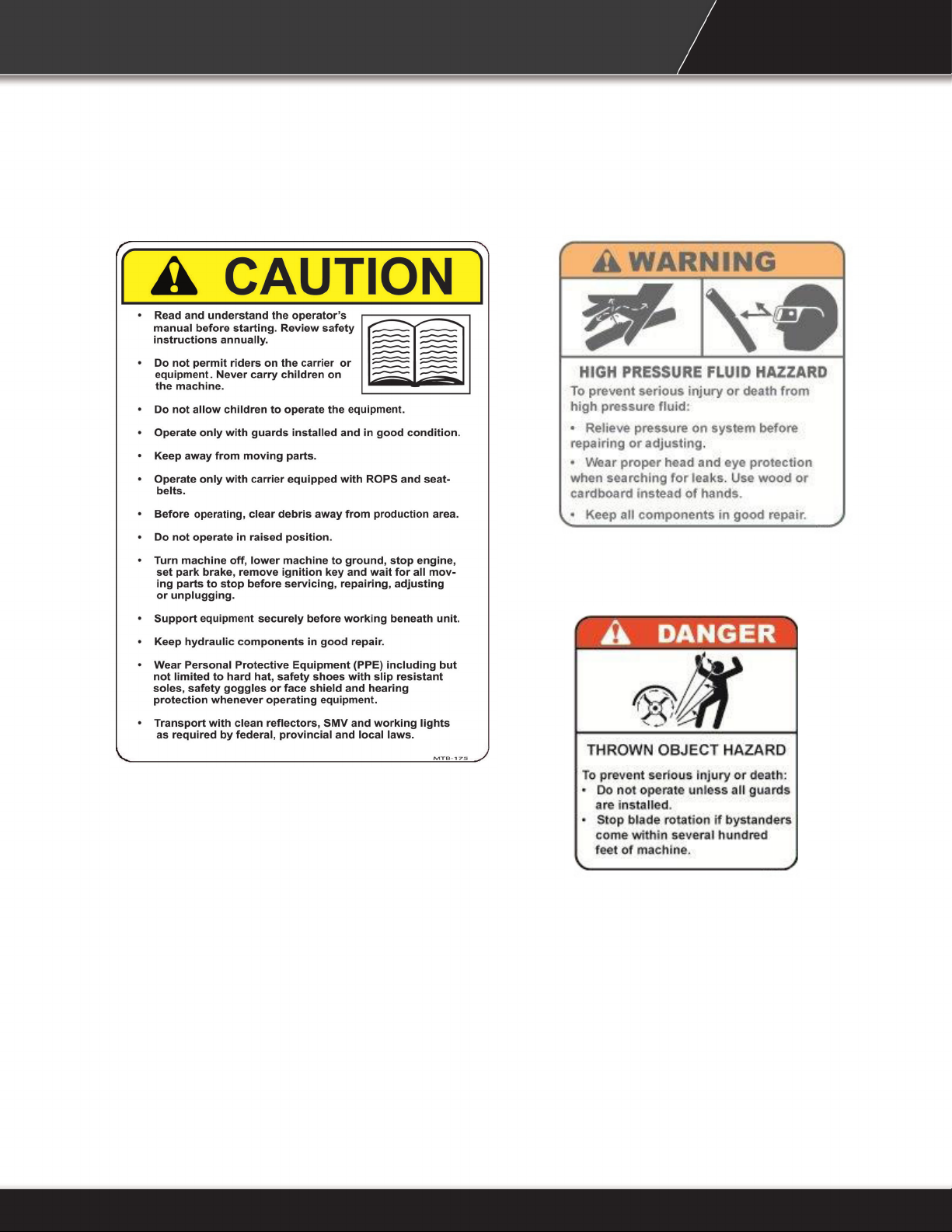

3 SAFETY SIGNS

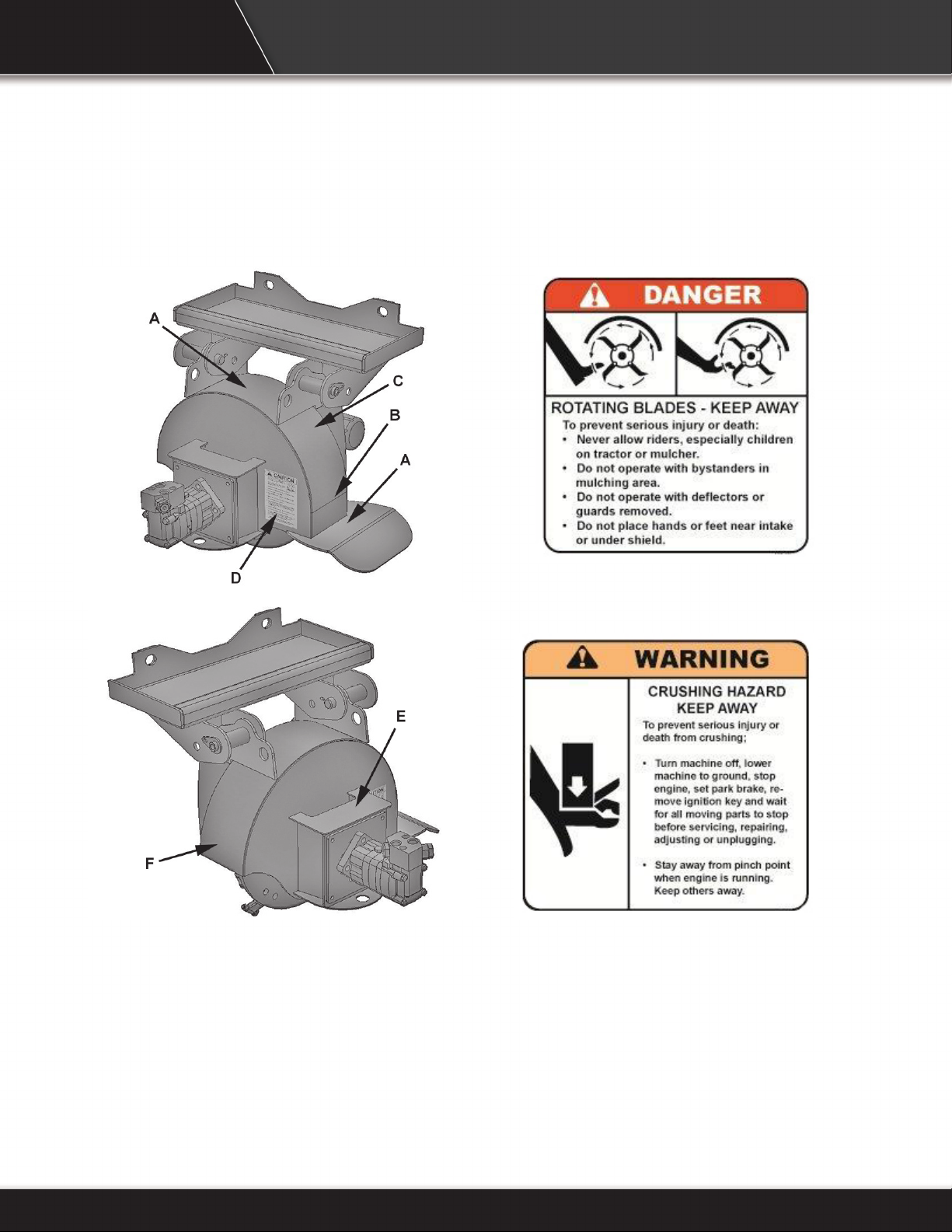

3.1 Safety Signs - S18
A. Non-Slip Pads B. MTB-180 Safety Sign
C. MTB-108 Safety Sign
10

D. MTB-182 Safety Sign
E. MTB-181 Safety Sign
C. MTB-108 Safety Sign
11

3.2 Safety Signs - S14
A. Non-Slip Pads
B. MTB-176 Safety Sign
C. MTB-180 Safety Sign
12

E. MTB-182 Safety Sign
F. MTB-177 Safety Sign
D. MTB-175 Safety Sign
13

Although the Stump Grinder has been carefully inspected
and checked prior to shipment from manufacturer, it is
recommended that the unit be thoroughly inspected.
Check all bolts for tightness and remove all shipping tags, bags,
skids, and blocking. Check swing frame to ensure that it is free
from obstruction and can operate smoothly without binding.

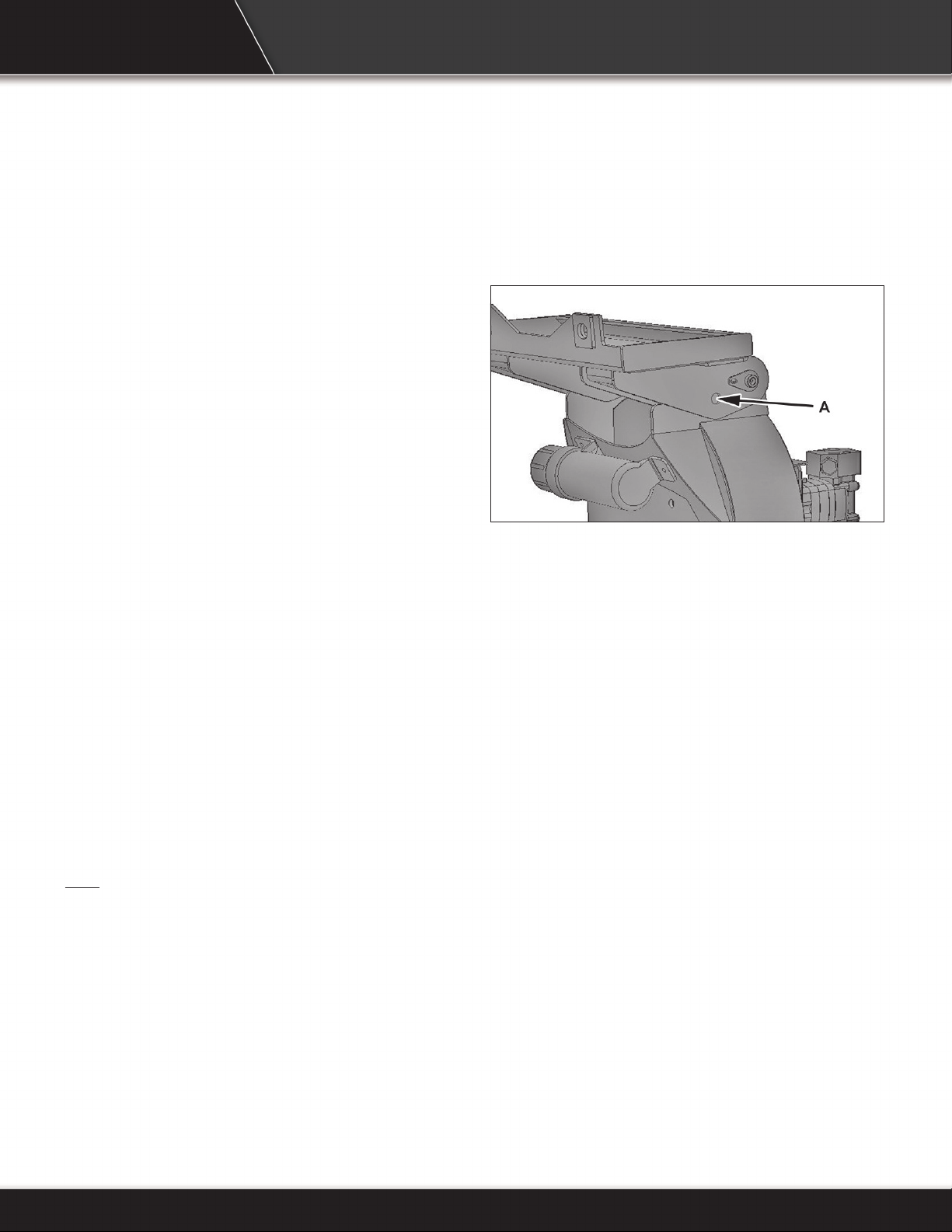

Remove stabilizer pin (A).
Remove any masking materials affixed during painting. Inspect
the skid-steer and any accessory equipment to verify that
nameplates and all safety warning, caution signs and decals
provided with the equipment are in place and clearly visible.
Visually inspect the unit before each start up. Check for loose or
missing parts and any damage that may have occurred during
moving or shipping.
Review all skid steer pre-start instructions, and ensure that
all recommended steps and procedures have been followed.
Never bar over the rotor, This could cause damage and result in
personal injury or equipment damage.
Lifted
The Stump Grinder must be lifted in a vertical direction only.
Due to the weight of the rotor the device must be adjusted
accordingly. NOTE: Always keep the weight of the machine in
mind. Never position body in line of impact.
4 OPERATION
4.1 Preparation for Use
14

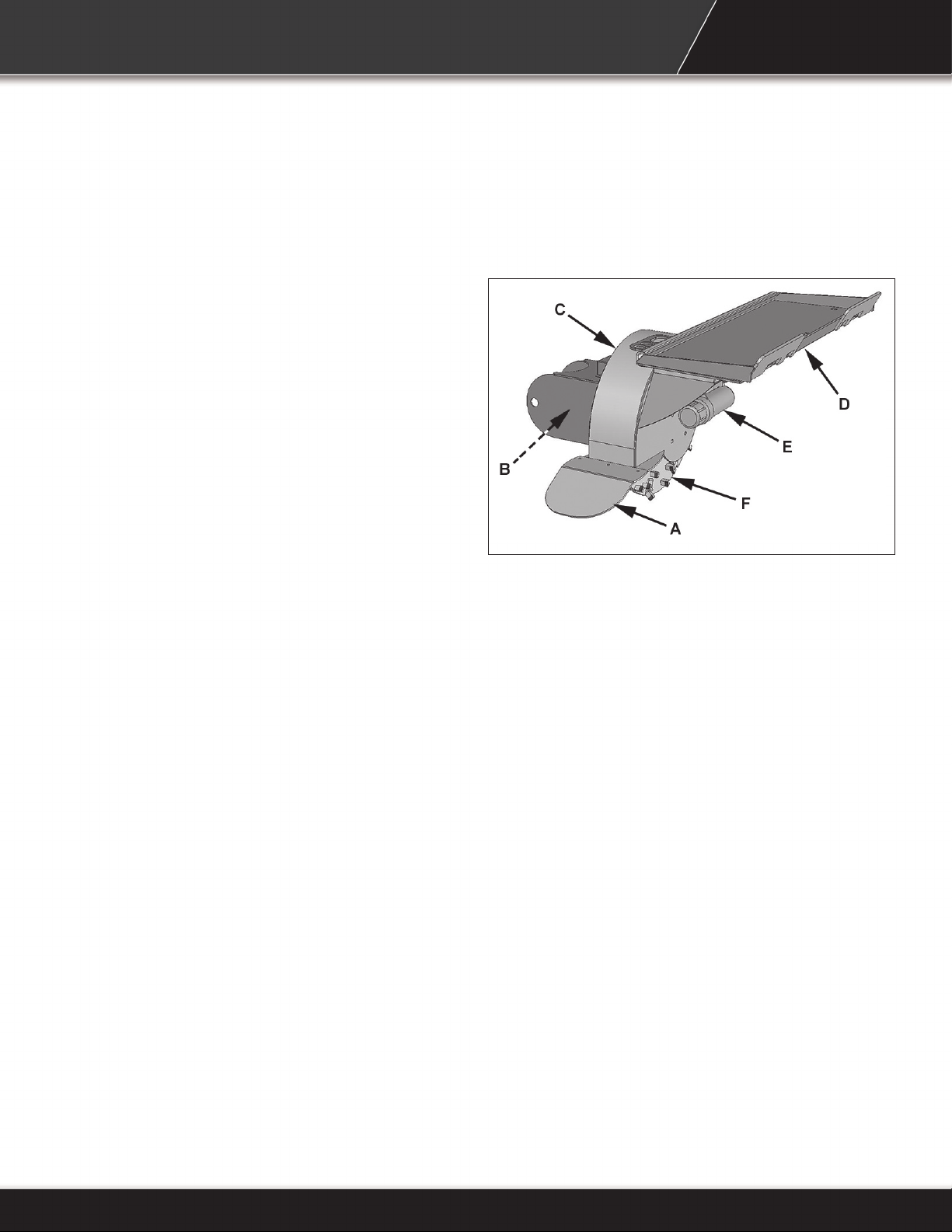

A. Debris Shield
B. Hydraulic Motor
C. Cutting Wheel Shield
D. Quick Attach
E. Manual Storage Tube
F. Cutting Wheel
4.2 Machine Components
15

^ WARNING
To prevent injury or machine damage
put transmission in “Park”.
Never position yourself between skid
steer and stump grinder.
Only experienced and properly trained
operator’s should operate the skid
steer and stump grinder.
1. Read and follow all safety instructions.
2. Attach skid steer to stump grinder. See skid
steer Operator’s Manual.
3. Verify pins are secure in the correct position.
4. Connect hydraulic hoses. Verify hydraulic
hoses are clear of pinch areas and moving
parts.
5. Move to a clear open area to test functions.
4.3 Attach To Skid
Steer
1. Park skid steer on a level surface.
2. Lower stump grinder to the ground.
3. Shut off engine and remove key.
4. Disconnect hydraulic hoses.
5. Detach skid steer from stump grinder. See
skid steer Operator’s Manual.
4.4 Detach From
Skid Steer
^ WARNING
Prevent serious injury or death caused
by unexpected movement:
1. Park skid steer on a level surface.
2. Engage skid steer park brake.
3. Disconnect hydraulic hoses.
4. Shut off engine and remove key.
16

1. Verify all reectors and Slow Moving
Vehicle (SMV) sign are visible.
2. Raise stump grinder slightly off ground.
3. Verify hydraulics are disengaged.
4. Travel at a reasonable and safe speed.
4.5 Transporting
^ WARNING
To prevent bodily injury from rotating
cutting wheel, be sure to disengage
hydraulics before transporting.
During the rst few hours of use, avoid hitting
stones as much as possible to allow the
carbide teeth to wear slightly. This can be done
by keeping the cutting wheel above ground
level. Brand new carbide tips are razor sharp
and can chip and shatter easily when they
hit hard objects. Once the razor sharpness
has worn away, the tips do not chip as easily.
Observing these precautions will extend the
life of the carbide teeth and reduce operating
expenses.
4.6 Carbide Teeth
Break-In
17

• Before starting, stand to side of stump grinder and look at
center point on bottom of cutting wheel, this will appear
different from the skid steer seat and can be very deceiving.
• Operate all functions in an open area with skid steer in idle
to get a good feel for the controls, do not expect to get first
stump done fast.
• Run throttle only at half speed for rst time users.
^ WARNING
Always turn off skid steer and
disengage hydraulic drive before
getting off the seat and approaching
the cutting wheel.
4.7 First Time User Tips
^ WARNING
Wear an approved respirator (N95 Type
as a minimum).
Follow local, state and federal
regulations.
The health effects from exposure to
wood dust are due to chemicals in the
wood or chemical substances in the
wood created by bacteria, fungi, or
molds.
18
