INTRODUCTION
Congratulations on your purchase of a Bauman Drop Spreader! This spreader has been
designed and manufactured to enable operators to carry out their work safely and efficiently.
The Bauman Drop Spreader is capable of spreading sand, salt, grit, or similar materials and
should only be used for this purpose. Correct usage of the machine also includes following the
factory’s preparation, operation and maintenance instructions.
This manual will help you understand the proper maintenance and operation of the spreader
in order to maximize the longevity and effectiveness of the machine. All information,
illustrations and technical specifications in this manual are based on the most recent product
information available at the time of printing.
Bauman Manufacturing reserves the right to change the design and specifications and/or
make additions and improvements to the product without notice.

3
GENERAL INFORMATION
The operator must read and understand the information in this
manual to ensure the correct service and operation of the machine
and avoid unnecessary risk of accidents and breakdowns.
SPREADING MATERIAL
ADJUSTING SPREAD QUANTITY
The spreading quantity is adjusted with the tension adjustment lever. Correct adjustment is
important. If the adjustment is too tight, unnecessary wear of the rubber belts or rotating
parts may occur. If the adjustment is too slack, distribution of material will be uneven.
STARTING TO SPREAD
Spreading of material starts as soon as the unit is rolled forwards or backwards.
MAINTENANCE
Important: All moveable parts must be greased regularly for the best performance. To extend
the durability of the machine, frequent and thorough cleaning is recommended. Set spring
tension to loosest setting for ease of cleaning the machine and use plenty of water when
cleaning to avoid material freezing on the roller or rubber belts.
Remember: Do not spray water directly into bearings or bearing housings. If the machine is
stored for a lengthy period of time, spray it with acid-free oil before use. Remove all foreign
material from the roller. Check and lubricate all chain and bearings regularly.
Maintenance of Wheel Clutch required: The Bauman 220 drop spreader is equipped with
clutches located in the wheels that drive the drum & agitator of the unit. These
clutches/bearings require periodic lubrication which involves removal of the wheels
IMPORTANT –Mark the wheels before removal! Wheels are directionally oriented & the unit
will not function if the wheels are reversed. To lubricate this unit:
•Remove plastic plug from wheel hub
•Remove bolt & wheel
•Apply lubrication to inner hub wheel bearings (white grease, spray lube, etc.)
•Replace wheel, retighten bolt & replace cap
It is important to properly maintain and service your spreader. Failure to comply
with the manufacturer’s suggested servicing procedures may result in premature
wear and may hinder the machine’s performance.

4
SAFETY
The Bauman Drop Spreader has been designed for single person operation only. The operator
should ensure that no one is close to the area where the machine is in use. Do not let others
ride or sit on the spreader.
The danger labels on Bauman Manufacturing equipment are for the safety of the operator as
well as pedestrians and bystanders. Read and obey warning and danger labels. Stay clear of
all moving parts and rotating shafts and ensure no one reaches into the hopper when it
spreader is in operation.

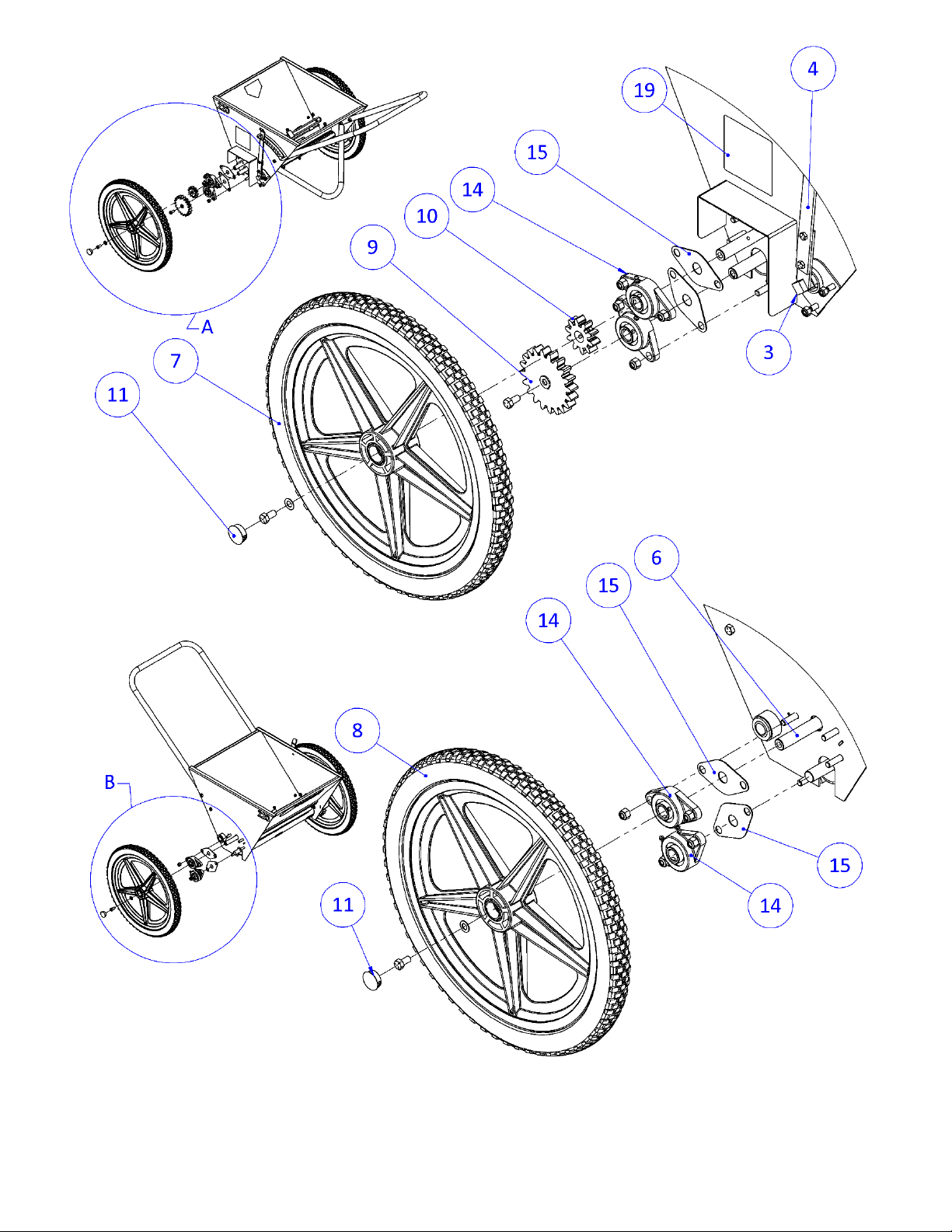

REPLACEMENT PARTS FOR WHEEL

5
220 PARTS LIST
ITEM
#
PART NUMBER
DESCRIPTION
QTY.
1
220 100
HOPPER WELDMENT
1
1.1
220 CHANNEL
CLAMP BAR FOR RUBBER
2
1.2
220 HANDLE
HANDLE
1
1.3
220 200
FINGER RETENTION PLATE
1
2
220 301
FINGER BAR ASSEMBLY
1
2.1
220 301 TUBE
FINGER BAR TUBE
1
2.2
220 R-24527
FINGER BAR "RED" 5"x19 3/4"x3/16"
1
2.3
220 301 STRIP
FINGER BAR STRIP GALVANIZED
1
3
220 401
TENSION LEVER MOUNT
1
4
220 402
TENSIONS LEVER HANDLE
1
5
220 302
DISTRIBUTOR DRUM
1
6
220 303
AGITATOR
1
7
220 WHEEL LEFT
WHEEL ASSEMBLY - LEFT
1
8
220 WHEEL RIGHT
WHEEL ASSEMBLY - RIGHT
1
9
220 GEAR-20
GEAR-20 TOOTH
1
10
220 GEAR-10
GEAR-10 TOOTH
1
11
245-034
NYLON HOLE PLUG
2
12
220 SB60-20
RUBBER FLAP-DRUM
1
13
220 SB50-20
RUBBER FLAP-FINGER BAR
1
14
UCFL 204-12
TWO BOLT FLANGE BEARING
4
15
BSFL 204-12
BEARING BACKSTOP-NEOPRENE
4
16
DECAL BAUMAN LOGO 12"
BAUMAN LOGO 12" WITH WHITE LETTERING
1
17
DECAL2202016
220 DECAL
2
18
DECALW803
KEEP HANDS/FEET AWAY
1
19
DECALSW404
MOVING PART HAZARD
1

6

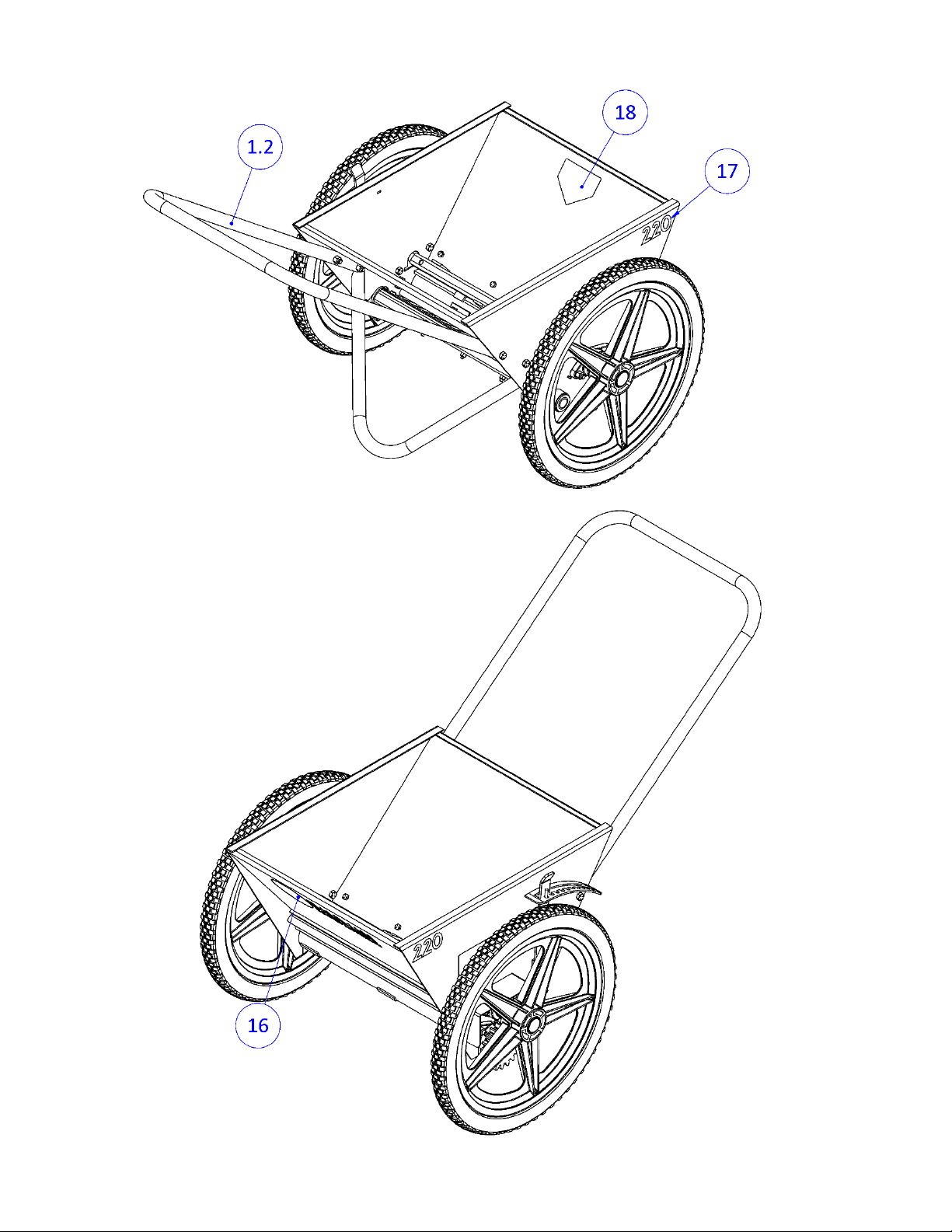

INSTALLATION LOCATIONS

7

8

9
