Baumatic BD696SS User manual

BD696SS
46 cm High
compact dishwasher

USER MANUAL FOR YOUR BAUMATIC
BD696SS 46 cm High
compact dishwasher
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 30/07/09
2

3
Contents
Environmentalnote 4
Important safety information 5 – 7
Specifications 8 - 9
Product and aperture dimensions 8
Productspecifications 8-9
Energy efficiency details 9
Electricaldetails 9
Description of the appliance 9 - 10
Controlpanel 10
Usingyourdishwasher 11 - 19
Beforefirstuse 11
Filling with dishwasher salt 11 - 12
Setting the water softener level 12-13
Filling with rinse aid 13 - 14
Setting the rinse aid level 14 - 15
Filling with dishwasher detergent 15 - 16
Loading the basket 16 - 17
The cutlery basket 17
Loading dishes and cutlery 18 - 19
Program table 20-26
Settingawashprogram 21-22
Changingawashprogram 22-23
At the end of a wash cycle 23
Additionalrinseoption 24
“3in1”key 24
Settingadelaystart 25
Rinse aid and salt indicator neons 26
Cleaning and maintenance 26 – 32
Removing the basket 26 - 27
The filter system 28
Cleaning the filters 29 – 30
Thedriptray 30-31
Cleaningthesprayarm 31
Cleaning the control panel 31
Cleaningthedoor 32
Cleaning the door gasket 32
Not using the appliance for a prolonged period? 32
Reconnecting the appliance after a period of disuse 32
Error code failure system 33 - 34
General troubleshooting 35 - 36
Installation 37 – 42
Installing the dishwasher into a kitchen cabinet 38 – 39
Connecting to the mains water supply 39
Wateroutlet 40-41
Powersupply 41-42
Beforefirstuse 42
Contactdetails 43

ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
Baumatic engineer or one of its authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your dishwasher.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe external surface of the appliance may become hot whilst
your dishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section on page 11
and page 42 of this manual.
5

6
oCare should be taken not to trap the power supply cable
underneath the appliance whilst installing it.
oNo attempt should be made to alter or modify the specifications
of this appliance.
In daily use
oThis appliance is only designed to wash normal domestic
washloads. If you use your dishwasher in any other way or it is
incorrectly used, then Baumatic accepts no liability for any
damage that might be caused and any guarantee will be void.
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThe detergents, rinse aid and salt that you place in this appliance
should be suitable for automatic dishwashers. With regards to
dosage levels, the detergent manufacturer’s recommendations
should be followed.
oSharp knives or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the main basket.
oYou should not wash any items that have come into contact
with corrosive, acidic or alkaline chemicals, paint, petrol, iron or
steel debris.
oYou should not open the door whilst the appliance is set on a
wash program. Depending on which stage that the wash
program is at, hot water could escape the machine.
oYou should not leave the door of the appliance open, unless
you are loading or unloading the dishwasher.
oYou should not stand or sit on the door when it is open.

7
Child Safety
oYour dishwasher should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
dishwasher if the door is left open. Therefore please check the
inside of the appliance before setting it on a wash cycle.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
oSome water will remain inside the dishwasher when it has
completed a wash cycle. This water is not suitable for drinking
and may contain residues from the detergents that are used in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and
subsequent modifications.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

Specifications
Product and aperture dimensions
Product dimensions Aperture dimensions
Height: 457 mm Height: 450 mm
Width: 598 mm Height: 460 mm
Depth: 568 mm (built under)
Width: 560 mm
Depth: 560 mm
Product specifications
o6 Place settings
o5 functions: Normal
Intensive
Economy
Rapid
Powerful
o4 Wash temperatures: 40°C, 50°C, 65°C, 70°C
o2 Rinse temperatures: 68°C, 70°C
8

oElectronic aqua stop
oDelay start
oLED display
oResidual drying
oConcealed heating element
oMark resistant coating
oSelf-cleaning stainless steel micro-filter
oAnti-leak device
oAnti-flood device
oLow water consumption (8 litres)
oNoise level (49 dB)
Energy efficiency details
Energy efficiency class: A
Washing performance class: A
Drying performance class: A
Electrical details
Rated voltage: 230 Vac 50 Hz
Maximum rated input: 1.58 kW
Supply connection: 13 A (double pole switched fused outlet
with 3 mm contact gap)
Description of the appliance
Interior of the appliance
9

Control panel
A) ON/OFF key
B) Program selection key
C) Delay start key
C1) Delay start icon
D) Additional rinse key
D1) Additional rinse icon
E) “3 in 1” key
E1) “3 in 1” icon
F) Start program key
G & H) Digits
I) Warning icon
J) Salt required icon
K) Rinse aid required icon
L) Wash program icons
M) Wash temperature icons
N) Door locked icon

Using your dishwasher
Before first use
oInstall the appliance as per the installation instructions contained
within this booklet.
oFill the water softener with 1 litre of tap water and then fill with
specialist dishwasher salt. After this you should set the water
softener level.
oFill the rinse aid dispenser and then set the rinse aid dosage.
Filling with dishwasher salt
IMPORTANT: You should only use salt that is specially
designed for use in a dishwasher. If any other type of salt is
used in the appliance (in particular table salt), it will damage
the water softener.
oIdeally you should fill the water softener with salt, just before
you are about to run a wash program. This will help to clear any
salt that may have overflowed from the water softener during
the salt filling process.
oOpen the door of the dishwasher and then unhook the basket
from the door. The basket should be empty when you remove it.

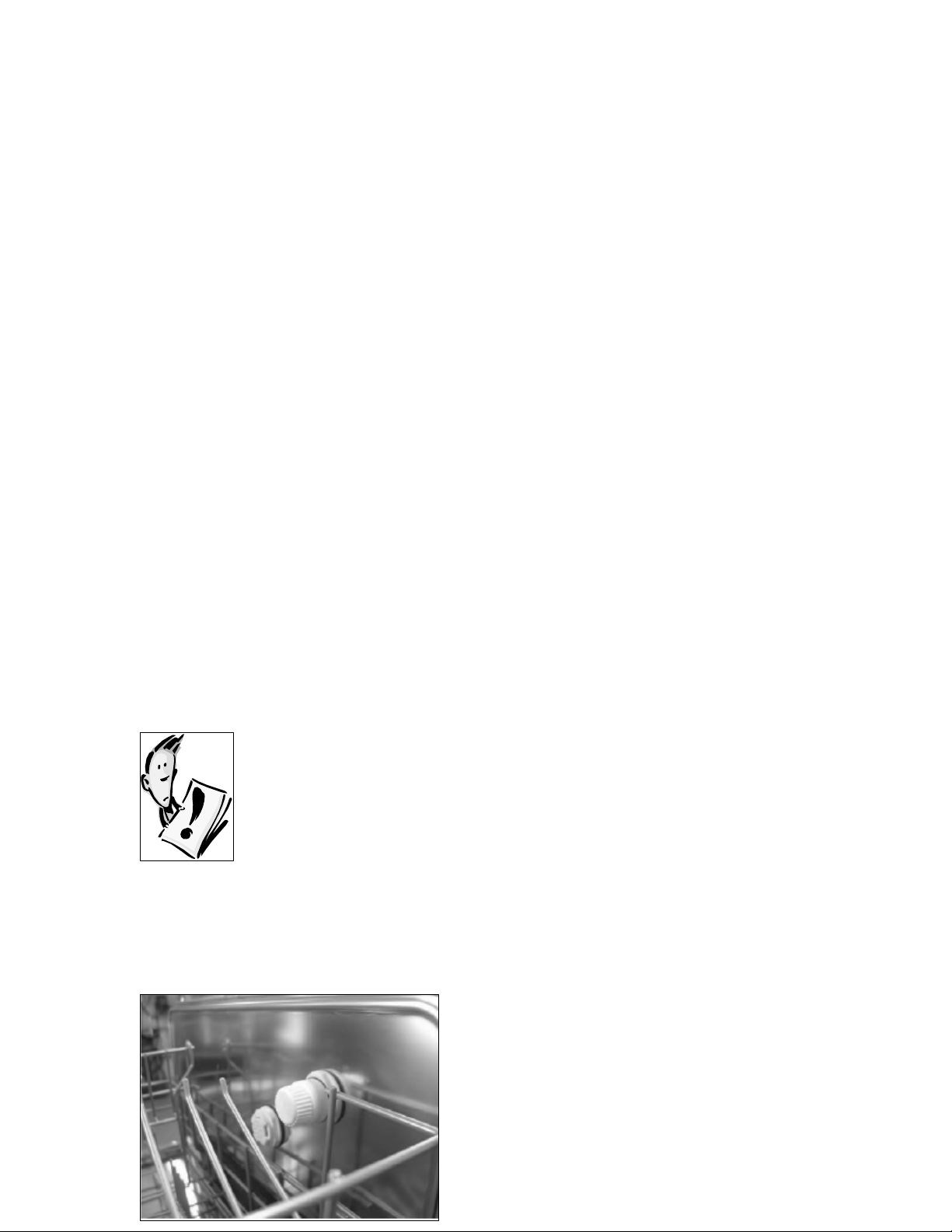

oTurn the water softener cap
anticlockwise and remove it.
oPour 1 litre of water into the water
softener.
IMPORTANT: It is only necessary to do this when you fill
the container with salt for the first time.
oEnsure that the supplied funnel is
positioned correctly.
11

oPour salt into the water softener, you
should add approximately 1 kg of salt
into the water softener.
oIt is perfectly normal for a small amount of water to come out of
the water softener, whilst you are filling it with salt. This does
not mean that the water softener is filled with the correct
amount of salt.
oRefit and fully tighten the water softener cap.
oTo remove any excess salt that may have spilled out of the
water softener, we would recommend that the rapid wash
program is completed afterwards.
oWhen the salt required neon (J) lights on the control panel, then
you should follow the “filling with dishwasher salt” procedure
again.
oIMPORTANT: You do not need to pour 1 litre of water into
the container when you subsequently fill the water
softener with salt.
Setting the water softener level
It is possible to regulate the amount of salt that the water softener will
release during a wash cycle. The water softener should be set to a
level that is appropriate for the hardness of your water (please refer to
the table below).
Display °dH °fH °Clarke
mmol/l
0 0 – 6 0 – 10 0 – 7 0 – 1
1 6 – 14 11 – 25 8 – 18 1.1 – 2.5
2 15 – 22 26 – 40 19 – 28 2.6 – 4
3 23 – 28 41 – 50 29 – 35 4.1 – 5.0
4 > 28 > 50 > 35 >5.0
oThe dishwasher will leave the factory with the water softener on
setting 2.
12

You should adjust the amount of salt that is released by the machine
taking into account the water hardness of your geographical area, to
do this you should:-
oClose the door of the dishwasher, you will hear a mechanical
click when the door of the dishwasher is shut properly.
oPress the ON/OFF key (A) to switch the machine on, the LED
display will light up and show “P0”. Immediately press and hold
the program selection key (B) until the LED display is showing a
flashing “h0”.
oTo alter the water hardness setting, use the additional rinse key
(D) to cycle through numbers 0 – 4.
oWhen the LED display shows the water softener setting that you
require, press the program selection button to confirm your
choice. The LED display will show “P0” to indicate that the
dishwasher is ready to program.
oIf you live in a soft water area and as a result select setting “0”
for the water softener, there is no need to fill the water softener
with dishwasher salt. The salt required icon (J) will remain lit.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets then it
may still be necessary to fill the water softener. You should refer
to the instructions given by the dishwasher salt manufacturer. If
they suggest using 3 in 1 tablets and separate dishwasher salt,
we would recommend that water softener setting 1 is selected.
Filling with rinse aid
The rinse aid is released during the final rinse and it helps
to prevent water from forming droplets on your dishes.
These droplets will lead to spots and streaks being left on
items after the wash program has completed.
oYour dishwasher is designed to utilise liquid rinse aid.
oThe rinse aid container is located on the inside of the dishwasher
door.
oTo access the rinse aid
dispenser, you should turn and
remove the cap to reveal the
spout.
13

oSlowly pour in liquid
rinse aid, the rinse aid
dispenser will hold
approximately 100ml
of rinse aid.
oYou should continue to fill with rinse aid until the dispenser is
full. Be careful not to overfill the dispenser, as this could cause
oversudsing when a wash program is selected. Wipe away any
rinse aid excess or spillages with a damp cloth.
oReplace the cap and turn it until it locks into position.
oWhen the rinse aid required neon (K) lights on the control panel,
then you should follow the “filling with rinse aid” procedure
again.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets then it
may still be necessary to fill the rinse aid dispenser. You should
refer to the instructions given by the rinse aid manufacturer.
Setting the rinse aid level
The amount of rinse aid that the dishwasher requires also depends on
the hardness of your water. You should experiment with the rinse aid
setting, until you find a level that gives the best results.
oThe dishwasher will leave the factory with the water softener on
setting “A1”.
oThe rinse aid level can only be set whilst the LED display is
showing “P0”.
oClose the door of the dishwasher, you will hear a mechanical
click when the door of the dishwasher is shut properly.
oPress the ON/OFF key (A) to switch the machine on, the LED
display will light up and show “P0”. Immediately press and hold
the delay start key (C) until the LED display is showing “A1”.
oTo alter the rinse aid setting, use the additional rinse key (D) to
cycle through A0 – A2.
14

oWhen the LED display shows the rinse aid setting that you
require, press the program selection button to confirm your
choice. The LED display will show “P0” to indicate that the
dishwasher is ready to program.
oIf you get water spots and poor drying performance, then the
rinse aid level should be increased to a higher level.
oYou should continue to increase the rinse aid level until you get
no water spots.
oIf you get cloudiness or streaking on your dishes, the rinse aid
level is set too high and it is causing foaming during the wash
cycle. The rinse aid level should be decreased to a lower level.
Filling with dishwasher detergent
The detergent dispenser must be refilled at the start of each wash
cycle.
oYour dishwasher is designed to use detergent tablets, you
should place one per wash cycle in the cutlery basket (in the
position shown in the above picture).
oIf you are not placing the cutlery basket inside the dishwasher
on a particular wash cycle, then it is possible to place the
detergent tablet in one of the corners of the drip tray (see
above picture).
15

oIf you are using powder detergent, this should also be placed in
one of the corners of the drip tray. You should refer to the
manufacturer’s instructions when it comes to the amount of
power detergent to use per wash cycle.
oIMPORTANT: We do not recommend that you use liquid
detergent in this appliance.
oIMPORTANT: If you are using “3 in 1” detergent tablets and
not also using separate dishwasher salt and rinse aid, then the
salt required icon (J) and rinse aid required icon (K) will remain
lit.
oIMPORTANT: If you are using “3 in 1” detergent tablets and
not also using separate dishwasher salt and rinse aid, after
selecting your wash program you must press the “3 in 1” key
(E). The “3 in 1” icon (E1) will light on the LED display.
Loading the basket
The basket is designed to wash plates (up to 26 cm in diameter),
bowls, glasses, cups, pots, pans, lids, salad bowls etc. Examples of
appropriate ways to load the basket are shown in the pictures below.
oLoading without saucepans
oLoading without plates
16

oLoading with a mixture of
plates and saucepans
oSaucepans and serving bowls must always be placed with their
bases upwards.
oDeep saucepans should be slanted, to allow water to run off.
IMPORTANT: Care should be taken to make sure that the spray
arm can move freely when items have been loaded into the
basket.
The cutlery basket
Cutlery should be placed inside of the cutlery basket. The cutlery
basket should then be placed in the appropriate position in the lower
basket.
1. Teaspoons
2. Dessert spoons
3. Soup spoons
4. Forks
5. Knives
6. Ladle
7. Serving fork
IMPORTANT: Do not allow items of cutlery to fall through
the bottom of the cutlery basket, as this may cause
damage to the spray arm and/or the cutlery. If the bottom
of the basket begins to deteriorate and allows items to fall
through, you should replace the cutlery basket.
17

Loading dishes and cutlery
Household cloths, sponges or any other object that
may absorb water SHOULD NOT be washed in a
dishwasher.
oRemove leftovers and soften the remnants of burnt food in pans,
prior to loading dishes in the appliance.
oOnce the dishwasher has been loaded, check that the spray arm
can move freely. If the spray arm comes into contact with any
item, then you should rearrange the wash load.
oCups, glasses, pans etc should all be loaded with their bases
upwards, so that water does not collect inside of them.
oCutlery and dishes should not cover each other; otherwise you
may get poor wash results.
oDo not allow glasses to touch inside the dishwasher, otherwise
damage may occur.
oSmall objects can be placed inside of the cutlery basket.
oSharp knives or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the main basket.
18

The following items are NOT suitable for washing
inside a dishwasher:-
oCutlery with a handle of mother-of-pearl, wood, horn or china.
oPlastic items that are not resistant to heat.
oCutlery that consists of glued parts that are not resistant to heat.
oCutlery items or crockery that are bonded.
oCopper or pewter items.
oLead crystal glass.
oWooden platters.
oSynthetic fibre items.
The following items are not always suitable for
washing inside a dishwasher:-
oStoneware should only be washed if the manufacturer of the
item has marked it as dishwasher safe.
oPlastic items (such as lunchboxes) should only be washed if the
manufacturer has marked it as dishwasher safe.
oGlazed crockery may fade with repeated washing inside of a
dishwasher.
oItems made of silverware or aluminium can discolour when
washed inside a dishwasher.
oAny food residue should be removed from silver items
immediately, as this can also result in discolouration.
oCertain types of glass may become dull or cloudy after a large
number of washes.
19

Program table
Wash program LED display information shown
P1
(50°C Economy)
P2
(70°C Intensive)
P3
(65°C Normal)*
P4
(40°C Rapid)
P5
(70° Powerful)
* Normal is the testing program for EN 50242.
Program
details
P1 P2 P3 P4 P5
Description 50°C
wash
68°C
rinse
Drying
70°C wash
Intermediate
rinse (x 2)
70°C rinse
Drying
65°C wash
Intermediate
rinse
70°C rinse
Drying
40°C wash
Intermediate
rinse
70°C rinse
Drying
70°C wash
Intermediate
rinse
70°C rinse
Drying
Detergent YES YES YES YES YES
Rinse aid YES YES YES YES YES
Rinse plus YES YES YES YES YES
Delay start YES YES YES YES YES
“3 in 1”
option
YES YES YES YES YES
Type of
dishes
Mixed
dishes
Mixed
resistance
dishes
Mixed
delicate
dishes
Mixed
resistance
dishes
Mixed
resistance
dishes
Types of
soiling
Normal
soiling
Heavy
soiling (not
for delicate
items)
Heavy soiling
(not for
delicate
items)
Light soiling Heavy soiling
or using a
dishwasher
cleaner
20
