Baumatic BYDI630 User manual

USER MANUAL FOR YOUR
BYDI630 60 cm Fully
integrated full height dishwasher
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 30/09/13

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 9
Dimensions 8
Specifications 8 – 9
Electricaldetails 9
Description of the appliance 10 – 11
Controlpanel 11
Usingyourdishwasher 11 - 21
Before first use 11
Filling with dishwasher salt 11 – 12
Setting the water softener level 12 - 13
Fillingwithrinseaid 13-14
Settingtherinseaidlevel 14
Filling with dishwasher detergent 15
Concentrateddetergent 16
Detergenttablets 16
Loading the upper basket 16
Adjusting the upper basket 17 - 18
Loading the lower basket 18 - 19
The cutlery basket 19
Loading dishes and cutlery 20 - 21
Program table 21-22
Settingawashprogram 22
Changingawashprogram 23
Addingmoredishes 23
At the end of a wash program 23 - 24
Rinse aid and salt indicator neons 24
Cleaning and maintenance 24 - 27
The filter system 24 - 25
Cleaning the filters 25 - 26
Cleaningthesprayarms 26
Cleaning the control panel 26
Cleaningthedoor 27
Installation 27 - 36
Aperture requirements 27 - 28
Preparing and connecting the furniture door 28 – 29
Adjusting the tension of the door spring 30
Connecting to the mains water supply 31
Connecting to the water outlet 32
Connecting to the power supply 32 - 33
Applying the condensation strip 33 - 34
Positioningthedishwasher 34
Levelling the appliance 34 - 35
Securing the dishwasher 35 - 36
Before first use 36
Error code failure system 36 – 37
General troubleshooting 38 – 39
Technicaldata 40
Contact details 41

ENVIRONMENTAL NOTE
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.
oThe packaging materials that we use are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
4

IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance to us. Please
make sure that you read this instruction booklet before
attempting to install or use the appliance. If you are
unsure of any of the information contained in this
booklet, please contact the Advice Line.
General Safety
oRepairs to your appliance must only be carried out by a
registered engineer or one of our authorised service agents. Any
attempt by an inexperienced person to repair the appliance,
could result in injury or damage to your dishwasher.
oIf you notice that the mains cable is damaged. The appliance
must not be used. The same applies if you notice that the
worktop, control panel or base area is damaged. As this could
allow access to the internal components of the machine.
oThe appliance should be turned off and isolated from the mains
supply, before either cleaning or maintenance work is attempted.
oThe mains cable must not be used to pull the plug out of the
electrical socket.
oThe machine should not be sprayed with water.
oThe external surface of the appliance may become hot whilst
your dishwasher is in use.
oIt is possible for small animals to chew either mains cables or
water hoses, which could cause an electric shock hazard.
Installation
oThe installation instructions contained within this user manual
should be followed.
oIt is obligatory for the completed installation to comply with all
relevant building regulations and local water authority
requirements.
oBefore the first use of the appliance, you should follow the
steps listed in the “Before first use” section on page 11
and page 36 of this manual.
5

6
oCare should be taken not to trap the power supply cable
underneath the appliance whilst installing it.
oNo attempt should be made to alter or modify the specifications
of this appliance.
In daily use
oThis appliance is only designed to wash normal domestic
washloads. If you use your dishwasher in any other way or it is
incorrectly used, then we accept no liability for any damage that
might be caused and any guarantee will be void.
oIt is recommended that the appliance is unplugged and the
water supply is turned off after the machine is used.
oThe detergents, rinse aid and salt that you place in this appliance
should be suitable for automatic dishwashers. With regards to
dosage levels, the detergent manufacturer’s recommendations
should be followed.
oSharp knifes or ones with long blades are a potential safety
hazard when placed in an upright position in the cutlery basket.
We would recommend that these items are placed horizontally in
the upper basket.
oYou should not wash any items that have come into contact
with corrosive, acidic or alkaline chemicals, paint, petrol, iron or
steel debris.
oYou should not open the door whilst the appliance is set on a
wash program. Depending on which stage that the wash
program is at, hot water could escape the machine.
oYou should not leave the door of the appliance open, unless
you are loading or unloading the dishwasher.
oYou should not stand or sit on the door when it is open.

7
Child Safety
oYour dishwasher should only be used by adults. You should not
allow children in the area of the machine unsupervised. You
should not let them touch the controls or play with the appliance.
oIt could be possible for a child or pet to gain access to the
dishwasher if the door is left open. Therefore please check the
inside of the appliance before setting it on a wash cycle.
oAny packaging that is removed from the machine should be kept
away from children.
oAll detergents should be kept out of children’s reach in a safe
place.
oSome water will remain inside the dishwasher when it has
completed a wash cycle. This water is not suitable for drinking
and may contain residues from the detergents that are used in
the appliance.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23 dated 19/02/1973 Low Voltage Directive and subsequent
modifications.
-89/336 dated 03/05/1989 Electromagnetic Compatibility Directive and
subsequent modifications.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your dishwasher is
located on the right hand side of the drop down door.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

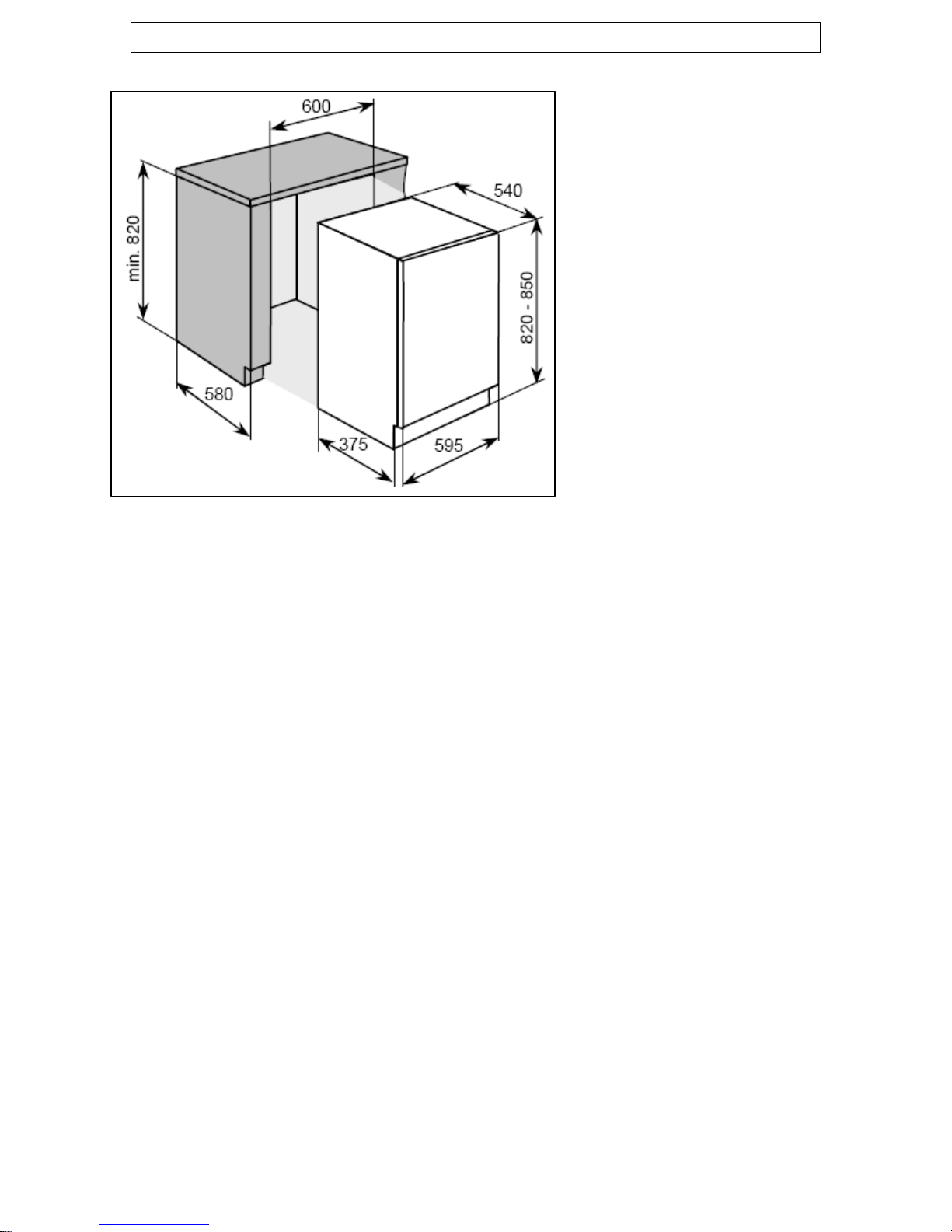

Specifications
Product dimensions
Height: 820 - 850 mm
Width: 595 mm
Depth: 540 mm
Aperture dimensions
Height: 820 mm (min)
Width: 600 mm
Depth: 580 mm (min)
Product specifications
o12 Place settings
o4 functions: Normal
Economy
Rapid
All in 1 (3 in 1)
o4 temperatures: 40°C, 50°C, 55°C, 65°C
oSelf-cleaning stainless steel micro-filter
oAnti-leak device
oAnti-flood device
oHeight adjustable upper basket
oCollapsible plate racks
oAdjustable feet
oWater softener
Energy efficiency details
Energy efficiency class: A+
Washing performance class: A
Drying performance class: A
8

Electrical details
Rated voltage: 230 Vac 50 Hz
Supply connection: 10 A (double pole switched fused outlet with
3mmcontactgap)
Optional extra
oDWD600SS- Stainless steel door with mark resistant coating and
bar handle.
9

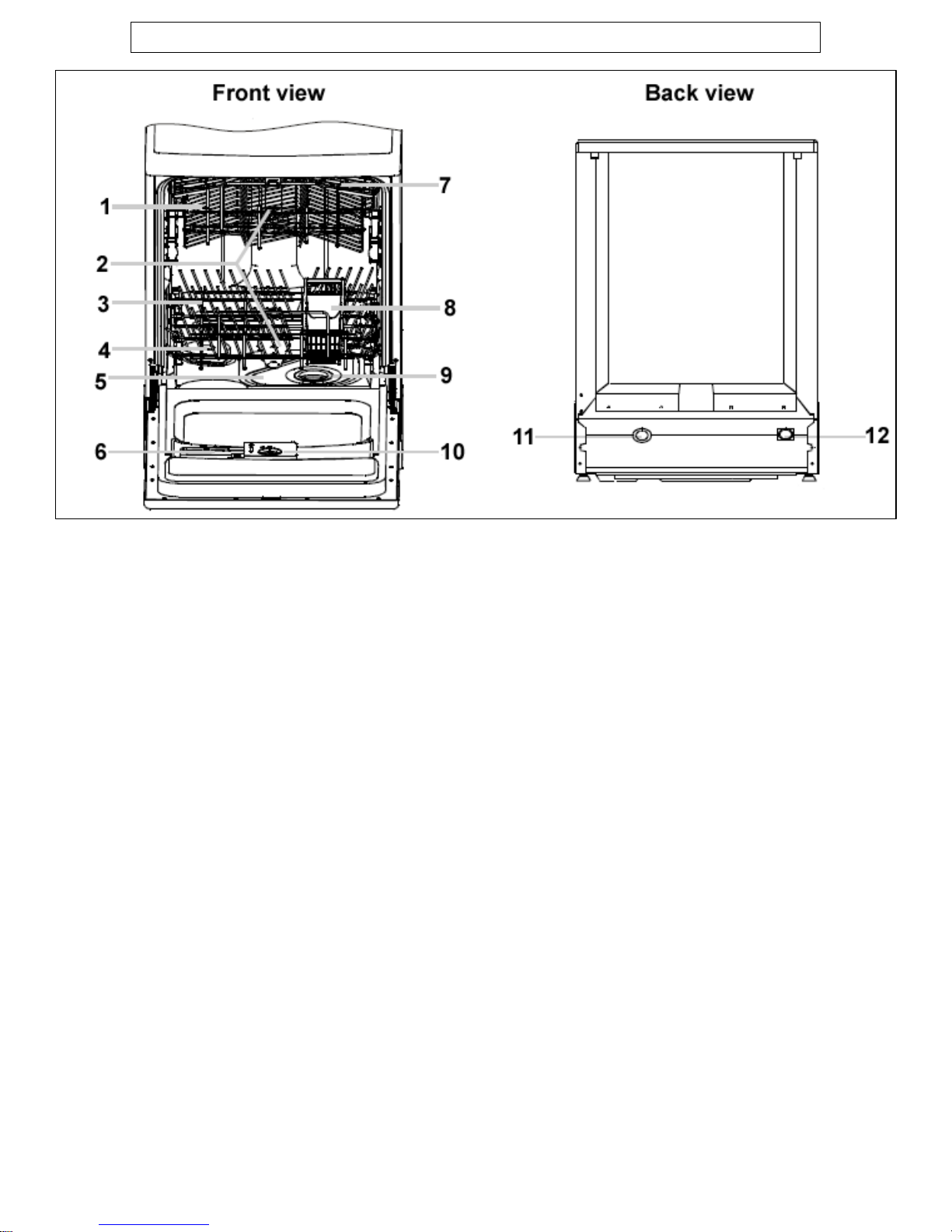

Description of the appliance
1) Upper basket
2) Spray arms
3) Lower basket
4) Water softener
5) Main filter
6) Detergent dispenser
7) Cup shelf
8) Cutlery basket
9) Coarse filter
10) Rinse aid dispenser
11) Drain pipe connector
12) Inlet pipe connector
10

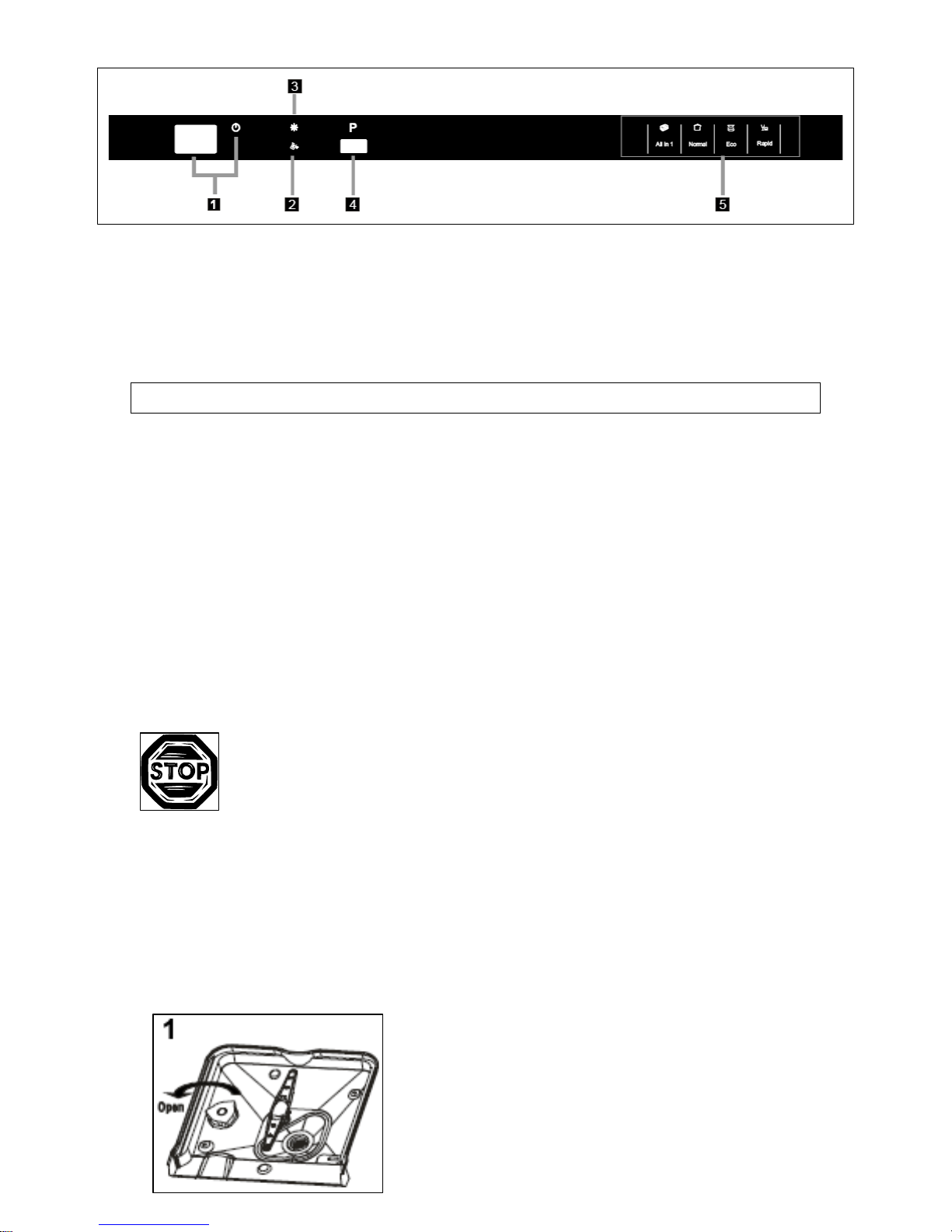

Control panel
1) ON/OFF button
2) Salt warning neon
3) Rinse aid warning neon
4) Program button
5) Program indicator lights
Using your dishwasher
Before first use
oInstall the appliance as per the installation instructions contained
within this booklet.
oFill the water softener with ½ litre of tap water and then fill with
specialist dishwasher salt. After this you should set the water
softener level.
oFill the rinse aid dispenser and then set the rinse aid dosage.
Filling with dishwasher salt
IMPORTANT: You should only use salt that is specially
designed for use in a dishwasher. If any other type of
salt is used in the appliance (in particular table salt), it
will damage the water softener.
oIdeally you should fill the water softener with salt, just before
you are about to run a wash program. This will help to clear any
salt that may have overflowed from the water softener during
the salt filling process.
oOpen the door of the dishwasher and then remove the lower
basket. The basket should be empty when you remove it.
11
oTurn the water softener cap
anticlockwise and remove it.
oPour 1 litre of water into the water
softener.

IMPORTANT: It is only necessary to do this when you fill
the container with salt for the first time.
oPour salt into the water softener, using
the funnel that is supplied with the
appliance. You should add
approximately 1 kg of salt into the
water softener.
oIt is perfectly normal for a small amount of water to come out of
the water softener, whilst you are filling it with salt. This does
not mean that the water softener is filled with the correct
amount of salt.
oRefit and fully tighten the water softener cap.
oThe salt required warning light will go out approximately 2-6
hours after you have filled the water softener with salt. When
the salt indicator neon lights on the control panel, then you
should follow the filling with dishwasher salt procedure again.
oIMPORTANT: You do not need to pour 1 litre of water into
the container when you subsequently fill the water
softener with salt.
Setting the water softener level
It is possible to regulate the amount of salt that the water softener will
release during a wash cycle. The water softener should be set to a
level that is appropriate for the hardness of your water (please refer to
the table below).
Water hardness level
°DH °FH °Clark Mmol/l
Water hardness
display Relevant lights on
35-45 61-80 43-56 6.1-8.0 H6 Eco, Normal
23-34 41-60 29-42 4.1-6.0 H5 Normal, Rapid
18-22 31-40 22-28 3.1-4.0 H4 Normal
12-17 21-30 15-21 2.1-3.0 H3* Rapid, Eco
6-11 10-20 7-14 1.0-2.0 H2 Eco
0-5 0-9 0-6 0-0.9 H1 Rapid
*factory setting
°DH : German degree
°FH : French degree
°Clark : British degree
12

To alter the amount of salt that is released by the water softener, you
should:-
oWithin 60 seconds of supplying power to the appliance, press
and hold the program button (4) for 5 seconds.
oThe machine will enter the salt adjustment mode and the salt
and rinse aid warning lights will flicker.
oUse the program button (4) to set the correct water hardness
level, according to the table above. The number of times a
buzzer sounds indicates the selected level and at the same time
the relevant program lights will come on, as shown in the table
above.
oFor example, if the machine buzzes 3 times and the Rapid and
Economy wash cycle lights come on simultaneously, this means
level H3 is set.
oAfter the desired level is displayed, release all buttons for 1
minute, or press the program button down for 3 seconds, and
the machine level will be set.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets and live
in a medium or hard water area, then you should still fill the
water softener with salt.
Filling with rinse aid
The rinse aid is released during the final rinse and it helps
to prevent water from forming droplets on your dishes.
These droplets will lead to spots and streaks being left on
items after the wash program has completed.
oYour dishwasher is designed to utilise liquid rinse aid.
oThe rinse aid dispenser is located inside the drop down door,
next to the detergent dispenser.
13

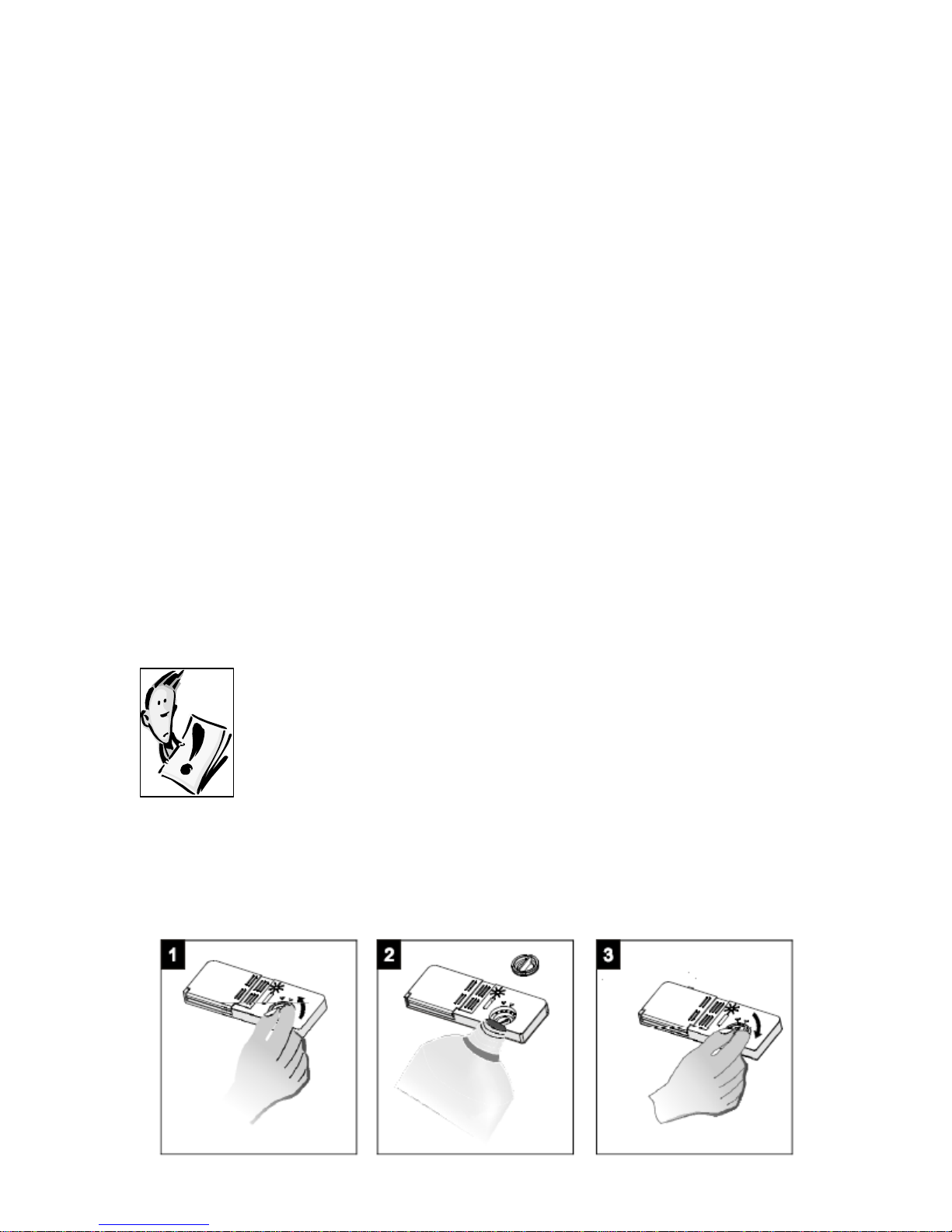

oTo access the rinse aid dispenser, you should turn the cap
anticlockwise and it will pop out of the hole (1). Then slowly
pour in liquid rinse aid (2).
oYou should continue to fill with rinse aid, until the level indicator
turns completely black.
oBe careful not to overfill the dispenser, as this could cause
oversudsing when a wash program is selected. Wipe away any
rinse aid excess or spillages with a damp cloth.
oReplace the cap and turn it clockwise until it locks into position
(3).
oYou should refill the rinse aid dispenser when the rinse aid
indicator neon lights on the control panel.
oIMPORTANT: If you are using 3 in 1 dishwasher tablets then
you should still fill the rinse aid dispenser.
Setting the rinse aid level
The amount of rinse aid that the dishwasher requires also depends on
the hardness of your water. You should experiment with the rinse aid
setting, until you find a level that gives the best results.
oOn the first wash cycle, we would recommend
that the rinse aid level is set to number 2.
oIf you get water spots and poor drying
performance, then you should turn the arrow
anticlockwise and increase the setting to the
next number.
oYou should continue to adjust the rinse aid level upwards until
you get no water spots.
oIf you get cloudiness or streaking on your dishes, the rinse aid
level is set too high and it is causing foaming during the wash
cycle. Turn the arrow clockwise and lower the setting to the next
number.
14

Filling with dishwasher detergent
The detergent dispenser must be refilled at the start of each wash
cycle.
15
Press the release button to open the lid.
ld follow the detergent manufacturer’s
recommendations.
section
B. You should use a powder of liquid detergent instead.
osition the clip on the
outer edge, so that it holds the lid shut.
ill open and the
tablet/powder/liquid will enter the dishwasher.
o
oThe section marked A in the diagram is for the main wash cycle
detergent. Only one detergent tablet should be placed in the
dispenser at any one time. If you are using detergent powder or
liquid, you shou
oThe section marked B in the diagram can have separate
detergent placed in it for any wash cycle that has a pre-wash
element to it, however this is optional. If you have used a
detergent tablet in section A you cannot use another in
oShut the detergent dispenser lid and p
oAt the beginning of a wash cycle the clip w

16
oncentrated detergent
roperties of the enzymes of the concentrated
detergent.
at can
otherwise only be achieved using an intensive program.
etergent tablets
ve and
develop their full cleaning power during short programs.
t tablets
to ensure the complete removal of detergent residues.
oading the upper basket
, saucers, plates, bowls
nd shallow pans (that are not heavily soiled).
g bowl
. Dessert dishes
they are not moved by the spray of water during the wash cycle.
a guide to the most appropriate way
to load the upper basket.
C
oThe use of the Normal wash program in combination with
concentrated detergents reduces pollution and is good for your
dishes. The Normal program is specifically matched to the dirt-
dissolving p
oIn this way, the Normal wash program, in which concentrated
detergents are used, can achieve the same results th
D
oDetergent tablets of different brands dissolve at varying speeds.
For this reason, some detergent tablets cannot dissol
oYou should select longer programs when using detergen
L

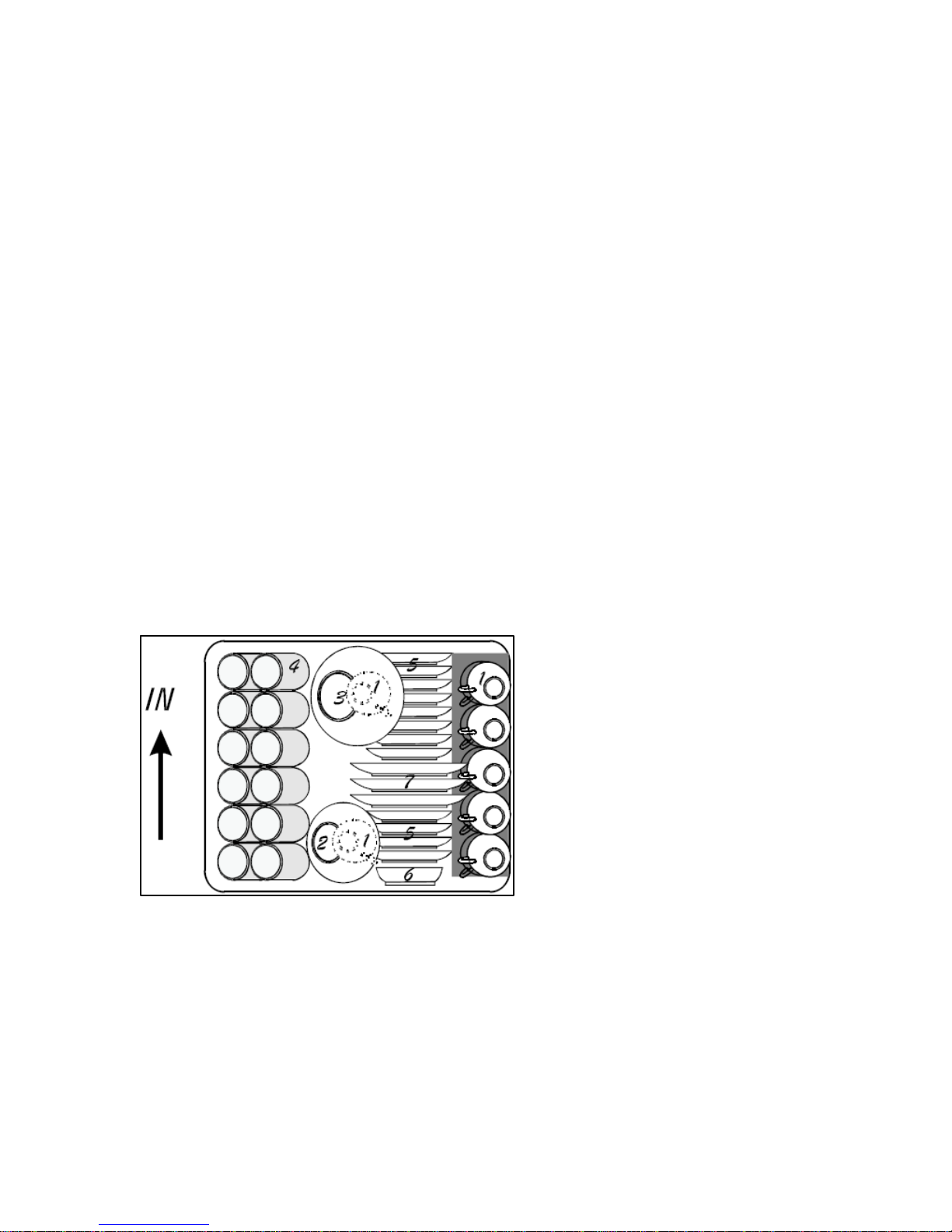

The upper basket is most suited to washing delicate and light
dishware, such as glasses, coffee and tea cups
a
1. Cups
2. Small serving bowl
3. Large servin
4. Glasses
5. Saucers
6. Dish
7
oYou should position the dishes and cookware in such a way that
oUse the diagram above as

17
djusting the upper basket
ble position for the items you are going to wash in the
pper basket.
djusted by removing the
upper basket from the guide supports.
t be empty when you are
removing it from the guide supports.
Lower position
n the basket is in
the lower position.
of the side racks and
the underneath of the dishwasher interior.
ple over when the upper
asket is pushed in or pulled out.
A
Your dishwasher has an adjustable upper basket which you can alter to
the most suita
u
oThe height of the upper basket can be a
oIMPORTANT: The upper basket mus
oIf the upper wheels are placed in the
guide supports, the
oFor accommodating additional tumblers, cups and mugs. You can
also place small, espresso sized cups on top of the side racks.
You should take care to ensure that there is enough clearance
between the top of the cups placed on top
IMPORTANT: Care should be taken when placing long
stemmed glassware, such as champagne glasses in the
upper basket. If they are not positioned correctly, then
there is a risk that they may top
b

18
pper position
the basket
is in the upper position.
he
stem of the glass rests in one of the grooves on the side flap.
the
basket will not slide back into the interior of the dishwasher.
move freely when items have been loaded into the
askets.
oading the lower basket
. You
can also load bowls and a variety of plates into the lower basket.
1. Cutlery basket
serving bowls must always be placed with their
bases upwards.
oDeep saucepans should be slanted, to allow water to run off.
for easier loading of larger
saucepans and serving bowls.
U
oIf the lower wheels are placed in
the guide supports, then
oFor accommodating items such as glass tumblers and wine
glasses. Wine glasses should be placed upside down, so that t
oPlease note that when the basket is in the upper position, you
cannot have the side flaps in a raised position. Otherwise
IMPORTANT: Care should be taken to make sure that the spray
arms can
b
L
The lower basket is most suited to washing larger and more heavily
soiled items, such as saucepans, saucepan lids and serving dishes
7. Dessert dishes
8. Serving plate
9. Dinner plates
10. Side plates
1
oSaucepans and
oThe bottom rack has prongs at the rear of the basket that can be
folded downwards, to allow

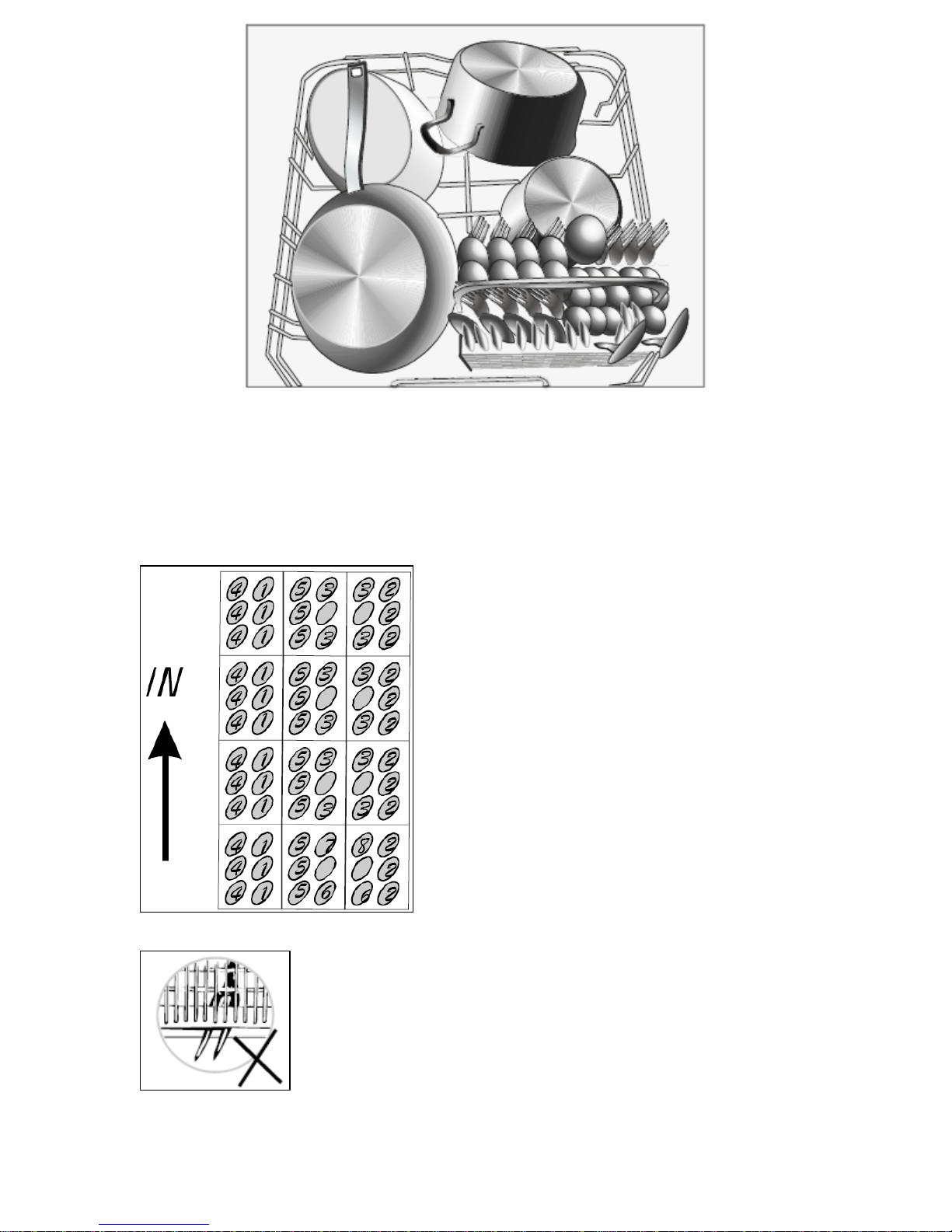

The cutlery basket
Cutlery should be placed inside of the cutlery basket. The cutlery
basket should then be placed in the appropriate position in the lower
basket.
1. Forks
2. Soup spoons
3. Dessert spoons
4. Teaspoons
5. Knives
6. Serving spoon
7. Gravy ladle
8. Serving fork
oFor the best washing
performance, cutlery should be
placed through the slots in the top
of the cutlery basket.
IMPORTANT: Do not allow items of cutlery to fall
through the bottom of the cutlery basket, as this may
cause damage to the spray arm and/or the cutlery. If
the bottom of the basket begins to deteriorate and
allows items to fall through, you should replace the
cutlery basket.
19

Loading dishes and cutlery
Household cloths, sponges or any other object that
may absorb water SHOULD NOT be washed in a
dishwasher.
oRemove leftovers and soften the remnants of burnt food in pans,
prior to loading dishes in the appliance.
oOnce the dishwasher has been loaded, check that the spray arms
can move freely. If the spray arm comes into contact with any
item, then you should rearrange the wash load.
oCups, glasses, pans etc should all be loaded with their bases
upwards, so that water does not collect inside of them.
oCutlery and dishes should not cover each other; otherwise you
may get poor wash results.
oDo not allow glasses to touch inside the dishwasher, otherwise
damage may occur.
oSmall objects can be placed inside of the cutlery basket.
The following items are NOT suitable for washing
inside a dishwasher:-
oCutlery with a handle of mother-of-pearl, wood, horn or china.
oPlastic items that are not resistant to heat.
oCutlery that consists of glued parts that are not resistant to heat.
oCutlery items or crockery that are bonded.
oCopper or pewter items.
oLead crystal glass.
oWooden platters.
oSynthetic fibre items.
20

The following items are not always suitable for washing
inside a dishwasher:-
oStoneware should only be washed if the manufacturer of the item
has marked it as dishwasher safe.
oPlastic items (such as lunchboxes) should only be washed if the
manufacturer has marked it as dishwasher safe.
oGlazed crockery may fade with repeated washing inside of a
dishwasher.
oItems made of silverware or aluminium can discolour when washed
inside a dishwasher.
oAny food residue should be removed from silver items immediately,
as this can also result in discolouration.
oCertain types of glass may become dull or cloudy after a large
number of washes.
Program table
21
Program Cycle
Information Description of cycle Detergent
Pre/main
Running
time
(min)
Energy
(Kwh) Water
(L) Rinse aid
All in 1 For normally
soiled loads,
such as pots,
plates,
glasses and
lightly soiled
pans. A
standard
daily cycle.
Pre-wash
(50°C)
Wash
(55°C)
Rinse
Rinse
(65°C)
Drying
All in 1
160
Minutes
(2:40
hours on
display)
1.35
16
Normal For normally
soiled loads,
such as pots,
plates,
glasses and
lightly soiled
pans. A
standard
daily cycle.
Pre-wash
(50°C)
Wash
(55°C)
Rinse
Rinse
(65°C)
Drying
5/25g
160
Minutes
(2:40
hours on
display)
1.30
16
Economy*
For lightly
soiled loads,
such as
plates,
glasses,
bowls and
lightly soiled
pans.
Pre-wash
Pre-wash
Wash
(50°C)
Rinse
(65°C)
Drying
5/25g
165
Minutes
(2:45
hours on
display)
1.02
12
