Baumatic BHG640SS User manual

el 1
BHG640SS 60 cm
BHG740SS 70 cm
Gas on glass hobs

User Manual for your Baumatic
BHG640SS 60 cm
BHG740SS 70 cm gas on glass hob
2
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
GS 03/11/10

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 11
BHG640SS 8
BHG740SS 9
Electricaldetails 10
Gasdetails 10
Gas hob surface layout 10 - 11
Using the gas hob 11 - 13
Beforefirstuse 11
Switchingthehobon 11
Automatic ignition with flame failure device 12
Energysavingtips 12-13
Cleaning 13 - 14
Cleaning the hob top 13
Aftereachuse 13-14
Cleaning the hob burners 14
Maintaining the cast iron pan stands 14
Installation 15 - 24
Positioning 15-16
Unpacking the appliance 16
Installing the appliance 16 – 18
Gas connection 18 - 19
Ventilationrequirements 19-20
Gas Safety (Installation and Use) Regulations 20 - 21
Gas Adjustment (Conversion to LPG) 21 - 22
Minimum flow adjustment for hob gas taps 22
Gastapmaintenance 23-24
Electricalconnection 24
Replacing the mains supply cable 24
My appliance isn’t working correctly 25
Contactdetails 26

Environmental note
4
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Advice Line.
General Information
oThis appliance is designed for domestic household use and for
the cooking and frying of domestic foodstuffs.
oIMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the ambient temperature of the
room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, will be the liability of
the owner.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYou should not use this appliance to store items on or as a work
surface.
oNo modifications to the appliance are permitted by Baumatic Ltd.
oYou should not store or place flammable or highly flammable
liquids/materials on top of or near the appliance. Items made
from aluminium, plastic or plastic film should also be kept away
from the appliance, as they may fuse to the surface.
oRepairs may only be carried out by Baumatic service
engineers or their authorised service agent.
5

6
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time. During and after use, all
surfaces will be hot.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
oOlder children should only be allowed to utilise the appliance
when supervised.
General Safety
oThe appliance should only be installed and connected by a
GASSAFE registered installer.
oCare should be taken to ensure that the units and work surfaces
that you build the appliance into, meet with the relevant
standards.
During use
oAny film or stickers that are present on the hob surface when it
is delivered should be removed before use.
oCare should be used when utilising the appliance, otherwise
there is a risk of burns being caused.
oYou should not allow the electrical connection cables to come
into contact with the hob surface when it is hot or any hot
cookware.
oIf fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooking with fat and oil the appliance should
not be left unattended.
oMake sure that all of the cooking zones are switched off after
use.

Cleaning
oCleaning of the hob should be carried out on a regular basis.
oIMPORTANT: Before attempting to clean the appliance, it
should be disconnected from the mains and cool.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oYou should not use a steam jet or any other high pressure
cleaning equipment to clean the appliance.
Installation
This appliance must be correctly installed by a
GASSAFE registered installer, strictly in
accordance with the manufacturer’s instructions
and the relevant British Standards. Please see the
specific section of this booklet that refers to
installation.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oIf the appliance is being used in a Leisure Accommodation
Vehicle, the requirements of N 721 MUST be followed.
oBaumatic Ltd. DO NOT recommend that this appliance is
installed on any type of marine vessel.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23/EEC dated 19/02/1973 Low Voltage Directive.
-89/336/EEC dated 03/05/1989 EMC Directive inclusive of
Amending Directive 92/31/EEC.
-93/68/EEC dated 22/07/1993 CE Marking Directive.
-89/109/EEC dated 25/01/1992 Materials that can touch food.
-90/396/EEC Gas Products.
-EN60335-1, EN60335-2, EN301-1 Safety Standards.
The manufacturer declares that the hob is built using certified
materials and requires the appliance to be installed in accordance with
the standards currently in force. This appliance must be used by a
trained person for domestic purposes only.
7

Specifications

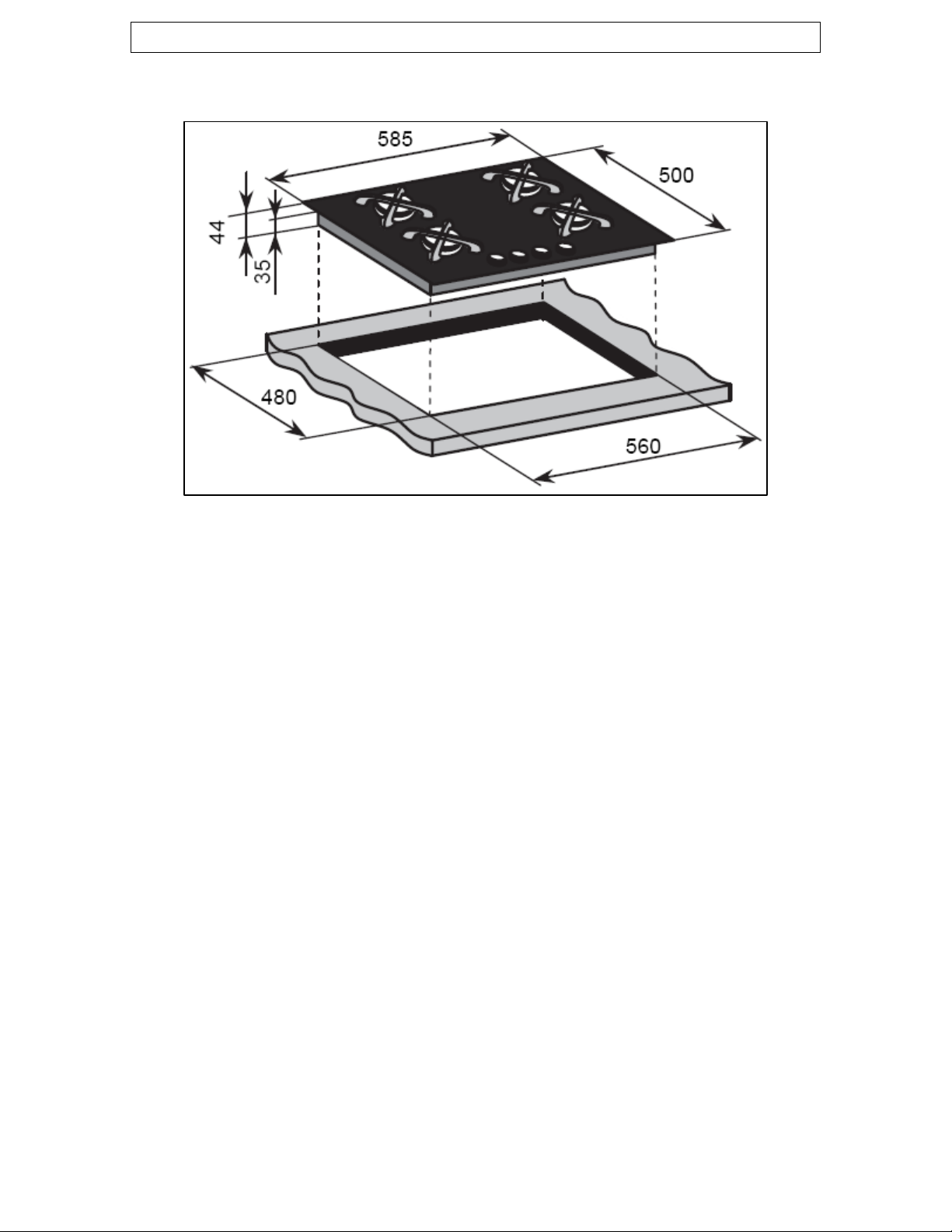

BHG640SS
Product dimensions: Aperture dimensions:
Depth: 500 mm Depth: 480 mm
Width: 585 mm Width: 560 mm
Height: 44 mm
Product specifications:
o1 x 3.00 kW rapid burner
o2 x 1.75 kW semi-rapid burners
o1 x 1.00 kW auxiliary burner
oFront control operation
oAutomatic ignition
oHeavy duty cast iron pan stands
oFlame failure safety device on each burner
Standard accessories:
oLPG conversion jets
8

BHG740SS
Product dimensions: Aperture dimensions:
Depth: 510 mm Depth: 480 mm
Width: 740 mm Width: 560 mm
Height: 47 mm
Product specifications:
o1 x 3.80 kW triple crown (wok) burner
o1 x 3.00 kW rapid burner
o2 x 1.75 kW semi-rapid burners
o1 x 1.00 kW auxiliary burner
oFront control operation
oAutomatic ignition
oHeavy duty cast iron pan stands
oFlame failure safety device on each burner
Standard accessories:
oLPG conversion jets
oWok stand
9

Electrical details (both models)
Rated Voltage: 220 - 240 Vac 50 - 60 Hz
Supply Connection: 3 A (double pole switched fused outlet with
3mm contact gap)
Max Rated Inputs: 0.006 kW
Mains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked)
Gas details
Connection: Rp ½ (ISO R7)
Type: Natural Gas (20.9 mbar)
Alternative LPG G30 (28-30 mbar)
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a good idea to record
this information before you install your appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

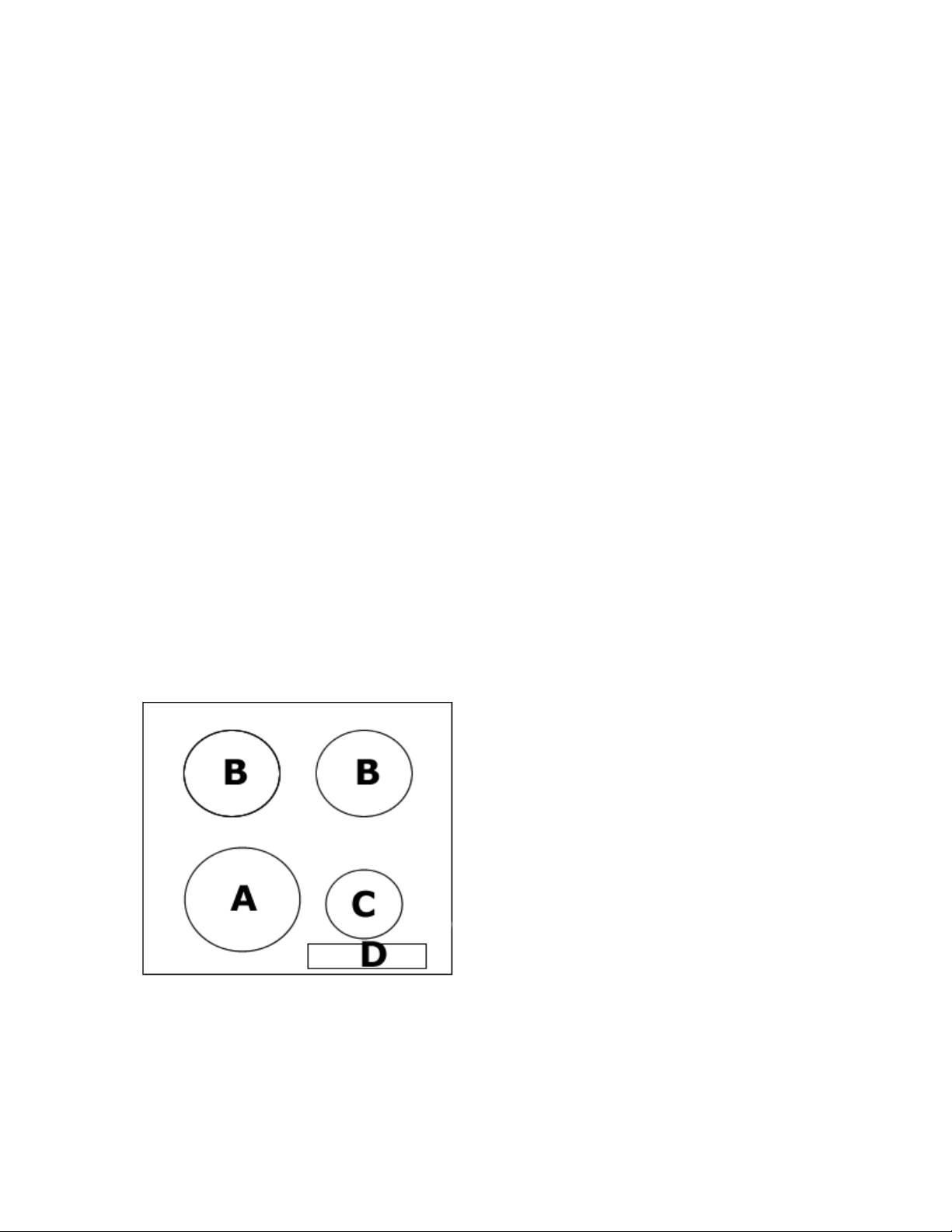

Gas hob surface layout
BHG640SS
A = 3.00 kW rapid burner
B = 1.75 kW semi-rapid burner
C = 1.00 kW auxiliary burner
D = Control panel
10

BHG740SS
A = 3.80 kW triple crown
(wok) burner
B = 3.00 kW rapid burner
C = 1.75 kW semi-rapid
burner
D = 1.00 kW auxiliary
burner
E = Control panel
Using the gas hob
Before first use
IMPORTANT: You should clean the hob surface (see
“Cleaning and maintenance” section).
Switching the hob on
The following symbols will appear on the control panel, next to each
control knob:
= gas off
Large flame: maximum setting
Small flame: minimum setting
oThe minimum setting is at the end of the anti-clockwise rotation
of the control knob.
oAll operation positions must be selected between the maximum
and minimum position.
oNever select a knob position between the maximum and off
position.
oThe symbol on the control panel, next to the control knob will
indicate which gas burner it operates.
11

Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each
burner, which is designed to stop the flow of gas to the burner head in
the event of the flame going out.
To ignite a burner:
oPress in the control knob of the burner that you wish to light and
turn it anti-clockwise to the maximum position.
oIf you keep the control knob pressed, the automatic ignition for
the burner will operate.
oYou should hold down the control knob for 20 seconds after the
flame on the burner has lit.
oAfter this 20 second interval, turn the control knob to your
required setting between the maximum and minimum setting
symbols.
oTo switch the burner off, turn the control knob fully clockwise to
the gas off position.
oIn case of power failure, the burners can be lit by carefully using
a match.

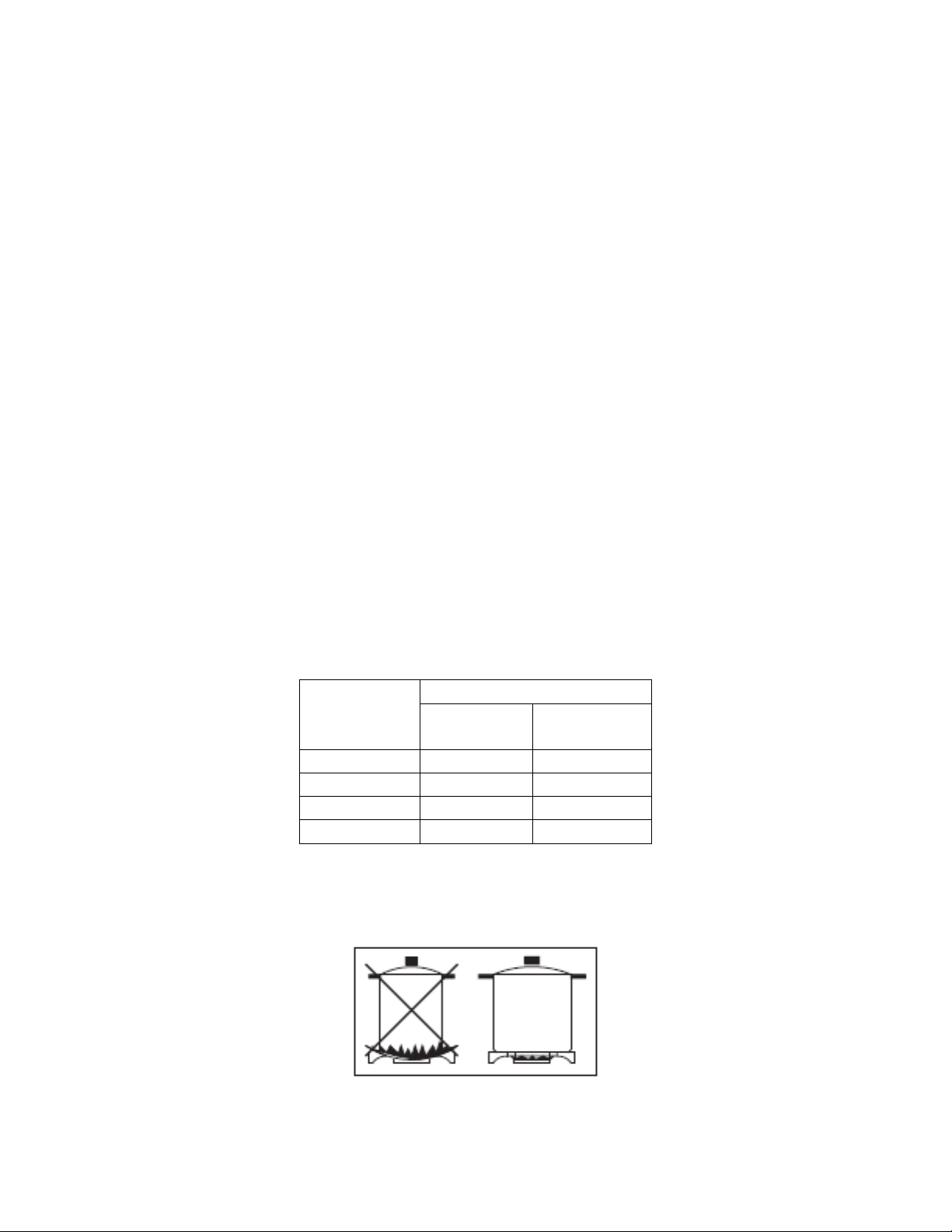

Energy saving tips
PANSBURNERS
Minimum
Ø
Maximum
Ø
Wok 220 mm 260 mm
Rapid 180 mm 220 mm
Semi-rapid 120 mm 200 mm
Auxiliary 80 mm 160 mm
oThe diametre of the bottom of the pan should correspond to that
of the burner.
12

oThe burner flame must never extend beyond the diametre of the
pan.
oUse flat bottomed pans only
oWhen possible, keep a lid on the pan whilst cooking.
oCook vegetables with as little water as possible, to reduce
cooking times.
IMPORTANT: Always place pans centrally over the hob burners and
position them so that the handles cannot get accidentally caught or
knocked off. You should also make sure that the handle is not over one
of the other hob burner flames.
Cleaning
Cleaning operations must only be carried out when
the hob is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
Cleaning the hob top
Any residues that are left on the hob top surface from cleaning
agents will damage it. You should remove any residues with
warm soapy water.
Abrasive cleaners or sharp objects will damage the hob surface;
you should clean it using warm soapy water.
Although it is easier to clean some deposits whilst the
hob surface is still warm. Make sure that the hob surface,
pan supports and hob burners have all cooled sufficiently
before you attempt to touch them.
After each use
oRemove the pan stands and wipe the appliance over with a soft,
damp cloth that has been put into warm soapy water. The cloth
should be wrung out after being taken out of the soapy water.
oDry the appliance by rubbing the surface with a soft, clean cloth.
13

14
oWe would recommend that an appropriate neutral and non-
flammable detergent is used to clean the glass surface of the
hob.
Cleaning the hob burners
The hob burners should be cleaned once a week or more frequently if
they get soiled.
oIMPORTANT: Make sure that the hob surface, pan stands and
hob burners have cooled before you attempt to touch them.
oRemove the hob burners by pulling them upwards and away
from the hob top.
oSoak them for about ten minutes in hot water and a little
detergent.
oAfter cleaning and washing them, wipe and dry them carefully.
oBefore placing the burners back on the hob top, make sure that
the gas jet is not blocked.
oIMPORTANT: Make sure that you reassemble the burners in the
original way.
Maintaining the cast iron pan stands
oIMPORTANT: Make sure that the hob surface and pan stands
have cooled before you attempt to touch them.
oWipe the pan stands over with a soft, damp cloth that has been
put into warm soapy water. The cloth should be wrung out after
being taken out of the soapy water.
oUsing a paper towel, thoroughly dry the pan stands.
oTo maintain the appearance of the cast iron pan stands, we
would recommend that you rub a small amount of olive oil into
the pan stands, after you have finished cleaning them.

Installation
The installation must be carried out by a GASSAFE
registered installer, in accordance with the current
version of the following.
oGas Safety Regulations (Installation & Use)
oBuilding Regulations (issued by the Department of Environment)
oBuilding Standards (Issued by the Scottish Development
Department)
oIEE Wiring Regulations
oElectricity at Work Regulations BS 6172
oInstallation of Domestic Gas Cooking Appliances (if necessary,
BS 5482 Installation of Domestic LPG Appliances)
oBS 5440 Installation of Flues and Ventilation for Gas Appliances
oBaumatic Ltd Installation Instructions
Positioning
The adjacent furniture must be able to withstand a
minimum temperature rise of 85°C above the ambient
temperature of the room it is located in, during
periods of use.
oThis appliance can be located in a kitchen, a kitchen diner or a
bed sitting room. IMPORTANT: The appliance must not be
installed in a bathroom or shower room.
This appliance is classified as Class 3 and therefore is to be built into a
kitchen unit (depending on size) or 600mm worktop, providing the
following minimum distances are allowed:
oThe edges of the hob must be a minimum distance of 55 mm
from a side or rear wall.
o700 mm between the highest point of the hob surface (including
the burners) and the underside of any horizontal surface directly
above it.
o400 mm between the hob surface, providing that the underside
of the horizontal surface is in line with the outer edge of the hob.
15

If the underside of the horizontal surface is lower than 400 mm,
then it must be at least 50 mm away from the outer edges of
the hob.
o50 mm clearance around the appliance and between the hob
surface and any combustible materials.
Unpacking the appliance
When unpacking the appliance please check that the following items
are contained within the packaging:
1 x Baumatic hob
Pan stands
Burner assemblies
Instruction manual
Baumatic warranty card
Fixing screws
Clamps
Sealing strip
LPG conversion jets
Wok stand (BHG740SS)
Self-adhesive label for amending the gas category on the appliance’s
rating plate (required if the LPG conversion jets are used).
Installing the appliance
BHG640SS
16

BHG740SS
oCut a hole in the worktop that corresponds with the illustration
above.
oIMPORTANT: You must have a gap of at least 25 mm between
the underneath of the appliance and any surface that is below it.
oCarefully turn the hob upside down and place it on a cushioned
mat.
oApply the sealing strip (A) provided around the edge of the
appliance.
oThe protective covering must be removed from both sides.
17

oDo not leave a gap in the sealing agent or overlap the thickness.
oIMPORTANT: Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to remove the hob
from the aperture in future if it needs to be serviced.

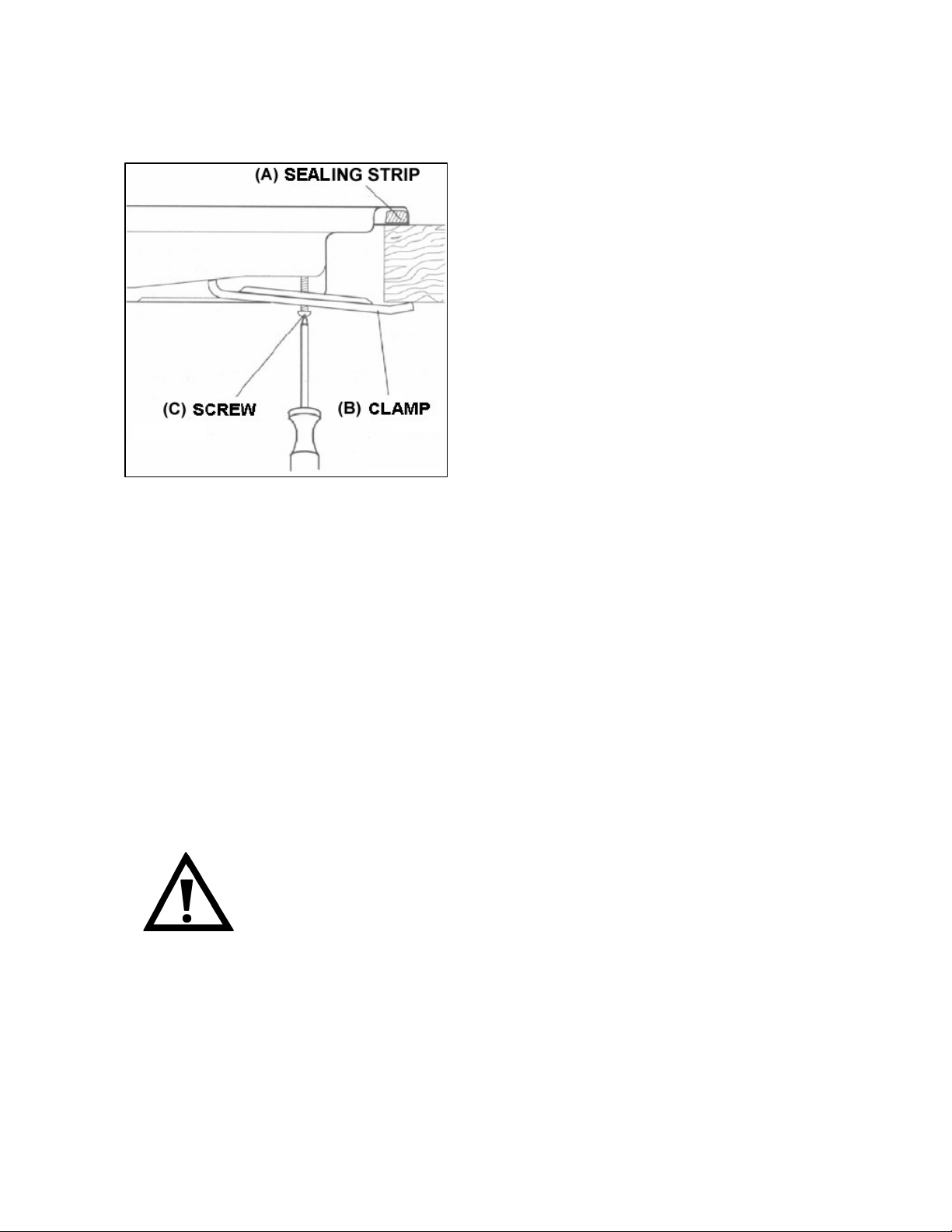

(A) Sealing strip
(B) Clamp
(C) Screw
oPlace the clamp (B) over the holes that match the size of the
screws. There are one set of screw holes in each corner of the
hob. Slightly tighten a screw (C) through the clamp (B) so that
the clamp is attached to the hob, but so that you can still adjust
the position of it.
oCarefully turn the hob back over and then gently lower it into the
aperture hole that you have cut out.
oOn the underneath of the hob, adjust the clamps into a position
that is suitable for your worktop. Then fully tighten the screws
(C) to secure the hob into position.
Gas connection
This appliance must be installed by a competent
person in accordance with the current versions of
the following UK (United Kingdom) or ROI (Republic
of Ireland) Regulations and Safety Standards or
their European Norm Replacements.
Important information
oThis hob is supplied to run on natural gas only and cannot be
used on any other type of gas without modification.
18

19
oConversion for use on LPG and other gases must only be
undertaken by a qualified person. For information on the use of
other gases, please contact the Baumatic Advice Line.
oThe hob must be installed by a qualified person, in accordance
with the current edition of the Gas Safety (Installation and Use)
(Amendment) Regulations and the relevant building/I.E.E.
Regulations.
oFailure to install the appliance correctly could invalidate
Baumatic’s guarantee and lead to prosecution under the
regulations quoted above.
oIn the UK, GASSAFE registered installers are authorised to
undertake the installation and service work, in compliance with
the above regulations.
Ventilation requirements
oThe room containing the hob should have an air supply in
accordance with the current edition of BS 5440: Part 2:
oThe room must have opening windows or equivalent; some
rooms may also require a permanent vent.
oIf the room has a volume between 5 and 10m³, it will require an
air vent of 50cm² (effective area). Unless it has a door which
opens directly to the outside.
oIf the room has a volume of less than 5m³, it will require an air
vent of 100cm² (effective area).
oIf it is installed in a room with a volume that exceeds 11m³, then
no air vent is required.
oIf there are any other fuel burning appliances in the same room
the current edition of BS 5440: Part 2: should be consulted to
determine air vent requirements.
oEnsure that the room containing the hob is well ventilated, keep
natural ventilation holes or install a mechanical ventilation device
(mechanical cooker hood).
oProlonged intensive use of the appliance may call for additional
ventilation, either by the opening of a window, or by increasing
the level of the mechanical ventilation device (where present).

oThis hob is not fitted with a device for discharging the products
of combustion. Ensure that the ventilation rules and regulations
are followed.
oThe walls behind and near the hob should be resistant to heat,
steam and condensation.
oRemember that the quantity of air necessary for combustion
must never be less than 2m³/h for each kW of power (see total
power in kW on the appliance rating plate).
Gas Safety (Installation and Use) Regulations
IMPORTANT: The appliance MUST be connected to the gas
supply by use of a ½ BSP Elbow, seal, copper pipe and an
isolation tap fitted in an easily accessible position.
oIt is the law that all gas appliances are installed by competent
persons in accordance with the current edition of the Gas Safety
Installation and Use Regulations.
oIt is in your interest and that of safety to ensure compliance with
the law.
oIn the UK, GASSAFE registered installers work to safe standards
of practice. The cooker must also be installed in accordance with
the current edition of BS 6172. Failure to install the hob correctly
could invalidate the warranty, liability claims and lead to
prosecution.

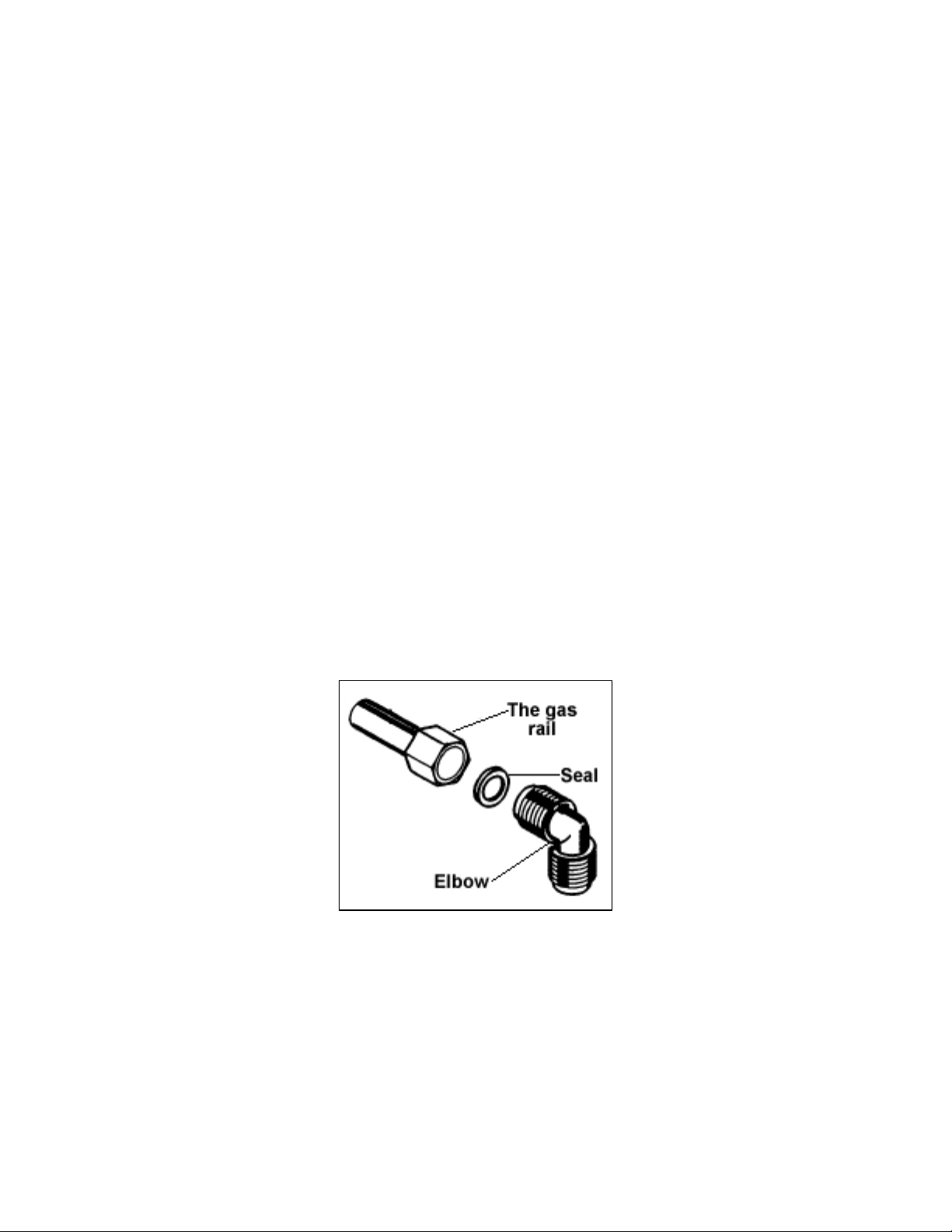

oPut the gas seal into the elbow.
oFully tighten the elbow and seal onto the gas rail.
oThe elbow MUST be pointing in a downwards direction.
oGas pressure may be checked on a semi-rapid hob burner.
Remove the appropriate injector and attach a test nipple. Light
20
