Baumatic BWCSZ150SS1 User manual

User manual for your Baumatic
51 Bottle Temperature Controlled Wine Cabinet
BWCSZ150SS1/BWCSZ150GL1
SINGLE ZONE WINE CABINET
NOTE: This user manual contains important information including safety & installation
points which will enable you to get the most out of your Baumatic appliance. Please keep it in
a safe place so that it is readily available for future reference.
°F
°C

2
Thank you for purchasing a Baumatic built in wine cabinet.
Your appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the
factory, the appliance was thoroughly checked with regard to safety and functionality.
Before using the appliance, please carefully read these Operating Instructions.
Environmental note
Important safety information
Structure drawing
Installation
Accessory installation before operating
Using your Baumatic wine cabinet
Care and maintenance
Troubleshooting
Warranty Registration Card
3
4 - 5
6
7 – 11
12
13 - 16
17 - 18
19 - 20
21
NOTE: The appliance is intended for household use only.
The manufacturer reserves the right to introduce changes which do
not affect the operation of the appliance.
Contents

3

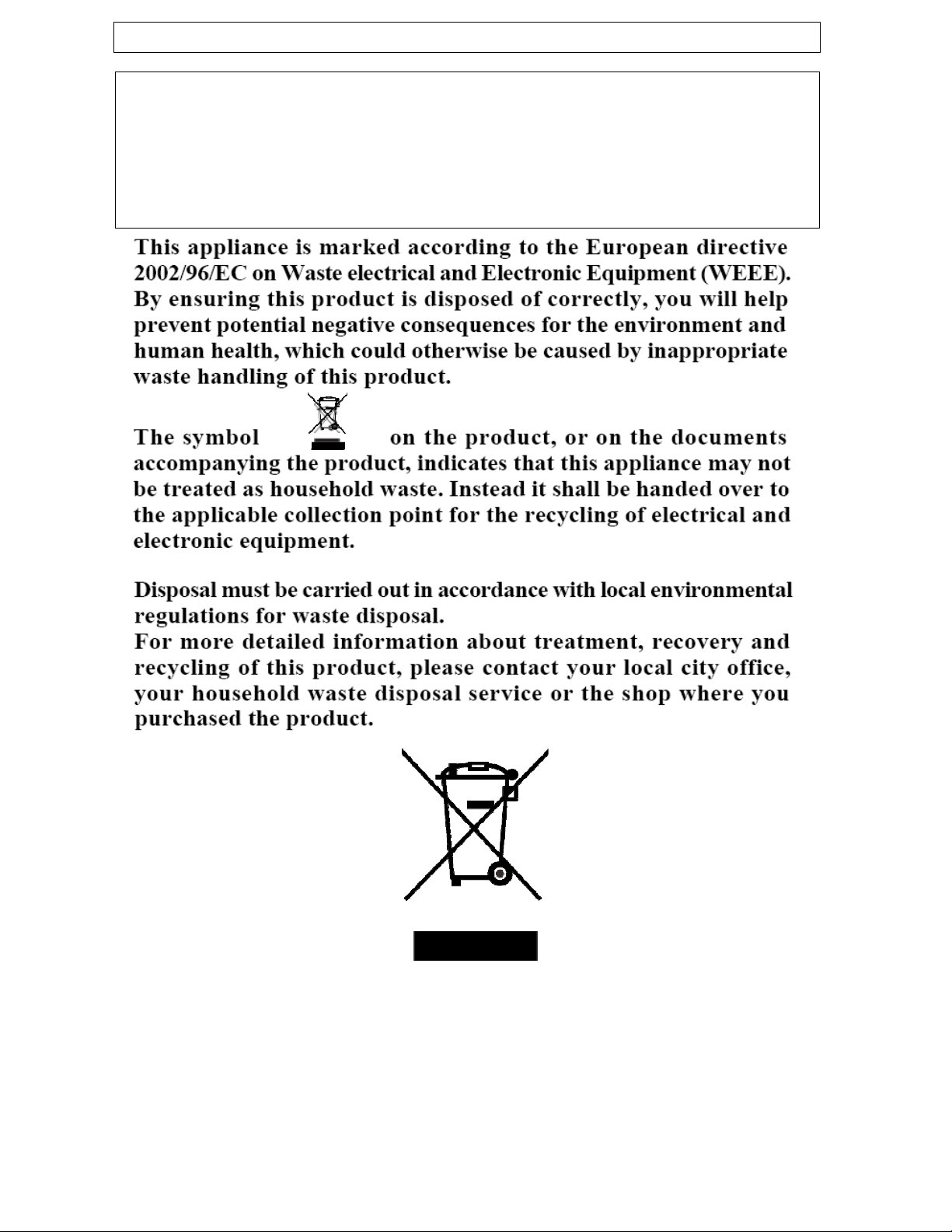

Environmental note
o The packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
o Please discard all packaging material with due regard for the
environment.
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by acompetent person. Disable
the door lock to make sure that children cannot get stuck inside the
appliance.

4
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact Baumatic Service Care.
IMPORTANT: Any installation work must be carried
out by a qualified electrician or competent person.
Use of the appliance
o Your appliance is only designed to be used in the
home. It is suitable for storing and chilling wine.
NO food stuffs must be stored in the appliance. If it
is used for any other purpose or it is not used
correctly, then Baumatic will accept no liability
for any damage that is caused.
o Altering the specification of the appliance must not be attempted
for reasons of safety.
Before using your appliance
o Check the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your retailer.
Refrigerant
o Your appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sure that the refrigeration pipework
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
o Do not place any objects on top of the appliance,
as this may damage the table top.

5
Child safety
o Packaging material should be kept away from
children.
o Children should not be allowed to touch the
controls or play with the appliance.

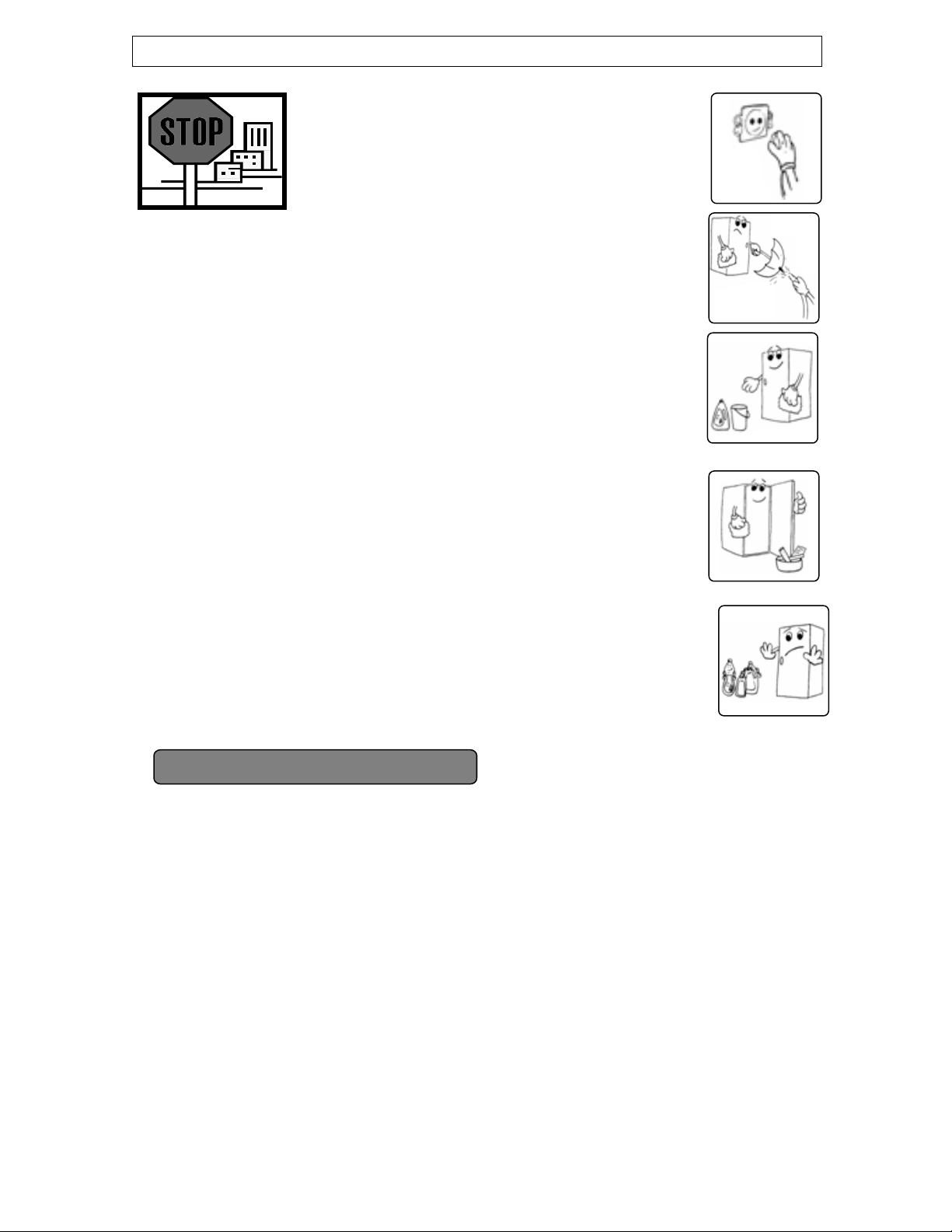

General safety
o Do not pull on the power supply cable to remove the plug from
your mains supply socket.
o Do not pull out or insert the plug with wet hands.
o Do not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
o Before cleaning the appliance or performing maintenance work,
ensure that the appliance has been disconnected from your
mains supply.
o Never allow the back coils of the appliance to come into contact
with the wall surface.
o Always ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
o Never block the ventilation openings of the appliance, either on
the inside or its exterior.
o It is vital to keep your appliance well ventilated, so
that there is proper air flow between the bottom of
the unit and the plinth/kick plate which it is sitting
on.
o Do not place electrical devices inside of the appliance, such as
mixers or ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact Baumatic Service Care.

6
Structure drawing
The following pictures only show the structure of the appliance as well
as the installation drawing. The dimension and shelf quantity may differ
among the models of the same series.
BUILT-UNDER SERIES (Built under a kitchen table top)

7
7
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found on the front left edge of the
inside of the wine cabinet.
The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR WINE CABINET IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
"We recommend that the appliance is connected by a
qualified electrician, who is registered on the E.W.R.B. web site
and who will comply with the AS/NZS 3000 Wiring
Regulations and local regulations.
Your wine cabinet comes supplied with a 10 amp moulded lead with
an AS/NZS 3112 approved plug.
The wiring in the mains lead is coloured as follows:
o Brown Live
o Blue Neutral
o Green and yellow Earth
As the colours of the wires in the appliance's mains lead may not
correspond with the coloured markings identifying the terminals in
your spur box, please proceed as follows:
o The brown wire must be connected to the terminal marked
"L" (live), or coloured red.
o The blue wire must be connected to the terminal marked
"N" (neutral), or coloured black.
o The green and yellow wire must be connected to the terminal
marked "E" (earth), or by the earth symbol, or coloured green and
yellow.
When the connection is completed, no stray strands or cut wire should
be present. The cord clamp must be secured over the outer sheath."

8
Positioning
o It is advisable that your appliance is only installed in a location
where the ambient temperature of the room, corresponds with
the climate classification that is stated on the rating plate of your
appliance. Your appliance may not function correctly if the
ambient temperature falls outside of the following ranges.
Climate classification Appropriate ambient temperature
SN +10 to +32 degrees centigrade
N +16 to +32 degrees centigrade
ST +18 to +38 degrees centigrade
T +18 to +43 degrees centigrade
o Positioning the appliance requires two people in order to avoid
injuries or damage to the appliance.
o Your appliance should not be located in direct sunlight or
exposed to continuous heat or extremes of temperature (e.g.
next to a radiator or boiler). If this is not feasible, then you
should install an insulation plate between the appliance and the
adjacent heat source.
o You should check whether there is an electrical socket available,
which will be accessible after your appliance is installed.
o Place the appliance flatly and firmly on a solid base. The
appliance is fitted with adjustable feet on the front side, which
should be used to level the appliance.
o Be sure to leave enough space for the opening of the door, to
avoid damage to the appliance or personal injury.
o IMPORTANT: The vent at the base of the appliance is for
ventilation. Nothing should be placed in front of this vent;
otherwise your wine cabinet may not operate properly.

9
595mm Width Installation Drawing (mm)
o Your wine cabinet can be used as a built in unit. The clearances
shown in the above drawing should be followed for both types of
installation.
o In particular the depth dimension must be observed.

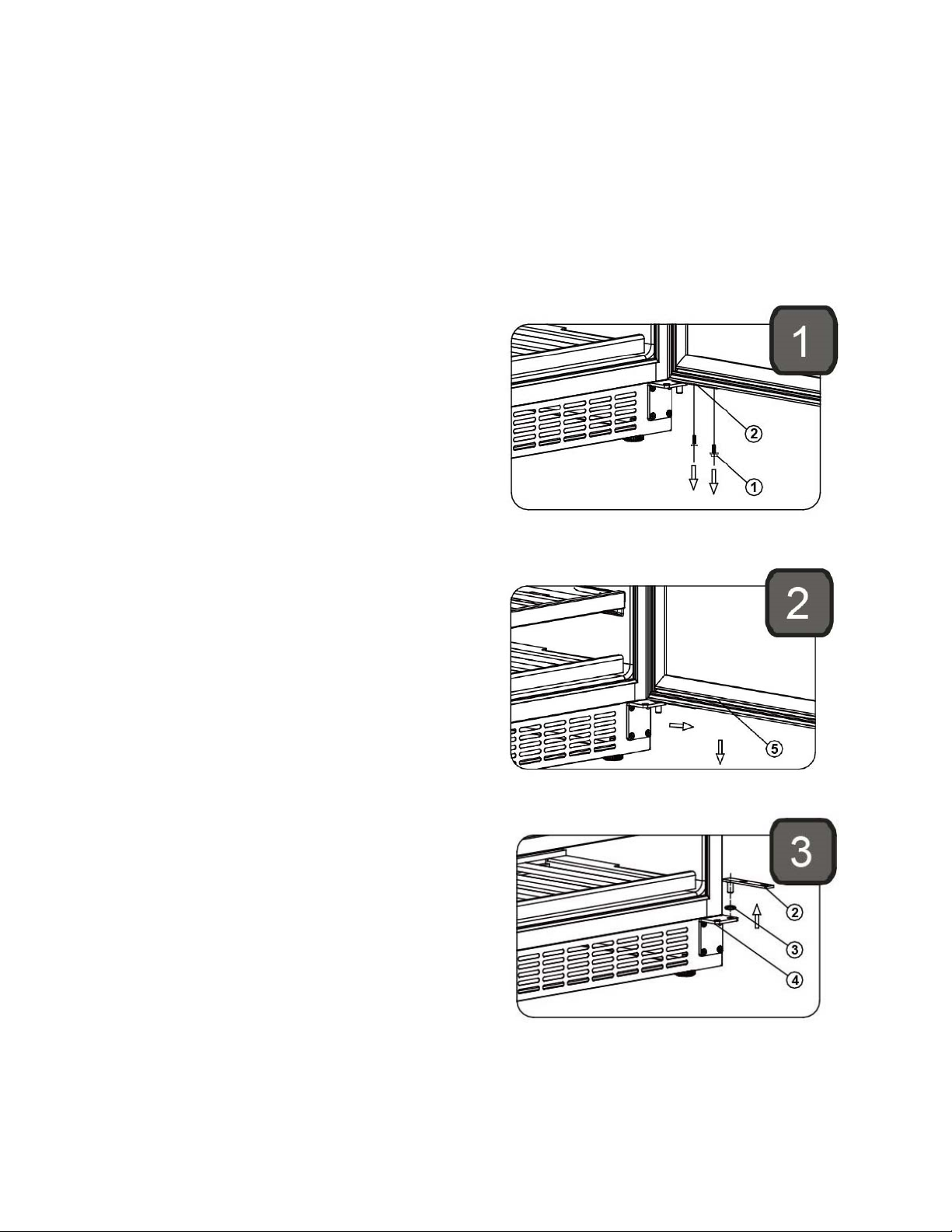

1. Open the glass door⑤and remove the two screws① holding the
lower hinge② to the glass door. Be careful to hold the glass door
firmly after removing the screws.
2. Pull down to remove the glass door from the right upper hinge and
place the door on a padded surface to prevent scratching it.
3. Remove the lower door hinge supporter and bush③.
4. Remove the upper hinge pivot from the right side then install and
tighten it into the left position.
Reverse the door swing
This appliance has the capability of the door opening from either the left
or right side. The unit is delivered to you with the door opening from the
left side. Should you desire to reverse the opening direction, please
follow these instructions.
Note: All parts removed must be saved to reinstall the door.
10

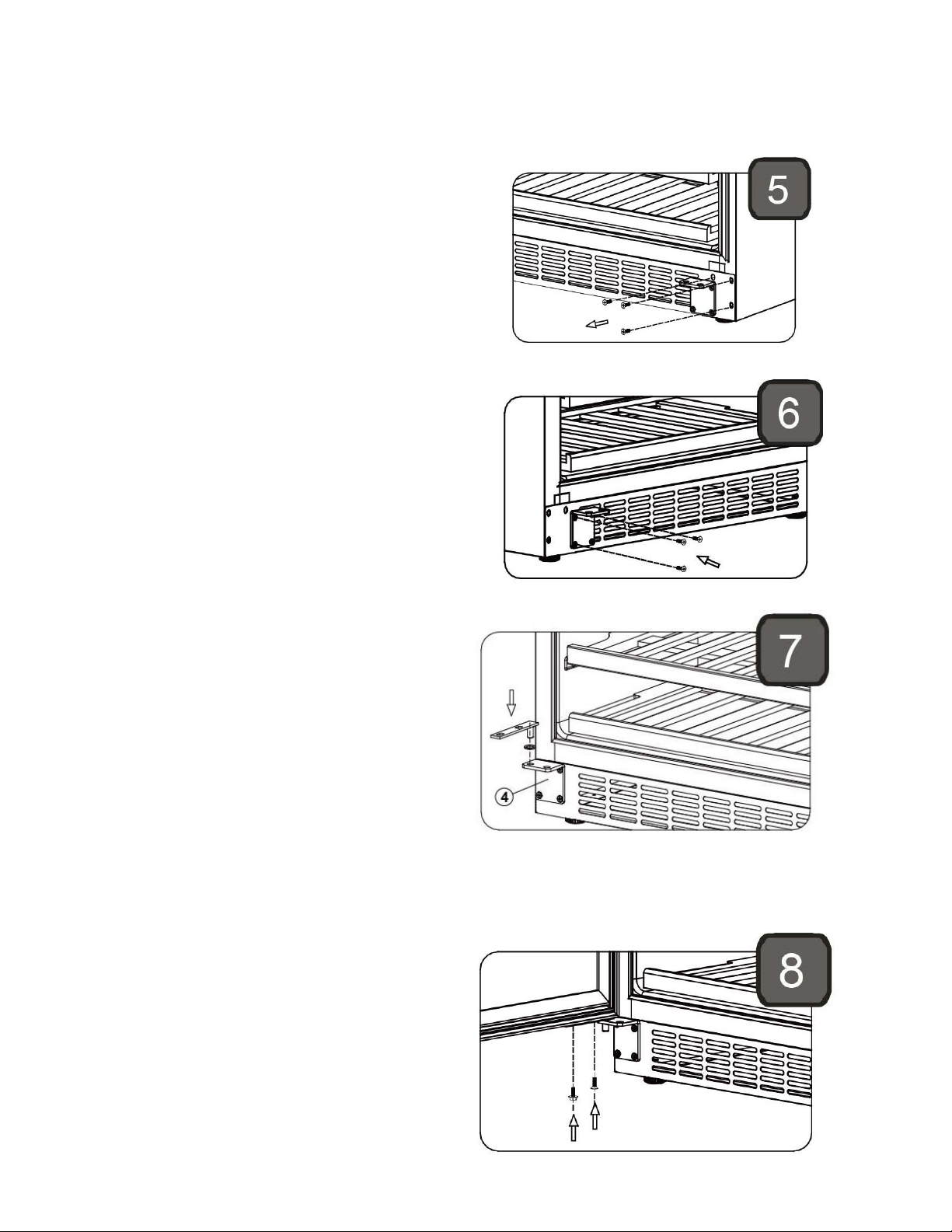

5. Remove the lower door hinge from the right side. Remove three
screws that are used to fix the bottom grille with the cabinet then
install the three screws at the designated position on the right side.
6. Install the lower door hinge to the designated position on the left side.
7. Install the lower hinge supporter together with the bush to the
designated position.
8. Guide the glass door to the designated position making sure that
the door shaft enters the door hole at the left upper corner of the glass
door. Install the two screws that are used to connect the left lower
hinge with the glass door and tighten them before the door is leveled.
11

Accessory installation before operating
UNPACKING AND CLEANING THE WINE COOLER
•Make sure that it has been installed by a suitably qualified person, as
per the information contained in Baumatic’s installation instructions.
•Let the appliance stand upright for approximately 2 hours before
connecting it to the mains supply. This will allow any refrigerant
gasses that may have been disturbed during the transportation
process to settle.
•The outside of the appliance and the removable accessories contained
within it, should be cleaned with a solution of liquid detergent and
water.
•The interior of the appliance should be cleaned with a solution of
sodium bicarbonate dissolved in lukewarm water. The interior and
accessories should be thoroughly dried, after the cleaning process has
been completed.
•There can be an odour when you first switch on the appliance. It will
lessen as the appliance starts to cool.
LOCK & UNLOCK THE DOOR (OPTION)
● Your Wine Cabinet has a lock for the door and a key should be
attached inside the packing of this User Manual.
● Insert the key into the lock and turn it counter-clockwise to unlock
the door. To lock it, please follow the reversed operation. Please save
the key well.
12

13
Using your Baumatic wine cabinet

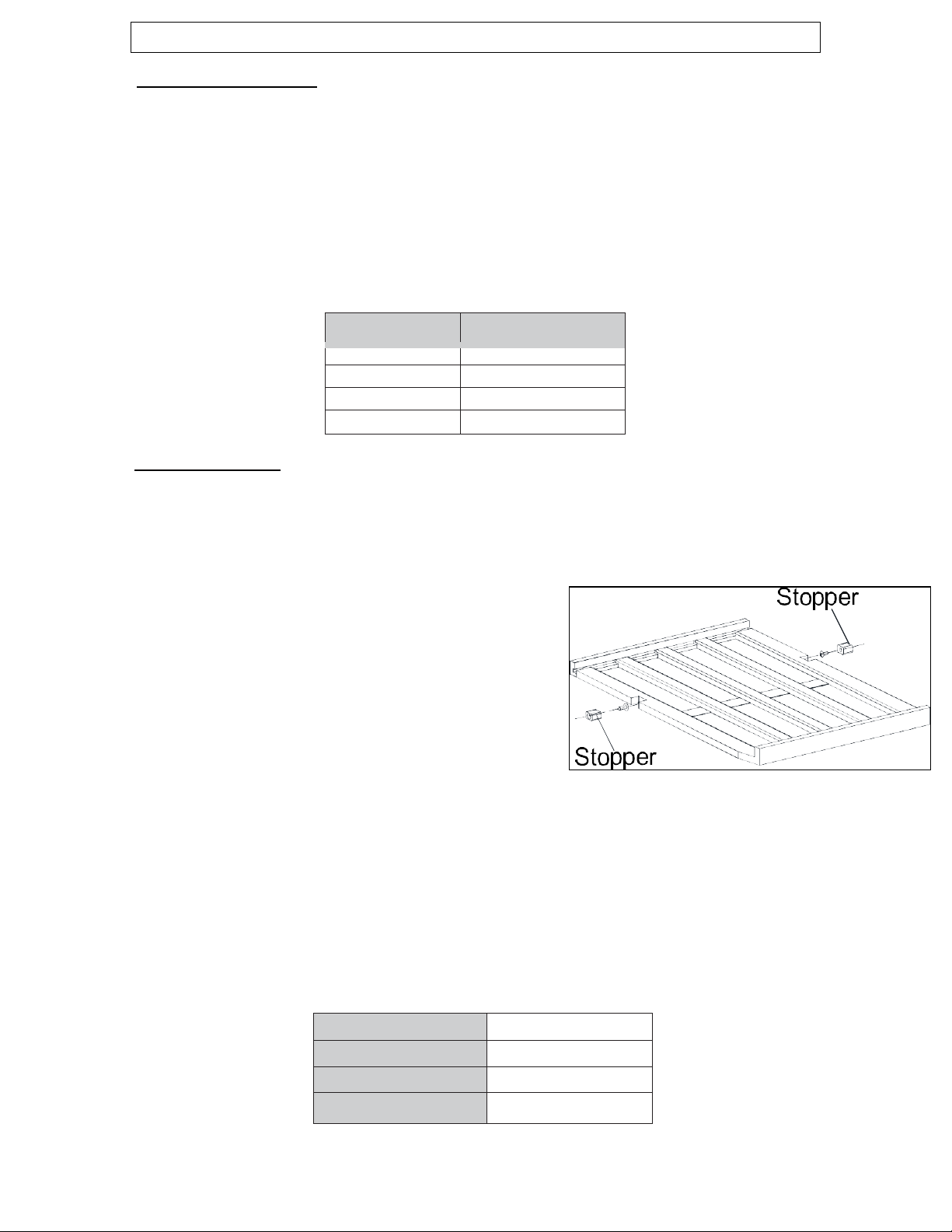

WORKING CLIMATE
● The appliance is designed for operating from SN to T climate (see below
climate class chart). It is recommended to maintain the ambient around
22-25°C which helps the appliance working with low power consumption.
● If the ambient temperature is above or below the designed climate range,
the performance of the unit may be affected. For example, the appliance
operating in extreme cold or hot conditions may cause interior temperatures
to fluctuate, and the temperature set 5-22°C may not be reached
sometimes.
WINE STORAGE
● The standard shelves are designed perfectly for Bordeaux bottle storage. The
maximum loaded bottles may vary subject to the different size or dimension of
the wine bottles you store, as well as the shelves quantity pre-installed in the
Wine Cooler.
● There are two designs for the pull-out shelves:
1. The shelves are without telescopic rails, but
with a plastic stopper on each sides of the
shelf track to prevent bottles from falling.
See the right figure.
2. The shelves are with telescopic rails which
has stoppers by themselves.
● To prevent damaging the door gasket, make sure to have the door opened
fully all the way before pulling the shelves out.
● Please store wine in sealed bottles.
● Should the wine cooler be left empty for long periods it is suggested that the
appliance is unplugged, and after careful cleaning, leave the door ajar to allow
air to circulate inside the cabinet in order to avoid possible condensation, mold
or odours forming.
● Recommended Temperatures for chilling/storage your wines.
Red Wines
15 - 18º C
Dry/White Wines
9 - 14º C
Rose Wines
10 - 11º C
Sparkling Wines
5 - 8º C
Climate Class
Ambient Temp.
SN
10 - 32 °C
N
16 - 32 °C
ST
18 - 38 °C
T
18 - 43 °C

14
● When the appliance is plugged in to a power outlet, it powers on
automatically.
● Touch the power mark to turn off (or turn on) the appliance.
Warning:
If the unit is switched off or unplugged, you must allow at least 5
Minutes before restarting the appliance or reconnecting it to your mains
supply in order to avoid breaking the compressor.
●
●
●
The light will turn off automatically after 10 minutes.
button for 3 seconds until you
To keep the light on, press the
hear an audible sound.
POWER ON/OFF CONTROL
INTERIOR LIGHTING ON/OFF CONTROL
Touch the light button to switch the interior cool LED lighting
on and off.
During first use
IMPORTANT: When you use the wine cabinet for the first time
or restart the appliance after it has been turned off for a long
time, there could be a few degrees variance between the
temperature you select and the one indicated on the LED
display. This is normal and it is due to the length of activation
time. Once the wine cabinet has been running for a few hours
everything will be back to normal.

15
SETTING THE TEMPERATURE
•and
.
•and
Note: When the temperature control is malfunctioning, the LED
display will show a "HH" or "LL" and the appliance will emit a
continuous buzzing sound. If this happens, the appliance is
designed to keep the compressor and fans running periodically
to protect the stored wines.
The Single Zone model is made of
•When you are setting the required temperature, the LED display
will initially show the selected temperature. It will then revert to
the actual temperature inside the cabinet after 5 seconds. The
temperature inside the cabinet will adjust automatically to reach
the temperature selected.

16
The chart below indicates the ideal storage temperatures for different
types of wine:-
Type of wine Temperature
(Celsius)
Temperature
(Fahrenheit)
Red wine (*) 15 – 18°C 59 – 65°F
White wine (**) 9 - 14°C 48 – 57°F
Sparkling
wines/champagne 5 – 8°C 40 – 47°F
Notice:
Depending on your room ambient temperature, please allow the wine cooler some time to
reach your set temperature on first use, or once the appliance has been switched off for
more than 12 hours.
CHANGING BETWEEN FAHRENHEIT & CELSIUS
You can select , you can interchange the Celsius (oC) or
Fahrenheit (oF).
STORING YOUR WINES

17
16
CARE & MAINTENANCE
WARNING: PLEASE ENSURE THAT
YOUR APPLIANCE IS DISCONNECTED
FROM YOUR MAINS SUPPLY BEFORE
ATTEMPTING TO CLEAN IT.
oDo not clean the appliance by pouring water onto it
or spraying water over it.
o The interior of the wine cabinet should be cleaned
periodically, using about 2 tablespoons of baking soda
to a quart (approx. 1 litre) of warm water.
o Clean the accessories separately with soap and water.
Do not clean them in a dishwasher. Dry wooden
shelves before placing back into the wine cooler.
o Do not use abrasive products, detergents or soaps.
o Wiring excess water our of the sponge or soft cloth
when cleaning area of the controls, or any electrical
parts.
o Do not use steel wool or steel brush on the stainless
steel. These will contaminate the stainless steel with
steel particles and rusting may occur.
o Most power failures are corrected within a few hours and should
not affect the temperature of your appliance if you minimise the
number of times the door is opened.
o If the power is going to be off for a longer period of time, you
need to take the proper steps to protect the contents.
IMPORTANT: If the appliance is unplugged, the power is lost or
turned off you must wait 3 to 5 minutes before restarting the
wine cabinet. If you attempt to restart before this time delay,
the wine cabinet will not turn on.
POWER FAILURE

18
VACATION TIME
Short holidays: Leave the wine cabinet in operation for holidays
of less than 3 weeks.
Long absences: If the appliance will not be used for several months,
remove all items, turn off the appliance and unplug the electricity
cable. Clean and dry the interior thoroughly. To prevent odour and
mould growth, leave the door open slightly by blocking it open if
necessary.
If you need to move your wine cabinet to another location you should
follow the steps outlined below.
o Remove all items from the wine cabinet.
Securely tape down all loose items such as the shelves inside of the
appliance.
o Turn the adjustable foot up to the base to avoid damage.
o Tape the door closed.
o Ensure the appliance stays secure in the upright position during
transportation. Also protect the outside of the appliance with a blanket
or similar item.
o The appliance should be located away from heat producing appliances,
and away from direct sunlight.
o Ensure that the unit is adequately ventilated. Never cover air vents.
o Only open the door when necessary. Avoid leaving the door open for
long periods or opening/closing the door frequently.
MOVING YOUR WINE CABINET
ENERGY SAVING TIPS

19
Troubleshooting
IMPORTANT: If your wine cabinet appears not to be
operating properly, before contacting Baumatic Service
Care, please refer to the checklist below.
PROBLEM POSSIBLE CAUSE / MEASURE
Wine Cabinet does not operate Not plugged in.
Wine Cabinet is turned off.
The circuit breaker has tripped or the fuse has blown.
Wine Cabinet is not cold enough Check the temperature control setting.
External environment may require a higher setting.
The door is opened too frequently.
The door is not closed completely.
The door gasket does not seal properly.
Automatically turn-on and turn-off
frequently
The room temperature is hotter than normal.
A large amount of contents has been added to the
Wine Cabinet.
The door is opened too frequently.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The lighting does not work Not plugged in.
The circuit breaker has tripped or the fuse has
blown. The lighting is turned off.
Too much vibration Check to assure that the appliance is level.
Check to assure no parts inside the cabinet or in the
compressor chamber are loose.
The Wine Cabinet seems to make too
much noise
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The appliance is not level.
The door will not close properly. The Wine Cabinet is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
The LED display window is shown a “HH”
or “LL” and/or emit a continuous buzz
sound.
The temperature control is out of order.

20
IMPORTANT: If your appliance appears not to
be operating correctly, then you should
disconnect it from your mains supply and then
contact the Customer Care Department.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE
YOURSELF.
Please note that if an engineer is asked to attend whilst the
product is under guarantee and finds that the problem is not the result
of an appliance fault, then you may be liable for the cost of the call
out charge.
The appliance must be accessible for the engineer to perform
any necessary repair. If your appliance is installed in such a
way that an engineer is concerned that damage will be caused
to the appliance or your kitchen, then they will not complete a
repair.
This includes situations where appliances have been tiled in,
sealed in with sealant, have wooden obstructions placed in
front of the appliance - like plinths, or any installation other
than the one specified by Baumatic has been completed.
Please refer to the conditions of guarantee that appear on the
warranty card that you receive with the appliance.
IMPORTANT: Baumatic operates a policy of
continuous improvement and reserves the right to adjust
and modify its products without prior notification.
