Baumr Smx750 User manual

Petrol Powered Pole Tools

User Manual

[Revision 5.0 October 2019]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

Products with 4-stroke engines are NOT supplied with engine oil, although traces of oil from

the manufacturing process may be present. It is essential to add adequate engine oil of the

correct type to the engine before use – see Engine Oil. Failure to add engine oil will void the product

warranty.

Petrol Powered Pole Tools

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or

equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be KILLED or

SERIOUSLY INJURED if you

do not follow instructions.

You CAN be INJURED if you

do not follow instructions or

equipment damage may occur.

It is vital that you read and understand

this user manual before using the product,

including safety warnings, and any

assembly and operating instructions.

Keep the manual for future reference.

Safety precautions and recommendations

detailed here must be fully understood

and followed to reduce the risk of injury,

fire, explosion, electrical hazard, and/or

property damage.

Safety information presented here is

generic in nature – some advice may not

be applicable to every product. The term

"equipment" refers to the product, be it

electrical mains powered, battery powered

or combustion engine powered.

•Before Use - If you are not familiar with

the safe operation/handling of the

equipment, or are in any way unsure of

any aspect of suitability or correct use

for your application, you should

complete training conducted by a

person or organization qualified in safe

use and operation of this equipment,

including fuel/electrical safety.

•Do NOT operate the equipment in

flammable or explosive environments,

such as in the presence of flammable

liquids, gases or dust. The equipment

may create sparks or heat that may

ignite flammable substances.

•Keep clear of moving parts.

•Equipment may be a potential source of

electric shock or injury if misused.

•Do NOT operate the equipment if it is

damaged, malfunctioning or is in an

excessively worn state.

•Do NOT allow others to use the

equipment unless they have read this

manual and are adequately trained.

•Keep packaging away from children -

risk of suffocation!

•Operators must use the equipment

correctly,consider conditions and pay

due care to persons and property.

•Ensure that any property that may be

damaged by equipment failure is not

within the work area / operating range.

General Work Area Safety

•Work areas should be clean and well it.

•Do not operate the equipment if

bystanders, animals etc are within

operating range of the equipment or the

general work area.

•If devices are provided for connecting

dust extraction / collection facilities,

ensure these are connected and used

properly. Dust collection can reduce

dust-related hazards.

General Personal Safety

•Wear appropriate protective equipment

when operating, servicing, or when in

the operating area of the equipment to

help protect from eye and ear injury,

poisoning, burns, cutting and crush

injuries. Protective equipment such as

safety goggles, respirators, non-slip

safety footwear, hard hat, hearing

protection etc should be used for

appropriate equipment / conditions.

Other people nearby should also wear

appropriate personal protective

equipment. Do not wear loose clothing

or jewellery, which can be caught in

moving parts. Keep hair and clothing

away from the equipment.

•Stay alert and use common sense

when operating the equipment. Do not

over-reach. Always maintain secure

footing and balance.

•Do not use the equipment if tired or

under the influence of drugs, alcohol or

medication.

•This equipment is not intended for use

by persons with reduced physical,

sensory or mental capabilities.

General Fuel Safety

•Petrol/fuel/gasoline is extremely

flammable – keep clear of naked flames

or other ignition sources.

•Do not spill fuel. If you spill fuel, wipe it

off the equipment immediately – if fuel

gets on your clothing, change clothing.

•Do NOT smoke near fuel or when

refuelling.

•Always shut off the engine before

refuelling.

•Do NOT refuel a hot engine.

•Open the fuel cap carefully to allow any

pressure build-up in the tank to release

slowly.

•Always refuel in well ventilated areas.

•Always check for fuel leakage. If fuel

leakage is found, do not start or run the

engine until all leaks are fixed.

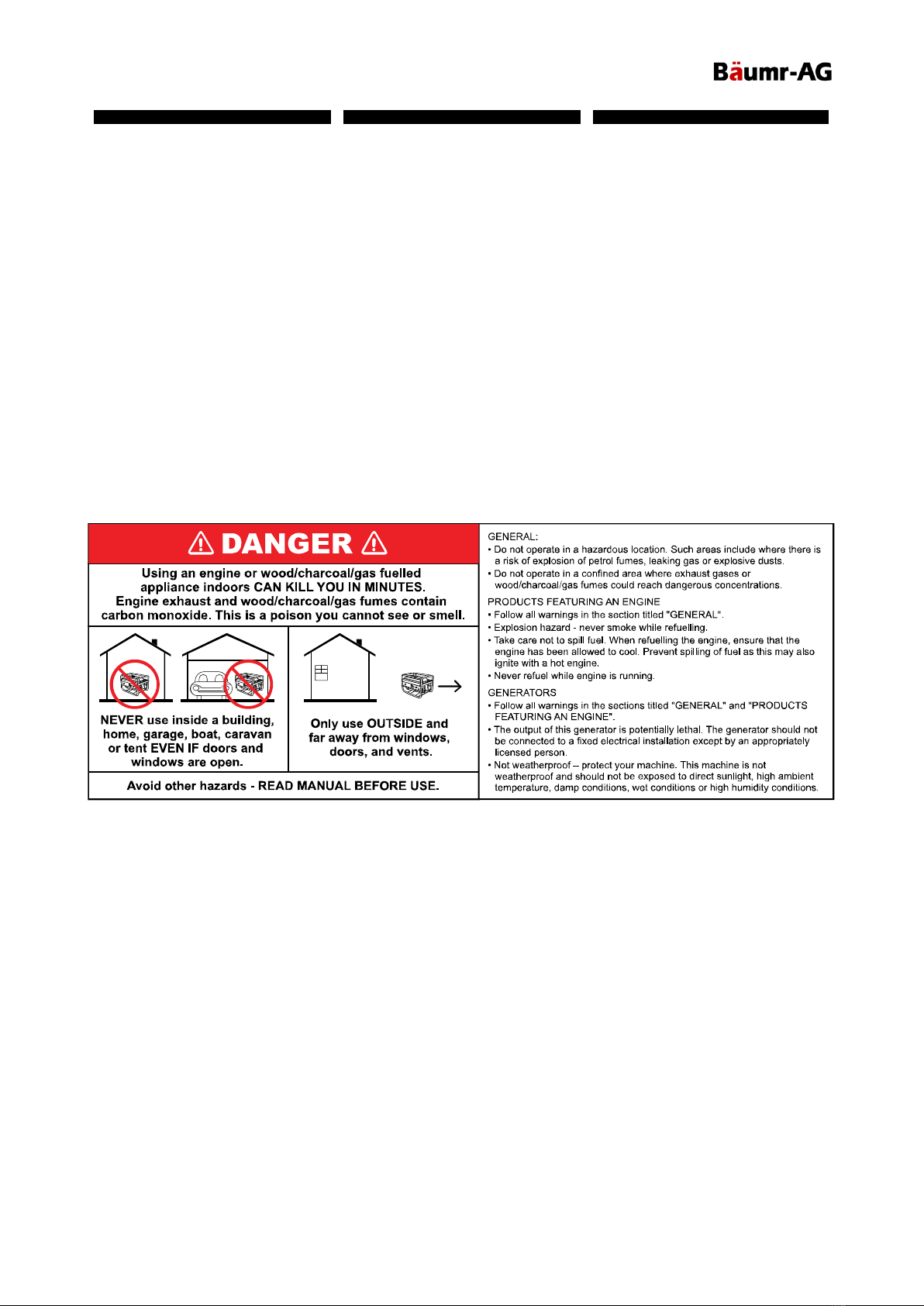

General Carbon-Monoxide Safety

•Using a combustion engine indoors

CAN KILL IN MINUTES. Engine

exhaust contains carbon-monoxide – a

poison you cannot smell or see.

•Use combustion engines OUTSIDE

only, and far away from windows, doors

and vents.

General Equipment Use and Care

•The equipment is designed for

domestic use only.

•Handle the equipment safely and

carefully.

•Before use, inspect the equipment for

misalignment or binding of moving

parts, loose components, damage or

any other condition that may affect its

operation. If damaged, have the

equipment repaired by an authorised

service centre or technician before use.

•Prevent unintentional starting of the

equipment - ensure equipment and

power switches are in the OFF position

before connecting or moving

equipment. Do not carry equipment

with hands or fingers touching any

controls. Remove any tools or other

items that are not a part of the

equipment from it before starting or

switching on.

•Do not force the equipment. Use the

correct equipment for your application.

Equipment will perform better and be

safer when used within its design and

usage parameters.

•Use the equipment and accessories

etc. in accordance with these

instructions, considering working

conditions and the work to be

performed. Using the equipment for

operations different from those

intended could result in hazardous

situations.

•Always keep equipment components

(engines, hoses, handles, controls,

frames, housings, guards etc) and

accessories (cutting tools, nozzles, bits

etc) properly maintained. Keep the

equipment clean and, where

applicable, properly lubricated.

•Store the equipment out of reach of

children or untrained persons. To avoid

burns or fire hazards, let the equipment

cool completely before transporting or

storing. Never place or store the

equipment near flammable materials,

combustible gases or liquids etc.

•The equipment is not weather-proof,

and should not be stored in direct

sunlight, at high ambient temperatures

or locations that are damp or humid.

•Do not clean equipment with solvents,

flammable liquids or harsh abrasives.

•For specific equipment safety use and

care, see Equipment Safety.

Petrol Powered Pole Tools

General Electrical Safety

•Inspect electrical equipment, extension

cords, power bars, and electrical fittings

for damage or wear before each use.

Repair or replace damaged equipment

immediately.

•Ensure all power sources conform to

equipment voltage requirements and

are disconnected before connecting or

disconnecting equipment.

•When wiring electrically powered

equipment, follow all electrical and

safety codes.

•Wherever possible, use a residual

current device (RCD).

•High voltage / high current power lines

may be present. Use extreme caution

to avoid contact or interference with

power lines. Electrical shock can be

fatal.

General Electrical Safety

•Electrically grounded equipment must

have an approved cord and plug and be

connected to a grounded electrical

outlet.

•Do NOT bypass the ON/OFF switch

and operate equipment by connecting

and disconnecting the electrical cord.

•Do NOT use equipment that has

exposed wiring, damaged switches,

covers or guards.

•Do NOT use electrical equipment in wet

conditions or in damp locations.

•Do NOT use electrical cords to lift,

move or carry equipment.

•Do NOT coil or knot electrical cords,

and ensure electrical cords are not trip

hazards.

General Service Information

•The equipment must be serviced or

repaired at authorised service centres

by qualified personnel only.

•Replacement parts must be original

equipment manufacturer (OEM) to

ensure equipment safety is maintained.

•Do NOT attempt any maintenance or

repair work not described in this

manual.

•After use, the equipment and

components may still be hot – allow the

equipment to cool and disconnect

spark plugs and/or electrical power

sources and/or batteries from it before

making adjustments, changing

accessories or performing repair or

maintenance.

•Do NOT make adjustments while the

equipment is running.

•Perform service related activities in

suitable conditions, such as a

workshop.

•Replace worn, damaged or missing

warning/safety labels immediately.

Petrol Powered Pole Tools

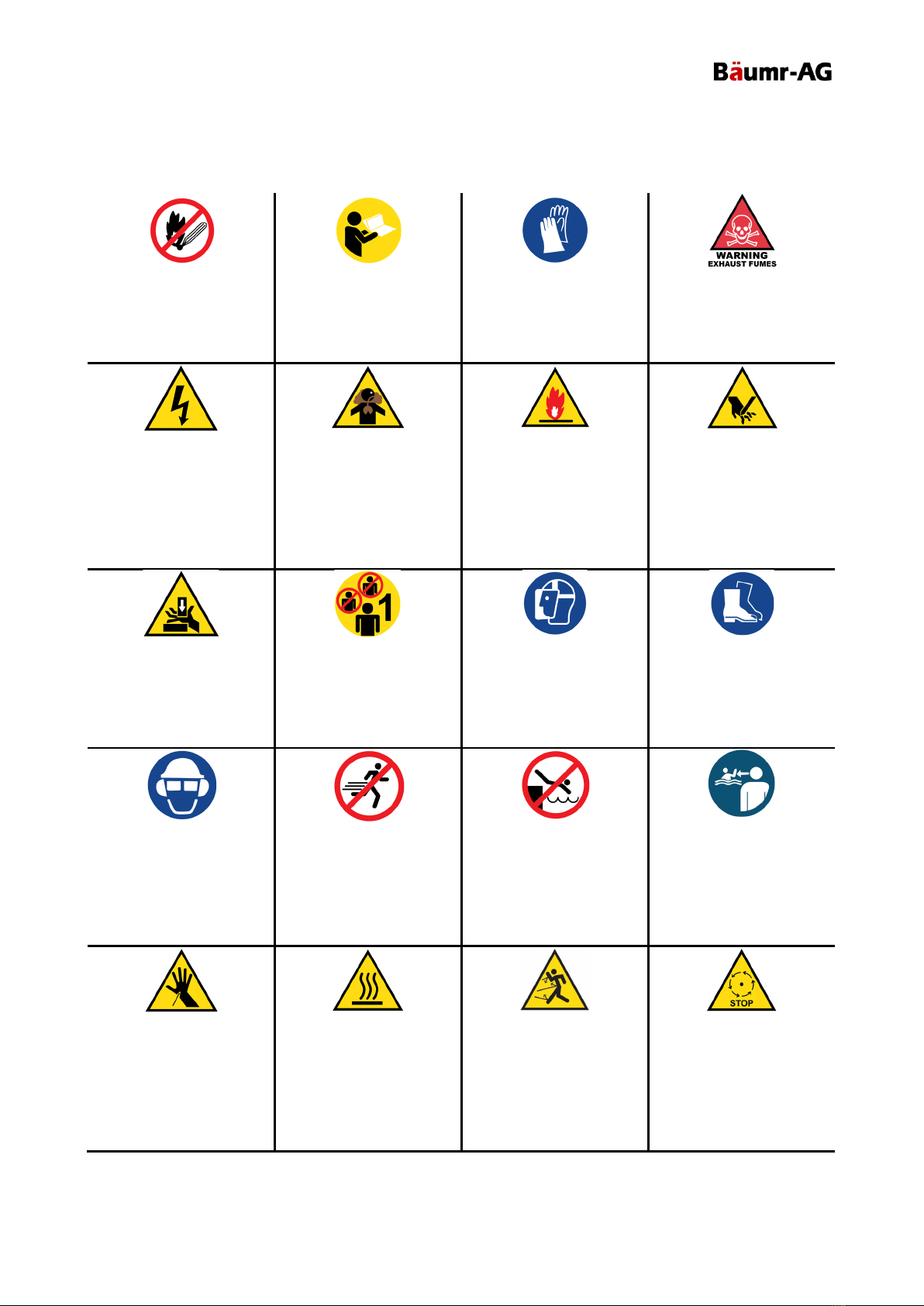

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on

your product and their meanings. If any stickers become unreadable, unattached etc, replace them.

Flammable Material Hazard

Flammable liquids, gases or

substances etc may present.

Avoid ignition sources and

open flames. Danger of fire.

Read User Manual

Read and fully understand

product safety warnings,

operation, procedures etc

before using the product.

Use Hand Protection

Wear appropriate hand

protection and take due care

as the product or use of the

product may present hand

hazards.

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Electrocution / Electrical

Shock Hazard

High voltage or high current

electricity may be present or

required by the product. Take

due care when handling

electrical products, cables,

plugs and leads. Electrical

shock can be fatal.

Toxic Fumes hazard

Using the product or by-

products from use may

produce fumes, smoke or

particles that could be harmful

if inhaled. Wear appropriate

breathing protection and have

adequate ventilation.

Explosive Material Hazard

Combustible liquids, gases or

substances etc may be

present. Avoid ignition sources

and open flames. Danger of

explosion.

Cutting / Amputation Hazard

The product may have blades,

edges or mechanical devices

that can cause severe cut

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Crush Hazard

The product may have blades,

edges or mechanical devices

that can cause severe crush

injury to fingers, limbs etc.

Take due care when handling

and using the product.

Single Operator Only

The product must be operated

by a single person only. More

than one person operating the

product may introduce

additional hazards.

Use Face Protection

Wear appropriate full-face

protection and take due care

as the product or use of the

product may present face and

eye hazards.

Use Foot Protection

Wear appropriate foot

protection and take due care

as the product or use of the

product may present foot

hazards.

Use Eye / Ear / Head

Protection

Wear appropriate eye and / or

ear and / or head protection

and take due care as the

product or use of the product

may present eye, hearing and

head hazards.

Running Hazard

Do not run on or near the

product as doing so may

present a fall hazard.

Diving Hazard

Do not dive into the product as

doing so may present a neck /

head injury hazard.

Adult Supervision Required

Always supervise children and

other users of a product to

prevent drowning or injury.

Skin Penetration / Puncture

Hazard

The product may produce

pressure, emit liquids or

objects that can cause severe

injury to fingers, limbs, blood

etc. Take due care when

handling and using the

product.

Hot Surface Hazard

Be aware that the product may

produce high temperatures

and hot surfaces that can

cause burn injuries.

Flying Debris Hazard

Be aware that the product or

use of the product may

present hazards produced by

flying debris. Wear appropriate

clothing and protectiove

devices.

Moving Parts Hazard

Be aware that the product

contains or uses mechanical

devices that move or rotate.

Always wait for moving parts

to stop fully before handling

the product, adjusting,

maintenence etc.

Petrol Powered Pole Tools

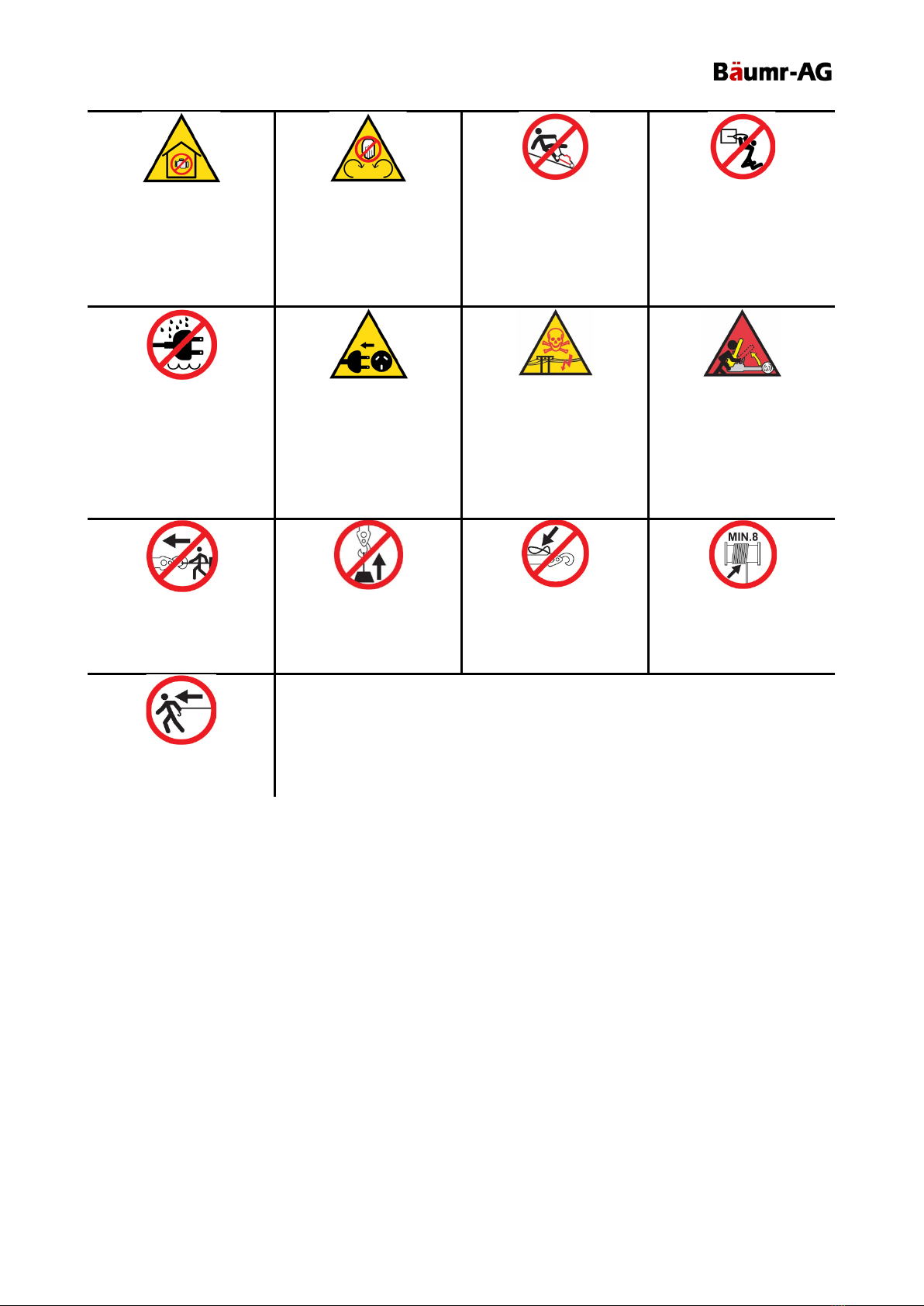

Carbon-Monoxide Hazard

Do not use the product in

confined areas or without

adequate ventilation. Carbon-

monoxide poisoning can be

fatal.

Pull Hazard

Be aware that the product

contains or uses mechanical

devices that can pull in objects

and can cause severe injury to

fingers, limbs etc. Take due

care when handling and using

the product.

Slope / Fall Injury Hazard

Be aware that using the

product on sloping surfaces or

in slippery conditions may

present additional dangers

from falls and contact with

blades, moving parts, hot

surfaces etc.

"Slam Dunk" Warning

Do NOT attempt "slam dunk"

maneouvres as this may result

in severe injury due to falling,

product breakage or collapse

etc.

Electrocution / Electrical

Shock Hazard - Outdoor

High voltage or high current

electricity may be present or

required by the product. Do

NOT use in rain, damp or wet

conditions. Electrical shock

can be fatal.

Electrocution / Electrical

Shock Hazard - Disconnect

High voltage or high current

electricity may be present or

required by the product.

Always disconnect the product

from the electrical supply

before handling the product,

adjusting, maintenence etc.

Power Line Electrocution

Hazard

High voltage / high current

power lines may be present.

Use extreme caution to avoid

contact or interference with

power lines. Electrical shock

can be fatal.

"Kick-Back" Hazard

High level of "kick-back"

hazard that can cause the

machine to suddenly rotate

towards operator. Kick-back

injury can be fatal.

Winch Operator Position

Hazard

Do NOT stand between winch

and load. Do NOT use winch

to move people.

Winch Lift Hazard

Do NOT LIFT load vertically.

Use machine to PULL only.

Cable Hazard

Ensure that load bearing cable

is not kinked or knotted.

Winch Cable Hazard

Ensure that there is a

minimum number of cable

coils on winching mechanism.

Winch Hook Hazard

Carry hook to load – do NOT

throw or run.

Petrol Powered Pole Tools

Equipment Safety

Pole tool accessories are high-speed, fast-cutting equipment with exposed blades that can

cause serious or fatal injury if not used correctly or without taking proper safety precautions.

It is extremely important that you read and fully understand the information in this section and all

other safety warnings / recommendations and usage instructions before using the equipment.

Operator

•If you are untrained in the use of a pole tool or particular accessory, such as a chainsaw, it is highly

recommended that you be trained/instructed by a suitably qualified or experienced user before using the

machine.

•Fully understand how to safely operate the machine and the various attachments to avoid "kick-back" or

other hazards. See Operation.

•You must be in good physical condition to use a pole tool. NEVER operate the machine when tired, or

under the influence of any substance (medication, alcohol, drugs etc) that may impair your judgement,

alertness, physical strength, vision or dexterity.

•Maintain sure-footing and balance always when using or handling the machine and have full awareness

of your surroundings and any possible hazards.

•Prolonged use may lead to health complications, such as carpal tunnel syndrome, due to vibration. To

help reduce the possibility of such conditions, wear gloves, take breaks frequently, keep fingers and

hands warm, and maintain the equipment for optimal operation and minimal vibration. It is recommended

to seek medical advice if you feel numbness or burning sensations in fingers/hands.

Clothing and Protective Equipment – All Operators and Assistants

•Wear approved safety goggles, or safety glasses with adequate top and side protection. In addition to

eye protection, wearing a full-face shield is highly recommended.

•Wear suitable hearing protection.

•Wear an approved safety hard-hat.

•Wear heavy-duty, non-slip leather or protective gloves.

•Wear approved heavy-duty safety boots, with steel toe-caps and non-slip soles.

•Wear suitable overalls or work clothing that fits snugly, but does not restrict movement. Avoid loose

fitting clothing, scarves, jewellery etc and keep long hair contained to avoid getting caught or pulled by

the machine or by tree branches etc.

Work Area Safety

•Use EXTREME CAUTION to avoid power lines – contact can be fatal. Do NOT cut branches touching

power lines or that may fall onto power lines when cut.

•To operate the machine at height it is highly recommended to use a "scissor lift" or "cherry picker" and

ensure that the work platform is completely stable. Do NOT use ladders, ropes or tree branches.

•Ensure that any person other than the operator and any assistants is kept a minimum 25m (75') away

from where the equipment is being used or where there is any possibility of falling branches etc. Be

aware of any property that may be affected by falling branches etc.

•Be aware of fire risks resulting from machine use. Ensure that the machine exhaust and spark arrestor (if

equipped) is well maintained and that engine is tuned correctly.

•Refuel outdoors only. Avoid fuel spillage. Start the machine at least 3m (10') away from the fuelling

location.

Petrol Powered Pole Tools

Operational Safety

•Do NOT use the machine if the throttle or any safety guard or mechanism is not installed or is not

operating correctly – have the machine inspected and repaired at an authorised service centre before

using it again.

•Fully understand how to safely operate the machine and the various attachments to avoid "kick-back" or

other hazards. See Operation.

•Always hold the machine firmly with both hands during operation. Always use the machine handles,

straps etc.

•Do NOT use a ladder or tree branches as a platform when using the machine at height – always use a

stable, flat platform such as a cherry-picker or scissor-lift.

•Do NOT use the equipment for purposes it is not designed for, such as wood chipping.

•Before cutting any branch, limb, pruning or cross-cutting, ensure that none of the materials to be cut is

under tension that may be released unexpectedly during cutting.

Transportation Safety

•Always STOP the engine and ensure all cutting devices have fully stopped before putting the machine

down, transporting or working on it (refuelling, adjusting etc).

•Fit all blade covers or sheaths whenever transporting or storing the machine.

•When transporting the machine in a vehicle, ensure the engine is OFF. Secure the machine in an upright

position to prevent tip-over, machine damage or fuel spills.

Petrol Powered Pole Tools

Table of Contents

Safety............................................................................................................................................. 2

Safety Symbols ............................................................................................................................................4

Equipment Safety.......................................................................................................................... 6

Applicable Models ...................................................................................................................... 10

Parts Identification...................................................................................................................... 12

Parts Identification - Engines .....................................................................................................................13

Before Use Checklist .................................................................................................................. 14

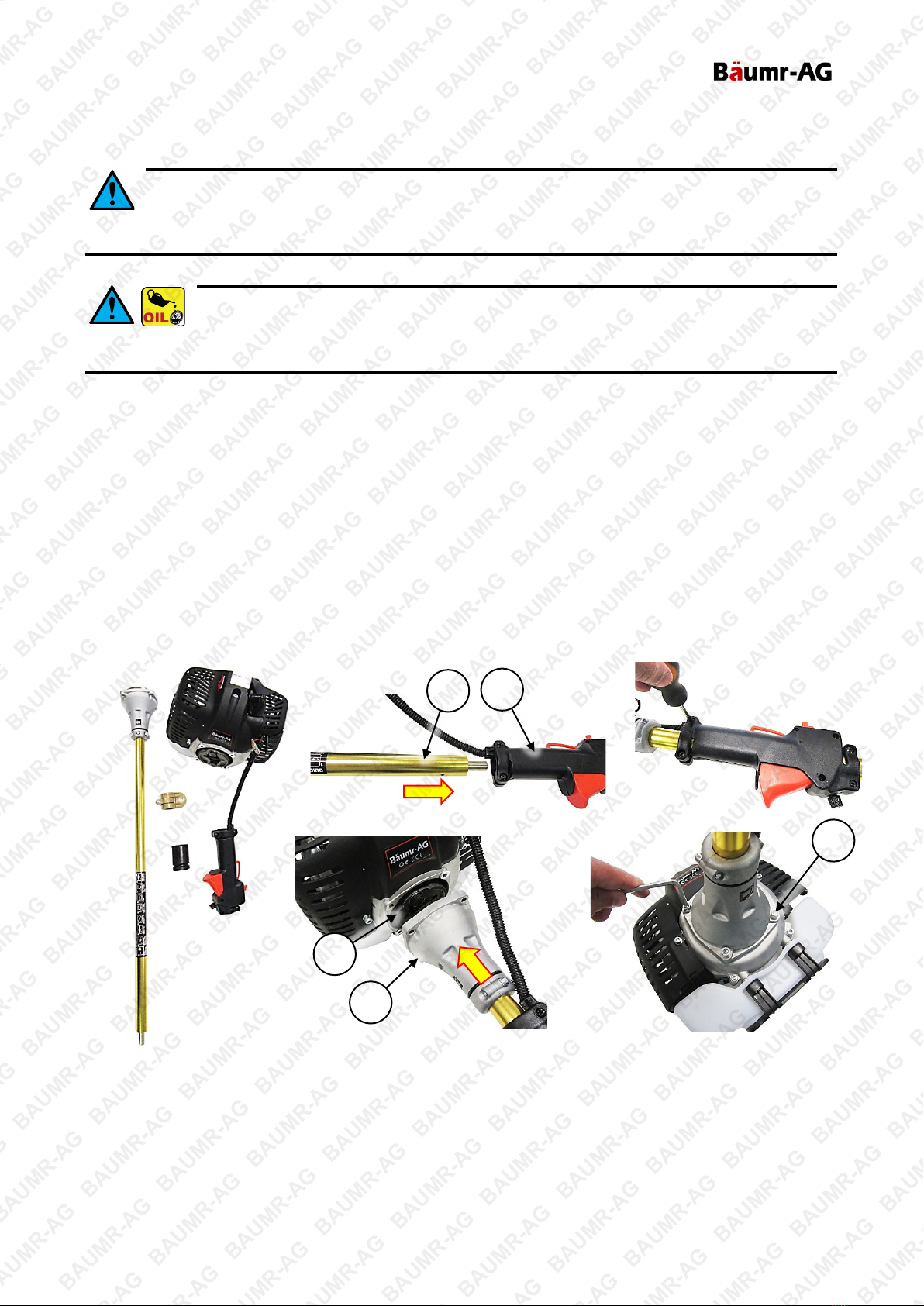

Basic Tool Assembly ..................................................................................................................................14

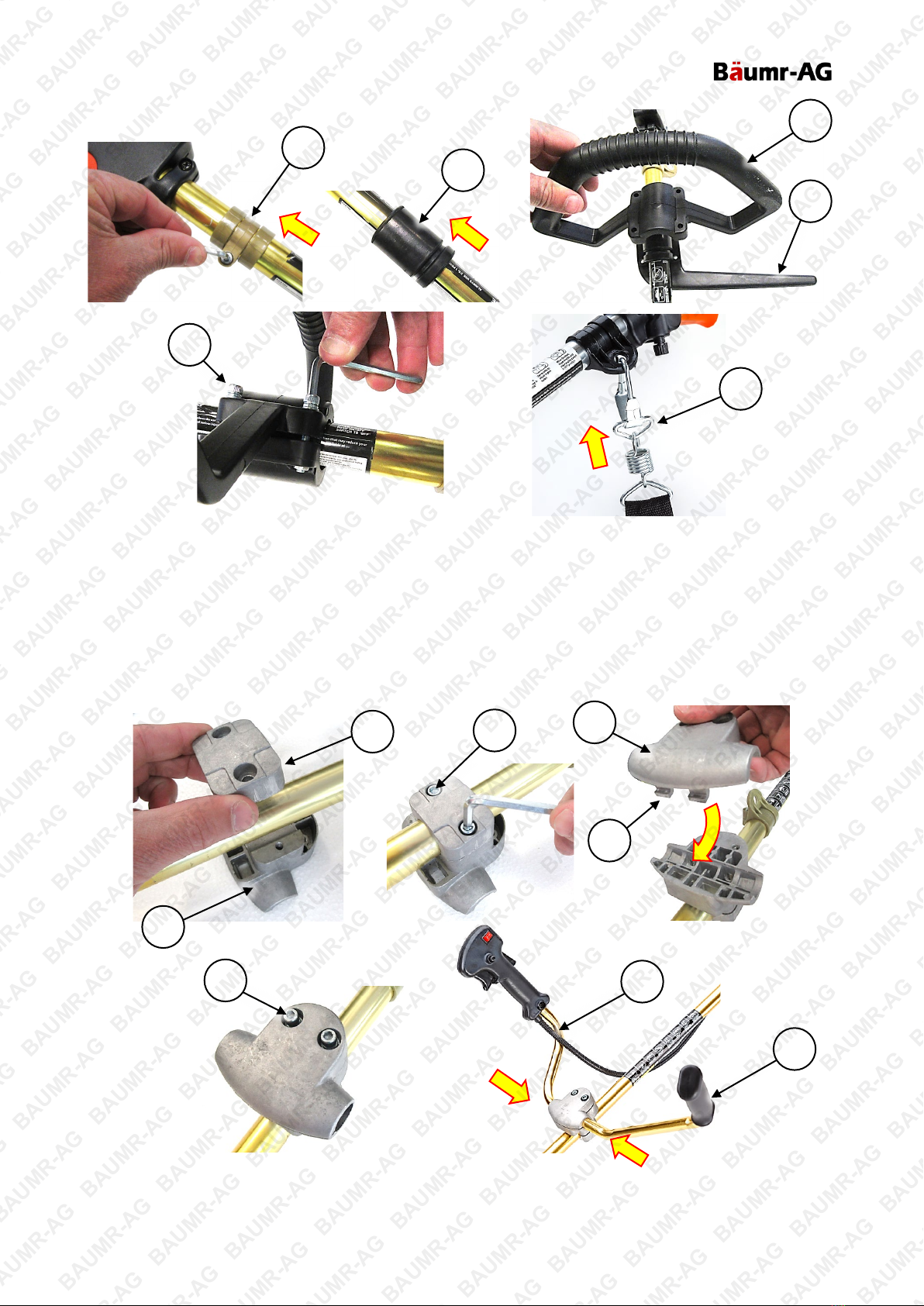

Pole Assembly............................................................................................................................................16

Cutting Guard Assembly......................................................................................................................17

Concrete Vibrator Assembly ......................................................................................................................17

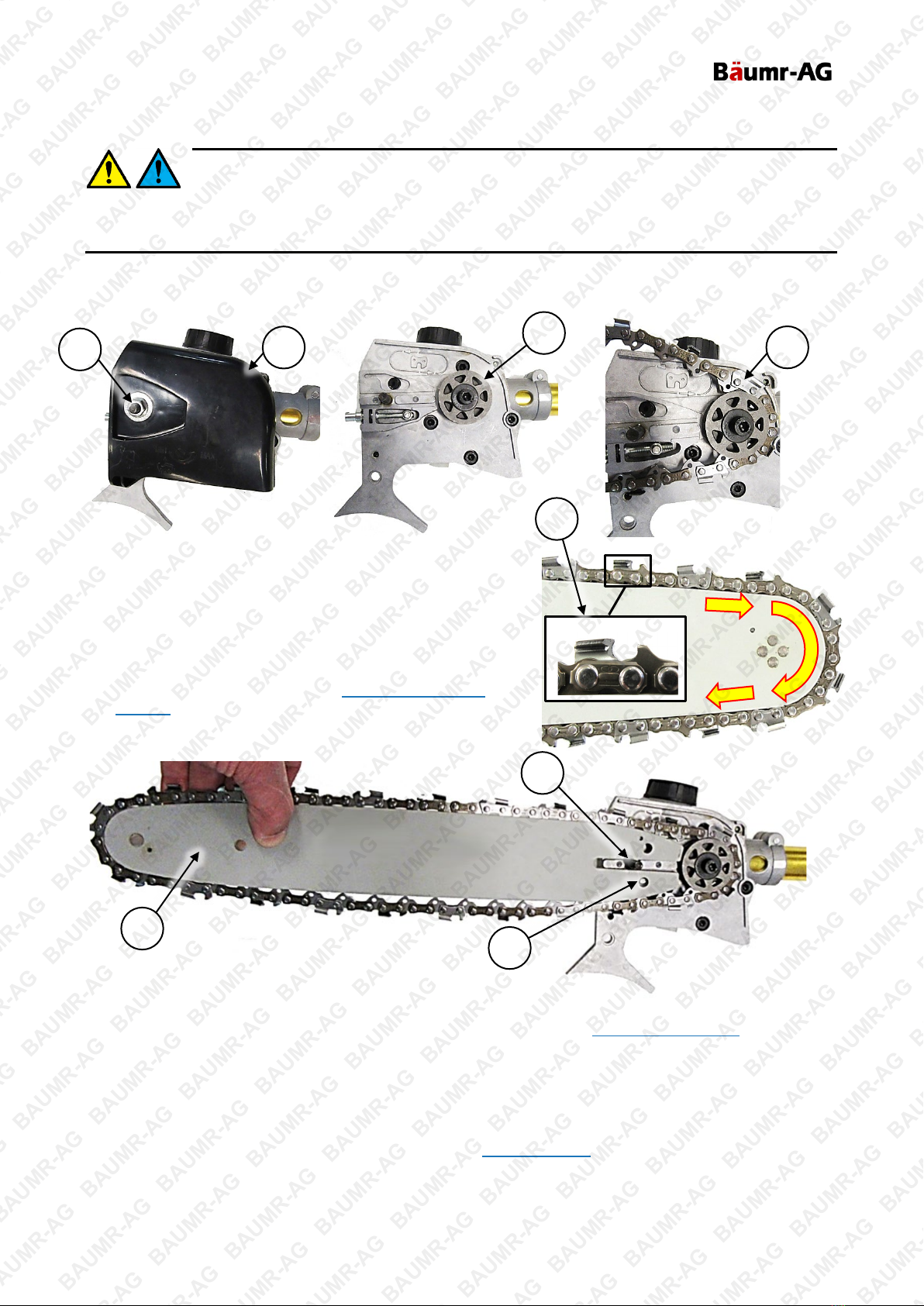

Chainsaw Attachment Assembly................................................................................................................18

Saw Chain Lubricant............................................................................................................................18

Saw Chain Tension..............................................................................................................................19

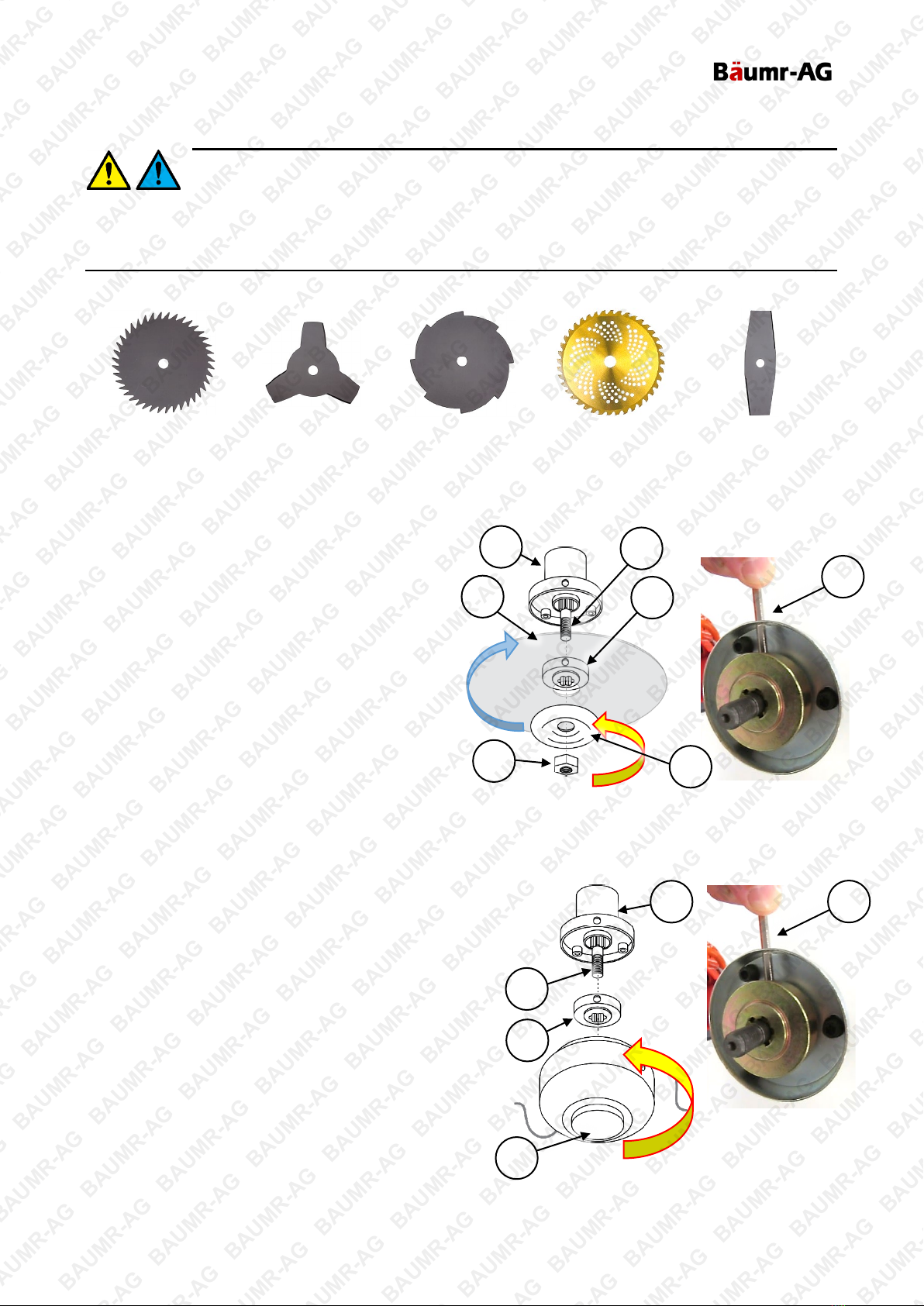

Attaching Cutting Tools ..............................................................................................................................20

Loading the Grass Cutting "Bump" Head ............................................................................................21

Loading the Grass Cutting "Fixed Line" Head .....................................................................................22

Adjusting Hedge Trimmer Angle..........................................................................................................23

Air Filter ......................................................................................................................................................23

Fuel ............................................................................................................................................................24

Priming the Fuel System .....................................................................................................................24

Spark Plug..................................................................................................................................................24

Engine Starting and Stopping.................................................................................................... 25

Starting the Engine.....................................................................................................................................25

Stopping the Engine...................................................................................................................................25

Environmental Considerations ...................................................................................................................26

Operation..................................................................................................................................... 27

Using the Throttle and Adjusting Engine Speed ........................................................................................27

Understanding and Avoiding "Kick-Back" and Other Reactionary Forces.................................................28

Maintenance ................................................................................................................................ 29

Maintenance Schedule – 2-Stroke Engine / Machine ................................................................................30

Maintenance Schedule – 4-Stroke Engine / Machine ................................................................................31

Grass Cutting "Bump" Head.......................................................................................................................32

Inspection and Cleaning ......................................................................................................................32

Removal/Installation ............................................................................................................................32

Saw Chain and Chain Bar (Chainsaw Attachment) ...................................................................................33

Inspection and Cleaning ......................................................................................................................33

Removal/Installation ............................................................................................................................33

Petrol Powered Pole Tools

Chain Lubricant (Chainsaw Attachment) .............................................................................................34

Gear Head ...........................................................................................................................................35

Air Filter ......................................................................................................................................................35

Inspection and Cleaning ......................................................................................................................35

Removal/Installation – 2-Stroke Engine ..............................................................................................35

Removal/Installation – 4-Stroke Engine ..............................................................................................36

Spark Plug..................................................................................................................................................37

Cleaning and Gap Checking................................................................................................................37

Removal/Installation – 2-Stroke Engine ..............................................................................................37

Removal/Installation – 4-Stroke Engine ..............................................................................................38

Fuel Strainer...............................................................................................................................................39

Inspection and Cleaning ......................................................................................................................39

Removal/Installation ............................................................................................................................39

Engine Oil – 4 Stroke Engine .....................................................................................................................40

Greasing Gearboxes / Joints......................................................................................................................42

Cleaning Guidelines ...................................................................................................................................43

Cleaning and Lubricating Cutters ........................................................................................................43

Engine Tuning Guidelines.......................................................................................................... 44

2-Stroke Engine .........................................................................................................................................44

Carburettor Adjustments......................................................................................................................44

Factory Settings...................................................................................................................................45

Tuning ..................................................................................................................................................45

4-Stroke Engine .........................................................................................................................................45

Carburettor Adjustments......................................................................................................................45

Factory Settings...................................................................................................................................46

Tuning ..................................................................................................................................................46

Transportation and Storage ....................................................................................................... 47

Troubleshooting.......................................................................................................................... 48

Specifications ............................................................................................................................. 50

Engine Service and Maintenance Record ................................................................................. 51

Petrol Powered Pole Tools

Applicable Models

This manual applies to the following Bäumr-AG pole tools:

SMX920

SMX750 (Honda 4-Stroke Engine)

SMX720

SMX550 (Honda 4-Stroke Engine)

SMX250 (Honda 4-Stroke Engine)

SMX220

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

SMX120

SMX100

BCX720

BCX750 (Honda 4-Stroke Engine)

CVB760 Concrete Vibrator

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Parts Identification

The equipment comes with all parts required for normal domestic use, with various attachments supplied

depending on model, or may be purchased separately. A basic toolkit may also be included. It is strongly

recommended that you familiarise yourself with all major components of the machine before using it or

performing any maintenance tasks. Some parts may come pre-assembled.

Products detailed in this manual may vary in appearance, inclusions, description and packaging

from those shown or described. This section shows typical major components of a pole tool kit –

cutting accessories and the number of components may vary between models.

No. Name No. Name

1 Pole Tool (includes engine and throttle assembly) 15 8-Tooth Cutter (where applicable)

2

Cutter Drive Shaft (where applicable)

16

Toothed Cutter (where applicable)

3

Extension Shaft (where applicable)

17

Concrete Vibrator (where applicable)

4 Cutter Guard (where applicable, bracket and trimming

blade included)

18 Tiller (where applicable)

5 Chainsaw (where applicable, sheath included) 19 Heavy-Duty Edger (where applicable)

6 Hedge Trimmer (where applicable) 20 Blower (where applicable)

7

Strap 21 Tools / Fasteners (as applicable):

4 / 5 / 6mm Allen Key

Screwdriver

Spanner

Spark Plug Tool

Handle Fasteners (4)

Cutter Guard Fasteners (2)

Trimmer Blade Fasteners (2)

Drive Shaft Fasteners (4)

Fuel Bottle

8 Extension Drive Shaft (where applicable)

9 Handle (typical)

10

Grass Cutter "Bump" Head (where applicable)

11 Grass Cutter Fixed Line Head (where applicable)

12 3-Blade Cutter (where applicable)

13

Lawn Edger (where applicable)

14

Brush Saw (where applicable)

2

3

4

5

6

7

8

10

12

1

14

13

15

17

11

16

9

18

20

19

21

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Parts Identification - Engines

Pole tools come with all parts required for normal domestic use, with various attachments supplied

depending on model, or may be purchased separately. A basic toolkit may also be included. It is strongly

recommended that you familiarise yourself with all major components of the machine before using it or

performing any maintenance tasks.

Products detailed in this manual may vary in appearance, inclusions, description and packaging

from those shown or described. This section shows typical major engine components for 2-stroke

and 4-stroke (highlighted in blue) petrol powered machines.

No. Name No. Name

1

Fuel Tank

11

Throttle Limiter / Throttle Lock (where applicable)

2

Spark Plug

12

Fuel Tank

3 Starting Cord 13 Spark Plug (under top cover)

4 Choke Control 14 Starting Cord

5 Fuel Primer (under air filter cover) 15 Choke Control

6

Air Filter Cover (filter inside)

16

Fuel Primer (under air filter cover)

7

Exhaust

17

Air Filter Cover (filter inside)

8

Throttle Control

18

Exhaust

9 Throttle Lockout 19 Engine Oil Filler / Dipstick

10 Engine ON / OFF Switch

2

3

4

5

8

7

6

10

12

1

14

13

15

17

11

16

9

18

19

2-Stroke Engine

4-Stroke Engine

Typical Throttle

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Before Use Checklist

Ensure that you carry out all procedures below before starting the engine or operating the

equipment. All procedures described are generic in nature and slight variations between different

models may exist. Failure to follow the checklist and carry out the procedures correctly may result in

making the product warranty void. • Wear suitable gloves when handling cutting devices.

Products with 4-stroke engines are NOT supplied with engine oil, although traces of oil from

the manufacturing process may be present. It is essential to add adequate engine oil of the

correct type to the engine before use – see Engine Oil. Failure to add engine oil will void the product

warranty.

Basic Tool Assembly

Typically, the main pole tool requires minimal assembly, however, due to the modular nature of the design,

various attachments may require some assembly. Prior to assembly, unpack all components and check that

all items have been received. The following assembly instructions may not apply to all models as some are

pre-assembled or partially pre-assembled.

Drive Shaft, Handle, Throttle and Strap

1. Slide the drive shaft (A) through the throttle assembly (B). Be careful not to stretch or pull on the throttle

assembly wiring. Secure the throttle assembly in position using the screws and nuts (C) on either end of

the throttle.

2. Bring the driven end (C) of the drive shaft up to the motor, then slide it over the motor output clutch (D).

Secure the drive shaft to the motor using 4 M6 cap screws (E) – tighten the screws progressively and

from opposite corners to help ensure that drive shaft is mounted squarely against the engine.

3. Slide the swivel collar (F) onto the drive shaft, to a position where the strap will be effective and

comfortable to use. Tighten the swivel screw to secure it.

4. Slide the rubber vibration isolator (G) onto the drive shaft, to a position where the handle will be effective

and comfortable to use. Clamp the 2 handle components (H and I) over the rubber vibration isolator and

secure it using 4 screws and nuts (J).

5. Clip the strap (K) to the swivel collar.

B

A

B

C

D

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

If the tool features a "bull horn" type handle, it will include the handle poles, attachment yoke and fasteners.

Assemble it as follows:

1. Place the yoke (L) and lower clamp (M) onto the drive shaft in a position where the handle will be

effective and comfortable to use. Firmly secure the yoke and clamp in position using 2 screws (N).

2. Hook the tabs (P) on the underside of the upper clamp (O) to the yoke, then insert 2 screws (N),

however, do not tighten them yet.

3. Insert the handle tubes (Q) into the yoke as desired – orient the handle tubes, throttle etc so they are in a

comfortable position, then firmly tighten the upper clamp screws.

Once the engine, drive shaft, throttle and handle are assembled, the machine is ready for use by attaching a

cutter etc to it.

G

F

H

I

J

K

M

L

N

O

Q

P

N

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Pole Assembly

The machine may feature extension poles to increase reach. The system uses a "collar" that locks to the end

of the pole, and clamps to the next pole. If it is necessary to assemble a collar to a pole:

1. Slide the collar (A) over the end of the pole (B), with the locking screw (C) and hole (D) in the pole

aligned.

2. Firmly tighten the locking screw, however, be careful not to over-tighten as the screw is threading into

aluminium.

3. Firmly tighten the clamping screw (E), however, be careful not to over-tighten as the screw is threading

into aluminium.

The collar features a spring loaded locking pin (F) and a

clamping screw (G). The system allows secure attachment of

poles without any tools required. Internally, the driven shafts

connect using a square drive coupling (H).

Extension poles and attachments that include a pole; for

example, chainsaw and hedge trimmer, are connected as

follows. Disconnection of parts is a reversal of the connection

procedure.

1. Position the collar (A) and pole (B) so the locking pin (F) and hole (I) are aligned.

2. Pull up and hold the locking pin, then insert the pole into the collar. It may be necessary to rotate the

pole so the internal square drive coupling engages. Push the pole fully into the collar, then release the

locking pin.

3. Rotate the pole until the locking pin "pops" into the hole, then firmly tighten (rotate right / clockwise) the

clamping screw (E) by hand.

A

C

B

D

E

F

G

H

A

I

B

F

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

When assembling extension

poles and attachments, do

NOT exceed 5 pole lengths from the engine

to the cutter. For example, no more than 3

extension poles between the drive shaft and

chainsaw attachment – see adjacent diagram

(extension poles are shown in yellow). Over

extending the tool may damage it and / or

render it a hazard and will void warranty. •

When the overall length of the tool exceeds

3m (10'), it may be necessary to have an

assistant help support the weight of the tool.

Cutting Guard Assembly

1. Bring the cutter guard (A) into position with the cutter drive shaft (B) as shown, and align the mounting

bracket (C) holes with the threaded inserts in the guard.

2. Secure the cutter guard to the bracket using 2 M5 cap screws (D).

3. Place the trimming blade (E) into position on the underside of the cutter guard and secure it using 2 self-

tapping screws (F). Be careful not to over-tighten the screws as they are screwing into plastic.

Concrete Vibrator Assembly

Do NOT use extension poles with the vibrator attachment.

The concrete vibrator attachment (where applicable) requires assembly.

This attachment uses a slightly different connection method to "standard"

attachment collar due to the additional vibrational stresses.

1. Slide the vibrator collar (A) over the end of the drive shaft (B), with the

locking screw (C) and hole (D) in the drive shaft aligned. It may be

necessary to rotate the pole so the internal square drive coupling

engages.

2. Firmly tighten the locking screw, however, be careful not to over-

tighten as the screw is threading into aluminium.

3. Firmly tighten the 2 clamping screws (E), however, be careful not to over-tighten as the screws are

threading into aluminium.

A

C

B

D

E

F

B

E

C

A

E

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Chainsaw Attachment Assembly

Do NOT attach or detach cutting tools when the engine is running. • Wear suitable gloves

when handling cutting devices. • Always check that the blades or cutting accessories are

undamaged, safe to use and are properly and securely fastened to the machine. • Ensure that the saw chain

is installed so it rotates in the direction of the cutting edges. • Do NOT use cutting equipment that is cracked,

bent, chipped or damaged in any way. Replace damaged parts.

The chainsaw attachment (where applicable) requires assembly.

1. Remove the chain drive cover (A) nut (B), then remove the cover from the chainsaw attachment.

2. Place the saw chain (C) into position and engage it with the

drive sprocket (D). Ensure that the sharp edges of the saw

chain cutters (AA) are facing the correct direction.

3. Place the chain bar (E) into position so the drive chain

cover stud (F) protrudes through the slot in the chain bar,

and that the chain tension spigot (G) engages with its hole

in the chain bar (it may be necessary to adjust the position

of the chain tension spigot – see Adjusting Saw Chain

Tension).

4. Wrap the chain around the chain bar so it is sitting in the

chain bar groove.

5. Place the chain drive cover in position over the drive cover stud. Re-install the drive chain cover nut, and

tighten to "finger-tight" only at this stage. Ensure you thoroughly read Adjust Chain Tension before

proceeding.

Saw Chain Lubricant

The saw chain and drive system for the chainsaw accessory requires adequate lubricant of the correct type

to operate safely and efficiently. The machine is shipped without chain lubricant. Check the chain lubricant

level and ensure that it is at the recommended level. See Chain Lubricant.

AA

C

E

F

G

D

B

A

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

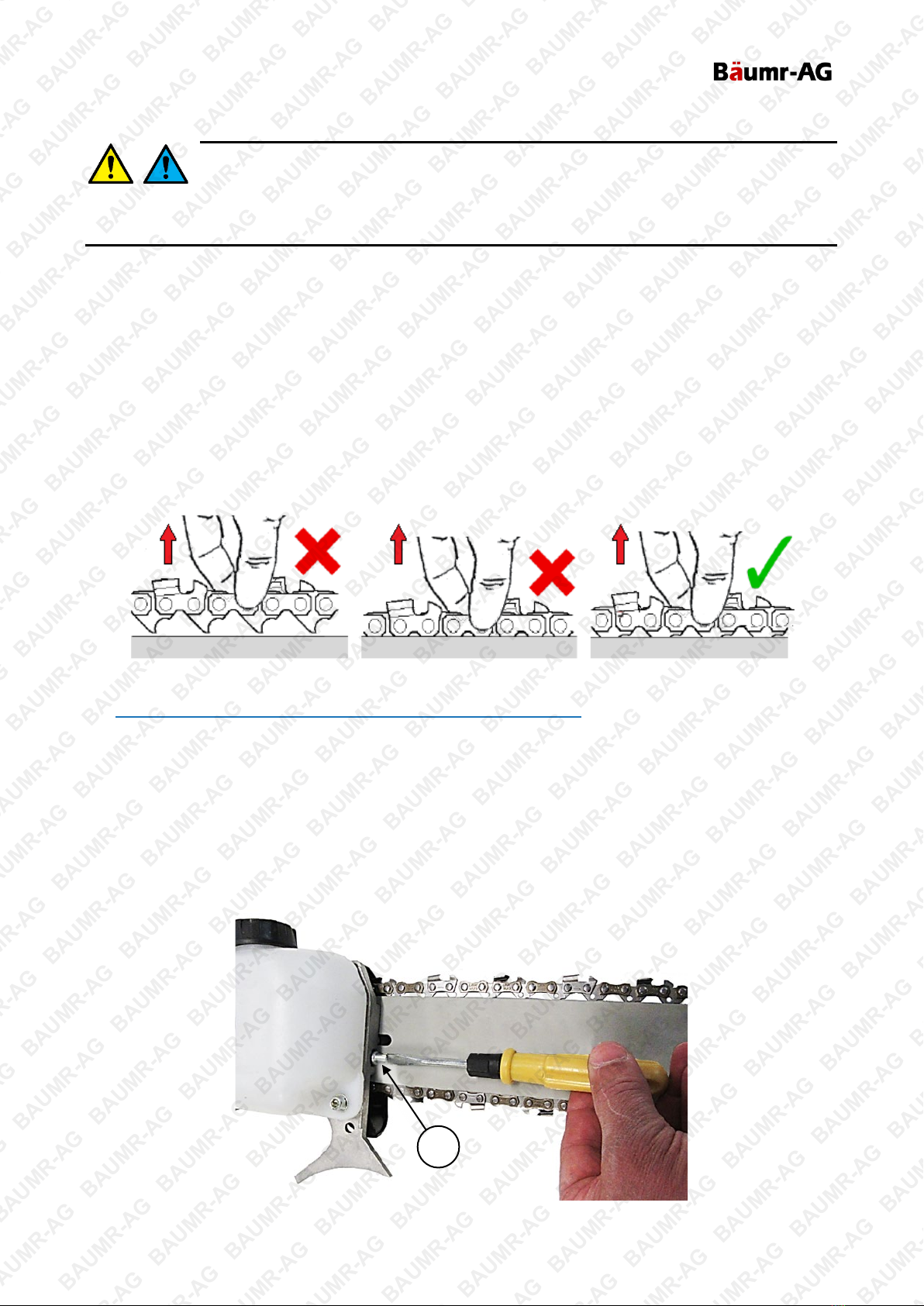

Saw Chain Tension

Ensure that the saw chain is correctly tensioned and the chain drive cover nuts are properly

tightened before use and during cutting. • The saw chain will "stretch" with use, so it is

important to check chain tension before and during use • Wear suitable gloves when handling cutting

devices. • Do NOT check chain tension with the engine running. • Do NOT adjust chain tension with

the engine running.

Correct saw chain tension is extremely important in terms of both machine efficiency and operator safety.

Check chain tension before each use. Check chain tension frequently during use – whenever the machine is

put down (engine MUST be stopped first).

Checking Tension

Ensure engine is not running when adjusting chain tension.

•The saw chain should fit snugly into the groove in the chain bar and it must be possible to pull the chain

along the bar with a gloved hand. You should be able to lift the saw chain just out of the chain bar groove

without excessive effort.

•If the chain "sags" under the chain bar or can be lifted well out of the chain bar groove, it is too loose.

•If the chain is snug in the chain bar groove but cannot be lifted out slightly or be pulled around the bar by

hand, it is too tight.

Adjusting Tension

1. Clean the chain (if necessary), chain bar and tensioning mechanism.

2. Ensure the cover nut holding the chain drive on is only "finger-tight".

3. Lift and hold the end of the chain bar up, then using a suitable screwdriver, rotate the adjustment screw

(D) as required – rotate right (clockwise) to increase tension; rotate left (anti-clockwise) to reduce

tension.

4. While still holding the end of the chain bar up, securely tighten the cover nut with the tools provided.

5. Check chain tension and re-adjust, if necessary. Ensure the cover nut is loosened again to "finger tight"

before making tension adjustments. Once the tension is correct, ensure the cover nut is securely

tightened with the tools provided.

LOOSE

TIGHT

CORRECT

D

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Petrol Powered Pole Tools

Attaching Cutting Tools

Do NOT attach or detach cutting tools when the engine is running. • Wear suitable gloves

when handling cutting devices. • Always check that the blades or cutting accessories are

undamaged, safe to use and are properly and securely fastened to the machine. • Ensure that brush cutter

and brush saw blades are installed so that they rotate in the direction of the cutting edges. • Do NOT use

cutting equipment that is cracked, bent, chipped or damaged in any way. Replace damaged parts. • The

toothed cutter and brush saw are not designed to be re-sharpened.

Cutting tools may include the following types. Use the cutter appropriate for the job, type of grass/brush etc:

Toothed Cutter

3-Blade Cutter

8-Tooth Cutter

Brush Saw

Lawn Edger

1. Place the drive washer (A) on to the drive shaft (B) protruding from the attachment head (C). Ensure that

the grooves in the washer align with the splines on the drive shaft.

2. Place the attachment on to the drive washer:

For the brush cutter and saw type attachments:

a. Place the cutter attachment (D) on to the

drive washer. Ensure that direction of the

cutting teeth or blades faces the direction

shown by the blue arrow. Ensure that the

hole in the centre of the attachment sits

squarely on the raised portion of the drive

washer.

b. Place the cup washer (E) over the drive

shaft, then secure the assembly with the

nut (F). The thread on the drive shaft is

"left-hand". This means that you must

rotate the nut to the left (anti-clockwise) to

screw it on as shown by the yellow arrow.

Firmly tighten the nut using the supplied spanner. To prevent the drive shaft from rotating as you

tighten the nut, insert a suitable object (G) (Allen key, screwdriver etc) through the hole in the

attachment head and into the hole in the drive washer when tightening – you may need to rotate

the drive washer until the holes are aligned. Remove the object when the nut is secured.

For grass cutting "bump" head:

a. Screw the grass cutting head (H) on to the drive

shaft. The thread on the drive shaft is "left-

hand". This means that you must rotate the

grass cutting head to the left (anti-clockwise) to

screw it on as shown by the yellow arrow.

Firmly tighten the grass cutting head by hand.

To prevent the drive shaft from rotating as you

tighten the grass cutting head, insert a suitable

object (G) (Allen key, screwdriver etc) through

the hole in the attachment head and into the

hole in the drive washer when tightening – you

may need to rotate the drive washer until the

holes are aligned. Remove the object when the

grass cutting head is secured.

H

G

A

D

C

E

F

B

A

B

C

BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG BAUMR-AG

Baumr SMX750 User manual
