Bavaria BDH 1600 User manual

Art.-Nr.: 41.390.75 I.-Nr.: 11012 BDH 1600
Original operating instructions
Demolition Hammer
Anleitung_BDH_1600_SPK1:_ 03.06.2009 15:51 Uhr Seite 1

2
2
b
3
3
7
ba
3
8
1
2
3
5
6
7
1
4
8
Anleitung_BDH_1600_SPK1:_ 03.06.2009 15:51 Uhr Seite 2

3
4
6 7
2.
8
2
5
180° 1.
2. 180°
1.
6
7
6
Anleitung_BDH_1600_SPK1:_ 03.06.2009 15:52 Uhr Seite 3

GB
4
“Caution - Read the operating instructions to reduce the risk of injury”
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Wear a breathing mask.
Dust which is injurious to health can be generated when working on wood and other materials.
Never use the device to work on any materials containing asbestos!
Wear safety goggles.
Sparks generated during working or splinters, chips and dust emitted by the device can cause
loss of sight.
Anleitung_BDH_1600_SPK1:_ 03.06.2009 15:52 Uhr Seite 8

GB
5
Important!
When using equipment, a few safety precautions
must be observed to avoid injuries and damage.
Please read the complete operating manual with due
care. Keep this manual in a safe place, so that the
information is available at all times. If you give the
equipment to any other person, give them these
operating instructions as well.
We accept no liability for damage or accidents which
arise due to non-observance of these instructions
and the safety information.
1. Safety regulations
The corresponding safety information can be found
in the enclosed booklet.
CAUTION!
Read all safety regulations and instructions.
Any errors made in following the safety regulations
and instructions may result in an electric shock, fire
and/or serious injury.
Keep all safety regulations and instructions in a
safe place for future use.

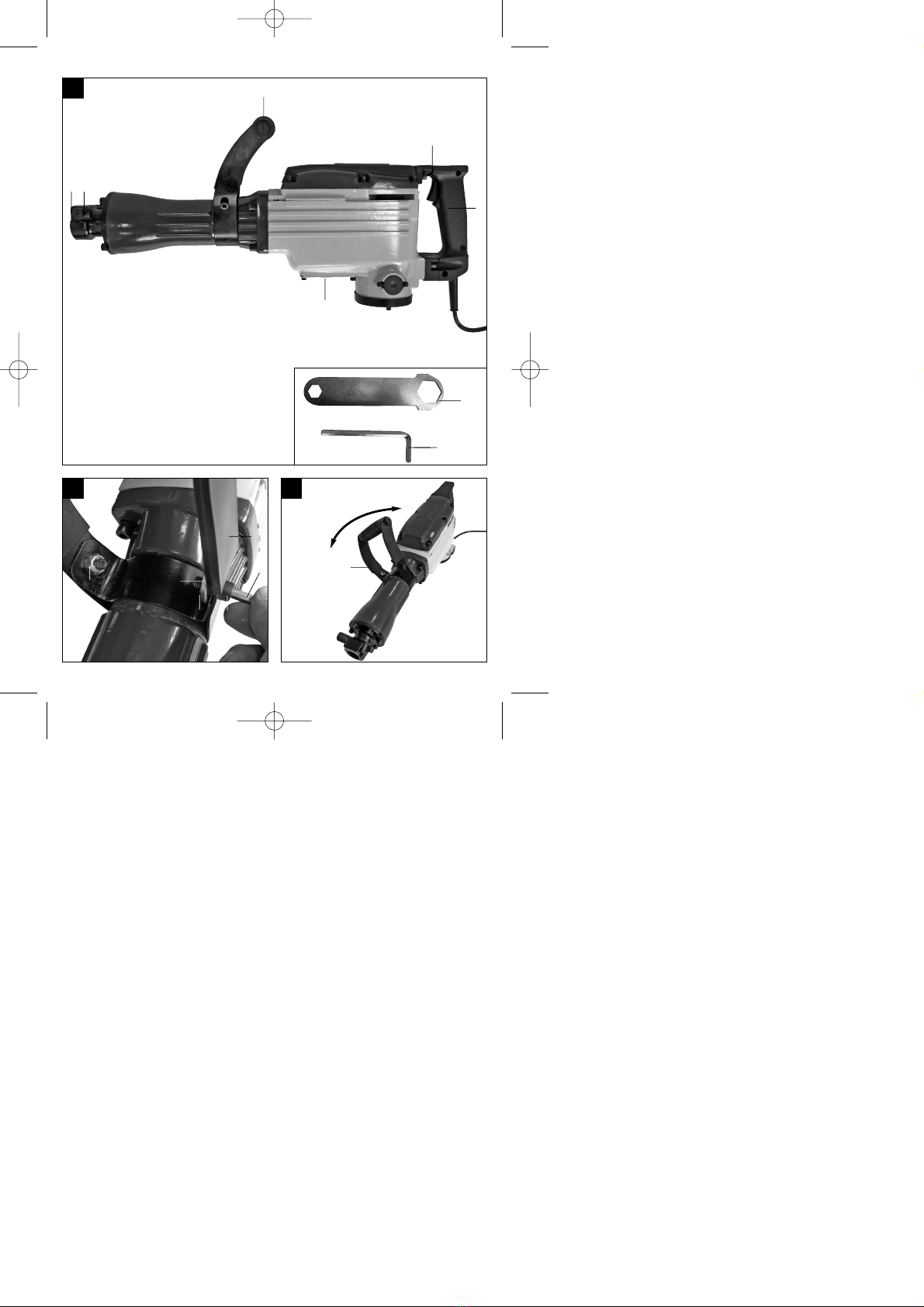

2. Layout (Fig. 1)
1. Handle
2. ON/OFF switch
3. Additional handle
4. Locking bolt
5. Tool chuck
6. Inspection window / Oil filler opening
7. Wrench
8. Allen key for additional handle
3. Proper use
This machine is designed for heavy duty demolition
and chiseling work using the appropriate chisel.
The equipment is to be used only for its prescribed
purpose. Any other use is deemed to be a case of
misuse. The user / operator and not the
manufacturer will be liable for any damage or injuries
of any kind caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
4. Technical data
zH05~V032:egatlovsniaM
W0061:tupnirewoP
mpr0051:etarwolB
/II:ssalcnoitcetorP
gk7.41:thgieW
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure level 82.98 dB(A)
KpA Bd3ytniatrecnu
LWA sound power level 104 dB(A)
KWA Bd3ytniatrecnu
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions)
determined in accordance with EN 60745.
Chiseling
Vibration emission value ah= 17.481 m/s2
K uncertainty = 1.5 m/s2
Important!
The vibration value changes according to the area of
application of the electric tool and may exceed the
specified value in exceptional circumstances.
Keep the noise emissions and vibrations to a
minimum.
Only use appliances which are in perfect working
order.
Service and clean the appliance regularly.
Adapt your working style to suit the appliance.
Do not overload the appliance.
Have the appliance serviced whenever
necessary.
Switch the appliance off when it is not in use.
Wear protective gloves
Anleitung_BDH_1600_SPK1:_ 03.06.2009 15:52 Uhr Seite 9

6
GB
5. Before starting the equipment
Before you connect the equipment to the mains
supply make sure that the data on the rating plate
are identical to the mains data.
Always pull the power plug before making
adjustments to the equipment.
Check the drilling point for concealed electrical
cables, gas and water pipes using a cable/pipe
detector.
5.1 Additional handle (Fig. 2-3)
For safety reasons you must only use the
demolition hammer with the additional handle.
The additional handle (3) enables you to achieve
better stability whilst using the demolition hammer.
For safety reasons the machine must not be used
without the additional handle (3).
The additional handle can be turned into any required
position. To do so, undo the two screws (a) using the
Allen key (8) whilst holding the hexagonal nuts (b)
with the wrench (7). Then turn the handle into the
most comfortable working position and tighten the
screws (a) again.

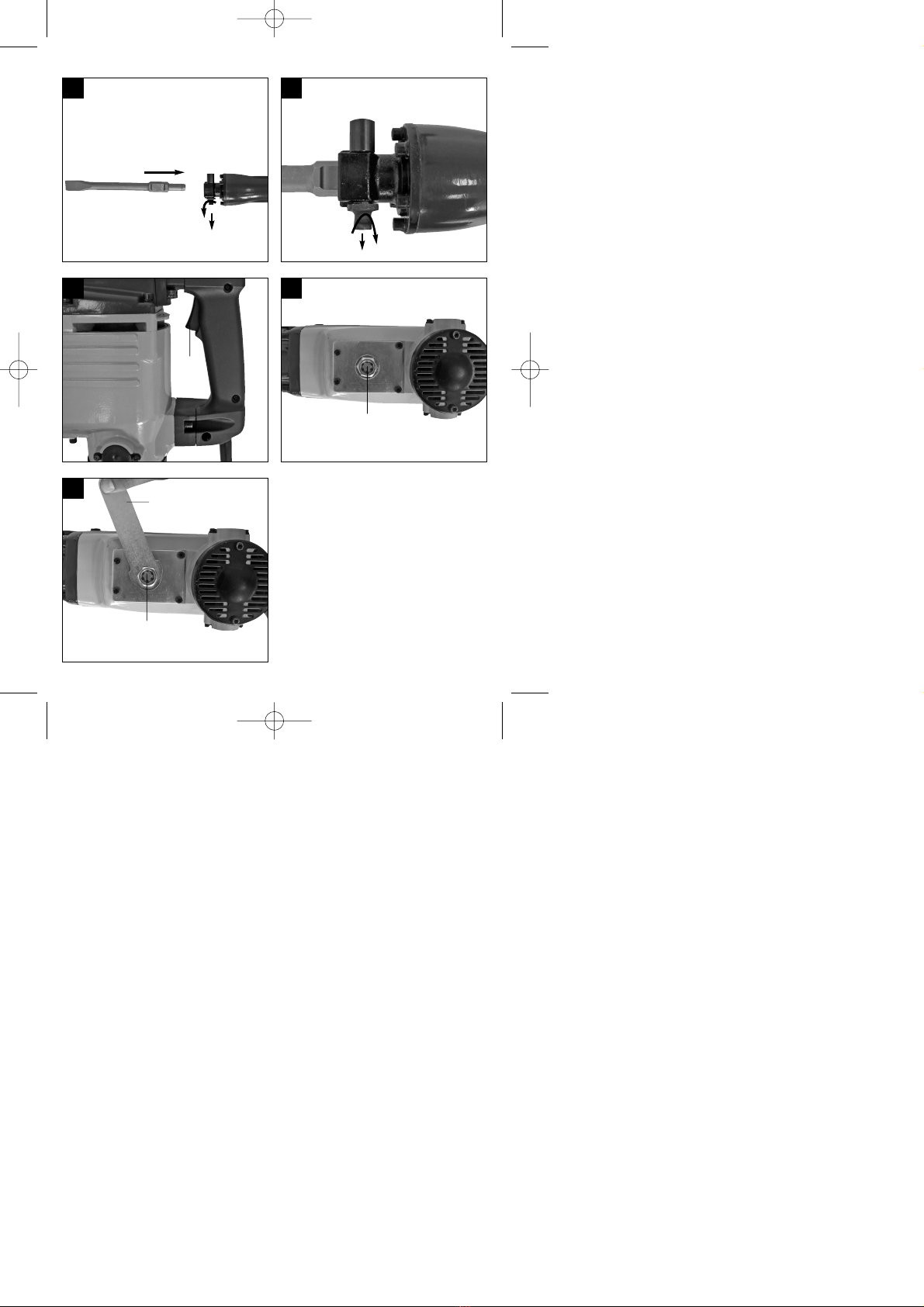

5.2 Inserting the tool (Fig. 4-5)
Clean the tool before fitting it and apply a thin
coating of grease to the tool shaft.
Pull out the locking bolt (4) as far as possible, turn
it through 180° and release it.
Insert the tool into the tool mounting (5) and push
it in as far as possible. (see Fig. 5)
Pull out the locking bolt (4) again, turn it through
180° in the opposite direction and release it.
Check the lock by pulling the tool.
5.3 Removing the tool
To remove the tool, proceed in reverse order.
6. Starting up
Important.
To avoid danger, the machine must only be held
using the two handles (1/3). Otherwise you may
suffer an electric shock if you chisel into cables.
6.1 Switching on and off (Fig. 6)
To switch on:
Press the control switch (2).
To switch off:
Release the control switch (2).
6.2 Practical tips
6.2.1 Sharpening chisel tools
You will only achieve good results if you use sharp
chisels. You should therefore sharpen the chisels
promptly to ensure that they produce good results
and provide a long service life.
Important.
You only require slight contact pressure for chiseling.
Excessive contact pressure will place an
unnecessary strain on the motor. Check the chisels at
regular intervals. Sharpen or replace blunt chisels.
7. Replacing the power cable
If the power cable for this equipment is damaged, it
must be replaced by the manufacturer or its after-
sales service or similarly trained personnel to avoid
danger.
8. Cleaning, maintenance and
ordering of spare parts
Always pull out the mains power plug before starting
any cleaning work.
8.1 Cleaning
Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
with compressed air at low pressure.
We recommend that you clean the device
immediately each time you have finished using it.
Clean the equipment regularly with a moist cloth
and some soft soap. Do not use cleaning agents
or solvents; these could attack the plastic parts of
the equipment. Ensure that no water can seep
into the device.
8.2 Carbon brushes
In case of excessive sparking, have the carbon
brushes checked only by a qualified electrician.
Important! The carbon brushes should not be rep
laced by anyone but a qualified electrician.
8.3 Servicing
8.3.1 Check the oil level (Fig. 7)
Check the oil level before using the machine.
Place the machine on the floor with the tool mounting
pointing downwards. The oil must be at least 3 mm
above the bottom edge of the inspection window (6).
Changing the oil: The oil should be changed after
Anleitung_BDH_1600_SPK1:_ 03.06.2009 15:52 Uhr Seite 10

GB
7
around 40-50 hours of use.
Recommended oil: 25ml SAE 15W/40 or an
alternative of the same quality.
8.3.2 Oil change (Fig. 8)
Switch off the machine and pull the mains plug out of
the socket.
Undo the hexagonal head screw with the inspection
window (6) using the wrench (7) and drain the oil. To
prevent the oil from running out in an uncontrolled
manner, hold a small metal chute under the opening
and collect the oil in a vessel until it has fully drained
out of the machine.
Important: The waste oil must be disposed of in
the appropriate collection point for waste oil.
Add new oil (approx. 25 ml) through the oil filler
opening (6) until the oil level reaches the required
level. Tighten the hexagonal screw again.
Re-check the oil level after a short period of
operation.
8.4 Ordering replacement parts:
Please quote the following data when ordering
replacement parts:
Type of machine
Article number of the machine
Identification number of the machine
Replacement part number of the part required
For our latest prices and information please call
1300 922 271
9. Disposal and recycling
The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material
and can therefore be reused or can be returned to
the raw material system.
The unit and its accessories are made of various
types of material, such as metal and plastic.
Defective components must be disposed of as
special waste. Ask your dealer or your local council.
Anleitung_BDH_1600_SPK1:_ 03.06.2009 15:52 Uhr Seite 11

EINHELL AUSTRALIA PTY LTD
6/166 Wellington Street
Collingwood VIC 3066
Australia
Phone: [phone]
Dear Customer,
All of our products undergo strict quality checks. In the unlikely event that your device develops a fault, please
contact our service department at the address shown on this guarantee certificate. Of course, if you would
prefer to call us then we are also happy to offer our assistance under the service number printed below.
Please note the following terms under which claims under the Einhell Express Guarantee can be made:
1. The benefits conferred by the Einhell Express Guarantee are in addition to all rights and remedies which
you may be entitled to under the Australian Consumer Law, and any other statutory rights you may have
under other applicable laws. This Einhell Express Guarantee does not exclude, restrict or modify any
We do not charge you for the Einhell Express Guarantee.
2. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods
fail to be of acceptable quality and the failure does not amount to a major failure.
3. The Einhell Express Guarantee only covers problems caused by material or manufacturing defects, and
our liability under the Einhell Express Guarantee is limited, at our discretion, to the rectification of these
defects or replacement of the product. Please note that the product has not been designed for use in
commercial, trade or industrial applications. Consequently, the Einhell Express Guarantee will not apply
if the product is used in commercial, tradeor industrial applications or for other equivalent activities.
4. The following are also excluded from the Einhell Express Guarantee: compensation for transport
damage, damage caused by failure to comply with the installation/assembly instructions or damage
caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to
the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the
product or use of non-approved tools or accessories), failure to comply with the maintenance and safety
regulations, ingress of foreign bodies into the product (e.g. sand, stones or dust), effects of force or
external influences (e.g. damage caused by the product being dropped) and normal wear resulting from
proper operation of the product. The Einhell Express Guarantee will also not apply if any attempt is made
5. The Einhell Express Guarantee is valid for a period of 2 years starting from the purchase date of the
product. Claims made under the Einhell Express Guarantee should be submitted before the end of this
guarantee period and within two weeks of the defect being noticed. No claims under the Einhell Express
Guarantee will be accepted if submitted after the end of this guarantee period. The original guarantee
period remains applicable to the device even if repairs are carried out or parts are replaced. In such
cases, the work performed or parts fitted will not result in an extension of the guarantee period for the
Einhell Express Guarantee, and the Einhell Express Guarantee will not apply for the work performed or
6. To make a claim under the Einhell Express Guarantee, please send the relevant product postage-free to
the address shown below and enclose either the original or a copy of your sales receipt or another dated
proof of purchase. It would help us if you could describe the nature of the problem in as much detail as
possible. If the defect is covered by the Einhell Express Guarantee, your product will be repaired
immediately and returned to you, or we will send you a new device (at our election).
Any costs incurred by you in making a claim under this Einhell Express Guarantee, unless specified
otherwise in this guarantee certificate, must be borne by you.
Of course, we are also happy to offer a chargeable repair service for any defects which are not covered by the
scope of the Einhell Express Guarantee or for products which are no longer covered by the Einhell Express
Guarantee. To take advantage of this service, please send the product to our service address.
such rights or remedies.
to tamper with the product.
parts fitted. This also applies when an on-site service is used.
The guarantee provided in this Guarantee Certificate is given by Einhell Australia Pty Limited
ACN 134 632 858 of 6/166 Wellington Street, Collingwood, Victoria (Telephone number 1300 922 271)
GUARANTEE CERTIFICATE
(Einhell Express Guarantee).
EH 08/2012 (01)
