Bayby BBM 7001 User manual

EN / Digital Audio Baby Monitor ■User's manual
BBM 7001

Digital Audio Baby Monitor
EN
2
Table of Contents
Introduction .....................................................................3
Safety instructions and important notes ................................................3
Description of the accessories .......................................................6
Description of the baby unit .........................................................7
Description of the parent unit ........................................................7
Installation location of the baby unit and parent unit .......................................8
Power source ....................................................................8
Using the baby monitor ............................................................9
General information about using the baby monitor .......................................10
Troubleshooting .................................................................10
Cleaning and maintenance .........................................................10
Technical specifications ...........................................................11
Explanation of symbols used on the product, its accessories and packaging ...................11
Instructions and information about the handling of used packaging ..........................12

Digital Audio Baby Monitor EN
3
Introduction
■Thank you for selecting the Bayby BBM7001 Digital Audio Baby Monitor. This digital baby monitor
is agreat child care accessory that enables you to hear your baby when you are not in the same
room. Nevertheless, it is important to understand that it cannot serve as asubstitute for responsible
adult supervision.
■The sound detected by the baby unit is transmitted to the parent unit. FHSS digital wireless technology
is utilised for transmitting the audio signal. This guarantees very high quality audio transmission up
to arange of 300metres.
■The encrypted wireless transmission and automatic available channel selection features guarantee
privacy and the peace of mind that you will hear only your child.
■The baby monitor features aVOX function that enables avoice activated transmission mode. The
baby monitor will thus always start transmitting when it detects any voice or noise. When no sound
is being transmitted, the baby monitor will automatically switch to the ECO mode. This reduces the
transmission power to ensure power efficient operation.
■You will be informed about an exceeded signal range, loss of signal or interference by means of an
acoustic alarm and the respective LED indicator light.
■Volume is adjustable. Furthermore, the parent unit is also equipped with an LED noise level indicator.
■Both units have alow battery level indicator.
■The parent unit and the baby unit are powered using the supplied power adapters or AAA batteries
(3x1.5V for each unit).
Safety instructions and important notes
■Before first use, thoroughly read the user'smanual. Keep this
user'smanual for future use.
■This baby monitor meets all relevant standards and its use is safe
when all the instructions contained in this manual are followed.
■The baby monitor serves to monitor your child when you are not
in the same room and cannot supervise it directly. Nevertheless,
it is important to keep in mind that your child'ssafety comes first
and therefore this baby monitor cannot serve as asubstitute for
supervision by aresponsible adult.
■This baby monitor is intended for home (private) use only. It is not
intended for commercial purposes.
■After unpacking the baby monitor and its accessories from the
packaging material, place the plastic bags in asafe location out
of children'sreach. In the presence of children, plastic bags may
present asuffocation hazard.
■Only use the baby monitor with the original adapters that came
with it.

Digital Audio Baby Monitor
EN
4
■Never use the baby monitor with accessories that are not ap-
proved by the manufacturer.
■Before connecting the power adapter to apower socket, make
sure the voltage stated on its rating label corresponds to the volt-
age in the power socket. Position the power cord of the power
adapter so that it will not be tripped over.
■The baby monitor may only be operated by adults.
■Children must not play with the baby monitor. Keep the baby
monitor, power adapters and batteries out of children'sreach.
■Before first using the baby monitor, acquaint yourself with its
functions and before every use, make sure that both the baby
and parent unit are in working order.
■Ensure that the baby monitor and the power adapter do not come
into contact with hot surfaces or sharp objects.
■Do not place the baby monitor in the vicinity of water containers
or appliances that are sources of heat.
■Do not cover the baby monitor and do not place any items on it.
■Do not use the baby monitor in an excessively dusty or humid
environment. Do not subject it to extreme temperature changes
and electromagnetic fields.
■Do not submerge the baby monitor and its accessories in water
or rinse it under running water.
■Always disconnect the baby monitor from the power socket when
not using it and before cleaning it.
!
■For powering both of the units from an internal power source, only
use type AAA batteries (3×1.5Vper each unit). Attention - the
baby monitor is not to be used as abattery charger.
■Do not disconnect the power adapter from the power socket by
pulling on the power cord. This could damage the power adapter
or the power socket. Disconnect the power adapter from the
power socket by pulling on the plug.

Digital Audio Baby Monitor EN
5
■When not using the baby monitor for an extended period of time,
remove the batteries from both the units.
■Keep the batteries out of children'sreach as they may present
ahazard to achild. In the event that achild swallows abattery,
immediately seek medical help.
■Do not attempt to short circuit or break the battery or throw it into
afire. Do subject the battery to direct sunlight, fire, etc.
■Do not make any alterations to the baby monitor that would
change its electrical or mechanical properties.
■The baby monitor must not be operated with auxiliary amplifiers
of high-frequency power or directional antennas.
■Do not use the baby monitor if it is in any way damaged or if the
power adapter is damaged.
■Do not attempt to repair the baby monitor yourself. Have all re-
pairs or adjustments performed at an authorised service centre.
■By tampering with the product you risk voiding your legal rights
arising from unsatisfactory performance or quality warranty.
■We recommend saving the original box, packaging material,
receipt and responsibility statement of the vendor or warranty
card for the duration of warranty. It is appropriate to transport
the baby monitor in its original box.

Digital Audio Baby Monitor
EN
6

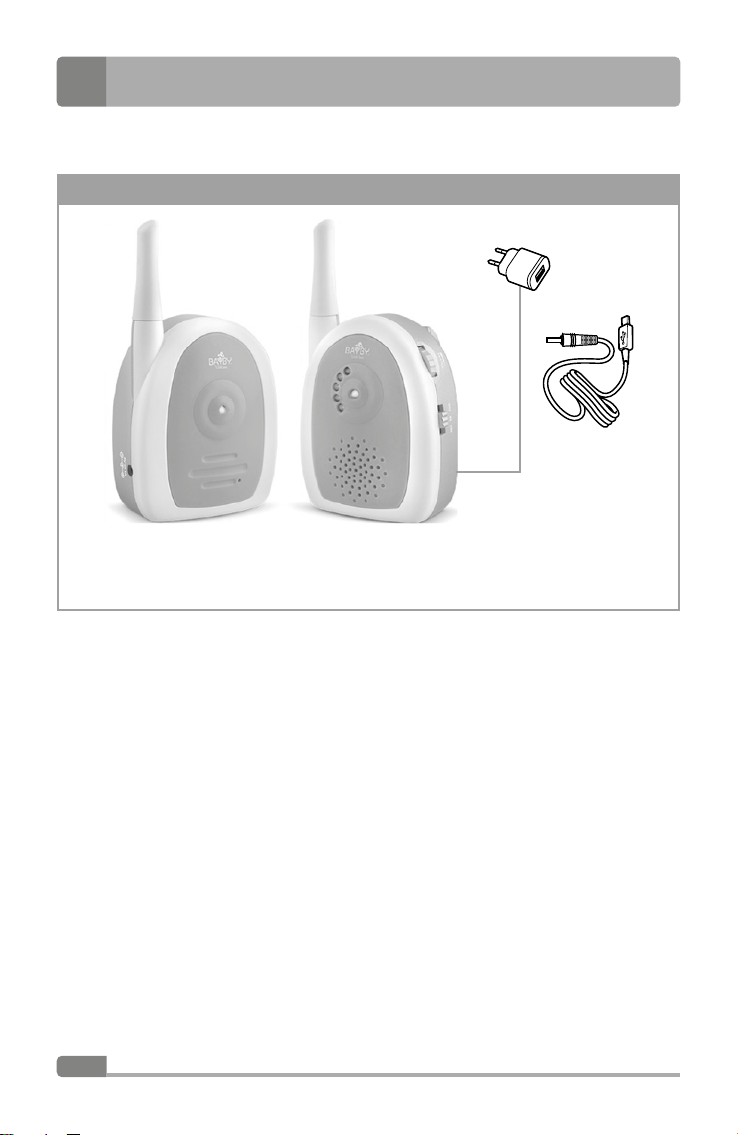

Description of the accessories
A
1Baby unit
2Parent unit
3Power adapter (2 pcs)
4Power cord (2 pcs)
The adapters are identical.

Digital Audio Baby Monitor EN
7
Description of the baby unit
B
1Antenna
2Power and low battery level indicator
3Microphone
4Volume control dial
5On/Off/Pair switch
6Belt clip
7Hanging notch
8Battery compartment
9Power adapter socket (not shown) that is
located on the side of the baby unit
Description of the parent unit
C
1Antenna
2LED volume indicator
3Power and low battery level indicator
4Speaker
5Volume control dial
6On/Off/Pair switch
7Belt clip
8Hanging notch
9Battery compartment
0Power adapter socket (not shown) that is
located on the side of the baby unit

Digital Audio Baby Monitor
EN
8
Installation location of the baby unit and parent unit
1. Baby unit
■Locate the baby unit A1within reach of apower socket on an even, dry and stable surface in the room
where you want to monitor your child. We recommend an elevated location (e.g. chest of drawers or
ashelf) at asufficient distance away from equipment and devices that could cause signal interference.
■The baby unit A1should be located at least 1m away from your child to minimise the effects of
electro-smog.
!
Never locate the baby unit A1or the power adapter A3, A4in the baby'sbed or within your
child'sreach.
2. Parent unit
■Put the parent unit A2in the room where you will be located. When the parent unit A2is to be
powered from the grid, locate it within reach of apower socket.
Power source
1. Baby unit
■External power source and its use
– For powering the baby unit A1, use only the original power adapter A3model number
RY050100EU-B including the power cord A4.
– Insert the plug of the power cord A4into the socket B9that is located on the side of the baby
unit A1. Insert the plug of the power adapter A3into apower socket.
2. Parent unit
■External power source and its use
– For powering the parent unit A2, use only the original power adapter A3model number
RY050100EU-B including the power cord A4.
– Insert the plug of the power cord A4into the socket C0that is located on the side of the
parent unit A2. Insert the plug of the power adapter A3into apower socket.
!
Info:
The supplied power adapters A3and cords A4are identical and interchangeable between both
units. Both units A1, A2may also be powered via the A4cord from an external USB interface
(e.g. computer, powerbank, etc.). In this case, always check that there are no batteries inserted in
the units A1, A2.
!
Attention:
Before connecting the power adapter A3to apower socket, make sure the voltage stated on its
rating label corresponds to the voltage in the power socket.

Digital Audio Baby Monitor EN
9
3. Internal power source and its use
– Battery operation minimises electro-smog which arises due to the effect of alternating electric
and magnetic fields.
Note:
– In the event that you are planning not to use the baby monitor for an extended period of time,
take the batteries out of the units A1and A2and store them out of children'sreach.
– For powering the baby unit and the parent unit from an internal power source, use standard
single-use AAA batteries (3x1.5V1.5Vper each unit).
– The baby monitor is not abattery charger.
– From the rear side of the baby unit and the parent unit A1andA2, release the bottom parts
of the belt clips B6aC7by pulling downwards. Open the battery compartment cover B8
andC9by pulling. Insert 3xAAA batteries into the battery compartment B8, C9. When
inserting the batteries, make sure that you maintain the correct polarity, which is marked in the
battery compartment B8, C9. Close the battery cover B8, C9. Attach the belt clip B6
andC7to its initial position by pulling the side part upwards.
!
If you decide to power the units A1or A2using power adapters and batteries are still inserted
inside, then first remove these batteries from both units.
Using the baby monitor
1. Turning the baby unit and the parent unit on and off
■Turn on the baby unit and the parent unit A1, A2by setting the switch B5, C6to the "ON" posi-
tion and the indicator light B2,C3will be lit green.
■Turn off the baby unit and the parent unit A1, A2by setting the switch B5, C6to the "OFF"
position and the indicator light B2,C3will turn off.
■When you have finished using the baby unit and the parent unit A1, A2, always turn it off and
disconnect the power adapter A3from the power socket.
2. Pairing the units
The baby unit A1is paired with the parent unit A2in advance. Under normal circumstances, it is
not necessary to pair the units. However, in the event that the connection is lost, then it is necessary
to pair the units again in order for the baby monitor to function. Set switch B5, C6to the "PAIR" po-
sition. Power indicators B2, C3will flash, and the pairing process is finished when abeep is made.
3. Volume setting
The volume of both units can be adjusted by turning the volume control dials B4, C5up and down.
The sound detected by the baby unit A1is transmitted to the parent unit A2. LED indicator lights
C2will inform you about audio transmission. This will be particularly useful when the parent unit
A2is set to alow volume.
4. Low battery power indicator
The low battery power indicator B2, C3will start flashing rapidly when battery capacity falls below
acertain level. The unit will shut off when the battery capacity falls below 3.0V.

Digital Audio Baby Monitor
EN
10
5. Notification that the unit is outside the signal range (only on the parent unit).
In the event that the units are outside the communications range or one of the units has alow bat-
tery power level or is turned off, the parent unit will start beeping and the volume indicator C2will
simultaneously start to flash.
General information about using the baby monitor
■Before using the baby monitor for monitoring your child, always check that both the baby and parent
unit A1andA2are in working order, that there is aconnection between the units and that audio
is being transmitted. The connection between the units is indicated by the Connection/On LED
indicator light B2, C3.
■To increase the signal range, place the baby unit A1in an elevated location as close as possible to
the door or window.
■Other radio waves may interfere with the signal transmission. For this reason, do not place the baby
monitor in the vicinity of appliances such as e.g. amicrowave oven or WLAN devices, etc.
■The following factors may interfere with the signal or reduce its range:
– one of the units is covered,
– obstacles in the signal transmission direction such as furniture, walls, trees, etc.
– weather events such as fog, rain, etc.
Troubleshooting
■No connection
– The unit or both units are turned off. Check that the switch B5, C6is in the "ON" position.
– Check whether the batteries are inserted, e.g. if the unit or both the units are powered from
the mains.
– The batteries may have alow capacity, replace them.
■Sound is not being transmitted.
– Check that you do not have the sound on the baby unit set too low or turned off. Increase the
volume by turning the volume dial B4on the baby unit to ahigher level.
– Check that you do not have the sound on the parent unit set too low or turned off. Increase the
volume by turning the volume dial C5on the parent unit to ahigher level.
– The units are outside the signal range or have lost their connection. Try bringing the units closer
together or pairing them if necessary. Remove any obstacles preventing signal transmission
such as microwave ovens, furniture, etc.
■Signal interference
– The units are located too close to each other. Keep the units at least 1metre apart.
– The volume control dial on the parent unit is set too high. Turn down the volume on the parent
unit.
– Check the polarity of the batteries or replace them.
Cleaning and maintenance
■Before cleaning the baby monitor, disconnect it from the power socket.
■To clean the parent unit and the baby unit and the power adapters, use aclean, dry cloth.
■For cleaning, do not use abrasive cleaning products, solvents, thinners, etc. Never submerge the
baby monitor or its power adapters in water or rinse under running water.

Digital Audio Baby Monitor EN
11
Technical specifications
Model number........................................................................................................................ BBM7001
Frequency broadcast band...........................................................................................2.40-2.4835GHz
Transmission power................................................................................................................. < 20dBm
Maximum power.........................................................................................................................100mW
Range in open space............................................................................................................up to 300m
Audio transmission ............................................................................................one way communication
Voltage and amperage draw...............................................................................................5.0V 1.0A
Operating temperature..............................................................................................................0 – 40°C
Power source .........................................................................................power adapter, RY050100EU-B
input:.......................................................................................................... 100–240V~ 50/60Hz, 0.2A
output: .......................................................................................................................5.0V, 1.0A, 5.0W
or
Batteries for parent unit .............................................................................................3×1.5Vtype AAA
Batteries for baby unit................................................................................................3×1.5Vtype AAA
Value and accuracy ...........................................................................................................................Unit
Name of manufacturer or trademark, business registration number and address.....................................
Dong Guan Reyi Power Electronics Co., Ltd.
The five floor No.ABuilding Huixing Industrial park Yangwu Village, Dalingshan Town Dongguan City,
Guangdong CHINA
Model identification.........................................................................................................RY050100EU-B
Input voltage...........................................................................................................................100–240V
Frequency for alternating current .............................................................................................. 50/60Hz
Output voltage.................................................................................................................................5.0V
Output current.................................................................................................................................1.0A
Output power .................................................................................................................................5.0W
Average efficiency.......................................................................................................................75.46%
Power consumption in stand-by condition..................................................................................0.082W
Electrical shock protection class (power adapter)................................................................................... II
Explanation of symbols used on the product, its
accessories and packaging
This symbol indicates that this appliance meets all the basic requirements of EU di-
rectives related to it.
This symbol indicates that the product has protection class II.
This symbol indicates the polarity of the power cord connectors.
LOT This symbol serves to designate the production lot number.
This symbol indicates that the requirements of directive 2011/65/EU (RoHS II) have
been met for limiting the use of certain hazardous substances in electrical and elec-
tronic equipment.
This symbol informs the consumer about how to handle the packaging.

Digital Audio Baby Monitor
EN
12
This symbol on products or original documents means that used electric or elec-
tronic products must not be added to ordinary municipal waste. For proper disposal,
renewal and recycling, hand over these appliances to determined collection points.
Alternatively, in some European Union states or other European countries you may
return your appliances to the local retailer when buying an equivalent new appliance.
Correct disposal of this product helps save valuable natural resources and prevents
potential negative effects on the environment and human health, which could result
from improper waste disposal. Ask your local authorities or collection facility for more
details. In accordance with national regulations penalties may be imposed for the
incorrect disposal of this type of waste.
For business entities in European Union states
If you want to dispose of electric or electronic appliances, ask your retailer or supplier
for the necessary information.
Disposal in other countries outside the European Union.
This symbol is valid in the European Union. If you wish to dispose of this product,
request the necessary information about the correct disposal method from the local
council or from your retailer.
Instructions and information about the handling of
used packaging
Dispose of used packaging material at alocation designated for waste in your municipality.
FAST ČR hereby declares that radio device model number BBM 7001 is in compliance with directive
2014/53/EU. The full wording of the EU Declaration of Conformity is available at the website www.bayby.cz.
The Czech language is the original version of the user'smanual. Changes to text and technical parameters
are reserved.
Service coordinator for the Czech Republic:
FAST ČR, a.s., USanitasu 1621, 251 01 Říčany; tel: [phone]
FAST ČR, a.s., Cejl 31, 602 00 Brno; tel: [phone]
You can find other authorised service centres for the Czech Republic at www.bayby.cz.

Digital Audio Baby Monitor EN
13

Copyright © 2021Fast ČR, a.s. Revision 07/2021
