Goscam 8217KL User manual

8217KL
中性
李民 振20191223
󰀄󰊩
电子档1:1
说明书
1.1
说明书成品尺寸：105*145MM
颜色：4色印刷印刷
材质：80g书纸
工艺：骑马钉
其他：18P
新版本
变更时间 变更前 变更后
说明：
说明书成品尺寸：105*145MM
颜色：4色印刷印刷
材质：80g书纸
工艺：骑马钉
其他：18P

Model No.: 8217KL

10
11
12
13
14
15
17
08. Antenna
09. ON/OFF/Eco mode
10. Menu button/back
11. Navigation button
12. OK button
13. Music play button
14. Power interface
15. Talk (long press)/
adjust (short press) button
16. Status indicator
17. Microphone
18. RESET button
1. Photo sensitive sensor
5. Power interface
2. Lens
3. Microphone
4. Indicator
6. Temperature sensor
5
6
7
2
1
3
7. SET button
08
09
01 02
4
18
16
Thank you for choosing our baby monitor. Please read the instruction carefully in case of
product damage due to improper operation.
Introduction

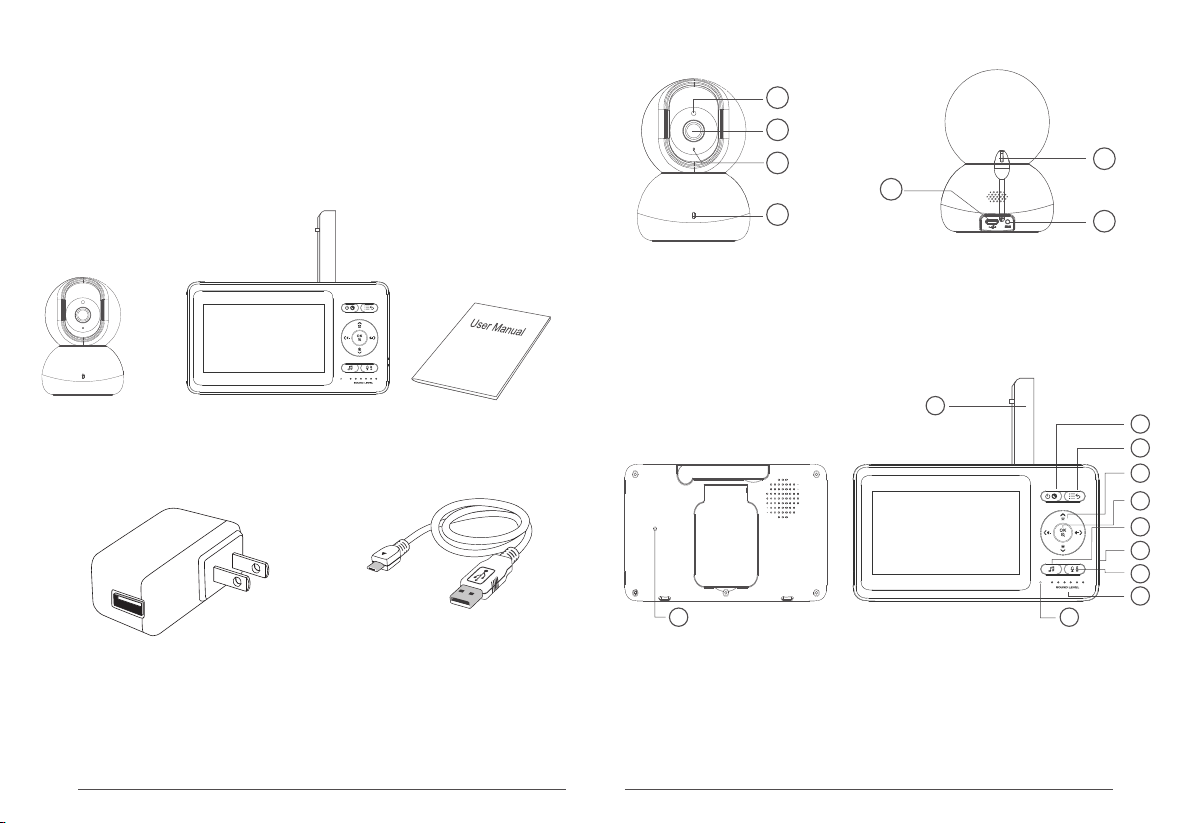

Parts in the package
Camera Manual
Power adapter x2~3
Monitor
Power cable x2~3
Product structure

03 04
!
27
Signal strength between the receiver and the camera
No signal connection between the receiver and the camera
The Lullaby function is enabled.
The sleep setting of the receiver is enabled.
Displaying current room temperature
Show current battery level
Temperature alarm has been turned on
No camera is added or the camera is disconnected from receiver
Audio alarm
Temperature alarm reminder
Message push icon
Feed reminder has been turned on
Audible alarm has been turned on
Feed alarm reminder
Low battery alarm reminder
Message push icon
Explanation for status indicator LED
The first to the fifth green indicators flash from low to high: indicating the received volume;
the sixth red indicator is steady on: indicating the lithium battery is being charged;
(displayed whether it is powered on or off)
Using the Monitor
Place the Camera Unit in a convenient location (e.g. on a table or a shelf) and point the
camera lens toward the area you want to monitor.
NOTE:
Do not place the Monitor Unit within baby's reach. If there is interference with the
picture or sound, try moving the units to different locations, and ensure they are
not close to other electrical equipment.
Children have STRANGLED in cords.
Keep this cord out of the reach of children
(more than 3feet(0.9m) away).
Never use extension cords with AC
Adapters.Only use the AC Adapters
provided.

05 06

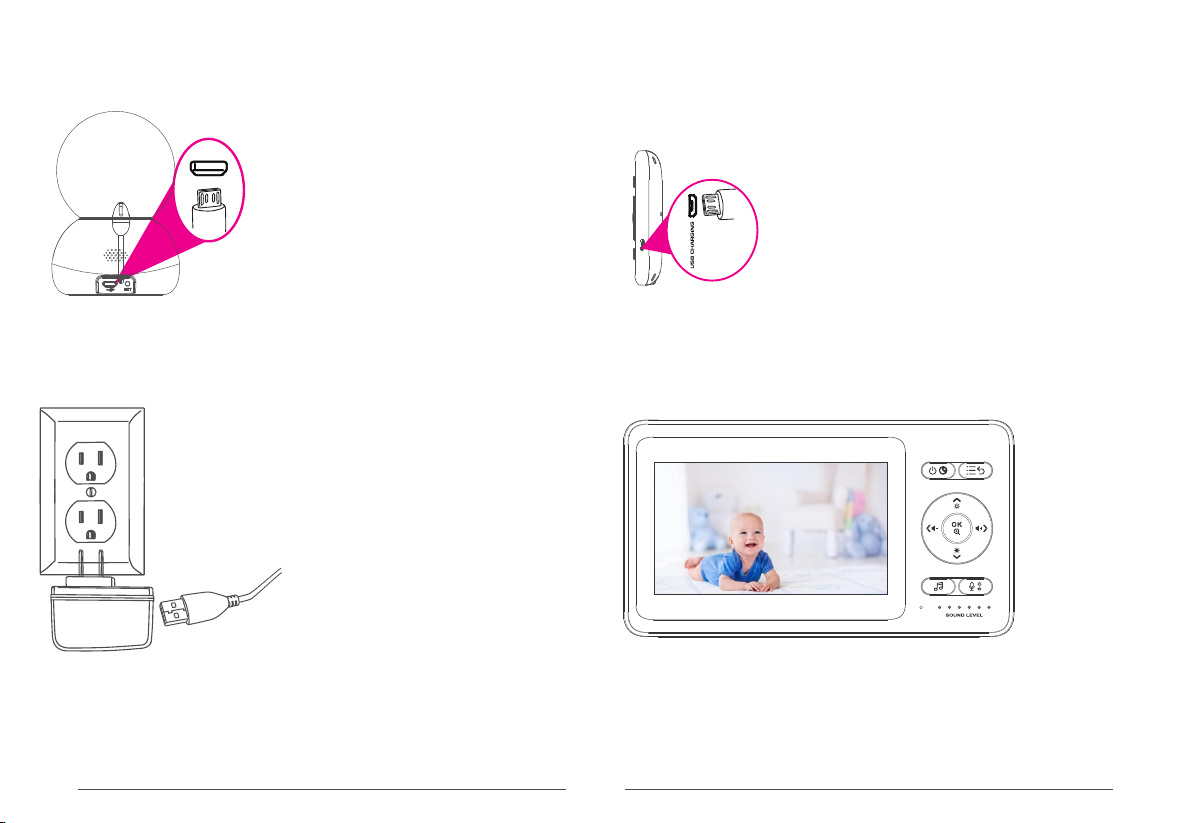

Preparation before using camera
1. Powering the Camera Unit
Insert one end of the included charging
cable into the USB jack on the back of the
camera.
Insert the other end into the included power
adapter. Then insert the adapter into the
socket.
When energized, the camera will be automatically turned on. (The camera indicator
flashes green. At this point, the camera is turned on successfully).
Preparation before using receiver
1.Power on the receiver (The receiver is provided with a lithium battery, if the receiver has
enough power, please go directly to the Step 2).
Insert one end of the charging cable into the USB charging
jack on the side of the receiver.
2. Receiver starting up
Press and hold the “ON/OFF” button on the receiver to turn it on.
Note: This device has been paired before leaving the factory. If the receiver fails to display
on the monitor screen as described above, please re-try the device pairing operation. For
detailed steps, please refer to Page 8 “Camera Pairing”.
Insert the other end into the included power adapter. Then insert the adapter into
the socket.

OK:Selec t ME NU:Retur n
1 2
07 08
1. Select Camera, and press OK to enter the function.
3. When the device prompts “Start pairing, please press the SET button on the camera.”,
press the SET button on the camera, and at this point, the device enters pairing mode.
After pairing succeeds, the screen will jump to a real-time monitoring screen.
Start pairing, please press
the SET button on the camera.
OK:Selec t ME NU:Return
OK:Select MENU:Return
Receiver function settings
Functions of the Babysitter is user definable, to best satisfy your demands. Audio and
temperature alarms may offer automatic notification to you. This chapter will introduce the
user-definable settings item by item.

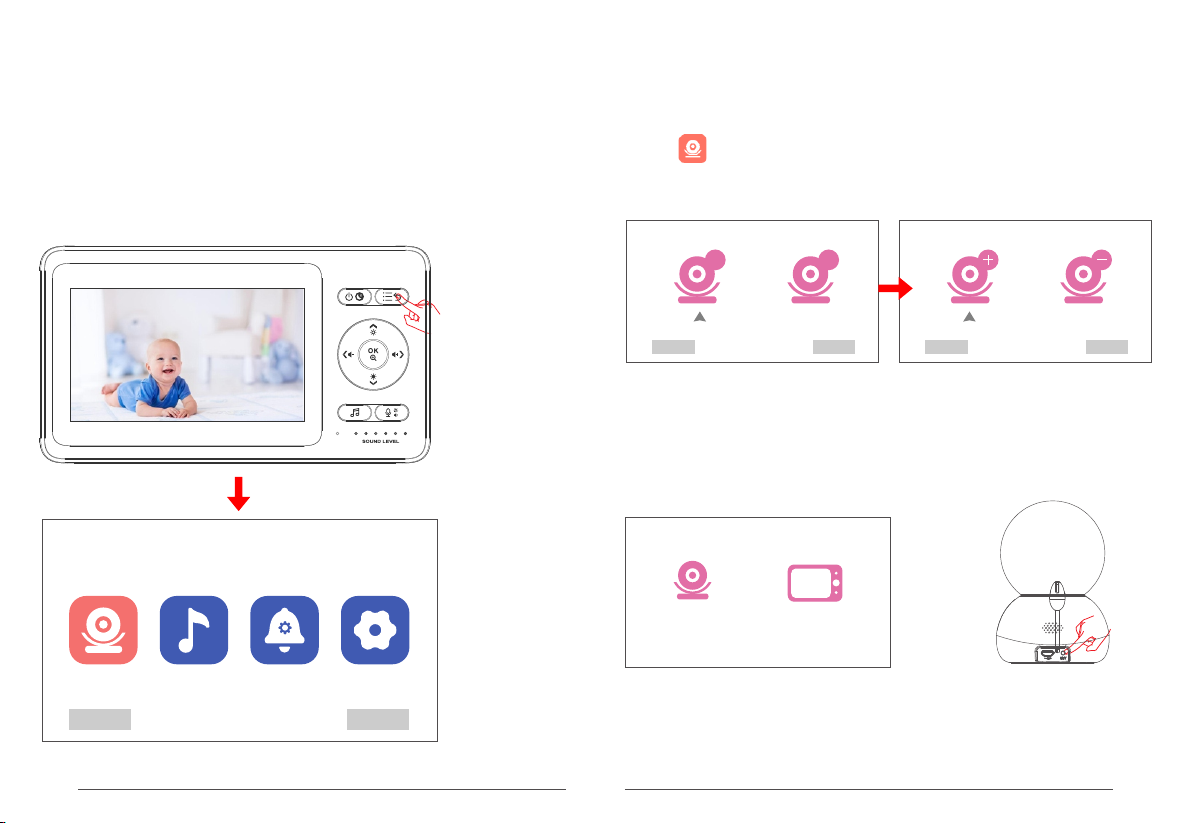

Access receiver menu
In states of live view, press MENU button on the monitor can enter into MENU list;
In states of non-live view, press MENU button on the monitor can return to previous
interface level.
Camera settings (camera pairing and
deletion)
Add camera
2. Select the channel to be paired, and press OK to confirm. Then select “Add Camera”
and press OK to confirm.

09 10

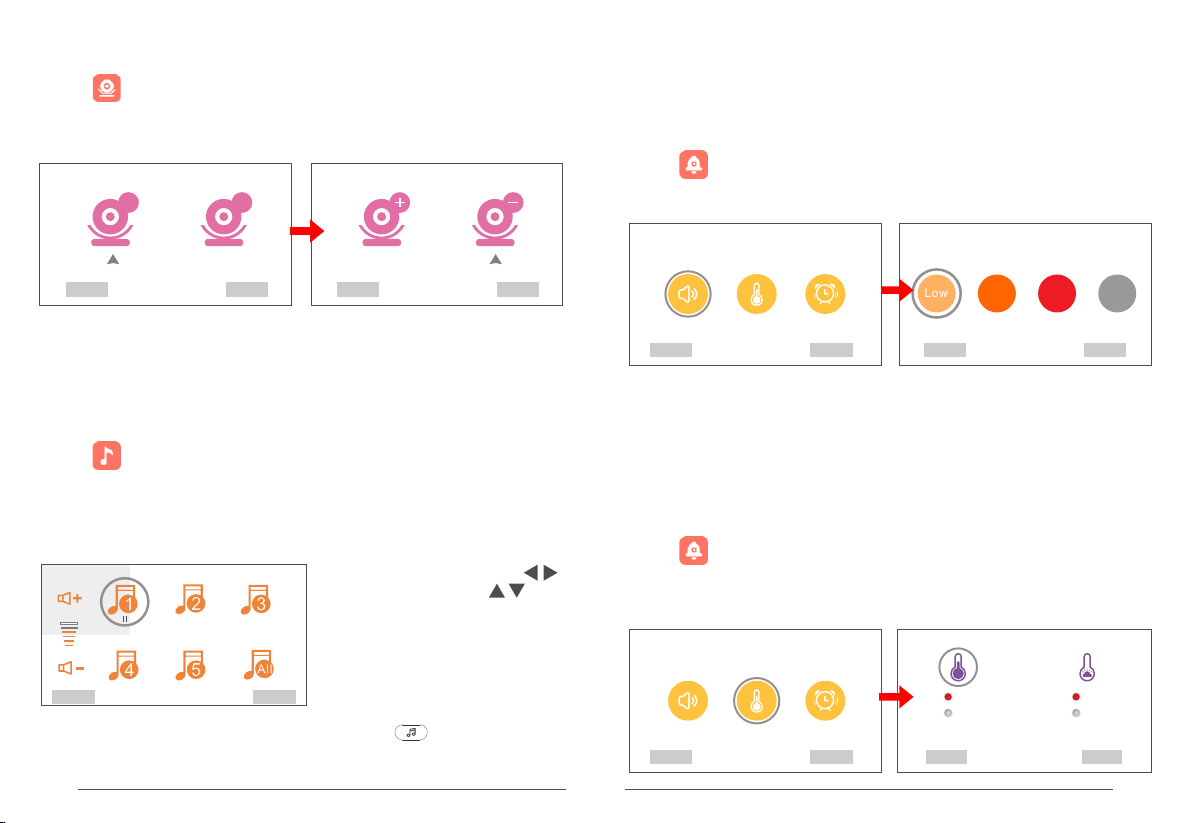

Delete camera
Set the sound sensitivity alarm range. This function identifies the volume of the baby's
crying. When it is above the set threshold, the receiver will sound an alarm.
Sound sensitivity settings
Temperature alarm settings
Middle
Low High
OK:Selec t ME NU:Retur n
The digital wireless baby monitor has 5 lullabies. They can help you lull your baby to sleep.
Notice: In the current interface, press
keys to switch lullabies; press keys
to adjust the volume.
3. You can also play music quickly through the music play button on the panel.
OK:Selec t ME NU:Return
Off
OK:Select ME NU:Return
OK:Select ME NU:Retur n OK :Selec t ME NU:Ret ur n
≤14 ≥29
ON
OFF
°c
°F
OK:Select ME NU:Retur n
OK:Selec t ME NU:Return
1 2
Alarm settings
1. Select Alarm Settings, press OK to enter the settings page, and select “Sound
Sensitivity” settings.
2. Select “Low, Middle, High, Off” as needed and press OK to confirm.
2. Select the channel to be deleted, and press OK to confirm. Then select “Delete Camera”
and press OK to confirm.
Lullabies
1. Select Music Play, and press OK to enter the function.
2. Select the music you want to play, press OK to confirm, and the camera will play the
lullaby of your choice. Press OK again, and the lullaby pauses. Select “All” to play all the
lullabies in a loop. After settings are completed, press MENU to return.
Note: The audible alarm ringing will last for 1 minute. The audible alarm notification can
be turned off by pressing any button on the receiver, and within 3 minutes after turn-off, if
an alarm is triggered again, the receiver will not issue an alarm notification again to avoid
frequent interference.
1. Select Camera, and press OK to enter the function.
When it is too hot or too cold in your baby's room, the temperature alarm will push a
notification to your receiver.
1. Select Alarm Settings, press OK to enter the settings page, and
select “Temperature Alarm” settings.
2. Select “Celsius, Fahrenheit” as needed and press OK to confirm.
3. Select “Alarm” “ON, OFF” as needed.

11 12
OK:Selec t ME NU:Retur n OK :Selec t ME NU:Ret ur n
Alarmssettings
0 9 :0 0 ＞
1 2 :0 0
1 5 :0 0
1 8 :0 0
Time settings
O S D:
YYYY-MM-DD:
HH-MM-SS:
OFF
20s 40s 60s
OK:Selec t ME NU:Retur n OK :Select ME NU :Return OK :Se lect MENU :Re turn OK:Se le ct MENU:Re tu rn
System settings
You can set the feeding alarm to prevent you from forgetting to feed your baby as busy or
for other reasons, which may affect your baby's healthy growth.
1. Select Alarm Settings, press OK to enter the settings page and select “Alarms”
Settings.
2. Select the time periods and quantity of “Alarms” as needed, and press OK to enter the
settings page. After the settings are completed, press OK to confirm.
Calibrate time on the receiver.
1. Select Settings, and press OK to enter the settings page.
2. Select Time Settings, and press OK to enter the settings page. After settings are
completed, press OK to confirm.
Language selection
Switch language displayed on the receiver.
1. Select Settings, and press OK to enter the settings page.
2. Select Language Settings, and press OK to enter the settings page. Select a
language you need and press OK to confirm.
Alarm sound settings
Switch the alarm sound “ON/OFF" on the receiver.
1. Select Settings, and press OK to enter the settings page.
2. Select Alarm Sound Settings, and press OK to enter the settings page.
3. Select “ON/OFF” and press OK to confirm.
Eco mode
You can set the receiver to automatically enter Eco mode. The receiver will automatically
enter energy saving state according to the length of time you set.
1. Select Settings, and press OK to enter the settings page.
2. Select Eco Mode, and press OK to enter the settings page. Select a time that suits
your need and press OK to confirm.
Note: There are three options for sleep time: 20 seconds, 40 seconds, and 60 seconds.
You can choose according to your needs. Selecting “OFF” and pressing OK will turn off
the Eco mode.

13 14
YES NO
Restore to default settings?
Rx:
Rx Date:
Tx:
Tx Da te:
Tx:
Tx Da te:
OK:Selec t ME NU:Retur n OK :Select ME NU :Return
OK:Selec t ME NU:Retur n
1
2
MENU:Retur n
All the specifications are subject to minor change without prior notice.
Specifications
DC 5V/1A
2.4GHz FHSS
158x19x88 (mm)
4.3" TFT LCD monitor
LCD
Wireless transmission Way
Dimensions(W*D*H)
15~85%RH
0℃~40℃
Operation temperature
Operating humidity
Number of pixels 480*272P
Power supply
-20℃~60℃
Storage temperature
1/6.5" CMOS
0℃~40℃
3m
Image sensor
Video resolution
Rotation angle
Dimensions(W*D*H)
Operation temperature
75x75x109(mm)
640*480P
Pan: 345° Tilt:55°
Night visual range
Operation humidity 15~85%RH
-20℃~60℃
Storage temperature
Power supply DC 5V/1A
Camera
Receiver
Viewing Angle 50±5°
Restore to default settings
Restore the receiver to default settings.
1. Select Settings, and press OK to enter the settings page.
2. Select Restore to Default Settings, and press OK to enter the settings page.
3. The device will prompt “Restore to default settings?”. Select YES and press OK to
confirm. The device begins to execute a factory reset.
Tip: After restoring to default settings, all individualized settings on the receiver will not
exist. So, please be cautious.
View version information
View version information of the receiver and camera.
1. Select Settings, and press OK to enter the settings page.
2. Select Version Information, and press OK to enter the version information view page.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection
against harmful interference in a residential installation.
Hereby, we declares that this device is in compliance with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
Notice: Observe the national local regulations in the location where the device Is to be used.
This device may be restricted for use in some or all member states of the European Union (EU)
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Ad Hoc function is supported but not able to operate on non-US frequencies. Do not use the device
with the environment which below minimum -30 ℃ or maximum over 50℃ . This device is acting as
slave and operating in the 2.4 GHz (2412 ~2462 MHz) band.
GD7617：
RF warning for Portable device: The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure condition without restriction.
GD8217：
RF exposure warning :
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment shall be installed and operated with minimum distance 20cm between the radiator & body.
EU Environmental Provisions
E-waste cannot be mixed with household
garbage; corresponding local government
sector or recycling stations shall be
responsible for circular process.
CE and FCC Certification Information
15 16
