1 INTRODUCTION AND
GENERAL DESCRIPTION
Introduction ......................................................................................... 2
Features ............................................................................................... 3
General Specifications ......................................................................... 5

NEXT
2 OF 8
INTRODUCTION AND GENERAL DESCRIPTION
1.1 Introduction
This manual is to be used in conjunction with the Clinitek Status Operator’s Manual
in performing routine troubleshooting and service on an instrument. Each section of
the service manual is dedicated to specific areas of interest: General features,
methods overview, troubleshooting, error code descriptions, repair, functional
diagrams, and parts breakdown. Any future service information or instrument
revisions would be covered through service bulletins and/or revisions of this manual.
The CLINITEK
®
Status instrument is a small, portable urine chemistry analyzer
capable of reading a range of Bayer Urine Reagent Strips along with the Bayer
Clinitest hCG Immunoassay Cassette. It was developed as a next generation
instrument combining features of the CLINITEK
®
50 along with the CLINITEK
®
100
plus the ability to read and interpret immunoassay cassette tests.

NEXT
3 OF 8
INTRODUCTION AND GENERAL DESCRIPTION
1.2 Features
The major feature is the lower cost and size, portability, centered around small office
placement, converting from visual user to instrument. Thus, reducing the
subjectivity in visual interpretation and combined with better patient to sample
tracking.
•
Touch screen display for easier and faster operation,
•
Internal automatic calibration to improve reliability of readings,
•

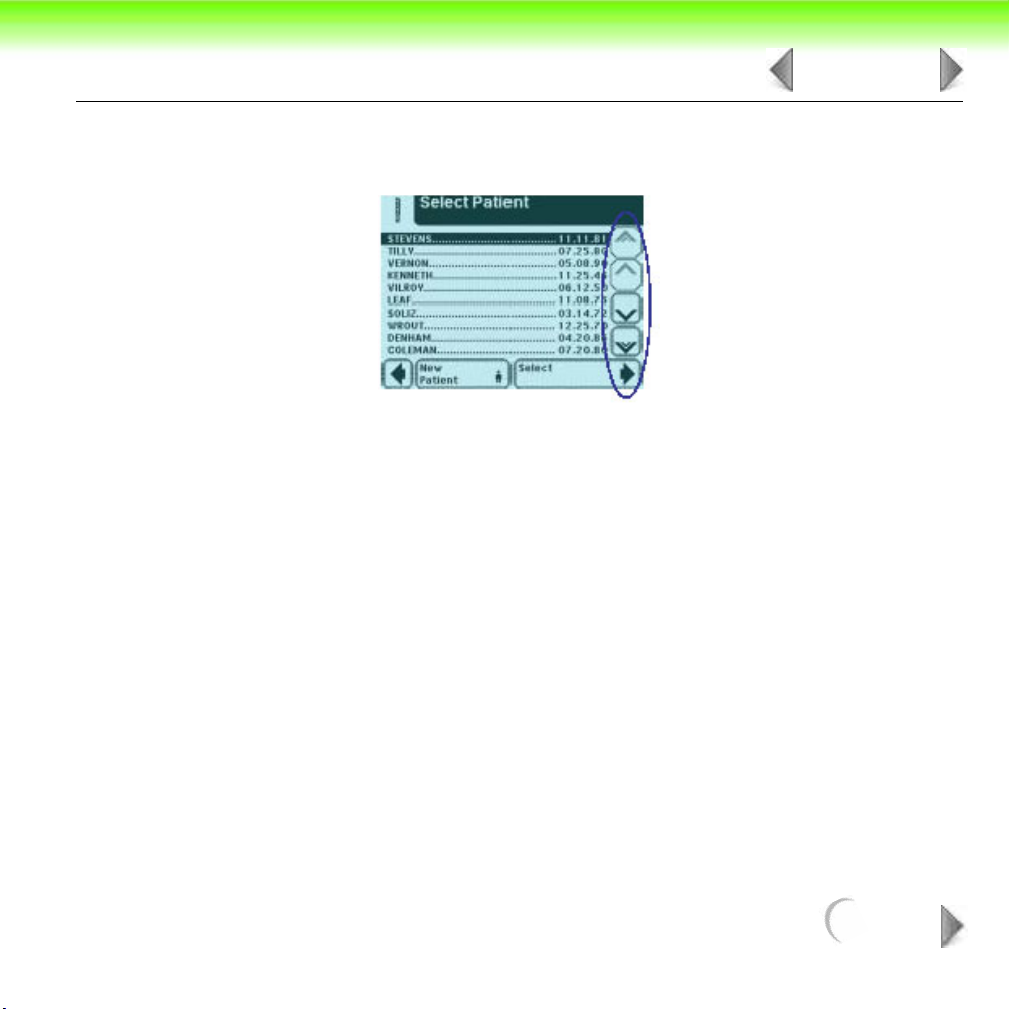

Memory recall which allows customers to display the test results from specific
samples,
•

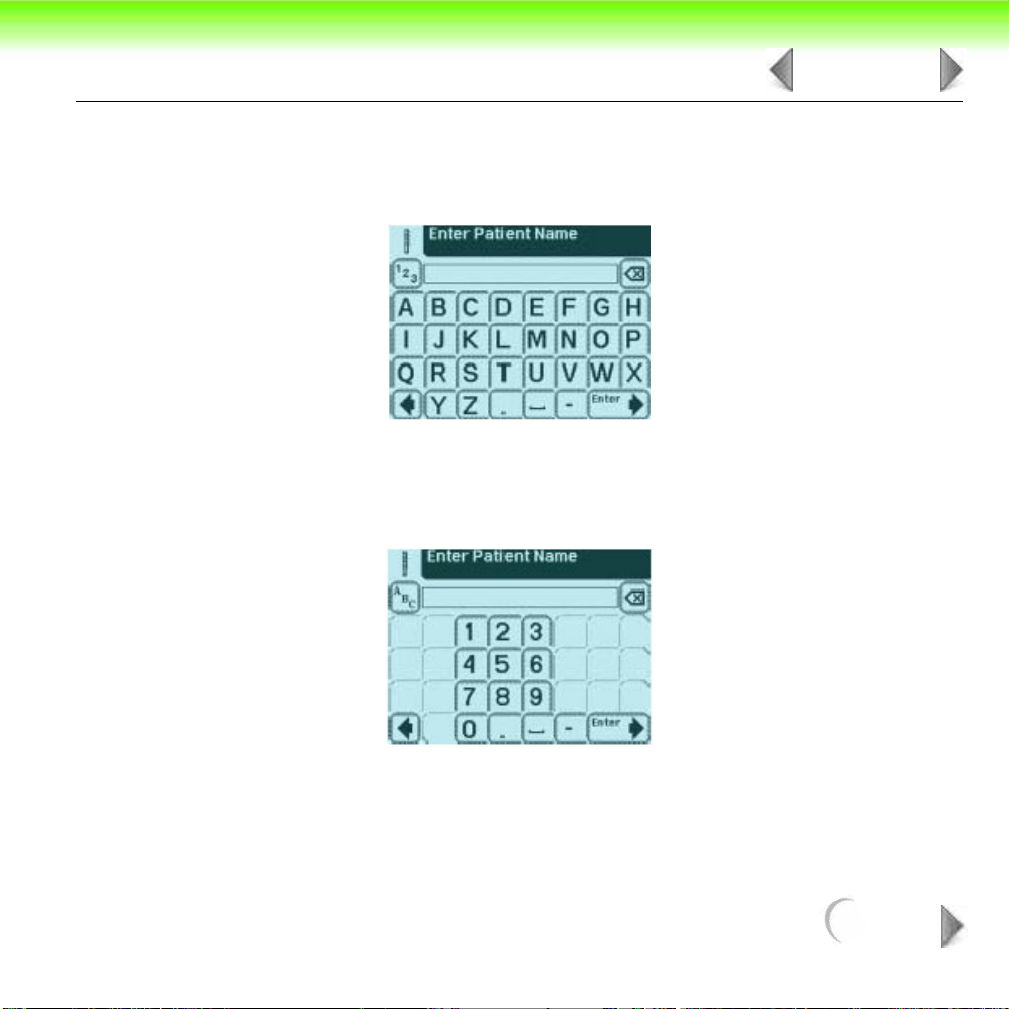

Entry of patient information along with operator for each test result for improved
traceability,
•

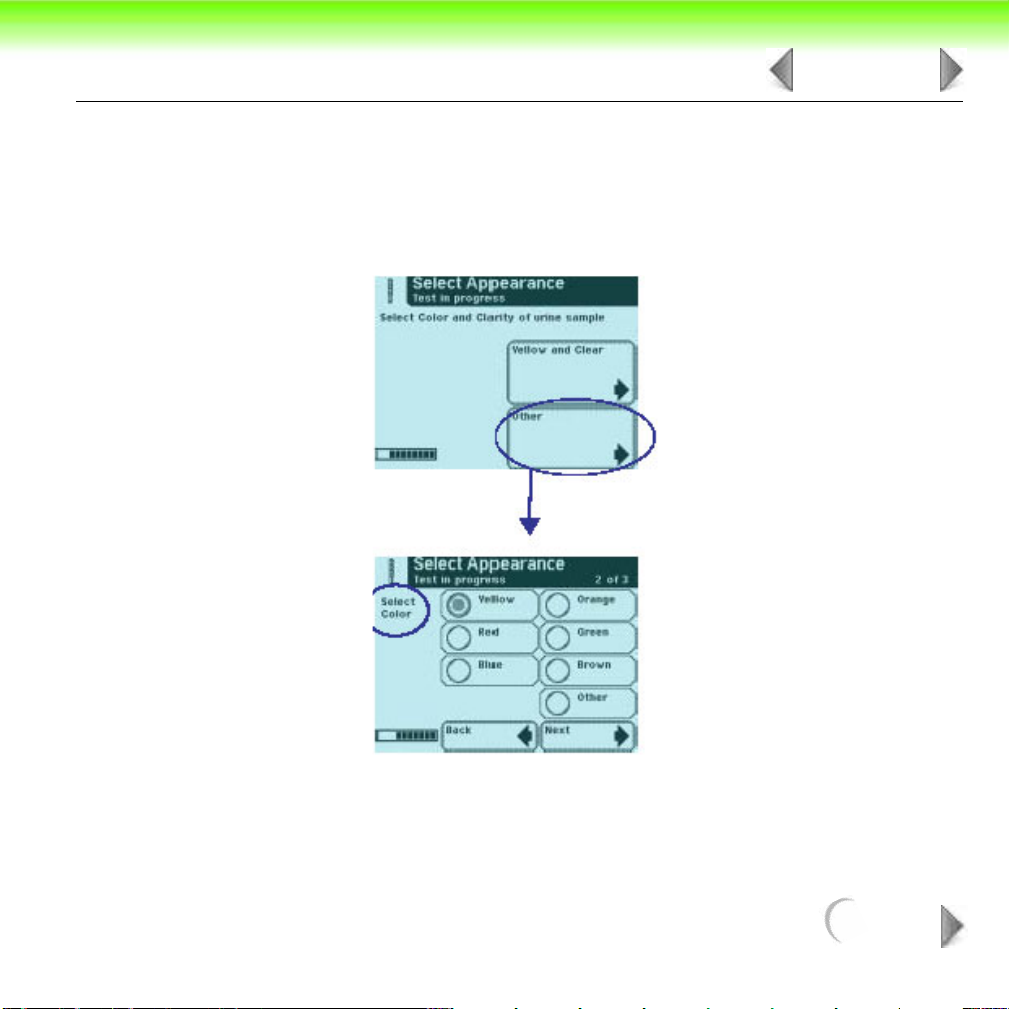

Allows for entry of color and clarity of sample which can be printed along with
results,
•
User Interface available in English, German, French, Spanish, Italian, and
Swedish.

NEXT
4 OF 8
INTRODUCTION AND GENERAL DESCRIPTION

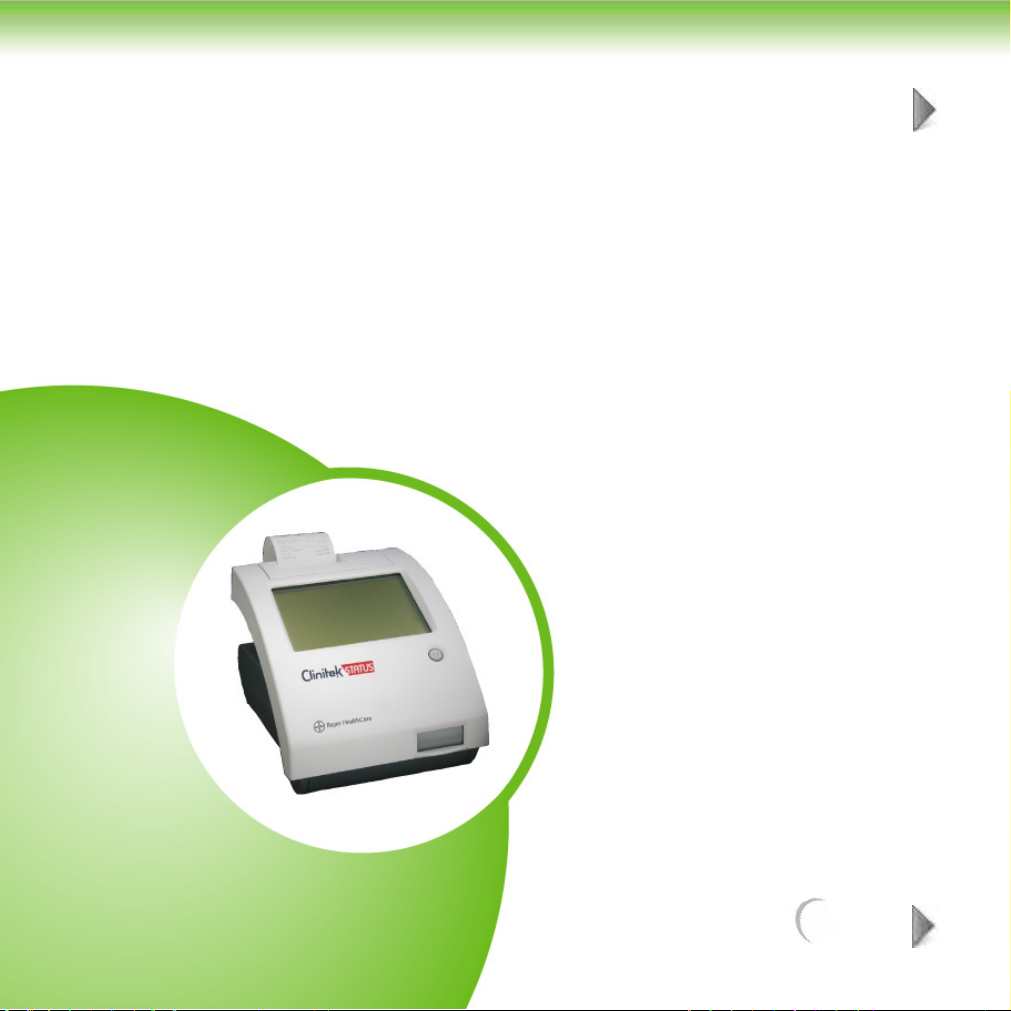

Figure 1-1: Clinitek Status

NEXT
5 OF 8
INTRODUCTION AND GENERAL DESCRIPTION
1.3 General Specifications
SIZE:
Depth – 27.2 cm (10.7 in.)
Width – 17.1 cm (6.7 in.)
H eight – 15.8 cm (6.2 in.)
WEIGHT:
1.66 Kg (3.65 lb)
INPUT VOLTAGE:
110 VAC ± 20%
45-65 Hz (US only)
220 VAC ± 20%
45-65 Hz (European)
9 VDC
(6 AA Batteries)
MAXIMUM POWER INPUT:
Maximum power input to battery eliminator is 18.4 VA
Maximum power output from battery eliminator / input to instrument is 7.2 VA
