Bayliner 245 Cruiser User manual

Engine Serial Number: _____________________________________________
Hull Identification Number:__________________________________________

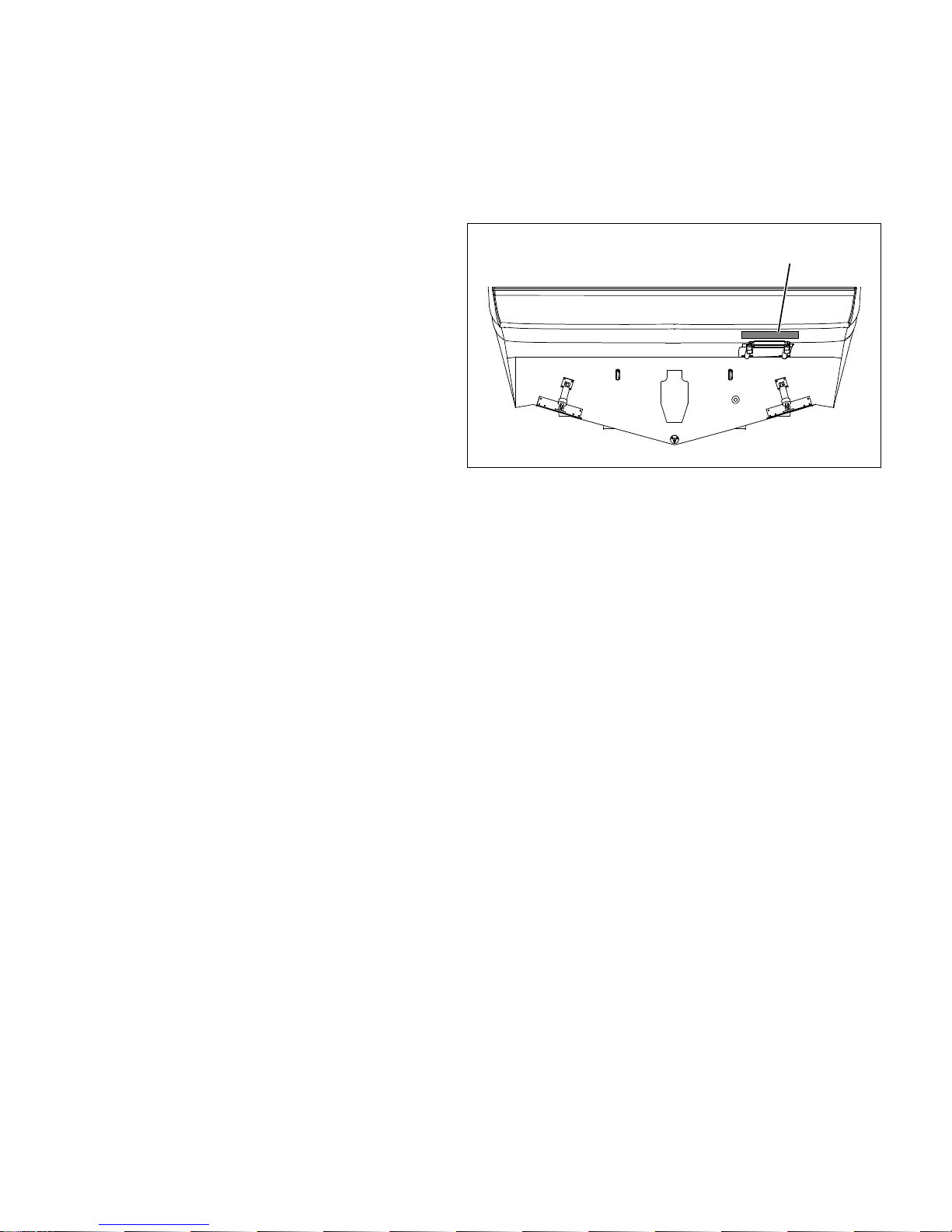

Hull Identification Number
•The Hull Identification Number (HIN)is located on
the starboard side of the transom.
•Record the HIN (and the engine serial numbers) in
the space provided above.
•Include the HIN with any correspondence or orders.
© 2004 Bayliner Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,
recording or otherwise, without prior written permission of Bayliner.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.
Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time
without notice or obligation. Illustrations and/or photos may show optional equipment.
AllBaylinerproductsmeetor exceed USCG (United StatesCoastGuard) and/or NMMA (NationalMarine Manufacturer’sAssociation) construction standards.
Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the
upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop-
ertyof Bayliner.Neitherreceipt nor possession thereof confers or transfersany right to reproduce, copy,alteror disclosethedocument or any part thereof, any
information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to
be returned upon request to Bayliner.
HIN LOCATION

CONTENTS
1 Chapter 1: Welcome Aboard!
1 Dimensions and Tank Capacities
1 Layout View
1 Dealer Service
2 Warranty Information
2 Boating Experience
2 Engine & Accessories Guidelines
3Propeller
3 Engine & Accessories Literature
3 Qualified Maintenance
4 Safety Standards
4 Special Care For Moored Boats
5 Carbon Monoxide (CO)
5 Facts about CO
6 Where and How CO Can Accumulate
6 How to Protect Yourself and Others From CO
7COChecklists
7COMonitor
8 More Information
9 Chapter 2: Locations
9 Exterior Views

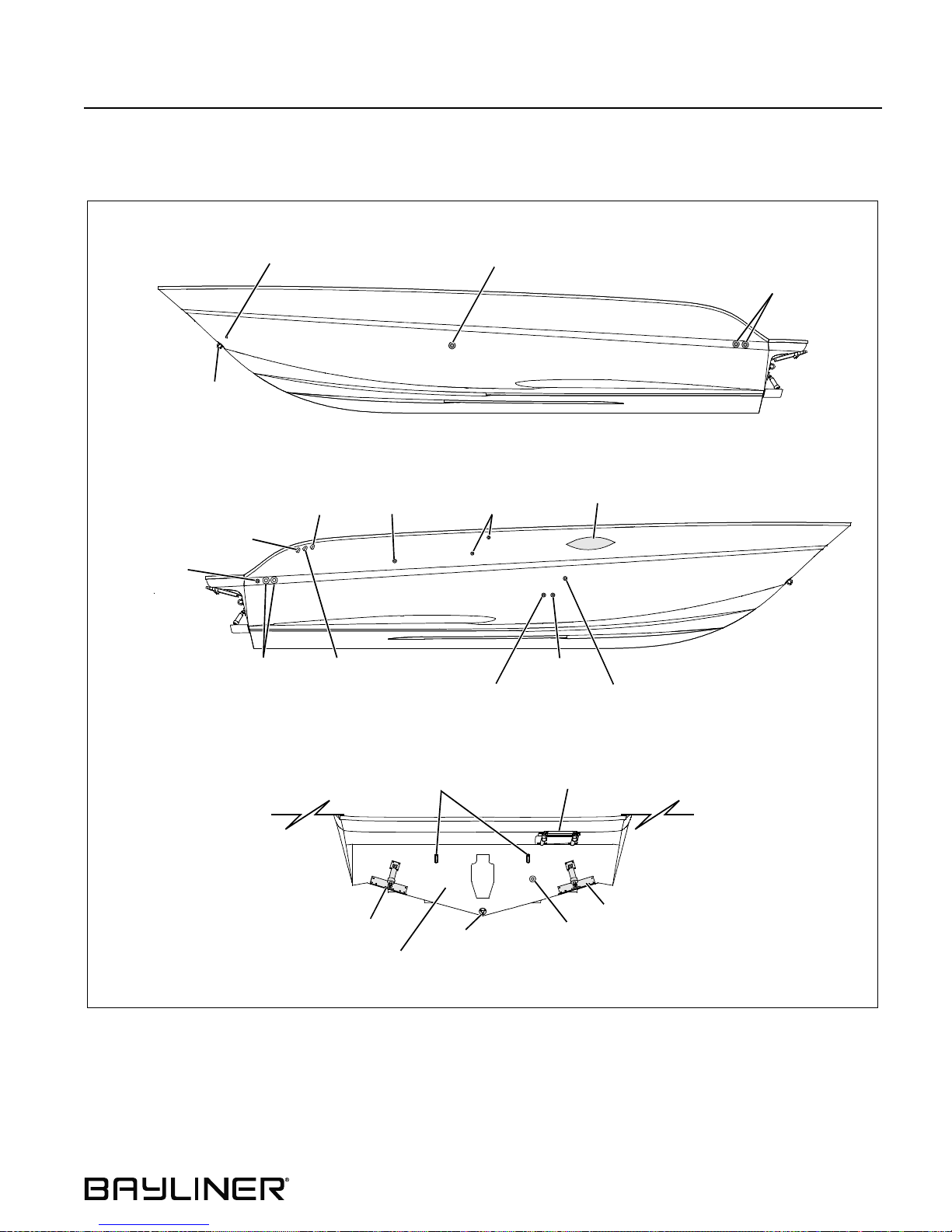

9HullViews

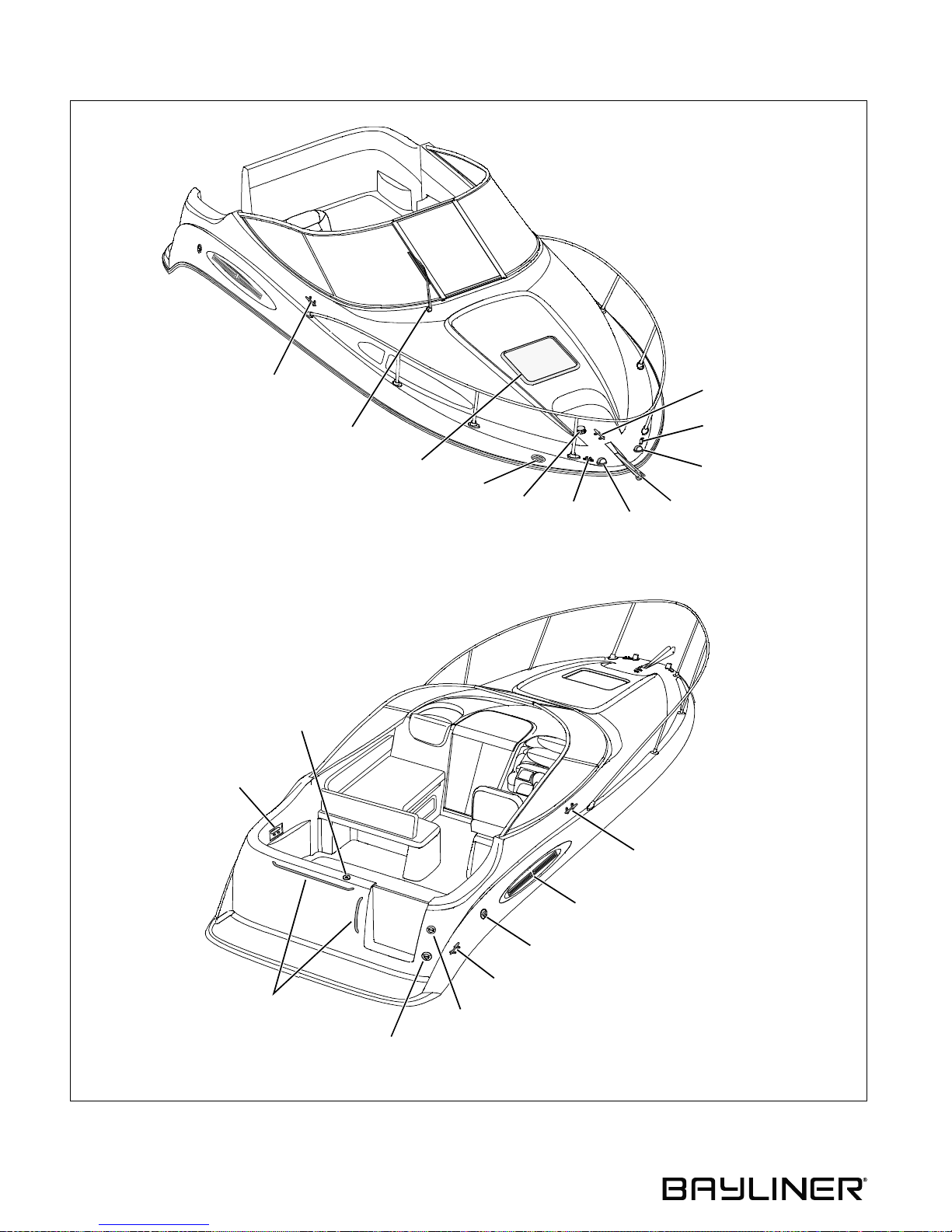

10 Deck Views
11 Helm
12 Component Locations
22 Chapter 3: Propulsion &
Related Systems
22 Engine
22 Bilge Blower System
23 Fuel System
24 Fuel Fill & Vent
24 Gas Engine Fuel Filters
25 Fuel Filter/Water Separator (Diesel
Engine Only)
25 Anti-siphon Valve (Gas Engine Only)
26 Quick Oil Drain System
27 Fire Suppression System (If Equipped)
28 Chapter 4: Controls & Gauges
28 Steering
28 Shift/Throttle Controls
28 Power Trim and Tilt
29 Trim Tabs
30 Gauges
30 Cleaning Gauges
30 Gauge Fogging
30 Radio Transmission Interference
30 Fuel Gauge
31 Chapter 5: Navigation &
Communication Equipment
31 Compass
31 Depth Finder
31 VHF Radio (If Equipped)

32 Chapter 6: Plumbing
32 Bilge Pumps
33 Bilge Pump Testing
35 Seawater Systems
35 Seacocks
35 Seawater Strainers
36 Freshwater System
36 Transom Shower (If Equipped)
37 Freshwater System Winterization
38 Water Heater (If Equipped)
38 Winterizing the Water Heater
39 Drain Systems
39 Deck Drains
39 Gray Water Gravity Drains
39 Sump Box Cleaning
39 Sump System Winterization
40 Marine Head with Holding Tank (If Equipped)
40 Using The Marine Head
40 Winterizing The Marine Head
41 Macerator (If Equipped)
41 Portable Toilet (If Equipped)
42 Chapter 7: Deck Equipment
42 Cleats and Tow Eyes
43 Canvas
44 Canvas Care
45 Clear Vinyl Care
46 Chapter 8: Appliances &
Entertainment Systems
46 Alcohol Stove (If Equipped)
47 Alcohol/Electric Stove (If Equipped)
48 Refrigerator (If Equipped)
48 Audio Equipment
49 Chapter 9: Convertible Seats,
Beds, & Tables
49 Dinette To V-Berth Conversion
50 Chapter 10: Lights
50 Care and Maintenance
50 Interior & Exterior Lights
50 Navigation Lights
51 Chapter 11: Air Conditioning System
51 Air Conditioning System (If Equipped)
52 Chapter 12: Electrical System
53 12-Volt DC System
53 Batteries
53 Battery Switch (If Equipped With One Battery)
54 Battery Switch (If Equipped With
Two Batteries)
54 Battery Switch Positions
55 Fuses
55 12-Volt Accessory Outlet(s)
55 Alternator
55 Battery Charger (If Equipped)
56 110-Volt AC System (If Equipped)
57 Shore Power
58 Connecting to Shore Power
59 Electrical Routings
59 Deck Electrical Harness
60 Hull Electrical Harness
61 120 Volt AC System
62 Battery System
63 Wire Diagrams
63 Single Dockside
64 Dual Dockside
65 Engine Electrical System
66 Important Records
67 Float Plan

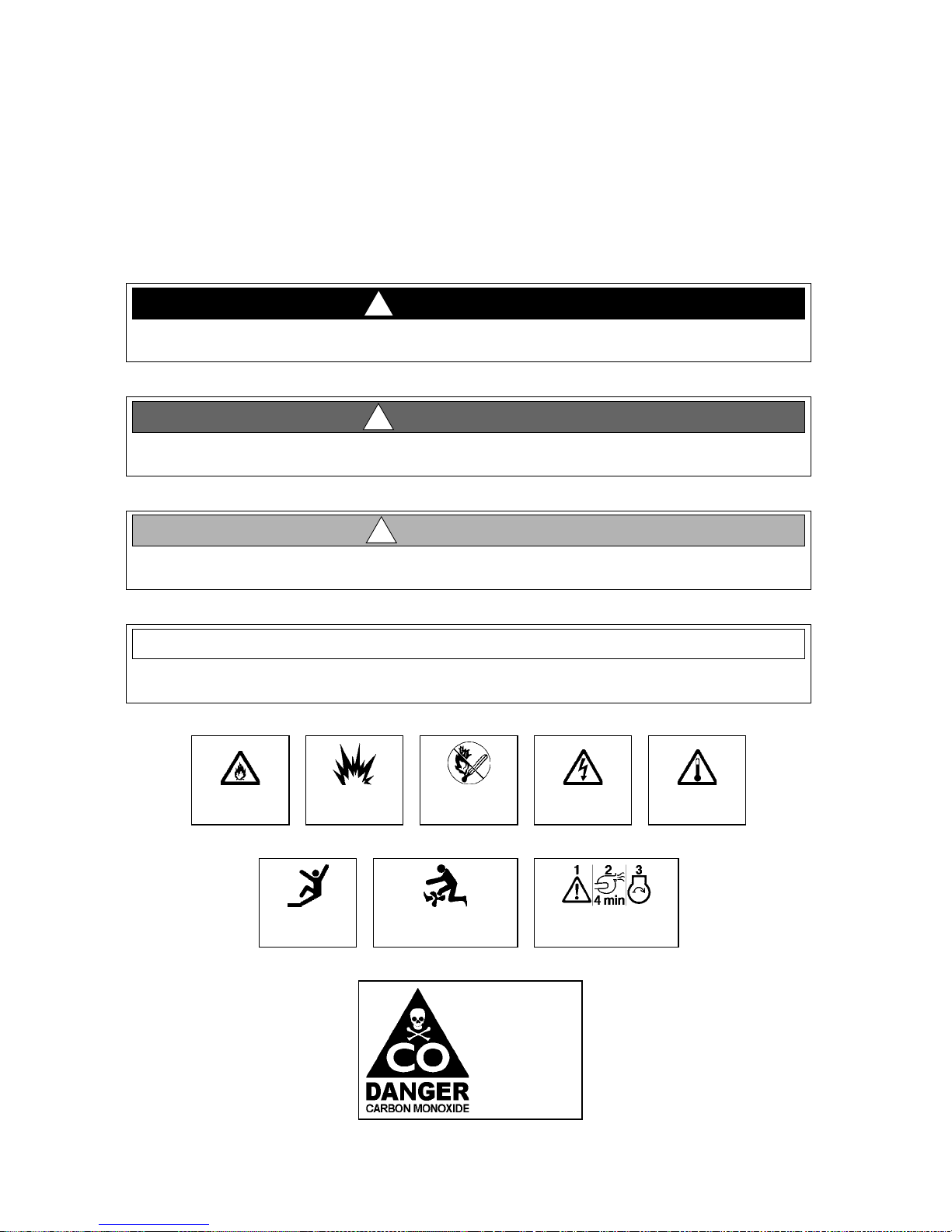

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially
dangerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully
and follow all safety instructions.
DANGER!
!
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION!
!
NOTICE
This box calls attention to installation, operation or maintenance information, which is
important to proper operation but is not hazard related.
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
245 • Owner’s Manual Supplement
Chapter 1: Welcome Aboard!
•This Owner’s Manual Supplement provides information about your boat that is not covered in the Cruiser & Yacht
Owner’s Manual.
•Before using your boat, study this Owner’s Manual Supplement, the Cruiser & Yacht Owner’s Manual, and all
engine and accessory literature carefully.
•Keep this Owner’s Manual Supplement and the Cruiser & Yacht Owner’s Manual on your boat in a secure, yet
readily available place.
Dimensions and Tank Capacities

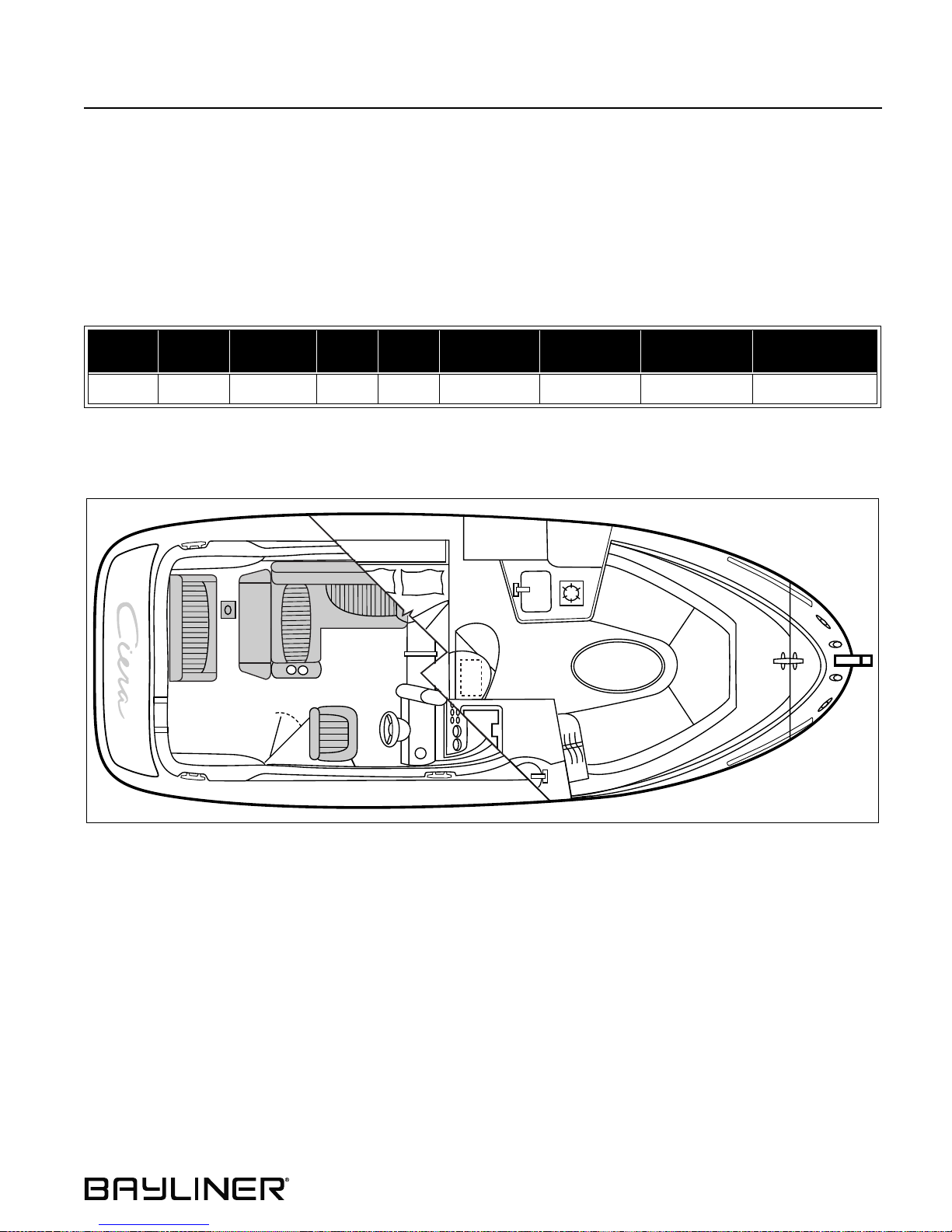

Layout View
Dealer Service
•Your dealer is your key to service.
•Ask your dealer to explain all systems before taking delivery of your boat.
•Contact your dealer if you have any problems with your new boat.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Bayliner dealer.
Overall
Length Length Rigged Bridge Clearance Beam Draft (Hull) Draft (Maximum) Fuel Capacity Freshwater Capacity Waste Holding Tank Capacity
24' 1" 25' 7" 6' 9" 8' 5" 1' 5" 2' 9" 65 Gallons 20 Gallons 20 Gallons

Chapter 1: Welcome Aboard! 245 • Owner’s Manual Supplement
2
Warranty Information
•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.
•A copy of the Limited Warranty was included in your owner’s packet.
•If you did not receive a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957
for a copy.
Boating Experience
If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and
safety, obtain handling and operating experience before assuming command of this boat.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary. For
more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•In Canada, for the CPS courses call 1-888-CPS-BOAT.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local
sea schools or competent instructors.
Engine & Accessories Guidelines
•Your boat’s engine and accessories were selected to provide optimum performance and service.
•Installing a different engine or other accessories may cause unwanted handling characteristics.
•Should you choose to install a different engine or to add accessories that will affect the boat’s running trim, have
an experienced marine technician perform a safety inspection and handling test before operating your boat again.
Certain modifications to your boat will result in cancellation of your warranty protection.
•Always check with your dealer before making any modifications to your boat.
CONTROL HAZARD!
A qualified operator must be in control of the boat at all times. Do NOT operate your boat
while under the influence of alcohol or drugs.
WARNING!
!
When storing your boat please refer to your engine’s operation and maintenance manuals.
NOTICE

245 • Owner’s Manual Supplement Chapter 1: Welcome Aboard!
3
Propeller
•Keep the propeller in good repair and at the correct pitch for your particular situation.
•A slightly bent or nicked propeller will adversely affect the performance of your boat.
Engine & Accessories Literature
•The engine and accessories installed on your boat come with their own operation and maintenance manuals.
•Read these manuals before using the engine and accessories.
•Unless noted otherwise, all engine and accessory literature referred to in this Supplement is included in your
owner’s packet.
Qualified Maintenance
•Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions provided in the Cruiser & Yacht Owner’s Manual, this Supplement, the engine owner’s
manual and all accessory literature.
ENGINE DAMAGE HAZARD!
The factory standard propeller may not be the best for your particular boat and load
conditions. Refer to the engine manual for engine RPM ratings. The engine should reach,
but not exceed its full rated RPM when full-throttle is applied.
Immediately contact your local Bayliner dealer if:
•The engine cannot reach its full rated RPM when full-throttle is applied, or;
•The engine exceeds its full rated RPM when full-throttle is applied.
CAUTION
!
To maintain the integrity and safety of your boat, allow only qualified personnel to perform
maintenance on, or in any way modify the:
•Steering System
•Propulsion System
•Engine Control System
•Fuel System
•Environmental Control System
•Electrical System
•Navigational System
WARNING!
!

Chapter 1: Welcome Aboard! 245 • Owner’s Manual Supplement
4
Safety Standards
•Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it
was built.
•Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety of
other people, vessels and property.
In addition to this Supplement, please read the Cruiser & Yacht Owner’s Manual and all accessory instructions for
important safety standards and hazard information.
Special Care For Moored Boats
•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.
•This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.
•Periodically haul the boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.

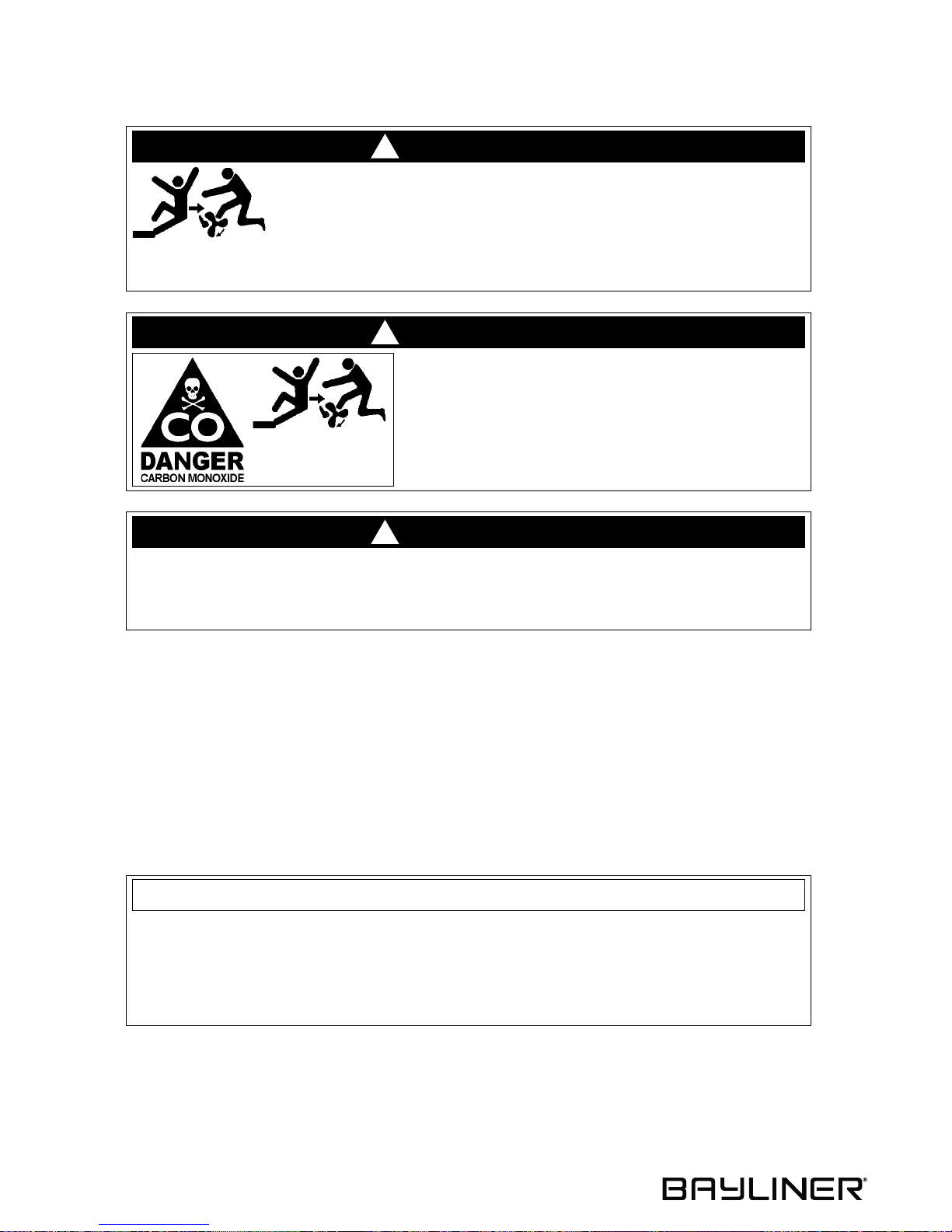

FALLING and ROTATING PROPELLER HAZARD!
•NEVER allow anyone to ride on parts of the boat not designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding,
gunwale riding or occupying the transom platform while underway is especially hazardous
and will cause personal injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engine(s)
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
ALWAYS secure the anchor and other loose objects before getting underway. The anchor and
other items that are not properly secured can come loose when the boat is moving and cause
personal injury or death.
DANGER!
!
•To help seal thehull bottom and reduce the possibility of gelcoat blistering on moored boats,
apply an epoxy barrier coating.
•The barrier coating should be covered with several coats of anti-fouling paint.
•Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your local dealer about recommended bottom paints, and about the
laws in effect in your area.
NOTICE

245 • Owner’s Manual Supplement Chapter 1: Welcome Aboard!
5
Carbon Monoxide (CO)
Facts about CO
•CO poisoning causes a significant number of boating deaths each year.
•Called the "silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your boat.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative, even low levels of exposure can result in injury or death.
Factors That Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
•All engines, generators, and fuel burning appliances produce CO
as exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving water-
craft can be fatal.
DANGER!
!

Chapter 1: Welcome Aboard! 245 • Owner’s Manual Supplement
6
Where and How CO Can Accumulate
Stationary Conditions That Increase CO Accumulations Include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your boat away from source of CO.
Running Conditions That Increase CO Accumulations Include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run boat so that prevailing winds help dissipate exhaust.
How to Protect Yourself and Others From CO
•Know where and how CO may accumulate in and around your boat (see above).
•Maintain fresh air circulation throughout the boat at all times.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engine(s) are running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on the boat, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Install and maintain CO monitors inside your boat. Do not ignore any alarm. Replace monitors as recommended
by the monitor manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
A. Using engine, generator, or other fuel burn-
ing device when boat is moored in a con-
fined space.
B. Mooring too close to another boat that is
using its engine, generator, or other fuel
burning device.
C. Running boat with trim angle of bow too high. D. Running boat without through ventilation
(station wagon effect).

245 • Owner’s Manual Supplement Chapter 1: Welcome Aboard!
7
CO Checklists
Trip Checklist
❏Make sure you know where the exhaust outlets are located on your boat.
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boat.
❏Listen for any change in exhaust sound, which could indicate an exhaust component failure.
❏Test the operation of each CO monitor by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Qualified Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metallic exhaust components for cracking, rusting, leaking, or loosening. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple between the man-
ifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
CO Monitor
•Do not disconnect the CO monitor.
•Read the manufacturer’s instructions for your CO monitor. If you did not receive the manufacturer’s instruc-
tions, call [phone] and one will be mailed to you.
If your boat is not equipped with a CO monitor, consider purchasing one from your dealer or marine supply store.
•The stereo memory and the CO monitor place a small, but constant drain on the battery.
•If your boat will be unattended for an extended amount of time, plug into shore power with
the battery charger turned On.
NOTICE

Chapter 1: Welcome Aboard! 245 • Owner’s Manual Supplement
8
More Information
For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to
boat more safely, contact:
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
U
nited States Coast Guard
O
ffice of Boating Safety (G-OPB-3)
2
100 Second Street SW
W
ashington, DC 20593
w
ww.uscgboating.org
1
-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council, In
c.
(ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050

9
245 • Owner’s Manual Supplement
Chapter 2: Locations
Exterior Views
Hull Views
AFT BILGE
PUMP DRAIN
BOW
EYE
FORWARD BILGE
PUMP DRAIN
SHOWER
PUMP DRAIN
DECK
DRAINS
STERN EYES
TRANSOM
TRIM TAB
BOARDING LADDER
GALLEY SINK
DRAIN
HEAD SINK
DRAIN
ROPE LOCKER
DRAIN
PORT HULLSIDE
STARBOARD HULLSIDE
FUEL TANK AIR CONDITIONER
DRAINS
DRAIN
STORAGE
VENT
DECK
DRAINS
HOLDING TANK
VENT
WATER TANK
VENT
PORTLIGHT
BILGE DRAIN
PLUG MACERATOR
TRIM TAB
DISCHARGE
(IF EQUIPPED)

Chapter 2: Locations 245 • Owner’s Manual Supplement
10
Deck Views
CLEAT
WIPER
HORN
HAWSE
PIPE ROPE
CHOCK NAVIGATION
LIGHT
ANCHOR
ROLLER
NAVIGATION
LIGHT
ROPE
CHOCK
CLEAT
CLEAT
CLEAT
FUEL FILL
DECK FITTING
WATER FILL
DECK FITTING
TRANSOM SHOWER
(IF EQUIPPED)
GRAB
RAILS
LOUVERS
(TYPICAL PORT & STARBOARD)
BOW
HATCH
ALL-ROUND
LIGHT SOCKET
WASTE PUMP-OUT DECK
FITTING
(IF EQUIPPED)

245 • Owner’s Manual Supplement Chapter 2: Locations
11
Helm
ACTUAL LAYOUT MAY VARY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS
NOTE: TYPICAL HELM LAYOUT SHOWN
FUEL GAUGE
VOLTMETER
TEMPERATURE
GAUGE
OIL PRESSURE
GAUGE
DEPTH
SOUNDER TACHOMETER
SPEEDOMETER
FIRE SYSTEM DISPLAY
(IF EQUIPPED)
12-VOLT OUTLET
TRIM TAB SWITCHES
STARBOARD
WIPER SWITCH
NAVIGATION
LIGHTS SWITCH
ANCHOR LIGHTS
SWITCH
COCKPIT LIGHTS
SWITCH
DC PUSH-TO-RESET
CIRCUIT BREAKERS
ACCESSORY
SWITCHES
IGNITION SWITCH
BLOWER SWITCH
AFT BILGE
PUMP SWITCH
HORN SWITCH
FORWARD BILGE
PUMP SWITCH
TRIM GAUGE

Chapter 2: Locations 245 • Owner’s Manual Supplement
12
Component Locations
12-Volt Accessory Outlet - Helm: Located at the helm.
12-Volt Accessory Outlet - Galley:
Located at the forward end of the galley.
110-Volt AC Panel (If Equipped):
Located in the cabin, next to the
galley sink.
12-VOLT OUTLET
12-VOLT
OUTLET
AC PANEL

245 • Owner’s Manual Supplement Chapter 2: Locations
13
Air Conditioner (If Equipped):
Located in the storage hatch under
the helm seat.
Air Conditioner Seawa-
ter Intake Seacock (If
Equipped): Located in
the engine room bilge.
Battery or Batteries: Located in the
engine room, forward of the water heater.
STORAGE
HATCH
AIR CONDITIONER
INTAKE SEAWATER
SEACOCK
BATTERIESWATER HEATER

Chapter 2: Locations 245 • Owner’s Manual Supplement
14
Battery Charger (If Equipped):
Located on the port side of the
engine room on the forward wall.
Battery Switches: Located in the
storage hatch under the helm seat.
Bilge Pump - Aft: Located in
the engine room bilge.
BATTERY
CHARGER
STORAGE
HATCH
AFT BILGE PUMP
& FLOAT SWITCH
