Bayliner Trophy 1703FS User manual

Hull Identification Number: _____________________________________________
Engine Serial Number __________________________________________________
Engine Serial Number __________________________________________________
Hull Identification
Number:
The Hull Identification
Number (HIN) is located
on the starboard side
of the transom. Record
the HIN and the engine
serial number in the
space provided above.
Refer to the HIN for
any correspondence
or orders.
© 2001 Bayliner Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in
any form by any means, electronic, mechanical, photocopying, recording or otherwise, without
prior written permission of Bayliner.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice.
While reasonable efforts have been made in the preparation of this document to assure its accu-
racy, Bayliner assumes no liability resulting from errors or omissions in this document, or from
the use of information contained herein. Due to our commitment to product improvement, Bay-
liner reserves the right to make changes in the product design, specifications, and equipment at
any time without notice or obligation. Illustrations and/or photos may show optional equipment.
All Bayliner products meet or exceed USCG and/or NMMA construction standarda. Manufac-
tured with 1,1,1 Trichloroethane, a substance which harms public health and environment during
the manufacturing process by destroying ozone in the upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Bayliner has proprietary rights. The information
and design disclosed herein were originated by and are the property of Bayliner. Neither receipt
nor possession thereof confers or transfers any right to reproduce, copy, alter or disclose the docu-
ment or any part thereof, any information contained therin, or to construct boats or any item from
it, except by written permission from or written agreement with Bayliner.
This document is to be returned upon request to Bayliner.
HIN LOCATION
(TYPICAL)

The information in this Owner’s Manual Supplementrelates to 2002 and 2003
Bayliner TrophyFishingBoats,models:1703FS,1903FE, 2103FA, 2503FM

CONTENTS
CHAPTER 1: ABOUT THIS MANUAL
1Dealer Service
1Boating Experience
2Engine & Accessories Guidelines
2Qualified Maintenance
3Special Care For Moored Boats
3Safety Standards
4Carbon Monoxide (CO)
4 Sources of CO
5Hazard Warning Symbols
CHAPTER 2: COMPONENTS/SYSTEMS
6Electrical System
7 12-Volt DC System- Fuses, Circuit Breakers and Switches
8Controls

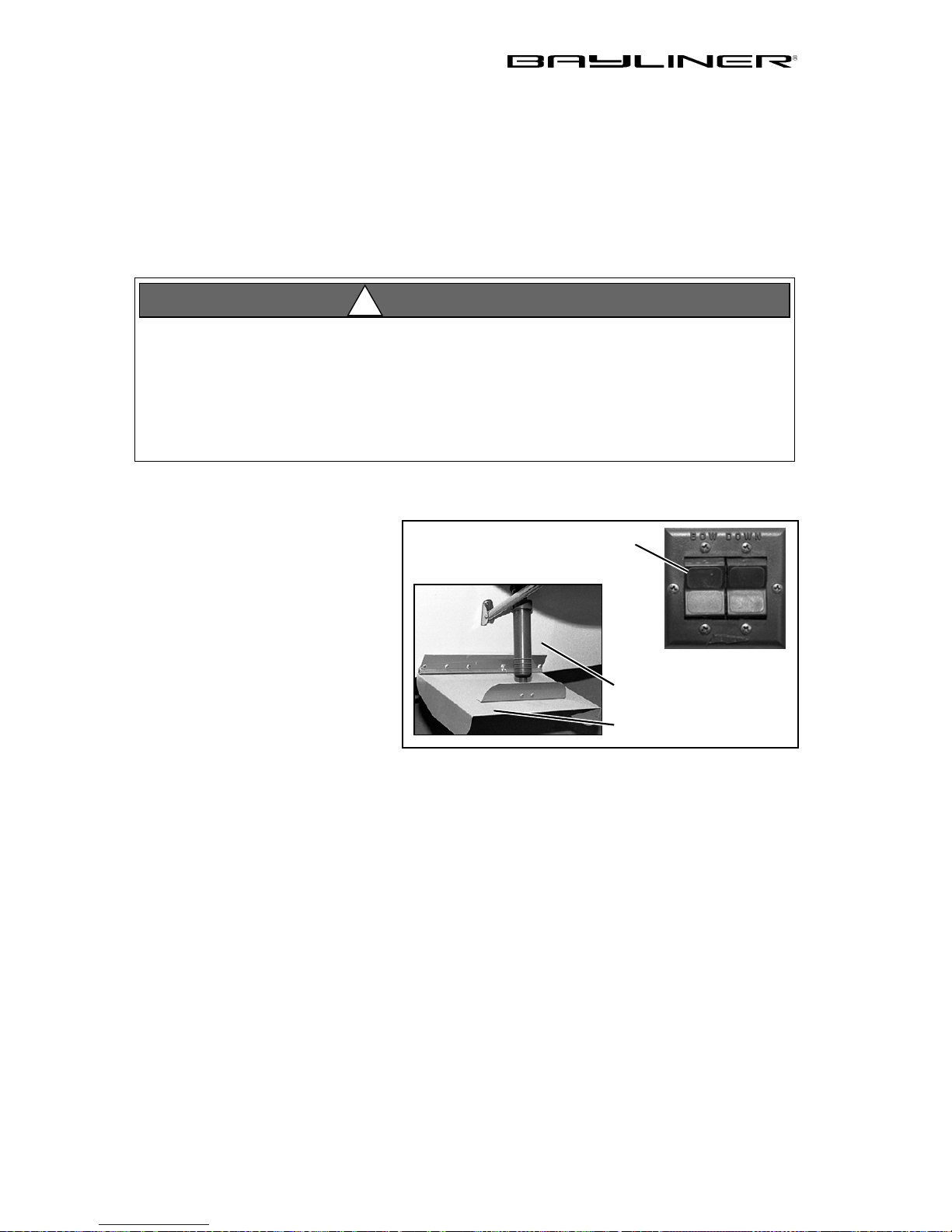

8TrimTabs
9Navigation and Interior Lights
9Compass
10 Depth Finder
10 Anchoring
11 Fuel System
11 Fuel Fills and Vents
11 Fuel Filters
12 Bilge Pump
13 Autofloat Switch
14 Fresh Water System
15 Marine Head With Pump-out (Option)
15 Portable Toilet (Option)
16 Baitwell System
17 Canvas Top Installations

CHAPTER 3: DRAWINGS & DIAGRAMS
18 1703 (FS)
20 1903 (FE)
21 2103 (FA)
25 2503 (FM)
CHAPTER 4: WIRING DIAGRAMS
29 Single Engine, Typical
30 Twin Engine, Typical
BAYLINER TROPHY LIMITED WARRANTY
31 Limited Structural Hull Warranty
31 One Year Parts and Components Limited Warranty
31 Six Month Cosmetic Gelcoat Defect Limited Warranty
31 What Is Not Covered
31 Other Limitations
31 Your Obligations
31 Transferability

Trophy Center Console • Owner’s Manual Supplement
1
CHAPTER 1: ABOUT THIS MANUAL
This Owner’s Manual Supplement provides specific information about your boat
that is not covered in the Sport Boat Owner’s Manual. Study the Sport Boat
Owner’s Manual and this supplement carefully. Pay particular attention to,
APPENDIX A: BAYLINER LIMITED WARRANTY in this supplement. Keep the
Sport Boat Owner’s Manual and this supplement on your boat in a secure, yet
readily available place.
Dealer Service
Make sure you receive a full explanation of all systems from the selling dealer
before taking delivery of your boat. Your selling dealer is your key to service. If
you experience any problems with your new boat, immediately contact the selling
dealer. If for any reason your selling dealer is unable to help, you can call us direct
onour customer servicehotline:360-435-8957 orsend us aFAX:360-403-4235.
A Bayliner replacement parts catalog is available online at:
http://www.baylinerparts.com. Replacement parts can be purchased from any
authorized Bayliner dealer.
Boating Experience
If this is your first boat or if you are changing to a type of boat you are not familiar
with, for your own comfort and safety, you must obtain handling and operating
experience before assuming command of the boat.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the
U.S. Coast Guard Auxiliary. For more course information, including dates and
locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet
at: http://www.usps.org
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at:
http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local
yacht club can advise you of local sea schools or competent instructors.
CONTROL HAZARD! A qualified operator must be in control of the boat at all
times. DO NOT use your boat while under the influence of alcohol or drugs.
WARNING!
!

2 CHAPTER 1: ABOUT THIS MANUAL
Trophy Center Console • Owner’s Manual Supplement
Engine & Accessories Guidelines
Your boat’s engine and accessories were selected to provide optimum performance
and service. Installing different engines or other accessories may cause unwanted
handling traits. Should you choose to install a different engine or to add accessories
that will affect the boat’s running trim, have an experienced marine technician per-
form a safety inspection and handling test before using your boat again.
Be advised that certain modifications to your boat can result in cancellation of your
warranty protection. Check with your dealer before making any modifications to
your boat.
The engine and accessories installed on your boat come with their own operation
and maintenance manuals. Read and understand these manuals before operating the
engines and accessories.
Qualified Maintenance
Failure to maintain your boat’s systems as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or
accidental death. Follow the instructions provided in the Sport Boat Owner’s Man-
ual, this Owner’s Manual Supplement, the engine owner’s manual and all accessory
instruction sheets/manuals included in your boat’s owner’s packet.
NOTICE
When storing your boat please refer to your engine’s operation and mainte-
nance manuals.
To maintain the integrity and safety of your boat, only qualified people should
perform maintenance on, or in any way modify: The steering system, propul-
sion system, engine control system, fuel system, environmental control system,
or electrical system.
WARNING!
!

CHAPTER 1: ABOUT THIS MANUAL 3
Trophy Center Console • Owner’s Manual Supplement
Special Care For Moored Boats
If moored in saltwater or fresh water, your boat will collect marine growth on its
hull bottom. This will detract from the boat’s beauty, greatly affect its performance
and may damage the gelcoat.
Periodically haul the boat out of the water and scrub the hull bottom with a bristle
brush and a solution of soap and water.
Safety Standards
Your boat’s mechanical and electrical systems were designed to meet safety stan-
dards in effect at the time it was constructed. Some of these standards were man-
dated by law. All of them were designed to insure your safety, and the safety of
other people, vessels and property.
In addition to this supplement, read the Sport Boat Owner’s Manual, warning labels,
and all literature in your owner’s packet for important safety standards and
hazard information.
NOTICE
To help seal the hull bottom and reduce the possibility of gelcoat blistering on
moored boats, apply an epoxy barrier coating, such as INTERLUX, Interprotect
2000E/2001E. Cover the barrier coating with several coats of anti-fouling paint.
Many states regulate the chemical content of bottom paints. Ask your local
dealer about the laws in effect in your area.
DANGER
PERSONALSAFETYHAZARD! DO NOT allow anyone to ride on
parts of the boat not designated for such use.
Sitting on seat backs, lounging on the forward deck, bow riding, gunwale riding
or occupying the transom platform or the aft sunlounge cushions while under-
way is especially hazardous and WILL cause personal injury or death.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD! Always secure the anchor and other loose
objects before getting underway. The anchor and other items that are not
properly secured can come loose when the boat is moving and cause personal
injury or death.
DANGER!
!

4 CHAPTER 1: ABOUT THIS MANUAL
Trophy Center Console • Owner’s Manual Supplement
Carbon Monoxide (CO)
CO poisoning causes a significant number of boating deaths each year. Called the
"silent killer", CO is an extremely toxic, colorless, odorless and tasteless gas.
Breathing CO blocks the ability of your blood to carry oxygen. The effects are
cumulative, even low levels of exposure can result in injury or death.
Sources of CO
Sources of CO include:
To correct stationary situations a and/or b:
•Close all windows, portlights and hatches.
•If possible, move your boat away from the source of the CO.
To correct running situations c and/or d:
•Trim the bow down.
•Open windows and canvas.
•When possible, run the boat so that the prevailing winds will help dissipate the
exhaust.
IMMEDIATELY take corrective action when CO is detected.
CARBON MONOXIDE POISONING HAZARD! Carbon monoxide
gas (CO) is colorless, odorless, and extremely dangerous. All
engines, generators, and fuel burning appliances produce CO as
exhaust. Direct and prolonged exposure to CO will cause BRAIN
DAMAGE or DEATH. Signs of CO poisoning include headache,
nausea, dizziness, and drowsiness.
DANGER!
!
a. Using the engineor generator
when the boat is moored in a
confined space.
b. Mooring close to another boat that
is running its engine, generator, or
any other CO source.
c. Running the boat with the trim
angle of the bow too high.
d. Running the boat without through
ventilation (station wagon effect).

CHAPTER 1: ABOUT THIS MANUAL 5
Trophy Center Console • Owner’s Manual Supplement
Factors increasing the effects of CO include:
•Age.
•Smokers or people exposed to high concentrations of cigarette smoke.
•Consumption of alcohol.
•Lung disorders, heart problems, and pregnancy.
Hazard Warning Symbols
The hazard warning symbols shown below are used throughout this supplement to
call attention to potentially dangerous situations that could lead to either personal
injury or product damage. Read these warnings and follow all safety instructions.
EXPLOSION
HAZARD!
HOT
HAZARD! ROTATING PROPELLER HAZARD!
PERSONAL INJURY
& FALLING HAZARD!
OPEN FLAME
HAZARD! ELECTRICAL HAZARD!
FIRE
HAZARD!
CO POISONING
HAZARD!
This message box alerts you to immediate hazards which WILL cause severe
personal injury or death if the warning is ignored.
DANGER!
!
This message box alerts you to hazards or unsafe practices which COULD
result in severe personal injury or death if the warning is ignored.
WARNING!
!
This message box alerts you to hazards or unsafe practices which COULD
result in minor personal injury or cause product or property damage if the
warning is ignored.
CAUTION!
!
This message box calls attention to installation, operation or maintenance infor-
mation, which is important to proper operation but is not hazard related.
NOTICE

Trophy Center Console • Owner’s Manual Supplement
6
CHAPTER 2: COMPONENTS/SYSTEMS
Electrical System
Thoroughly read and understand this section, the electrical sections of the Sport
Boat Owner’s Manual and all accessory manuals included in your boat’s owner’s
packet. Wiring schematics are provided at the back of this supplement.
EXTREME FIRE, ELECTRIC SHOCK
and EXPLOSION HAZARD!
To minimize the risks of fire, electric shock and explosion:
• NEVER install knife switches or other arcing devices in fuel compartments.
• NEVER substitute automotive parts for marine parts. Electrical, ignition and
fuel system parts were designed and manufactured to comply with rules and
regulations that minimize risks of fire and explosion.
• Ensure all of the battery switches are in the OFF position before performing
any work in the engine spaces.
• DO NOT modify the electrical systems or relevant drawings.
• Only qualifiedpersonnel shouldinstall batteries and/or perform maintenance
on the electrical system.
DANGER!
!
FIRE & EXPLOSION HAZARD!
• Fuel fumes are heavier than air and will collect in the bilge areas where they
can be accidently ignited.Visually and by smell (sniff test), check the engine
and fuel compartments for fumes or accumulation of fuel. Always use the
bilge blowers for at least four minutes prior to engine starting, electrical sys-
tem maintenance or activation of electrical devices.
• Minimize the danger of fire and explosion by not exposing batteries to open
flame or sparks. NEVER allow smoking anywhere near the batteries.
WARNING!
!
NOTICE
Electrical connections are prone to corrosion. To reduce corrosion caused elec-
trical problems, keep all electrical connections clean and apply a spray-on pro-
tectant that is designed to protect connections from corrosion.

CHAPTER 2: COMPONENTS/SYSTEMS 7
Trophy Center Console • Owner’s Manual Supplement
12-Volt DC System- Fuses, Circuit Breakers and Switches
The engine is protected by a large circuit breaker on the engine. The accessories on
some models are protected by a master circuit breaker usually located near the bat-
tery. A fuse block for branch accessory circuits is located near the helm panel.
Wires are color-coded to indicate which accessory each fuse services. Some items,
such as radios and bilge pumps, may be fused individually at the unit. Autofloat
switches are fused at the battery.
Some models are equipped
with a battery switch. Your
Sport Boat Owner’s Manual
provides a general descrip-
tion of battery switch func-
tion in the Batteries portion
of the Electrical Section.
Table 1: Battery Switch Positions
Battery
Switch
Position Engine Starting Accessories
and Lights Engine Alternator
POSITION
"1" Battery "1"
Provides Starting Power Provides Power FromBattery "1" Charges Battery "1"
POSITION
"2" Battery "2"
Provides Starting Power Provides Power FromBattery "2" Charges Battery "2"
"BOTH"
POSITION Both Batteries
Provide Starting Power BothBatteriesProvideAccessory Power (not advised unless
engine is running)
Charges
"BOTH"
Batteries
SHOCK & ELECTRICAL SYSTEM DAMAGE HAZARD!
• NEVER disconnect the battery cables while the engine is running since dam-
age may occur to your boat’s electrical system components.
• The parallel switch should be turned ononly in emergencies.
• The battery charging systems (alternators and battery charger) are designed
to charge lead-acid batteries. Before installing gel-cell or other new technol-
ogy batteries, read and follow the battery charger’s operating instructions.
CAUTION!
!
POSITION "1"
BATTERY "1"
ACTIVATES POSITION "2"
BATTERY "2"
ACTIVATES
POSITION "BOTH" ACTIVATES
BOTH BATTERIES
"OFF" POSITION
(ONLY BATTERY
IN SOME MODELS)
BATTERY
SWITCH

8 CHAPTER 2: COMPONENTS/SYSTEMS
Trophy Center Console • Owner’s Manual Supplement
Controls
Read and understand the Controls section of both the Sport Boat Owner’s Manual
and engine manual, provided in the owner’s packet, for instructions and
warranty information.
Trim Tabs
The trim tabs may be used to
help keep your boat level at
cruising speeds.
The trim tabs are controlled by
two rocker switches at each
helm station.
Before using the trim tab rocker
switches, read and understand
the trim tab operation manual
included in your yacht’s
owner’s packet.
When cruising speed is reached:
•The port or starboard trim switch may be used (one at a time) to level the boat.
•Perform trim tab adjustment with several short touches to the switch rather than
one long one.
•After each short touch allow several seconds for the hull to react.
LOSS OF CONTROL HAZARD!
Improper use of trim tabs will cause loss of control!
•Do not allow anyone unfamiliar with trim tabs to use them.
•Do not use trim tabs in a following sea as they will cause broaching or other
unsafe handling characteristics.
•Do not use trim tabs to compensate for excessive unequal weight distribution.
WARNING!
!
TYPICAL TRIM TAB
ROCKER SWITCHES
TYPICAL TRIM TAB
TRANSOM

CHAPTER 2: COMPONENTS/SYSTEMS 9
Trophy Center Console • Owner’s Manual Supplement
Navigation and Interior Lights
Read the navigation light section of the Sport Boat Owner’s Manual. The naviga-
tion and interior lights supplied with your boat are of top quality, but you should
be aware that failure may periodically occur for a variety of reasons:
•There may be a blown fuse - replace the fuse in the switch panel.
•The bulb may be burned out - carry spare bulbs for replacement.
•A wire may be damaged or may have come loose - repair as required.
•The bulb base may be corroded - clean the base and coat it with non-conductive
electrical lubricant.
Compass
Your boat may come equipped with a compass. Carefully read and follow the man-
ufacturer’s calibration and operating instructions provided in the owner’s packet.
• Conserve battery power. Prolonged operation of cabin interior lights (over-
night) will result in a drained battery.
• Avoid the storage of gear where it would block navigation lights from view.
CAUTION!
!

10 CHAPTER 2: COMPONENTS/SYSTEMS
Trophy Center Console • Owner’s Manual Supplement
Depth Finder
Your boat may come equipped with a depth finder. It will provide you with mea-
surements of water depth beneath the boat and in many cases it may help you locate
schools of fish. The depth finder comes with its own manual. We suggest that you
read it carefully before using the unit.
Anchoring
Read and understand the Anchoring section of the Sport Boat Owner’s Manual.
DO NOT use the depth finder as a navigational aid to prevent collision,
grounding, boat damage or personal injury. When the boat is moving, sub-
merged objects will not be seen until they are already under the boat. Bot-
tom depths may change too quickly to allow time for the boat operator to
react. If you suspect shallow water or submerged objects, run the boat at
very slow speeds.
WARNING!
!
FLOODING AND SWAMPING HAZARD - Never anchor by the stern alone--
there is less freeboard and flooding or swamping is more likely to occur. When
using only one anchor, secure the anchor line to the bow cleat or bow eye.
WARNING!
!

CHAPTER 2: COMPONENTS/SYSTEMS 11
Trophy Center Console • Owner’s Manual Supplement
Fuel System
Fuel Fills and Vents
Fuel fills are located either on the aft deck or on the side decks adjacent to the aft
cockpit. Fuel receptacle caps are marked “GAS”. Fuel vents are normally located in
the hull or transom below and in the same general area as the fill. If you have
trouble filling the fuel tank, check to see that the fuel fill and vent lines are free of
obstructions and kinks.
Fuel Filters
Fuel filters should be replaced periodically to ensure that they remain clean and free
of debris. A fine mesh screen filter is located on the fuel pickup tube. An additional
filter, when supplied by the engine manufacturer, is installed on the engine.
Consult your selling dealer or local marina concerning fuel additives that help to
prevent fungus or buildup in your fuel tanks.
FUEL TANK
FUEL TANK
DECK FITTING
FUEL FILL
TYPICAL FUEL SYSTEM
FUEL FEED
HOSE
VENT
FWD
FIRE/EXPLOSION HAZARD
It is very important that the fuel system be inspected thoroughly the first
time it is filled and then at each subsequent filling. For your safety and the
safety of your passengers, the fueling instructions in the Sport Boat Owner’s
Manual must be followed.
WARNING!
!
Avoid the storage or handling of gear near the fuel lines, fittings and tank.
CAUTION!
!

12 CHAPTER 2: COMPONENTS/SYSTEMS
Trophy Center Console • Owner’s Manual Supplement
Bilge Pump
Your boat has one impeller-type bilge
pump. The bilge pump is automati-
cally controlled by a float switch (see
"Autofloat Switch" on the next page).
The bilge pump can also be con-
trolled by a switch on the dash.
Check the bilge pump often to make
sure it is working properly. To check
the bilge pump:
•Turn on the dash-mounted switch
and make sure that water in the
bilge is pumped overboard.
If bilge water is present and the pump
motor is running but not pumping:
•Inspect the bilge pump hose for a
kink or collapsed area.
If the bilge pump hose is not the prob-
lem, check the bilge pump housing
for clogging debris:
Bilge Pump Cleaning:
To remove the power cartridge:
1. Lift the tab while rotating the
fins counterclockwise.
2. Lift out the power cartridge.
3. Clear the outer housing of
debris.
To reinstall the power cartridge:
1. Make sure the “O” ring is prop-
erly seated.
2. Coat the “O” ring with a light
film of vegetable or mineral oil.
3. Align the two cams on either
side of the power cartridge with
the two slots on the outer hous-
ing and press the power car-
tridge into the housing while
twisting clockwise.
4. To ensure proper reinstallation
of the power cartridge, attempt
to twist the fins counterclock-
wise without lifting the tab: The
cartridge should stay in place.
TRANSOM
FLOAT
BILGE
HOSE
THRU-
SWITCH
PUMP
HULL
TYPICAL BILGE PUMP SYSTEM
OF OIL
“O” RING
TAB
FIN
POWER
CARTRIDGE
SLOT
CAM
(TYPICAL)
LIGHT FILM
BILGE PUMP
COMPONENTS
(TYPICAL)
OUTER
HOUSING

CHAPTER 2: COMPONENTS/SYSTEMS 13
Trophy Center Console • Owner’s Manual Supplement
Autofloat Switch
An electromagnetic float (autofloat) switch automatically turns on the bilge pump
whenever bilge water rises above a preset level. An autofloat switch is mounted
next to the bilge pump. The autofloat switch is wired directly to the battery and will
normally function even when the boat is completely shut down and left unattended.
Test the autofloat switch often as follows:
Float Switch Test:
1. Lift the float switch test button to turn on the bilge pump.
2. If the pump does not turn on, check the inline fuse. If the fuse is good but the
switch doesn’t work, it may indicate a bad switch or possibly a low battery.
3. Push the test button all the way back down to auto mode.
DOWN - AUTO POSITION
FLOAT SWITCH TEST BUTTON
UP - TEST POSITION
When test is completed on a float switch, you must push the test button all the
way down to the auto position to turn the switch back to auto mode!
CAUTION!
!
NOTICE
Discharge of oil, oil waste or fuel into navigable waters is prohibited by law. Vio-
lators are subject to legal action by the local authorities.

14 CHAPTER 2: COMPONENTS/SYSTEMS
Trophy Center Console • Owner’s Manual Supplement
Fresh Water System
Fresh water systems are available on some models. These pressure-type (demand)
systems operate when the water pump switch is in the ON position. Turn the pump
switch OFF when the boat is not in use and when the water tank is empty.
Stored water can become stagnant and distasteful. Pump the water tank dry before
leaving your boat unattended for long periods of time. Occasionally you may want
to disinfect your water system. Ask your selling dealer about available treatments
and procedures.
Your boat may be equipped with a transom shower. Please read and follow the man-
ufacturer’s operating instructions supplied in your owner’s packet.
TYPICAL FRESH WATER SYSTEM COMPONENTS (OPTION)
WATER
WATER TANK
SINK
WATER
WATER
WATER
TANK
VENT
TANK
FILL
FAUCET
PUMP
FILTER
