BB Lightpipe EVO series User manual

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
Manual BB Lightpipe EVO
Index
Index ........................................................................................................................................................... 1
1. Introduction ............................................................................................................................................. 2
2. Article numbering .................................................................................................................................... 3
3. Types ...................................................................................................................................................... 4
4. Mounting ................................................................................................................................................. 5
5. Connection diagram light lines ................................................................................................................ 6
6. Mounting order light lines ........................................................................................................................ 7
7. Through-wiring the light line .................................................................................................................... 8
8. Diagram for ‘stand-alone’ mounting ........................................................................................................ 9
9. Product specifications ........................................................................................................................... 10
10. Delivery and transportation ................................................................................................................. 11
11. Additional Information ......................................................................................................................... 12

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.

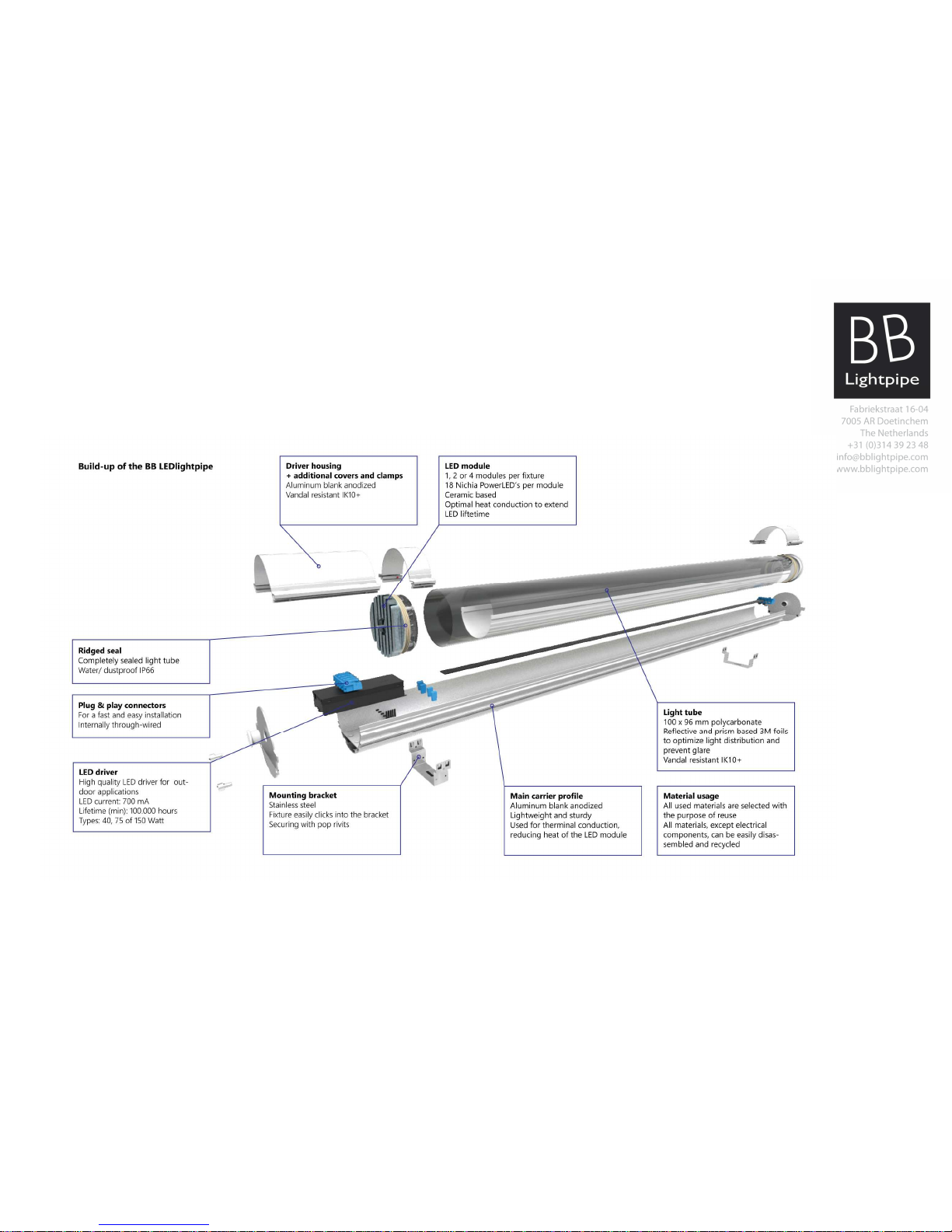

1. Introduction
The BB Lightpipe is a modular light line system suited for application in industrial and infrastructural applications such as parking garages, tunnels, train stations
and much more. By making use of durable materials in combination with the long lifetime of the electrical components a maintenance free long lasting fixture is
created. The indirect lighting concept with advanced foil techniques result in a glare free light emission and create a comfortable and safe environment. The BB
Lightpipe is easy to mount, vandal resistant and water- and dustproof.

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.

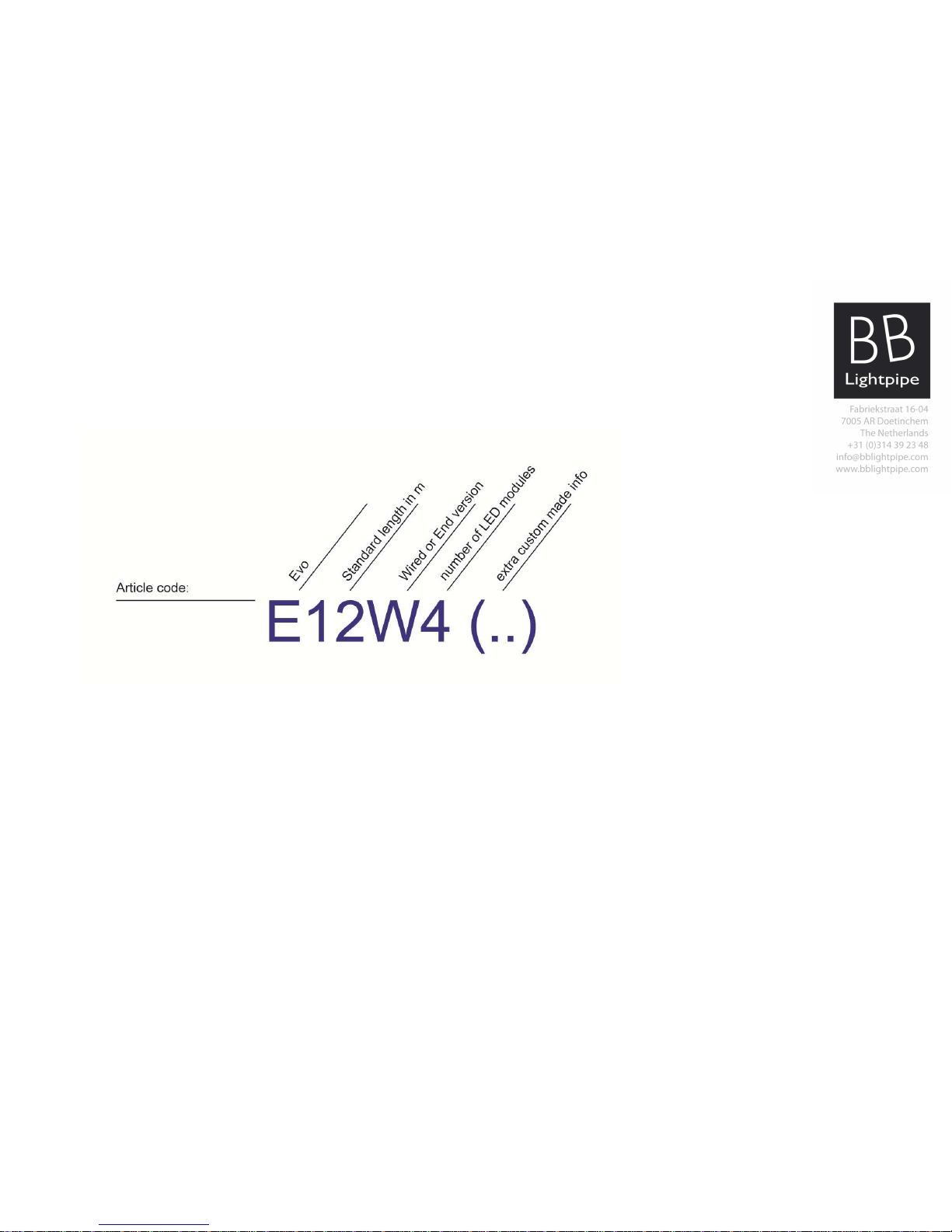

2. Article numbering
Te BB Lightpipe EVO is available in different lengths and types. The BB Lightpipe article number can be found as a sticker on the fixture and is structured as
follows:
EVO
The EVO is the type of BB
Lightpipe.
Standard lengths
The BB Lightpipe is available in
te lengths 2.2, 4, 6, 8 en 12
meter.
Wired or End
This indicates if the BB Lightpipe
is pre-wired (wired) or not (end).
The through-wiring consists of 3-
fase, N and Ground.
All BB Lightpipes have DALI
trough-wiring (also the End type).
Number of
L
ED modules
The number of LED modules is
related to the power
consumption:
1 piece is 40,5W
2 pieces is 78W
4 pieces is 155W
A or B part
The BB Lightpipe with a length
of 8 en 12 meter consists of 2
parts, part A and part B. This is
shown on the article sticker. A
part B always follows an part A.
Together they form a single
fixture.
Extra custom made info
After the standard article code
additional info different from
standard can be displayed such
as length, light colour, colour
rendering, LED current,
etcetera.

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
3. Types
An overview of the standard product range of the BB Lightpipe EVO
Artikelnr. Naam IP value Light color RA-value LED current Tube type wiring connectors
E2,2W1 BB Lightpipe EVO Wired 2,2M mono IP44 5000K >70 700mA Diffuse 1-phase terminal block
E2,2E1 BB Lightpipe EVO End 2,2M mono IP44 5000K >70 700mA Diffuse 1-phase terminal block
E2,2W2 BB Lightpipe EVO Wired 2,2M bi IP44 5000K >70 700mA Diffuse 1-phase terminal block
E2,2E2 BB Lightpipe EVO End 2,2M bi IP44 5000K >70 700mA Diffuse 1-phase terminal block
E4W2 BB Lightpipe EVO Wired 4M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E4E2 BB Lightpipe EVO End 4M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E4W4 BB Lightpipe EVO Wired 4M bi IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E4E4 BB Lightpipe EVO End 4M bi IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E6W2 BB Lightpipe EVO Wired 6M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E6E2 BB Lightpipe EVO End 6M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E6W4 BB Lightpipe EVO Wired 6M bi IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E6E4 BB Lightpipe EVO End 6M bi IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E8W4 BB Lightpipe EVO Wired 8M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E8E4 BB Lightpipe EVO End 8M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E12W4 BB Lightpipe EVO Wired 12M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
E12E4 BB Lightpipe EVO End 12M mono IP66 5000K >70 700mA Diffuse 3-phase Plug & play
Specifications can differ from standard. This is stated in de article code as ‘custom made’.
Beware:
The shorter version with a length of 2.2 meters is standard with a terminal block instead of plug & play wiring because it is usually applied as stand-alone.

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
4. Mounting
Standard the BB Lightpipe comes with a high quality stainless steel suspension bracket of spring steel. As a result, the bracket will hang a few millimeters and
allows a flexible suspension on a rough surface. The suspension bracket can be placed in any position on the base profile.
Fixture length: Number of brackets: Positie:
2 to 4 meters 2 mounting brackets 0,5m from the end
6 meters 3 mounting brackets 0,5m from the end + one in the middle.
Different mounting brackets:
Various other suspension brackets are available. Some other commonly used suspension brackets:
S
tand
ard
mounting bracket
Article 2977
1. Bracket
2. Securing with pop rivet
3. M6 washer
Dimensions with standard bracket
A
rtic
l
e
4219
For cable trunk on the BB Lightpipe
A
rtic
l
e
3512
45° bracket for wall mounting

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
5. Connection diagram light lines
The connection diagram below applies to the lengths 4, 6, 8 en 12 meter.
W
ago 770
-
205 (male)
Wago 770-215 (female)
Fase selection
Adjustment over the 3 phases is possible by replugging
the wire to the LED driver (black). Standard is L1
Light line diagram:

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.

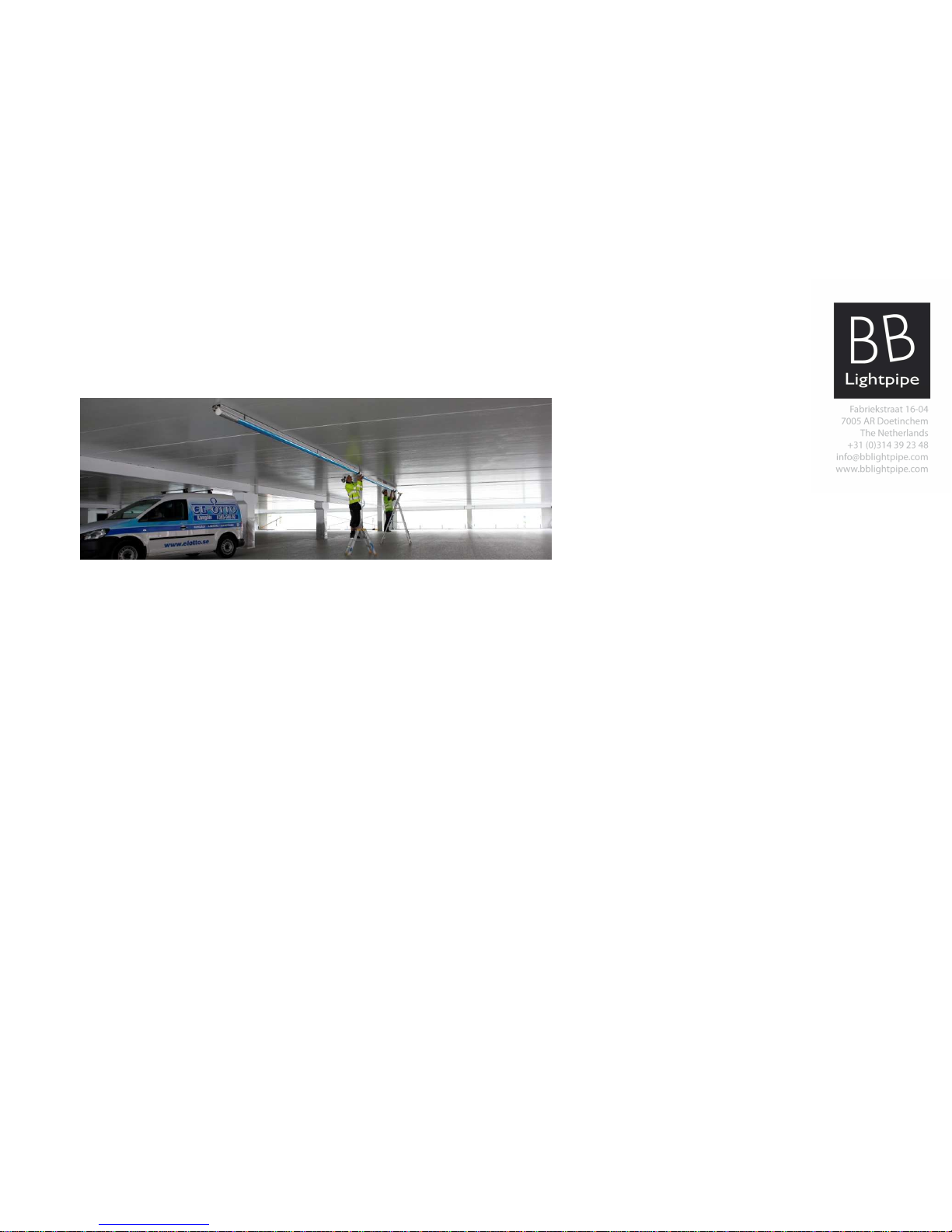

6. Mounting sequence light lines
1. plant out the position of mounting brackets (see chapter 4) by means of a laser
2. drill the holes and mount the brackets
3. click the BB Lightpipe into the bracket with 2 persons
4. lock the luminaires into the bracket by means of pop rivets
5. connect the trough-wiring and infeed cable (1) with the Plug & play connectors (3)
6. if necessary, adjust the phase selection
7. place the connectors (3) and sealing disc (2) into the driver housing (4)
8. make sure the sealing disc properly closes the driver housing
9. slide the cover (5) over the open gap of the fixture to finish
Picture: connecting a Start Cable (6091)

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
7. Through-wiring the light line
Picture 1:
Connect the Plug & play connectors
Picture 2:
Place the connectors and the sealing disk in
the aluminum housing. Make sure the sealing
disk closes the housing properly to ensure
water resistance.
Picture 3:
Slide the cover onto the transition of the two
fixtures and fasten the torx screws.
LED module wiring
In the 8 and 12 meter BB Lightpipe, consisting of
two parts (A + B parts), there’s an extra connector
with a black and white wire for the LED module
wiring
Aluminum
expansion
Between two BB Light pipes, 5mm space must be used
to consider expansion and shrinkage of the aluminum
at ambient temperature

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
8. Diagram for ‘stand-alone’ mounting
The electric diagram below shows the connection of the 2,2 meter BB Lightpipe.
For the ‘stand-alone’ fixtures the installer needs to take care of the infeed cable. With the wago connector the infeed cable can be connected to the fixture.
Wago 294
-
4035

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
9. Product specifications
Input voltage 220-240 VAC
Frequenty 50 / 60 Hz
Nominal power 40, 75 of 155 Watt
Dim signal DALI (1-10V optional)
Shock resistance IK 10+
Isolation class Class I
Dust / waterproof IP44 / IP66
LED type NICHIA, High power ceramic
LED circuit All LEDs in series
LED protection NTC on LED main board
Ambient temperature - 40 / + 50 °C
Colour value 5000 Kelvin (standard) 2700 – 6500 K (optional)
All wires LSZH (Low Smoke Zero Halogen)
Light output 3.457 lumen with 1 LED module
6.915 lumen with 2 LED modules
13.830 lumen with 4 LED modules
Certificates DEKRA LED performance mark for the LED module
IEC/EN60598-2-1; EN61347-2-13; EN62031; EN62384:2006
EMC: IEC/EN55015; IEC/EN61547; IEC/EN 61000-3-2 Class C
Other: CE; RoHS; C2C (Cradle to Cradle)

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.

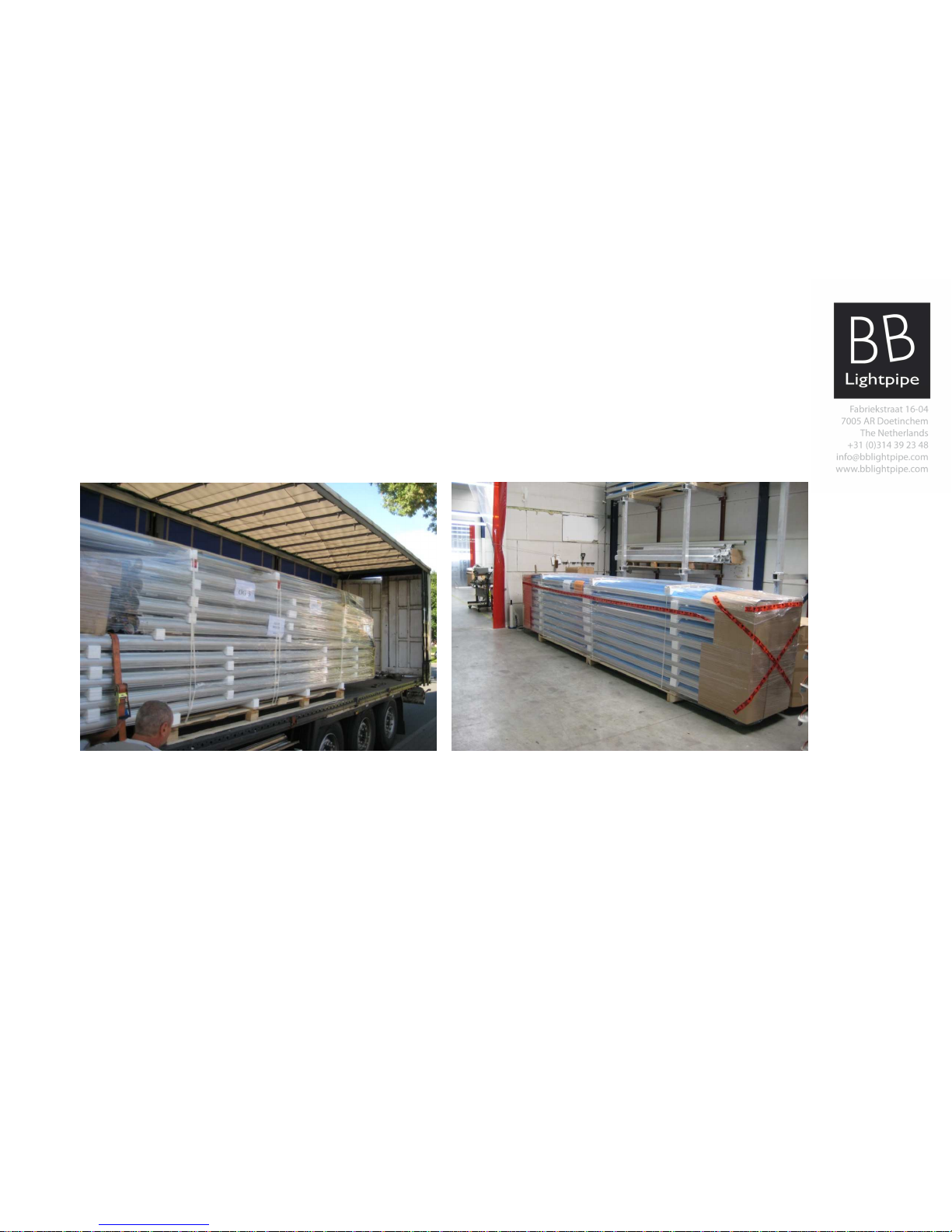

10. Delivery and transportation
Because of the long lenghts of the BB Lightpipe fixtures the pallets for transport are bigger than usual.
The maximum dimensions are 6,2m to 0,8m to 1,5m ( l x b x h), and the pallets have a maximum weight of 1000kg.
In the factory the light emitting part of the BB Lightpipe is provided with a protective foil. This foil protects the polycarbonate tube from dust during the construction
process.
Picture: Packaging and transportation of the BB Lightpipes

© BB Lightpipe EVO Manual 2018
We reserve the right to make adjustments to this document without prior notice.
11. Additional Information
DALI
When a DALI light management system is implemented there are some limits to take into account. One DALI-loop can contain 64 addresses and
250mA power consumption. A motion sensor is powered by the DALI loop and consumes 15mA. A fixture consumed 2mA.
These limits are taken into account when a lighting control is offered to determine the number of DALI routers needed. In addition, the loop should
not be longer than 300 meters because of the voltage drop. The E-installer needs to take this into account when drafting his installations.
Inrush current
The inrush current of the LED driver has to be taken into account when designing the electrical installation and determining fuse types. The inrush
current peak can cause the fuse to clog out when turning on multiple fixtures at once. Because of the inrush current it may therefore be necessary
to implement an inrush current limiter.
The specifications of the LED driver are available on request.
Do’s and don’ts
•always disconnect the power when working with wiring
•always work with 2 persons to click the BB Lightpipe into the fixture
•the distance between the mounting brackets can be 2,5 meters maximum
•the BB Lightpipe can be turned off by DALI, take into account that in this case there is still power on the driver
•always use pop rivits to secure the BB Lightpipe to the bracket
• the warranty of the electronic components will be cancelled if damage to the BB Lightpipe occurs when using a temporary power supply
