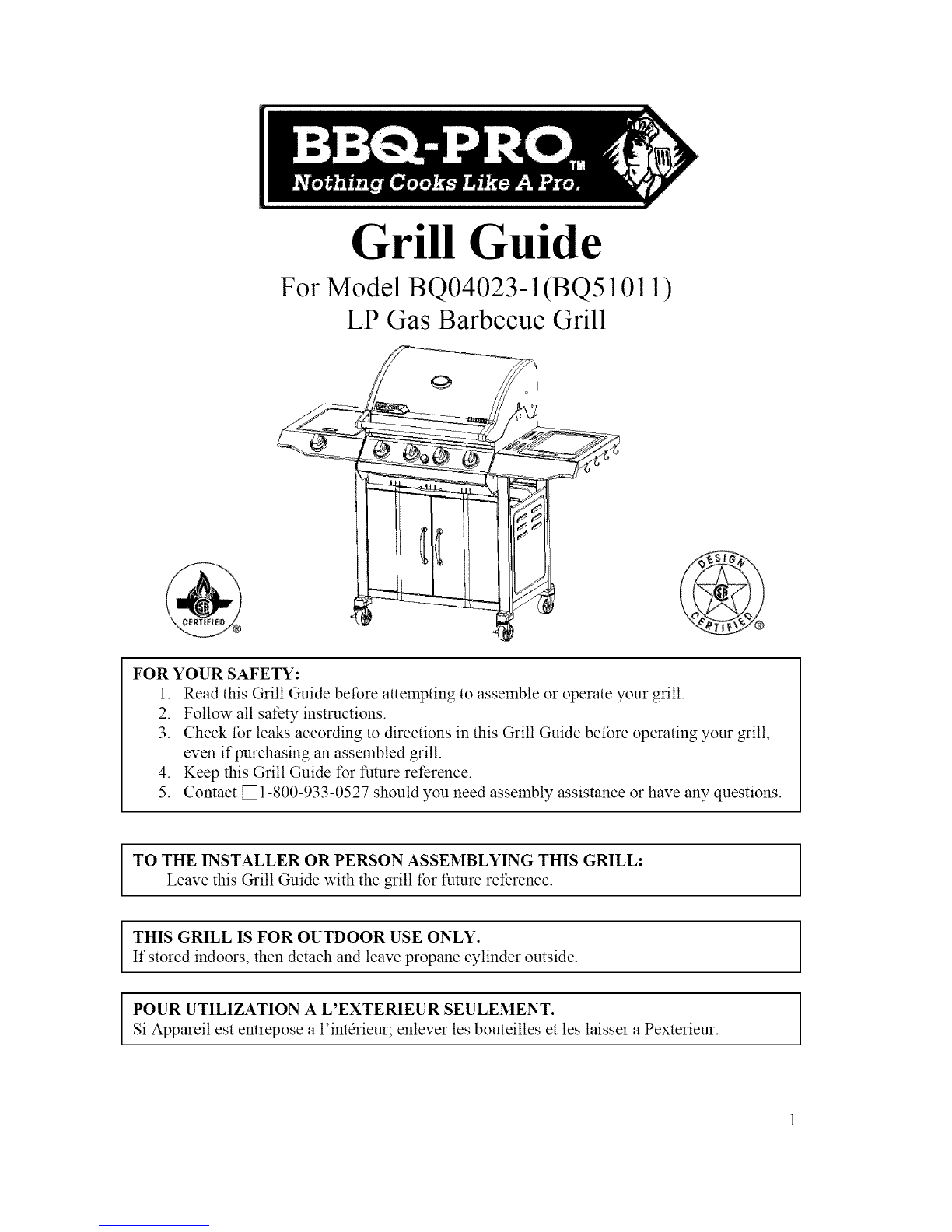

BBQ BQ04023-1 (BQ51011) Guide User manual

Grill Guide
For Model BQ04023-1 (BQ51011)
LP Gas Barbecue Grill
FOR YOUR SAFETY:
1. Read this Grill Guide before attempting to assemble or operate your grill.
2. Follow all safety instructions.
3. Check for leaks according to directions in this Grill Guide before operating your grill,
even if purchasing an assembled grill.
4. Keep this Grill Guide for future reference.
5. Contact _ 1-800-933-0527 should you need assembly assistance or have any questions.
TO THE INSTALLER OR PERSON ASSEMBLYING THIS GRILL:
Leave this Grill Guide with the grill for furore reference.
THIS GRILL IS FOR OUTDOOR USE ONLY.
If stored indoors, then detach and leave propane cylinder outside.
POUR UTILIZATION A L EXTERIEUR SEULEMENT.
Si Appareil est entrepose a l'intdrieur; enlever les bouteilles et les laisser a Pexterieur.

Safety Precautions
Always read and follow all DANGER, WARNING, AND FOR YOUR SAFETY notices in this Grill
Guide. Failure to do lFlay result in serious bodily iniury or death, or in a fire or an explosion causing
damage to property.
1. Grill installation must conform with local codes, or in their absence, with either the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B 149.1, or
Propane Storage and Handling Code, B 149.2.
2. This gas grill shall be used outdoors only, and not be used in a building, garage, or any other
enclosed area.
3. This gas grill is not intended to be installed in or on recreational vehicles and/or boats.
4. This grill is safety certified for use in the United States and Canada only. Do not modit) for use in
any other location. Modification will result in a safety hazard.
5. Never use any other type of fuel for this grill other than LP gas.
6. Only use the pressure regulator with a type 1 connector that is supplied with this gas grill.
7. Check all gas hoses fbr fraying, cracking, or excessive wear. Replace any with those signs before
using the grill.
8. Always perfbrm a Leak Test before operating your grill.
[FOR YOUR SAFETY !
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected fbr use shall
not be stored in the vicinity of this or any
other appliance.
! AVERTISSEMENT !
1. Ne pas entreposer Ni utiliser de l'essence
ni d'autres vapeurs on liquids
inflammables dans le voisinage de
l'appareil, ni de tout autre appareil.
2. Une bouteille de propane qui n'est pas
record@ en vue de son utilisation, ne doit
pas _tre entreposde dans le voisinage de cet
appareil ou de tout antre appareil.
!FOR YOUR SAFETY !
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, immediately call your
gas supplier or your fire department.
! AVERTISSEMENT !
S'il y a une odeur de gaz:
1. Coupez l'admission de gaz de l'appareil.
2. t_teindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l'odeur persiste, appeler immddiatement
votre compagnie de gaz ou votre
department des incendies.
!WARNING I
Combustion by-products produced when using this product contain chemicals known to the
State of California to cause cancer, birth detects, and other reproductive harm.

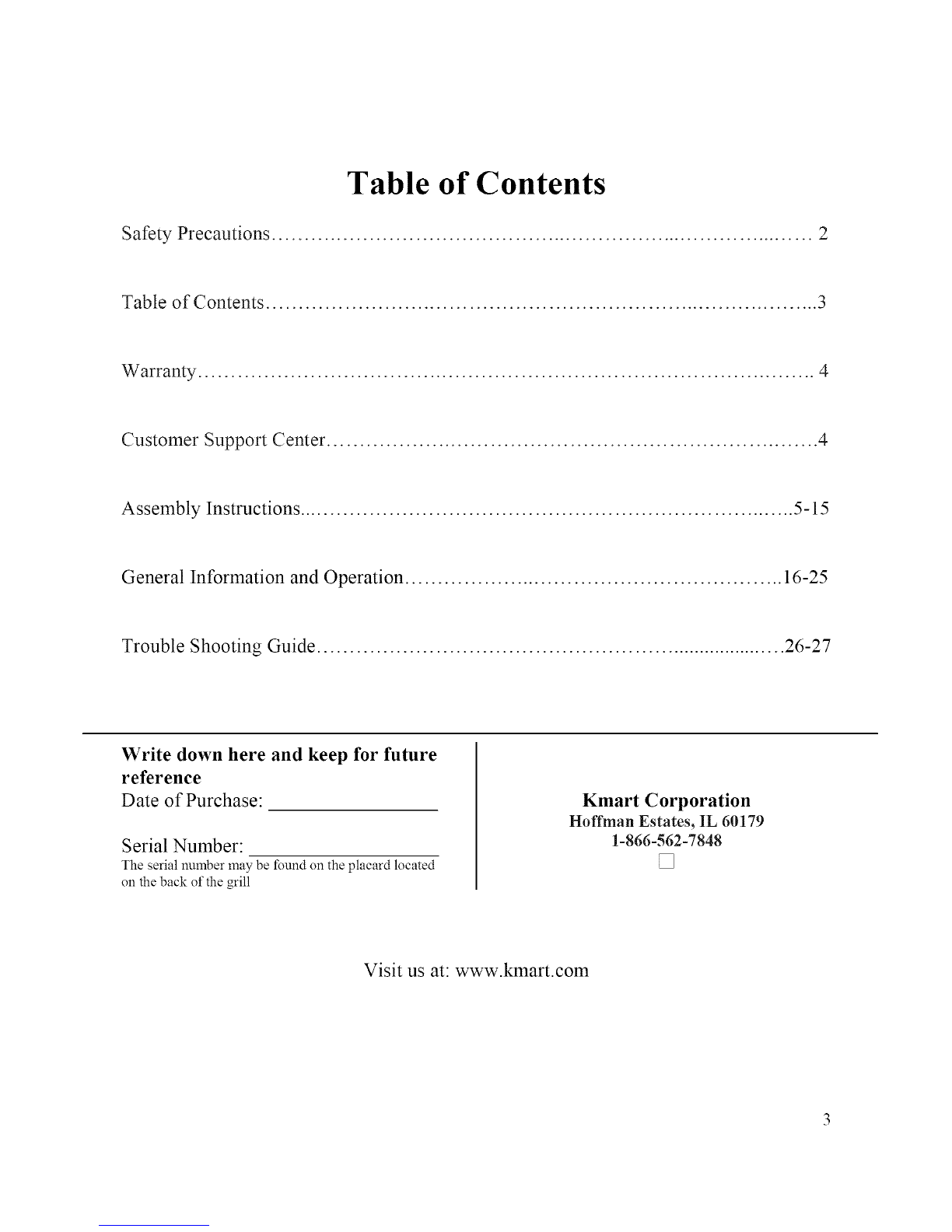

Table of Contents
Safety Precautions .................................................................................... 2
Table of Contents ..................................................................................... 3
Warranty .............................................................................................. 4
Customer Support Center ........................................................................... 4
Assembly Instructions ............................................................................ 5-15
General Information and Operation .......................................................... 16-25
Trouble Shooting Guide ........................................................................... 26-27
Write down here and keep for future
reference
Date of Purchase:
Serial Number:
The serial nulnber may be found on the placard located
on the back of the grill
Kmart Corporation
Hoffman Estates, IL 60179
1-866-562-7848
Visit us at: www.kmart.com

Limited Warranty
The manuthcturer warrants to the original
consumer-purchaser that this product shall be
free from detects in workmanship and materials
under normal and reasonable use when
assembled and operated according to this Grill
Guide from date of purchase as tbllows:
Stainless Steel cabinet parts(excluding
grates and heat diffusers) - 5 years
Stainless Steel Burners -3 years
Remaining Parts -12 months
The manufacturer will, at its option, refinish or
replace any product or part fouud to be detective
during the limited warranty period. There may be
a shipping charge. The manufacturer may require
you to return the part(s) claimed to be detective
for its inspection, freight or postage prepaid.
Contact our Customer Support Center as shown
below betbre returning any part(s).
Additional intbrmation can be obtained by
writing: Barbecue Grills
Warranty Dept.
1375 Mitchell Blvd
Schaumburg, IL 60193
The manuthcturer will require reasonable proof
of purchase. We strongly recommend you
keep your sales receipt and register your grill.
You can attach your receipt to this guide.
This limited warranty does not cover the cost of
any inconvenience or property damage due to
failure of the product and does not cover damage
due to misuse, abuse, alteration, improper or
failure to pertbrm normal and routine
maintenance, discoloration, scratches, rust,
accidem, damage arising out of transportation of
the product, or normal wear and tear. This
limited warranty will not apply to any grill used
tbr COlnmercial use.
This limited warranty is the sole warranty given
by the manufacturer and is in lieu of all other
warranties; express or implied, including implied
warranty of merchantability or fitness fi)r a
particular purpose. Neither manuthcturer dealers
nor the retail establishment selling this product
have any authority to make any warranties or to
promise remedies in addition to or inconsistent
with those stated above.
This limited warranty applies only to products
sold at retail, and is not transferable.
The manufacturer's maximum liability, in any
event, shall not exceed the purchase price of the
product paid by the original consumer-purchaser.
Some states do not allow the exclusion or
limitation of incidental or consequential damages.
Theretbre, the above limitations or exclusions
may not apply to you. This warranty gives you
specific legal rights and may also have other
rights, which vary from state to state.
Customer Support Center
Thanks for purchasing a BBQ Pro TM Grill. We're here to help you maximize your enioyment and appreciation
of your new grill. Please don't hesitate to contact us should you have any questions regarding assembly,
peril)finance, warranty, or accessories. Please have your model number ready betbre you contact us. We're here
to serve You!
•If you need assistance or to order parts: Call _ 1-800-933-0527 or send a FAX to [_ 1-847-252-1001,
• Business hours: Monday through Friday; 8:30AM-5:00PM Central Time.
• Visit us on the web at: www.omahagrills.com

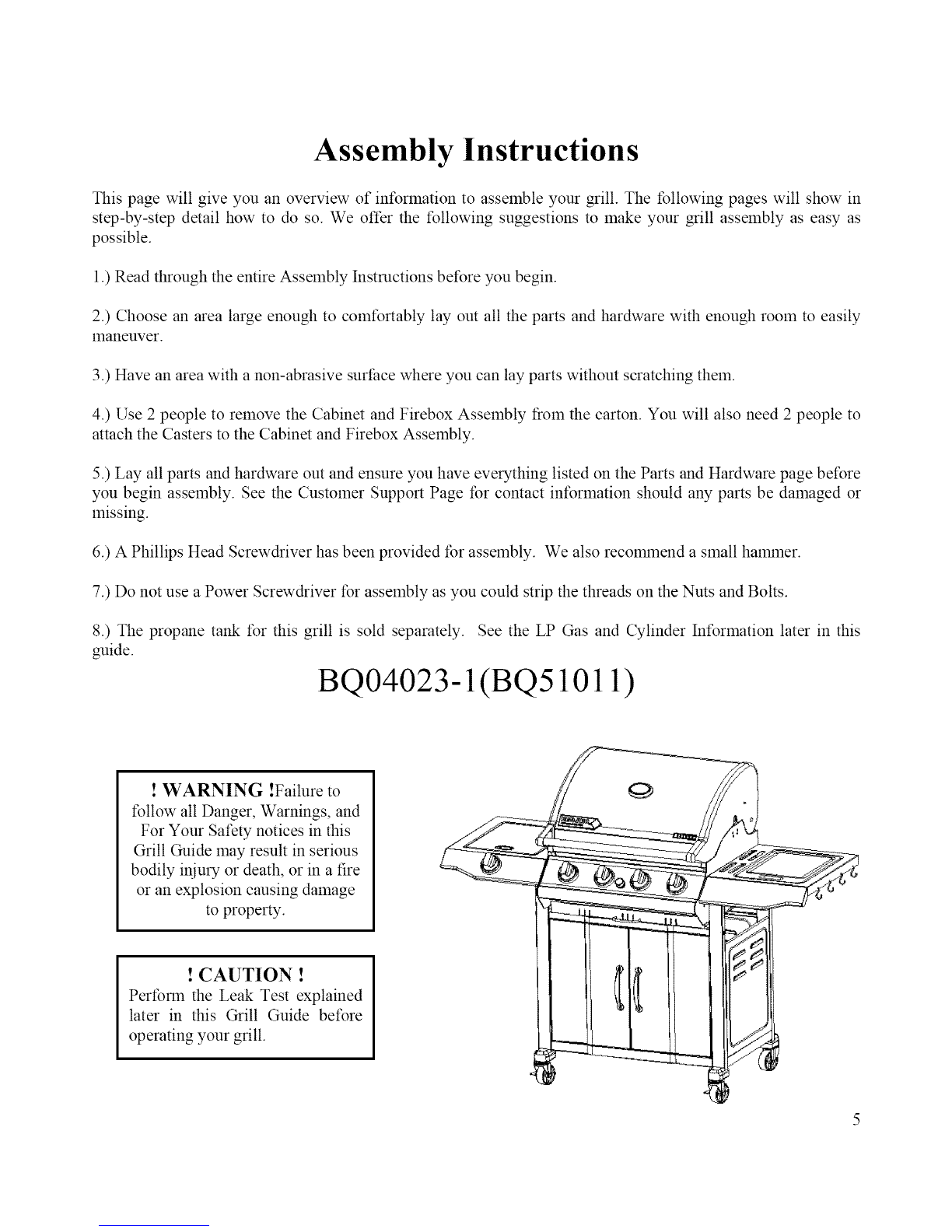

Assembly Instructions
This page will give you an overview of information to assemble your grill. The fbllowing pages will show in
step-by-step detail how to do so. We offer the following suggestions to make your grill assembly as easy as
possible.
1.) Read through the entire Assembly Instructions before you begin.
2.) Choose an area large enough to comfortably lay out all the parts and hardware with enough room to easily
maneuver.
3.) Have an area with a non-abrasive surface where you can lay parts without scratching them.
4.) Use 2 people to remove the Cabinet and Firebox Assembly t_om the carton. You will also need 2 people to
attach the Casters to the Cabinet and Firebox Assembly.
5.) Lay all parts and hardware out and ensure you have everything listed on the Parts and Hardware page before
you begin assembly. See the Customer Support Page for contact information should any parts be damaged or
missing.
6.) A Phillips Head Screwdriver has been provided for assembly. We also recommend a small hammer.
7.) Do not use a Power Screwdriver for assembly as you could strip the threads on the Nuts and Bolts.
8.) The propane tank for this grill is sold separately. See the LP Gas and Cylinder Information later in this
guide.
BQ04023-1 (BQ51011)
!WARNING !Failure to
follow all Danger, Warnings, and
For Your Safety notices in this
Grill Guide may result in serious
bodily iniury or death, or in a fire
or an explosion causing damage
to property.
! CAUTION !
Perfbrm the Leak Test explained
later in this Grill Guide before
operating your grill.
!

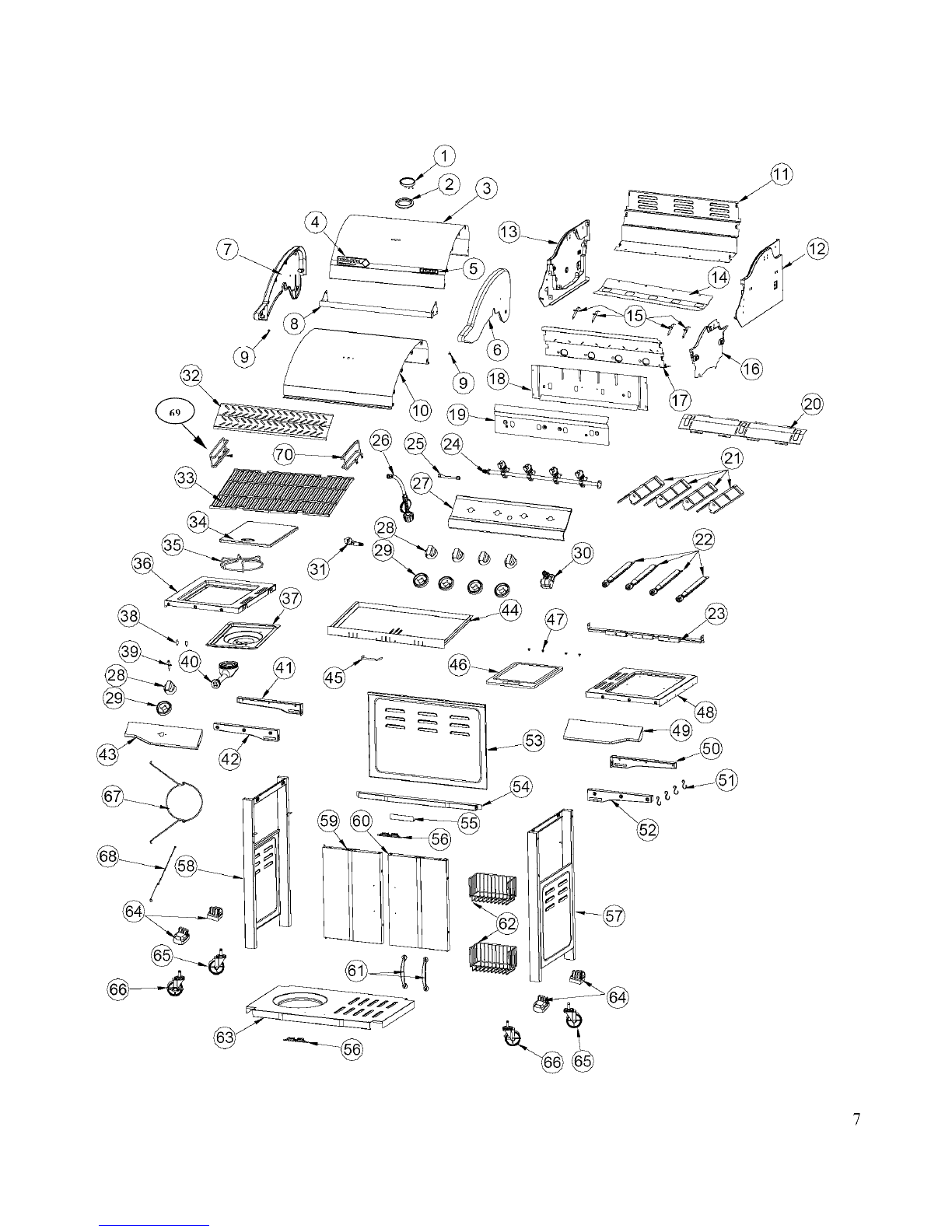

BQ04023-1(BQ51011) Detail Parts List
1 Thermometer
2 Thermometer Seat
3 Stainless Steel Lid - Outer
4 Logo Plate
5 Name Plate
6 Hood Side Panel - Right
7 Hood Side Panel - Left
8 Hood Handle
9 Silicon Stopper
10 Stainless Steel Hood - Inner
11 Firebox - Back
12 Firebox - Right Side
13 Firebox - Left Side
14 Heat Shield for Firebox-Inner
15 Electrode
16 Right Side Heat Shield
17 Firebox - Front
18 Heat Shield [br Control Panel - hmer
19 Heat Shield for Control Panel - Outer
20 Bottom Heat Shield
21 Heat Diffuser
22 Burner
23 Main Burner Bracket
24 Gas Manitbld Assembly
25 Side Burner Gas Hose
26 Regulator and Hose Assembly
27 Control Panel
28 Comrol Knob
29 Control Knob Seat
30 Electric Igniter
31 Side Burner Valve
32 Warming Rack
33 Cooking Grate
34 Side Burner Cover
35 Pan Support
36 Side Burner Shelf Frame
37 Side Burner Inside Frame
38 Side Burner Cover Support
39 Side Burner Electrode
40 Side Burner
41 Side Burner Rear Bracket
42 Side Burner Front Bracket
43 Side Burner Front Panel
44 Grease Pan
45 Grease Pan Handle
46 Cutting Board
47 Silicon Pad
48 Right Side Table
49 Right Side Table Front Panel
50 Right Side Table Rear Bracket
51 "S" Hooks
52 Right Side Table Front Bracket
53 Cabinet - Back Side Panel
54 Cabinet Rear Crossbar
55 Door Stopper Plate
56 Magnetic Door Stopper
57 Cabinet - Left Side Panel
58 Cabinet - Right Side Panel
59 Cabinet Door - Left
60 Cabinet Door - Right
61 Cabinet Door Handle
62 Condiment Basket
63 Cabinet - Bottom Shelf
64 Caster Cap
65 Standard Caster
66 Locking Caster
67 Cylinder Support Ring
68 Manual Igniter
69 Warming Rack Bracket Left
70 Warming Rack Bracket Right

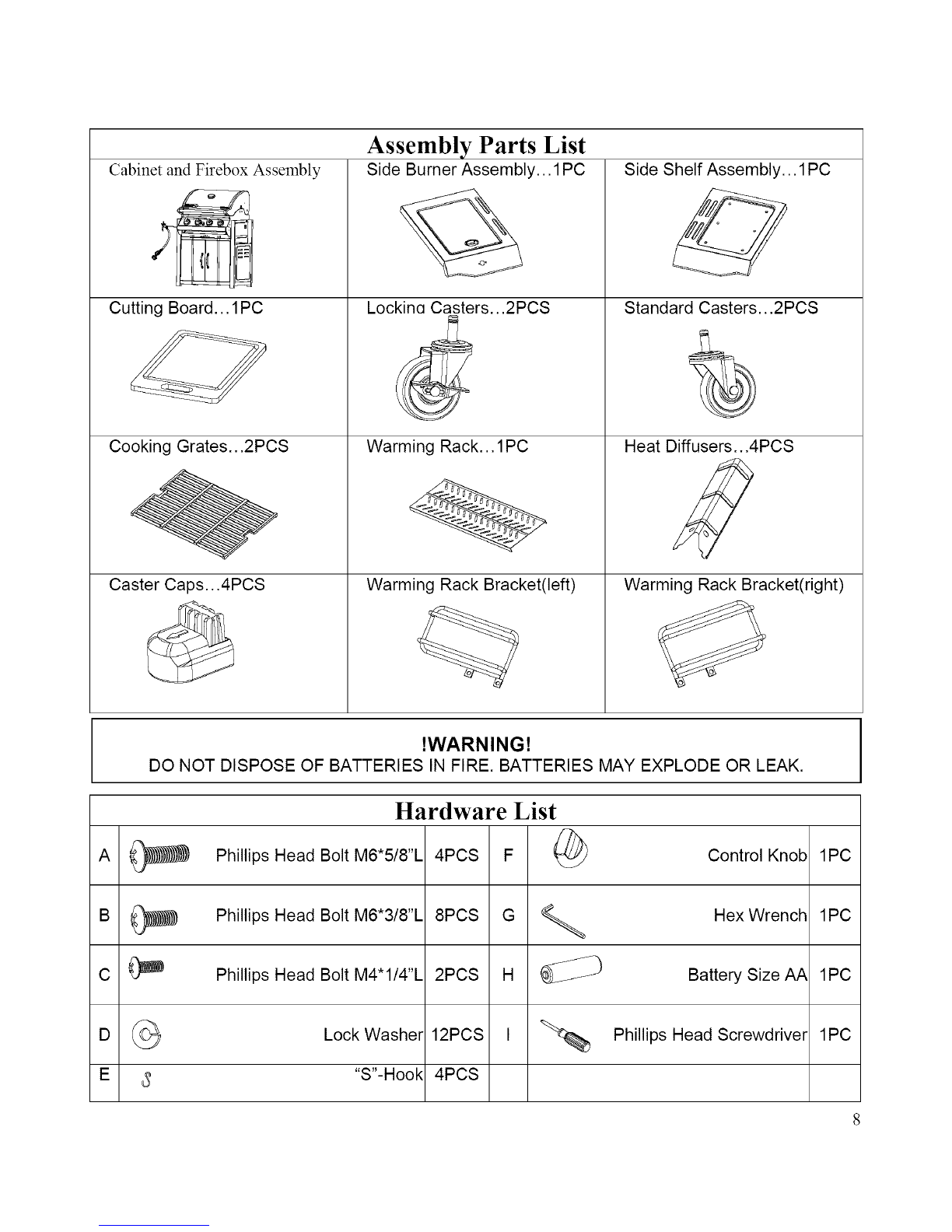

CabinetandFireboxAssembly
Cutting Board... 1PC
Cooking Grates...2PCS
Caster Caps...4PCS
Assembly Parts List
Side Burner Assembly... 1PC
Lockina Casters...2PCS
Warming Rack... ]PC
Warming Rack Bracket(left)
Side Shelf Assembly... 1PC
Standard Casters...2PCS
Heat Diffusers...4PCS
Warming Rack Bracket(right)
A
B
C
D
E
!WARNING!
DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.
0NN_ Phillips Head Bolt M6*5/8"L
Phillips Head Bolt M6*3/8"L
Phillips Head Bolt M4*1/4"L
Lock Washer
"S"-Hook
Hardware List
4PCS F
8PCS G %
2PCS H
, -%
12PCS
4PCS
Control Knob 1PC
Hex Wrench 1PC
Battery Size AA 1PC
Phillips Head Screwdriver 1PC

STEP1
Insert 4 Caster Caps into the legs of the Cabinet and Firebox Assembly. Ensure the arrows on the top
of the Caster Caps point out and away t_om the cabinet. Insert 2 Locking Casters into 2 Caster Caps
in the t_ont legs of Cabinet and Firebox Assembly. Insert 2 Standard Casters into 2 Caster Caps in
the back legs of Cabinet and Firebox Assembly.
Note: We recommend using a hammer and lightly tapping the Caster Caps and Casters into place.
, _ !,!
STEP 2
Place Side Burner Assembly over the top of the left legs of Cabinet and Firebox Assembly as shown.
Ensure the inside edge of the Side Burner Assembly slides down between the firebox and cabinet legs.
Also ensure the knob on the right side of the front shelf of Side Burner Assembly slides into its notch
on the left side of the control panel as shown in Insert 2.
Insert 2 Insert 1
Insert 2 Insert 1

STEP3
Attach the Side Burner Assembly to the
Cabinet and Firebox Assembly using 2
Phillips Head Bolts (A) and 2 Lock Washers
(D) going t_om the inside of the firebox and
into the Side Burner Assembly as shown in
Insert 1. Continue to attach the Side Burner
Assembly to Cabinet and Firebox Assembly
using 2 Phillips Head Bolts (B) and 2 Lock
Washers (D) going _om underneath the Side
Burner Assembly and into the cabinet legs as
shown in Insert 2.
Insert 1
Insert 1 Bolt B
Bolt A Insert 2
Note: Longer Phillips Head Bolts (A) are used to go
t}om inside of the cabinet while the Shorter
Phillips Head Bolts (B) are used to go from
the underneath side of the side burner
assembly.
STEP4
Repeat Steps 2 and 3 to place and attach the Side Shelf Assembly to
the Cabinet and Firebox Assembly as shown. Ensure the inside edge
of the Side Shelf Assembly slides down between the firebox and
cabinet legs.
Insert 1 Insert 2
Bolt B
Insert 2
Bolt A Insert 1
10

STEP 5
Insert the side burner valve into the side burner. The
valve should be centered in the stein robe of the side
burner.
STEP 6
Insert the valve stein up through the hole in the side
burner front panel from the back side. Secure to the
side burner front panel using 2Phillips Head Bolts
(C). Ensure the side burner valve is still centered in
the stein robe of the side burner. If not, center it,
which may involve loosening the 2Phillips Head
Bolts (C). Attach a Control Knob (F) to the valve
stein using the Hex Wrench (G) to tighten the bolt on
the Control Knob (F). See Insert 2.
\
/
Bolt C \
Insert 2
Note: Save the Hex Wrench (G) to tighten
various Control Knobs (F) as
necessary over the life of your grill.

STEP 7
Slide the side burner ignition wire
over the side burner igniter connector.
STEP 8
Place the Heat Diffusers inside the
firebox. Ensure the long extensions on
the front of the Heat Diffusers go imo
the appropriate holes at the *}ont of the
firebox.
12

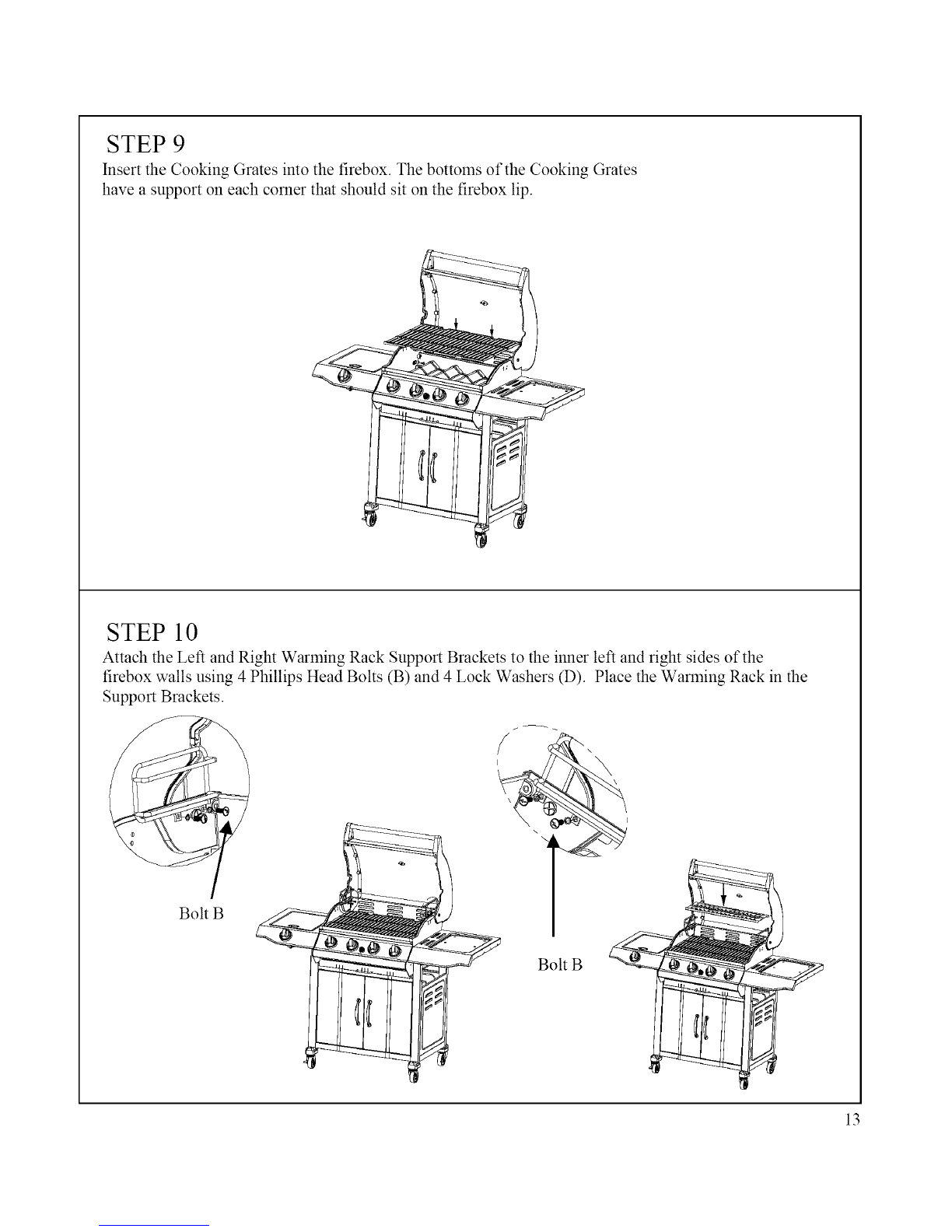

STEP 9
Insert the Cooking Grates into the firebox. The bottoms of the Cooking Grates
have a support on each corner that should sit on the firebox lip.
STEP 10
Attach the Left and Right Warming Rack Support Brackets to the inner left and right sides of the
firebox walls using 4 Phillips Head Bolts (B) and 4 Lock Washers (D). Place the Wanning Rack in the
Support Brackets.
Bolt B
Bolt B
13

STEP 11
Place the Cutting Board into the Side Shelf Assembly. Insert the smaller ends of "S" Hooks (E) into
the side of the Side Shelf Assembly.
STEPP 12
Unscrew the electronic igniter top. Place the "AA" Battery (I) into the electronic igniter with the Positive
(+) end facing up. Screw the electronic igniter top back into place on the electronic igniter.
WARNING: Do not dispose of
batteries in a fire. Batteries may
leak or explode.
14

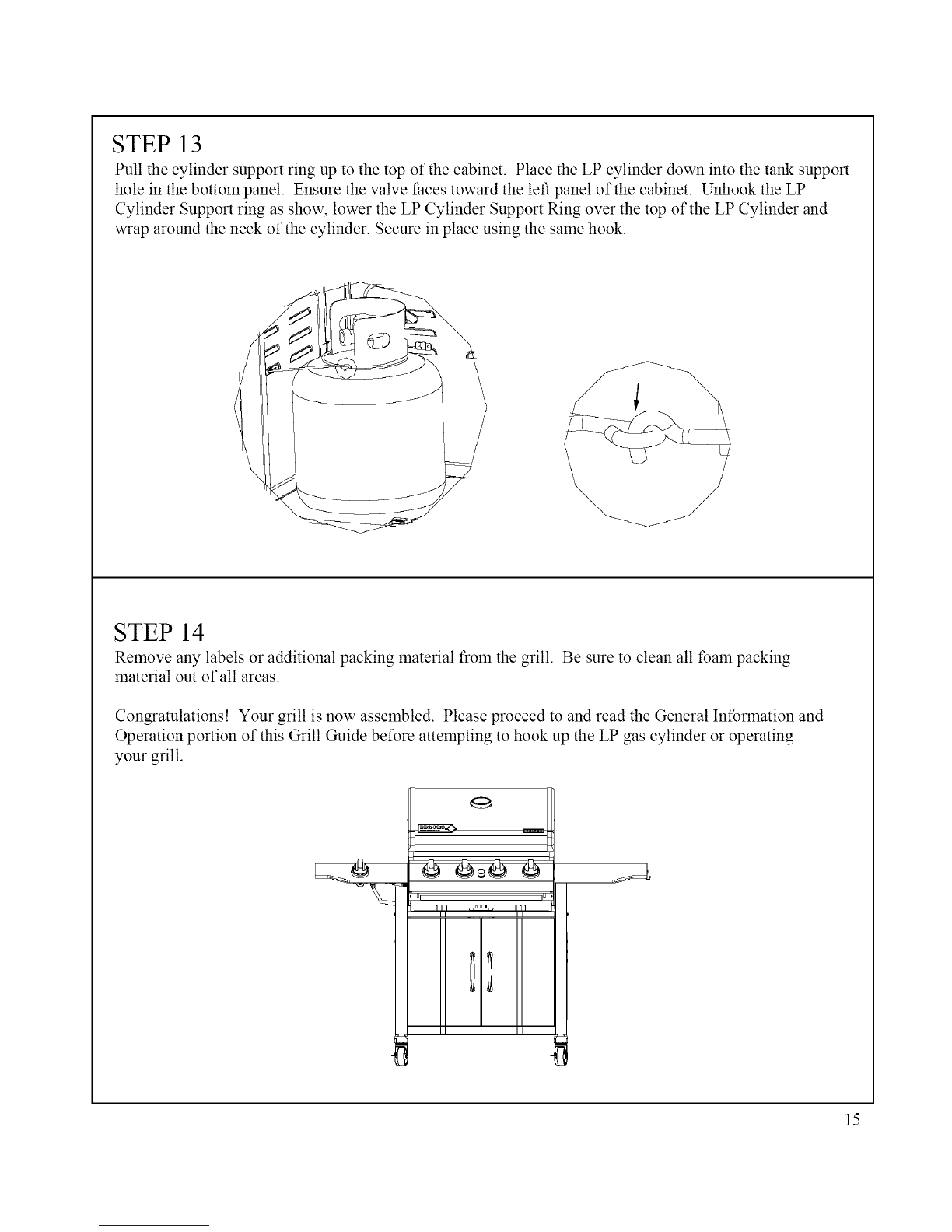

STEP 13
Pull the cylinder support ring up to the top of the cabinet. Place the LP cylinder down into the tank support
hole in the bottom panel. Ensure the valve faces toward the left panel of the cabinet. Unhook the LP
Cylinder Support ring as show, lower the LP Cylinder Support Ring over the top of the LP Cylinder and
wrap around the neck of the cylinder. Secure in place using the same hook.
STEP 14
Remove any labels or additional packing material from the grill. Be sure to clean all foam packing
material out of all areas.
CongramlationsT Your grill is now assembled. Please proceed to and read the General Intbrmation and
Operation portion of this Grill Guide betbre attempting to hook up the LP gas cylinder or operating
your grill.
15

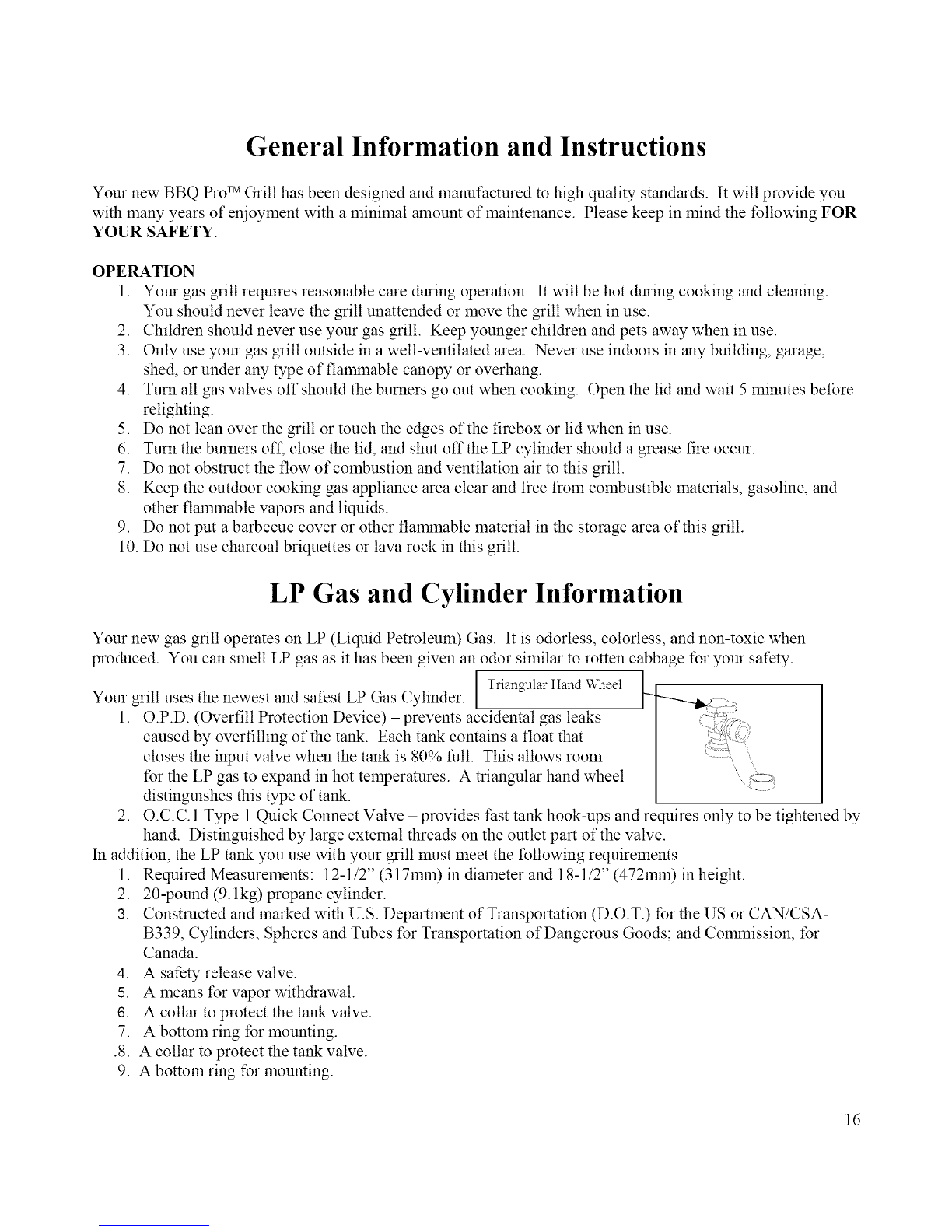

General Information and Instructions
Your new BBQ Pro TM Grill has been designed and manufactured to high quality standards. It will provide you
with many years of enjoyment with a minimal amount of maintenance. Please keep in mind the following FOR
YOUR SAFETY.
OPERATION
1. Your gas grill requires reasonable care during operation. It will be hot during cooking and cleaning.
You should never leave the grill unattended or move the grill when in use.
2. Children should never use your gas grill. Keep younger children and pets away when in use.
3. Only use your gas grill outside in a well-ventilated area. Never use indoors in any building, garage,
shed, or under any type of flammable canopy or overhang.
4. Turn all gas valves off should the burners go out when cooking. Open the lid and wait 5 minutes before
relighting.
5. Do not lean over the grill or touch the edges of the firebox or lid when in use.
6. Turn the burners off! close the lid, and shut off the LP cylinder should a grease fire occur.
7. Do not obstruct the flow of combustion and ventilation air to this grill.
8. Keep the outdoor cooking gas appliance area clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
9. Do not put a barbecue cover or other flammable material in the storage area of this grill.
10. Do not use charcoal briquettes or lava rock in this grill.
LP Gas and Cylinder Information
Your new gas grill operates on LP (Liquid Petroleum) Gas. It is odorless, colorless, and non-toxic when
produced. You can smell LP gas as it has been given an odor similar to rotten cabbage for your safety.
Your grill uses the newest and safest LP Gas Cylinder. Triangular Hand Wheel
1. O.P.D. (Overfill Protection Device) - prevents accidental gas leaks
caused by overfilling of the tank. Each tank contains a float that
closes the input valve when the tank is 80% full. This allows room \ \
for the LP gas to expand in hot temperatures. A triangular hand wheel
distinguishes this type of tank.
2. O.C.C. 1 Type 1 Quick Connect Valve - provides fast tank hook-ups and requires only to be tightened by
hand. Distinguished by large external threads on the outlet part of the valve.
In addition, the LP tank you use with your grill must meet the following requirements
1. Required Measurements: 12-1/2" (317rain) in diameter and 18-1/2" (472rain) in height.
2. 20-pound (9. lkg) propane cylinder.
3. Constructed and marked with U.S. Department of Transportation (D.O.T.) for the US or CAN/CSA-
B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, for
Canada.
4. A safety release valve.
5. A means for vapor withdrawal.
6. A collar to protect the tank valve.
7. A bottom ring for mounting.
.8. A collar to protect the tank valve.
9. A bottom ring tbr mounting.
16

! WARNING !
1. Donotattempttouseacylinderwith anyothertypeof connectiondevice.
2. Donotattempttouseacylinderwith alargercapacity
LP CYLINDER FILLING AND EXCHANGE
Someareasonlyallowyoutoexchangeyouremptycylindertbr areplacementthatisalreadyfull. Otherareas
allowyoutorefll yourcylinder.If youarein anareawhereyoucanrefill yourcylinder:
1. Useonlyalicenseddealer.
2. Thedealermustfirstpurgeanewcylinderbeforefilling.
3. Neverfill acylindermorethan80%full byvolume.Volumewill varybytemperature.Anempty
cylinderweighsapproximately18pounds(8.2kgs).A full oneapproximately38pounds(17.3kgs).
4. BesuretheLPdealerchecksthecylinderfor leaksafterfilling.
5. DonotreleaseLPgasintotheatmosphere,asit canunexpectedlyignitewhenmixedwith air.
6. ContactaLPdealertoremoveLPgas_omacylinder.
Onlyexchangeyourcylindertbronewith anO.P.D.featureasshownabove.
! WARNING !
A _ostycylindervalveindicatespossiblegasoverfill. ClosetheLPvalveandcallyourdealer
immediately.
! WARNING !
1. Neverstoreanyextracylindersnearyourgrill.
2. Keepcylindersoutof directsunlightandhighheat.
3. Neverfill yourcylinderover80%full byvolume.Thismaycausereleaseof gast_Olnthesafety
releasevalve.
4. IlnmediatelycallyourLPdealerorfire departmentshouldyouhear,smell,orseeescapinggas
t_Oln the cylinder.
5. Do not insert any type of foreign objects into the valve outlet.
The gas supply must be turned off at the LP-
gas supply cylinder when this outdoor cooking
gas appliance is not in use.
L'alimentation du gaz doit _tre tErlnde a la bouteille
de gaz de pdtrole liqudfie, lorsque cet appareil de
cuisson extdrieur u'est pas utilise.
LP CYLINDER LEAK TEST
A leak test should be done each time a cylinder is refilled or exchanged. Do
not smoke or use any type of flammable material in the area during this leak test.
Do not use an open flame to check [br leaks.
1. Test outside in a well ventilated area.
2. Use a paintbrush and a solution of 50% liquid soap and 50% water. Do
not use cleaning agents and they can damage the fuel supply parts.
3. Brush liquid onto areas highlighted with arrows.
4. Bubbles indicate a leak.
17

I DANGERBubbles indicate a leak. In that case, call your LP dealer or fire department immediately.
TRANSPORTATION AND STORAGE
1. Always use the Safety Cap when transporting or storing your cylinder.
2. Do not store in a building, garage, or other enclosed area.
3. Always store your cylinder outside.
4. Store out of reach of children. Safety Cap--[--"
5. Always transport in an upright position. /
6. Do not smoke when transporting your cylinder.
Regulator and LP Cylinder Connections
! CAUTION !
The gas pressure regulator provided with
this outdoor cooking appliance must be
used. This regulator is set for an outlet
pressure of 11 inches water column.
! MISE EN GARD !
Le rdgulateur de pression de gaz prdvu avec cet
appareil de cuisson a gaz pour l'extdrieur doit
_tre utilise. Ce rdgulateur est r_gle pour une
pression de sortie de 11 pouces de colonne
d'eau.
Your regulator is equipped with a Q.C.C. Type 1 quick connect system. It will not allow gas to flow until a
positive seal has been made. It has a thermal element that will shut offthe gas flow if the temperature reaches
240 degrees F (115 degrees C). It also has a flow-limiting device that will restrict the flow of gas to 10 cubic
feet per hour (0.28 cubic meters per hour).
TO CONNECT THE CYLINDER TO THE REGULATOR AND HOSE
1. Be sure the LP cylinder is "OFF" by turning the hand wheel clockwise
until it stops.
2. Place the cylinder into the base cabinet shelf of the grill with the valve
facing outward.
3. Be sure all burner controls are turned to the "Off" position.
4. Remove the safety cap from the from the cylinder valve.
5. Center the nipple of the regulator into the cylinder valve
6. Turn the black nut clockwise until it stops. Hand Tighten Only.
Do Not Use A Wrench.
18

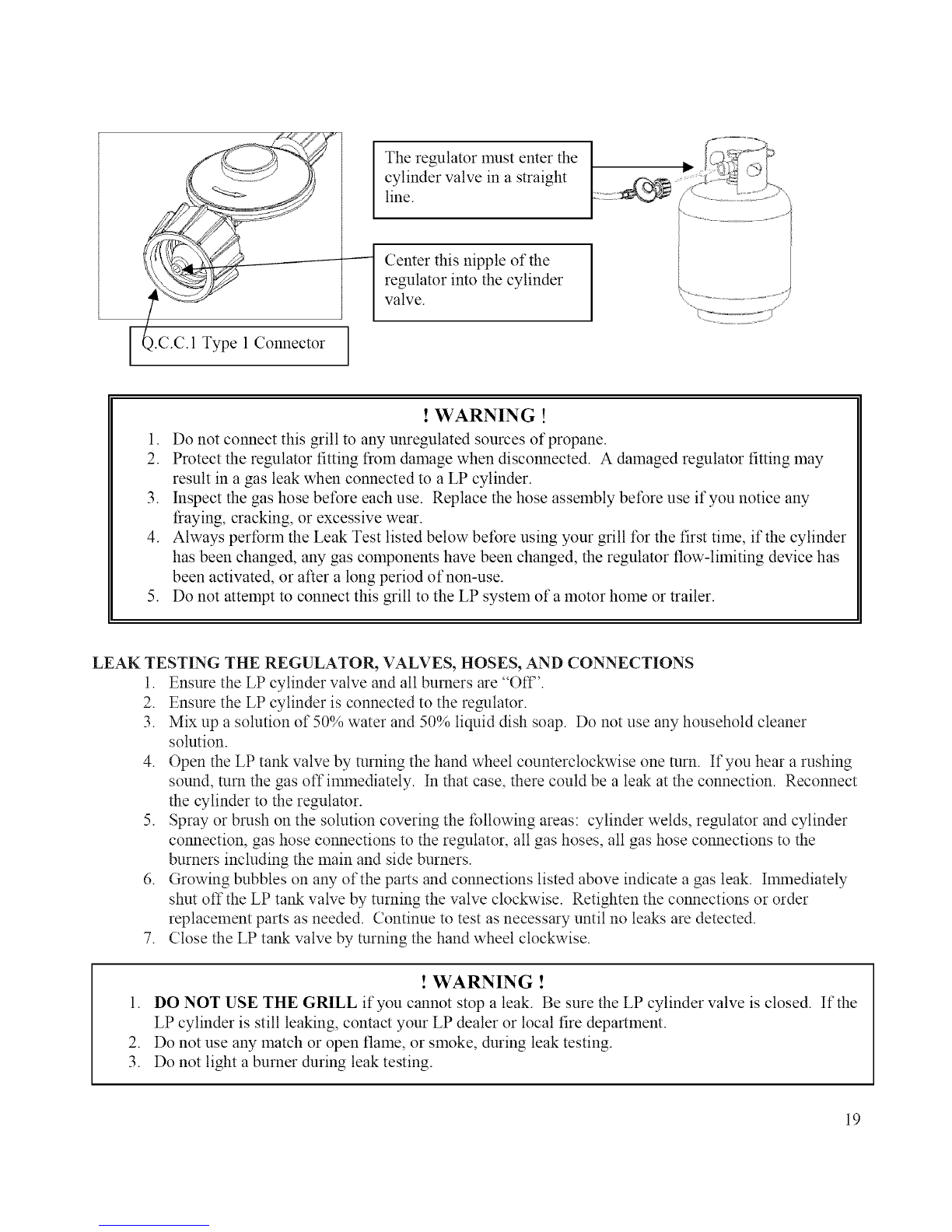

Theregulatormustenterthe
cylindervalvein astraight
line.
_.C.C.1Type1Connector
Center this nipple of the
regulator into the cylinder
valve.
!WARNING !
1. Do not connect this grill to any unregulated sources of propane.
2. Protect the regulator fitting from damage when disconnected. A damaged regulator fitting may
result in a gas leak when connected to a LP cylinder.
3. Inspect the gas hose before each use. Replace the hose assembly before use if you notice any
flaying, cracking, or excessive wear.
4. Always pertbrm the Leak Test listed below before using your grill for the first time, if the cylinder
has been changed, any gas components have been changed, the regulator flow-limiting device has
been activated, or after a long period of non-use.
5. Do not attempt to connect this grill to the LP system of a motor home or trailer.
LEAK TESTING THE REGULATOR, VALVES, HOSES, AND CONNECTIONS
1. Ensure the LP cylinder valve and all burners are "Off'.
2. Ensure the LP cylinder is connected to the regulator.
3. Mix up a solution of 50% water and 50% liquid dish soap. Do not use any household cleaner
solution.
4. Open the LP tank valve by turning the hand wheel counterclockwise one turn. If you hear a rushing
sound, mm the gas offimlnediately. In that case, there could be a leak at the connection. Reconnect
the cylinder to the regulator.
5. Spray or brush on the solution covering the following areas: cylinder welds, regulator and cylinder
connection, gas hose connections to the regulator, all gas hoses, all gas hose connections to the
burners including the main and side burners.
6. Growing bubbles on any of the parts and connections listed above indicate a gas leak. Immediately
shut offthe LP tank valve by turning the valve clockwise. Retighten the connections or order
replacement parts as needed. Continue to test as necessary until no leaks are detected.
7. Close the LP tank valve by turning the hand wheel clockwise.
!WARNING [
1. DO NOT USE THE GRILL if you cannot stop a leak. Be sure the LP cylinder valve is closed. If the
LP cylinder is still leaking, contact your LP dealer or local fire department.
2. Do not use any match or open flame, or smoke, during leak testing.
3. Do not light a burner during leak testing.
19

Grill Placement
! FOR YOUR SAFETY !
1. Minimum clearance required froln sides
and back of unit to adjacent combustible
construction is 24 inches (61 cm).
2. Do not locate this outdoor cooking gas
appliance under unprotected overhead
combustible surfaces.
! AVERTISSEMENT !
1. Ddgagement minimal a respecter entre
les cotes et l'arribre de l'appareil et uns
construction combustible ac[iacente
sit@e au-dessous de la partie
supdrieure de l'appareil, soit 24 pouces
(61 cm) ; des cotes et 24 pouces (61
cm) de l'arri_re.
2. I1est interdit d'installer le present
at)pareil au-dessous des surthces
APARTMENT RESIDENTS
Check with your apartment manager regarding
your regulations tbr barbecues.
! WARNING !
1. Do not use this grill in aW enclosed area,
garage, shed, or under aW type of
overhead structure or canopy.
2. Operate this grill only in a well-
ventilated area.
Grill Operations
LIGHTING
Always visually inspect your grill before lighting. Replace any hoses that are frayed or cracked before lighting
your grill. Look for anything that may be blocking spaces for ventilation and remove. After lighting, always
check the flame to ensure you have a good flame all along each burner. If not able to light, or the flame is not
even along the entire burner(s), then see the Trouble Shooting section.
.
2.
3.
! WARNING !
Read instructions before lighting.
Open lid during lighting.
If ignition does not occur in 5 seconds, turn
the burner control(s) oft; wait 5 minutes
and repeat the lighting procedure
! ADVERTISEMENT !
1. Lire les instructions avant d'allumer
l'appareil.
2. Ouvrir le couvercle avant d'allumer
l'appareil.
3. Si l'appareil ne s'allume pas immddiatement,
fermer le robinet du brfileur, attendre 5
minutes puis procdder de nouveau
l'allumage.
20
