BEA 10BOX45RSM User manual

Page 1of 2
75.0092 V4 Jan 2004 [Rev. 1/26/2004]
PRODUCT
DESCRIPTION
COMPONENT ID
SAFETY
PRECAUTIONS
BEA’s line of pushplate hardware is expanded by its line of surface and flush mount pushplate boxes. These
boxes are made of durable ABS plastic and are made to securely mount a pushplate and a variety of
optional transmitters to activate an automatic door. Many of the boxes have an optional weather ring to give
even more weather protection to the switch. They are also designed to attractively recess the pushplate in
the housing to and to minimize vandalism from prying up the pushplate.
PUSHPLATE SIZE PUSHPLATE
SERIES SURFACE MOUNT BOX FLUSH MOUNT BOX WEATHER RING (Optional)
Jamb (4” hole spacing) 10PBJx 10BOXJAMBSM 10BOXJAMBFM N/A
Jamb (3 ¼” hole spacing) 10PBJSx 10BOXJAMBST N/A N/A
4 ½” Square 10PBS45x 10BOX45SQSM N/A N/A
4 ¾” Square 10PBSx 10BOX475SQSM 10BOX475SQFM 10WRSQ475
4 ½” Round 10PBR45x 10BOX45RNDSM 10BOX45RNDFM 10WRRND45
6” Round 10PBRx 10BOX6RNDSM 10BOX6RNDFM 10WRRND6
4”
JAMB
3 ¼ ”
JAMB
4 ½”
SQUARE
4 ¾ ”
SQUARE
4 ½ ”
ROUND
6”
ROUND
4”
3 ¼”
•Shut off all power going to the header before attempting any wiring procedures.
•Maintain a clean & safe environment when working in public areas.
•Constantly be aware of pedestrian traffic around the door area.
•Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected
reactions by the door.
•Always check placement of all wiring before powering up to insure that moving door parts will not catch
any wires and cause damage to equipment.
•Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of
installation.
USERS GUIDE
PUSHPLATE MOUNTING BOXES
We open up New Horizons
9V Battery Clip
(1 per box, not used
on jamb sized boxes)
Transmitter Mounting Pin
(6 per box, not used on jamb
sized boxes)
Pushplate Mounting Box
(4 ½” Round Surface Mount shown)

Page 2of 2
75.0092 V4 Jan 2004 [Rev. 1/26/2004]
COMPANY
CONTACT
MECHANICAL
INSTALLATION
1. Prepare the box for installation. If the pushplate is to be hard-wired to the operator, remove either the
knockout on the back or bottom of the box. Then route the appropriate wire to the box.

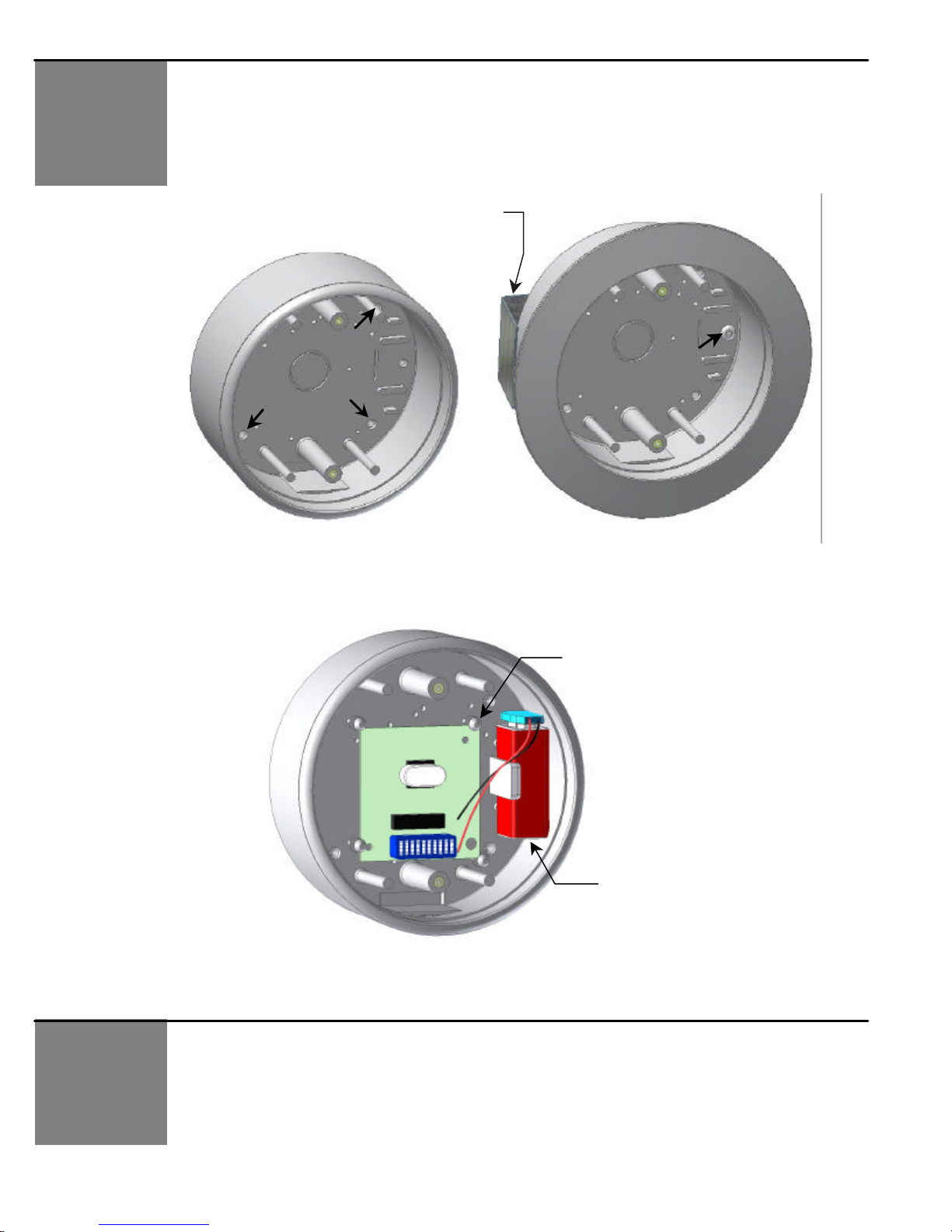

2. Attach the box to the mounting surface. For surface mounted boxes, securely attach the box to the
surface using the corner holes. For flush mounted boxes, cut a hole in the mounting surface large enough
that the galvanized steel bracket will pass through the hole. Then use a Phillips head screwdriver to
tighten the two screws that tighten the bracket to the inside of the wall surface.
GALVANIZED MOUNTING
BRACKET
SURFACE MOUNT FLUSH MOUNT
3. If applicable, mount a radio frequency transmitter to the inside of the housing using either the transmitter
pins and 9V battery clip, or the Velcro tab enclosed with the transmitter kit.
10BOX45RSM with 10T300PB shown
9V Battery
Transmitter Mounting Pins
(adjust location for transmitter)
or use Velcro tab to secure
‘mini’ transmitters
If after troubleshooting a problem, a satisfactory solution cannot be achieved, please call B.E.A., Inc.
for further assistance during Eastern Standard Time at 1-800-523-2462 from 8am-5pm.
For after-hours, call East Coast: 1-866-836-1863 or 1-800-407-4545 / Mid-West: 1-888-308-8843 /
West Coast: 1-888-419-2564. DO NOT leave any problem unresolved. If you must wait for the following
workday to call B.E.A., leave the door inoperable until satisfactory repairs can be made.
NEVER sacrifice the safe operation of the automatic door or gate for an incomplete solution.
Web:www.beasensors.com
