Owner’s Manual
Model # HUR6000
The HURRICONE™ Cordless Floor Drying Cone Dolly, with Safety
Cone, not only warns pedestrians of potential slip hazards, but
also aids in drying wet floors with a continuous 360 degree
curtain of air. The HURRICONE™ should be used in any area that
pedestrians will encounter wet floors either from continual foot
traffic bringing in rain or snow, or wet from spills and mopping
floors.
The HURRICONE™ accepts the following brands of Safety Cones:
•HURRICONE™ Brand Safety Cones
•Rubbermaid® 36 in. Safety Cones
•American Allsafe®/ Lamba®36 in. Safety Cones
PLEASE READ THIS MANUAL THOROUGHLY
BEFORE OPERATING PRODUCT
©2008 Beach Sales & Engineering LLC All rights reserved
HURRICONE™ is a registered trademark. Designed & Engineered in the USA and custom-manufactured in China.
Beach Sales & Engineering LLC
Mansfield, Ohio 44906
US AND FOREIGN PATENTS PENDING
www.hurricone.com PM1006 Rev 2

The HURRICONE™ Cordless Floor Drying Dolly has been carefully
engineered and manufactured to give you dependable operation.
Please read this manual thoroughly before operating the
HURRICONE™ unit, as it contains the information you need to
become familiar with its features and to obtain the performance that
will bring you continued service.
Please keep this manual on file for further reference.
WARNING
•DO NOT USE NEAR TOXIC MATERIALS, EXPLOSIVE
LIQUIDS OR VAPORS
•STORE INDOORS, DO NOT EXPOSE TO RAIN OR SNOW
•FOR SAFE OPERATION, READ AND UNDERSTAND USERS
MANUAL PRIOR TO USE
•USE ONLY GENUINE HURRICONE™ BATTERY PACK
•USE ONLY GENUINE HURRICONE™ BATTERY CHARGER
•DO NOT LIFT THE UNIT BY SAFETY CONE. CONE DOLLY
CAN SEPARATE FROM CONE AND CAUSE DAMAGE TO UNIT
OR PERSONAL INJURY.
•DO NOT USE CHARGER WHILE HURRICONE™ UNIT IS IN
USE OR IN THE PROXIMITY OF PEDESTRIANS, POWER
CORDS ARE POTENTIAL TRIP HAZARDS.
•DO NOT USE HURRICONE™ WITHOUT SAFETY CONE
ATTACHED.
Although your HURRICONE™ Cordless Floor Drying Cone Dolly may
arrive partially charged from the factory, we recommend fully
charging the unit before the first use.
2

3

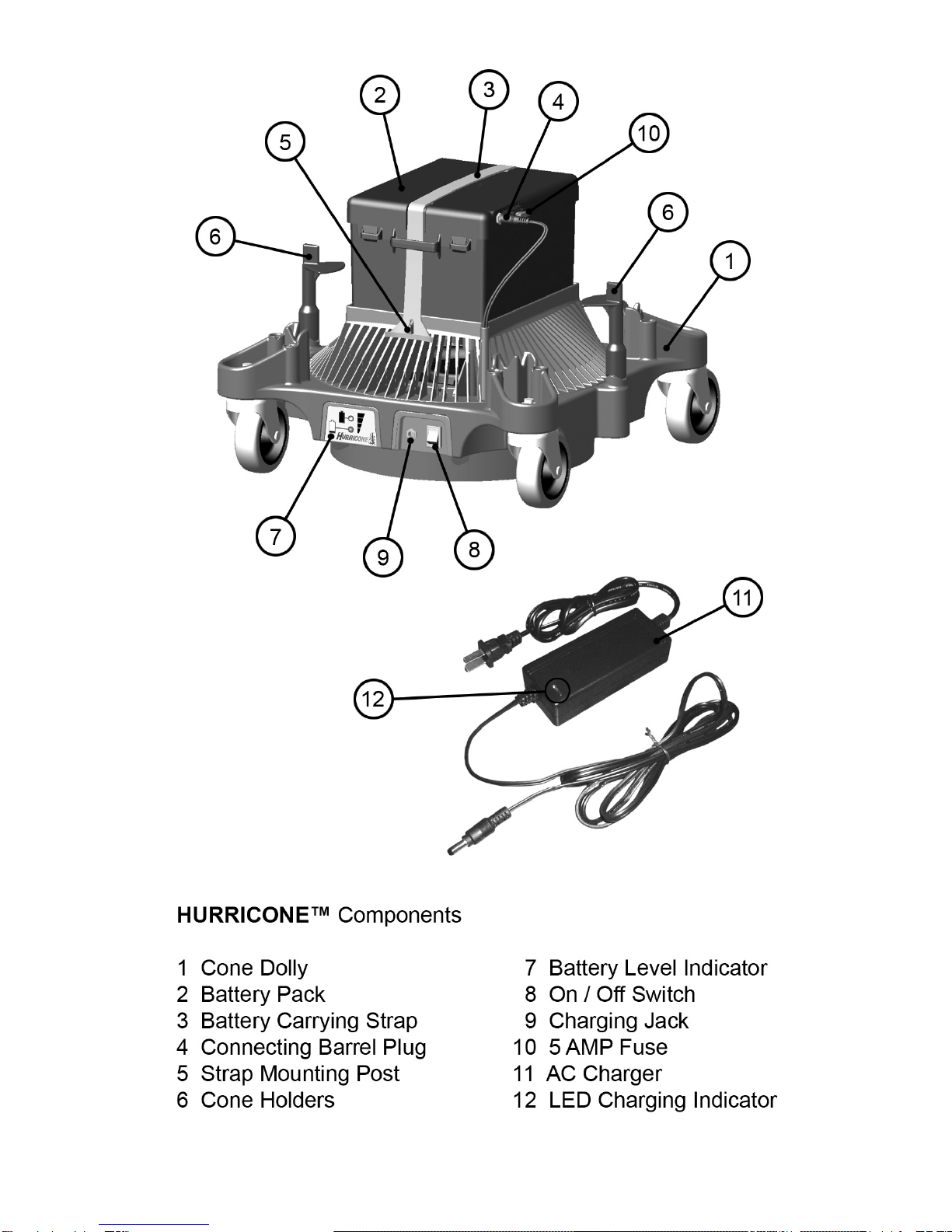

•BATTERY PACK
The battery system in this unit is designed to operate your
HURRICONE™ at a proper drying speed for up to 12 hours of
continuous use. Although the unit will continue to run after 12 hours,
the unit may not generate enough air movement to effectively aid in
drying floors.
The Battery Pack in the HURRICONE™ was designed to be removed
from the Cone Dolly and recharged, then replaced with a freshly
charged Battery Pack so that the HURRICONE™ can be in operation
24 hours a day if needed. The Battery Pack can also be charged
without removal from the Cone Dolly through the Charging Jack.
Under normal use and when properly maintained, the Battery will
produce superior run time. When the unit fails to run for the specified
amount of time, battery replacement is recommended.
The Battery Pack is supplied with a 5 Amp Fuse for protection. Only
replace the fuse with a 5 amp fuse.
BATTERY PACK INSTALLATION and REMOVAL
INSTALLATION
To Install Battery Pack, place Battery Pack in Cone Dolly, push
Battery Carrying Strap down, and push ends of Battery Carrying
Strap over Mounting Posts to secure Battery Pack. Connect Barrel
Plug from Cone Dolly to jack in Battery Pack Lid. Attach Safety
Cone (see Attachment and Removal of Safety Cones).
REMOVAL
Remove Safety Cone from Main Unit (see Attachment and Removal
of Safety Cones). Locate Connecting Barrel Plug. Grasp Barrel Plug
and disconnect it from Jack in Battery Lid. Be careful not to pull
from the wires. Pull from the Barrel Plug. Locate Battery Carrying
Strap. Remove Battery Carrying Strap from Main Unit by pulling the
bottom of the Battery Carrying Strap off of the Mounting Posts. Pull
up on the Battery Carrying Strap and remove Battery Pack from
Cone Dolly.
4

•CHARGING
Do not store or use AC Charger while on the floor, as it can become
wet and short out. This will void your warranty.
During extended periods of nonuse, it is recommended to recharge the
battery every 3 months.
WARNING-DO NOT USE AC CHARGER WHILE UNIT IS IN
USE OR IN THE PROXIMITY OF PEDESTRIANS, POWER
CORDS ARE POTENTIAL TRIP HAZARDS.
CHARGING A BATTERY PACK WHILE IN DOLLY
Plug one end of the 120 Volt AC Charger into the Charging Jack on
the Cone Dolly. Plug the other end into any standard 120 Volt AC
wall outlet.
CHARGING A BATTERY PACK THAT IS REMOVED FROM DOLLY
Remove Safety Cone from Cone Dolly (see Attachment and Removal
of Safety Cones). Locate Connecting Barrel Plug. Grasp Barrel Plug
and disconnect it from Jack in Battery Lid. Be careful not to pull
from the wires. Pull from the Barrel Plug. Remove Battery Pack from
the Main Unit (see Battery Pack Installation and Removal). Plug one
end of the 120 volt AC Charger into the Battery Lid Jack. Plug the
other end into any standard 120 Volt AC wall outlet.
The red LED Charging Indicator Light will illuminate on the AC
Charger to confirm that power is being supplied to the Battery Pack.
The Battery Pack is fully charged when the Green LED Indicator
Light is illuminated. Full charging will take approximately 8-9 hours.
The Charger will automatically switch from charge mode to float /
standby mode. The charger can be kept on the battery indefinitely.
5

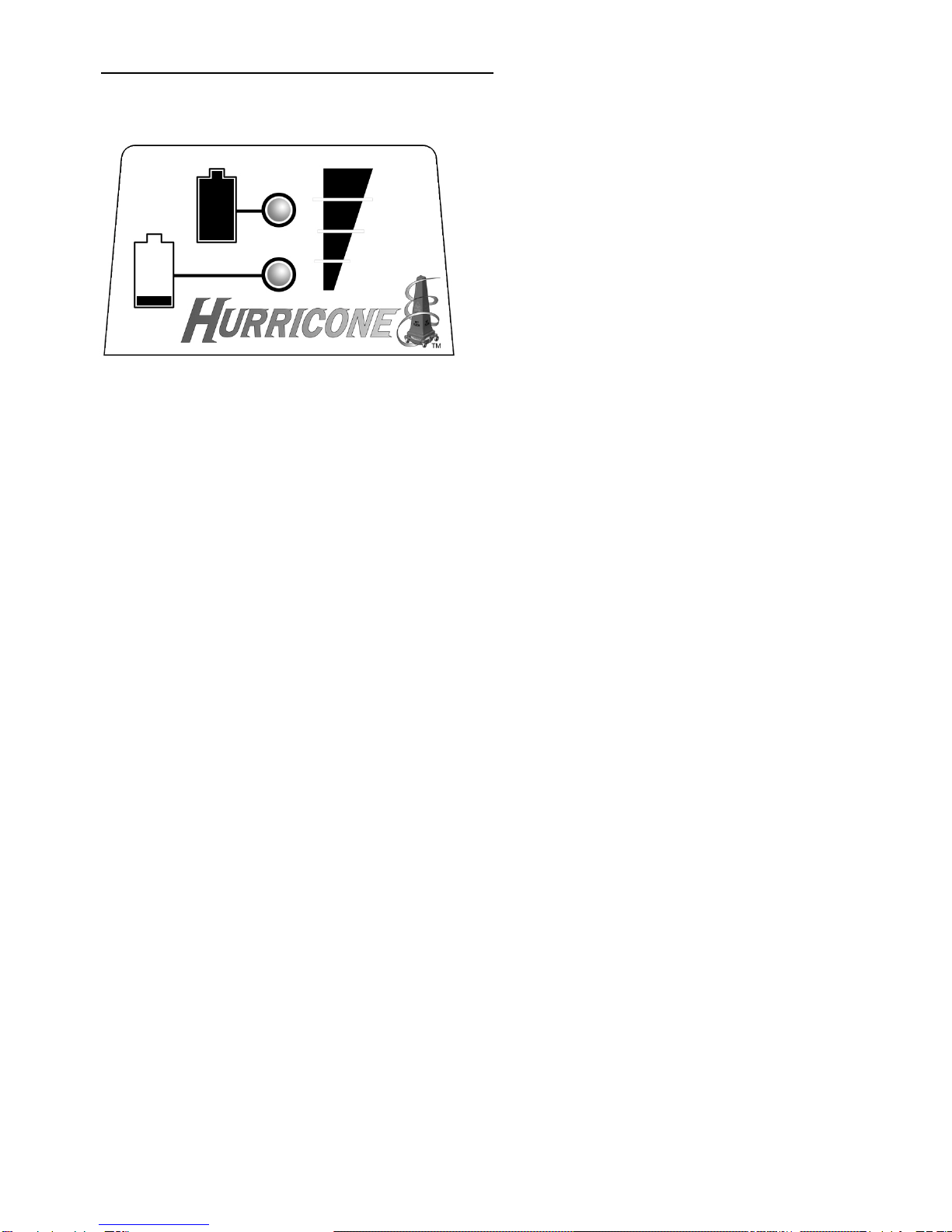

•BATTERY LEVEL INDICATOR
Your HURRICONE™ Dolly is equipped with a battery level
indicator located on left side panel opposite the On/Off switch
and Charging Jack.
•Green LED illuminates when unit is turned ON and battery is fully
charged
•Red LED will start to blink when battery is low and needs recharged
•An Audible Tone will sound every 2 minutes during the low battery
warning
•The unit will shut off automatically when the battery reaches an
unusable level. Battery will need recharged at this time (See
Charging Section)
6

•ATTACHMENT & REMOVAL OF SAFETY CONES
ATTACHMENT
Locate Cone Holders and rotate them 180 degrees. Place Safety
Cone on dolly and rotate Cone Holders back into position over edge
of Safety Cone.
REMOVAL
Locate Cone Holders and rotate them 180 degrees. Remove Safety
Cone from dolly and rotate Cone Holders back into position.
WARNING- DO NOT LIFT THE UNIT BY SAFETY CONE. CONE
DOLLY CAN SEPARATE FROM CONE AND CAUSE DAMAGE
TO UNIT OR PERSONAL INJURY.
LOCKING WHEEL / CASTER
Your Cone Dolly is supplied with Locking Casters. We recommend
using the Lock when the unit is in operation.
USE OF ADDITIONAL SAFETY CONES
Additional Safety Cone may be stacked on the Cone Dolly for added
convenience and mobility of additional cones. We recommend only
stacking a maximum of 8 Safety Cones.
TO ORDER ADDITIONAL / REPLACEMENT
BATTERY PACKS, SIGNS OR ACCESSORIES
PLEASE CALL CUSTOMER SERVICE AT:
(419)-525-1010
7

BEACH SALES & ENGINEERING LLC Limited Warranty
WHAT IS COVERED: Any defect in materials and workmanship.
FOR HOW LONG: 1 year from date of purchase
WHAT WE WILL DO: If your product is defective and returned within 30 days after the
date it was purchased, we will replace it at no charge to you. If returned after 30 days but
within 1 year of the date of purchase we will repair it or, at our option, replace it at no cost
to you.
If we repair your product, we may use new or reconditioned replacement parts. If we
choose to replace your product, we may replace it with a new or reconditioned one of the
same or similar design. The repair or replacement will be warranted under out standard 1
year warranty.
LIMITATIONS: IMPLIED WARRANTIES, INCLUDING THOSE OF FITNESS FOR A
PARTICULAR PURPOSE AND MERCHANTABILITY, ARE LIMITED TO 1 YEAR
FROM DATE OF PURCHASE. WE WILL NOT PAY FOR LOSS OF TIME,
INCONVENIENCE, LOSS OF USE OF YOUR PRODUCT OR PROPERTY DAMAGE
CAUSED BY YOUR PRODUCT OR ITS FAILURE TO WORK, OR AND OTHER
INCIDENTAL OR CONSEQUENTIAL DAMAGES INCLUDING PERSONAL INJURY.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion
or limitation of incidental or consequential damages, so the above exclusions or limitations
may not apply to you.
WARRANTY SERVICE: To get warranty service for your product, Please call the
Customer Service number at (419)-525-1010 to discuss your problem. If unit needs
service or replacement, Customer service will give you a RETURN AUTHORIZATION
NUMBER and advise you as to the address to return it to. No units will be accepted
without a RETURN AUTHORIZATION NUMBER. You must provide proof of the date of
purchase.
WHAT THIS WARRANTY DOES NOT COVER: AMONG OTHER THINGS THIS
WARRANTY DOES NOT COVER DEFECTS RESULTING FROM ACCIDENTS, DAMAGE WHILE
IN TRANSIT TO OUR SERVICE LOCATION, ALTERATIONS, UNAUTHORIZED REPAIR,
FAILURE TO FOLLOW INSTRUCTIONS, MISUSE, FIRE, FLOOD, AND ACTS OF GOD. If your
product is not covered by out warranty, call our customer service number at
(419)-525-1010 to determine whether we will repair your product and other repair
information, including charges. We, at our option may replace rather than repair your
product with a new or reconditioned one of the same or similar design. The repair or
replacement will be warranted for 1 year from date of service.
THIS LIMITED WARRANTY IS THE ONLY ONE WE GIVE ON YOUR PRODUCT, AND IT SETS
FORTH ALL OUR RESPONSIBILITIES REGARDING YOUR PRODUCT. THERE ARE NO
WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION SET FORTH ABOVE.
STATE LAW RIGHTS: This warranty gives you specific legal rights and you may also have
other rights which may vary from state to state.
