Beachcomber AIRLIFT Datasheet

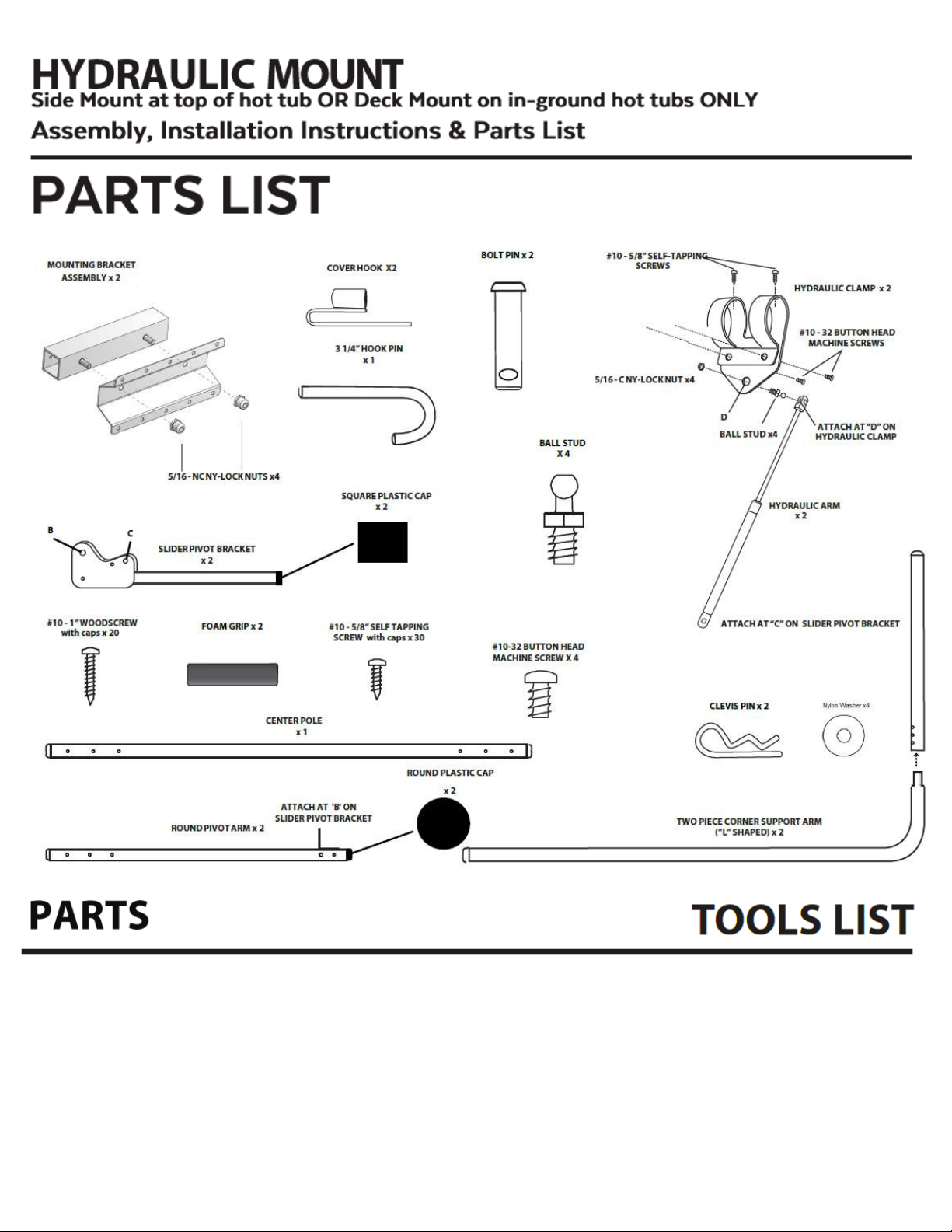

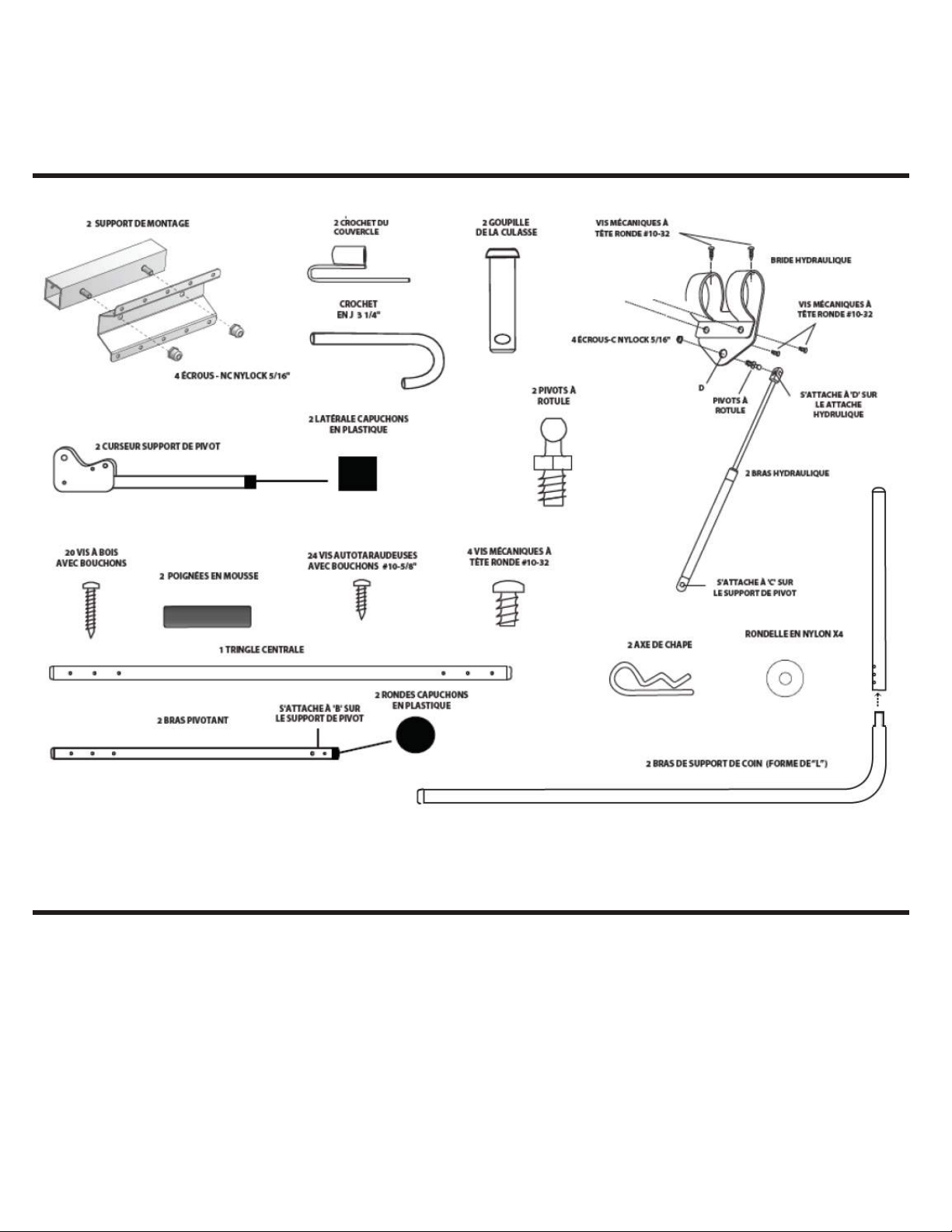

• Mounting Bracket Assembly (x2)
• Slider Pivot Bracket (x2)
• 3 1/4” Hook Pin (x1)
• Center Pole (x1)
• Round Pivot Arm (x2
• Cover Hook (x2)
• Foam Grip (x2)
• Hydraulic Arm (x2)
• Hydraulic Clamp (x2)
• Bolt Pin (x2)
• Clevis Pin (x2)
• #10 - 5/8“ Self-Tapping Screw (x24)
• #10 - 1” Woodscrew (x20)
• Ball Stud (x4)
• 5/16 - NC NY-Lock Nut (x4)
• 5/16 - C NY-Lock Nut (x4)
(in bag with ball studs)
• #10-32 Button Head Machine Screw (x4)
• 1 1/4” Square Plastic Caps (x2)
• 1 1/4” Round Plastic Caps (x2)
• Corner Support Arm (”L “Shaped) (x2)
• Nylon Washer x4
• Phillips screwdriver
• Measuring tape
• Drill
• Robertson Bit
• Adjustable wrench
• ½” Wrench
• ½” Socket Wrench

INSTALLATION INSTRUCTIONS
STEP 1
The hot tub cover must be in the closed position prior to
mounting the lifter. Position the hot tub cover properly so it is
sitting squarely on the hot tub. Attach the pre-assembled
mounting bracket (see illustration 1) near the back, and close to
the top edge of the hot tub using the #10-1”woodscrews. We
recommend pre-drilling all holes with a 1/16” drill bit.
STEP 2

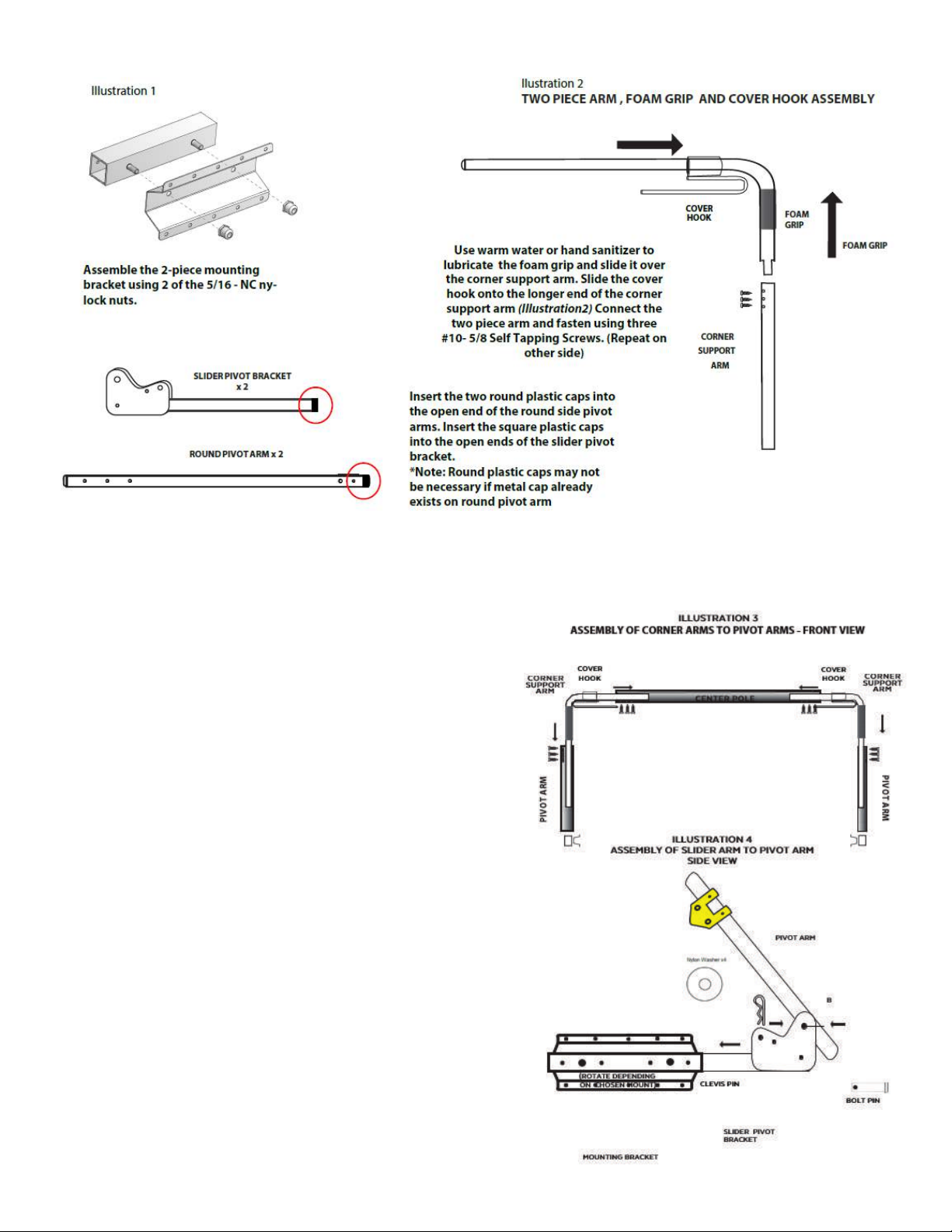

Ensure the cover hooks and foam grips are in place as shown in
illustration 2. Insert the longer end of the corner support arms
into the center pole so that it is situated parallel to the hot tub
cover with the cover hooks under the seam of the cover (see
illustrations 3 and 6).
STEP 3
Insert the slider pivot bracket into the mounting bracket and
position it so that the slider pivot bracket lines up with the back
of the hot tub and secure using #10-5/8” tapping screws (see
illustration 4).
STEP 4
Slide the hydraulic clamp over the pivot arm so that the flat side
of the clamp is to the outside pointing down. Slide the pivot arm
over the shorter end of the corner support arm. Align the pivot
bracket and feed the bolt pin through the bracket, through the
nylon washer, through the pivot arm and secure using the clevis
pin (see illustration 4).
PRE-ASSEMBLY

STEP 5

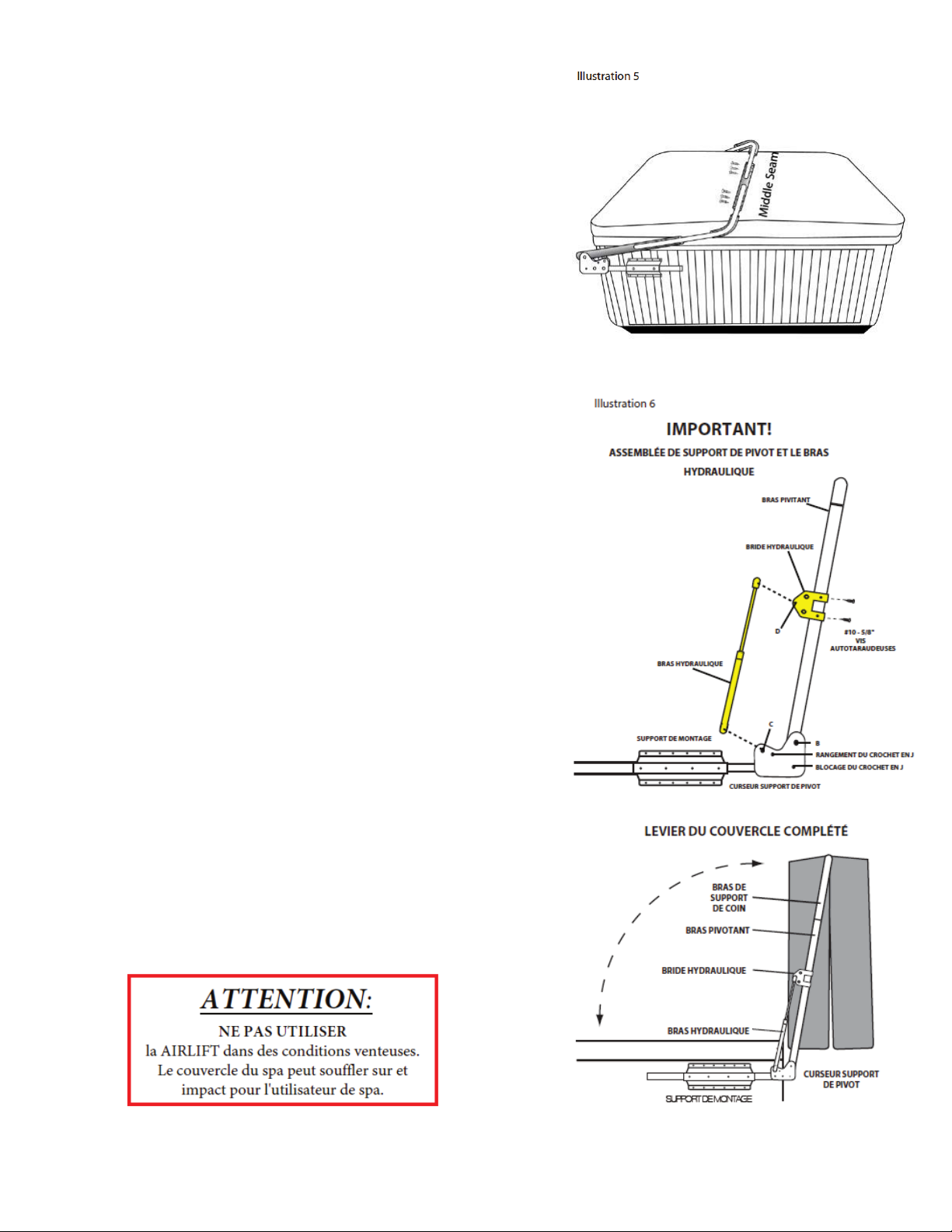

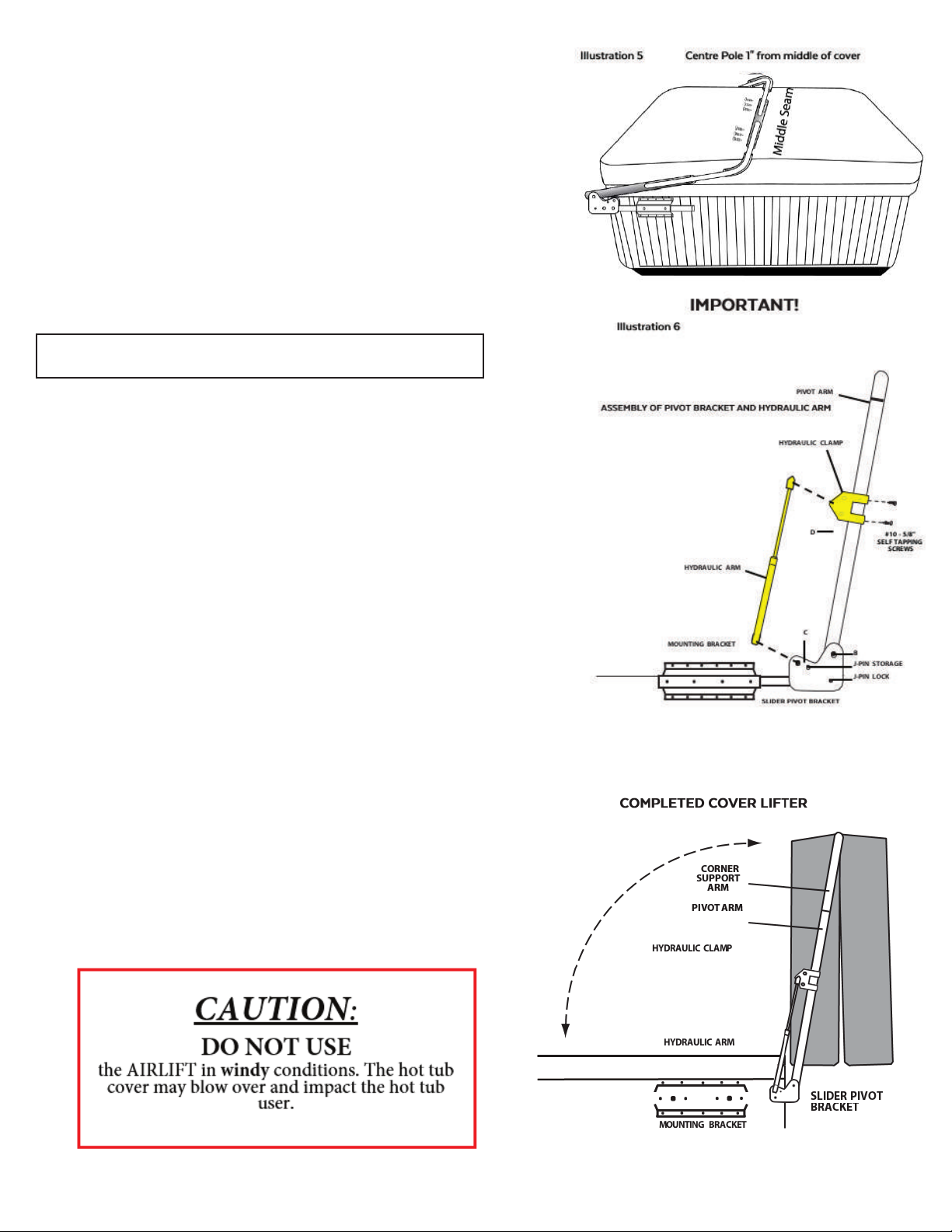

Make sure the center pole is located 1” from the middle seam of
the cover on the lifter side (see illustration 5). Attach the center
pole to the corner support arms using 6 of the #10- 5/8 self
tapping screws. Pre-drilling the corner support arms is advised.
We recommend rotating the center pole so that the screws are
inserted horizontally.
STEP 6
Secure the pivot arms to the corner support arms using 6 #10-
5/8” self tapping screws.
STEP 7
HYDRAULIC ARM ASSEMBLY
OPEN THE HOT TUB COVER TO THE UPRIGHT POSITION
Fasten the ball studs to the outside of the hydraulic clamp and
pivot bracket holes located at “C” and “D” using 5/16”-C-NY
lock nuts. Attach the larger end of the hydraulic arm to the ball
stud at C by pressing the end fitting over the ball stud. Align the
smaller end of the hydraulic arm with the hydraulic clamp, and
attach to ball stud at D. Tighten the hydraulic clamp into place
using two #10-32 button head machine screws. Secure the
hydraulic clamp in position on the pivot arm using two of the
5/8” self-tapping screws. Repeat on the other side of the hot
tub. If you need to remove the hydraulic arm, GENTLY pry the
half-circle collar to release the spring from the ball stud.
STEP 8
Cover all wood screws and tapping screws with plastic caps.
YOU HAVE COMPLETED THE INSTALLATION OF YOUR LIFTER.
NOTE:
The J-pin is inserted into the pivot brackets and through the
round pivot arm when the hot tub cover is in the open position
for added safety and removed when the cover is to be closed.
When the cover is closed, the J-pin can be inserted into “J-pin
storage” for safe-keeping.
Illustration 7

THE WARRANTY:
The manufacturer warrants to you (the original purchaser) for the stated warranty term of FIVE YEARS (60 Months) from
the original date of purchase, to be free from defects in material and workmanship.
AIRLIFT Cover Lifters will be free from defects in materials or workmanship that would cause the lifter to be inoperable in
normal working conditions. Any claim made within these terms for Five (5) years from the date of purchase will be
repaired or replaced at the option of the Manufacturer.
This is a 100% Non-Prorated Warranty on all parts for the full 5 years. Only parts excluded from the warranty are the gas
springs which include a 100% One Year Warranty.
EXCLUSIONS TO WARRANTY
• Lifter has been subjected to alteration, misuse, or repairs by anyone other than an authorized representative of the
Manufacturer, unless written approval is provided
• Damage caused by improper installation or during transportation from the seller to the purchaser
• Any damage resulting from any misuse, abuse, negligence, accident, or alteration, environmental, or use during high
winds
The warranty covers the operational use of the lifter but does not cover scratches, abrasions, rusting or any defects to the
finish of the material caused by or resulting from the exposure to the environmental factors; i.e. sun, rain, chemicals, or
any defects resulting from normal fading or minor deterioration.
The warranty does not cover damage resulting from abuse or accidents, including but not limited to the following
damage:
• Use of abrasive or unapproved cleaners that could cause surface damage
• Subjection to solvents or other chemicals which could deteriorate painted surfaces
• Use for any other purpose than as a hot tub cover lifter
MAKING A CLAIM:
To make a warranty claim; in the event of a defect covered by this warranty for AIRLIFT, contact the original retail seller
and provide original purchase receipt, any photo(s) clearly showing the defect(s) and an explanation. NO RETURNS OF
MERCHANDISE WILL BE ACCEPTED UNTIL A "RETURN AUTHORIZATION NUMBER" HAS BEEN ISSUED.
The lifter will be repaired or replaced at the discretion of the Manufacturer. If necessary, the purchaser is responsible to
ship any said parts back to the manufacturer. The warranty includes all Labour costs performed at the manufacturer's
facility but not labour in the field. Manufacturer will cover the cost(s) to repair and/or replacement of the items back to
the retailer or seller.
FREIGHT DAMAGE:
Any materials damaged in freight will be replaced by the Manufacturer provided the purchaser files the appropriate
claims form with the carrier, and submits copies to the Manufacturer within five (5) business days of receiving the
damaged merchandise. All claims should also be reported to the seller.
CONSEQUENTIAL DAMAGES:
The Manufacturer will not be liable for any loss, expense, or damage other than to AIRLIFT, that may result from a defect
in materials or workmanship. This warranty does not cover incidental damages including damage to property or injury
arising from the use or inability to use this product. Manufacturer or Seller shall in no event be liable for any amount in
excess of the original purchased amount. (Some Provinces / States do not allow the exclusion or limitation of incidental
or consequential damages, so the above mentioned limitation may not apply to you).
It is important that you report to the retailer from whom you purchased your AIRLIFT, any defects as soon as they are
detected. If it is impractical to report any defects to the Retailer, Contact BEACHCOMBER PLUS, 13245 COMBER WAY,
SURREY, BC, CANADA, V3W 5V8; 1-800-663-6557
Patent No. 2,432,833 US Patent No. 7290297B2 Patents Pending Made in Canada
