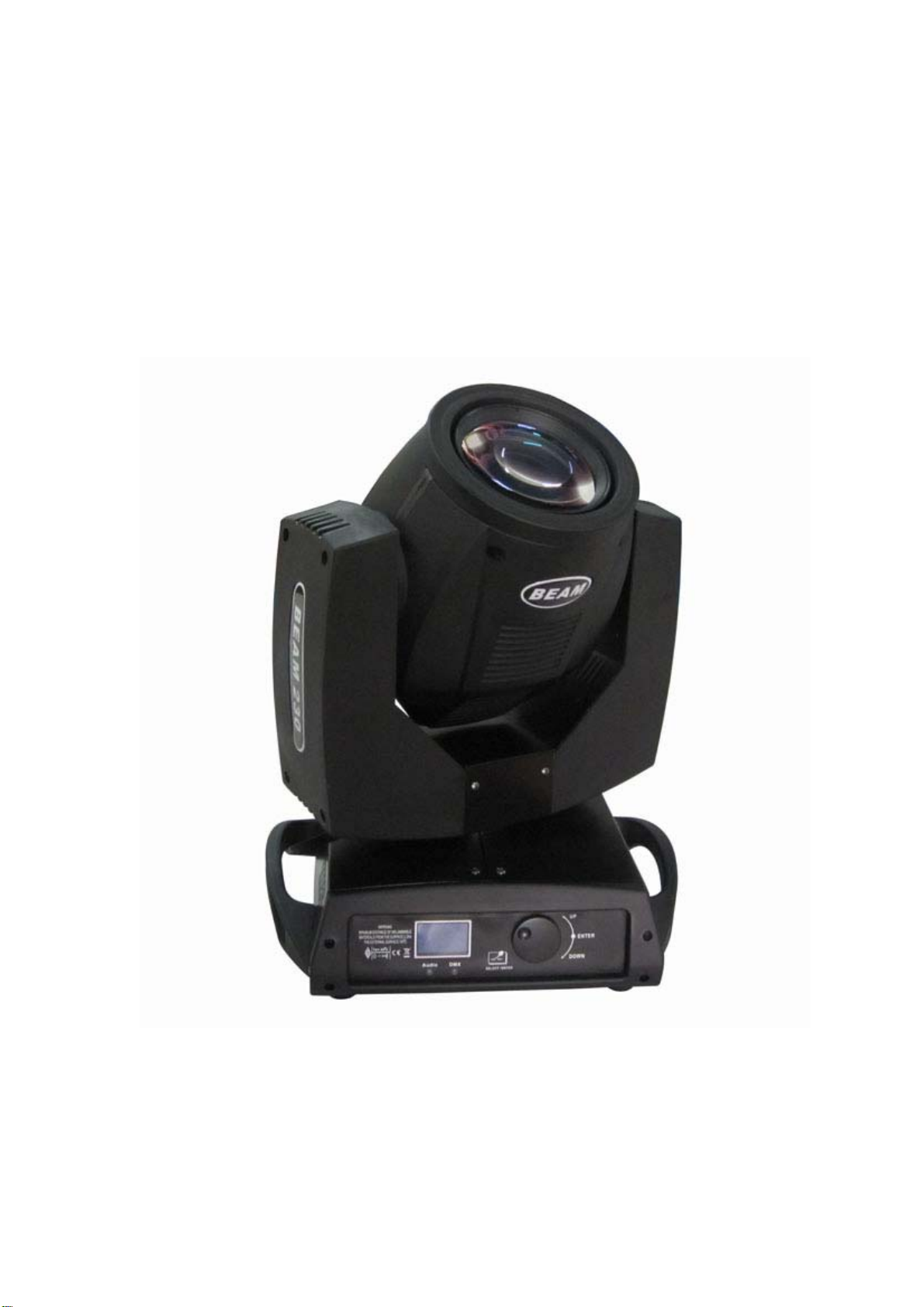

Beam SHARPY VSM-120 User manual

VSM-120BEAM SHARPY
User Manual

VSM-200BEAM SHARPY
2
SAFETY INFORMATION
1) Installation
a. Make sure all parts for fixing the projector are in a good state of repair.
b. Make sure the point of anchorage is stable before positioning the projector.
c. The safety chain must be properly hooked onto the fitting and secured to the
framework, so that if the primary support system fails, the fitting falls as little as
possible.
d. If the safety chain gets used, it needs to be replaced with a genuine spare.
2) Minimum Distance of Illuminated Objects
a. The projector needs to be positioned so that the objects hit by the beam of light
are at least 12 meters from the lens of the projector.
3) Minimum Distance from Flammable Materials
a. The projector must be positioned so that any flammable materials are at least
0.20 meters from every point on the surface of fitting.
4) Mounting Surfaces
a. It is permissible to mount the fitting on normally flammable surfaces.
5) Maximum Ambient Temperature
a. Do not operate the fixture if the ambient temperature (Ta) exceeds 40℃(104℉).
6) IP20 Protection Rating
a. The fitting is protected against penetration by solid bodies of over 12mm in
diameter, but not against dripping water, rain, splashes or jets of water.
7) Protection Against Electrical Shock
a. Connection must be made to a power supply system fitted with efficient earthing.
b. It is, moreover, recommended to protect the supply lines of the projectors from
indirect contact and/or shoring to earth by using appropriately sized residual
current devices.
8) Connection to Mains Supply
a. Connection to the electricity mains must be carried out by a qualified electrical
installer.
b. Check that the mains frequency and voltage correspond to those for which the
projector is designed as given on the electrical data label.
c. This label also gives the input power to which you need to refer to evaluate the
maximum number of fittings to connect to the electricity line, in order to avoid
overloading.
9) Temperature of the External Surface
a. The maximum temperature that can be reached on the external surface of the
fitting, in a thermally steady state, is 100℃(212℉).
10) Maintenance
a. Before starting any maintenance work or cleaning the projector, cut off power
from the mains supply.
b. After switching off, do not remove any parts of the fitting, to avoid getting burnt for
at least 35 minutes. After this time the likelihood of the lamp exploding is virtually

VSM-200BEAM SHARPY
3
nill.
c. The fitting is designed to hold in any splinters produced by a lamp exploding. The
lenses must be mounted and, if visibly damaged, they have to be replaced with
genuine spares.
11) Lamp
a. The fitting mounts a high-pressure lamp that needs an external igniter. This igniter
is fitted onto the apparatus.
- Carefully read the “operating instructions” provided by the lamp
manufacturer.
- Immediately replace the lamp if damaged or deformed by heat.
12) Battery
a. This product contains a rechargeable lead-acid battery. To preserve the
environment, please dispose the battery at the end of its life according to the
regulation in force.
TECHNICAL INFORMATION
Bulb:
Philips MSD Platinum 2R (8000 K color temperature, 2000 hours)
Power Consumption:
180W
Switching power supply:
AC100 ~ 240 V, 50/60 HZ available
Optical Device:
three lens group,0°--3.2° zoom;
Electronic Focus:
20 meters, 50000 LUX
Channel Channels:
16/20CH
XY Movement:
Pan 540 ° (16 bit ), Tilt 280 ° (16 bit)
Color Wheel:
12 replaceable colors plus white, bi-direction revolving rainbow effects available,
Rotating Gobo Wheel:

VSM-200BEAM SHARPY
4
14 replaceable rotation gobos plus white circle, with shaking function and random position
function available.
Prism:
8-facet prism, forward and reverse rotation available and position function.
Strobe:
Double pole shut up to 13 times per second, random shut and pulse shut can be choose.
Dimmer:
0 ~ 100% linear adjustable
Frost:
0 ~ 100% linear adjustable
LCD Display:
Beautiful blue and white LCD and pulley select menu is convenient and quick.
Electronic ballast can be choose:
Make the product more light and bright. Lamp more stable environmental protection and
more energy saving.
ON/OFF the lamp by controller
Working Position:
Functioning in any position.
Shipping Information:
55 x 43 x 39cm
Gross Weight:
15kgs

VSM-200BEAM SHARPY
5
LCD DISPLAY MENU OPERATION
Main Menu
EN/中文
Screen Exchange
1. Set
Setting ----------------------------------- Run Mode ------------------ DMX
AUTO1
AUTO2
AUTO3
AUTO4
DrawUp8
Forward0
F-Stand8
F-Sleep8
Random
Sound
DMX Address ------------ 001-512
Channel Mode ----------- 16CH
20CH
Invert Pan ----------------- OFF
ON
Invert Tilt ------------------ OFF
ON
Pan-Tilt Swap ----------- OFF
ON
Pan-Tilt Encoder ------ ON
OFF
No DMX Signal -------- KEEP
CLEAR
Display ------------------- ON
OFF
LampOn@Startup–OFF
ON

VSM-200BEAM SHARPY
6
Linear Color ----------- OFF
ON
LoadDefault
2. Manu --------------------------------- Color --------------------- 000-255
Shutter/Strobe -------- 000-255
Dimmer ------------------ 000-255
Gobo --------------------- 000-255
Prism -------------------- 000-255
Prism Rotation ------- 000-255
Macro Function ------ 000-255
Frost --------------------- 000-255
Focus ------------------- 000-255 (076)
Pan ---------------------- 000-255 (048)
Pan Fine --------------- 000-255
Tilt ----------------------- 000-255
Tilt Fine ---------------- 000-255
Pan Tilt Speed ------ 000-255
Reset
Lamp Power --------- ON
OFF
3. Sys
System ------------------------------ Firmware ----------- KS-M10 A102
DMX Monitor

VSM-200BEAM SHARPY
7
System Errors
Total Fixture Hours
Partial Fixture Hours
Total Lamp Hours
Partial Lamp Hours
4. Advance

VSM-200BEAM SHARPY
8
DMX Channel List
CHANNEL CHANNEL MODE
16 20
1 COLOUR WHEEL COLOUR WHEEL
2 STOP/STROBE STOP/STROBE
3 DIMMER DIMMER
4 STATIC GOBO CHANGE STATIC GOBO CHANGE
5 PRISM INSERTION PRISM INSERTION
6 PRISM ROTATION PRISM ROTATION
7 MARCO FUNCTION MARCO FUNCTION
8 FROST FROST
9 FOCUS FOCUS
10 PAN PAN
11 PAN FINE PAN FINE
12 TILT TILT
13 TILT FINE TILT FINE
14 PAN-TILT TIME PAN-TILT TIME
15 RESET RESET
16 LAMP CONTROL LAMP CONTROL
17 RFU
18 COLOUR TIME
19
DIMMER-PRISM-FROST
TIME
20 GOBO TIME
