BearCreeks Navimate User manual
! Important Information
To ensure the continued high performance of your BearCreeks Navimate Bait Boat, it is
important that you read and undertake the following recommendations:
condensation can build up and cause problems with internal components
In periods of inactivity ensure the batteries are disconnected from the boat and handset batteries
are not left in the handset
- It is recommended that a bankside or solar charger be used to top up the battery after every trip
- The boat and handset batteries should be stored outside the boat and handset
- Charge all batteries every 2 months to ensure they remain fully charged to prolong their working
life
- If the boat is not going to be used for some months then recharge the batteries every 2-3 months
recommended to store in garages, sheds or
attics
to ensure the motors are kept in good condition and to avoid seizing
ft inside the boat
We cannot take
responsibility for any damage done by leaving the battery inside of the boat
use to avoid breakage
In the unlikely event of a problem with your BearCreeks Navimate bait boat, please contact
service@bearcreeks.com
Thank you for buying your BearCreeks Navimate.
Outstanding performance and reliability have made BearCreeks Navimate bait boats
amongst the most popular in the world. Designed by leading anglers in conjunction with
BearCreeks Navimate range to answer
all of your baiting, rig placement and depth-finding needs.
Please take the time to read and understand this manual. Your BearCreeks Navimate will
deliver years of trouble-free usage when used and maintained correctly.
1 What you get with your BearCreeks
Navimate
Your BearCreeks Navimate package contains the following items as
standard:
1 Bait boat 1pc
2 4 Channel remote control handset 1pc
3 Rechargeable battery for the bait boat 2pc
4 Rechargeable batteries for the remote control handset 4pcs
5 Home charger for bait boat 1pc
6 Home charger for handset 1pc
7 Rubber antenna for bait boat 1pc
* For optional accessories (available separately) please see section 8 of this manual.
2 Technical specifications
Product model: BearCreeks Navimate
Dimensions: (L x W x H): 470mm x 310mm x 250mm
Weight: 6.2kg including handset and batteries
Product outfit: 1 independent hopper, I independent hook release
Bait capacity: 2kg approx.
Maximum speed: 80m/minute with weed guard,
Electrical system: 12V DC
Range: 500m +/- dependant on weather and environmental
conditions
Lights: 2 front, 2 rear, 2 battery status, 1 hopper release confirm, 1
hook release confirm
Radio handset: 4 channel, 5.8GHz
Propulsion: 2 independent motors with 2 maintenance free
propellers
Running time (at max speed): Lead Acid Battery 2 hours +/-
Lithium battery 6 hours +/-
3Features
The BearCreeks Navimate comes with the following
outstanding features:
1 3D CAD designed, hydro-dynamic trimaran ABS hull
giving excellent stability and increased buoyancy. The
upper deck and the underwater part are fixed by a stainless
bolt, which makes the maintenance very easy. The
waterproof silicon gasket between the upper deck and the
hull ensures the boat is 100% waterproof.
2 5.8GHz 6 channel radio system, delivering superb
range with less interference. The handset range is 500m
+/- dependant on weather and environmental conditions.
The handset charger and its AA rechargeable batteries
come as standard.
3 Microprocessor controlled variable speed in forward
and reverse. Power to the motors is regulated through a
microprocessor to give you unrivalled maneuverability and
response.
4 Optional ‘Autopilot‘function, which allows your bait
boat to steer automatically, with complete accuracy, to as
many as 20 preordained points and return.
5 Built-in fail-safe
the signal is weak, the boat will stop going forward and it
will automatically drive in a circle until it finds a strong
signal and comes back into full control.
6 Internationally patented bait hoppers. Due to the design of the hopper release system, it will contain
and drop even the smallest particles efficiently.
7 Internationally patented independent hook (rig) release system can be used to place the rigs
exactly where you want them.
8 Two quality, quiet direct drive motors and propellers deliver optimum performance and prolong
battery life.
9 Weed guards ensure that weed, line and detritus do not foul the propellers or impede performance.
10 Waterproof rocker switches. All switches and charging sockets are waterproof.
11 Six ultra high intensity LED lights are ultra-visible at range, even in daylight.
12 Bi-colored battery condition meters for accurate boat battery condition information. When the
battery is fully charged all lights on the meter will light up; when the battery is running at its lowest
charge, the red light on the meter will light up.
13 Remote control lighting. All lights can be turned on and off from the handset when your boat is in
use. Please note that headlights only turn on when the boats lights are turned on and the boat is driving
forward.
14 Handset battery condition meter for accurate handset battery condition information. When the
battery is fully charged all lights on the meter will light up; when the battery is running at its lowest
charge, the red light on the meter will light up.
15 Watertight removable battery system in the central hull provides easy access to change the
battery. Changing the main boat battery takes only seconds.
16 Wireless fish finder. Our optional fish finders are designed for bait boat usage and enable
fantastically accurate bait placement to specific features and depths. Greyscale or color monitors deliver
incredibly detailed information with all the extras available, such as GPS, zoom, bottom hardness etc that
you would expect from any fish finder.
17 2 year warranty and unrivalled after-sales support. Every registered BearCreeks Navimate is
supported by our comprehensive 2 year warranty and full service and maintenance facility to ensure the
ongoing performance.
4 Charging and battery maintenance
Notes:
Do not plug the battery into fish finder cable. The fish finder cable is
easily identified by its ‘L’ shaped connection (right) and clear labelling
saying “POWER CABLE FOR THE FISH FINDER”.
-free charging, only use the chargers supplied by Atom.
handset are switched off while being charged.
Atom, fully charge all batteries.
l take approximately 8 hours.
-rechargeable) may be used in the handset.
Warning: Please do not attempt to charge the handset with non-chargeable batteries in use.
Charging the handset batteries
Charging the handset batteries with home charger
1 When the voltage of the handset is less than 4.2V, a buzzer will sound and the handset cannot be used
until charged.

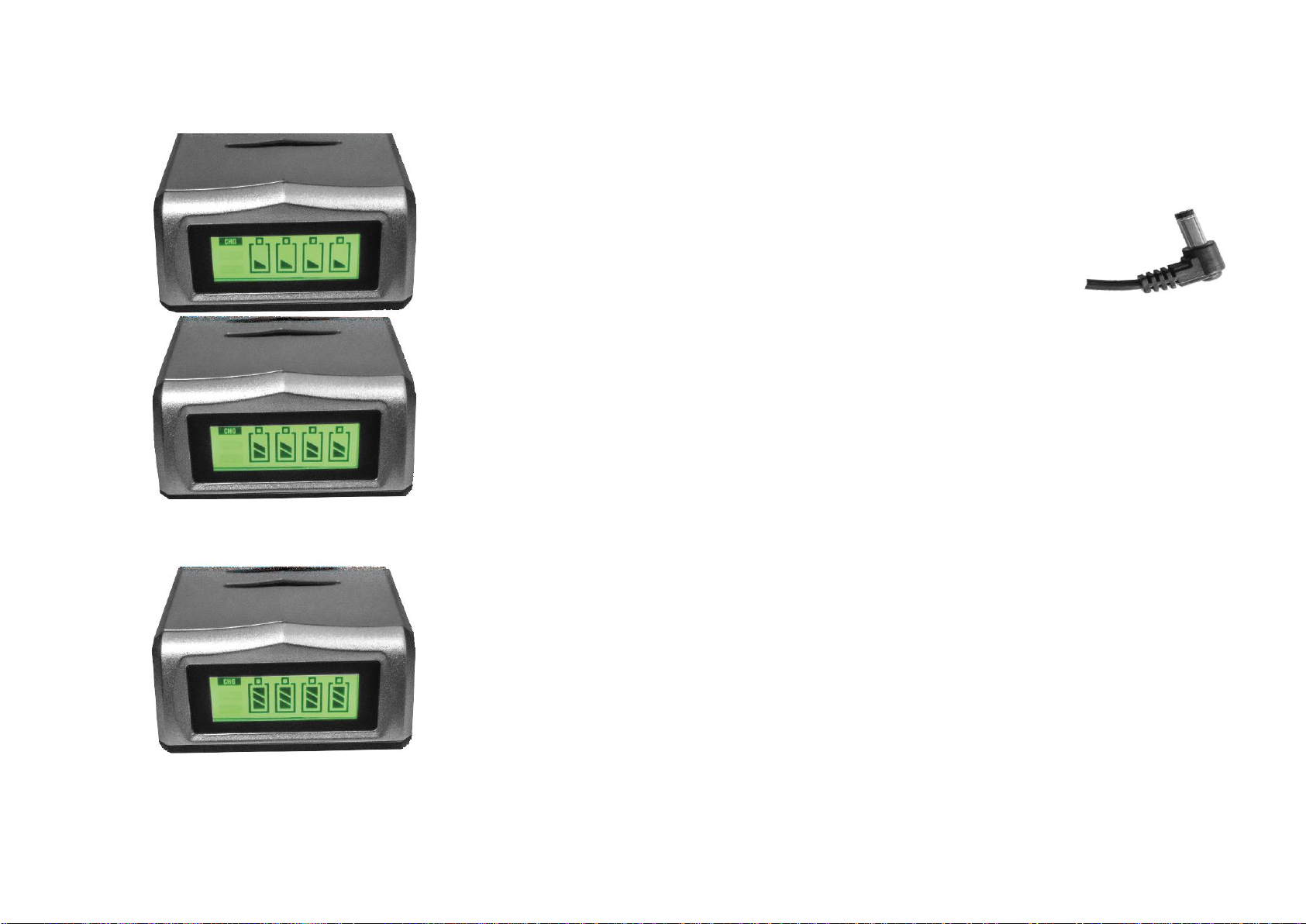

2 Take the 4 batteries out of the handset and put them into the charger. Then plug the charger in.
4 When the icons are full and stop moving, the batteries are fully charged. This will take around 7 hours
for discharged batteries.
5 There is also a discharge function on the charger. Insert the batteries, connect to power and press the
normally not be needed.
Charging the boat battery
Charging the boat battery with home Charger
1 Connect the connector of the battery wire to the connector of the home charger.
2 Plug the charger into the wall socket. A red light will illuminate to indicate that your battery is not
charged.
3 When the light on the charger turns from red to green, the battery is fully charged.
Note: As with the handset, the boat battery can be charged via our optional car charger or solar panel.
Charging the boat battery without taking it out of the boat.
You can charge your battery directly, without taking it out of the boat, via the charging socket on the
rear of the boat. Please be sure the power switch is OFF.
Warning:
The battery will release some gas when being charged. Please make sure that the battery cover
is opened when you charge the boat in order to avoid pressure building up inside the boat,
which could cause serious damage.
5Using your BearCreeks Navimate
Handset

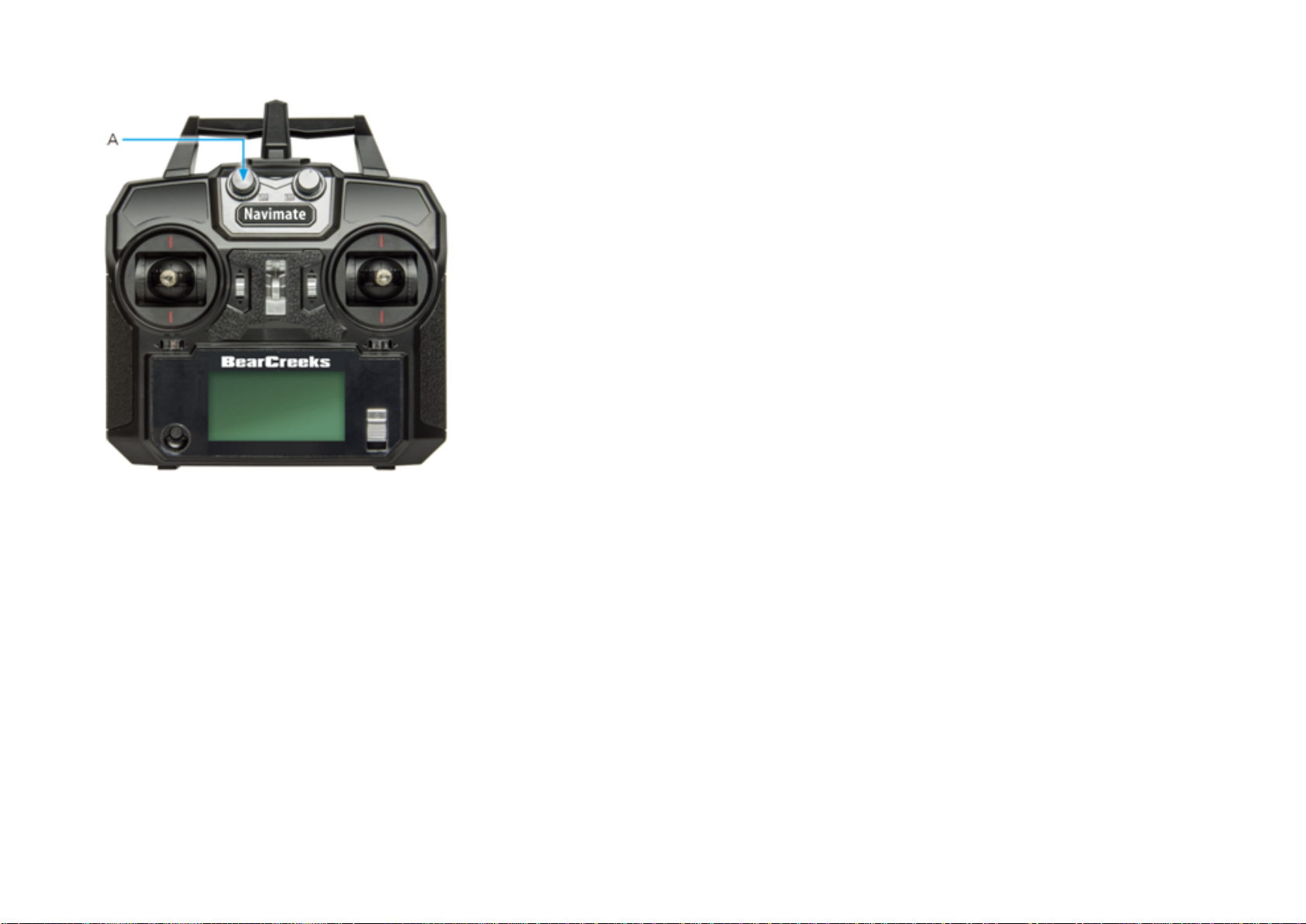

A Antenna: Stout design for strength
B Forward: Push the right hand joystick forward.
C Reverse: Push the right hand joystick backward.
D Turn left: Push the right hand joystick left.
E Turn right: Push the right hand joystick right.
F Release the rig (hook): Push the left hand joystick left.
G Open the bait hopper: Push the left hand joystick right.
H/I Turn Lights on/off: Push the left hand joystick up or down to turn the lights on and off from range.
Exact information about the status of the boat is displayed when the lights are on. To save power and
prolong battery life, turn the lights off when not needed.
J VRA trim: Roll switch left or right to equalize thrust so your boat goes straight whtn the right hand
joystick is in the forward position.
Always start with the dial in the middle position and adjust accordingly.
L Lanyard attachment loop: attach the lanyard strap (optional).
M Display screen
Voltage of handset: When the voltage is less than 4.2V, the buzzer will sound and the handset
cannot be used until charged.
Warning voltage: The setting range is 8.00V 11.00V and this can be adjusted using the VRB
button, according to the type of boat and batteries.
Voltage of boat: When the voltage is less than the warning voltage, the buzzer will sound and the
boat should be returned to the bank.
Battery Warning Voltage
Lead-acid battery 9.8V
Lithium Battery 9.8V
NOTE: It is worth considering purchasing a replacement set of batteries as a stand-by, to use when the
original set are being charged.

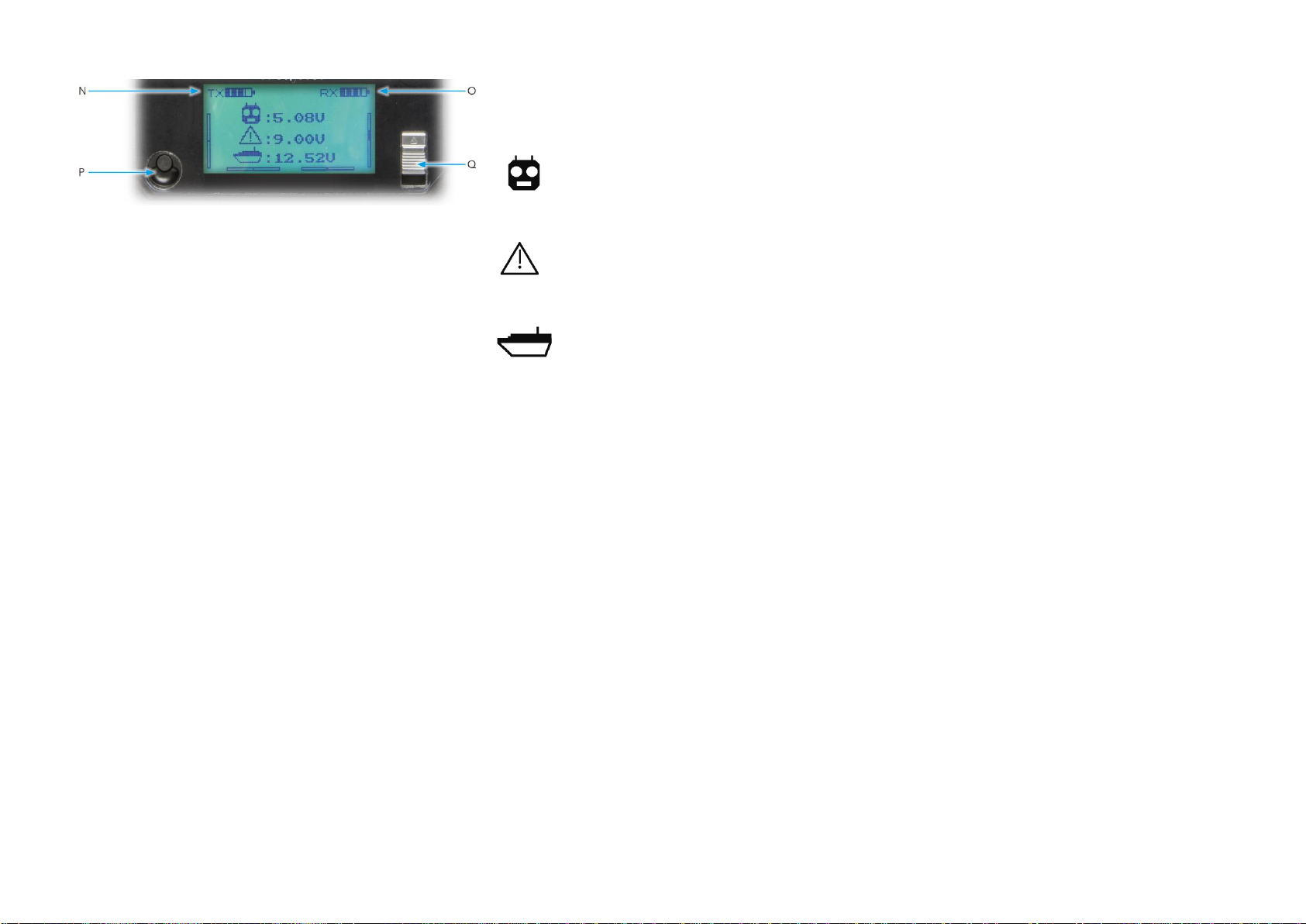

N Handset battery power indicator
O Boat battery power indicator.
P Program button: press the button for the screen display
Q Main on/off switch: turns the power of the remote control on or off.
R Battery box: insert 4 x 1.2V 1500Mah Ni-MH batteries
S Battery cover
6 Using your BearCreeks BearCreeks
Navimate
Loading and dropping your bait
The left hand joystick operates the bait hopper door.
1 Insert your rig into a hopper, if desired, by passing it under the boat and up through the hopper.
2
3 Load the bait hopper with your chosen bait.
4 Navigate your boat to your chosen spot
5 Move the left hand joystick RIGHT to drop the bait hopper door. The blue hopper LED in the back
centre of the boat will flash 6 times to confirm the release of your bait.
Loading and releasing your rig
The left hand joystick operates the hook (rig) release system.
1 Insert your line, rig or hook on the hook release system pin situated on the back of the boat.
2 Push the left hand joystick LEFT to release the line, rig or hook. The white hook LED in the back
centre of the boat will flash 6 times to confirm the release of your hook.
How to locate the signal
1 Push both the left and right joystick to the middle and lower 45 degrees (see diagram) and turn on the
2 Turn the boat on.
3
The blue signal lights are the rear of the boat will be on.
4 If the blue signal lights are not on, the signal has not been found. Repeat the above steps.
Trimming the motor
Differing loads, foreign bodies in the propellers plus wind and water conditions mean that any bait boat
will not always drive straight. Use the motor trim roller on the upper-left of the remote control handset to
ives straight when the right hand joystick is in the forward (12
) position
1 Adjust the motor trim roller (A) anti-clockwise and the boat will steer left.
2 Turn the motor trim roller (A) clockwise and the boat will steer right.
Turning the lights on and off
3Turn the lights on and off with the top right ON/OFF switch (B). Please note that the two front lights will
only work when the boat is driving forward.
On returning to the bank
1 Do not stop or pick up the boat by the aerial, as damage will occur.
2 Switch off the boat first and then the handset.
Notes
handset. This will ensure that you are always in control of the boat.
The handset should be protected from water at all times.
is recommended to ensure optimum battery life.
- Pushing the right (steering and speed) joystick quickly to its extremes will put more stress on the
electrical components and the battery.
- Decreasing your speed slightly (your boat will still be very quick!) will improve battery life.
- dependant on weather and environmental conditions. Should the
signal from the handset become weak, the boat will stop going forward and it will automatically drive in a
circle until it finds a strong signal and comes back into full control.
7 Autopilot
An optional BearCreeks BearCreeks Navimate feature is our ground-
allows your bait boat to steer automatically, with complete accuracy, to as many as 20 pre-ordained
points and return.
Benefits of Autopilot
1 It can save 21 different points starting point plus 20 fishing points.
2 The boat can run automatically between any saved fishing points.
3 It can calculate the effective range between starting point and fishing point.
4 It can show the longitude and latitude of the boat.
5 During the whole Autopilot process, the boat will continue to run if the signal is lost for up to 10 seconds
due to environmental disturbance. If the signal is lost for more than 10 seconds, the boat will
automatically go back to the starting point.
6 During the whole Autopilot process, if the boat is low on power (red indicator light on), the boat will
return automatically.
7 This is the first time a 5.8GHz remote control has been used on a bait boat, with a strong anti-
interference ability.
Operating Autopilot
Please note that with the Autopilot Upgrade you will receive an alternative handset, featuring a control
interface around the screen with 4 navigational buttons (pictured).
Turn on the remote control; then turn on the boat; wait for Autopilot signal. When the number of satellite
signals is more than 8, the automatic feature can be set and operated.
If you want to quit Autopilot: When remote is in autopilot mode and you want to quit, then press ESC and
press down, afterwards press OK 2x. You get the option to quit, press and hold OK button to confirm.
Geomagnetic calibration
1 When the number of satellite signals is more than 8, press OK, then press DOWN to choose the
geomagnetic calibration and press OK again. This will start the horizontal calibration; turn the remote
control in a 360 degree horizontal circle.
2 When the 4 parameters on the interface become stable, press OK. This will start the vertical
calibration; turn the remote control in a 360 degree vertical circle.
3 Press OK again and the calibration will be complete.
4 Press ESC to go back to the main menu.
Note: It is better to set the starting point once the number of satellites is 15+ if possible. When the
satellite signal is strong, accuracy of fishing points can be <1m.
Saving starting point and fishing points
1 Choose the starting point; take the boat onto the bank; press DOWN and enter the menu. By pressing
UP/DOWN, the starting point can be chosen. Hold down OK, to confirm YES or NO. If you confirm
YES, press OK again, and the starting point will be saved.
2
number of satellite signals, voltage of the remote, power warning and the actual voltage of the boat.
Note: You should set the starting point well before the boat is in the water. If not, the GPS cannot be
found; the range between the remote control and the boat cannot be calculated and also saved fishing
points cannot be called in future. When the range between the starting point and fishing point is out of
the effective range of the remote control, the boat cannot travel to the fishing point automatically and
will return to the starting point.
3 Place the boat in the water and direct it to where you want to go. You can save fishing points from
numbers 1 to 20 and release bait & hooks accordingly. To save fishing points, follow the same process
as for the starting point.
4 By pressing UP, you can see the longitude and latitude of the boat. If you press UP again, you will see
the starting point and the next fishing point. Press ESC again, to go back to the main menu.
Returning to starting point or fishing points (CALL)
1 If you want to go back to the starting point or go to saved fishing points, press DOWN. The display will
show SAVE, CALL and EXIT. Press OK again and choose CALL. Hold down OK and confirm YES or
NO. If you confirm YES, press OK again.
2 After finishing CALL, press ESC to go back to the main menu.
3 3 Using the operation of CALL, the boat can run automatically between any fishing points.
4 By pressing UP, you can see the longitude and latitude of the boat. If you press UP again, you will see
the starting point and the next fishing point. Press ESC again, to go back to the main menu.
5 If the boat is blocked by obstacles and you need to stop the boat, press ESC and go back to the main
menu. Press DOWN and the display will show SAVE, CALL and EXIT. Press EXIT and then hold down
OK again. Hold down OK and confirm YES or NO. If you confirm YES, press OK again. The boat will
stop automatically running. Operate the right joystick manually until you are ready to resume the
automatic function.
Please Note:
1 Only use the Autopilot outdoors; the signal will be weak indoors.
2 Satellite signal is affected by weather and geographical location. Always allow 5-10 minutes from
turning on the remote control to ensure the stability of the signal.
3 Autopilot will be seriously compromised if close to high-voltage sub-stations.
4 The antenna is an excellent conductor of electromagnetic waves so PLEASE DO NOT USE DURING
THUNDERSTORMS.
5 Electronic compass technology is easily interfered with by the surrounding environment. Please do not
use close to electromagnetic field, metal mining areas or high-voltage wires.
8 Bait Boat Optional Accessories (not included)
BC151 Wireless Color Fish Finder
BC151 wirelress color fishfinder was specially designed for all kinds of bait boats. It provides precise sonar
detection. And with incrediable stable wireless performance you can see the fish and bottom in a range
TFT with resolution 480*pixels; 65,536 color; Multi Language
KEY FEATURES
Sonar
-10db
RF
est): Max 300m (1000ft)
Display
-language
eal-time Voltage of Bait boat Battery
Features
Fishfinder while in storage or transport (optional)
BearCreeks - 40W Camo Solar Panel
Charge your devices with unlimited free power! Featuring one USB 5V port and a 12V DC port the Cult
40W Solar Panel can charge everything from your iPhone to your bait boat. Both ports can be used
simultaneously meaning multiple devices can be charged at once.
The 12V DC output will charge most bait boat batteries including both the Lead and Lithium Cult Bait boat
batteries. It can also be used to top up your power pack keeping you fully charged on even the longest of
sessions.
With a highly efficient conversion ratio the Cult Solar Panel will charge your devices quickly even on
overcast days.Its compact size and light weight make the Cult Solar Panel easily transportable. It will
comfortably fit inside your carryall or boat bag. Its durable glass free construction makes it hard wearing
and suitable for the demanding environments anglers often find themselves in.
40w power
Output 5V/4A USB, 12V/3.2A DC
Weight 985g
Dimensions Open 120cm x 32cm x 20cm
Dimensions Folded 32cm x 18cm x 5cm
BearCreeks Navimate Bait Boat Bag
The main compartment is built to accomodate our Atom bait boat (and most other brands). Lined with
easy-to-clean PVC, the bag features and removable, padded mat to protect your boat and keep it clean on
the bank. 2 external pockets to store your handset, batteries and chargers plus a third external pocket is
custom made to take a solar panel. Neoprene carry handles and shoulder strap ensure comfortable
transportation and strong, chunky zips ensure smooth operation.
Dimensions: W 55cm x L 80cm x H 23cm
Waterproof Handset Cover
Keeps your handset dry when used in the rain, featuring a clear panel for easy use and a shoulder strap
for easy transportation both when in and out of use. Quick Release Handset Lanyard Our handset lanyard
means your handset is always conveniently to hand when you need both hands free during usage. A quick
release clip ensures swift attachment and detachment.
Spare Lithium Batteries For BearCreeks Navimate Bait Boat
Pair of spare Lithium batteries for the BearCreeks Navimate series of boats. Increases running time and
reduces weight compared to standard lead batteries.
Any returned boat that does not have a returned warranty form will not be under
warranty.
Only the original copy will be accepted, not a photo copy.
BearCreeks Bait
Boats, excluding batteries. Batteries are covered by a 6 month warranty.
The first year of the warranty will cover repair free of charge covering any defects arising
from the drive unit and the electronic parts of the boat, faulty material or workmanship not
covering damage caused by incorrect use accidental damage and any work carried out
by any unauthorized persons.
After the first year the owner has a maximum of 14 days, one year after date that boat
was registered to book a full service to extend the warranty into the second year, if not
serviced after this time all repairs and carriage would be charged.
The warranty covers any defects arising from the drive unit and the electronic parts of the
boat, faulty material or workmanship.
We strongly suggest keeping all original packing for your boat as in the unlikely event of
a fault with your boat suitable packing for such an item of this size is hard to source to
ensure boat is received back for repair undamaged.
Please note any boat that is received back damaged due to lack of correct packing will
not be repaired under any guarantee.
It is important to retain the retailers receipt as proof of purchase, please staple a copy of
your receipt to your warranty form when you return.
If for whatever reason this product is replaced during the guarantee period, the
guarantee on the new product will be calculated from original purchase date.
To qualify for your guarantee, the product must have been used according to the
instructions supplied.
BearCreeks GmbH will not held responsible for any consequential losses due to bait boat
failure.
By signing this warranty form you are agreeing to all terms stated. Please note no
confirmation will be sent back when warranty form is received.
Exclusions
Products shall not be liable to replace or repair under terms of guarantee where:
1.The fault has been caused or is attributable to accidental use, misuse, negligent or
used contrary
to the manufactures recommendations or where the fault has been caused by power
surges or
damage caused in transit.
2.Repairs have been attempted by persons other than our service staff.
3.The product has been used for hire purposes.
4.The product is second hand.
This guarantee is offered as an additional benefit and does not affect your statutory rights
as a consumer.
Your warranty
Please fill in and return this form on date of purchase and
send back to address below left.
Return form to:
BearCreeks GmbH
Marie-Curie-Str. 6
85055 Ingolstadt
Germany
Email: service@BearCreeks.com
www.BearCreeks.com
9 Warranty
We offer you a 24 months warranty from the date of purchase. The guarantee covers any defects arising
from the drive unit and the electrical and electronic parts of the boat, faulty material and workmanship. It
does not cover batteries, damage arising from improper use, breakage, or normal wear of the boat or
associated equipment. The guarantee is invalidated if repairs or modifications are undertaken by
unauthorized persons.
The guarantee period for the rechargeable lead-acid battery and the rechargeable Ni-MH batteries is 6
months from the date of purchase.
Please complete and return the form overleaf to register your BearCreeks Warranty.
BearCreeks Bait Boats 2 Year Warranty
Please use block capitals and return to address on facing page
NAME
ADDRESS
POST CODE
TELEPHONE NUMBER
EMAIL ADDRESS
PURCHASED FROM
DATE OF PURCHASE
SERIAL NUMBER
Serial umber can be found on a white sticker on outside and inside of packaging boxand on back of handset or under the boat lid facing forward.
SIGNED
Table of contents
Other BearCreeks Toy manuals
