Beats Wireless User manual

Table of Contents
EN
Important
Safety
Information
4
Keys
and
Parts 7
Charge
the
Battery
8
Switch
On
9
Switch
Off
10
Pairing
10
Adjust
the
Volume
11
Specifications
11
Calls
12
Disconnect
the
Headset
12
Reconnect
the
Headset
12
Listen
to
Music
13
Clear
Settings
or
Reset
13
Passive
Mode
13

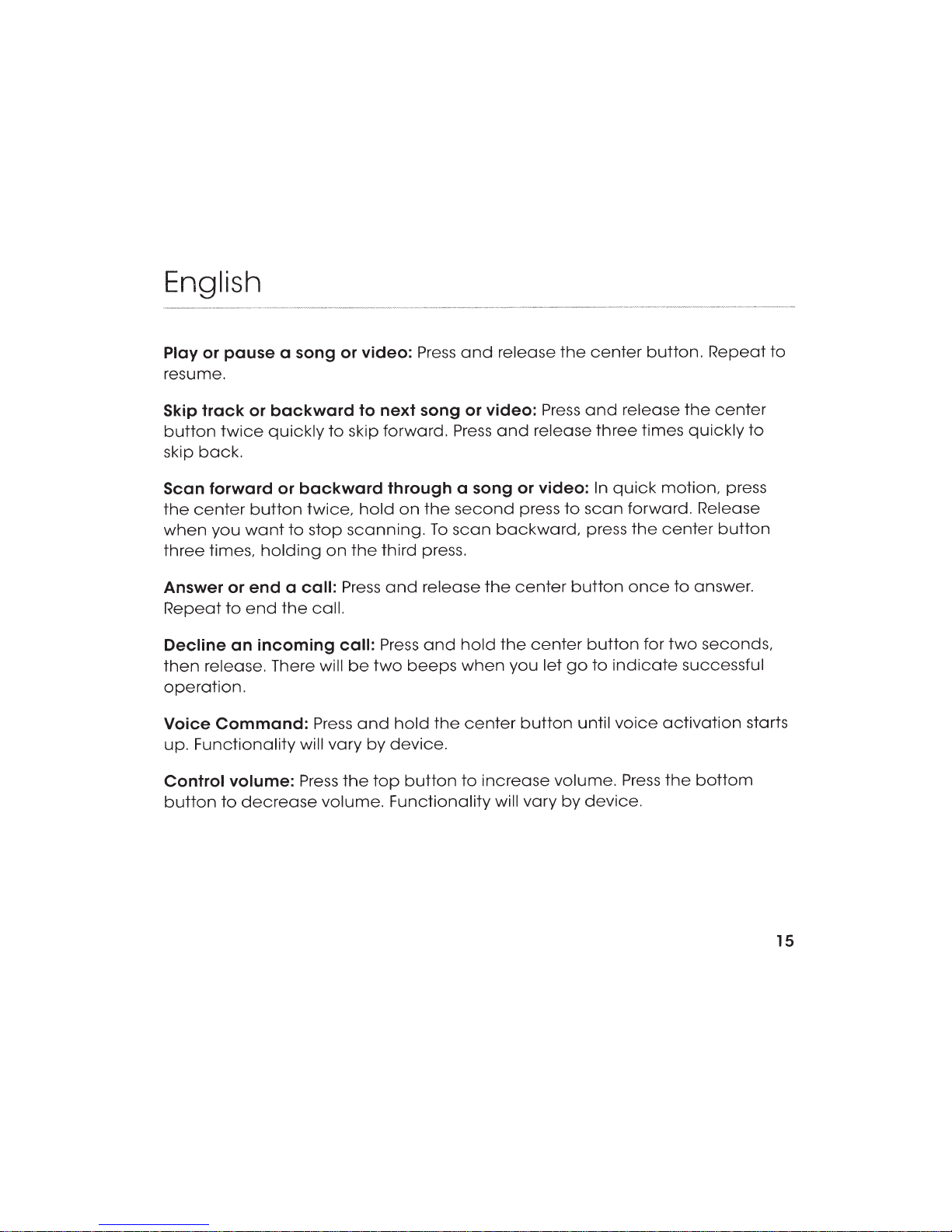

Using
the
Remote
Mic
14

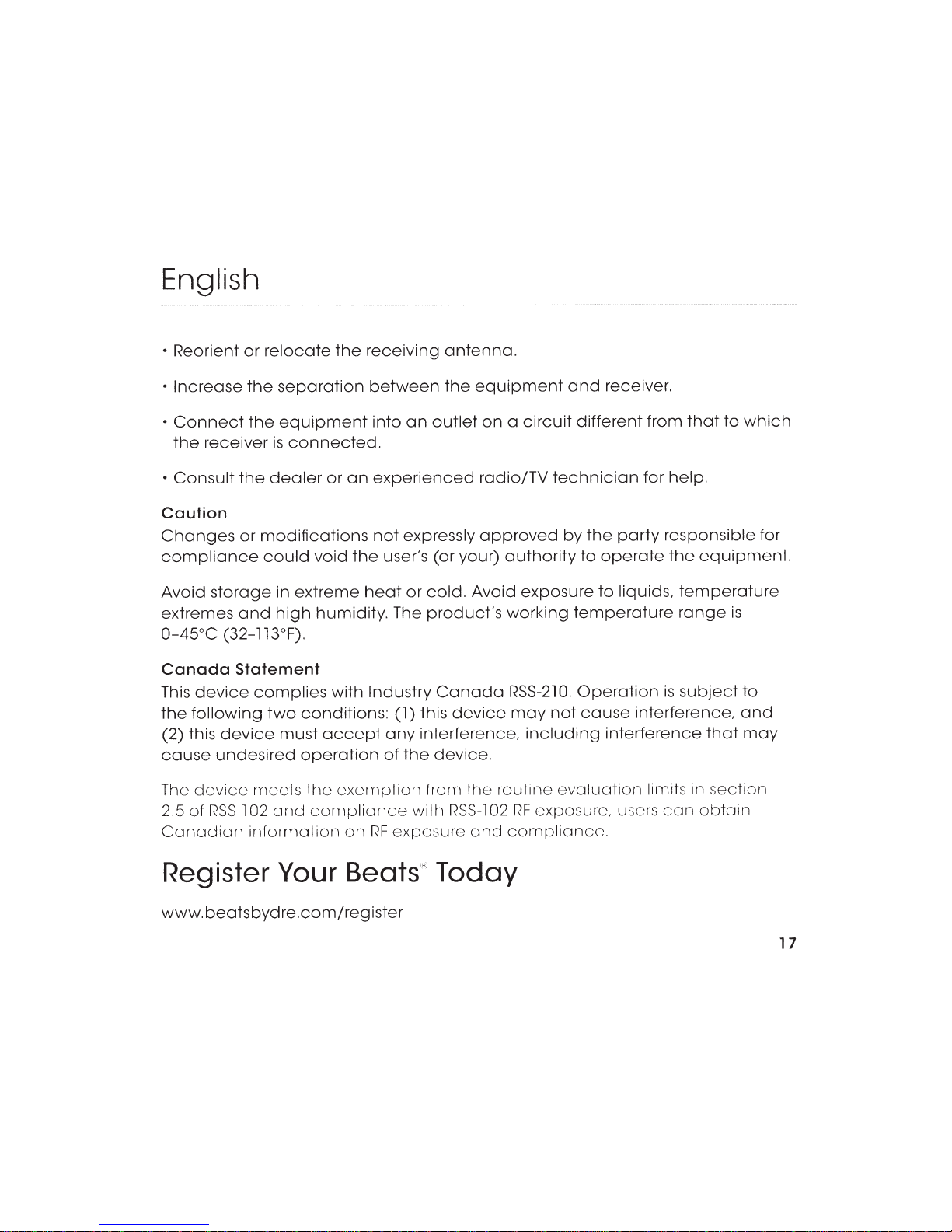

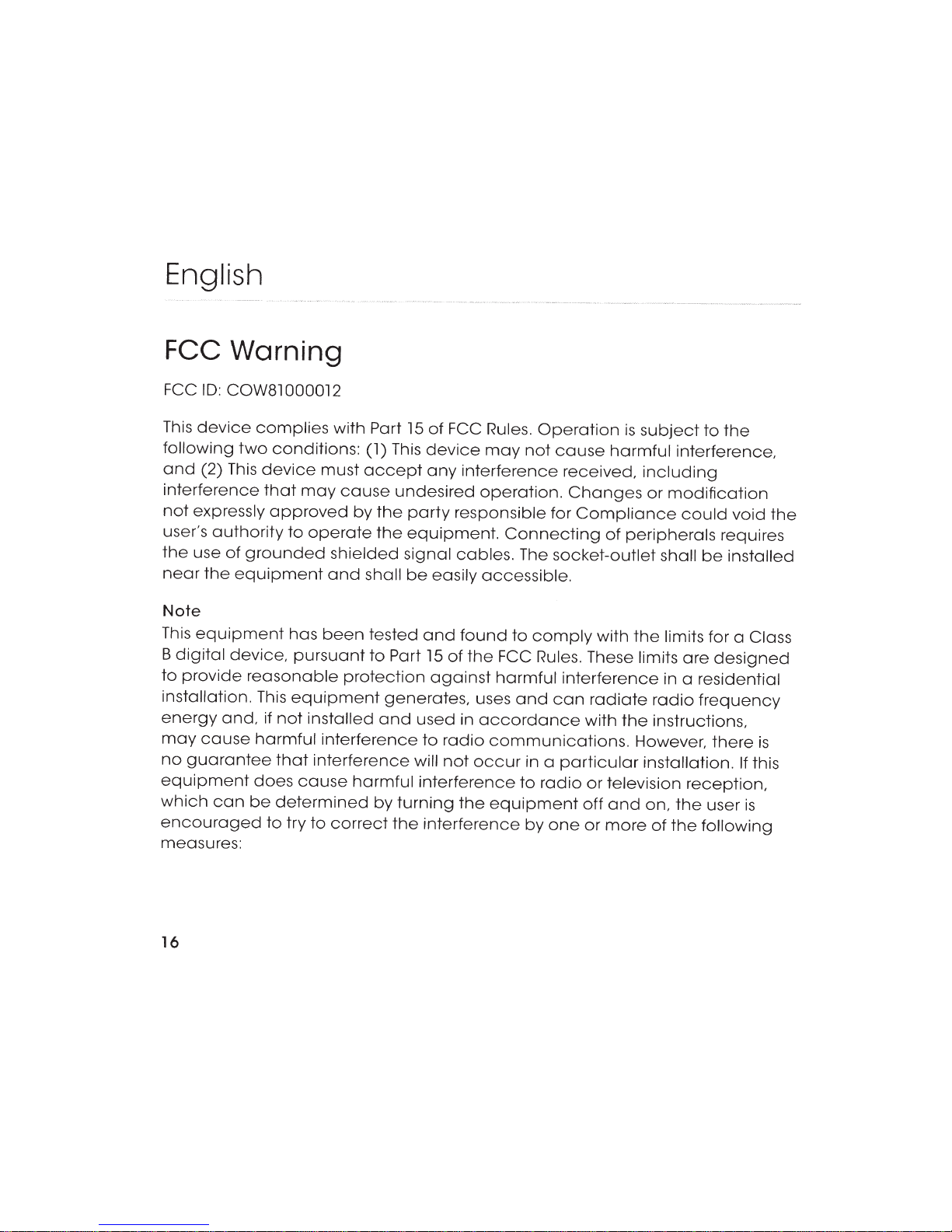

FCC
Warning
16
FR
Renseignements
de
securite
importants
18
Numeros
et
pieces
21
Chargement
de
Ia
pile
22
Mise sous
tension
23
Mise hors
tension
24
Jumelage
24
Ajustement
du
volume
25
Specifications
25
Appels
26
Deconnexion
du
casque
d'
ecoute
26

English

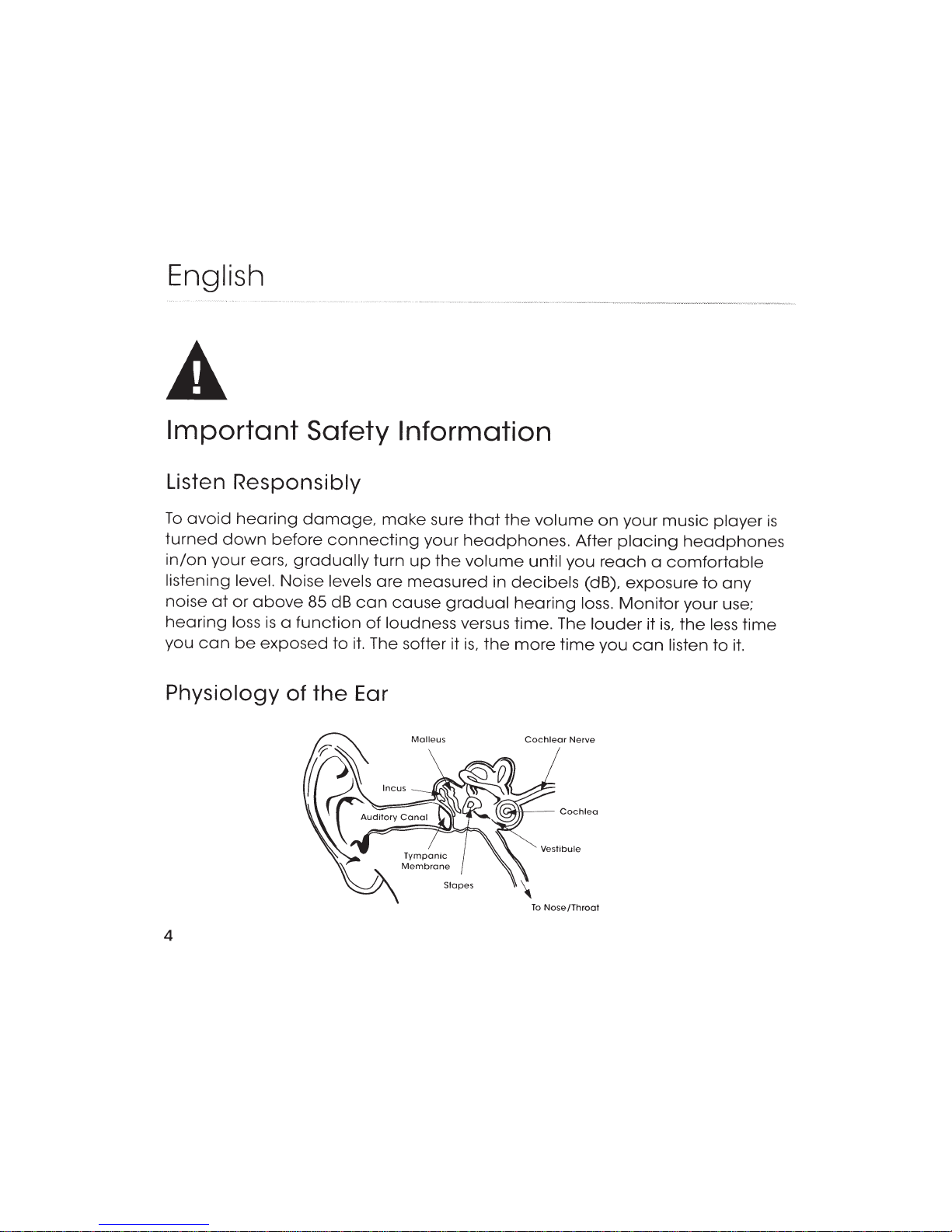

Important Safety Information
Listen Responsibly
To
avoid
hearing
damage,
make
sure
that
the
volume
on
your
music
player
is
turned
down
before
connecting
your
headphones.
After
placing
headphones
in/on
your
ears,
gradually
turn
up
the
volume
until
you
reach
a
comfortable
listening level. Noise levels
are
measured
in
decibels
(dB),
exposure
to
any
noise
at
or
above
85 dB
can
cause
gradual
hearing
loss.
Monitor
your
use;
hearing
loss
is
a
function
of
loudness
versus
time.
The
louder
it
is,
the
less
time
you
can
be
exposed
to
it.
The softer it
is,
the
more
time
you
can
listen
to
it.
Physiology of
the
Ear
Cochlear
Nerve
Stapes
To
Nose/Throat
4

English
This decibel (dB) table compares some common sounds and shows how they
rank in potential harm to hearing.
SOUND
NOISE LEVEL
(dB)
Whisper
30 Very
quiet
Quiet Office
50-60 Comfortable hearing levels
ore under 60dB
Vacuum Cleaner,
70 Intrusive; interferes with
Hair Dryer
telephone conversations
85 dB is the level at which hearing
damage (8 hrs.) begins
Garbage Truck,
No more than 15 minutes
Cement Mixer
of unprotected exposure
recommended for sounds between
90-100dB
Power Sow,
110 Regular exposure to sound over
Drill/Jackhammer 100 dB of more than 1 minute risks
permanent hearing loss
Rock
Concert (varies) 110-140 Threshold of pain begins
around 125 dB
*Chart information from http://www. nidcd. nih .gov /health/education/teachers/pages/common_sounds .aspx
5

English

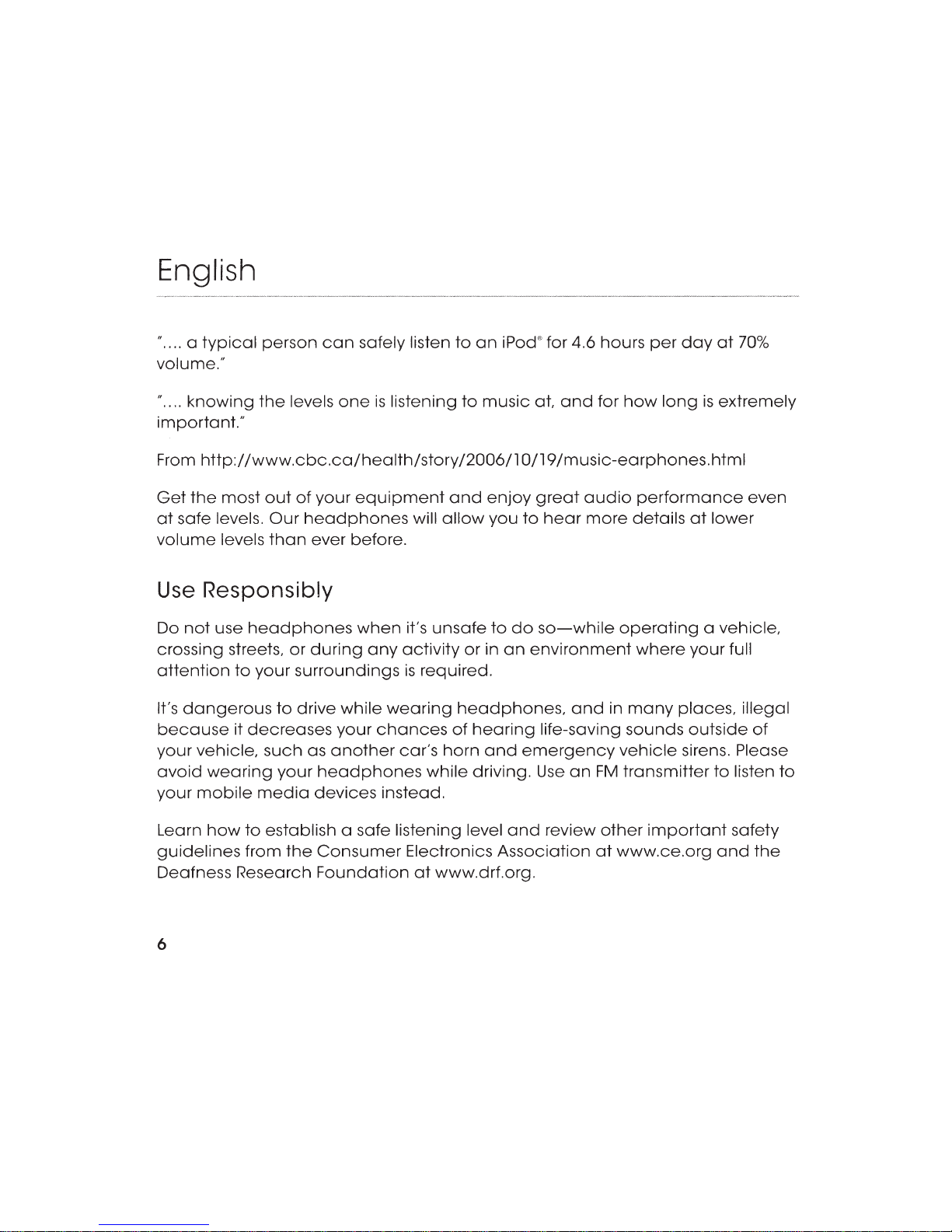

".... a typical person can safely listen to an iPod® for 4.6 hours per day at 70%
volume."
".... knowing the levels one is listening to music at, and for how long is extremely
important."
From http:/ /www.cbc.ca/health/story/2006/l 0/19/music-earphones.html
Get the most out of your equipment and enjoy great audio performance even
at safe levels. Our headphones will allow you to hear more details at lower
volume levels than ever before.
Use Responsibly
Do not use headphones when it's unsafe to do so-while operating a vehicle,
crossing streets, or during any activity or in an environment where your full
attention to your surroundings is required.
It's dangerous to drive while wearing headphones, and in many places, illegal
because it decreases your chances of hearing life-saving sounds outside of
your vehicle, such as another car's horn and emergency vehicle sirens. Please
avoid wearing your headphones while driving. Use an FM transmitter to listen to
your mobile media devices instead.
Learn how to establish a safe listening level and review other important safety
guidelines from the Consumer Electronics Association at www.ce.org and the
Deafness Research Foundation at www.drf.org.
6

English

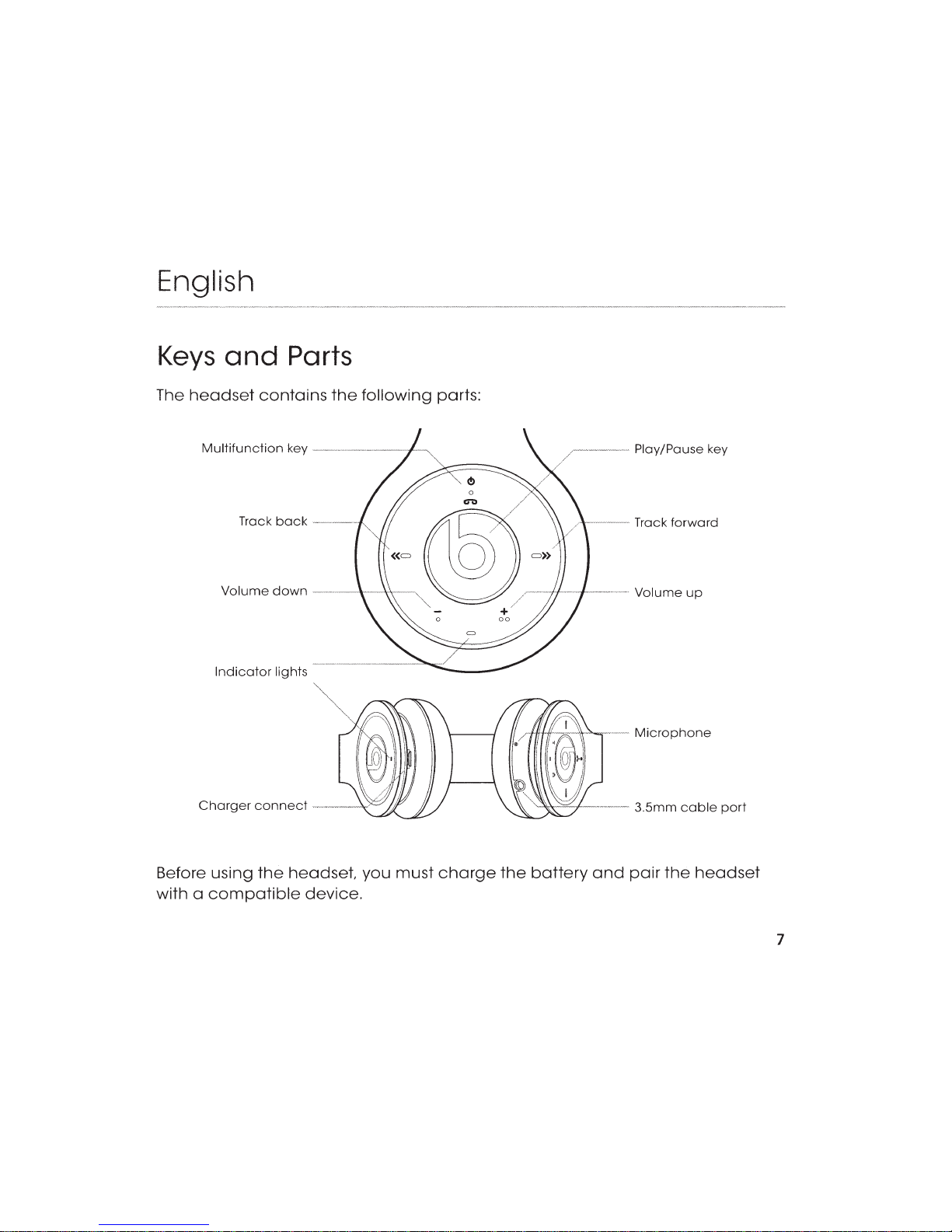

Keys and Parts
The headset contains the following parts:
Multifunction key~~~~~~~-~~-~""
Track back ~ - --~--
'·-,_"
Indicator lights
I
Charger connect "~-~~~-~~~·
- --~~~~-- 3.5mm cable port
Before using the headset, you must charge the battery and pair the headset
with a compatible device.
7

8
Charge
the Battery
The
headset
contains
a
Micro
USB
cable
that
con
be
connected
to
your
computer
or
other
device
mode
for
USB
charging.
Plug
the
Micro
USB
end
of
the
included
USB
cable
into
the
USB
micro
port
charger
connector
under
the
left
eorcup
of
the
headphone.
Plug
the
other
end
into
a
USB
port
on
your
computer
or
other
devices
mode
for
USB
charging.
The
indicator
light
will
be
red
while
charging.
Once
fully
charged,
the
indicator
light
will
be
a
steady
green.
Charge
time
is
one
hour
on
on
empty
battery.
The fully
charged
battery
has
power
for
up
to
l0
hours
talking
and/or
music
time
and
up
to
l
00
hours
standby
time.
Note:
You
con
still
enjoy
your
music
while
charging
your
headphone.
Warning:
(l)
Please
pay
attention
to
the
environmental
aspects
of
battery
disposal.
Battery
must
be
recycled
or
disposed
of
properly. (2) Batteries
(battery
pock
or
batteries
installed)
should
not
be
exposed
to
excessive
heat,
such
as sunshine, fire,
or
the
like.

English

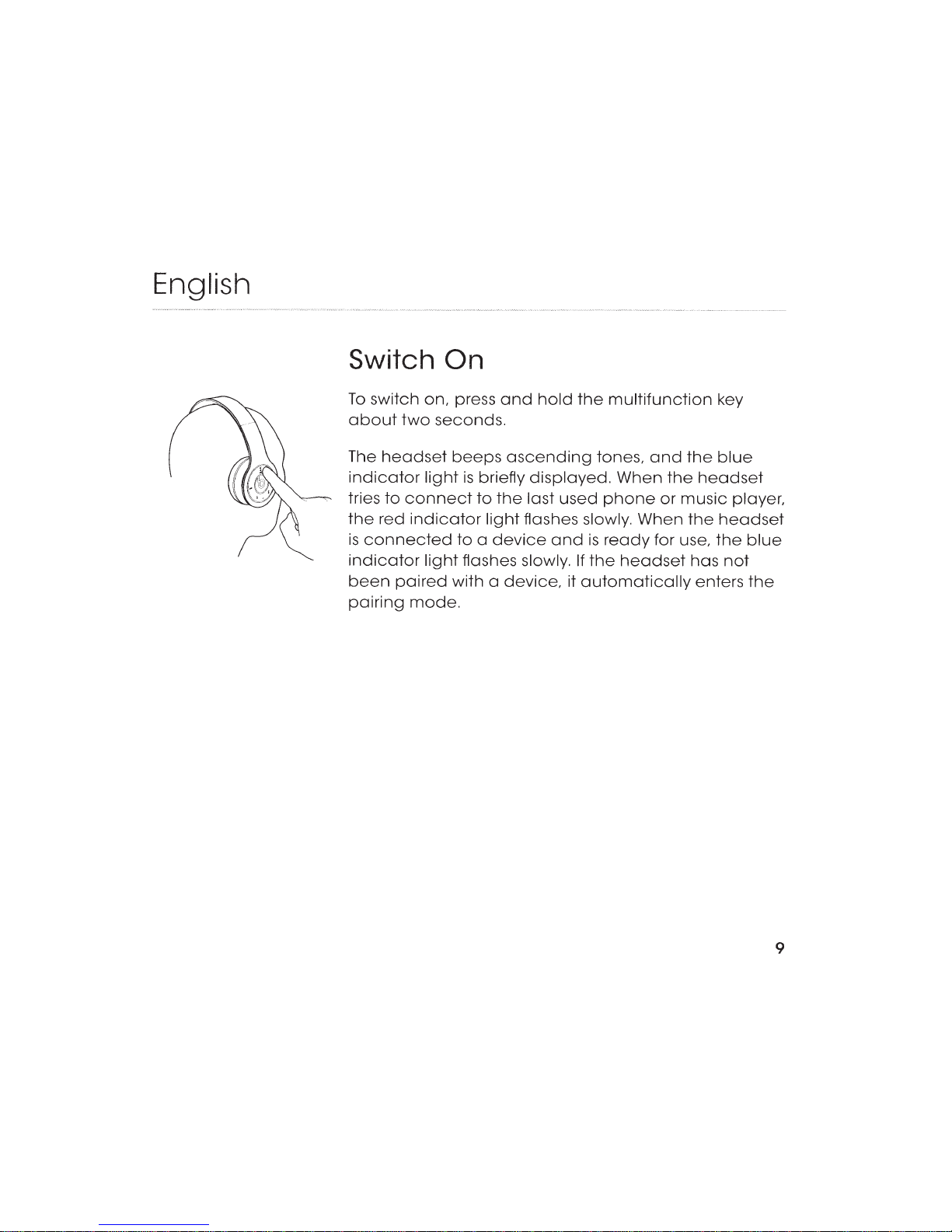

Switch
On
To
switch on, press
and
hold
the
multifunction
key
about
two
seconds.
The
headset
beeps
ascending
tones,
and
the
blue
indicator
light
is
briefly
displayed
.
When
the
headset
tries
to
connect
to
the
last
used
phone
or
music
player,
the
red
indicator
light
flashes slowly.
When
the
headset
is
connected
to
a
device
and
is
ready
for use,
the
blue
indicator
light
flashes slowly.
If
the
headset
has
not
been
paired
with
a
device,
it
automatically
enters
the
pairing
mode.
9

English

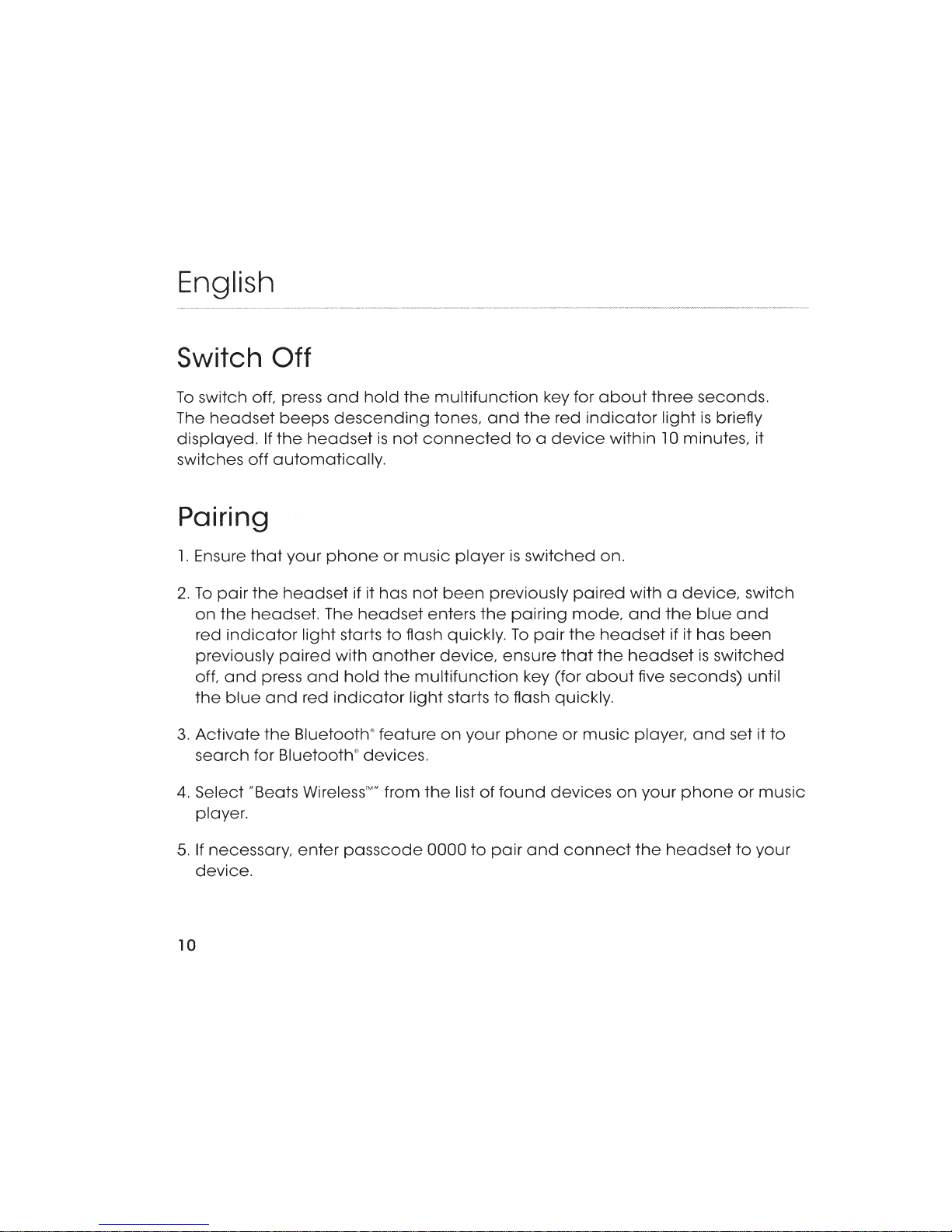

Switch Off
To switch off, press and hold the multifunction key for about three seconds.
The headset beeps descending tones, and the red indicator light is briefly
displayed. If the headset is not connected to a device within 10 minutes, it
switches
off automatically.
Pairing
1. Ensure that your phone or music player is switched on.
2. To pair the headset if it has not been previously paired with a device, switch
on the headset. The headset enters the pairing mode, and the blue and
red indicator light starts to flash quickly. To pair the headset if it has been
previously paired with another device, ensure that the headset is switched
off, and press and hold the multifunction key (for about five seconds) until
the blue and red indicator light starts to flash quickly.
3. Activate the Bluetooth® feature on your phone or music player, and set it to
search for Bluetooth® devices.
4. Select "Beats WirelessTM" from the list of found devices on your phone or music
player.
5. If necessary, enter passcode 0000 to pair and connect the headset to your
device.
10

English
Adjust the Volume
To adjust the headset volume, press the volume up or down key during a call or
while listening to music. To adjust the volume quickly, press and hold either key.
Warning
Excessive sound pressure from earphones and headphones can cause
hearing loss.
Specifications
Beats Wireless™ can make and receive calls hands-free with your compatible
mobile phone and listen to music from a compatible music player, but they
should be within 10 meters (33 feet) of each other.
The
headset is compliant with the Bluetooth® Specification 2.1 + EDR support
the following profiles: Headset Profile (HSP) V 1.2,Hands-Free Profile (HFP) V 1.5,
Advanced Audio Distribution Profile (A2DP) V 1.0, and Audio Video Remote
Control Profile (AVRCP) V 1.0. Input rating 5V DC, 0.5A.
11

English
Calls
To
make
a call. use
your
mobile
phone
in
the
normal
way
when
the
headset
is
connected
to
it.
To
activate
voice
dialing
(if
your
phone
supports
this
feature
with
the
headset),
when
no
call
is
in progress, press
the
multifunction
key
twice
quickly
until
the
phone
starts
voice
dialing,
and
process
as
described
in
the
phone
user
guide.
To
answer
or
end
a
call.
quickly
press
the
multifunction
key.
To
reject
a call. press
and
hold
the
multifunction
key for
approximately
two
seconds.
To
mute
or
unmute
the
microphone
during
a
call.
press
the
play/
pause
key.
To
switch a
call
(in
progress)
from
the
headset
to
the
connected
phone,
press
and
hold
the
multifunction
key for
about
two
seconds.
To
switch a
call
(in progress)
from
the
phone
to
the
headset,
press
and
hold
the
multifunction
key for
about
two
seconds.
Disconnect the Headset
To
disconnect
the
headset
from
your
device,
switch
off
the
headset,
or
disconnect
it in
Bluetooth
;"
menu
of
your
device.
Reconnect the Headset
To
connect
the
headset
to
the
phone
or
music
player
that
you
have
last
used
with
it,
switch
on
the
headset,
or
make
the
connection
in
the
Bluetooth
"'
menu
of
your
device.
12

English

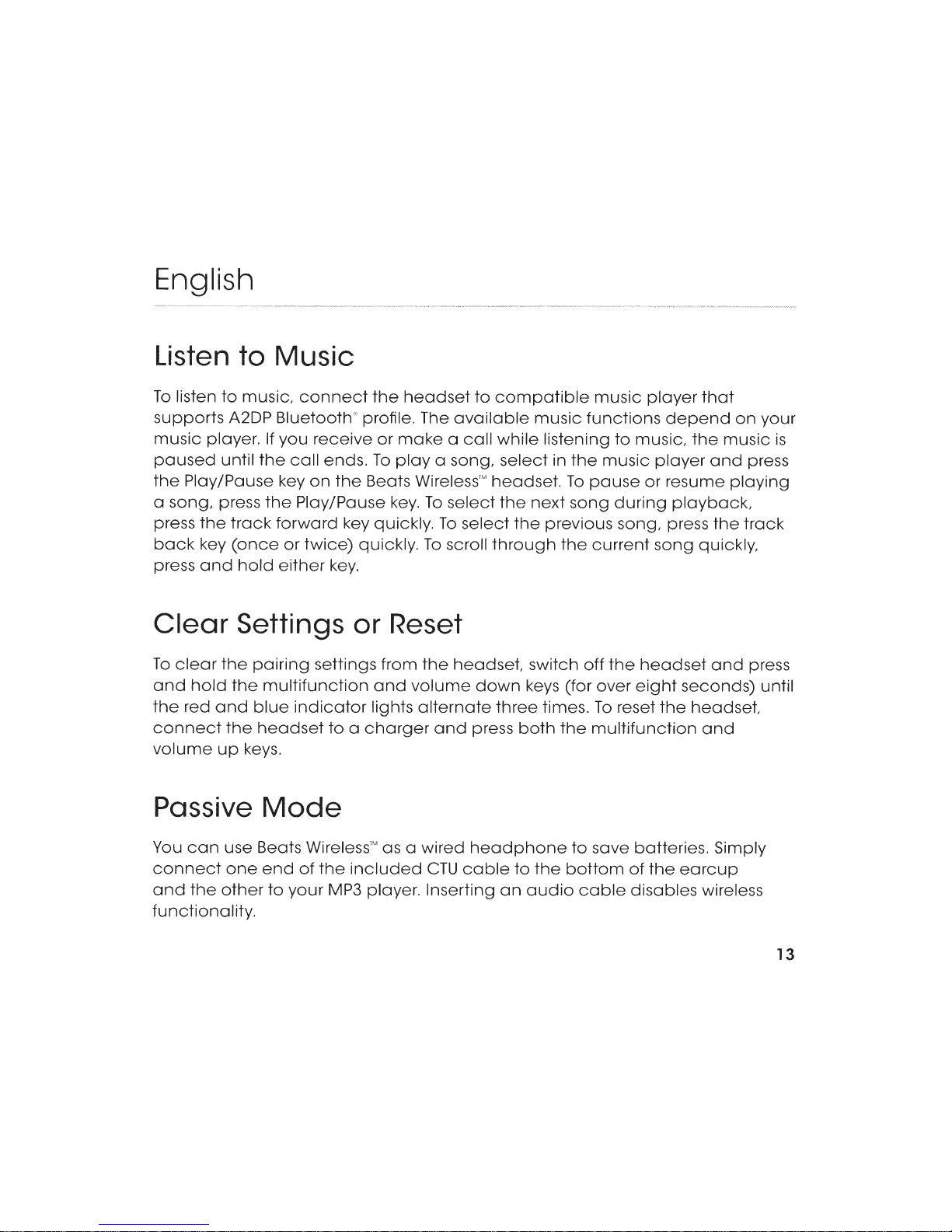

Listen
to Music
To
listen
to
music,
connect
the
headset
to
compatible
music
player
that
supports
A2DP
Bluetooth
'''
profile. The
available
music
functions
depend
on
your
music
player.
If
you
receive
or
make
a
call
while
listening
to
music,
the
music
is
paused
until
the
call
ends.
To
play
a song,
select
in
the
music
player
and
press
the
Play/Pause key
on
the
Beats Wireless
'M
headset.
To
pause
or
resume
playing
a
song,
press
the
Play/Pause key.
To
select
the
next
song
during
playback,
press
the
track
forward
key quickly.
To
select
the
previous
song,
press
the
track
back
key
(once
or
twice)
quickly.
To
scroll
through
the
current
song
quickly,
press
and
hold
either
key.
Clear
Settings or Reset
To
clear
the
pairing
settings
from
the
headset,
switch
off
the
headset
and
press
and
hold
the
multifunction
and
volume
down
keys (for
over
eight
seconds)
until
the
red
and
blue
indicator
lights
alternate
three
times.
To
reset
the
headset
connect
the
headset
to
a
charger
and
press
both
the
multifunction
and
volume
up
keys.
Passive
Mode
You
can
use Beats Wireless
'M
as a
wired
headphone
to
save
batteries. Simply
connect
one
end
of
the
included
CTU
cable
to
the
bottom
of
the
earcup
and
the
other
to
your
MP3 player.
Inserting
an
audio
cable
disables
wireless
functionality.
13

English
Using the Remote Mic
Beats
Wireless™
comes
equipped
with
a
convenient
remote
mic
cable
allowing
you
to
take
calls
and
talk
hands-free
when
Bluetooth
®
connectivity
is
not
accessible.
Some
functionality
will
vary
by
phone
model.
Please
consult
your
phone's
owner's
manual.
Functions
include:
• Play •
• Pause II
• Skip
Forward/
Backward
..
~
•
Scan
Forward/
Backward.._.._
+
·Answer~
·End
Call;..
·Voice
Command
(<c~
•
Volume
Control
+-
I
0
-+
8
•~u~..-~~~
..
~.._
+ + c
~I~
I
((c~
0
--
I
Note:
Functionality
varies
by
device.
14
HTC
, Blackberry
&
Android
I
0
Q
~
II
+ • c
LJ
-
....
I I
~
I
~
I
((c
~
0

English
Play or
pause
a song or video:
Press
and
release
the
center
button.
Repeat
to
resume.
Skip
track
or
backward
to next song or video:
Press
and
release
the
center
button
twice
quickly to
skip
forward.
Press
and
release
three
times
quickly
to
skip
back.
Scan forward or
backward
through a song or video: In
quick
motion,
press
the
center
button
twice,
hold
on
the
second
press
to
scan
forward.
Release
when
you
want
to
stop
scanning.
To
scan
backward,
press
the
center
button
three
times,
holding
on
the
third
press.
Answer or
end
a call:
Press
and
release
the
center
button
once
to
answer.
Repeat
to
end
the
call.
Decline
an
incoming call:
Press
and
hold
the
center
button
for
two
seconds,
then
release. There will
be
two
beeps
when
you
let
go
to
indicate
successful
operation.
Voice
Command:
Press
and
hold
the
center
button
until
voice
activation
starts
up.
Functionality
will
vary
by
device.
Control volume:
Press
the
top
button
to
increase
volume.
Press
the
bottom
button
to
decrease
volume.
Functionality
will
vary
by
device.
15

English
FCC Warning
FCC
ID:
COW81 000012
This
device
complies
with Part
15
of
FCC Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)
This
device
may
not
cause
harmful
interference,
and
(2)
This
device
must
accept
any
interference
received,
including
interference
that
may
cause
undesired
operation.
Changes
or
modification
not
expressly
approved
by
the
party
responsible
for
Compliance
could
void
the
user's
authority
to
operate
the
equipment.
Connecting
of
peripherals
requires
the
use
of
grounded
shielded
signal
cables.
The
socket-outlet
shall
be
installed
near
the
equipment
and
shall
be
easily
accessible.
Note
This
equipment
has
been
tested
and
found
to
comply
with
the
limits for a Class
B
digital
device,
pursuant
to
Part
15
of
the
FCC Rules. These limits
are
designed
to
provide
reasonable
protection
against
harmful
interference
in a
residential
installation.
This
equipment
generates,
uses
and
can
radiate
radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may
cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that
interference
will
not
occur
in a
particular
installation.
If
this
equipment
does
cause
harmful
interference
to
radio
or
television
reception,
which
can
be
determined
by
turning
the
equipment
off
and
on,
the
user
is
encouraged
to
try
to
correct
the
interference
by
one
or
more
of
the
following
measures:
16

English
•••
•
•••
••
••"""""
"""'m""""""
"
···••••••••••••••·
.
·.
·
••••
••••
•·••••••••••••••••
•••••
••
••
•••••••••••""""
""
""""'"""
"
""•""·"·"·""""""""··.·.·.
·.·
•
••
• Reorient
or
relocate
the
receiving
antenna.
•
Increase
the
separation
between
the
equipment
and
receiver.
•
Connect
the
equipment
into
an
outlet
on
a
circuit
different
from
that
to
which
the
receiver
is
connected.
•
Consult
the
dealer
or
an
experienced
radio/TV
technician
for
help.
Caution
Changes
or
modifications
not
expressly
approved
by
the
party
responsible
for
compliance
could
void
the
user's (or
your)
authority
to
operate
the
equipment.
Avoid
storage
in
extreme
heat
or
cold.
Avoid
exposure
to
liquids,
temperature
extremes
and
high
humidity.
The
product's
working
temperature
range
is
0-45°C
(32-ll3°F).
Canada
Statement
This
device
complies
with
Industry
Canada
RSS-21
0.
Operation
is
subject
to
the
following
two
conditions:
(l)
this
device
may
not
cause
interference,
and
(2) this
device
must
accept
any
interference,
including
interference
that
may
cause
undesired
operation
of
the
device.
The
device
meets
th
e e
xemption
from
the
routine
evaluation
limits in
section
2.5
of
RSS
l 02
and
compliance
with
RSS-1
02
RF
exposure, users
con
obtain
Canadian
inforn1ation
on
RF
exposure
and
complianc
e.
Register
Your
Beats'
'')
Today
www.beatsbydre.com/register
17
