1. Prior to installation
Before starting installation, please read this installation guide carefully. In particular, please pay attention to the safety
and installation instructions.

Subject to correction and technical modifications 29 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
2. Symbols used in the installation guide
3. Safety instructions
Gdenotes instructions which are important for your safety and the safety of others.
denotes instructions which are important for the installation and function of the unit.
GIncorrect installation
Incorrect installation may result in damage to the unit or to the vehicle. Specialist knowledge and skills are required
to install the unit and its components. We strongly recommend that you have the unit installed by a specialist
workshop.
GRisk of injury
Installing the components incorrectly may lead to injuries in the event of a road traffic accident or render safety
devices ineffective. Please refer to the instructions provided by the vehicle manufacturer.
GDamage to the airbag
Installing the components in the wrong location may damage the airbag or impair its operation. Do not install the
components within the operating range of the airbag.
GRisk of injury due to inadequate fastening
Fix the components in place so that they cannot be loosened in the event of a collision or sudden braking.

Subject to correction and technical modifications 30 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
4. Installation instructions
Damage due to polarity reversal or short-circuit
Incorrect cable connections and short-circuits can seriously damage the unit.
Disconnect the vehicle battery before installing the unit.
In order to avoid short-circuits and malfunctions, install the cables so that they cannot be pinched, kinked, chafed
or detached.
Before installation, park the vehicle in a safe and level place and remove the ignition key.
In order to avoid malfunctions, it is absolutely essential to observe the relevant cable cross-section when using
branch connections/cable connectors.
In order to avoid short-circuits and any associated risk of fire, cables which have to be cut must be properly
insulated.

Subject to correction and technical modifications 31 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
5. Connection diagram for the navigation system
Note: The various connection options are described in detail on page 53.
Radio aerial
Speedometer / speedometer cable signal
GPS antenna
Power supply
Reverse signal
DTM
Sound system /
loudspeaker

Subject to correction and technical modifications 32 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide

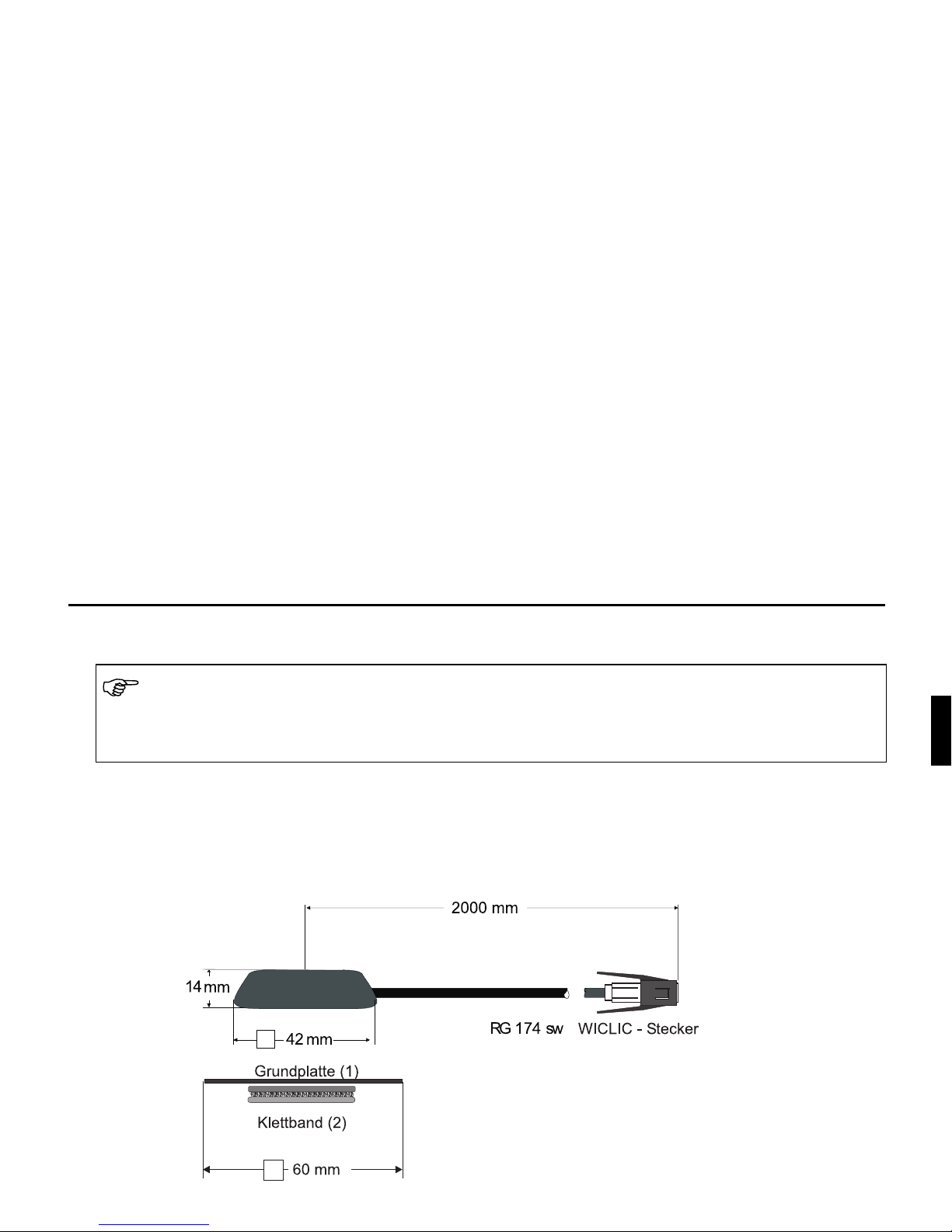

6. Installation of the GPS antenna
Possible installation positions
•Outside the vehicle
a. Attach the antenna to a flat, pre-washed metal surface.
b. Then guide the antenna cable into the vehicle interior.
GRisk of injury
People with pacemakers should avoid physical contact with the magnetic antenna and should not carry the antenna
on their person, as this may affect the function of the pacemaker.
Keep the magnetic antenna away from data storage media (disks, credit cards, magnetic cards etc.) and electronic
and precision engineering equipment, as this may cause data to be deleted.
Do not use the antenna in areas at risk of explosion.
It is important to secure the antenna so that it cannot become detached in a collision or sudden brake manoeuvre.
GRisk of injury
The maximum vehicle speed for the antenna if magnetically attached is 180 km/h. The antenna must be removed or
specially secured at higher speeds.
The antenna is not suitable for car-wash facilities.

Subject to correction and technical modifications 33 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
•Inside the vehicle
a. Secure the antenna to the base plate (1) with magnets.
b. Remove protective strip from top of adhesive tape (2) and stick to the centre of the base plate underside.
c. Remove protective strip from bottom of adhesive tape (2) and stick the antenna and base plate onto the vehicle
console beneath the windscreen at the installation position.
The antenna can only be installed on a non-metallised windscreen.
When selecting the installation position, ensure that the antenna has a clear view of all directions, and that it is not
covered by the windscreen wipers. Obstructions caused by the bonnet, window crossbeams and roof should be
avoided as far as possible.

Subject to correction and technical modifications 34 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
7. Connecting the reverse signal
If the switch on the gearbox or shift linkage is accessible:
• Connect a separate lead to the activated contact.
Connect the lead to socket A pin 2.
Low - level = earth, high - level 12 V - 16 V
If the switch is not accessible:
• Check which lead is routed to the reversing lamp. Then, if neces-
sary, remove the inner cover for the reversing light.
Connect a separate lead to the activated lead of the reversing lamp
and connect to socket A pin 2.
GPS reception can be affected by screens with screen antenna, windscreen heating or thermally insulated screens.
Some thermally insulated screens are coated with titanium or silver oxide. Installation of the GPS antenna in the
vehicle interior can considerably impair the function of the navigation system.
The pick-up points for the reverse signal vary from vehicle to vehicle.
If you are in any doubt, please contact your vehicle manufacturer or authorised specialist workshop.
Reverse
signal
A

Subject to correction and technical modifications 35 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
8. Connecting the speed signal (GAL) for the speedometer / speedometer cable
Electronic speedometer
• Remove the signal from the speedometer, extend and connect to
socket A pin 1.
• Minimum requirement for the signal:
0 Hz - 4 kHz / square-wave signal (no inductive sensor)
Low - level < 1.5 V, high - level 5 V - 16 V
GAccident hazard
Incorrectly connected wiring may result in damage to or destruction of vehicle components and safety devices.
If you are in any doubt, please contact your vehicle manufacturer or authorised specialist workshop.
Depending on the vehicle equipment, the lead for the GAL sig-
nal is usually connected to the DIN - ISO plug of the car radio.
The assignment of the DIN - ISO plug may vary depending on
the vehicle type.
If you do not know the exact installation position / location of
the speed signal, please consult the vehicle manufacturer.
GAL signal
A

Subject to correction and technical modifications 36 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
Mechanical speedometer with integrated speed sensor in the speedometer cable
• Remove the signal from the speed sensor, extend and connect to
socket A pin 1.
• Minimum requirement for the signal:
0 Hz - 4 kHz / square-wave signal (no inductive sensor)
Low - level < 1.5 V, high - level 5 V - 16 V
Mechanical speedometer without speed sensor in the speedometer cable
A speed sensor which generates a digital, speed-dependent signal must
be installed in the speedometer cable.
The VDO adapter 2152.30300000 or a vehicle-specific adapter which
satisfies the minimum requirements can be used. The VDO speed sen-
sor is suitable for direct installation on the gearbox (no further installa-
tion parts required) or in the speedometer cable (in conjunction with
additional universal installation parts).
If you do not know the exact installation position / location of
the speed signal, please consult the vehicle manufacturer.
If the sealed speedometer cable is released, a correct display
cannot be guaranteed. Incorrect installation leads to improper
functioning of the navigation system or of the speedometer.
GAL signal
A

Subject to correction and technical modifications 37 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
Installing the speed sensor directly on the gearbox
• Release the speedometer cable and screw speed sensor onto gear-
box. Screw released speedometer cable onto the speed sensor and
connect the wires.
Wire connections for the speed sensor
Brown - earth (terminal 31)
Black - power supply (terminal 15), 9 - 16V, 30 mA
Blue/red - signal for socket A pin 1
Installing the speed sensor in the speedometer cable
In order to install the speed sensor, the speedometer drive cable must be
cut in one even piece for insertion of the speed sensor. When removing
the speedometer cable from the vehicle, ensure that the location of the
evenly running piece is established and marked accordingly.
Installation is illustrated without reference to any specific vehicle. In
addition to the sensor, the following VDO universal parts are required:
1 x connecting piece 1040 1300 025 (VDO part number)
2 x knurled nuts1 040 1000 003 (VDO part number)
2 x hose sleeves 1040 1000 031 (VDO part number)
2 x dogs1 040 1000 049 (VDO part number)
2 x friction washers 1040 0900 003 300 (VDO part number)
2 x fuel washers 4.0 KN07.0570.18 (VDO part number)
2 x washers KN11.1904.122 (VDO part number)
An appropriate, complete kit from VDO (part number X 39397106191)
can also be used.
GAL signal
A
Figure 1

Subject to correction and technical modifications 38 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
Recommended tool: Cable installation tool for speedometer cables
from VDO, order number: 1999.10.13.000.110
If you require vehicle-specific parts, please consult the vehicle manu-
facturer or your nearest VDO branch.
• Using a metal saw, saw into the cable approx. 1 mm at right angles
to the profile and break off (Figure 3).
• Then cut the cable in the centre with side-cutting pliers
(Figure 4).
• Shorten the protective hose again at both ends up to the plastic
sheathing. Check whether the ends of the flex cable still engage in
the speedometer and the gearbox.
• Shorten the inner cable to a projection of 13 mm (Figure 5).
• Connect the union nut and hose sleeve (Figure 6) and push onto the
hose ends (Figure 7).
• Connect friction washer to dog (Figure 8).
For protective hoses with wire netting, the hose and flex cable
can be cut directly with the side-cutting pliers.
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8Figure 8

Subject to correction and technical modifications 39 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide

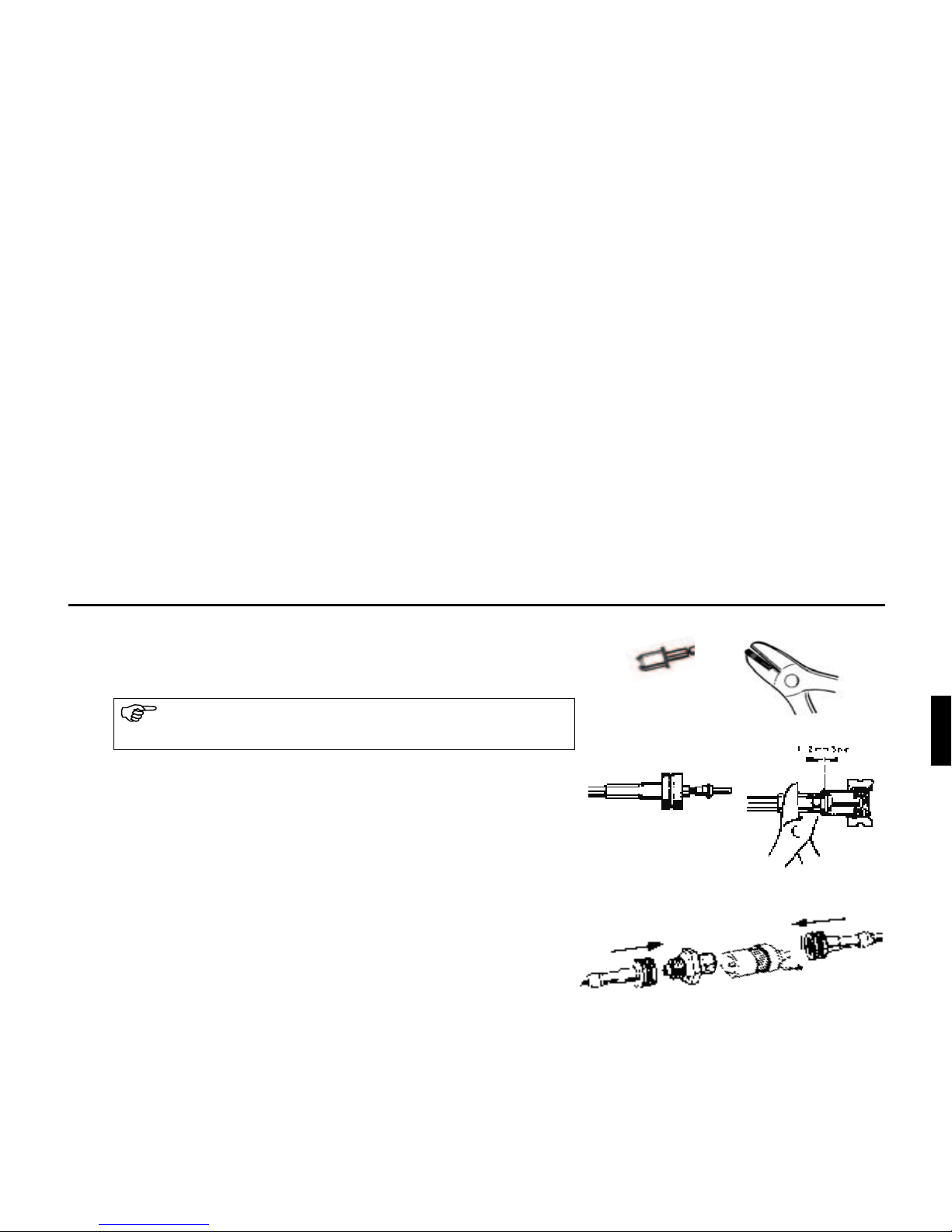

• Remove grease from flex cable and connect dog to flex cable. Us-
ing a suitable installation tool, press the dog onto the flex cable
(Figure 9).
• Pull the hose sleeve and nut as far as possible in the direction of the
dog, to achieve approx. 1-2 mm play (Figure 10).
Slightly squeeze the hose sleeve with pliers. Wrap with isolating
tape to secure (Figure 11).
• Screw the connecting piece and the speed sensor into the cable
(Figure 12).
• Connect speed sensor using the extension cable from VDO (part
number: 2152.90 30 0100).
Wire connections for the speed sensor
Brown - earth (terminal 31)
Black - power supply (terminal 15), 9 - 16V, 30 mA
Blue/red - signal for socket A pin 1
When pressing in, ensure that the dog is securely positioned and
that it runs smoothly.
Figure 9
Figure 10
Figure 12
Figure 11

Subject to correction and technical modifications 40 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
9. Installing and commissioning DTM
• This navigation system has an integrated universal bracket for DIN installation slots. An installation frame is not re-
quired. The unit is inserted into the installation slot and secured with the slides supplied.
Further information is given in the operation guide in the chapter, "Installation and removal instructions".
• Connect the battery.
10. Using GPS for the first time, and sensors
• Switch on the vehicle ignition to start using GPS for the first time
and for the sensor test. Switch on DTM.
Enter code (see the operation guide for a detailed description).
• Press the multifunction button and the multifunction
button simultaneously.
• This calls up the menu for the initial GPS start-up and for the sen-
sor test.
• Move the vehicle several metres forwards or backwards for the
speed signal function test.
The installation angle of the unit must not exceed -10° to 35° (vertical).
The number under 7,,+ must change (even at a low speed).
The number under 7,,+ should not increase when idling or
pressing the accelerator when the vehicle is parked.
PY
5;+; ,. 79 >9 SM
 $!
P P
P

7,,+ 09,*;065
VVV
 $!
P P
P
7,,+ 09,*;065
VMN
 $!
P P
P

Subject to correction and technical modifications 41 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
• Engage the reverse gear for the reverse signal function test.
• When using the GPS for the first time, the vehicle must be parked
outdoors, while ensuring that it has a clear view in all directions
(not in the immediate vicinity of buildings).
Information on the GPS reception is given in the right-hand part of
the display.
Four different messages may appear:
-  : GPS reception is already available.
-  $!: It is necessary to wait for GPS reception. You must
wait until GPS OK is displayed.
-  !: The GPS antenna is not properly con-
nected.
-   : If this message is displayed, please contact
the hotline.
The arrows under 09,*;065 must change direction on engag-
ing the reverse gear.
You must wait until  , P (or P) and P (or a higher value) is displayed.
This procedure (first reception of the necessary GPS data) may take a few minutes. The unit must remain
switched on for the entire duration of this procedure. The vehicle must not be moved. If after 5 minutes there has
been no change in the values, the parked position (clear view in all directions as far as possible) or the installation
location of the GPS antenna must be checked.
7,,+ 09,*;065
VVV
 $!
P P
P
7,,+ 09,*;065
VMN
 
P P
P
7,,+ 09,*;065
VMN
 $!
P P
P
7,,+ 09,*;065
VMN

!

7,,+ 09,*;065
VMN

 


Subject to correction and technical modifications 42 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
• The menu for initial GPS start-up and for the sensor test is quit by
simultaneously pressing the multifunction button and the
multifunction button.
11. Installation of the Navigation Software
• Press the button.
• Insert the Navigation CD to install the software for the navigation
system.
• After the navigation software has been installed, the adjacent dis-
play appears. The language selection is then requested.
• Select the language using the right rotary control . The language
selection is accepted by pressing the control.
You can choose either a male or a female voice for some languag-
es.
Select the voice using the right rotary control . The voice is ac-
cepted and installed by pressing the control.
The adjacent display appears after installation. Then press the right
rotary control to confirm.
The language selection can be changed at a later time, as de-
scribed in the operating guide.
7,,+ 09,*;065
VMN
 
P P
P


1$9
#! !#!B
  #!

 
M

 

 

Subject to correction and technical modifications 43 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
12. Calibration
After commissioning, a calibration journey is required. During the jour-
ney, the speed signal (GAL) is automatically adapted to the
vehicle-specific data and the gyro sensor is automatically adapted
to the installation position of the unit.
The distance to be covered depends on the type of vehicle and the local
conditions.
• The adjacent display appears after the language installation.
It is possible that GPS reception has deteriorated as a result of
changing the vehicle position and due to obstructions. In this case,
the adjacent display appears.
The navigation system is only ready for operation on comple-
tion of the calibration journey. The main navigation menu is
displayed. Final precision is only achieved after a further jour-
ney.
Adequate GPS reception must be ensured for the calibration
ride. This means at least 2-D FIX. With GPS FIX 3-D the cali-
bration will be quicker. However: a lower accuracy of the GPS
signal (2-D FIX) does not lead to a poorer calibration, but in-
stead will mean that the time and distance needed for the cali-
bration will increase.
! !!
$PN&PN !P
PYPY
 $! !B
!! 
YYP\%

Subject to correction and technical modifications 44 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
If, even after a relatively long period of time, the display with the re-
quest ! !! does not appear,
then you should check the GPS reception conditions again (as under
Service Mode in the Section Function test of GPS antenna ( 
)46).
As soon as the display with the request !
!! appears, the calibration ride can be started.
• The basic requirement for a calibration ride is: driving 200 - 300
metres in a straight line, then turning by at least 60 degrees
and then driving 200- 300 metres in a straight line again, and
turning again.
A calibration ride can also be performed in a non-digitised area.
The insertion of the Navigation CD is not absolutely necessary
after the navigation software has been installed. Without the
Navigation CD inserted, no location is displayed.
The direction you turn is of no significance. If these conditions
cannot be fulfilled due to the road or the fact that you do not al-
ways have optimum GPS reception, this will not lead to a poor-
er calibration, but will simply mean the time and distance
necessary for the calibration ride will be longer.
If the unit is switched off during the calibration ride, language
installation is requested when the unit is switched on again. Re-
installation can be skipped by pressing the button.
1$9

Subject to correction and technical modifications 45 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
• Calibration has been completed successfully if the main navigation
menu is displayed.
• For correct navigation on routes with time-dependent traffic guid-
ance, the time should be set correctly as described under "System
settings" in the operation guide.
13. Service Mode
In Service Mode, various functions can be checked in detail and the cal-
ibration can be modified.
• Switch on the unit (see operation guide).
Enter code (see operation guide).
• If the unit has already been calibrated, select the main navigation
menu by pressing the button.
If the unit has not been calibrated, proceed as described in the next
point but one.
• Press the button again to access the system settings.
• Press and hold the multifunction buttons. Then press the
multifunction button. This calls up the Service Mode.
 !Y&

YYY
 !Y&

YYY
1$9
1$9
!F





Subject to correction and technical modifications 46 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
The following functions can be selected in the Service Mode:
•  - GPS function test
•! - function for deleting the calibration or for setting
a calibration
•! - display for calibration ride
• ! ! - internal component test
•   - sensor function test
• ! ! - voice test
• - demo mode selection
•#  - the status of the Navigation CD is displayed
By turning the right rotary control , select the desired entry
(large letters) and press to confirm.
Function test of GPS antenna ( )
In Service Mode, select  S with the right rotary control and
press to confirm.
If functioning properly and with GPS reception, the number of satellites
received (e.g. ), the date and time (e.g. YYPP ) and the
type of positioning currently possible %P (e.g. ) are displayed.
In order to quit the GPS test, press the button. The unit switches
back to the Service Mode.
At least % is required for quick and successful calibration.
A certain amount of time may be required to reach this value
(do not move the vehicle during this period).
# 

!
# 

!
PPPP
%%P
Y&P
1$9

Subject to correction and technical modifications 47 Copyright by Becker GmbH, D-76303 Karlsbad
Installation guide
Changing the calibration (!)
Deleting the calibration:
If the navigation system is removed from one vehicle and installed in
another, it must be calibrated. However, to do so, the current calibration
data must be deleted.
In the Service Mode, select ! using the right rotary
control and press to confirm.
Using the right rotary control select ! and press to confirm.
The calibration is deleted and the unit returns to the Service Mode.
Calibration setting:
It is possible to provide calibration settings.
In the Service Mode, select ! using the right rotary
control and press to confirm.
Using the right rotary control select & and press to confirm.
Unit rotation can be selected in degrees by turning the right rotary
control and pressing to confirm.
Calibration settings should only be made when the values to be
entered are known. The unit cannot perform correct route cal-
culations if incorrect values are entered.
 

!
!!

&
 

!
!

!!
'! !!!

