Becker Indianapolis 7920 User manual

110
Contents
Safety instructions 113
Information regarding
general road safety 114
Arrangement of controls 115
Anti-theft device 116
Entering the code number 116
Removing the portable panel 117
Attaching the portable panel 117
General Operation 118
Switching on/off 118
Setting the volume 118
Activating the tone menu 118
Setting the bass 118
Setting the treble 118
Fader 119
Setting the balance 119
Linear adjustment 119
Adjusting the volume of the
subwoofer or centre speaker 119
Switching loudness on / off 119
Navigation mode 120
What is navigation? 120
Navigation CDs 120
General instructions 122

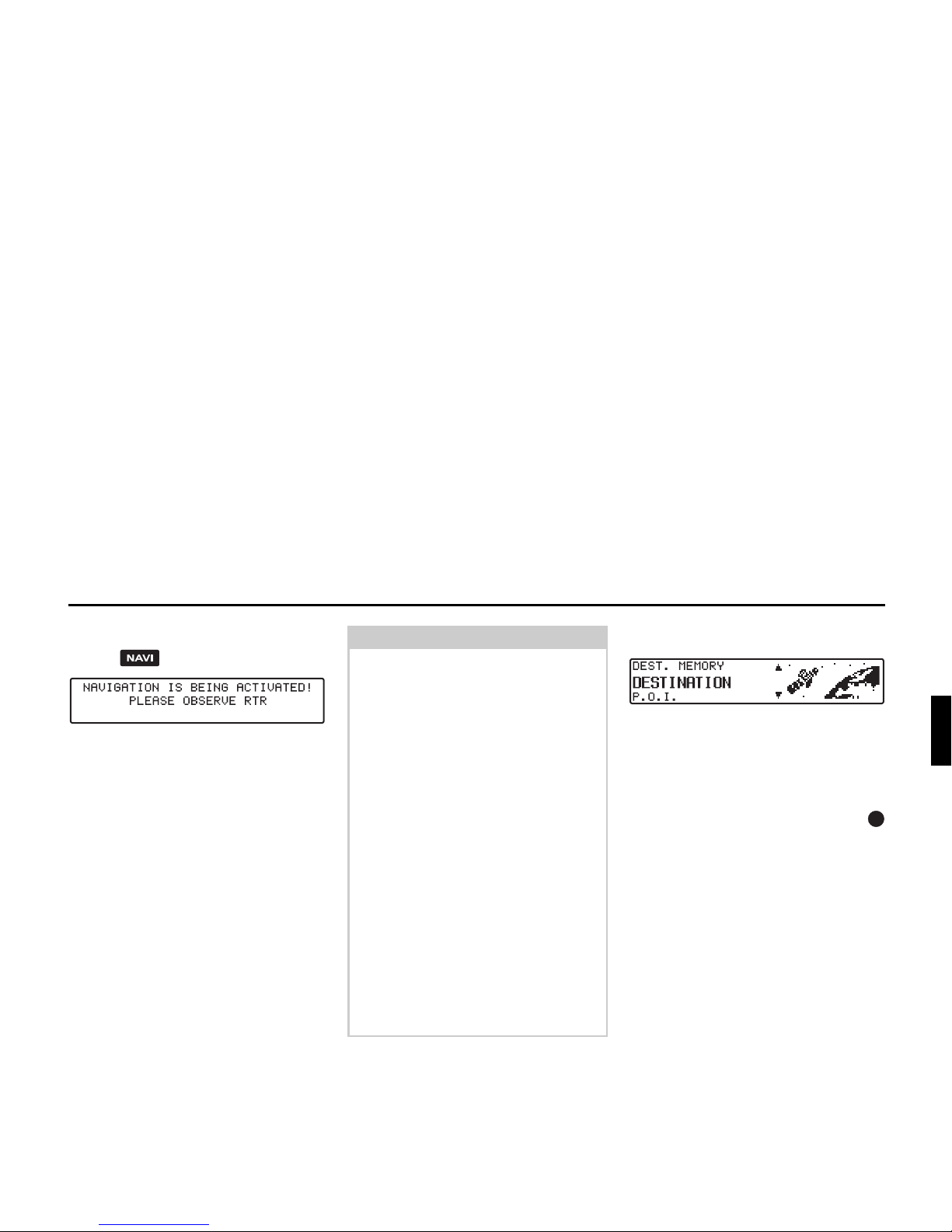

Selecting navigation 123
Main navigation menu 123
Destination entry 124
Selecting a country 124

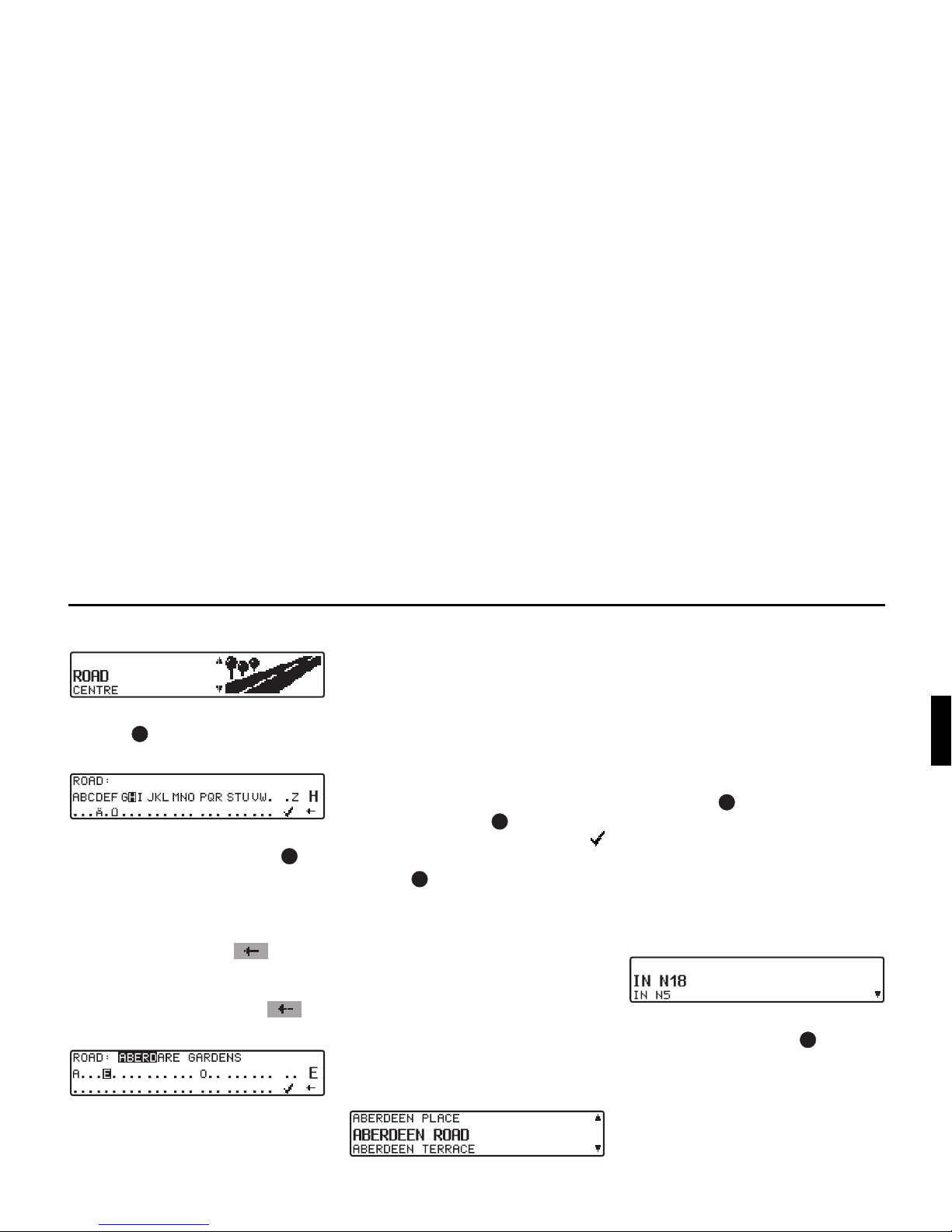

Entering a destination 125

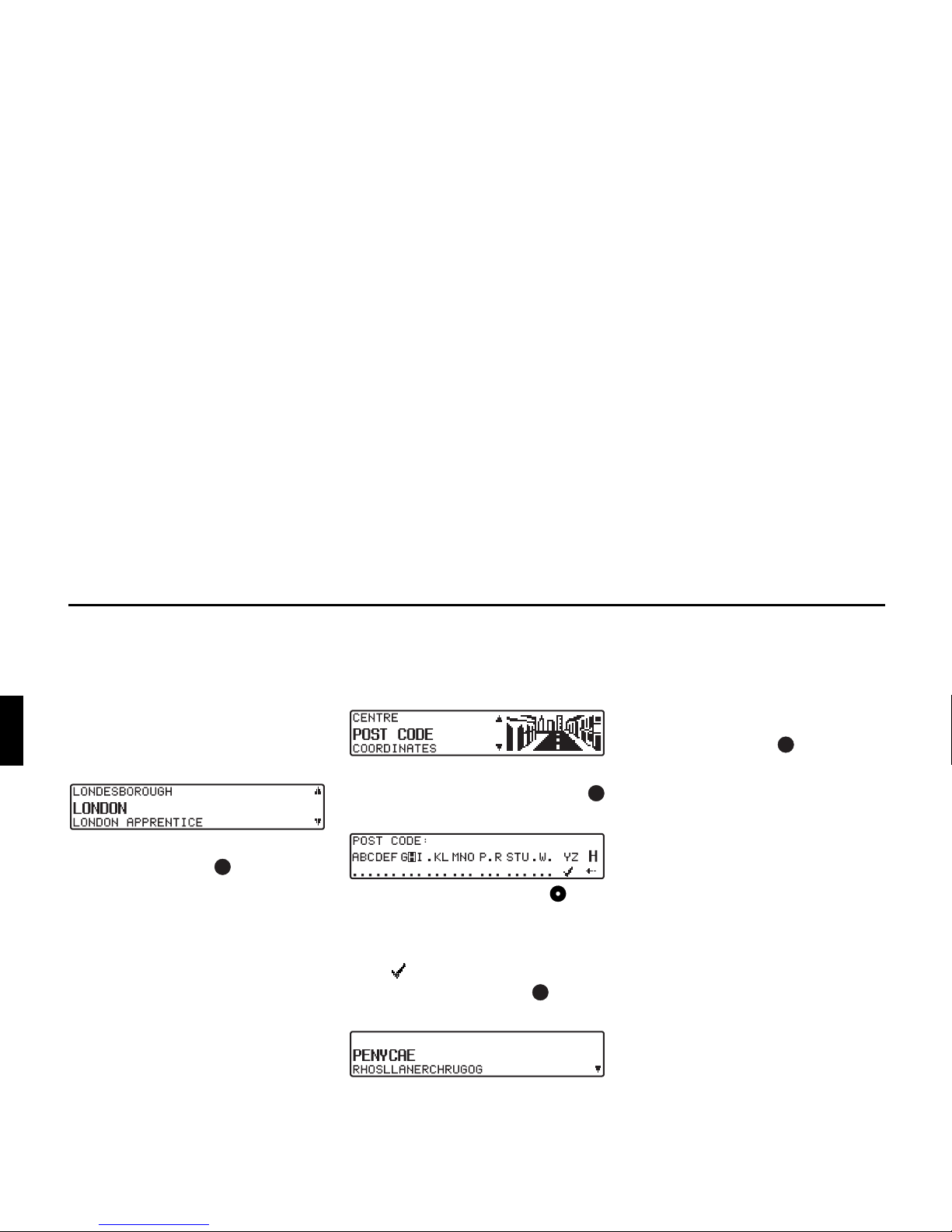

Selecting destination via post code 126
Entering the destination town 127
Entering the destination town
centre 128

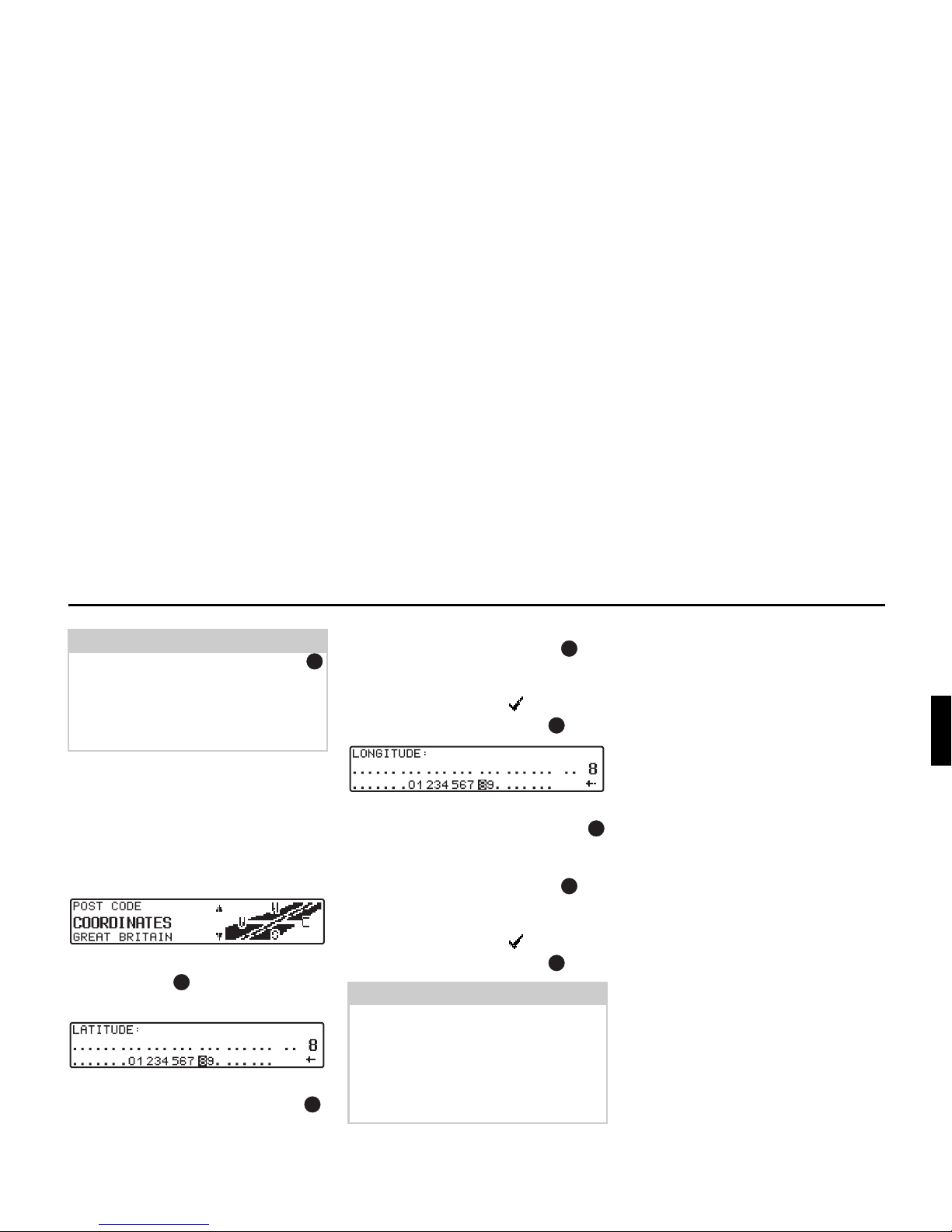

Destination input via coordinates 129
Route menu 130
Entering house number for
destination road 130
Selecting intersection for
destination road 131
Selecting route settings 131
Storing a destination in the
destination memory 132
Deleting a destination from the
destination memory 133
Destination memory full 133
Route guidance calculation 133
Recalculating route. 133
Stopover 133
Entering a stopover 133
Starting route guidance to a
stopover 134
Deleting a stopover 134
Stopover reached 134
Detour function 134
Entering length of traffic jam 134
Deleting traffic jam 135
Cancelling route guidance 135
Explanation of navigation 135
Dynamic route guidance with
TMC 137
What is dynamic route guidance? 138
Dynamic route guidance 138
Displaying traffic information 139
Information during route
guidance 140
Requesting journey duration and
kilometres travelled 140
Displaying settings 141
Requesting current time 141
Calling up current position 141
Calling up road list 142
Destination memory 143
P.O.I. 143
Points of interest (P.O.I.) CD 145
Terms of licence 147
System settings 147
Setting time 148
Saving position 148
Selecting a game 149
Setting the language 149
Animation 150
Switching announcement of
arrival time on /off 150
Selecting the units of measurement 150
Influencing the calculation of ETA 151
Switching the speed limits display
on/off 151
Setting the time display 152

111
Contents
Radio mode 153
Switching on radio mode 153
Switching on Radio Menu Mode 153
Selecting the FM waveband 153
Selecting the AM waveband 153
Settings for station selection 153
Dynamic autostore (FM-DAS) 154
Station search FM-DAS 154
Station search MW, LW, SW 154
Scan search 155
Programme filtering for
FM DAS 155
Programme type selection
(PTY) 155
Turning PTY display on / off 156
Calling up / storing FM stations 156
Calling up/storing MW, LW,
SW stations 156
Autostore MW, LW 157
Manual FM tuning 157
Manual Tuning MW, LW, KW 157
Regionalisation 158
Switching regionalisation on / off 158
Turning frequency display on or off 158
Switching radio text on / off 159
Traffic programme (TP) 159
Activating / quitting the TP menu 160
Switching TP on / off 160
Selecting automatic tracking 161
Selecting / cancelling direct
programming 161
Switching mute on/off 161
Interrupting TP announcements 161
TP Announcement volume 162
Switching TMC on/off 162
Selecting TMC station 162
Display for receivable TMC
stations 163
Telephone muting 163
CD mode 164
Notes on compact discs (CD) 164
Inserting / ejecting CDs 164
Forward / backward track
skipping 165
Scan search 165
Fast forward / reverse 165
Track repeat 165
Random play 166
CD settings menu 166
Displaying number of tracks 166
Switching between Track/CD Text
display 166
Temperature protection circuit 167
Notes on CD-R and CD-RWs 167
Notes on copy-protected CDs 167
MP3 mode 168
General notes on MP3 168
Creating an MP3/WMA storage
medium 168
Creating a playlist 169
Inserting /ejecting MP3 CDs 170
Switching between folder/
playlist 171
Forward / backward track skipping 171
Changing folder/playlist 171
Scan search 171
Fast forward / reverse 172
Random Play 172
Track repeat 172
MP3 settings menu 172
Number of folders/playlists/tracks 172
Displaying name of folder/playlist 173
Switching between track/ID3 tag
display 173
CD changer mode 174
Operational readiness of
CD changer 174
Loading / ejecting the CD magazine 174
Selecting CD changer mode 174
Changing/selecting CDs 174
CDC settings menu 175
Displaying track information 175
Displaying number of tracks and
total playing time 175
Naming a CD 176
CD filter function 177
User settings 178
Opening / quitting User
Settings menu 178
Setting the GAL (Gal) 178
Telephone mute function (Tel) 179

112
Contents
Display brightness (Lum) 179
LED setting 179
Setting reception optimisation
(M/S) 180
Setting navigation announcements
(Nav) 180
AUX input (Aux) 181
Display compass (Cmp) 181
Signal tone volume (BeV) 181
Service menu 182
Calling up / exiting service
menu 182
CD Changer reset 182
Unit reset 182
Explanation 183
RDS SYSTEM 183
DAS Seek Qual. level 183
DAS Seek Name level 183
RDS Stations level 183
Stations Fix level 183
PTY (programme type) 183
Technical terminology glossary 185
Index 187
Technical data 191
NOTICE 192
Installation Guide 193
Prior to installation 193
Symbols used in the installation
guide 193
Safety instructions 194
Installation instructions 195
Connection diagram for the
navigation system 196
Installation of the GPS antenna 197
Connection of the reverse
signal 199
Connection of the speed signal
(GAL) from the speedometer/
speedometer cable 200
Installation/Removal of the
unit 203
Using GPS for the first time,
and sensors 204
Installation of the Navigation
Software 206
Calibration 207
Service Mode 209
Connections 217

113
Safety instructions
Operation of the unit is permitted only if the traffic conditions are suitable and you are absolutely sure that you, your
passengers or other motorists are not endangered, obstructed or inconvenienced.
In all cases, all applicable road traffic regulations must be obeyed. Destinations may only be entered when the vehicle is
stationary.
The navigation system is only an aid. Errors may occur in individual data items/entries. At all times, the driver must de-
cide whether or not to heed the information provided. We do not accept liability for erroneous data provided by the nav-
igation system.
Due to continual changes in traffic routing or deviations in the data, it may occur that imprecise or erroneous information
is given. Therefore, actual road signs and traffic regulations must always be observed. In particular, the navigation system
cannot be used as an orientation aid at times of poor visibility.
The unit may only be used for its intended purpose. The volume of the radio/navigation system should be adjusted so that
external noise is still audible.
In the case of a malfunction (i.e. smoke or other noticeable odours) the unit is to be turned off immediately.
For safety reasons, the unit may only be opened by a trained technician. Please refer to your dealer for repair.
G

114
Information regarding general road safety
This car radio device is intended and approved for installation and operation in passenger cars, commercial vehicles and
buses (vehicle classes M, N and O) whose electric system has a rated voltage of 12V.
Installation and maintenance should only be carried out by specialists. Faulty installation or maintenance can result in
the malfunctioning of the motor vehicle’s electronic systems. The vehicle manufacturer’s safety instructions must be ob-
served.
The vehicle’s electronics (e.g. speedometer signal) may only be worked on by an authorised service garage. We assume no
liability for any impairment of the vehicle’s electronics.
This device is only intended for installation in the area provided for this purpose by the vehicle manufacturer.
The method of attachment used must ensure that the device will remain properly attached, should the vehicle be involved
in a crash.
The power supply must be properly fused.
Using mobile phones without an external antenna in the proximity of the radio unit may cause interference.
Familiarise yourself with the device and how it works before embarking on your journey. Whilst on the move, only oper-
ate the device in appropriate traffic conditions. The volume of the device should be set at a level that enables external
noises (e.g. police sirens) to be easily heard.

115
Arrangement of controls
11
357 8 9
6
2
110
12
4

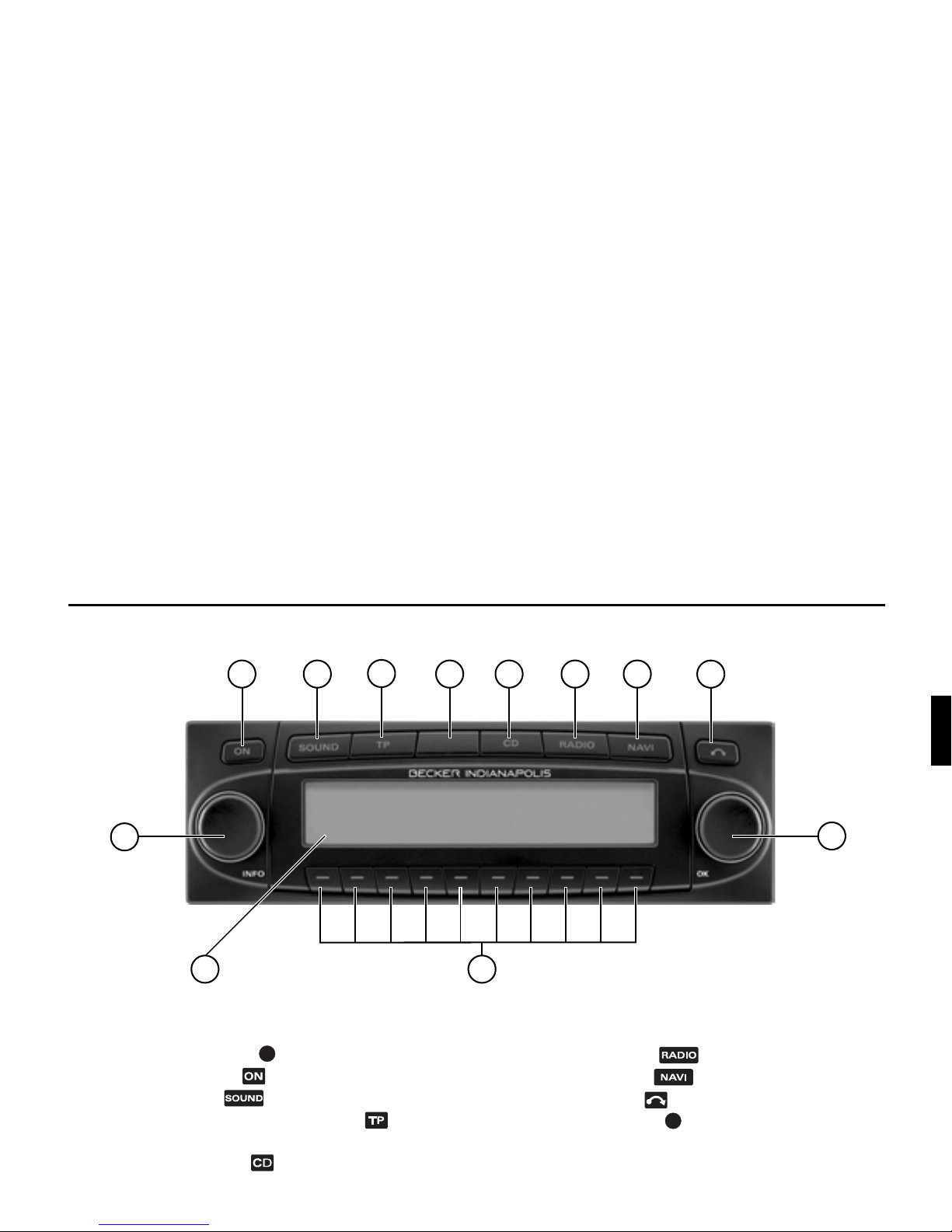

Arrangement of contro ls
1 Left rotary control (INFO)
2 On / off switch ( )
3 Tone button ( )
4 Road traffic announcement button ( )
5LED
6 Select CD mode ( )
7 Select radio mode ( )
8 Select navigation ( )
9 CD eject button ( )
10 Right rotary control (OK)
11 Multifunction buttons
12 Display

116
Anti-theft device
Anti-theft device
Entering the code number
If the car radio is disconnected from the
electrical supply source, the anti-theft
device prevents it from being reconnect-
ed. After turning on the unit via the
button, the prompt Enter Code Number
is displayed.
XUse the multifunction keys -
to enter the five-digit code
number.
Example:
Code number 15372 (the code number
can be found on the enclosed CODE
CARD).
The unit automatically switches on
when the fifth digit is entered and all
other digits were entered correctly.
In an incorrect code number is entered,
the prompt Enter Code Number will be
displayed once again. If an incorrect
code number is entered three times in a
row, the unit will display Wait, and it
will be blocked for approximately 60
minutes.
Three further incorrect entries block the
unit for another 60 minutes.
Note
It is important to store the CODE
CARD in a safe place outside of the ve-
hicle. This will prevent unauthorised
use. The window stickers provided
should be attached to the windscreen/
windows inside your vehicle.
Attention:
The waiting time elapses only when the
ignition and unit are switched on.

117
Anti-theft device
Removing the portable panel

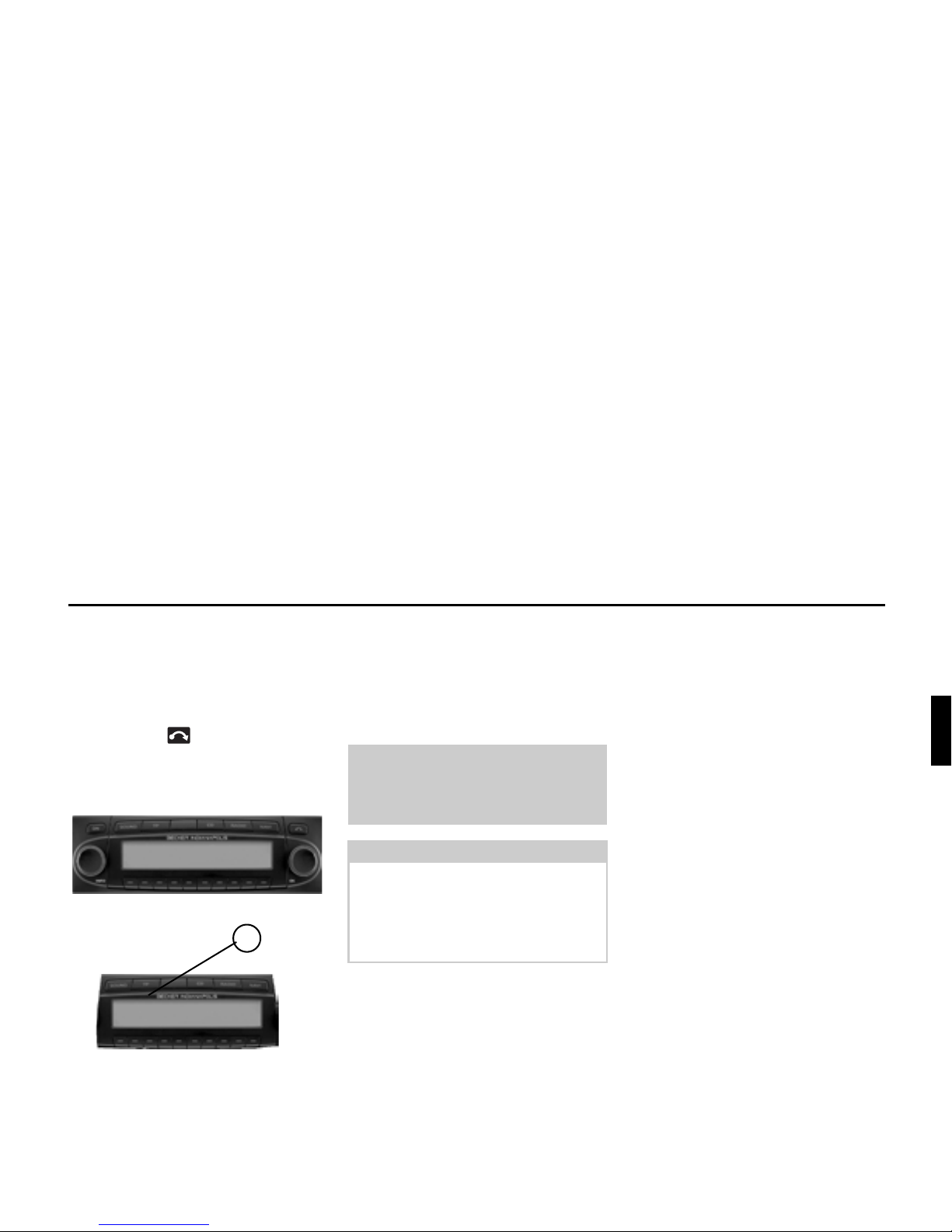

As an effective anti-theft device, the
portable panel (A) may be removed from
the unit.
XPress button briefly (storage me-
dium remains in the unit).
The display folds forwards.
XDetach the portable panel.
The volume is limited to a maximum
level after the display has been folded
down. After 20 seconds, an audible sig-
nal indicates that the control component
is folded down. The unit then switches
itself off.
Attaching the portable panel
XInsert the portable panel into the lower
left catch and then engage it in the
lower right catch. Then fold up the
portable panel and engage it in the up-
per catches.
The portable panel can also be placed
flat against the unit and pushed into
place.
To ensure correct function, be sure that
the portable panel is completely seated
in all four catches.
A
Warning
Accident hazard
For safety reasons, the portable panel
may not be left open while driving.
Attention:
Please insert the portable panel in the
accompanying protective cover after re-
moval.
Do not touch the metal contacts on the
portable panel or on the radio.
GG

118
General operation
General Operation
Switching on/off
XPress .
The unit can also be switched on/off via
the vehicle ignition.
To switch the unit on via the ignition, the
unit must have previously been turned
off via the ignition.
After switching off the ignition, the unit
can be prevented from switching off by
pressing the button within 3 sec-
onds.

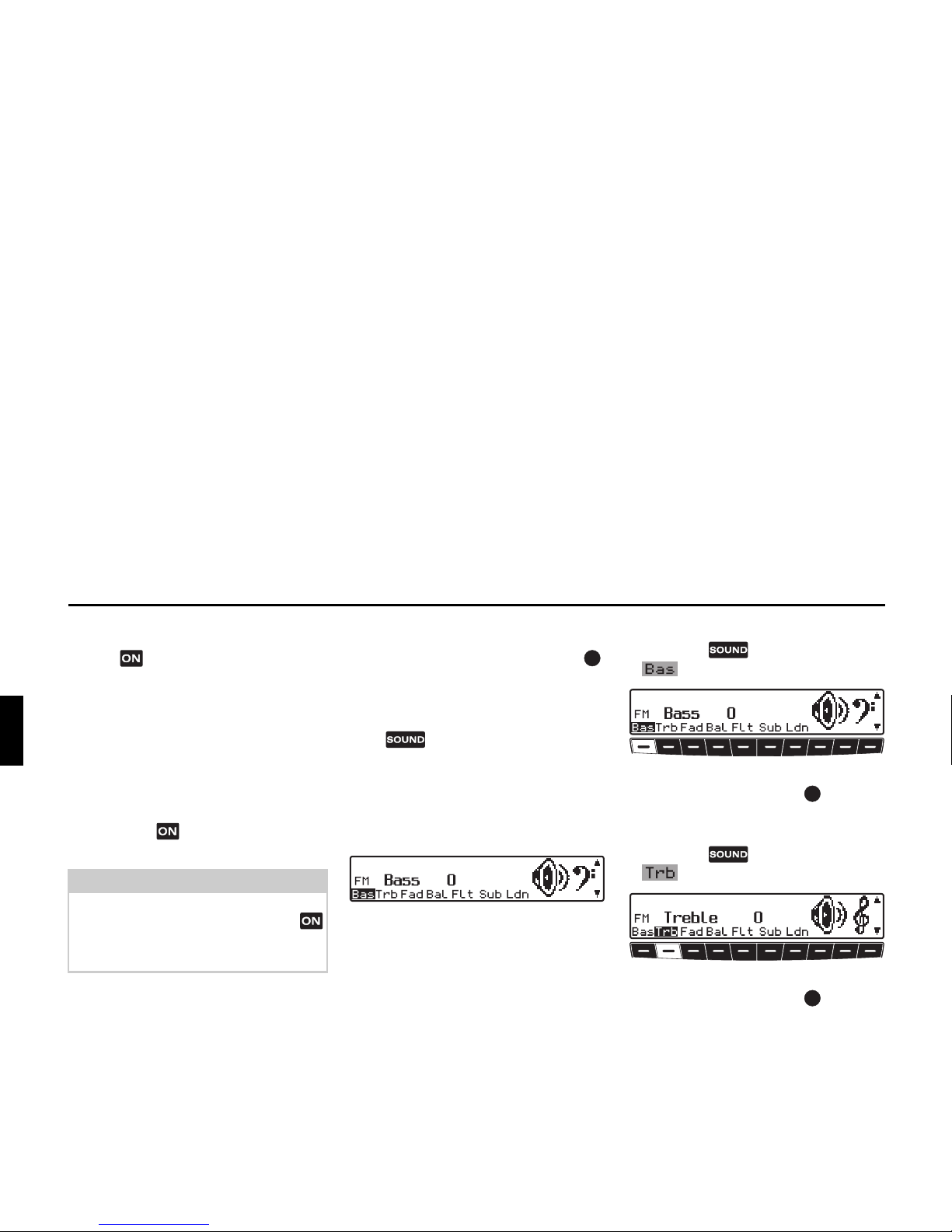

Setting the volume
Turn the left-hand rotary control .
The volume increases or decreases.
Activating the tone menu
Press . The tone menu is activated.
The following functions can be called
up: Bas (Bass), Trb (Treble), Fad (Fad-
er), Bal (Balance), Flt (Linear adjust-
ment), Sub (Subwoofer) and Ldn
(Loudness).
Settings for bass and treble, for the FM,
AM (MW, LW, SW) wavebands, for
road traffic announcements, navigation
announcements, telephone mode, CD,
MP3/WMA and CDC/AUX mode are
stored separately.
Setting the bass

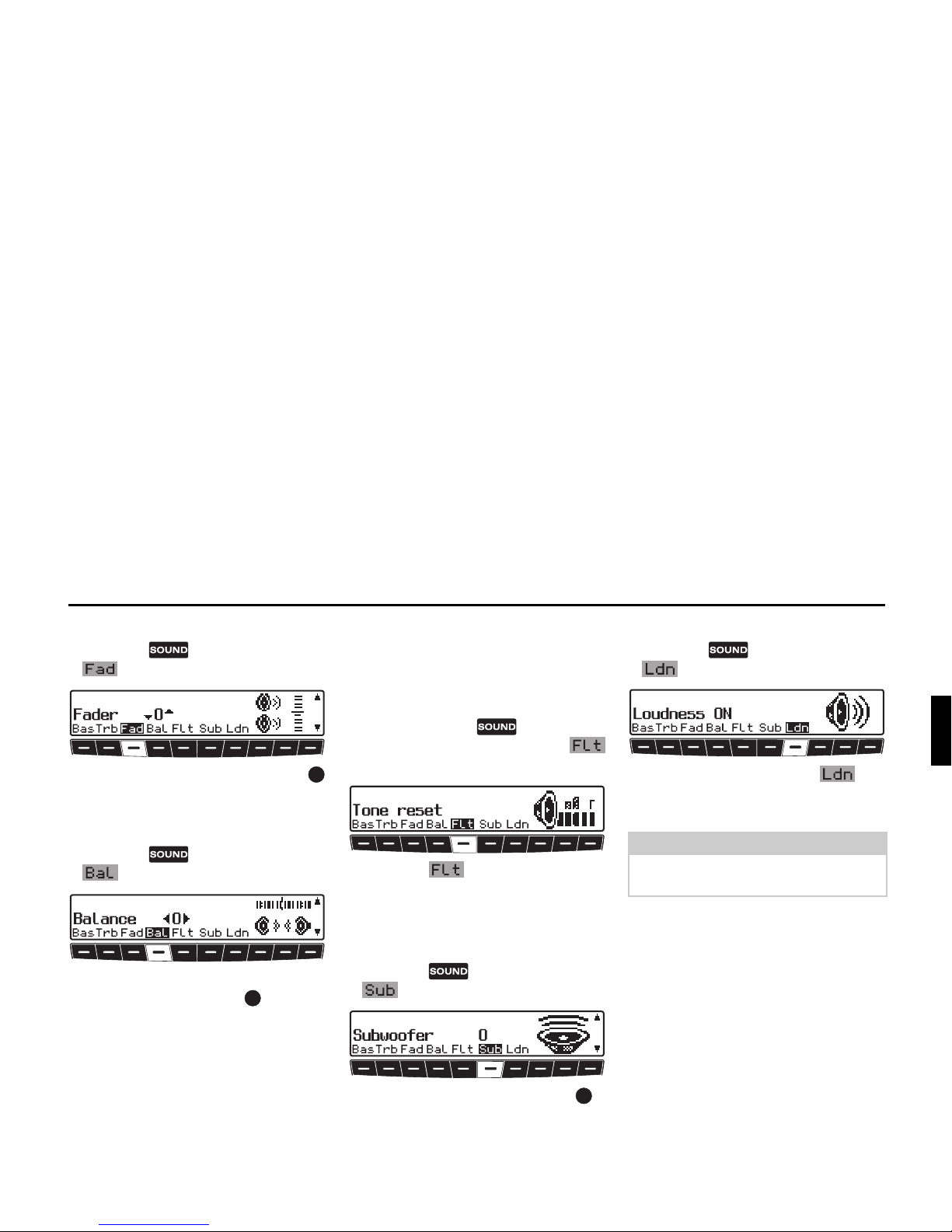

XPress the button and then the
multifunction button.
XSet the desired bass level using the
right-hand rotary control .
Setting the treble
XPress the button and then the
multifunction button.
XSet the desired treble level using the
right-hand rotary control .
Note:
The unit can also be switched on with
the ignition switched off via the
button, but it will switch off automati-
cally after 1 hour.

119
General operation
Fader
XPress the button and then the
multifunction button.
XUse the right-hand rotary control
to achieve the desired fader setting.
Setting the balance
XPress the button and then the
multifunction button.
XSet the desired balance level using the
right-hand rotary control .
Linear adjustment
The tone adjustments for the current sig-
nal source (i.e. FM) can be reset to a
mid-level.
XBriefly press the button. Then
press multifunction button
briefly - Tone reset will appear.
XPress the multifunction button
again.
Adjusting the volume of the
subwoofer or centre speaker
XPress the button and then the
multifunction button.
XUse the right-hand rotary control to
achieve the desired subwoofer volume
setting.
Switching loudness on / off
XPress the button and then the
multifunction button.
XWith multifunction button you
can select either Loudness on (ON) or
Loudness off (OFF).
Note:
Loudness is switched off in MW, LW
and SW wavebands.
