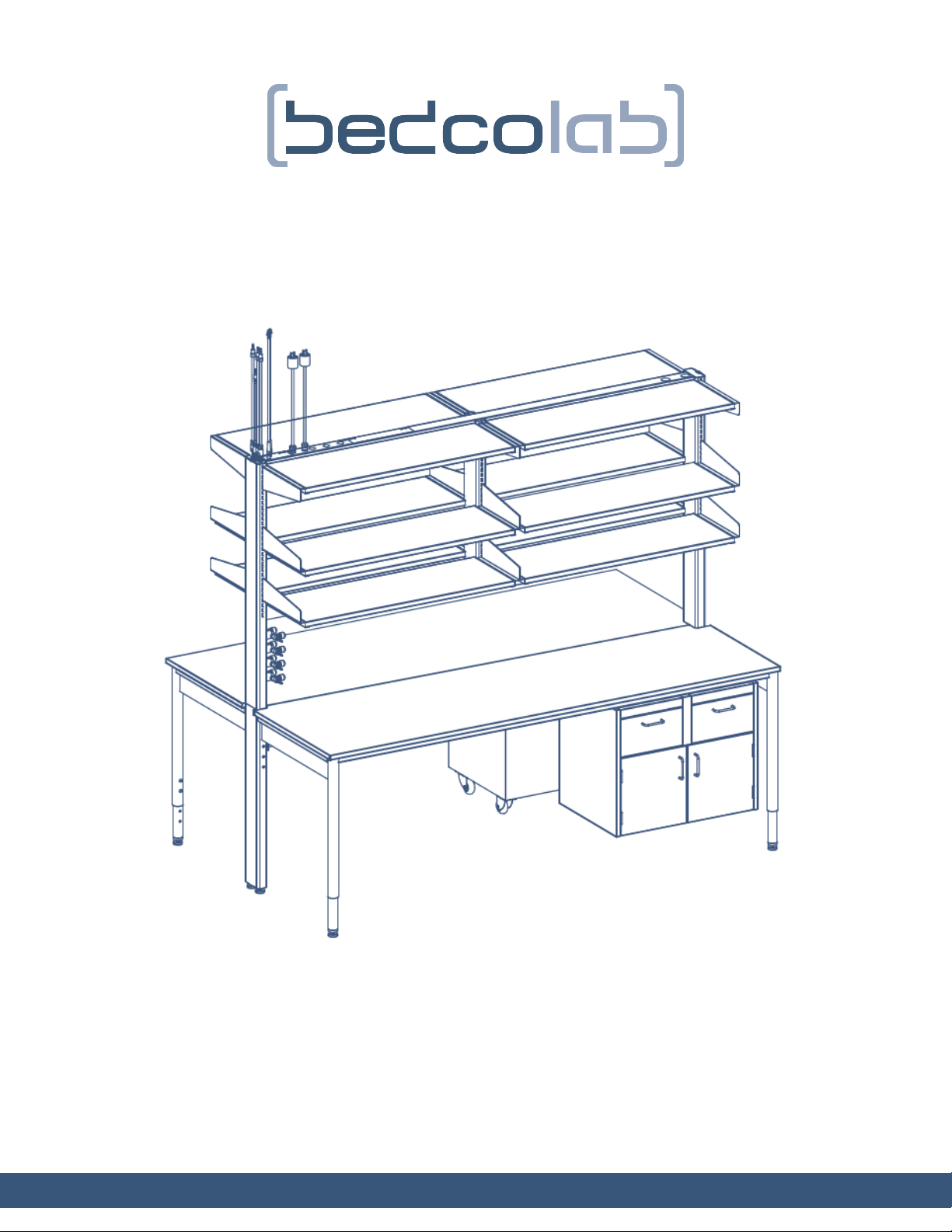

SYMPHONY II TABLE SYSTEM
OPERATION AND MAINTENANCE MANUAL
Designed to offer maximum lab work efficiency

OPERATION AND MAINTENANCE MANUAL
SYMPHONY II TABLE SYSTEM
www.bedcolab.com
00000239
BASIC MAINTENANCE
Your steel laboratory table system components are manufactured with a chemical resistant powder
coating that is designed to withstand most of the standard chemicals used in a laboratory
environment. However, prolonged exposure may cause fading or discoloration. To assure that your
new casework keeps similar appearance for years, regularly clean all surfaces.
Clean up liquid spills immediately within the hour.
All exterior surfaces should be wiped regularly with glass cleaner or a solution of water and mild
dish soap. It is important to make sure that this cleaner is compatible with any other chemicals
within the laboratory. Any scratches or surface damages should immediately be touch-up to avoid
corrosion of the exposed metal. Never use abrasive material or steel wool since it might scratch
the finish.
The counter top surfaces can also be cleaned the same way. It is important to immediately wipe
any chemical spillage that may occur and rinse the surface with water. To bring the original luster
back, generously apply lemon oil with a gentle cloth and remove excess.
A meticulous examination of the electrical cables, plumbing hoses and connectors should be
accomplished at least once a year.
Stainless steel components and countertops should be cleaned with stainless steel cleaner. Wipe
only in the direction of the grain to avoid scratching the surface.
Touch-up Paint
For more information about touch-up paint, please get in touch with your local supplier or directly
with the Bedcolab/Bedco after sales service representatives.

OPERATION AND MAINTENANCE MANUAL
SYMPHONY II TABLE SYSTEM
www.bedcolab.com
00000239
BASIC SAFETY
Read all instructions before using the table system. When using an electrical furnishing, basic
precautions should always be followed, including the following:
DANGER –To reduce the risk of electric shock:
1. Always unplug the table system from the electrical outlet before cleaning.
2. The table may contain more than one power cord. Unplug all cords before moving or
servicing.
3. Position table close enough to receptacle such that an extension cord is not needed.
4. Never drop or insert any object into any openings.
WARNING –To reduce the risk of burns, fire, electric shock, or injury to persons:
1. Unplug from outlet(s) before putting on or taking off parts.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or
disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use
attachments not recommended by Bedcolab Ltd.
4. Never operate this furnishing if it has a damaged cord or plug or if it is not working properly.
5. Keep the cord(s) away from heated surfaces.
6. Do not use outdoors.
7. To disconnect, turn all controls to the off position, then remove plug(s) from the outlet(s).
8. Do not operate where aerosol (spray) products are being used.
WARNING –Risk of electrical shock –Connect the table to a properly grounded outlet only.
1. See grounding Instructions.
2. For loading always put heavier items at the bottom and not near the top in order to help
prevent the possibility of the furnishing tipping over.
3. Individual branch circuits are to be employed to supply power to the furnishing. See
“Connections Instructions”

OPERATION AND MAINTENANCE MANUAL
SYMPHONY II TABLE SYSTEM
www.bedcolab.com
00000239
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances.
DANGER –Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the product –if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Electrical Diagram:
There is a sticker applied to the top portion of the access panel which indicates “Electrical
diagram”
This white background label is located inside one of the
uprights.
**The diagram shown below must only be used as an
example.
CONNECTIONS INSTRUCTIONS
The table is delivered with all the electrical components in place and pre-wired to one (or
more) flexible cord with a plug connector on the top of one of the core uprights. The table is
listed by Intertek to UL 962. The electrical connections must only be done to the ceiling panel
female fitting supplied with the tables as a complete system.
This product is rated more than 15 amperes and is for use on a circuit having a nominal
rating of 120 volts or more and is factory equipped with a specific electric cord and plug to
permit connection to a proper electric circuit. Make sure that the product is connected to an
outlet having the same configuration as the plug. No adaptor should be used with this
product. If the product must be reconnected for use on a different type of electric circuit,
the reconnection should be made by qualified service personnel.

OPERATION AND MAINTENANCE MANUAL
SYMPHONY II TABLE SYSTEM
www.bedcolab.com
00000239
BASIC USE
The Symphony 2 Modular Bench System is the ultimate in adaptable laboratory furniture offering a
stable platform with the most complete mobility and flexibility to meet the challenges facing today’s
laboratories.
In addition to easily adjustable work surface and shelving heights, this stand-alone modular table
assembly can be conveniently converted from single unit for wall type applications to double bench
island configuration and vice versa.
The Symphony II Tables are designed and manufactured under the United States Patent No.
D739,554 and the Canadian Patent No. CA2,865,076. The fully integrated plumbing and electrical
services, using quick disconnect fixtures mounted to flexible hoses, allows to quickly and
economically reconfiguring the lab layout at the owner’s discretion.
SYMPHONY TABLE USE
1. The electrical raceway and optional under-counter leg mounted outlets are pre-wired in
the table core structure and connected with a flexible conduit and connector to be
plugged to the ceiling panel female fittings.
2. All plumbing fixtures for water, gas, air, vacuum or other services (optional), are supplied
with the outlets on one of the core structure uprights and pre-piped inside the upright to
quick connect fixtures located on top of the upright. Flexible hoses with quick disconnect
fittings are servicing the tables to the ceiling panel female fittings. The plumbing servicing
can be done through the access panels located on the exterior side of each upright by
unfastening the screw located on top of the access panel and lifting up the panel.
3. The plumbing fixtures are identified by colour codes and letter(s) identifications on the
control handles. Each quick disconnect fitting will only fit the same service female adapter
on the ceiling panel.

OPERATION AND MAINTENANCE MANUAL
SYMPHONY II TABLE SYSTEM
www.bedcolab.com
00000239
INFORMATION LABELS LOCATION ON THE TABLE
Table Identification
This black background label is located on the interior side of one upright under the work surface
and indicates the UL approval for Canada and United States. The label also indicates the following
information:
Manufacture’s name
Model #
Serial #
Fabrication date
Electrical rating (Volts, Amps, Hz)
“Warning”
“Risk of electric shock”
Bedcolab’s Patent label
A black background label located right under the “Hood Identification” label indicates the Bedcolab
U.S. Patent No. D739,554 and the Bedcolab Canadian Patent No. CA2,865,076 that cover the
Symphony II system.
LOAD RATING
The table has been designed and tested to meet the following weight loads. The table has
been tested by UL 962 Standards to 4 times the following claimed load capacity.
Work Surface: 125 pounds per linear foot to a maximum of 600 pounds
Shelves with a 12” depth or less: 40 pounds per linear foot to a maximum total weight of 150
pounds per shelf.
Shelves with depth over 12” up to 15”: 40 lbs per linear foot to a maximum total weight of 88
pounds per shelf.

OPERATION AND MAINTENANCE MANUAL
SYMPHONY II TABLE SYSTEM
www.bedcolab.com
00000239
TECHNICAL SERVICES
If you require any additional information, please contact the following addresses for prompt
responses.
Supplier and distributor
Bedcolab Ltd
2305 Francis-Hughes Avenue
Laval, Quebec, Canada
H7S 1N5
Telephone: [phone] or 1-800-461-6414
Fax: [phone]
Web site: www.bedcolab.com
Email address: [e-mail]
Manufacturer
Bedco, division of Gerodon Canada Inc.
2305 Francis-Hughes Avenue
Laval, Quebec, Canada
H7S 1N5
Telephone: [phone] or 1-800-461-6414
Fax: [phone]
