Beef Eater BS27300 User manual

AUSTRALIA / NEW ZEALAND
Assembly and Operating Instructions RANGEHOOD
BS27300

2
CONTENTS
Thank you for purchasing an Beefeater cooker hood. You’ve
chosen a product that brings with it decades of professional
experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it,
you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Beefeater.
BEFORE USING YOUR APPLIANCE
Before you use the cooker hood, we recommend that
you read through the relevant sections of this manual,
which provides the description of your appliance and
its functions.
To avoid the risks that are always present when you use
an appliance, it is important that the appliance is installed
correctly and that you read the safety instructions carefully
to avoid misuse and hazards.
We recommend that you keep this instruction booklet for
future reference and pass it on to any future owners.
After unpacking the appliance please check it is not
damaged. If in doubt, do not use the appliance but
contact your local customer care centre.
CONDITIONS OF USE
This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments
• Farm houses
• By clients in hotels, motels and other residential
type environments
• Bed and breakfast type environments.
IMPORTANT!
Check for any damages or marks.
If you find the cooker hood is damaged or marked, you
must report it within 7 days if you wish to claim for
damage/marks under the manufacturer’s warranty.
This does not affect your statutory rights.
Record model and serial number here:
Model:
Serial No:
Important safety instructions ....................................................... 3
Product description ......................................................................4
Installation ....................................................................................5
Cooker hood installation .............................................................. 6
Using the cooker hood .................................................................5
Maintenance and cleaning ...........................................................9

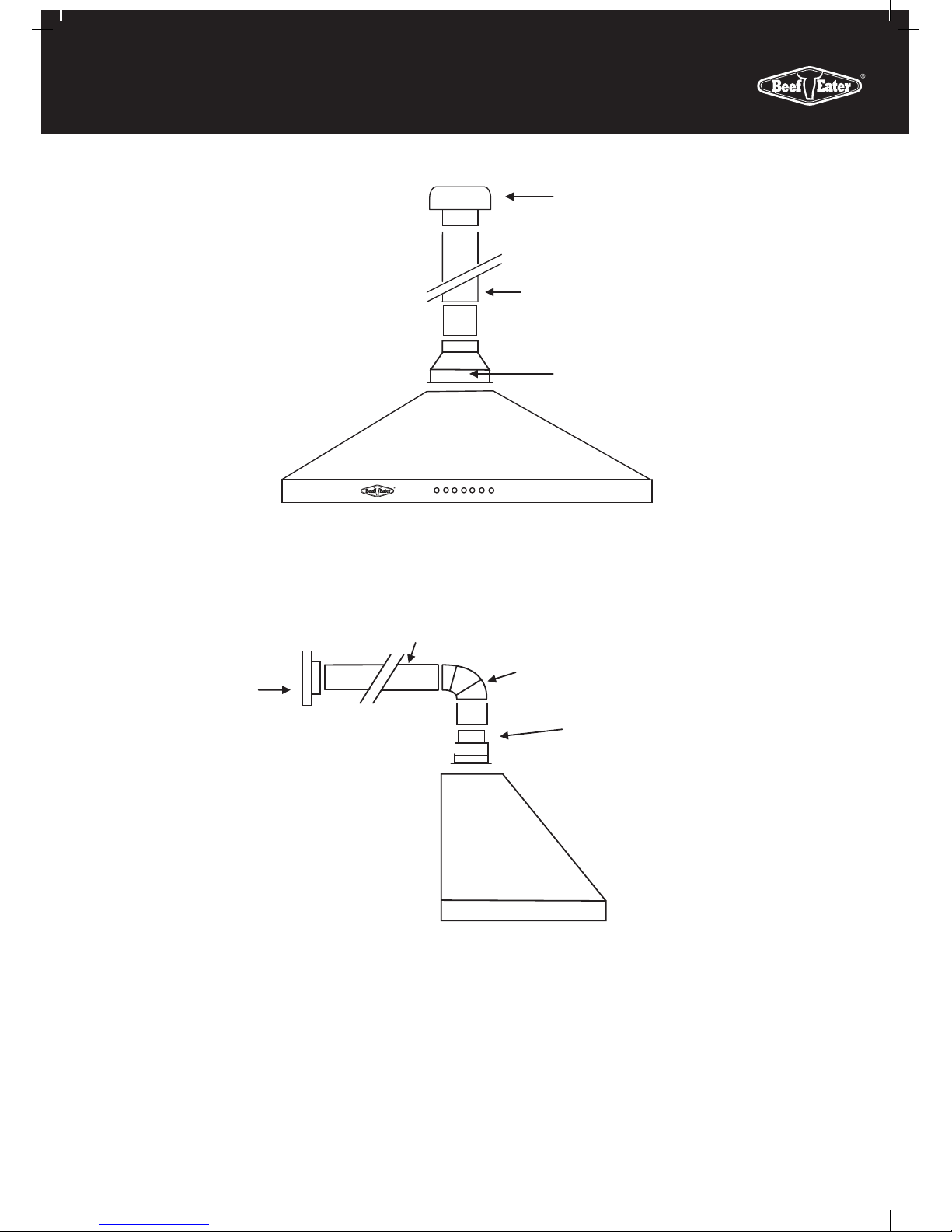

Typical installations showing accessory applications ............... 11
Accessories ................................................................................. 12
Notes .......................................................................................... 13
Warranty...................................................................................... 15
SYMBOLS
WARNING!
This symbol indicates information concerning your
personal safety.
CAUTION!
This symbol indicates information on how to avoid
damaging the appliance.
IMPORTANT!
This symbol indicates tips and information about use of the
appliance.
ENVIRONMENT!
This symbol indicates tips and information about
economical and ecological use of the appliance.
INFORMATION ON DISPOSAL
FOR USERS
ENVIRONMENT!
Most of the packing materials are recyclable. Please
dispose of those materials marked with the recycle symbol
through your local recycling depot or by placing them in
appropriate collection containers.
If you wish to discard this product, please contact your local
authorities and ask for the correct method of disposal.
CONTENTSCONGRATULATIONS

3SAFETY
This manual explains the proper use of your new Beefeater
canopy cooker hood. Please read this manual carefully
before using the product. This manual should be kept in
a safe place for handy reference.
This cooker hood is a domestic appliance which has been
manufactured and tested to comply with Australian and
New Zealand Standard AS/NZS 60335.2.31
WARNING!
Follow these instructions carefully to avoid an electric
shock or fire.
• Young children should be supervised to ensure they do
not play with the canopy rangehood.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a
person responsible for their safety.
• Ensure the canopy rangehood is switched off before
carrying out maintenance, to avoid any possibility of
electric shock.
• Never carry out flambé cooking under the canopy
rangehood.
• This canopy rangehood is recommended for
barbecues when installed according to AS/NZS5601.
• This canopy rangehood can be installed for outdoor
use if in a sheltered location that protects the
appliance from the weather.
• The exhaust from the canopy rangehood must not
be discharged into any heating flue, which may carry

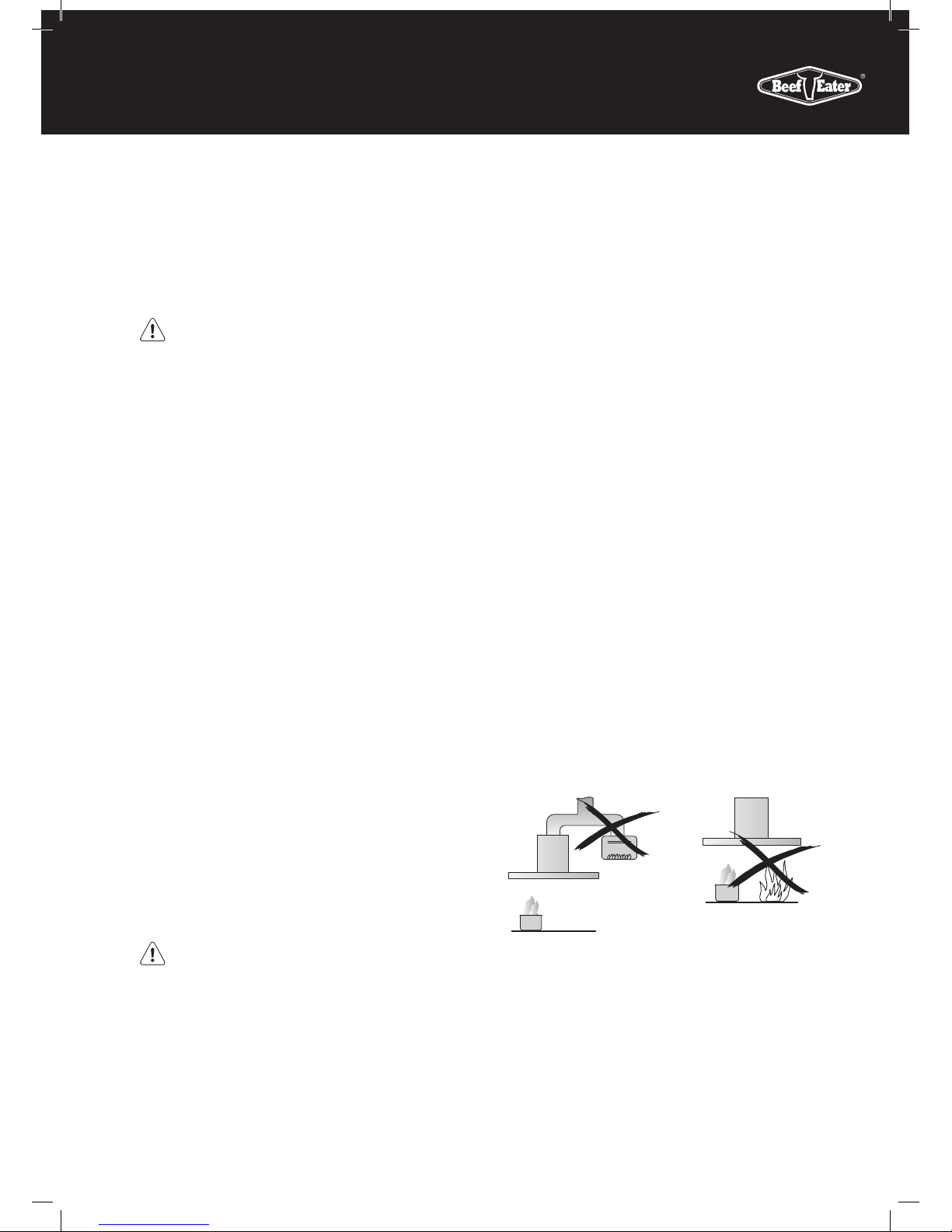

combustion products from other sources. (Fig. 1)
• Exhaust air must not be discharged into a wall cavity,
unless the cavity is designed for the purpose.
• There must be adequate ventilation of the room when
the canopy rangehood is used at the same time as
appliances burning gas or other fuels.
• Always cover lit gas burners with pots or pans when
canopy rangehood is in use.
• Always switch off gas burners before you remove pots
or pans.
• Do not leave lit gas burners exposed due to the risk of
fire. (Fig. 2)
WARNING!
Accessible parts may become hot when used with cooking
appliances.
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL CONNECTION
Check that the mains voltage matches with the voltage on
the data plate inside the canopy cooker hood. Check that the
installation complies with standards of local building, gas
and electrical authorities. Before connecting to the mains
supply ensure that the mains voltage corresponds to the
voltage on the rating plate inside the cooker hood.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or similarly qualified
person in order to avoid a hazard.
SAFETY WARNINGS – FOR THE INSTALLER
When installing the cooker hood, make sure you adhere
to the minimum and maximum distances from the cooker
hood base to the hob or barbecue surface (as per table in
“Installation” section).
EXHAUST FLUE INSTALLATION
The following rules must be strictly followed to obtain
optimal air extraction.
• Keep exhaust flue short and straight
• Do not reduce the size or restrict exhaust flue
• Keep bends in the exhaust flue to a minimum
• When using flexible flue always install duct with helix
pulled taut to minimise pressure loss
• Failure to observe these basic instructions will
drastically reduce the performance and increase the
noise levels of the cooker hood.
NOTE: Some installations may require the exhaust cover
to be cut to length. If required, cut with sharp tin snips or a
fine-tooth hack saw blade, taking care not to distort or dent
the exhaust cover.
Fig. 1 Fig. 2
IMPORTANT SAFETY INSTRUCTIONS

4PRODUCT DESCRIPTION
Technical Specification
• Power supply: 220-240Vac 50Hz.
Connects to 10A power point
• Motors:
2 x 300 Watts
• Lights:
4 x 20 watt, 12 volts halogen (G4type)
Additional items required for installation
• Worm drive clamps, Duct tape or cable ties
• Ducting accessories.

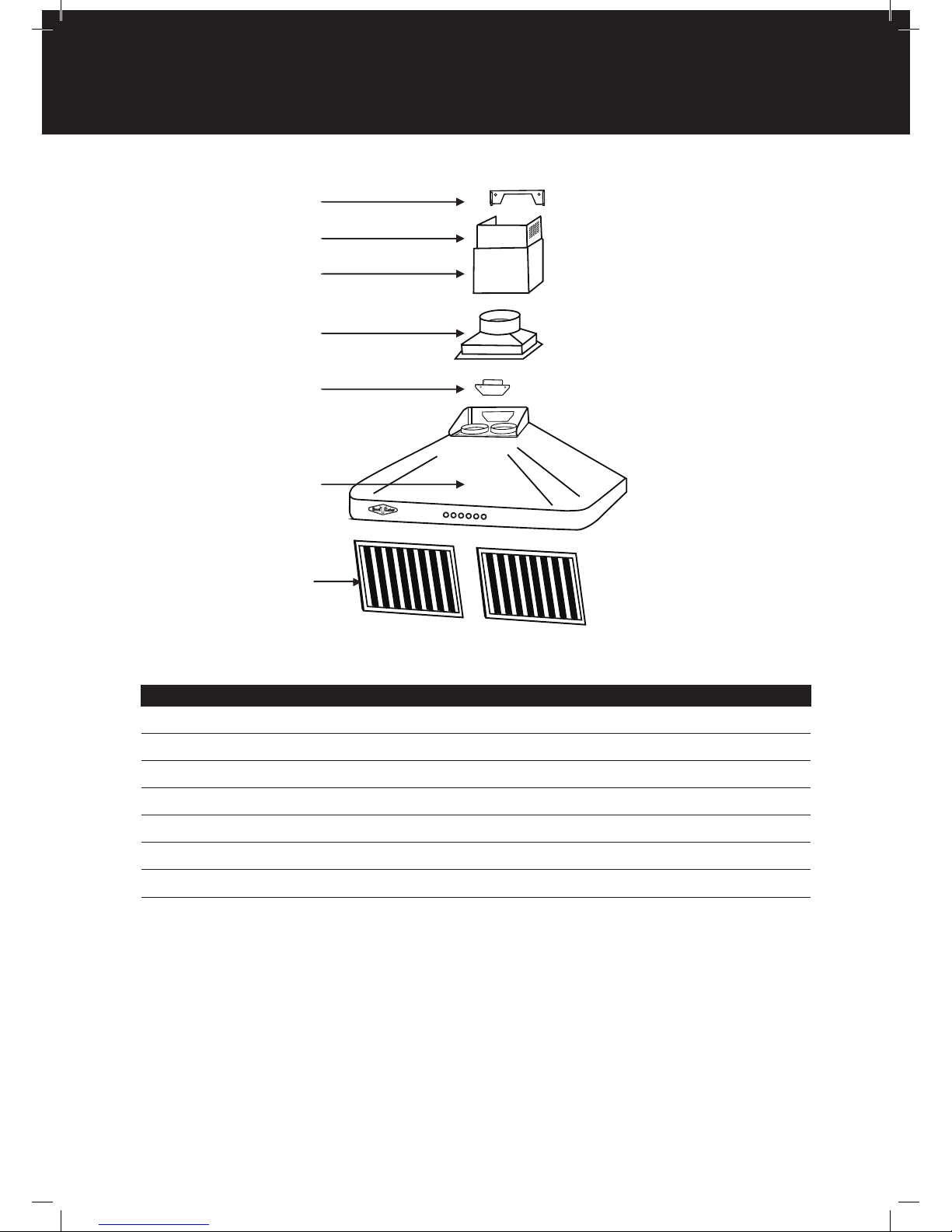

PRODUCT DESCRIPTION
PART
1Main body and fan assemblies 2 fans
2Grease filters 2
3Exhaust transition 1
4Hood on the mounting bracket 1
5Lower flue cover 1 (318mm)
6Upper flue cover 1 (450mm)
7Flue cover mounting bracket 1
Components list
2
1
4
3
5
6
7

5INSTALLATION
380mm
300mm
630mm
1219mm
610mm
464mm
320mm
63.5mm
min 760mm – max 1070mm
Additional items required for installation
• Worm drive clamps, Duct tape or cable ties
• Ducting accessories.

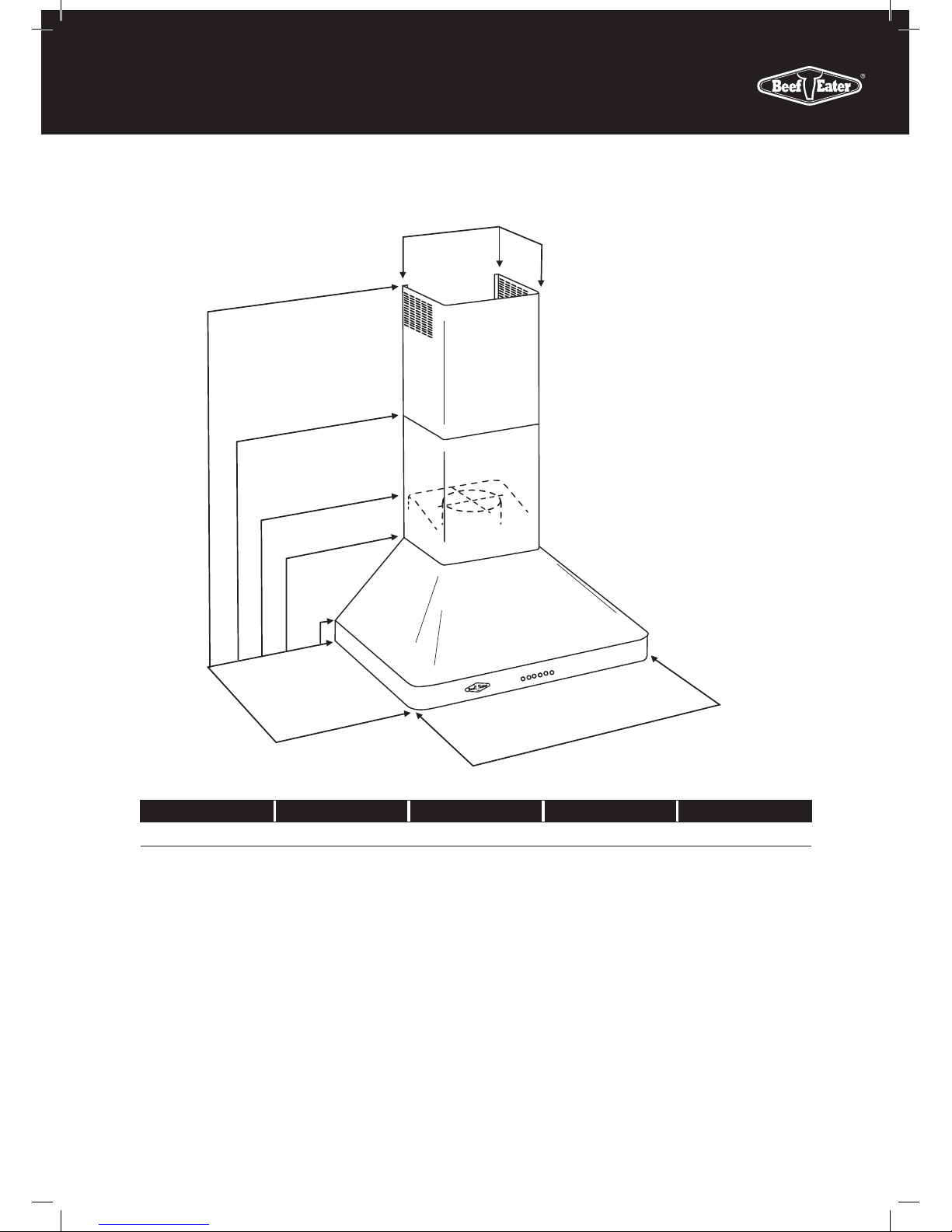

Dimensions
INSTALLATION
MODEL WIDTH HEIGHT DEPTH WEIGHT
BS27300 1219mm 320mm 610mm 48kg

2. Mark the location for the wall mounting points and
the flue cover mounting bracket.
3. Install suitable screws for cooker hood mounting
bracket (screws and wall plugs provided are suitable for
attachment to masonry structure for other structures
use suitable screws/plugs to support a total weight of
50kg).
Attach the flue cover mounting bracket to the wall and/
or ceiling.
6COOKER HOOD INSTALLATION
WARNING!
Failure to install the screws or fixing device
in accordance with these instructions may
result in electrical hazards.
COOKER HOOD INSTALLATION

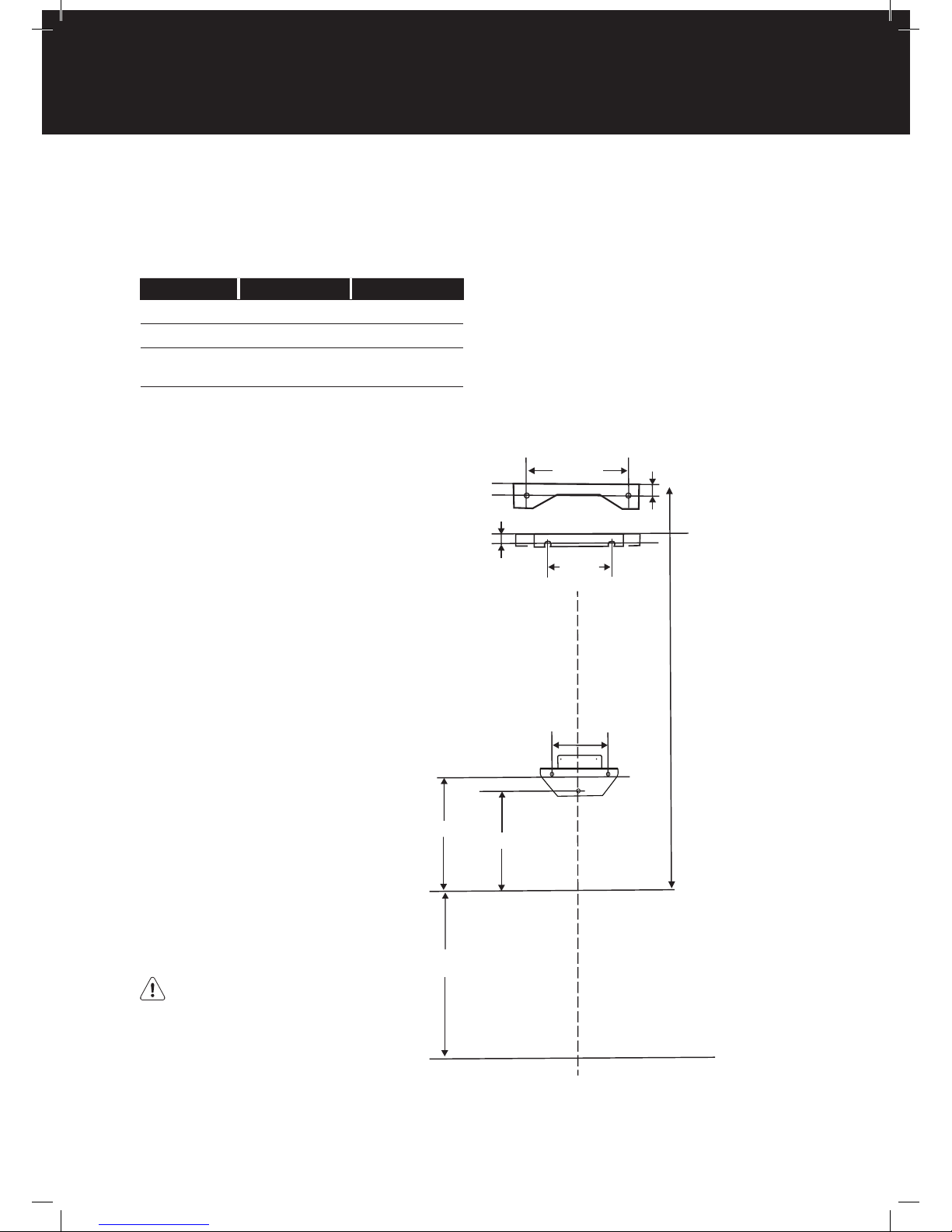

330mm
373mm
343mm
130mm
300mm
ceiling/bulkhead
wall fixing
ceiling fixing
wall
underside of
hood
top of cooker
surface
centreline of
cooker
installation
height
1079mm Max
760mm Min
7.5mm
40mm
1. Using a spirit level mark a vertical centre line on the
wall where the cooker hood is to be positioned, and a
horizontal line at the hood base position.
NOTE: See table below for the minimum and maximum
height of the underside of cooker hood.
COOKER TYPE MINIMUM HEIGHT* MAXIMUM HEIGHT*
Electric hob 600 mm 1200mm
Gas hob 650 mm 1200mm
Gas BBQ
open grill** 1200mm 1200mm
* If the instructions of the hob specify a greater distance
than the minimum above, then that shall be the minimum
height for installation.
** Installation height as specified in AS/NZS 5601
clause 6.10.1.7

7COOKER HOOD INSTALLATION

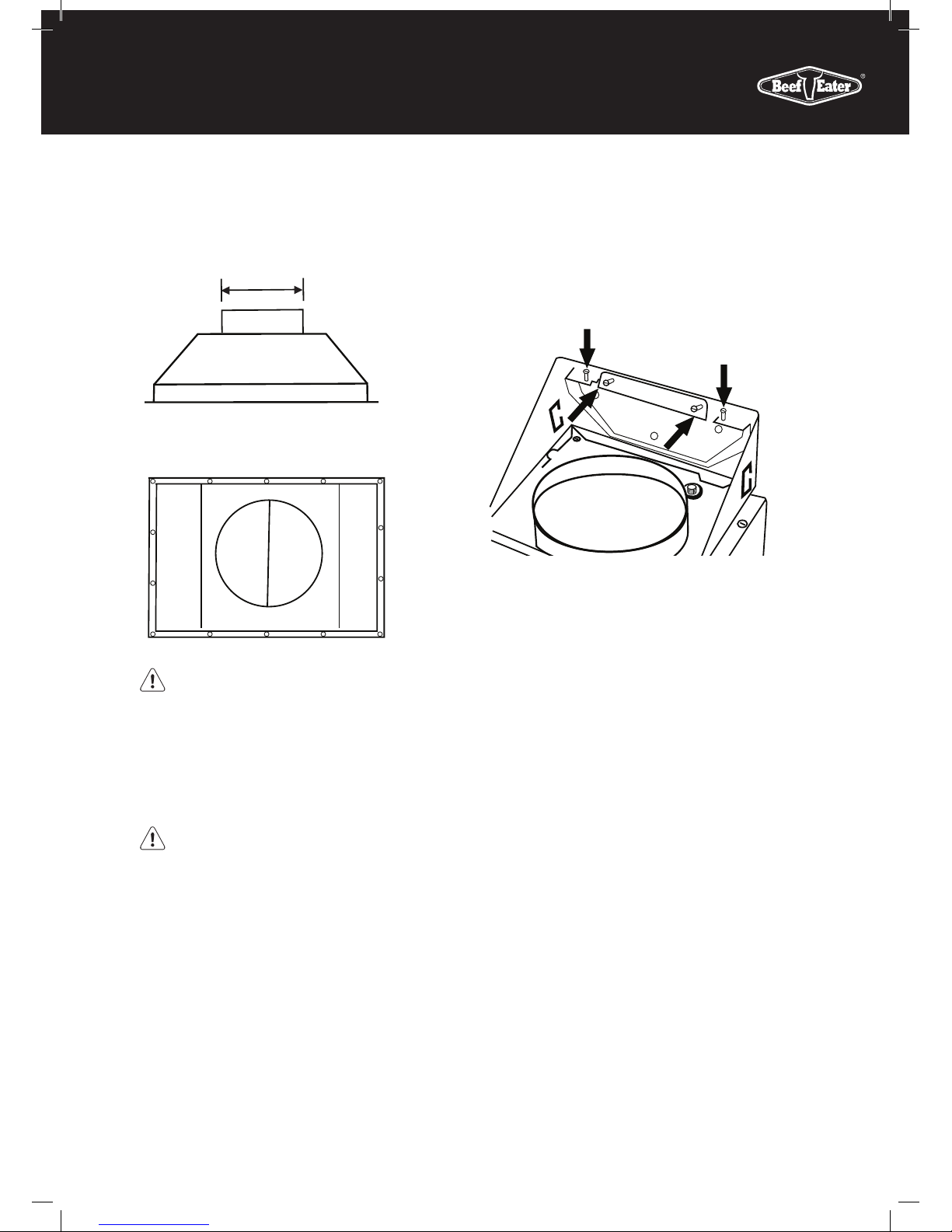

4. If required, fix the exhaust transition duct using the
screws supplied, prior to installing the cooker hood
into position (Fig.D).
Transition piece
200
Transition piece
Screw holes (14 places)
200
WARNING!
Use screws provided to secure transition piece at
preformed holes. Using alternate screws and hole
locations may cause an electrical safety risk.
5. Hang hood on the mounting bracket. The rangehood
should sit squarely onto the wall brasket.
The two top holes of the bracket are to lock the
rangehood into position once it is in place.
WARNING!
Due to product weight, take appropriate measures to lift
and position the product to avoid injury.
6. Make fine adjustments and lock the rangehood
into position
Use the vertical screws on the rangehood to make
fine adjustments to the rangehood to ensure that the
rangehoods is perfect horizontal.
Screw the two horizontal screws in the wall bracket
all the way in to secure the rangehood and ensure it
cannot be accidentally dislodged.
200
7. Non-combustible rigid on flexible flue pipe is to be used
for exhausting the hood.
Use worm drive clamps, cable ties or suitable duct tape to
secure flexible pipe to the transition duct.
NOTE: We recommend extending flue pipe through the roof
to external roof cowl to vent exhaust externally.
We do not recommend venting into ceiling cavity.
To ensure optimum performance of the cooker hood, the
use of 2 x 150mm or 1 x 200 mm diameter rigid ducting is
recommended. The use of bends should be avoided.
Rigid flexible ducting is suitable, although loose flexible
ducting is unacceptable. All ducting must be fire retardant.
Electrical connection
Check that the installation complies with the standards
of local building, gas and electrical authorities. Before
connecting to the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate
inside the cooker hood.
COOKER HOOD INSTALLATION

8USING THE COOKER HOOD
Timer off
At the end of cooking if the timer is activated, the cooker
hood will continue to run for an additional 10 minutes
to remove any odours that remain at the completion of
cooking.
NOTE: If lamps are on when timer function is used, the
lamps will also switch off.
When the timer function is activated the “ Timer ” button
indicator will flash continuously. To deactivate the timer,
press the timer button again.
Lamp
Press the ‘lamp’ symbol to turn the lamp ON. The second
press will turn the lamps OFF.
Speed 1 – suitable for light frying and light barbecuing.
Speed 2 – suitable for frying, wok cooking and barbecuing.
Speed 3 – suitable for intensive frying, intensive wok
cooking and barbecuing.
Speed 4 – suitable for very smoky cooking and/ or to
clear smoke from an area that has a build up
of smoke.
WARNING!
The cooker hood is not intended for continuous use over
barbecues with lit burners, without cooking in progress.
2
13 4
1 Lamp on/off
2 Fan on/off, speed 1
3 Speed 2
4 Speed 3
5 Speed 4 (maximum)
6 Timer off
1 2 3 4 5 6
Control operation
USING THE COOKER HOOD

9MAINTENANCE AND CLEANING
WARNING!
Before maintenance or cleaning is carried out,
the canopy cooker hood should be disconnected from
the main power supply. Ensure that the cooker hood is
switched off at the wall socket and the plug removed.
WARNING!
External surfaces are susceptible to scratches and
abrasions, so please follow the cleaning instructions
to ensure the best possible result is achieved without
damage.
Stainless steel surface
These instructions must be followed to avoid a fire risk.
Clean stainless steel surfaces using non-abrasive cleaning
products that are specifically for use on stainless steel.
To ensure best results also use an even pressure and follow
the grain of the stainless steel. Use of a soft cloth reduces
the risk of scratching. If the cloth is wet ensure that a dry
soft cloth is used to wipe down the surface again reducing
the risk of any surface rust appearing.
Cleaning grease filters
The filters can be cleaned by hand or dishwasher. After
cleaning ensure the filters are completely dry before
refitting. Grease filters must be removed every four weeks
(maximum) for cleaning to reduce the risk of fire.
• By hand - Soak in warm water and some washing up
liquid. For stubborn grease stains use a soft nylon
brush to help remove these stains.
• In a dishwasher - Ensure that placement of the
filters is made so as to not impede the function of
the dishwasher spray arm. Washing the filters in
a dishwasher may cause discolouration over time
although it will not effect their performance. Filters
should be washed separately to crockery and other
kitchen utensils.

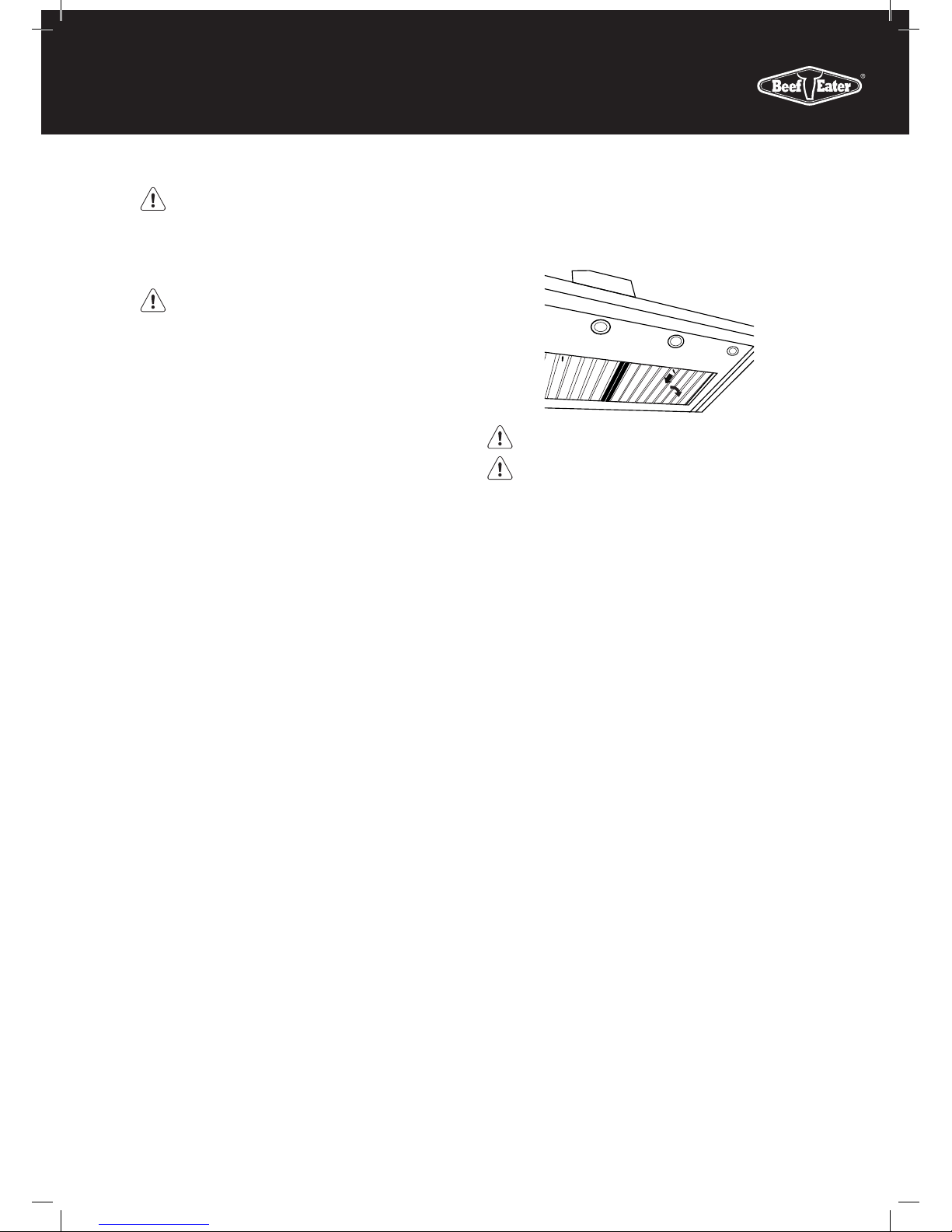

Removing filters
Remove filters by pushing the knob to the rear of the hood
and lowering the front and then once out, pulling towards
you until the rear of the filter comes out of the frame.
Do not use the cooker hood without filters installed.
Do not clean the canopy cooker hood with water
using a hose or high pressure cleaner.
MAINTENANCE AND CLEANING

10 MAINTENANCE AND CLEANING
Changing the halogen lamps
WARNING!
Ensure lamp is cool before removing.
Using a small flat blade screw driver remove the inner
stainless steel ring to obtain access to the halogen globe.
When removing the inner ring, do so carefully, as the glass
lense could easily fall out of the inner ring. Remove the
halogen globe, whilst cool, and replace carefully with
a new globe.
The cooker hood has 4 x 20W, 12 volt halogen globes.
IMPORTANT!
When handling globes hold with a cloth or gloves to
ensure perspiration does not come into contact with
a globe as this can reduce the life of the globe.
Troubleshooting guide
PROBLEM REMEDY
The cooker hood will not start • Check that cooker hood is connected to an electrical supply.
• Check that a fan speed has been selected.
The cooker hood is not working • Check that fan speed is high enough for the task.
• The grease filters are clean.
• The kitchen is adequately vented to allow entry of fresh air.
• Check ducting and outlets are not blocked.
The cooker hood has switched off during
operation
• The safety device may have tripped – turn off the cooking appliance
and wait for the device to reset. If the hood is installed below the
heights indicated in the installation instructions the motor will cut out
frequently which will damage the cooker hood.
If you have completed all of the above checks and are
still experiencing difficulty, please contact your local
Electrolux Service Centre.
MAINTENANCE AND CLEANING

11TYPICAL INSTALLATIONS SHOWING ACCESSORY APPLICATIONS
TYPICAL INSTALLATIONS SHOWING ACCESSORY APPLICATIONS
ROOF COWL ACCESSORY
90O ELBOW ACCESSORY
TRANSITION*
TRANSITION*
Rear Front
FLUE (extension may be
required, depending on
installation)
Some installations may require
a vertical discharge cowl.
FLUE (extension may be required,
depending on installation)
Wall Vent

12 ACCESSORIES (150MM)
ACCESSORIES
1
56 7
2 3 4
ITEM PART NUMBERS (200MM) PART NUMBERS (150MM)
1. Flue joiner AR200FJ AR150FJ
2. 90° Elbow AR200E AR150E
3. Wall vent AR200WV AR150WV
4. Worm drive clamp AR200WC AR150WC
5. Semi rigid flexible flue AR200FD AR150FD
6. Rigid flue AR200F AR150F
7. Roof cowl AR200RC AR150RC
NOTE: Accessories are to be purchased separately.

13NOTES
NOTES

14 NOTES
NOTES

This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place for
future reference should you require service for your Appliance.
1. In this warranty:
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has the
same meaning referred to in the ACL;
(b) ‘ACL’ means Schedule 2 to the Competition and Consumer Act 2010;
(c) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(d) ‘ASC’ means Electrolux authorised service centres;
(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163
O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect
of Appliances purchased in Australia and Electrolux (NZ) Limited
(collectively ‘Electrolux’) of 3-5 Niall Burgess Road, Mount Wellington,
in respect of Appliances purchased in New Zealand;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the same
meaning referred to in the ACL and includes a situation when an
Appliance cannot be repaired or it is uneconomic for Electrolux, at its
discretion, to repair an Appliance during the Warranty Period;
(g) ‘Warranty Period’ means the Appliance is warranted against
manufacturing defects in Australia for 24 months and in New Zealand
for 24 months, following the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having purchased the
Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia
or New Zealand and used in normal domestic applications and is in
addition to (and does not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia or New Zealand.
3. During the Warranty Period Electrolux or its ASC will, at no extra charge
if your Appliance is readily accessible for service, without special
equipment and subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Electrolux or its ASC may use
remanufactured parts to repair your Appliance. You agree that any replaced
Appliances or parts become the property of Electrolux. This warranty does
not apply to light globes, batteries, lters or similar perishable parts.
4. Parts and Appliances not supplied by Electrolux are not covered by
this warranty.
5. To the extent permitted by law, you will bear the cost of transportation,
travel and delivery of the Appliance to and from Electrolux or its ASC. If you
reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from
Electrolux or its ASC.
In all instances, unless the Appliance is transported by Electrolux or an
Electrolux authorised representative, the Appliance is transported at the
owner’s cost and risk while in transit to and from Electrolux or its ASC.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect claimed is
due to faulty or defective parts or workmanship. Electrolux is not liable in
the following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with
the Appliance;
(b) the Appliance is modied without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Electrolux, an authorised repairer or ASC.
8. This warranty, the contract to which it relates and the relationship between
you and Electrolux are governed by the law applicable where the Appliance
was purchased. Where the Appliance was purchased in New Zealand for
commercial purposes the Consumer Guarantee Act does not apply.
9. To the extent permitted by law and subject to your non-excludable statutory
rights and warranties, Electrolux excludes all warranties and liabilities
(other than as contained in this document) including liability for any loss or
damage whether direct or indirect arising from your purchase, use or non
use of the Appliance.
10. For Appliances and services provided by Electrolux in Australia,
the Appliances come with a guarantee by Electrolux that cannot be
excluded under the ACL. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the Appliance repaired or
replaced if the Appliance fails to be of acceptable quality and the failure
does not amount to a major failure.
The benets to you given by this warranty are in addition to your other
rights and remedies under a law in relation to the Appliances or services
to which the warranty relates.
11. At all times during the Warranty Period, Electrolux shall, at its discretion,
determine whether repair, replacement or refund will apply if an Appliance
has a valid warranty claim applicable to it.
12. For Appliances and services provided by Electrolux in New Zealand, the
Appliances come with a guarantee by Electrolux pursuant to the provisions
of the Consumer Guarantees Act, the Sale of Goods Act and the Fair
Trading Act.
13. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms
of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim, Electrolux and its ASC may
exchange information in relation to you to enable Electrolux to meet its
obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in clause 13 above have been followed.
FOR SERVICE
or to nd the address of your nearest
state service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
SERVICE AUSTRALIA
ELECTROLUX HOME PRODUCTS
electrolux.com.au
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call (Australia only)
FOR SERVICE
or to nd the address of your nearest
authorised service centre in New Zealand
FREE CALL 0800 10 66 10
(New Zealand only)
SERVICE NEW ZEALAND
ELECTROLUX (NZ) Limited
electrolux.co.nz
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in New Zealand
FREE CALL 0800 10 66 20
(New Zealand only)
GRH_Warr_Sep15
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: RANGEHOOD
15WARRANTY

AUSTRALIA
phone: [phone]
fax: [phone]
email: [e-mail]
web: beefeaterbbq.com
NEW ZEALAND
phone: [phone]
fax: [phone]
email: [e-mail]
web: beefeaterbbq.com
For more information on all Beefeater products, or for
dimension and installation information, call into your
retailer, phone or email our customer care team or visit
our website:
Beefeater. We are part of the Electrolux Family.
To add a touch of professional inspiration to
your home, visit electrolux.com.au
© 2016 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
BMAN_RHood_Jul16
