EVE HC-KRONOS-90 User manual

Cooker Hood
HC-KRONOS-90
Instruction Manual

Content
1…………………………………..………………………………Safety instructions
2…………………………………..………………………………Installation
3…………………………………..………………………………Start using your cooker hood
4…………………………………..………………………………Troubleshooting
5…………………………………..………………………………Maintenance and cleaning
6…………………………………..………………………………Environment protection

SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood,
please read it carefully before using even if you are familiar with the product.
The manual should be kept in a safe place for future reference.
Never to do:
●Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!

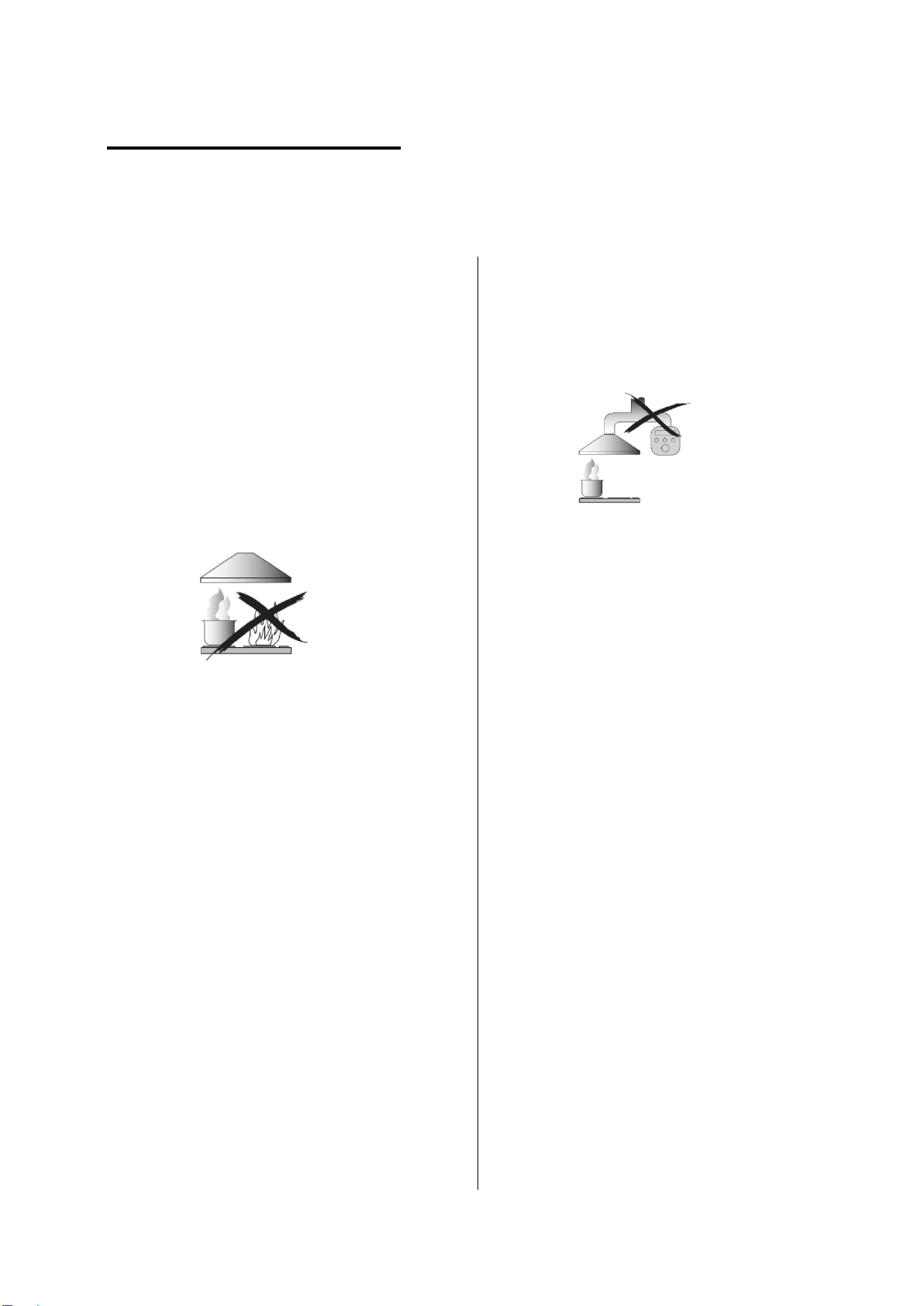

●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels. Range hoods and other cooking
fume extractors may adversely affect
the safe operation of appliances
burning gas or other fuels (including
those in other rooms) due to back flow
of combustion gases. These gases
can potentially result in carbon
monoxide poisoning. After installation
of a range hood or other cooking fume
extractor, the operation of open flued
gas appliances should be tested by a
competent person to ensure that back
flow of combustion gases does not
occur.
Always to do:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.

Always to do:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Always to do:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa(4 x 10-
5bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.

5
INSTALLATION (VENT OUTSIDE)

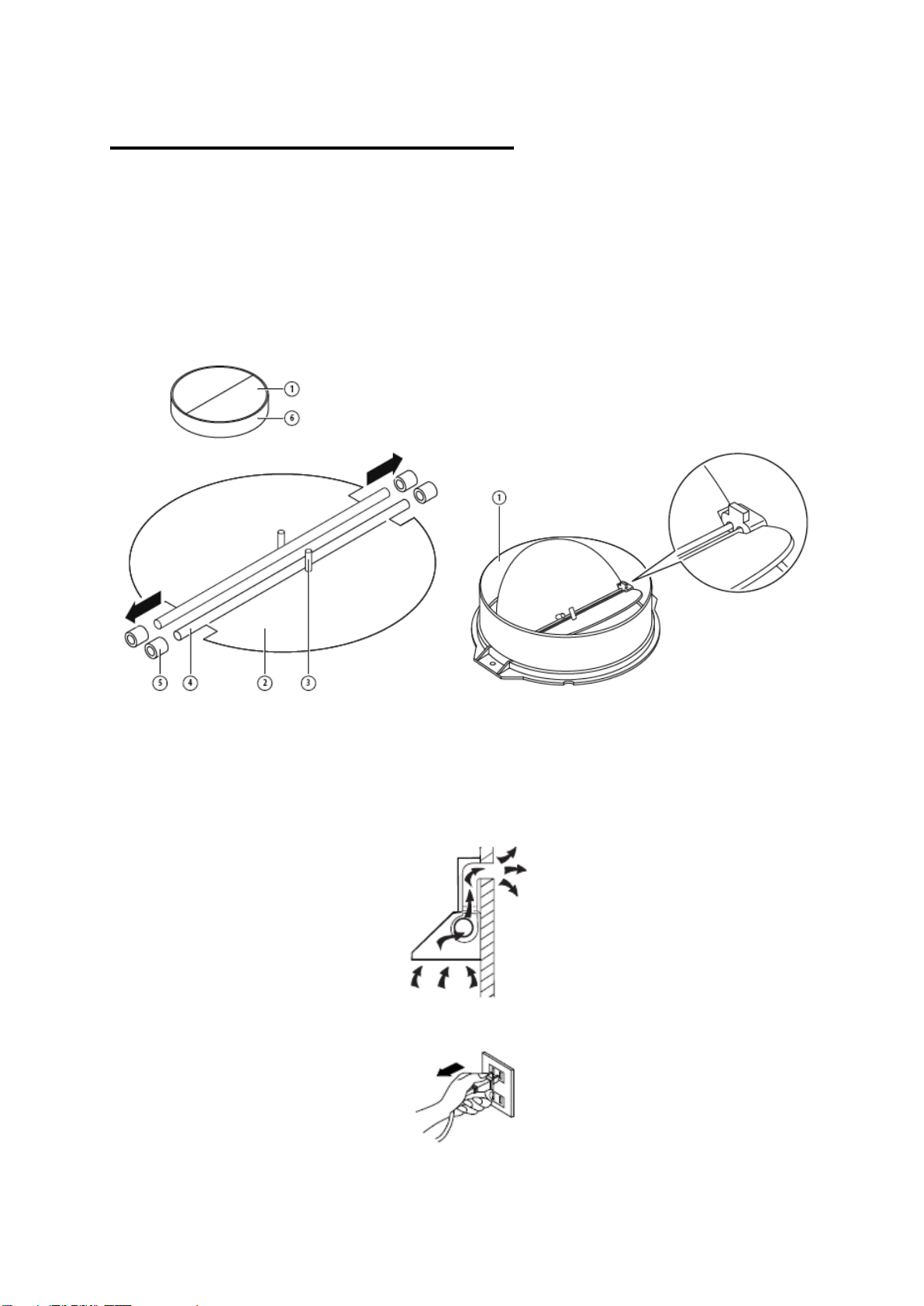

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body. The images only show an example of how to mount the V-flap,
because the outlet may vary according to different models and configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6;
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminium, flexible pipe or non-
flammable material with an interior diameter of 180mm)
1. Before installation, turn the unit off and unplug it from the outlet.

6

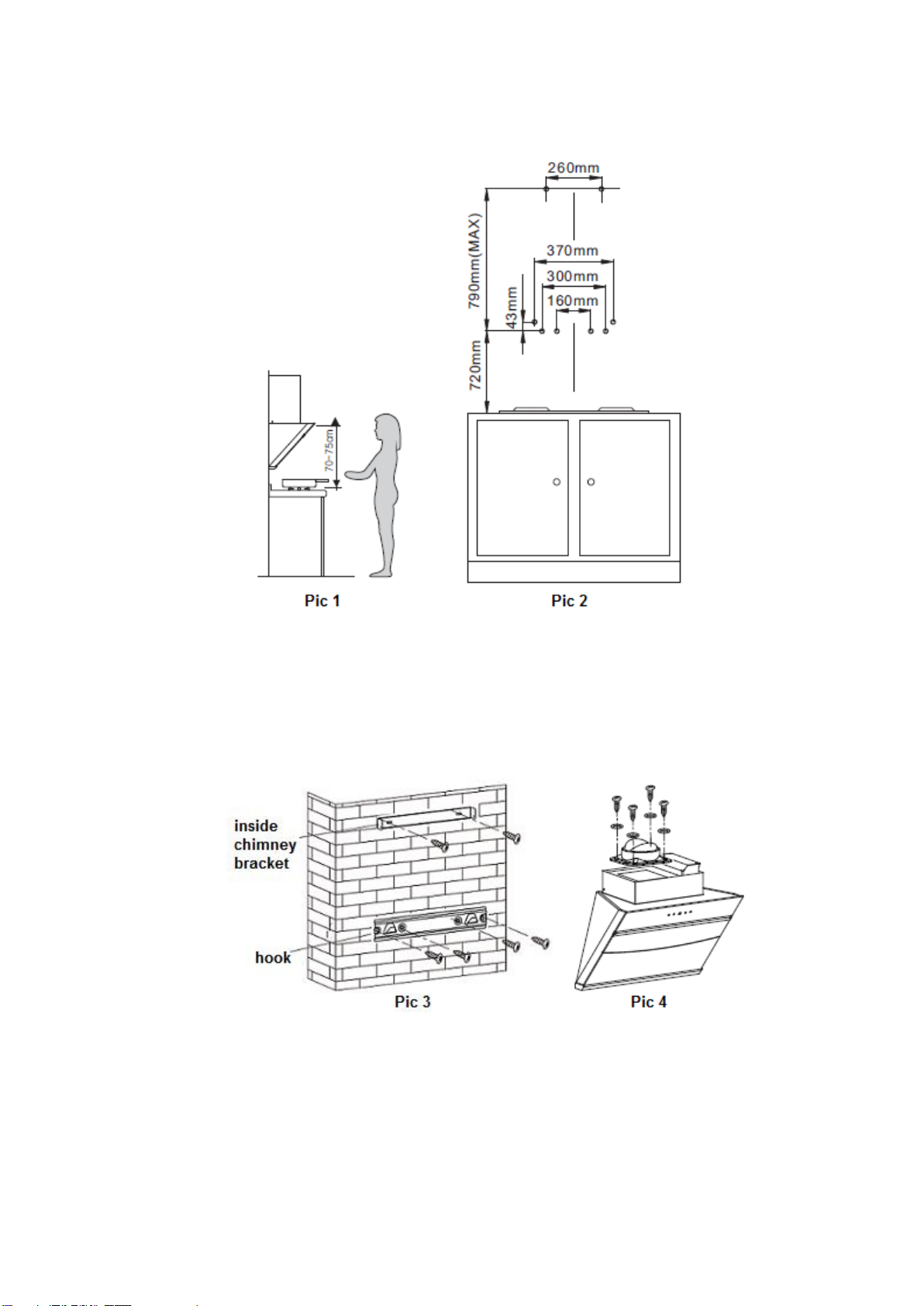

2. The cooker hood should be placed at a distance of 70~75cm above the cooking
surface for best effect. See pic 1.
3. After decide the cooker hood height, according to the center distance of the
mounting hole on the back of the hood, drill 8 Φ 8mm holes in the appropriate
horizontal position on the solid place on the wall. See pic 2.
4. Insert wall plugs in to the mounting holes. Fix the hook and the inside chimney
bracket on the wall with 6 pcs ST4×30mm screws. See pic 3.
5. Install the outlet on the hood with 4 pcs ST4×14mm screws and washers. See pic 4.
6. Hang the hood on the hook and make sure it is firmly placed. See pic 5.

7
7. Place the anti-tilt mounting hooks on both sides of the top surface of the hood,
screw in the 2 pcs ST4×30mm screws and lock them, and fix the hood to prevent
the hood from falling. See pic 6.
8. After putting one end of the expansion pipe into the joint, tighten the four screws on
the joint to fix the expansion pipe, see pic 7. Put the joint into the outlet and tighten
it clockwise, then lead it to the outdoor. See pic 8.
9. Place the chimneys in the appropriate position on the top of the hood and lock the
outside chimney with 2 pcs ST4×10mm screws. Lift the inside chimney to the
position of the inside chimney bracket, then fix it with 2 pcs ST4×10mm screws,
and finally insert the oil cup into the bottom of the hood. See pic 9.
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize
pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
•Do not connect the ducting system of the hood to any existing ventilation system

8
which is being used for any other appliance ,such as warmer tube, gas tube , hot wind
tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.
•After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
•Ensure the expansion pipe selected for installation complies with relevant standards
and is fire retardant.
WARNING:
➢For safety reason, please use only the same size
of fixing or mounting screws which are
recommended in this instruction manual.
➢Failure to install the screws or fixing device in
accordance with these instructions may result in
electrical hazards.
Start Using Your Cooker Hood
LED touch control
LED touch control has four buttons, see picture.
(Heat auto clean), (Lamp), (Speed), (Power),
1. Power-on: After connecting the cooker hood to the main supply, the indicator light
of all buttons will turn on. The LED display is closed .The cooker hood doesn’t work
and enter into stand-by mode.
2. (Power) button:
2.1 Press (Power) button, the front cover of the cooker hood will be opened. The
indicator light of this button will be on and the hood will work at low speed, and
the light will be on. The indicator light of the buttons (Speed) and (Lamp)

9
will be on. Press (Power) button again, the front cover of the cooker hood will
be closed. The indicator light of all buttons will be off and the cooker hood will be
turn off and return into stand-by mode. The speed button of the hood can only be
operated when the cover is opening.
2.2 If the front cover is open before power-on, the front cover will be retracted
automatically after power-on.
3. (Lamp) button:
3.1 Press (Lamp) button, the front cover of the cooker hood will be opened. The
indicator light of power button and lamp button as well as the lights will be on. Press
again, the indicator light of lamp button and the lights will be off. The above steps can
be operated repeatedly.
4. (Speed) button:
The cooker hood has three speed levels ,they are low,mid,high, and the corresponding
LED display will be “1”, “2”, “3”.
4.1 After switching on by the power button, the hood starts to work at low speed and
the LED display will display “1”.
4.2 Press (Speed) button again when it works at low speed, the cooker hood
works at mid speed and the LED display will display “2”.
4.3 Press (Speed) button again when it works at mid speed, the cooker hood at
high speed and the LED display will display “3”
4.5 During the working, you can touch (Speed) button to change the speed
circularly: “low→mid→high→low→mid……”
5. (Heat auto clean) button: This function works by attaching the warmer pad of
metal housing to heat up the inside of the housing so that the residual oil inside drips
from the leaking hole to the oil cup.
5.1 Press the heat auto clean button once, indicator light will light up. And the heat
auto clean function is activated. Press this button again will exit the function, indicator
light will be off. The above steps can be repeated operating. The heat auto clean
function of the hood can only be operated when the cover is opening.
5.2 When the hood is working, the heat auto clean function is started and the manual
working state is automatically exited. When is operated manually ,the heat auto clean
function will automatically exit.
5.3 Every time when the heat auto clean function is activated: the hood will heat up for
9mins first, then stop heating automatically. The motor will work at high speed for 60
seconds and then switch off. Meanwhile, the hood will exit heat auto clean function
and indicator light will be off.

10
TROUBLESHOOTING
Fault
Possible Cause
Solution
Light on, but motor
does not work
Fan switch turned off
Select a fan switch position.
Fan switch failed
Contact service center.
Motor failed
Contact service center.
Light does not
work, motor does
not work
House fuses blown
Reset/Replace fuses.
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection of
chimney and cover
Take chimney down and seal.
Lights not working
Broken or faulty bulbs
Replace bulbs as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines
The fixing screw is not tight
enough
Tighten the hanging screw and
make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws. Please contact the service centre if in any doubt before
undertaking any of the above. Always disconnect the unit from the power source when
opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker hood
should be disconnected from the mains power supply. Ensure
that the cooker hood is switched off at the wall socket and the
plug removed.
• External surfaces are susceptible to scratches and abrasions, so follow the cleaning
instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on

11
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure a long life
expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives, as this will affect the appearance of the
appliance and potentially remove any printing of artwork on the control panel and will
void manufactures warrantee.
THE OIL CUP
• Your cooker hood includes a unique oil cup which collects the oil that is deposited on
the grease filters.
• When the oil cup is about 2/3 full the oil cup needs to be cleaned.
• Take away the oil cup as the diagram shows, slightly pull the oil cup forwards to
release it from the cooker hood.
• Discard the oil before cleaning/washing the cup.
• Ensure the cup has been cleaned and dried before reattaching to the Cooker hood.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand.
Cleaning method is as follows:
1. Turn on the cooker hood.
2. When the cover glass is opened fully, you can turn off the hood. At this moment,
you can see the grease mesh filter.

12
3. Use a soft brush to brush it gently with a mild detergent. Then dry with a clean and
soft rag. Please do not apply too much pressure, avoid to damage it.
Note: All cooker hood filters are made of metal. Please do not use cleaners that
corrode metal products when cleaning. It is advisable not to use rinse aid.
BULB REPLACEMENT
Important :
The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it has completely cooled
down before any direct contact to hands.
When handling blubs hold with a cloth or gloves to
ensure perspiration does not come in contact with
the blub as this can reduce the life of the bulb.
Note:
⚫Before changing the lights, make sure that the appliance is turned off and
unplugged.
⚫Protect against danger when changing lights, such as wearing gloves.

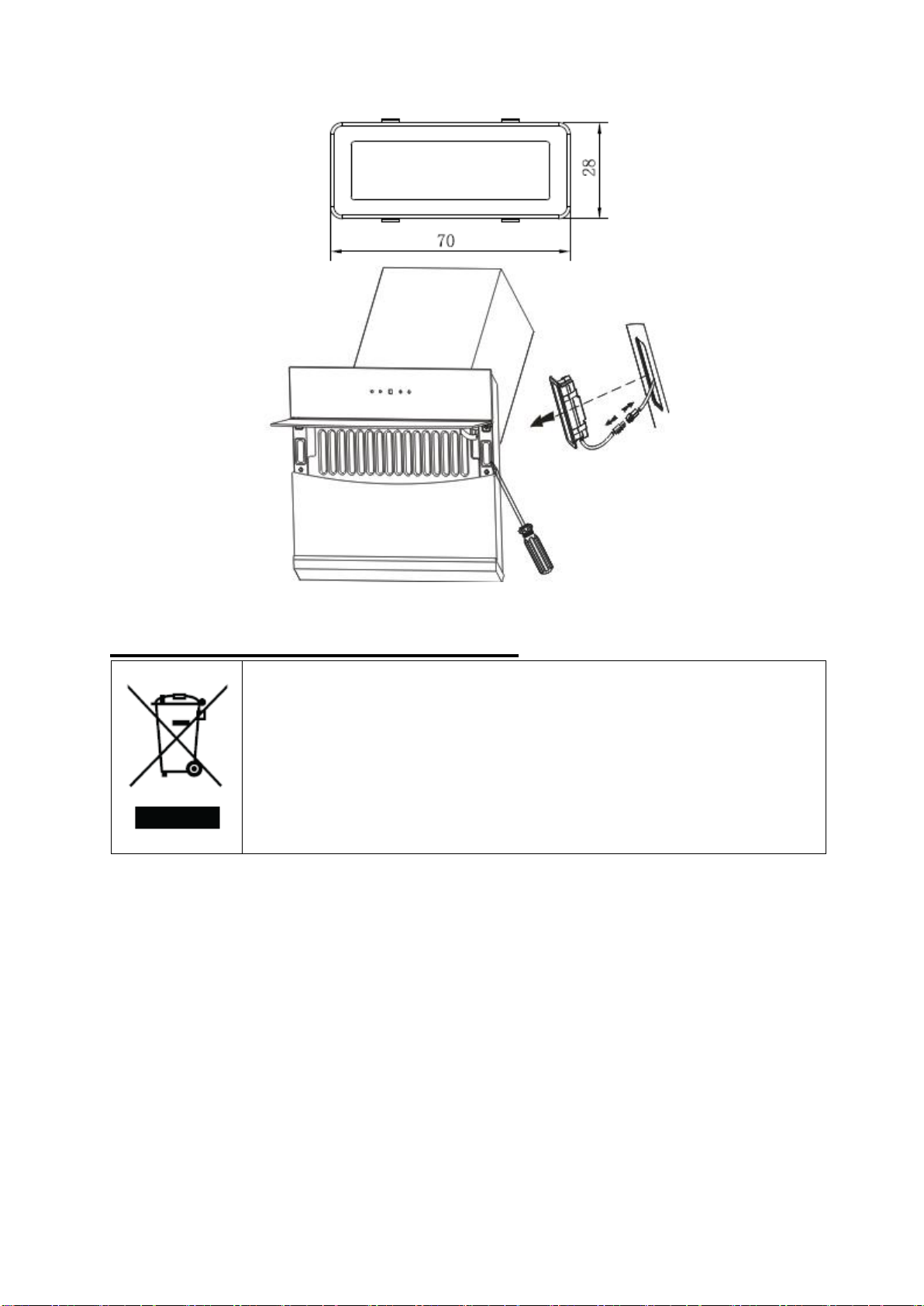

Changing the lights:
➢Turn on the cooker hood and turn off the power after the cover glass is opened
fully.
➢Use straight screwdriver to prize up the LED light bottom edge, then slightly pull
out the LED light and light connecting wire.
➢Apply the reverse procedure to install the light back.
• ILCOS D code for this lamp is: DSS-1.5/65-S-70/28
–LED modules –rectangle lamp
–Max wattage: 2×1.5 W
–Voltage range: DC 12V
–Dimensions:

13
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances. For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with your Local Authority or retainer
for recycling advice.
