Zephyr ACT Siena Pro ZSP-E36CS Installation guide

WWW.ZEPHYRONLINE.COM
MAR22.0101
Ai
rflow Control Te chnolo
gy
TM
C
Siena Pro
ZSP-E36CS, ZSP-E42CS, ZSP-E48CS
EN Use, Care, and Installation Guide
FR Guide d’utilisation, d’entretien et d’installation

2Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE

3
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Contents
Page
Safety Information ............................................................................ 4-6
Types of Safety Warnings................................................................... 4
General Safety ..................................................................................4-5
Operation........................................................................................... 6
Electrical Requirements ...................................................................... 6
Federal Communication Commission Interface Statement................. 6
List of Materials................................................................................... 7
Installation Instructions.....................................................................8-14
Ducting Calculation Sheet.................................................................. 8
Mounting Height, Clearance, & Ducting ...........................................9-10
Ducting Options ................................................................................. 11
Hood Specifications............................................................................12
Electrical Supply.................................................................................13
Cable Lock .........................................................................................13
Mounting the Hood.............................................................................14
Features & Controls..........................................................................15-18
ICON Touch Controls....................................................................... 15-16
Optional RF Remote Control.............................................................17-18
Maintenance ....................................................................................19-20
Hood & Filter Cleaning.....................................................................19-20
LumiLight LED ................................................................................... 20
ACT™ Conversion.............................................................................21-22
Airflow Control Technology (ACT™) ....................................................21
Enabling ACT™.................................................................................. 22
Wiring Diagram.................................................................................. 23
Troubleshooting............................................................................... 24-25
List of Parts & Accessories..................................................................26
Limited Warranty ............................................................................... 27
Product Registration...........................................................................28

4Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Safety Information
Your safety and the safety of others are very important.
We have provided many important safety messages in this
manual for your appliance. Always read and obey all safety
messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can cause severe bodily injury or death.
All safety messages will follow the Safety Alert Symbol and either
the words “DANGER” “WARNING” or “CAUTION”
DANGER
Danger means that failure to heed this safety statement may
result in severe injury or death.
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the manufacturer.
b) Before servicing or cleaning unit, switch power o at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
General Safety
WARNING
Warning means that failure to heed this safety statement
may result in extensive product damage, serious personal
injury, or death.
CAUTION
Caution means that failure to heed this safety statement
may result in minor or moderate personal injury, property or
equipment damage.
WARNING
To reduce the risk of fire or electric shock, do not use this fan
with any solid-state control device.
WARNING
CAUTION
For General Ventilating Use Only. Do Not Use To Exhaust
Hazardous Or Explosive Materials And Vapors. Take care
when using cleaning agents or detergents. Suitable for use in
household cooking area.
WARNING
WARNING - TO REDUCE THE RISK OF A RANGE TOP GREASE
FIRE:
a) Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or
when flambeing food. (i.e. Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe’).
c) Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for
the size of the surface element.

5
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Safety Information
WARNING
READ AND SAVE THESE INSTRUCTIONS
WARNING - TO REDUCE THE RISK OF INJURY TO PERSONS
IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn o the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN – You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels – a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
1) You know you have a Class ABC extinguisher, and you
already know how to operate it.
2) The fire is small and contained in the area where it
started.
3) The fire department is being called.
4) You can fight the fire with your back to an exit
Based on “Kitchen Firesafety Tips” published by NFPA.
WARNING
WARNING
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.
CAUTION
To reduce risk of fire and to properly exhaust air outside, do
not vent exhaust air into spaces within walls, ceilings, attics,
crawl spaces, or garages.
WARNING
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
a) Installation work and electrical wiring must be done by
qualified person(s) in accordance with all applicable codes and
standards, including fire-rated construction.
b) Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel burning
equipment to prevent back drafting. Follow the heating
equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) If this unit is to be installed over a tub or shower, it must be
marked as appropriate for the application and be connected
to a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
WARNING
Prop. 65 Warning for California Residents: This product may
contain chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

6Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Safety Information
Operation
►Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and
loose clothing.
►The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation,
maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and
the warranty of the unit automatically expires due to improper maintenance.
NOTE: Please check www.zephyronline.com for revisions before doing any custom work.
Electrical Requirements
Important:
►Observe all governing codes and ordinances.
►It is the customer’s responsibility to be aware of these below:
►To contact a qualified electrical installer.
►To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest
edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes
and ordinances.
►If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path
is adequate.
►Do not ground to a gas pipe.
►Check with a qualified electrician if you are not sure the range hood is properly grounded.
►Do not have a fuse in the neutral or ground circuit.
►This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected
by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram
on product.
►A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and
install appropriate connector if necessary.
* National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269
** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575
Federal Communication Commission Interface Statement
►This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
►This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following
measures:
►Reorient or relocate the receiving antenna.
►Increase the separation between the equipment and receiver.
►Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
►Consult the dealer or an experienced radio/TV technician for help.
READ AND SAVE THESE INSTRUCTIONS

7
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
List of Materials
Parts Not Supplied
Ducting, conduit and all installation tools
Cable locking connector (if required by local codes)
Extension duct covers (Z1C-00SP)
Optional remote control (RC-0002)
Optional RF remote control (14000005)
Parts Supplied
Quantity Part
1 Hood with internal blower
2 Duct covers, 1 upper & 1 lower
1 Duct cover bracket
2 Bae filters (3 for ZSP-E48CS)
2 LumiLight LED, 6W (pre-installed)
1 10” round collar with backdraft damper
1 Hardware package
(6) M4 x 38 (2) M4 x 8 (4) M4 x 8

8Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Installation Instructions
Duct pieces To tal
Equivalent number
length x used =
3- 1/ 4” x 10”
Rect.,
straight
1 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
5 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. to
6” round
transition
900 elbow
20 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
900
15 Ft. x ( ) =Ft.
6”, 7”, 8”, 10”
Round,
450
9 Ft. x ( ) =Ft.
Ft.
6”, 7”, 8”, 10”
Round,
straight
1 Ft. x ( ) =Ft.
Subtotal column1 =
Duct pieces To tal
Equivalent number
length x used =
6”, 7”, 8”, 10”
Round, wall
cap with
damper
30 Ft. x ( ) =Ft.
Ft.
Ft.
Ft.
6”, 7”, 8”, 10”
Round
roof cap
30 Ft. x ( ) =Ft.
Subtotal column2 =
Subtotal column1 =
Total ductwork =
Maximum Duct Length: For satisfactory air movement,
the total duct length
should not exceed 150 equivalent feet.
6” round to
3- 1/ 4” x 10”
rect.
transition
1 Ft. x ( ) =Ft.
6” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
16 Ft. x ( ) =Ft.
7” round to
3 1/ 4” x 10”
rect.
transition
8 Ft. x ( ) =Ft.
7” round to
3- 1/ 4” x 10”
rect.
transition
900 elbow
23 Ft. x ( ) =Ft.
elbow
elbow
7” to 6” or
8” to 7” Round
tapered
reducer
25 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 900
elbow
15 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 450
elbow
9 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect. 900
flat elbow
24 Ft. x ( ) =Ft.
3- 1/ 4” x 10”
Rect.
wall cap
with damper
30 Ft. x ( ) =Ft.
Ft. x ( ) =Ft.
15
6”, 7“, 8”
Round
in-line
damper
Ducting Calculation Sheet

9
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Mounting Height, Clearance, & Ducting
24” min.
34” max.
min. A
max. B
min. C
max. D
Standard Extension
Hood Heights Duct Cover Duct Cover
minimum (A) 27-1/2” 45”
maximum (B) 42” 78”
Ceiling Heights
minimum (C) 87-1/2” (7’ 3-1/2”) 105” (8’ 9”)
maximum (D) 112” (9’ 4”) 148” (12’ 4”)
36”

10 Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Installation Instructions
Mounting Height, Clearance, & Ducting
A minimum of 10” round duct is recommended to maintain maximum air flow eciency.
Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.
Also use the ducting calculation sheet (on page 8) to compute total available duct run when using
elbows, transitions and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required,
increase duct size.
If turns or transitions are required; install as far away from hood duct output and as far apart,
between the two as possible.
Minimum mount height between range top to hood bottom should be no less than 24”.
Maximum mount height should be no higher than 34”.
It is important to install the hood at the proper mounting height. Hoods mounted too low could result
in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will lose its
performance and eciency.
If available, also refer range manufacturer’s height clearance requirements and recommended hood
mounting height above range. Always check your local codes for any dierences.
For shipment and installation damages:
►Please fully inspect unit for damage before installation.
►If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
►If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
►If the unit is damaged by the installer (if other than the customer), repair of replacement must be
made by arrangement between customer and installer.

11
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Ducting Options
►Use single wall rigid metal ductwork only.
►Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
Sot or crawl space
Side wall cap w/
gravity damper
Roof pitch w/
flashing & cap
Side wall cap w/
gravity damper

12 Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Installation Instructions

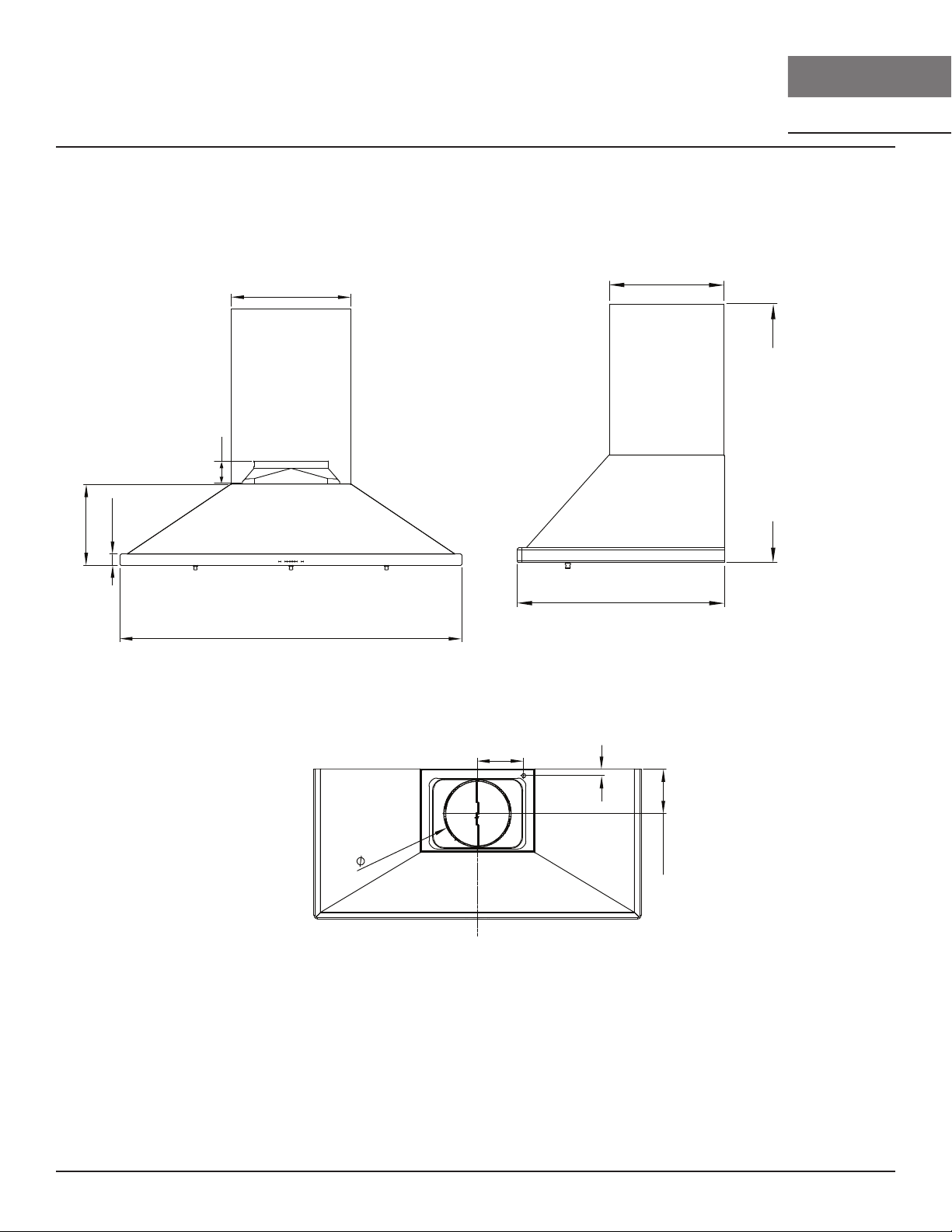

Hood Specications
C/L
12-3/16”
Front Side
Top
16-11/16”
21-15/16”
11-5/16”
1-9/16”
3”
(36”) 35-7/8”
(42”) 41-7/8”
(48”) 47-7/8”
STANDARD
min. ducted - 27-1/2”
min. recirc. - N/A
max. - 42”
Z1C-00SP
min. ducted - 45”
min. recirc. - N/A
max. - 78”
6-9/16”
6-3/4”
AC In
1”
9-15/16”

13
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Installation Instructions
Electrical Supply
Electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards. Turn o
electrical power at service entrance before wiring.
WARNING
For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not
use extension cord or adapter plug with this appliance.
Follow national electrical codes or prevailing local codes and ordinances.
This appliance requires a 120V 60Hz electrical supply, and connected to an individual, properly
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
must be 2 wire w/ ground. Please also refer to the Electrical Diagram labeled on product.
Cable Lock
A cable locking connector (not supplied) might be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary. (FIG. A)
Cable Lock
FIG. A

14 Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Installation Instructions
Mounting the Hood
1. Measure from range top to hood bottom and
mark line A. (24” minimum from range top).
2. Plum and mark center line.
Mark mounting height line B. (12-1/8” from line A)
Mark mounting spread from C/L on line B. (14-
15/16")
3. Fasten (2) M4 x 38 screws into studs on line
B. Do not fasten screws all the way, leave
approximately 3/8” exposed.
NOTE: Wood blocking may need to be added
behind the drywall if no studs are present. Wall
anchors may also be used but check local codes
for compliance. Failure to use suitable wall
anchors and screws to hold the weight of the
hood could result in personal injury or damage to
cooking surface or counter.
4. Install 10” round duct collar with backdraft
damper to top of body of hood by (4) M4 x 8 flat
screws.
5. Hang hood onto screws and hand tighten. (FIG.
B1) Use the last M4 x 38 screws to further secure
the hood to the wall from inside the hood. (FIG
B2).
6. Center and attach duct cover bracket to wall
below ceiling or sot using (2) M4 x 38 screws.
7. Position electrical outlet within the space covered
by the telescopic duct covers and where it will not
interfere with the round duct. (FIG. C)
8. Install duct work and duct tape. Power up hood
and check for leaks around duct tape.
9. Place telescopic duct covers onto hood and
extend inner (top) duct cover upwards and secure
to duct cover bracket using (2) M4x8 screws.
FIG. B
A
C
B
C/L
12-1/8"
1-3/8"
14-15/16"
13"
C/L
24" min
2
1
Duct Cover Bracket
24”
MAX.
HOOD
CENTERLINE
5-
1/2
” - 8”
11-
5/16
”
FIG. C

15
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Features & Controls
Lights Low/High/O
Display (speed level, delay o, filter clean/change)
Adjust 5 Speed Levels
Power / Delay O
1 POWER / DELAY OFF BUTTON
Power Button Function
- Button will turn power on and o for entire hood (fan and lights).
- Hood will remember the last speed and light level it was turned o at.
(Example: Press Button to turn o hood when on fan speed 4 and high lights.
Press Button again and the hood will turn back on at speed 4 and high lights
level.)
Delay O Button Function
- With the fan on press and hold the Button for two seconds. The fan will change
to speed 1 and the 5 minute delay o timer will start.
+ LEDs will illuminate and slowly blink in accordance
with the time remaining until the fan and lights automatically turn o.
- Pressing Button while Delay O Function is enabled will turn the hood o and
cancel the Delay O Function.
ACT Verification
- Airflow Control Technology (ACT) allows the installer to set the maximum fan
CFM to align with local codes and regulations.
- To verify the maximum fan CFM:
- With hood o, hold the Button for two seconds. If all five fan speed
indicators illuminate = default maximum CFM. If three fan speed
indicators illuminate = 590 maximum CFM. If two fan speed indicators
illuminate = 390 maximum CFM.
2 SPEED SELECTION BUTTON
Fan Speed Decrease Button
- Press this button to decrease fan speed. 5, 4, 3, 2, 1.
- If fan is On Speed 1 and this button is pressed, fan will power O.
Fan Speed Increase Button
- Press this button to increase fan speed. Fan On, 1, 2, 3, 4, 5.
- If hood is O and this button is pressed, fan will turn On Speed 1.
Act Enabled Speed Selections
- When ACT is enabled, the number of fan speeds will be reduced as follows:
- 590 CFM = Maximum 3 speeds
- 390 CFM = Maximum 2 speeds
ICON Touch Controls

16 Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Features & Controls
3 LIGHTS BUTTON
- Lights have two levels, Low and High.
- From o, press one time for Low. Press again for High. Press again to power lights
o.
4 DISPLAY INDICATORS
Mesh Filter Clean Reminder (always enabled)
- After 30 hours of fan usage, the button indicator will begin to slowly blink
indicating it is time to clean the mesh filters.
- To reset: With hood o: hold the button for three seconds. All LED indicators
will blink two times confirming the 30 hour timer has been reset.
Charcoal Filter Replace Indicator (disabled by default, must be enabled if
recirculating hood)
- To enable Charcoal Filter Replacement Reminder:
- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will illuminate for three seconds confirming the
Charcoal Filter Replace Reminder is enabled.
- To disable Charcoal Filter Replacement Reminder:
- With hood o, hold button and button simultaneously for two
seconds. All LED indicators will blink two times confirming the Charcoal Filter
Replace Reminder is disabled.
- After 120 hours of fan usage the button will slowly blink indicating the char
coal filters need replacment.
- To reset: With hood o, hold the button for two seconds. All LED indicators will
blink two times confirming the 120 hour timer has been reset.
ICON Touch Controls

17
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Features & Controls
Optional RF Remote Control
To enable RF remote control capabilities, the remote control accessory kit is required. The part
number for the kit is RC-0002.
FCC Caution
To assure continued compliance, any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment. (Example -
use only shielded interface cables when connecting to computer or peripheral device. This device
complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1)
This device may not cause harmful interference, and (2) This device must accept any interference
received, including interference that may cause undesired operation.
Installation

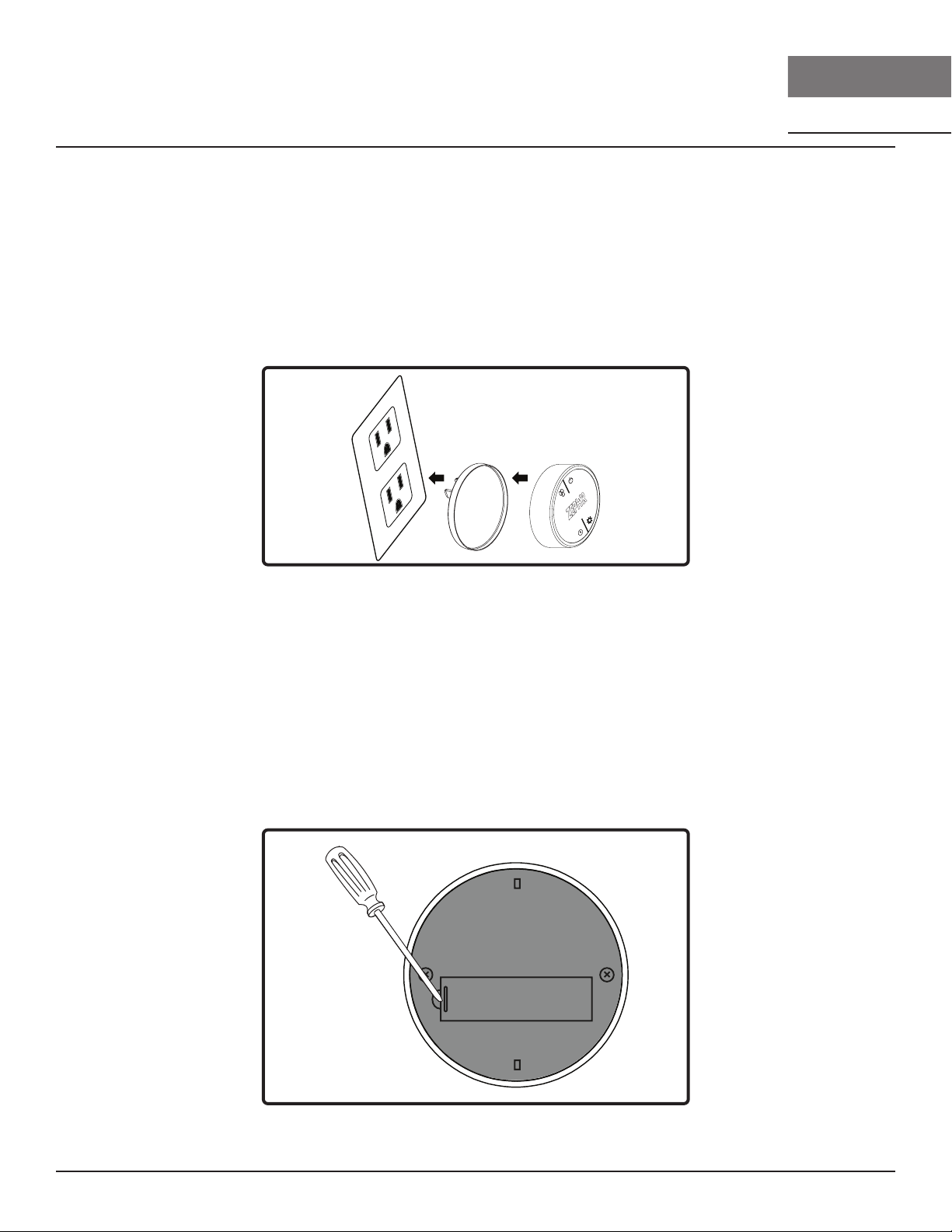

To install remote control accessory kit, please follow these steps below.
1. Remove bae filters.
2. Remove 3 screws attaching internal cover panel.
3. Connect the red wiring from the remote control control board to red connector in hood PC board.
4. Adhere remote control control board near PC board box.
5. The blue antenna wire needs to be extended for optimal signal. There is no need to secure it.
Synchronization
To create a unique link between your hood and remote control please follow these steps.
1. With hood o, press and hold the Lights button on the hood until the controls illuminate and flash.
2. Press a button on the remote, and the remote control will be synchronized with the hood.

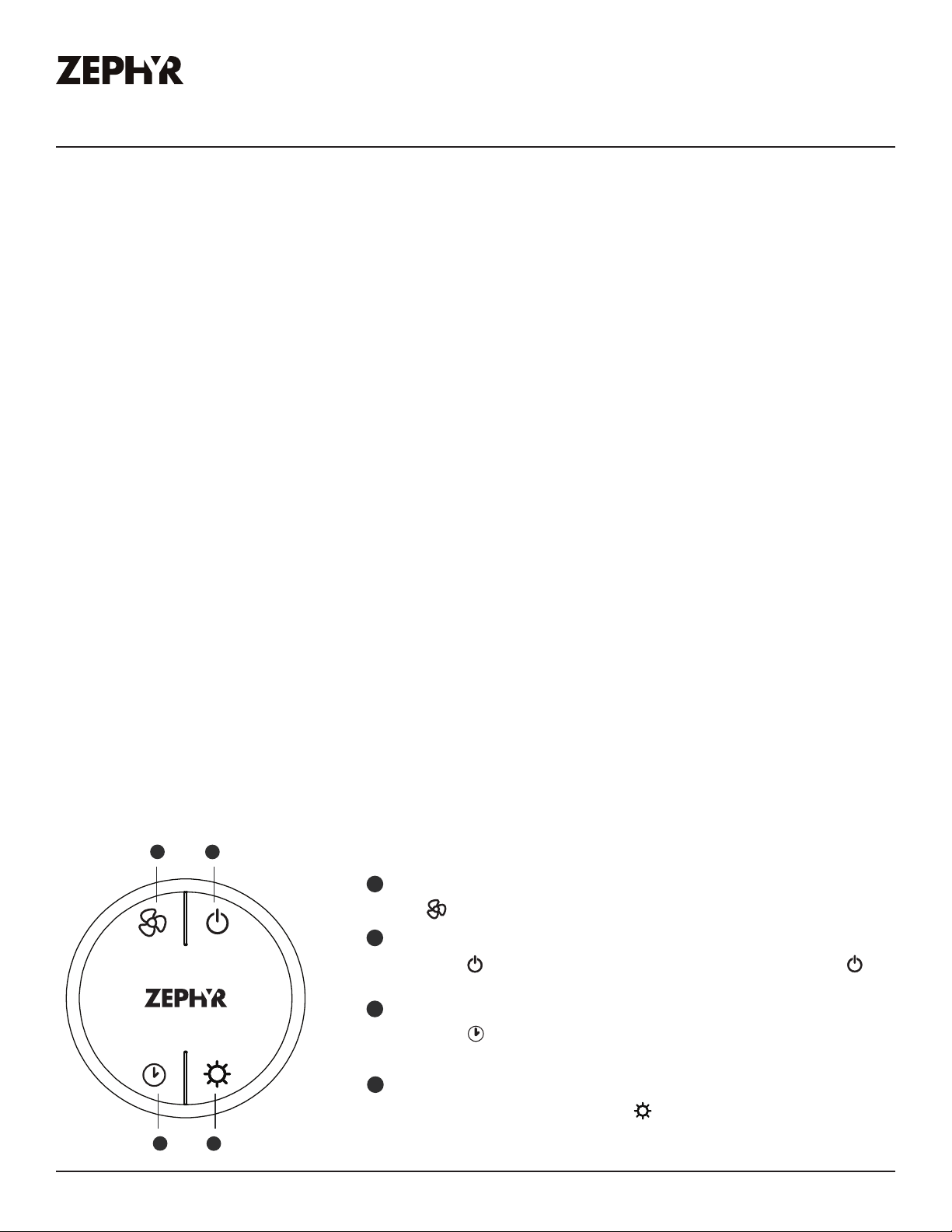

RF Remote Control Functions
Blower On / Speed Selection
Press to power on blower and cycle through all speeds.
Blower On / Power O
By pressing , the blowers will power on at the last speed setting. Press
again and the entire hood will power o, including lights.
Delay O
Lights On/Dim/O
Switch between light levels by pressing . Turn o the lights by cycling through
the dierent light levels.
Blower On/
Speed Selection
1
1
2
3
4
Blower On/
Power O
2
5 Min Delay O 3Lights On/Dim/O
4
By pressing , the blower and lights will enter Delay O mode. The blow
er will
change to speed 1 and a 5 minute timer will begin counting down.

18 Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Features & Controls
Optional RF Remote Control
RF Remote Features
The RF remote control is equipped with a magnet on the back for easy storage. The remote may be
placed on any magnetic surface such as a refrigerator or the Zephyr remote holder, FIG. D. The
remote holder can be inserted into a standard electrical outlet for easy storage. Note: The remote
holder does not charge the RF remote.
Maximum remote control communication distance is 15 feet from the liner.
RF Remote Maintenance
Clean the remote control using non abrasive detergents.
Follow instructions below for replacing battery. Using a small flat head screwdriver, raise the cover of
the battery door (A) in order to access the battery compartment. FIG. E.
Remove the battery and replace with battery type A23 12V. Negative end of battery should face the
spring inside the remote.
Re-install battery door and recycle old battery.
FIG. D
A
-
+
FIG. E

19
Siena Pro Use, Care, and Installation Guide
ZEPHYRONLINE.COM
Maintenance
Hood & Filter Cleaning
Surface Maintenance
►Do not use corrosive detergents, abrasive detergents or oven cleaners.
►Do not use any product containing chlorine bleach or any product containing chloride.
►Do not use steel wool or abrasive scrubbing pads which will scratch and damage surface.
Cleaning Stainless Steel
Clean periodically with warm soapy water and clean cotton cloth or micro fiber cloth. Always rub
in the direction of the stainless steel grain. To remove heavier grease build up use a liquid degreaser
detergent.
After cleaning use a non-abrasive stainless steel polish/cleaners, to polish and bu out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth or micro fiber cloth and bu in the
direction of the stainless steel grain.
Cleaning the Bae Filters
The stainless steel baffle filters are intended to trap residue and grease from cooking. Although the
filters should never need replacing, they are required to be cleaned every 30 days or more often
depending on cooking habits.
Filters may be placed in dishwasher at low heat or soaked in hot soapy water Dry filters and re-install
before using hood.

20 Siena Pro Use, Care, and Installation Guide
SIENA PRO
WALL
CORE
Maintenance

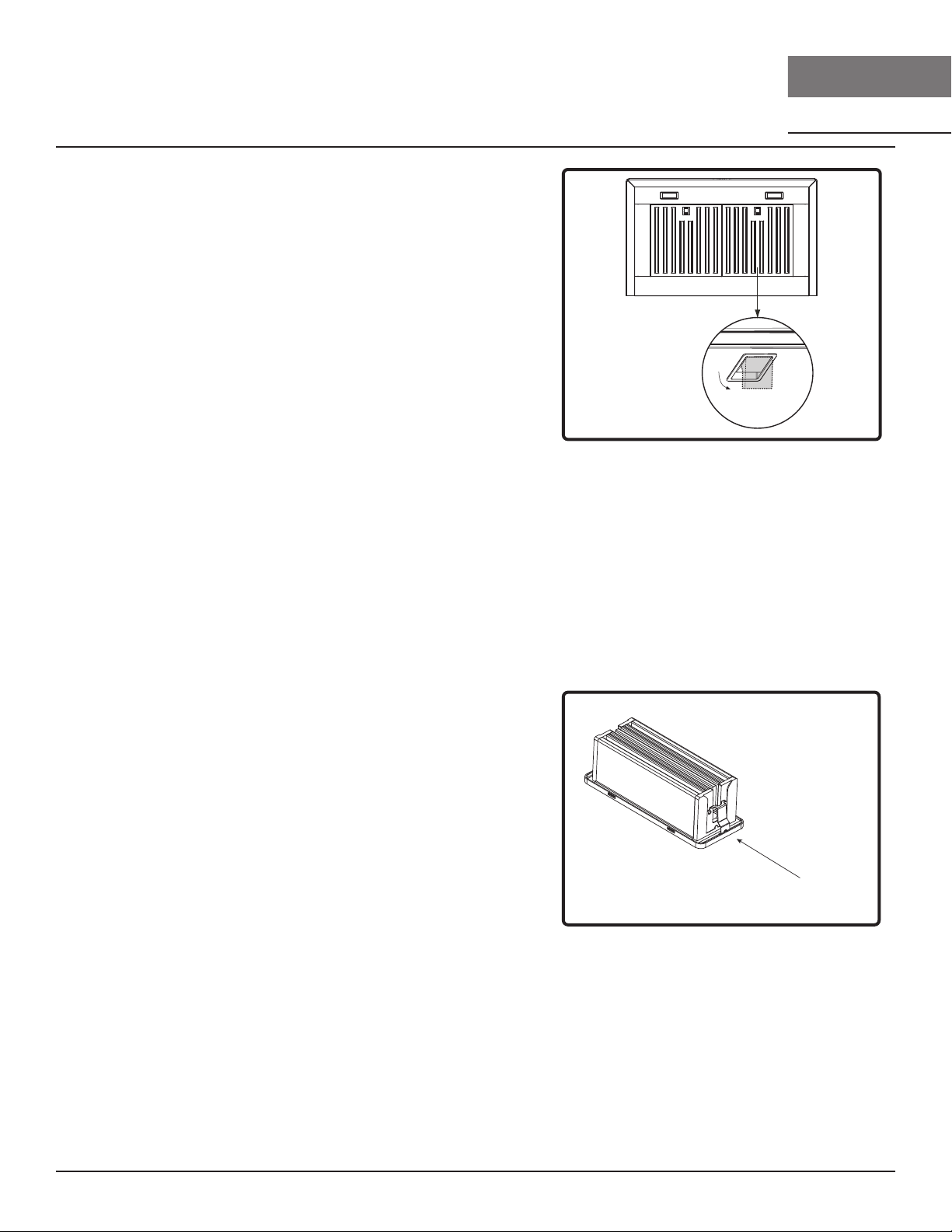

Installing the Grease Filters (FIG. F):
1. Pull down on filter latch to release the filter tabs.
2. Pull down on front of filter to remove the grease filters.
FIG. F
LumiLight LED
In the unlikely event that your LumiLight LED fails, please
contact Zephyr to order replacement parts.
See the list of parts and accessories page for part numbers
and contact information.
LED Removal (FIG. G):
1. Remove grease filters.
2. Remove the side panels (if applicable) and remove the
light panel.
3. Disconnect LED light quick connector.
4. Push in the two side clips on the ends of the LED light.
5. Push LED light through the light panel opening.
Push the clip
FIG. G
