Beholder DS1 User manual

Page1
TRDNewBeholderDS1Manual
==================================================
Beholder DS1 specification(32 bitsystem):
Height :300mm
Width:175mm
Depth :160mm
NetWeight nocamera）:1090g
packedweight 1790g
Boxpackingsize:375mmx200mmx100mm
Maxloadweight camera withlens1700g
supportedcamera canon5D/6D/7D+16-35,24-105etc lens.
sony A7Sseries+24-70*12-35、A7R2、
pansonic GH4+12-35etc
Maxanglerange 90-180°
Directionshaft 355°
Pitch 355°， +-180°range
Rolling 355°， +-60°range
Power 3.7v 2600mah*3
workingtime 3-4 hours（uptocameraweightetc）
Products:
P/N DS1

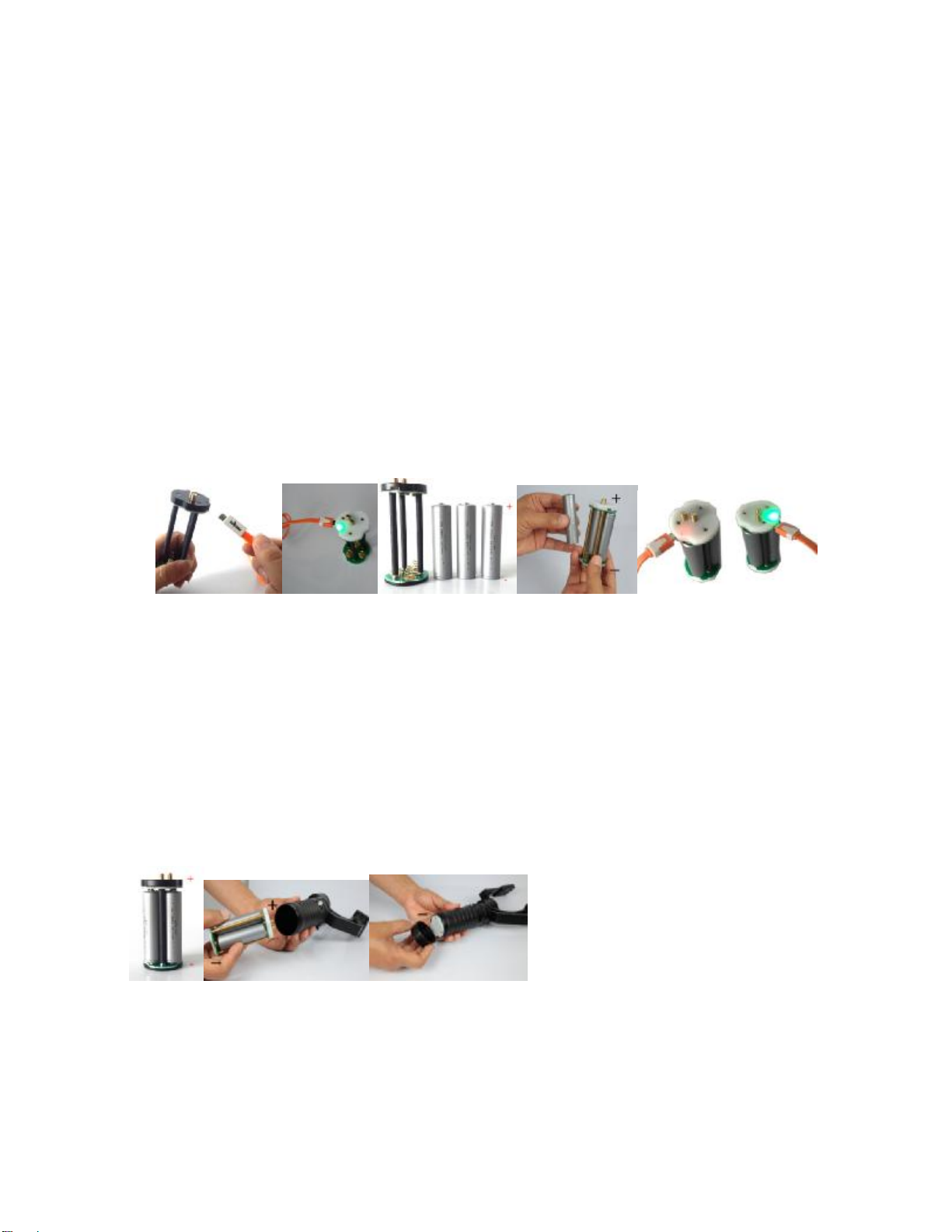

1. battery installing:
A.howtochargebattery:
a.followingpic1、pic2,let MicroUSBcharingcableinsertintobatteryholderUSBport，connect

Page2
with1.5A-2A USBcharger(iphone orsamungcharger orpc)，after connected，
greenlight means connected.
somecustomerconnectedUSB---nogreenlight--charger currentlessthan1.5-2A。
you canmove3pcbattery(installedinbattery holder,connectedwithUSB)nearyourear, youwillhear
noiseinbattery,itmeansstillcharging.
b. followingpic 3 correctbatteryinstallingway，whenchargingbattery, Redlightmeanscharing,Greenlight
meansfull charged.
notice:
.must use1.5A-2A charger，otherwisebatteryholderlight didnotappeargreenorred。
USElessthan1.5-2Acharger,batteryholderlightdidnotappearcolor,but still charging, move
battery nearear,willhearbatterynoise, itmeanschargingtoo.
ⅱ.batterycharingtime4-5hours,you canbuy fast charger2-3hourscharingtime
123 45 6
B. batteryholder installing
a. asfollowingpic, batterypositivesideup
b.batterynegativesideconnectedwithspringpart
c.3pcbatteryinstalledonbatteryholder, thenput intohandle.
d. screw batterycaptightly .
Notice: you must install camera, thenstartthepower.
2. camera installing:
A.installmetalplatefirstasfollowingpic,widemetalsidefacetocameralenspart,metalplate install

Page3
onthecamerabottonside,screwnoneedtobetight,aftercamerabalancedwell,thentightthe
bottonscrew.
A:installingplate B:adjust camera front/backbalance ,armadjust ,then lock pitchmotorside 2 screw
C.adjustcamera leftand right balance ,armadjust,thenlockrollingmotorside 2screw.
D.adjustcameraYAWbalance,checkpicabove,holdcamerasabove,balanced,meansYAWbalanced. ifnot,adjustYAWmotor
side2screwtomovearm,then tightscrew afterbalanced.
==============================================================================
E. somecameranoway to install,can useour specialadaptermetal pc.
installingstep:
1.silicontapesticktoadapter.；
2.adapter metalplate connectwithcamerabottonside, screwintotoconnect
3.selectbestpositionhole inadapterplate,connectwithcamerabottonside.
4.afterinstalledadapterplate,make surecameraandmetalplatenoemptyspace,othewiseeasyto

Page4
causegimbal virbrationwhenoperating.
adapterplateinstalling standardmetalplateinstalling
3. start gimbal instruction:
A.starting
a.Notice
①must install camera, thenok to start gimbalpower。
BeholderDS1had32 bitcontrolsystem,doubleIMU.
b.joystick/powerbuttonoperation:
powerbutton joystickbutton
whenstart gimbal,pressthegreenpowerbutton, gimbal90degreenupagainst thetablelevelaspic following:

Page5
whenpoweron, gimbalwill go into followingmodeautomaticlly.
Joystickbutton--pushleft/right/up/down,gimbal willmoveleft/right/upanddown.
B. photoingothermode:
straight quickpresstheJoystickbutton, gimbal will gointolockmode.
straightpress the joystickfor2seconds,gimbalwill gointohalffollowingmode.
C.DS1 calibrationway:
whengimbalworking sometime,driftor appearinclinedcondition,
youneedtocalibratethegimbal.
whenyou do calibration, gimbalmustbeontheleveltable,keepthegimbalbalancedandnomovingcondition

Page6
gimbalmustbeinstill position.
gimbalcontrolboardsidehadonepcwhitecolormetalbar,preeonetime, wait5second, let system do calibration.
(donottouchgimbalwhencalibration)
D. battery operationtime

Page7
whensee
greenlight , goodtooperate.
whenseeredlight, needto charge.
whenseeflashingredlight, must stopand chargebattery
4. gimbal extensionfunction:
A.okto connecttotripodetc（¼standardscrew holeinourgimbalbotton cap)，
B.connectUSB-LEDlight，nightshooting
C.connectcellphone,forcell phonecharging.(noneedtopowerongimbal)
5. supportedcamerastyle:
Beholder DS1supportless than 1.7KGcamera，supportcanon 6D/5D/7D、supported A7R2、A7S+24-70/12-35，
GH4+12-35，GH3+14-140 etccamera
6. gimbal shooting waydemo:
正手持左 45°正手持右 45°正手持俯拍 45°正手持俯拍 90°
横手持右侧拍 横手持前右拍 横手持右拍 横手持前拍 横手持左拍
7. Notice:
1.DS1 settingdownforalldata, noneedtodo calibrationwhenoperating。
whengimbalworking sometime,driftor appearinclinedcondition,

Page8
youneedtocalibratethe gimbal.calibrationdetailstepcheckinfoabove
anyquestion,email to [e-mail] or check www.cnchelicopter.com
