Behringer ULTRA-DIDI20 User manual

ULTRA-DI DI20
Version 1.0 October 2002
Users Manual
www.behringer.com
ENGLISH

ULTRA-DI DI20
2
Welcome to the BEHRINGER family!
Thank you for the confidence you have placed in us by purchasing
the ULTR -DI DI20 professional active 2-channel DI-box/splitter.
On stage as well as in studios, it is sometimes advantageous to
connect certain sound sources directly to the mixing console. Since
many instruments (keyboards, for example) dont have balanced
outputs they require a DI-box. Sometimes, even guitars cant be
directly connected to mixing consoles because their impedance is
too high.
By using a DI-box, you can directly tap into a high-impedance,
unbalanced signalfor example, a signal between a guitar and a
guitar amplifier. From this point, you can feed this signal directly to a
mixing console.
There are active and passive DI-boxes. passive DI-box is more
affordable, but its performance is dependent on the impedance of the
device to which it is connected. When the impedance on the mixing
consoles end changes, so does the impedance at the input of the DI-
box. Such DI-boxes only function properly when the connected
impedance values are strictly specified (high at the input, low at the
output). ctive DI-boxes are not affected by these impedance
considerations. The input impedance of the DI20 is extremely high,
and it absolutely does not influence the signal flow through the DI-
box. The output impedance is balanced and always very low, whereby
the signal is far less prone to being affected by noise.
+To prevent damaging your loudspeakers, first connect
the DI-box and then hook up the respective channel.
The same goes for alternating between battery and
phantom power operating modes.

ULTRA-DI DI20
3
1. CONTROLS
Fig. 1.1: Controls of the DI20
CH. 1 IN input is used to connect unbalanced as well as
balanced signal sources to channel 1.
CH.1 OUT is the balanced output at mic level for channel 1.
CH.2 IN input is used to connect unbalanced as well as
balanced signal sources to channel 2. In LINK mode (see )
this connector functions as output and sends the signal
directly from channel 1.
CH. 2 OUT is the balanced output at mic level for channel 2. In
Link Mode (see ) this connector sends the signal directly
from channel 1.
The ATT NUATION dampening switch considerably increases
the useful operating range of the DI20 from low signal levels
of a high-impendence microphone or a guitar, all the way to
the speaker connectors of a guitar amplifier (solid state). You
can select between 20 and 40 dB worth of attenuation.
1. CONTROLS

ULTRA-DI DI20
4
+You should only use the TTENU TION switch when
your DI20 rather than the mixing console preamp
begins distorting. Otherwise refrain from using this
function to avoid excessive dampening.
The MOD switch lets you select the operating modes of the
DI20. In the 2-CH mode, two independent signals can be
connected to channels 1 and 2 respectively. In LINK mode the
DI-box functions as a splitter: One signal can be fed to the
channel 1 input and split into two balanced signals (at outputs
1 and 2) and an unbalanced signal at CH.1 OUT. The un-
balanced signal can, for example, be connected to an additional
amplifier.
+When connecting a tube amplifier to the input of the
DI20, please keep in mind that an appropriate load
resistance (e. g. a loudspeaker) must be connected
to the CH.1 OUT (LINK MODE) connector.
The BATT RY switch activates the battery powered mode.
Set the battery operating mode to OFF when your DI20 is
connected to phantom power. While setting it to OFF, brief
whistling noise may occur. This is completely normal and
needs no further attention. However, you should not change
the battery switch when you have an amp connected. For
battery operation, youll only need a commercial 9 V battery of
the 6LR61 type.
By using the GROUND switch, you can interrupt (LIFT) the
grounding between the input and output. Depending on how
other devices connected to your DI-box are grounded, ground
loops can be eliminated.
+Never connect pin 2 or pin 3 to pin 1! Never remove the
screen protection on pin 1. Otherwise, you wont be
able to run the DI20 on phantom power (for example,
phantom power from a mixing console).
1. CONTROLS

ULTRA-DI DI20
5
B TTERY COMP RTMENT
To access the battery compartment, loosen the screw on the rear.
2. CONNECTION OPTIONS
2.1 Connecting a (bass) guitar

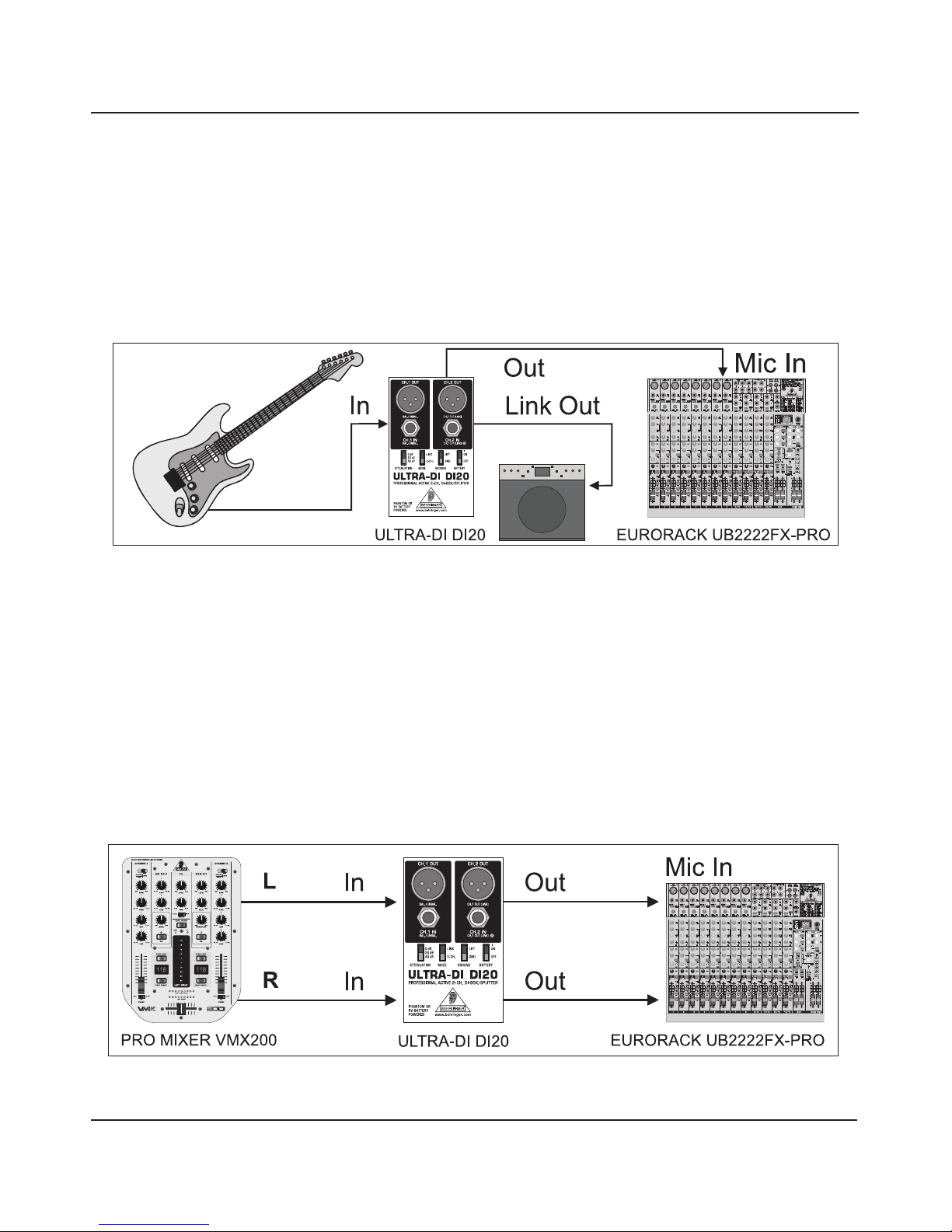

Fig. 2.1: Guitar ß DI-box ß guitar amp/mixing console
This illustration shows the standard application of a DI-box. The
signal is fed unbalanced to a guitar amp and balanced to a mixing
console (LINK mode). This application has advantages when used
with bass guitars, because very few microphones are able to pick
up low frequencies at high levels.
2.2 Converting output signals of a ke board, DJ-mixer, etc.
Fig. 2.2: DJ-mixer ß DI-box ß mixing console
2. CONNECTION OPTIONS

ULTRA-DI DI20
6
This configuration is recommended when using a DJ-mixer or another
signal source, which sends an unbalanced line level signal. In
addition, if you need a separate monitor signal, the line level signal
can be sent to another amplifier.
3. UDIO CONNECTIONS
The BEHRINGER ULTR -DI DI20 features electronically servo-
balanced standard inputs and outputs. The circuit design is equipped
with automatic hum suppression for balanced signals and operates
problem-free even at high levels. Externally induced mains hum is
thus efficiently suppressed. The servo function automatically detects
unbalanced pin connections and changes the nominal level internally
by 6 dB so that there is no difference in level between input and
output signals.

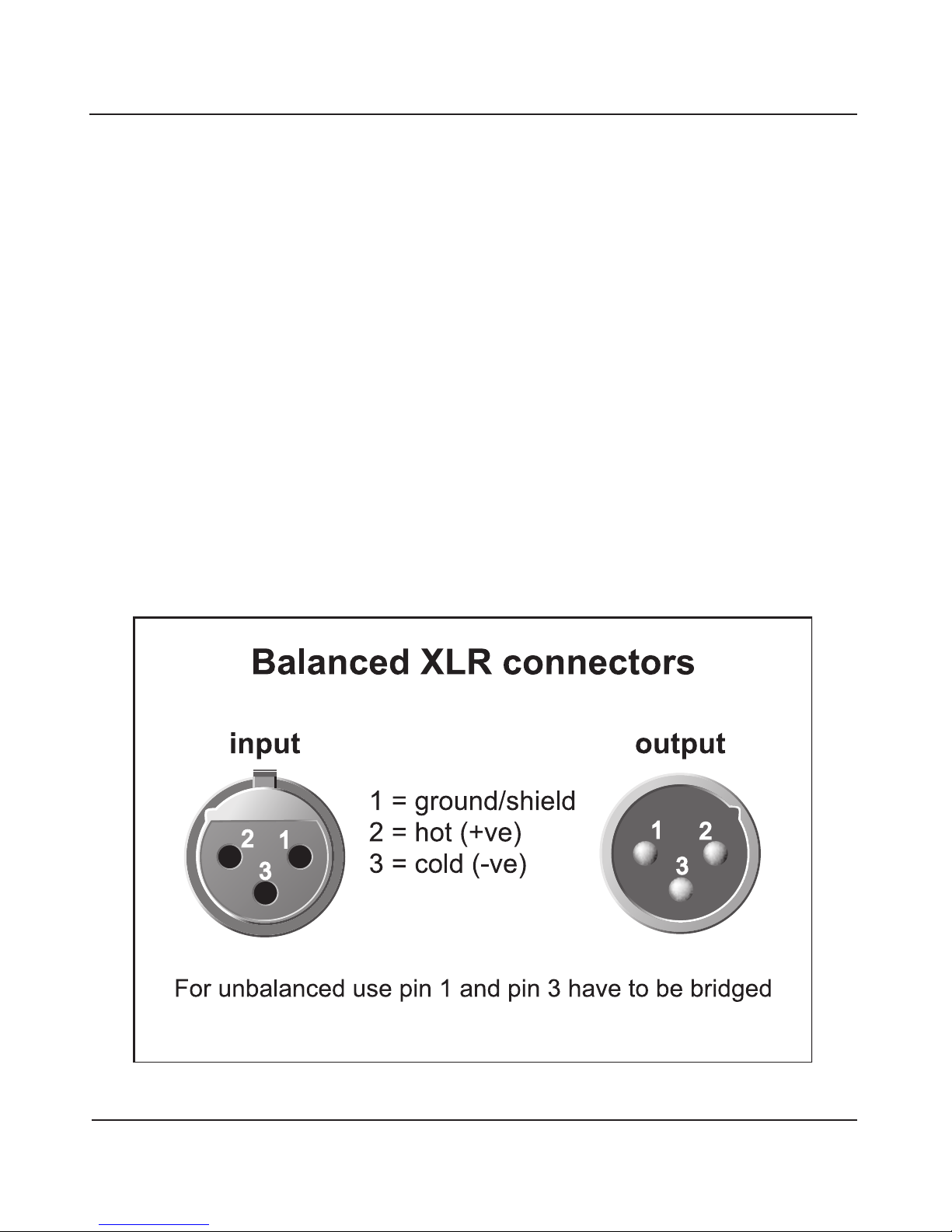

Fig. 3.1: XLR connectors
3. UDIO CONNECTIONS

ULTRA-DI DI20
7

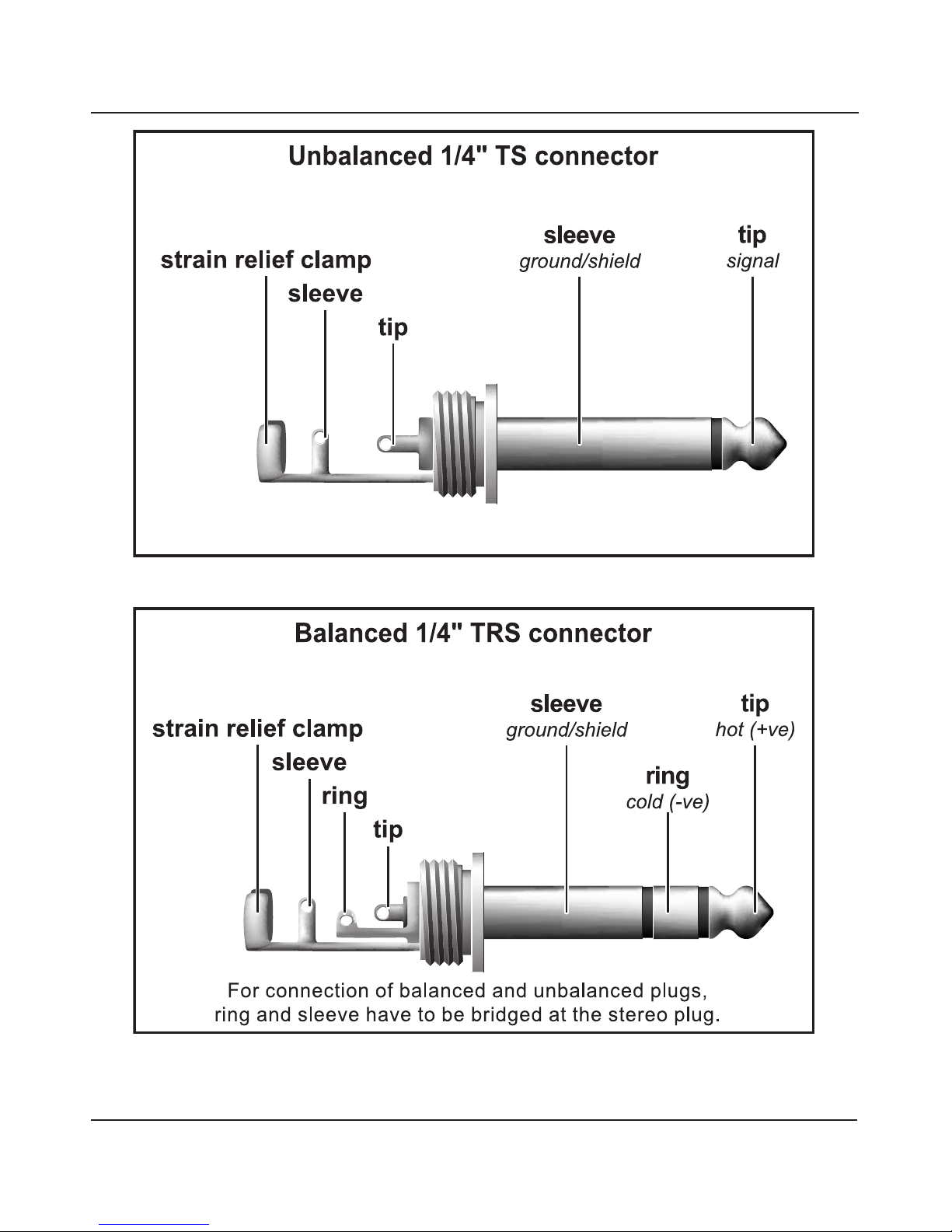

Fig. 3.2: 1/4" TS connector
Fig. 3.3: 1/4" TRS connector
3. UDIO CONNECTIONS

ULTRA-DI DI20
85. SPECIFIC TIONS
4. MULTILINGU L DOCUMENT TION
+The following versions of this users manual can
be downloaded free of charge at
http://www.behringer.com: German, French, Spanish,
Italian, Dutch, Finnish, Swedish, Danish, Portuguese
and Greek.
5. SPECIFIC TIONS
Frequency response 10 Hz to 70 kHz (-3 dB)
Noise 100 dBu
Distortion < 0.014% (1 kHz, 0 dBu in)
Input resistance > 250 kΩ
Connection impedance > 600 Ω
Input 1/4" mono jack
Output XLR balanced
Max. input level +12/+32/+52 dBu
Phantom power 18 V DC to 48 V DC
Battery power 9 V 6LR91
Dimensions 6" (150 mm) x 5" (130 mm)
x 2 3/8" (60 mm)
Weight approx. 650 g
