Beisler 100/68 User manual

Teileliste / Parts List
100/68
Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld
Telefon +49 (0) 521 / 9 25-2340 • Telefax +49 (0) 521 / 9 25-2583 • www.beisler-sewing.com
Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:
03/2010 Rev. index: 00.0 Printed in Federal Republic of Germany 0791 106801

Interimsliste 100/68
Halter
holder
012227.00
Stehbolzen
stay bolt
012282.00
Reflexlichtschranke
photocell
2100743.10
Fadenwächter
thread monitor
3402126.00
Befestigung
mounting
012212.00
Achtung: Gültig ab 01.06.2007
ATTENTION: Valid from 01.06.2007

Interimsliste 100/68
Mittelmesser
knife
008688.00
Messerhalter
knife holder
008416.00
Messerhalter
knife holder
012134.00
Zylinder mit Feder
cylinder with spring
1000516.00
Führung
guide
008404.01

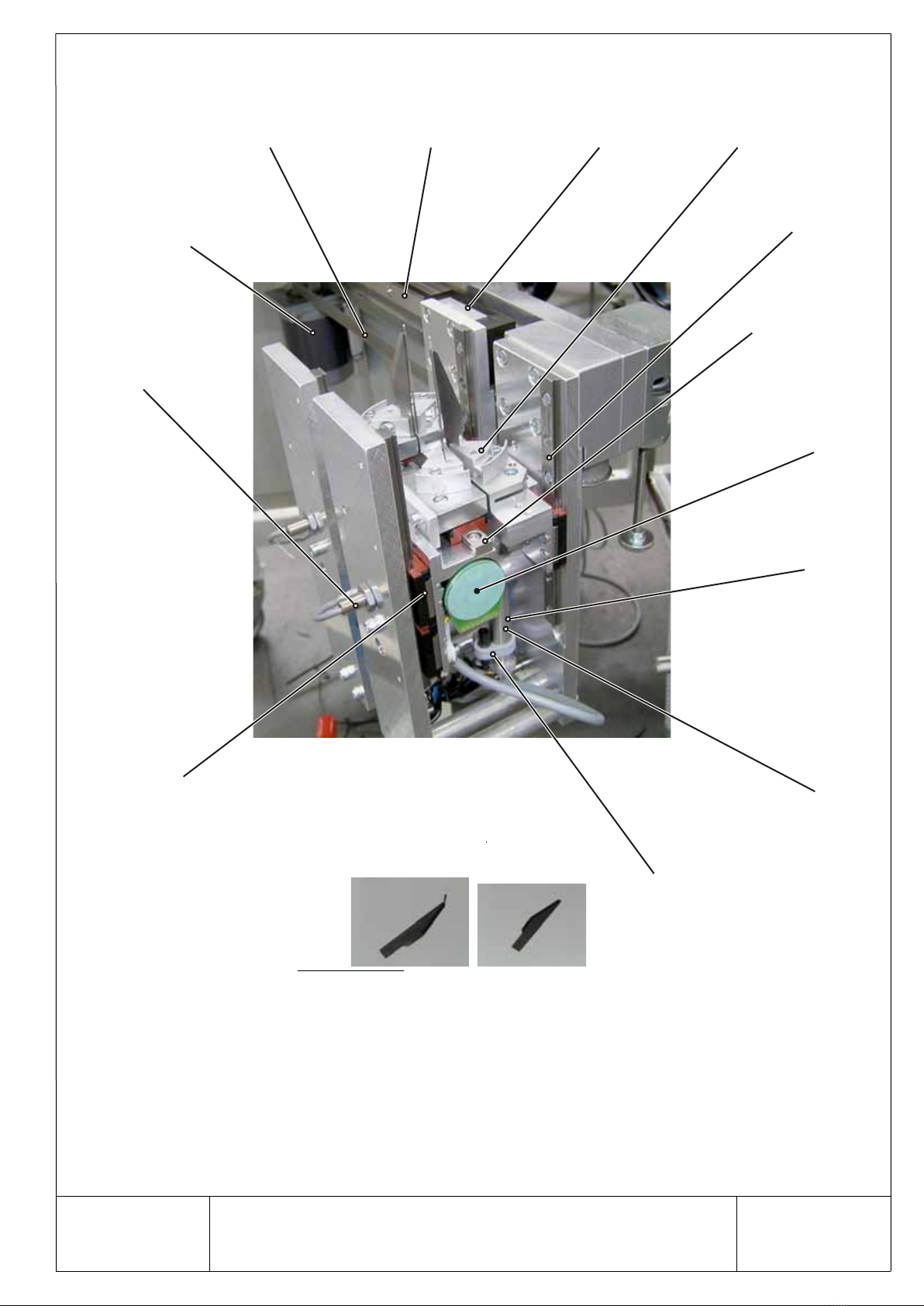

Interimsliste 100/68
Schraube
screw
3400105.00
Tastkopf
bobbin thread sensor
2100754.30
Schraube
screw
3400106.00
Spulenkapsel
bobbin case
008940.00
Spule
bobbin
008935.00
Messer
knife
3400107.00
Spulenbremsfeder
bobbin tension spring
3400159.00

Interimsliste 100/68
100223.00
NA4, 8
NA8
NA10
NA12
NA14
NA16
NA18
NA20
NA22
NA24
NA26
NA30
Messer Bewegl. Messer Federblech Messerschutz
Halter knife movable knife flat spring knife guard
012315.00 012312.00 012313.00 012314.00 012311.00
011135.01 3400608.15 3400608.16 3400608.17 3400610.10
011135.00 3400610.07 3400610.08 3400610.09 3400610.10
011135.00 3400610.07 3400610.08 3400610.09 3400610.10
011135.00 3400614.07 3400614.08 3400614.09 3400614.10
011135.00 3400614.07 3400614.08 3400614.09 3400614.10
011135.00 3400620.07 3400620.08 3400620.09 3400620.10
011135.00 3400620.07 3400620.08 3400620.09 3400620.10
011135.00 3400624.07 3400624.08 3400624.09 3400624.10
011135.00 3400624.07 3400624.08 3400624.09 3400624.10
011135.00 3400624.07 3400624.08 3400624.09 3400624.10
011134.00
Fadenfänger - thread catcher

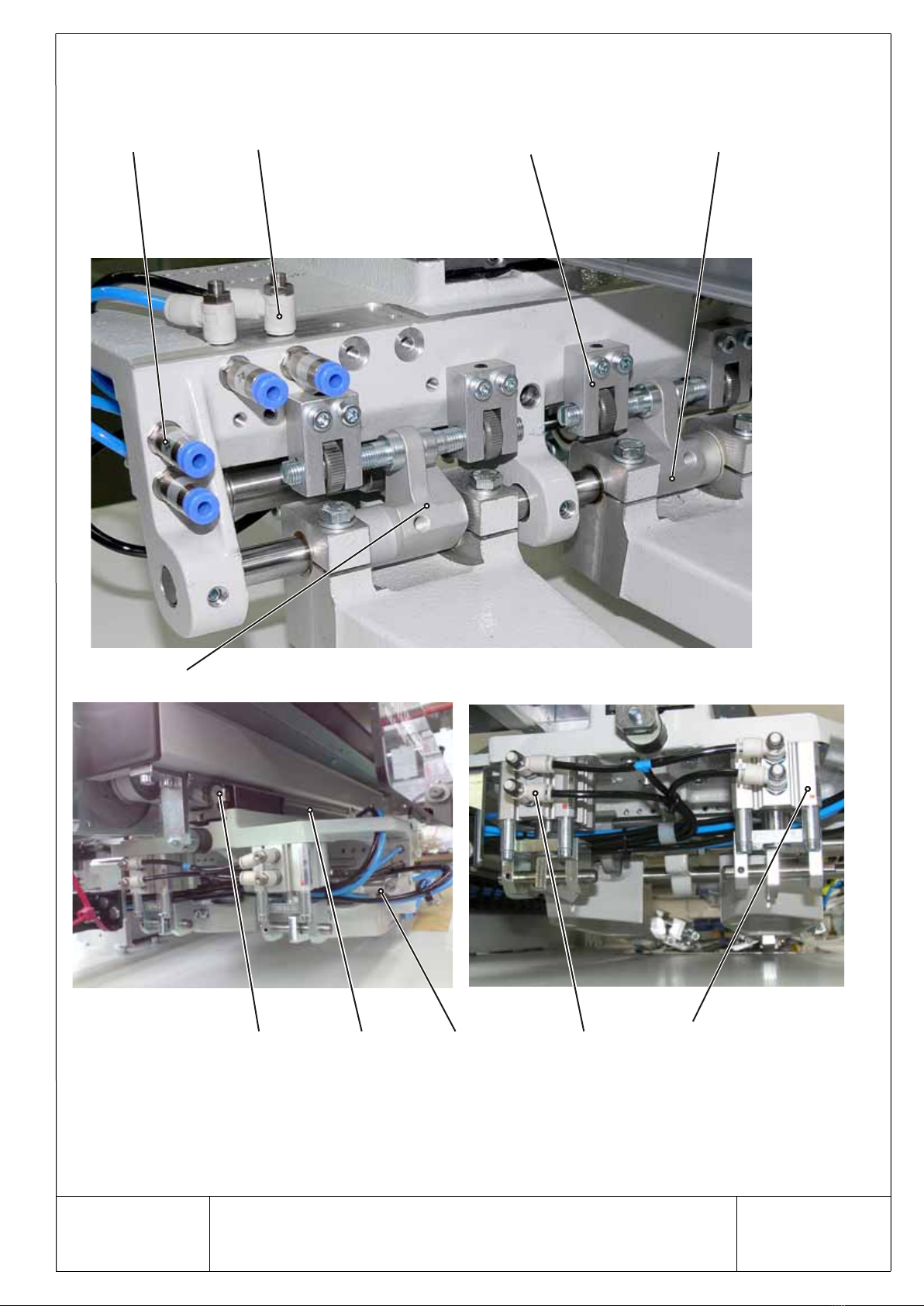

Interimsliste 100/68
Zylinder
cylinder
1000507.00
Reedschalter + Befestigung + Gleitlager
reed switch + mounting + bush bearing
012186.00 + 1000508.10 + 012106.00
Schrittmotor
stepping motor
012191.00
Abluftdrossel
throttle valve
006927.00
1100161-31
1100500.05
Schiene
guide rail
1500546.00
1100500.99
Zahnriemen
toothed belt
011889.00
Messerkloben
knife holder
011778.00
Wagen
carriage
1500547.00
Eckenmesser R Eckenmesser L
3402229.00 3402230.00
3402219.00 3402220.00
3402221.00 3402222.00
3402223.00 3402224.00
3402223.00 3402224.00
3402223.00 3402224.00
3402223.00 3402224.00
3402225.00 3402226.00
3402225.00 3402226.00
3402227.00 3402228.00
Eckenmesser Standard
NA8
NA10
NA12
NA14
NA16
NA18
NA20
NA22
NA24
NA26
NA30
Vorstecher - Stift
punch
011779.00
Schiene
guide rail
1500550.00
Wagen
carriage
1500551.00
Wagen
carriage
1500551.00

Interimsliste 100/68
Zylinder
cylinder
1000507.00
Reedschalter + Befestigung + Gleitlager
reed switch + mounting + bush bearing
012186.00 + 1000508.10 + 012106.00
Schrittmotor
stepping motor
012191.00
Abluftdrossel
throttle valve
006927.00
Schiene
guide rail
1500546.00
Sensor
sensor
2102066.00
Zahnriemen
toothed belt
011889.00
Messerkloben
knife holder
011778.00
Wagen
carriage
1500547.00
NA8
NA10
NA12
NA14
NA16
NA18
NA20
NA22
NA24
NA26
NA30
Eckenmesser R Eckenmsser L
3402207.00 3402208.00
3402207.00 3402208.00
3402209.00 3402210.00
3402211.00 3402212.00
3402213.00 3402214.00
3402213.00 3402214.00
3402215.00 3402216.00
3402217.00 3402218.00
3402217.00 3402218.00
3402217.00 3402218.00
Eckenmesser Schrägstellung
Schrittmotor
stepping motor
2102073.00
Schiene
guide rail
1500546.00
Wagen
carriage
1500547.00
Schiene
guide rail
1500562.00

Interimsliste 100/68
Platine
circuit board
2102074.00
Einspeisung
start plate
1100500.01
Endplatte
finish plate
1100500.02
1100500.05
1100500.99 1100500.11 1100500.07
Platine
circuit board
2102075.00
Platine
circuit board
2102077.00

Interimsliste 100/68
Zylinder
cylinder
1000506.00
Zylinder
cylinder
1000515.00
Lagerplatte rechts
guide plate right
011859.00
1100500.05
Wagen
carriage
1500543.00
Schiene
guide rail
1500542.00
Abluftdrossel
throttle valve
006927.00
Rückschlagventil
return valve
1400337.00
Lagerplatte links
guide plate left
011860.00
Wegbegrenzung kompl.
Limiter complete
3402242.00
Zuluftdrossel
throttle valve
007418.00

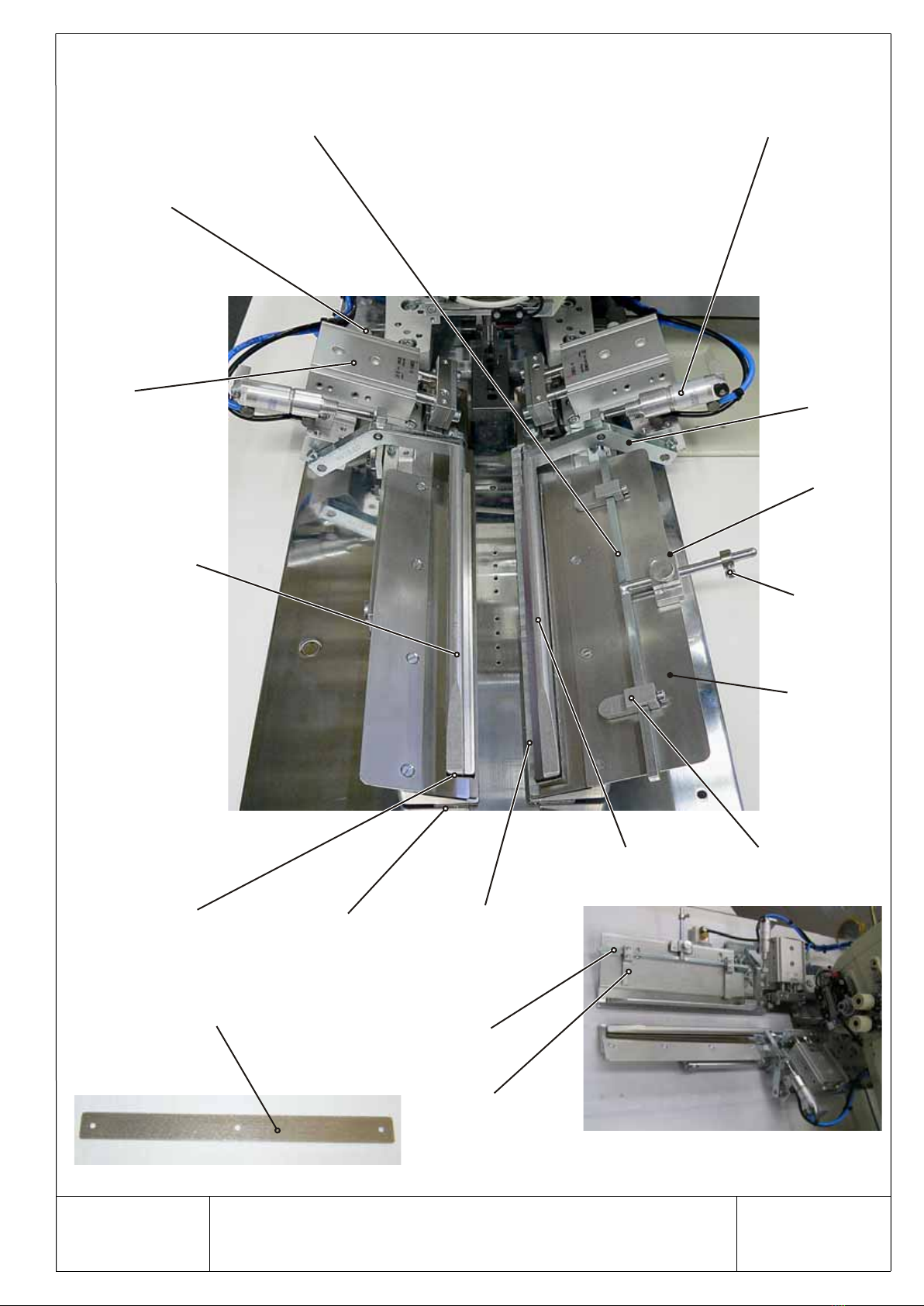

Interimsliste 100/68
Reflexfolie
reflecting foil
2500780.20
Anschlag
guide
001701.00
Hebel
lever
008653.00
Pattenanschlag
flap guide
001284.00
Zylinder
cylinder
1000001.00
Abluftdrossel
throttle valve
006927.00
Zylinder
cylinder
1000220.00
Klammergummi
clamp rubber
007487.00
Pattenklammer rechts
flap clamp right
009060.00
Gummibelag
rubber coat
009059.00
Anschlag
guide
008824.00+008825.00
Pattenklammer links
flap clamp links
009061.00
Pattenanschlag
flap guide
001284.01
Anschlagklemme
guide clamp
001283.00
Stellring
set collar
1600463.00
Abweisblech
deflektor plate
007571.00
Distanzunterlage für dickes Material
additional distance for thick material
011634.00

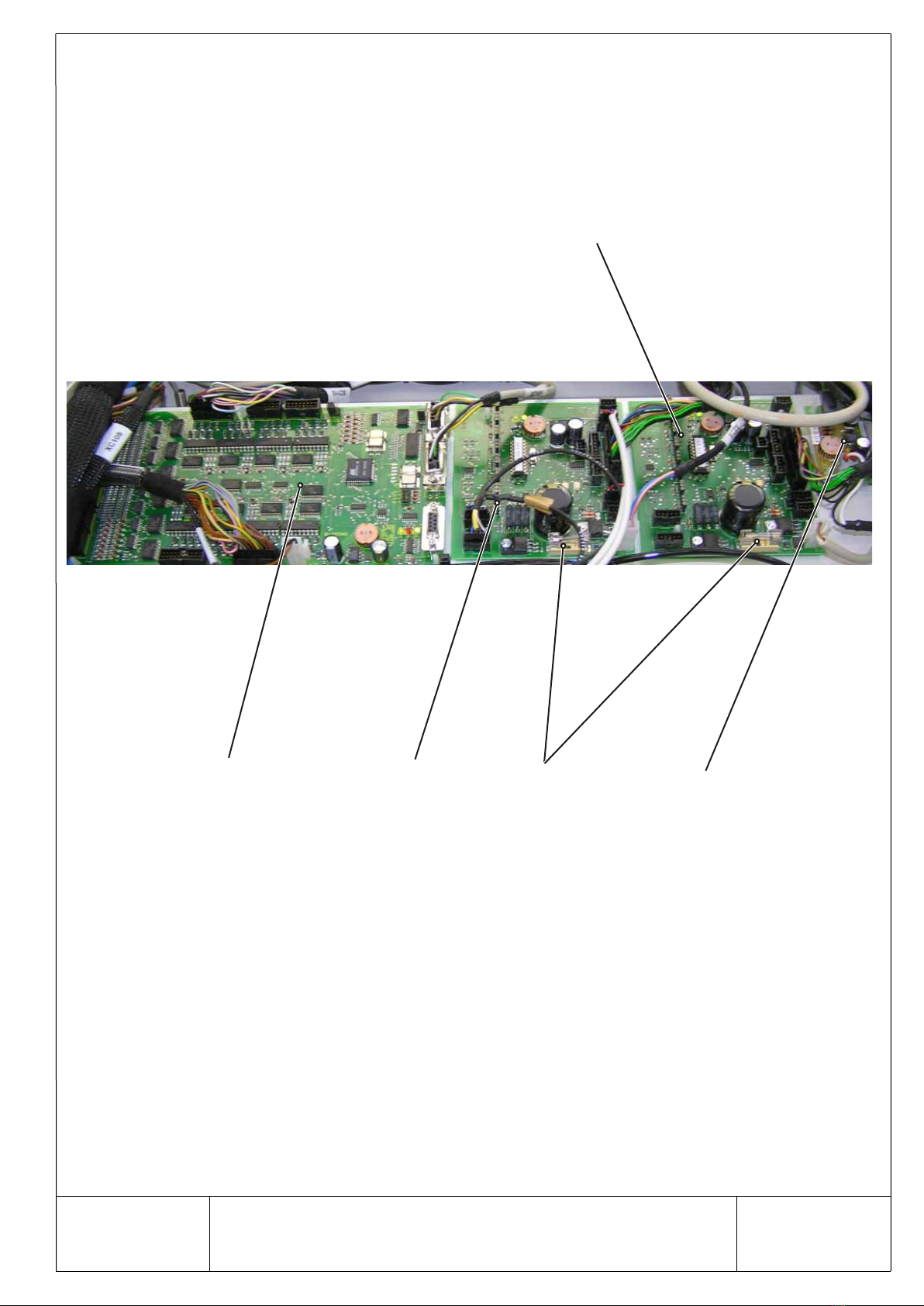

Interimsliste 100/68
Sicherung 4AT
fuse 4AT
Elektronikplatine
electronic circuit
2102071.00
Elektronikplatine
electronic circuit
2102070.00
Elektronikplatine
electronic circuit
2102072.00
Elektronikplatine
electronic circuit
2102071.00
IO - Platine für
CAN - Schnittstelle
IO - electronic circuit
CAN - interface
Fadenwächter
thread monitor Platine für Laser
electronic circuit
for laserpointer
Platine für Ausroller
electronic circuit for roller

Interimsliste 100/68
1100500.05
Endplatte
finish plate
1100500.02
Elektronik Platine
electronic circuit
2102058.00
1100500.99 1100500.11 1100500.07
Einspeisung
start plate
1100500.01
ACHTUNG-nur Y10 Grundstellung geöffnet
ATTENTION- only Y10 normally open
Ventil 3/2 Wege NO
valve 3/2 NO
1100500.12
Ventil 5/2 Wege NC
valve 5/2 NC
1100500.05
Ventil 3/2 Wege NC
valve 3/2 NC
1100500.03

Interimsliste 100/68
Exzenter
tappet
012130.00
Sicherungsring
circlip
3402244.00
Scheibe
washer
3402245.00
DC Motor
dc motor
012144.00

Interimsliste 100/68
Klemmstück
clamping piece
3402198.00
2102084.00
2102083.00 2102085.00
1100500.05
Gehäuse
box
2100667.00
1100500.99
1100500.11
Klemmstück
clamping piece
3402199.00
Laser
laser
2102067.00
Magnetschalter
magnetic switch
012187.00
Mutter
nut
3402200.00

Interimsliste 100/68
Achse
shaft
011917.00
Dämpfring
damp ring
011915.00
Rad
wheel
011916.00
Zylinder + Abluftdrossel
cylinder + throttle valve
1000212.00 + 006927.00
Getriebemotor
gear motor
2400838.00

Interimsliste 100/68
Sensor
sensor
2100753.10
Luftschlauch
air hose
1200240.12
Ventil
valve
1100199.00

Interimsliste 100/68
Abluftdrossel
throttle valve
006927.00
Stempel
punch
008489.00
Magnetschalter + Befestigung
magnetic switch + mounting
012222.01 + 1000144.10
Winkelverschraubung
screw joint
1400345.00
Zylinder
cylinder
1000242.00

2
200 3
4
6
2
1
5
100
Nadelhalter-Stichplatte 100/68
NR.
No. STÜCK PIECE ARTIKEL NR. ARTICLE NO. BEZEICHNUNG NAME
1 2 008452-00 Blattfeder leaf spring
2 4 3400106.00 Schraube screw
3 2 3402119.00 Gewindestift set screw
4 2 3400105.00 Schraube screw
5 2 3400101.00 Messer knife
6 1 3400107.00 Messer knife
100 1 008494-00 Stichplatte NA 8 stitch plate needle distance 8mm
1 008493-00 Stichplatte NA 10 stitch plate needle distance 10mm
1 008425-00 Stichplatte NA 12 stitch plate needle distance 12mm
1 008730-00 Stichplatte NA 14 stitch plate needle distance 14mm
1 008743-00 Stichplatte NA 16 stitch plate needle distance 16mm
1 008848-00 Stichplatte NA 18 stitch plate needle distance 18mm
1 008737-00 Stichplatte NA 20 stitch plate needle distance 20mm
1 008674-00 Stichplatte NA 22 stitch plate needle distance 22mm
1 009564-00 Stichplatte NA 24 stitch plate needle distance 24mm
1 010542-00 Stichplatte NA 26 stitch plate needle distance 26mm
1 010461-00 Stichplatte NA 30 stitch plate needle distance 30mm
200 1 009124-00 Nadelhalter NA 8 needle holder , distance 8mm
1 008766-00 Nadelhalter NA 10 needle holder , distance 10mm
1 008673-00 Nadelhalter NA 12 needle holder , distance 12mm
1 008678-00 Nadelhalter NA 14 needle holder , distance 14mm
1 008742-00 Nadelhalter NA 16 needle holder , distance 16mm
1 009157-00 Nadelhalter NA 18 needle holder , distance 18mm
1 008738-00 Nadelhalter NA 20 needle holder , distance 20mm
1 008675-00 Nadelhalter NA 22 needle holder , distance 22mm
1 009563-00 Nadelhalter NA 24 needle holder , distance 24mm
1 010543-00 Nadelhalter NA 26 needle holder , distance 26mm
1 010460-00 Nadelhalter NA 30 needle holder , distance 30mm

Nadelhalter Schrägstellung Interimsliste 100 / 68
4100
1
2
201
202
26
5
NR.
No. STÜCK PIECE ARTIKEL NR. ARTICLE NO. BEZEICHNUNG NAME
1 2 008452-00 Blattfeder leaf spring
2 4 3400106.00 Schraube screw
3
4 2 3400105.00 Schraube screw
5 2 3400101.00 Messer knife
6 1 3400107.00 Messer knife
100 1 008494-00 Stichplatte NA 8 stitch plate needle distance 8mm
1 008493-00 Stichplatte NA 10 stitch plate needle distance 10mm
1 008425-00 Stichplatte NA 12 stitch plate needle distance 12mm
1 008730-00 Stichplatte NA 14 stitch plate needle distance 14mm
1 008743-00 Stichplatte NA 16 stitch plate needle distance 16mm
1 008848-00 Stichplatte NA 18 stitch plate needle distance 18mm
1 008737-00 Stichplatte NA 20 stitch plate needle distance 20mm
1 008674-00 Stichplatte NA 22 stitch plate needle distance 22mm
1 009564-00 Stichplatte NA 24 stitch plate needle distance 24mm
1 010542-00 Stichplatte NA 26 stitch plate needle distance 26mm
1 010461-00 Stichplatte NA 30 stitch plate needle distance 30mm
201 1 3400608.01 Nadelhalter rechts NA 8 needle holder , right, distance 8mm
1 3400610.01 Nadelhalter rechts NA 10 needle holder , right, distance 10mm
1 3400612.01 Nadelhalter rechts NA 12 needle holder , right, distance 12mm
1 3400614.01 Nadelhalter rechts NA 14 needle holder , right, distance 14mm
1 3400616.01 Nadelhalter rechts NA 16 needle holder , right, distance 16mm
1 3400618.01 Nadelhalter rechts NA 18 needle holder , right, distance 18mm
1 3400620.01 Nadelhalter rechts NA 20 needle holder , right, distance 20mm
1 3400624.01 Nadelhalter rechts NA 24 needle holder , right, distance 24mm
1 3400626.01 Nadelhalter rechts NA 26 needle holder , right, distance 26mm
1 3400630.01 Nadelhalter rechts NA 30 needle holder , right, distance 30mm
202 1 3400608.02 Nadelhalter links NA 8 needle holder , left, distance 8mm
1 3400610.02 Nadelhalter links NA 10 needle holder , left, distance 10mm
1 3400612.02 Nadelhalter links NA 12 needle holder , left, distance 12mm
1 3400614.02 Nadelhalter links NA 14 needle holder , left, distance 14mm
1 3400616.02 Nadelhalter links NA 16 needle holder , left, distance 16mm
1 3400618.02 Nadelhalter links NA 18 needle holder , left, distance 18mm
1 3400620.02 Nadelhalter links NA 20 needle holder , left, distance 20mm
1 3400624.02 Nadelhalter links NA 24 needle holder , left, distance 24mm
1 3400626.02 Nadelhalter links NA 26 needle holder , left, distance 26mm
1 3400630.02 Nadelhalter links NA 30 needle holder , left, distance 30mm
