Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
Working Instructions
Closing Seam Machine 1282-4
V
ersion 1.1, 14.05.03

Closing Seam Machine 1282-4 Working Instructions
- 2 -
Beisler Automated Sewing Equipment
The working instructions are divided into four sections:
A General notes
Safety instructions for the operating and service personnel and for the opera-
tor of the machine.
B Operating instructions
Instructions for the personnel operating and handling the machine.
C Service instructions
Instructions for the personnel in charge of the initial start-up, setting up and
service of the machine.
D Programming instructions
Instructions for the service personnel in charge of preparing and setting up the
machine.
Scope of the working instructions
These working instructions describe the CLOSING SEAM MACHINE 1282-4 of Beisler
GmbH and apply only to those machine parts and components that are contained in
the scope of delivery of the CLOSING SEAM MACHINE 1282-4 .
They do not apply to accessories or machine parts (e.g. sewing head) from third parties
that the machine is equipped or retrofitted with. For those components, the working
instructions of the respective manufacturer or supplier apply.
Contents of the working instructions

- 3 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
Section A General notes

Closing Seam Machine 1282-4 Working Instructions
- 4 -
Beisler Automated Sewing Equipment
Section A General notes
Contents Page
A.1 Safety instructions ......................................................................................................................................5
Important information for the operator......................................................................................................5
Warranty ...................................................................................................................................................5
Exclusion of liability ..................................................................................................................................6
Copyright ..................................................................................................................................................6
Important information for the operating personnel ...................................................................................7
Important information for the service personnel.......................................................................................7
A.1.1 Symbols used in the working instructions ....................................................................................................8
A.1.2 Symbols used on the machine......................................................................................................................8
A.1.3 General safety instructions ...........................................................................................................................9

- 5 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
A.1 Safety instructions
Important information for the operator!
This machine has been manufactured in keeping with the latest technological develop-
ments and is operationally safe. However, it may present potential hazards, particu-
larly if it is operated by inadequately trained personnel or if it is not used correctly:
•For personnel operating and handling the machine, the operator must prepare written
instructions in a reasonable form and in the language of the operating personnel
based on these working instructions (Germany:Accident Prevention Regulations UVV
VGB 1 § 7.2).
•Use the operating instructions to familiarize the operating personnel with the func-
tions, operation, and care of the machine and check to see if the operating per-
sonnel fully understands these instructions.
•Use the service instructions to familiarize the service personnel with the setting
up and maintenance of the machine.
•For any modifications of the machine that have not been approved by Beisler GmbH
in writing, the operator is fully responsible.
•The contents of the working instructions are subject to change without further notice.
•Concerning translations into foreign languages, the German version of these working
instructions is binding.
•Should you encounter problems that are not mentioned in these working instruc-
tions, please contact your supplier immediately for your own safety. Please do not
hesitate to contact Beisler if you have any suggestions that help to improve this
product.
• Keep these working instructions close to the machine so that safety instruc-
tions and information on operation, setting-up, and maintenance are always
accessible.
Warranty
Beisler GmbH warrants the safety, operatability, and repair without charge of the CLO-
SING SEAM MACHINE 1282-4 for a period of 6 months under the condition that:
• the machine is used exclusively for the intended purpose and serviced in accor-
dance with the information in these working instructions,
• modifications of the machine are carried out only with prior written approval of Beisler
GmbH,
• only original spare parts or accessories approved by Beisler GmbH are used. For
a complete list of all approved spare parts, please contact Beisler GmbH.
If the machine is used for more than 10 hours per day (shift operation), the warranty
period is reduced to 3 months.
The warranty period starts with the delivery of the machine to the operator.

Closing Seam Machine 1282-4 Working Instructions
- 6 -
Beisler Automated Sewing Equipment
A.1 Safety instructions
Exclusion of liability
Beisler GmbH warrants the faultlessness of the product as set forth by their
advertisements, product information and these working instructions. Other pro-
duct characteristics are not warranted.
Beisler GmbH is not responsible for the profitability or for the correct function
of the CLOSING SEAM MACHINE 1282-4 if it is used for other purposes than
those defined in section „Correct use“.
Beisler GmbH is not responsible for damage that arises from the use of non-
defined and non-approved spare parts or accessories.
Copyright
© 2000 Beisler GmbH, Hösbach; 06/2001
Closing seam machine
The CLOSING SEAM MACHINE 1282-4 and all related parts are protected by
copyright. Any reproduction of the machine will be prosecuted.
Working instructions
These working instructions are protected by copyright. No part of the working
instructions, including figures and tables, may be reproduced or translated in
any form or by any means, electronic or mechanical, without the express written
permisson of Beisler GmbH.
Beisler GmbH
Fohnradstr. 10
63768 Hösbach
Germany
Phone: ++ 49 / 6021 / 50 19 0
Fax: ++ 49 / 6021 / 50 19 10
eMail: [email protected]

- 7 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
Important information for the operating personnel!
Please note that any work to the CLOSING SEAM MACHINE 1282-4 must be car-
ried out only by trained operating personnel:
•Operating personnel means persons:
that have been given initial instructions for sewing automats and that
have been trained for the operation and handling of the CLOSING SEAM
MACHINE 1282-4 on the basis of these operating instructions,
that have been informed about potential risks arising from their work
with the machine,
that are capable of assessing their work with the machine due to oc-
cupational experience and instruction of the safety regulations and of
recognizing potential hazards during work.
• Cleaning of the machine or of machine parts must be performed only by person-
nel that has been informed about potential hazards arising during the cleaning work.
• Prior to the initial operation of the CLOSING SEAM MACHINE 1282-4, read the
operating instructions carefully so that you can make full use of the advantages
of the machine and to prevent damage.
Important information for the service personnel!
Please note that service work to the CLOSING SEAM MACHINE 1282-4 must be car-
ried out only by authorized and adequately trained expert personnel:
•Expert personnel means persons:
that have aquired their expertise by a special training in machine tech-
nology or electrical engineering or by a special advanced training or a
comparable qualification,
that have acquired the knowledge required to perform all works for set-
ting up and servicing the CLOSING SEAM MACHINE 1282-4 from a trai-
ning by Beisler GmbH,
that are capable of assessing their work with the machine due to oc-
cupational experience and instruction of the safety regulations and of
recognizing potential hazards during work.
• Prior to carrying out any service work to the CLOSING SEAM MACHINE 1282-
4, read the entire working instructions carefully so that you can make full use
of the advantages of the machine and to prevent damage.
A.1 Safety instructions

Closing Seam Machine 1282-4 Working Instructions
- 8 -
Beisler Automated Sewing Equipment
A.1 Safety instructions
A.1.1 Symbols used in the working instructions
WARNING!
is used if non-observance may cause serious or even lethal
injuries.
CAUTION!
is used if non-observance may cause medium to minor
injuries or damage.
NOTE!
is used for hints and useful information.
A.1.2 Symbols used on the machine
WARNING: DANGER!
Caution! Observe working instructions.
WARNING: HIGH VOLTAGE!
Caution! Prior to opening, pull out power plug.

- 9 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
A.1.3 General safety instructions
Correct use
• The CLOSING SEAM MACHINE 1282-4 is a sewing
machine for the contour-identical sewing of side com-
ponents, particularly for closing front and rear trouser
components with or without lining.
The side seam can be sewn with a braid pocket, a wing
pocket or a pocket integrated in the side seam.
• The machine can be used for all materials common-
ly used for outerwear.
• The machine has been designed for permanent ope-
ration in industry.
• The CLOSING SEAM MACHINE 1282-4 has been te-
sted for electromagnetic compatibility and is suited for
installation in industrial operating rooms.
Incorrect use
• The CLOSING SEAM MACHINE 1282-4 must not be
operated in rooms that do not comply with the locati-
on requirements.
• The CLOSING SEAM MACHINE 1282-4 must not be
operated in the vicinity of devices or systems that pro-
duce strong magnetic fields as otherwise the correct
function of the program control may be impaired.
Safety requirements
• DIN EN, Part 1:1991-11, Part 2:1995-06
Safety of machines.
• DIN EN 60601, Part 1:1994-05
Safetyregulationsforelectricallyoperatedmeasuring
and control installations, general requirements.
• DIN EN 50178 (VDE 0160): 1998-04
Equipment of power systems with electronic devices.
• DIN EN 50082 (VDE 0839) Part 2:1997-11
Electromagnetic compatibility, basic specification,
immunity to interference.
Part 1: Domestic, business and commerce, small
enterprises.
Part 2: Industry.
• DIN EN 60204 (DIN VDE 0113): 1993-06
Electrical equipment of industrial machines
A.1 Safety instructions
Safety devices
The CLOSING SEAM MACHINE 1282-4 is equipped with
a circuit-breaker (program stop switch) that stops all
machine movements and the sewing process when ac-
tuated manually.
Power supply connection
The power supply of the machine is established with a
properly grounded power supply connection with:
• 230 V ± 10 %, 50/60 Hz, grounding plug.
• Fusing: 16 A
• Power consumption: 1.3 kW
Compressed air supply
The machine must be supplied by an on-site compressed
air source.
• Operating pressure: 6 bar.
• Compressed air quality: oil-free
• Compressed air consumption: 12 NL
Location and storage requirements
Installation in sheltered, closed rooms.
• Room temperature: 10 °C to 45 °C
• Relative humidity: 80 % max.
Disposal
• Please discard the packaging material in accordance
with existing disposal directives. Section C1, Delive-
ry of the machine, contains a list of the packaging
materials used.
• The machine contains reusable materials. Therefore,
when discarding the machine, ask your local magi-
strate or community office about the possibilities of
recycling.

- 1 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
Section B Operating Instructions

Closing Seam Machine 1282-4 Working Instructions
- 2 -
Beisler Automated Sewing Equipment
Section B Operating Instructions
Contents Page
B.1.1 Functional units ...................................................................................................................................................3
B.2.1 Functional sequence...........................................................................................................................................4
B.2.2 Lining up/aligning trousers components.............................................................................................................4
B.2.3 Transport and sewing..........................................................................................................................................7
B.2.4 Switches..............................................................................................................................................................9
B.2.5 Operating panel.................................................................................................................................................10
B.3.1 Safety instructions for operation .......................................................................................................................11
B.3.2 Preparing the machine......................................................................................................................................12
B.3.3 Selecting the sewing program ..........................................................................................................................13
B.3.4 Manual sewing ..................................................................................................................................................14
B.3.5 Operating the stacker........................................................................................................................................14
B.3.6 Threading ..........................................................................................................................................................14
B.3.7 Line-up and alignment of sewing pieces ..........................................................................................................15
B.3.8 Starting machine cycle......................................................................................................................................16
B.3.9 Resetting insertion process .............................................................................................................................18
B.3.10 Moving machine to zero position ....................................................................................................................19
B.3.11 Stopping a sewing program ............................................................................................................................19
B.3.12 Turning the machine off ..................................................................................................................................19
B.3.13 Periodic cleaning of the machine....................................................................................................................20

- 3 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
B.1 Description of the machine
Fig. 1
8Contour guide
9Storage plate
aGuide rail with guide clamp
bCounterweight and return lever
cReset button
dKneeswitch for machine operation
eFootswitch for machine operation
fWaste container
gSewing head drive
hFootswitch for stacker

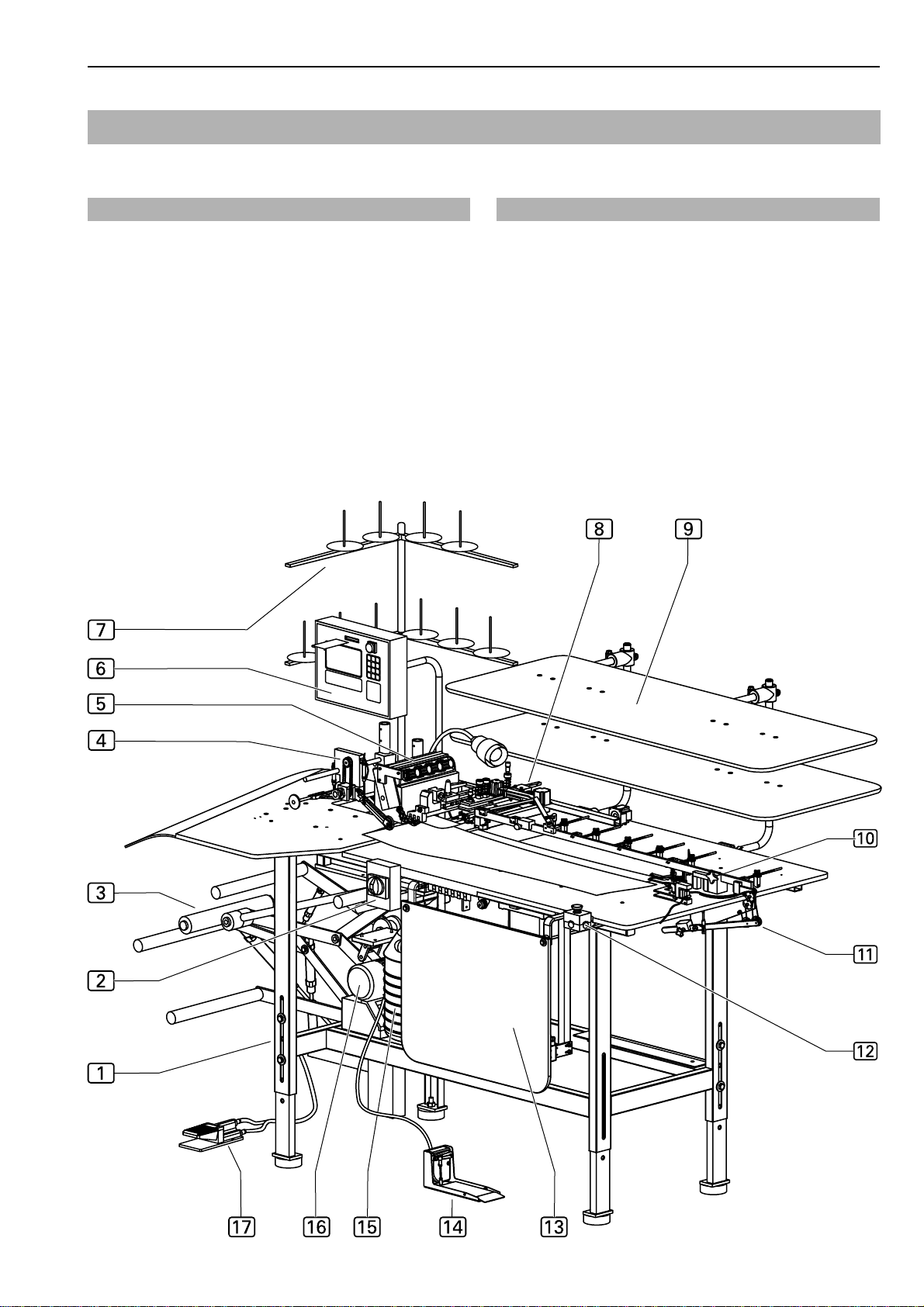

B.1.1 Functional units
All functional units of the closing seam machine 1282-4
are mounted to the height-adjustable table frame and freely
accessible.
1Height-adjustable table leg
2Main switch, emergency off switch
3Stacker
4Sewing head with sewing unit
5Transport unit
6Operating panel with memory card
7Thread holder
Fig. 1

Closing Seam Machine 1282-4 Working Instructions
- 4 -
Beisler Automated Sewing Equipment
B.2 Functions of the machine

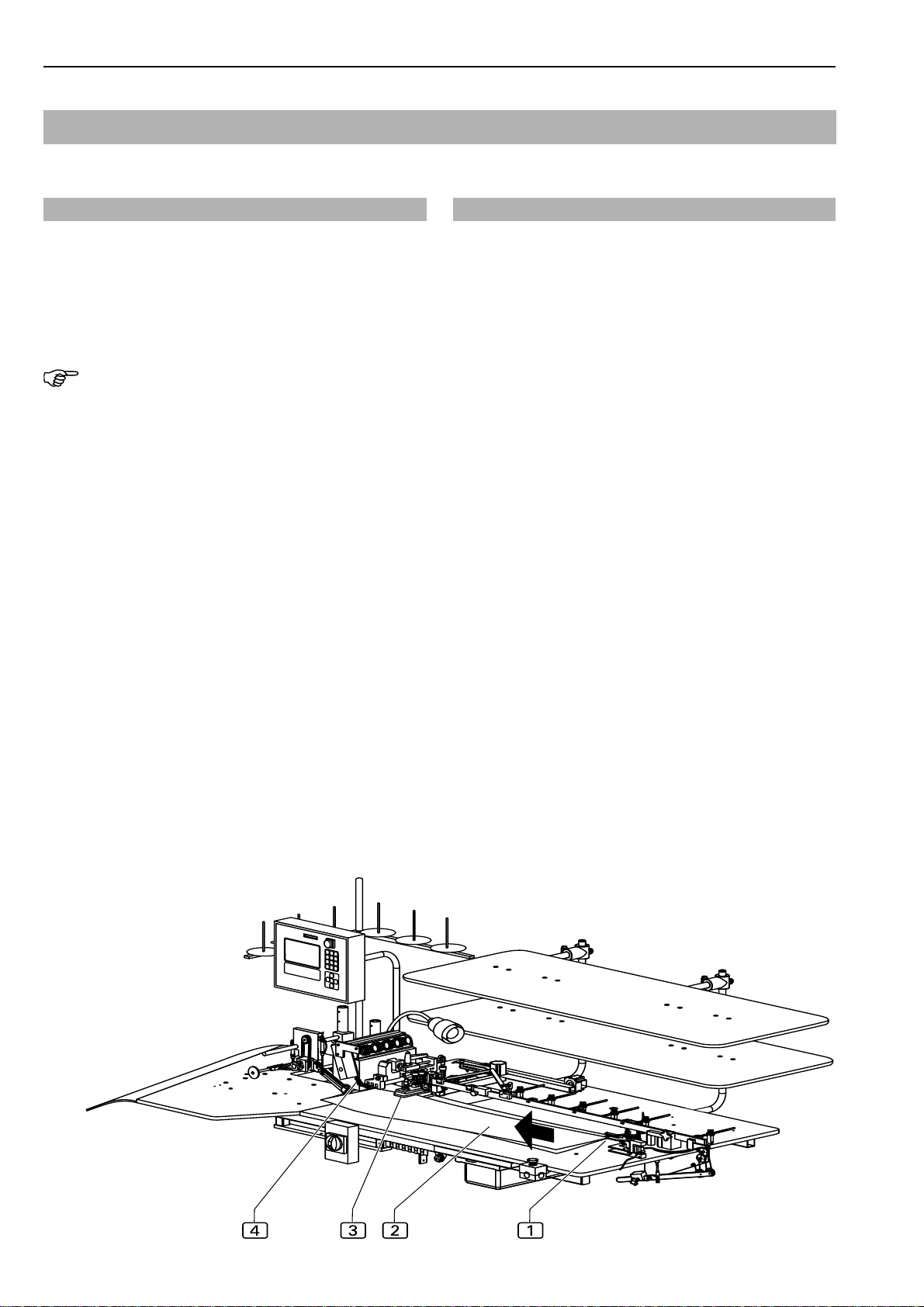

B.2.1 Functional of the machine Fig.2
The CLOSING SEAM MACHINE 1282-4 allows the con-
tour-identical sewing of front and rear trousers compon-
ents in side and crotch seams.The side seam can be sewn
with a braid pocket, a wing pocket or a pocket that is in-
tegrated to the side seam.
NOTE - Possible applications!
The CLOSING SEAM MACHINE 1282-4 has been desi-
gned predominantly for the sewing of trousers compon-
ents. Therefore, the operation of the machine is descri-
bed in these instructions using trousers components as
examples.
However, the machine can also be used for processing
other sewing pieces, e.g. sleeves, rear seams of jackets
etc. The prerequisite for the correct function is always that
the length of the sewing pieces does not exceed the clear
distance between the sewing head and the start position
of the guide clamp and that the width of the sewing pie-
ces does not exceed the distance between guide rail and
worktable front edge.
Machine cycle:
Insertion process and machine cycle are effected from left
to right:
• The trousers components are lined up to guide clamp
1, contour guide 2and sewing unit 3.
• Top and bottom transport element of the sewing unit
and the puller transport the sewing pieces to the se-
wing unit to be tucked and from there to the stacker.
• During the sewing process, the automatic contour guide
controls the routing of the seam.
Fig. 2
B.2.2 Lining up/aligning trousers components Fig. 2
The front and rear trousers components are placed onto
one another with flush seams. The sequence for lining up
the trousers components depends on the seam to be
effected:
• For sewing the crotch seam, the rear component is
below, the front component is up. For sewing the side
seams of these trousers components, the rear com-
ponent is up, the front component is below.
• For sewing the right trousers components, the se-
quence is inversed.
The two trousers components 2are inserted, with the
hip side oriented toward the sewing unit 4, into the
guide clamp 1where they are secured with the needle.
If equipped with the optional cloth transfer machine com-
ponent, the trousers components ends are inserted at the
cloth transfer station where they are transferred to the gui-
de clamp and secured.
Then, the two trousers components are aligned with the
contour guide 3and lined up at the stop of the sewing
unit 4.

- 5 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
B.2 Functions of the machine
Guide clamp, Fig. 3:
The guide clamp 5is used as a guide for the trou-
sers ends during the transport along a preset contour.
This guide mechanism ensures that the trousers com-
ponents are always lined up at the contour guide stop
and at the sewing unit stop to maintain a constant se-
wing width and an even routing of the seam along the
contour.
During the transport, a counterweight 9 suspended
from deflection rollers tensions the return ribbon 4of
the guide clamp and the cloth material without stretc-
hing it.
The trousers ends 7are inserted into the cloth hol-
der holder clamp. The clamp is closed manually, the
needle 6holds the trousers components in the gui-
de clamp.
Just before the contour guide is reached, the trousers
components are released from the guide clamp whi-
le the air-driven return lever 8is activated and returns
the guide clamp to the insertion station.
Guide rail, Fig. 3:
The flexible guide rail 1determines the route that the
guide clamp takes. The shape of the guide rail is iden-
tical with the contour of the components to be sewn.
The shape is determined by changing the position of
the guide rod 2 in the clamp 3.
Cloth transfer, Fig. 4:
If the machine is equipped with the optional automa-
tic cloth transfer 2component, the trousers ends are
inserted into the cloth transfer and transferred from
there to the equally automated guide clamp 1whe-
re they are fixed.
Fig. 3/4
Fig. 3
Fig. 4

Closing Seam Machine 1282-4 Working Instructions
- 6 -
Beisler Automated Sewing Equipment
B.2 Functions of the machine
Fig. 5
This setting ensures the easy gliding of the trou-
sers components through the contour guide and
prevents the cloth contour from overturning at the
stop pins.
• Use the handwheel 4 to set the distance of the
cover plate that holds the deflection plate 6to
the center tab 7.

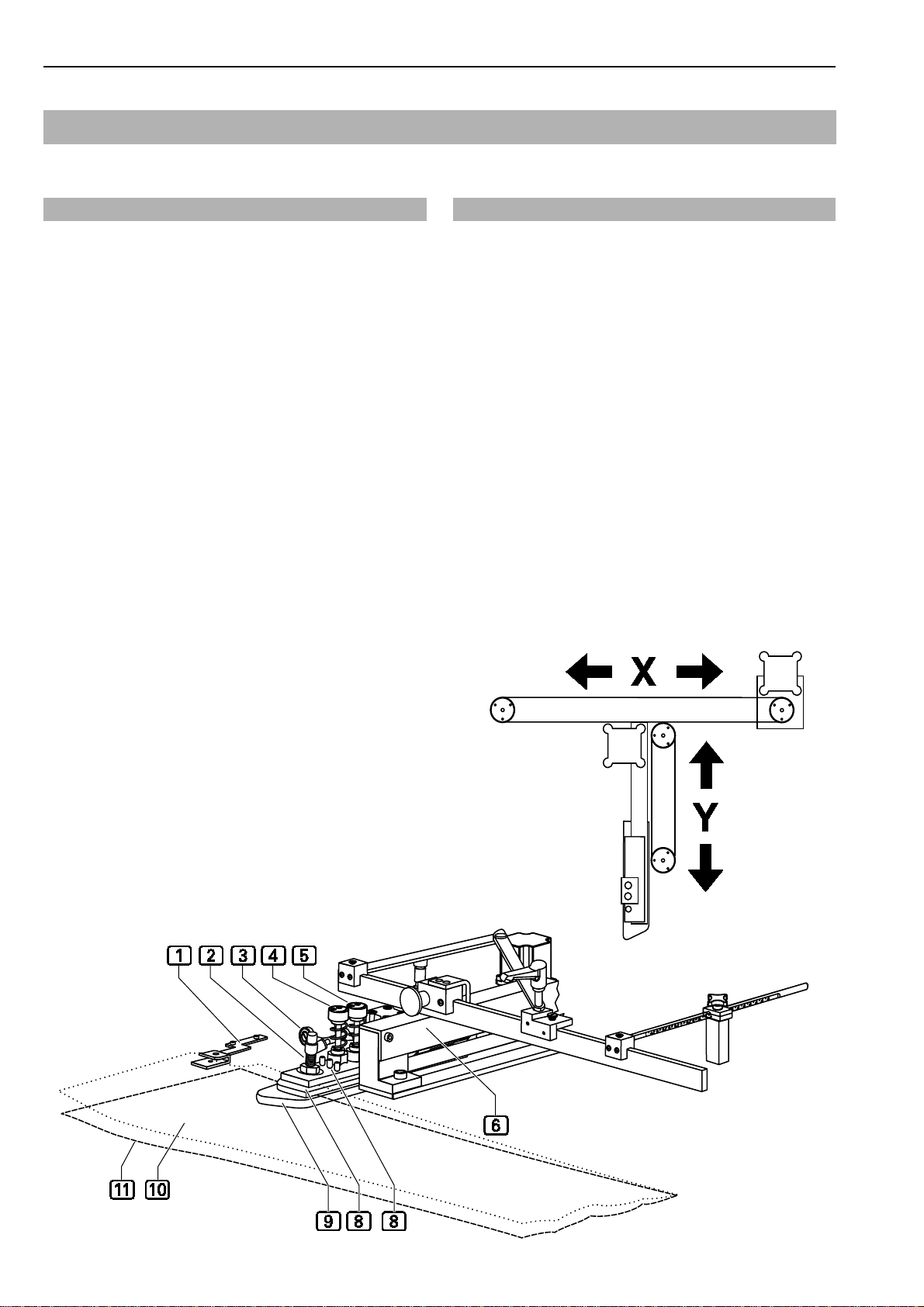

Cloth guide, Fig. 5:
To allow a seam to be sewn in tailor quality, the sys-
tem can be equipped optionally with an additional cloth
guide 1for the line-up of the front trousers com-
ponent.
This feature is available only in connection with the
optional pneumatic rule guide.
Contour guide, Fig. 5:
The contour guide 5is the guide for the lower cloth
layer. It is movable in two directions (X/Y). While the
two trousers components are transported to the sewing
unit, the contour guide automatically controls the shape
of the contour in accordance with the presetting. In ad-
dition, a reduction of the seam from wide to narrow step
width can be integrated in the automatic contour control.
The two trousers components aand bare blown
to the stop pins 9of the contour guide using compres-
sed air. If required, the cloth clamp 8lowers at the
start of the sewing process and fixes the two trousers
components additionally for a freely selectable distance
along the hem to prevent the trousers components from
leaving the contour when the cloth thickens (e.g. pocket
fly).
The deflection plate 6prevents the pockets from
being caught in the contour guide during the transport.
The following settings are possible for the contour
guide:
• The air pressure for blowing the trousers compon-
ents to the stop pins 9of the contour guide can
be set at the throttle 2.
• The setting of the two handwheels 3and 4
depends on the material thickness of the cloths to
be processed.
• Use the handwheel 3to set the distance bet-
ween the center tab and the baseplate of the con-
tour guide.
Fig. 5

- 7 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
B.2 Functions of the machine
B.2.3 Transport and sewing

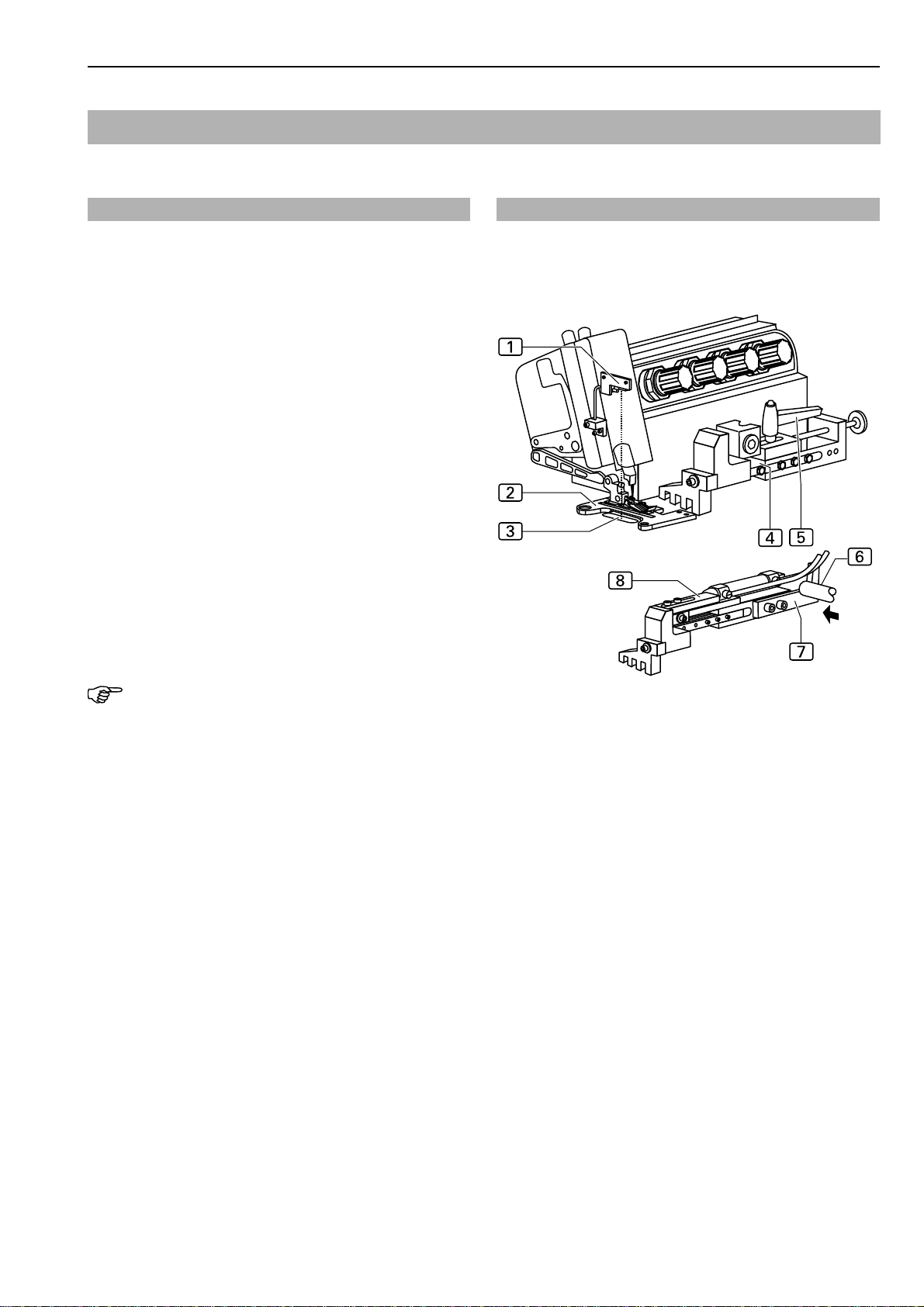

Sewing head, Fig. 6:
The machine can be equipped with either a narrow or
a wide sewing unit 2. The seam width is determined
by the width of the pressure foot of the sewing unit and
by the setting of the rule stop 7.
The standard version of the system comprises the ma-
nually set rule stop 4to ensure a constant seam
width throuhout the entire length of the sewing piece.
The pneumatically controlled rule guide 8allows
a tapered seam width by controlling the contour gui-
de advance in the direction of Y using the shaft 6
and the catch 7.
The photocell 1at the sewing head controls the
sewing start. When the reflection of the light beam on
the reflective area 3is interrupted by the cloth ma-
terial, the pressure foot lowers. Depending on the pre-
set start mode, the sewing process now starts fully au-
tomatically or must be started manually.
The curve which the contour guide travels for controlling
the closing seam is calculated by the program control,
unit using the input X/Y values (see Section D, Pro-
gramming Instructions).
NOTE - Reflective film
The reflective area 3of the photocell must not be
damaged as otherwise a failure of the sewing unit will
occur.
Fig. 6
Fig. 6

Closing Seam Machine 1282-4 Working Instructions
- 8 -
Beisler Automated Sewing Equipment
B.2 Functions of the machine

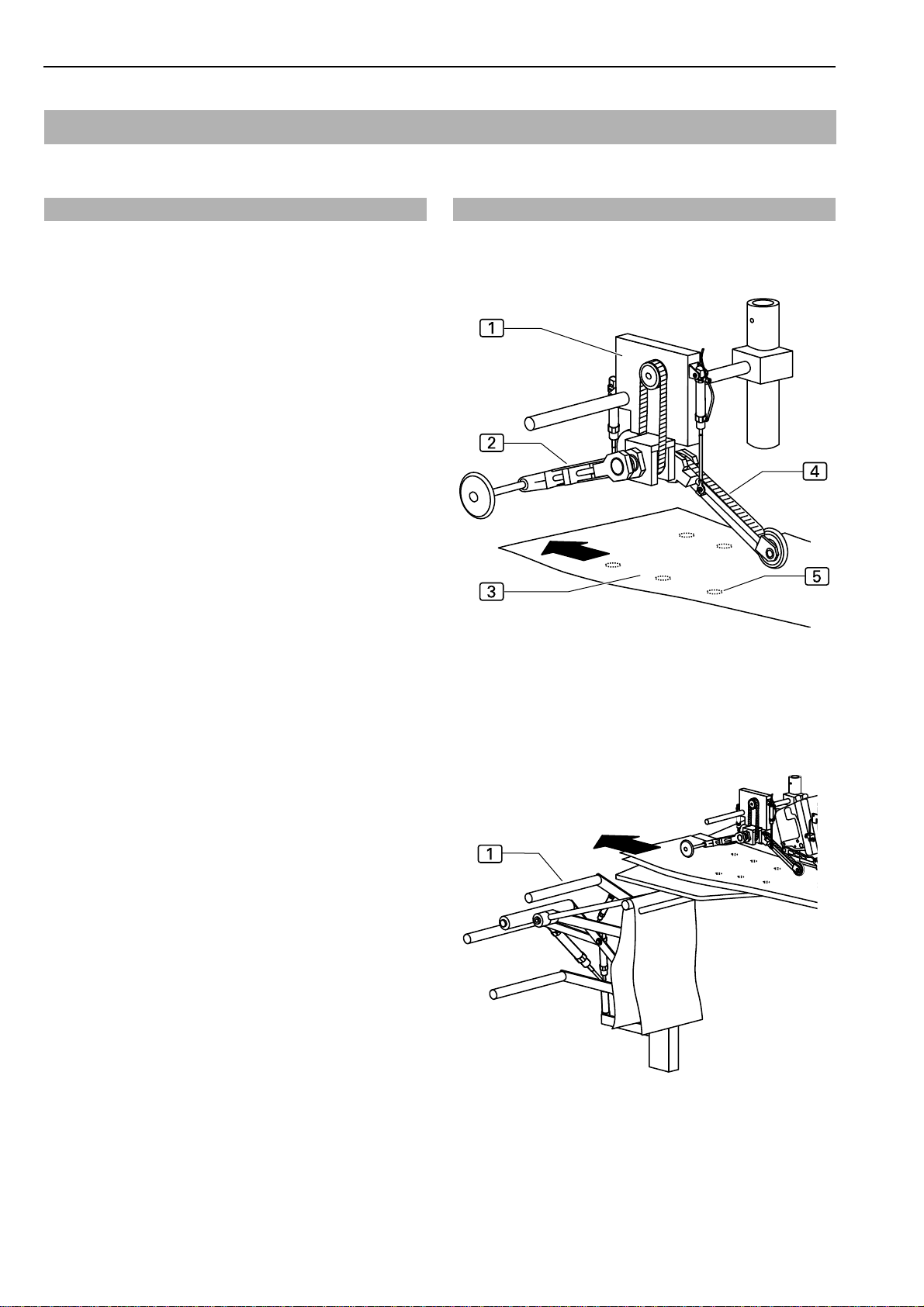

Transport unit, Fig. 7:
The transport unit 1consists of the puller 4and the
roller unit 2.The roller unit picks up the trousers com-
ponents 3from the sewing head transport and trans-
ports them along the worktable edge to the stacker
(Fig. 8).
The puller adapts its rotating speed correspondingly
to ensure that the cloth contour is guided at the rule
stop.
If the sewing piece moves away from the rule stop, the
puller reduces its rotating speed so that the sewing pie-
ce is pulled towards the rule stop.
When the sewing piece is moved too close to the rule
stop, the rotating speed of the puller is increased.
To improve the gliding of the trousers components, the
puller area has six compressed-air nozzles 5 in the
working plate. The compressed air blows against the
trousers components from below to create an air cus-
hion that reduces friction.
Stacker, Fig. 8:
The stacker 1stacks the tucked trousers
components.
Fig. 7/8
Fig. 7
Fig. 8

- 9 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
B.2 Functions of the machine
Fig. 9
Control switches
Pedal for machine operation
The pedal 3has two functions: It controls the machine
operation gradually and it can be used to change the
rotating speed of the sewing motor or the sewing speed
of the sewing unit in twelve stages.
Kneeswitch for machine operation
The kneeswitch 4is used to start fully automatic
machine operation.
Reset switch
The reset 5 is used to restart the insertion process.
If the lower ends of the trousers components are not
clamped correctly into the guide clamp, actuating the
catch will open the guide clamp; when the reset switch
is pressed, the insertion process restarts.
B.2.4 Switches
The closing seam machine is equipped with three diffe-
rent types of switches:
• Emergency switch for stopping a sewing program,
• supply switch for current,
• control switches for controlling the machine operation.
Emergency switch
Program stop switch
When the program stop switch 1is pressed, all ma-
chine movements and the sewing process are stopped
immediately.
The switch engages when pressed. Rotating the switch
in the clockwise direction will unlock the switch, and
it moves back to its original position.
The control program performs a reset.
Supply switches
Main switch
The main switch 2is used to turn the power supply
of the machine on or off. For safety reasons, the ma-
chine must be turned off using the main switch when
it is standing still for an extended period; in this case,
all functional units are deactivated. The main switch
also serves as an additional emergency off switch.
Fig. 9

Closing Seam Machine 1282-4 Working Instructions
- 10 -
Beisler Automated Sewing Equipment
B.2 Functions of the machine
Fig. 10
Fig. 10
Symbol bar
The symbol bar 7indicates menus that can be reque-
sted directly from the start menu using the function
keys.
All other functions of the machine can be set or chan-
ged by selecting the corresponding menus on the dif-
ferent program levels. The corresponding symbols
appear on the display of the operating panel.
B.2.5 Operating panel
Display
During the operation of the machine, the display 1
shows the values of the selected sewing program. If
menus were requested, the menu symbol or the cor-
responding parameters of the function are displayed.
Display
8Symbol of seam structure of first seam
9Description of sewing program (a sewing program
may consist of several seams)
aSeam number of sewing program
bSymbol of an enabled sewing function. The sym
bol is displayed inverted.
cSymbol of a disabled sewing function for the
selected seam. The symbol is displayed black
against a bright background.
Memory card slot 2
The memory card is the medium for storing the bak-
kup copies of all program control data. Programs can
be copied to and stored on the memory card and re-
loaded into the machine control when required.
Program stop switch
If the program stop switch 3is pressed during the
operation of the machine, all machine movements and
the sewing process are stopped.
Numeric keypad
The numeric keypad 4is used to enter all change-
able number values.
By pressing the M key, you can request the desired se-
wing programs.
By pressing the P key, you can request submenus, con-
firm inputs and exit the programming mode.
Arrow keys
By pressing the UP or DOWN arrow key 5, you can
move the cursor in the selected menu one line up or
down.
By pressing the RIGHT or LEFT arrow key, you can
mark the desired parameter in the selected menu using
the cursor or browse forward or backward if the para-
meter list consists of several pages.
Function keys
You can use the function keys 6to request the me-
nus for setting or changing machine functions on the
selected level.

- 11 -
Closing Seam Machine 1282-4 Working Instructions Beisler Automated Sewing Equipment
B.3 Operation
B.3.1 Safety instructions for operation
Machine operation
WARNING - Machine operation intervention!
The machine is driven by electric motors and by com-
pressed air. Any attempt to stop the moving parts of
the machine or to tamper with the movements by hand
may cause severe injuries.
• Keep hands away from machine during machine
operation!
• During the sewing process, keep hands away from
the operating range of the needle!
• If a failure is encountered during machine opera-
tion, press the program stop switch immediately!
Work clothing:
CAUTION - Unsuited work clothing!
The moving parts of the machine may catch and draw
in loose clothing which may cause severe injuries.
• When operating the machine, do not wear wide or
open clothing!
• Make sure that sleeves are tight-fitting and properly
closed!
