USER’S MANUAL OF ARMCHAIRS

4
2 / 3
1
1 - Adjustment of seat height
INSTRUKCJA OBSŁUGI MECHANIZMU L
SELF-WEIGHING SYNCHRO MECHANISMWITH FIXING THE BACKREST IN 5 POSITIONS – SPRING FORCE AUTOMATICALLY ADAPTS TO THE
USER’S WEIGHT, RANGE OF THE ADJUSTABLE RECLINE ANGLE (BACKREST: 20°, SEAT: 6°), ALONG WITH AN ADJUSTABLE SEAT DEPTH
(RANGE 60 MM).
3 - Automatic adjustment of backrest reclining force to the user’s weight
4 - Adjustment of seat depth
OPERATION OF MECHANISM SW
2 - Synchronic adjustment of seat and back reclining
SW
Mechanism SW is available for the following products: CEO 210, DUAL, ELEVEN, IN ACCESS 210, JOTT, MATE, STRING
20
ADDITIONAL ADJUSTMENTS AVAILABLE IN SELECTED PRODUCTS IN CONFIGURATION WITH MECHANISM SW
A - Adjustable backrest height (available for armchairs: DUAL, ELEVEN, MATE) – see page 22.
C - Adjustable lumbar support height (available for armchairs: ELEVEN) – see page 22.
B - Adjustable lumbar support depth (available for armchairs: DUAL, MATE, IN ACCESS) – see page 22.
This picture shows the adjustment scheme described above.

21
This picture shows the adjustment scheme described above.
OPERATION OF MECHANISM SW
Lowering seat height:
1. Sit down in the armchair.
2. Pull the lever upwards and slightly press the
seat with your thighs (the seat will start to
lower slowly).
3. Leave the lever at the selected height to lock
the position.
Raising seat height:
1. Sit down in the armchair.
2. Pull the lever upwards and slightly lift yourself
above the seat (the seat will start to raise
slowly).
3. Leave the lever at the selected height to lock
the position.
ADJUSTMENT OF SEAT HEIGHT
1 2
1. Unlock the synchro mechanism by
pressing the lever button.
2. Press the backrest with your back until
you reach the requested reclining position.
3. When you reach the requested position,
press the lever button lock the position.
AUTOMATIC ADJUSTMENT OF BACKREST RECLINING FORCE TO THE USER’S
WEIGHT 4
3ADJUSTMENT OF SEAT DEPTH
1. Unlock / lock the adjustment of the
backrest reclining force – see rule No 2.
WWW.BEJOT.EU
SYNCHRONIC ADJUSTMENT OF SEAT AND BACK RECLINING
Sliding seat forwards:
1. Press the lever button.
2. Slightly slide the seat forwards with your
thighs.
Wsunięcie siedziska:
1. Press the lever button.
2. Slightly slide the seat backwards with
your thighs.
The mechanism SW does not require the
adjustment of the backrest reclining force. The
mechanism recognises the user’s weight and
automatically adapts the synchronic backrest
and seat reclining to this weight.

1
2
3
4

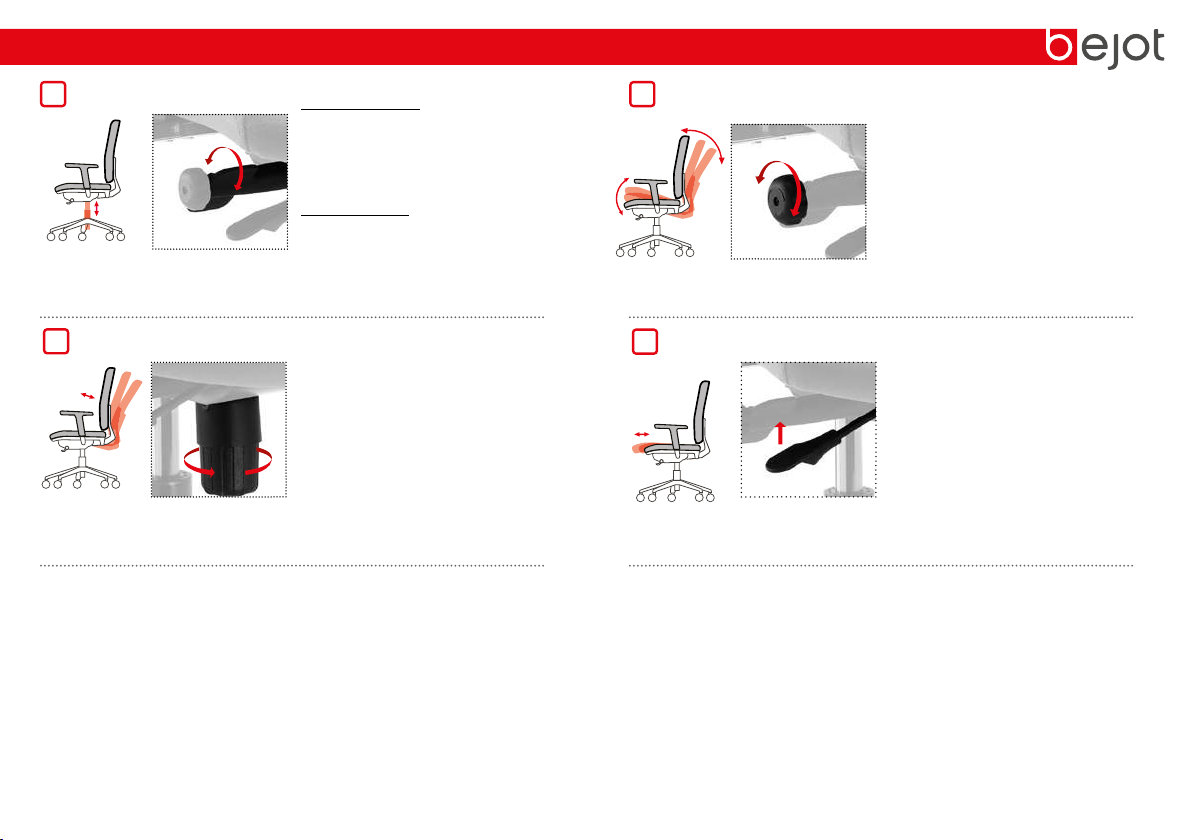

OPERATION OF MECHANISM W
MechanismW is available for the following products: CORR, DUAL, JOTT, PARTNER, STRING
SYNCHRO MECHANISM WITH FIXING THE BACKREST IN 4 POSITIONS (RANGE OF THE ADJUSTABLE RECLINE ANGLE: BACKREST: 15°,
SEAT: 6.5°), ALONG WITH AN ADJUSTABLE SEAT DEPTH (RANGE 50 MM).

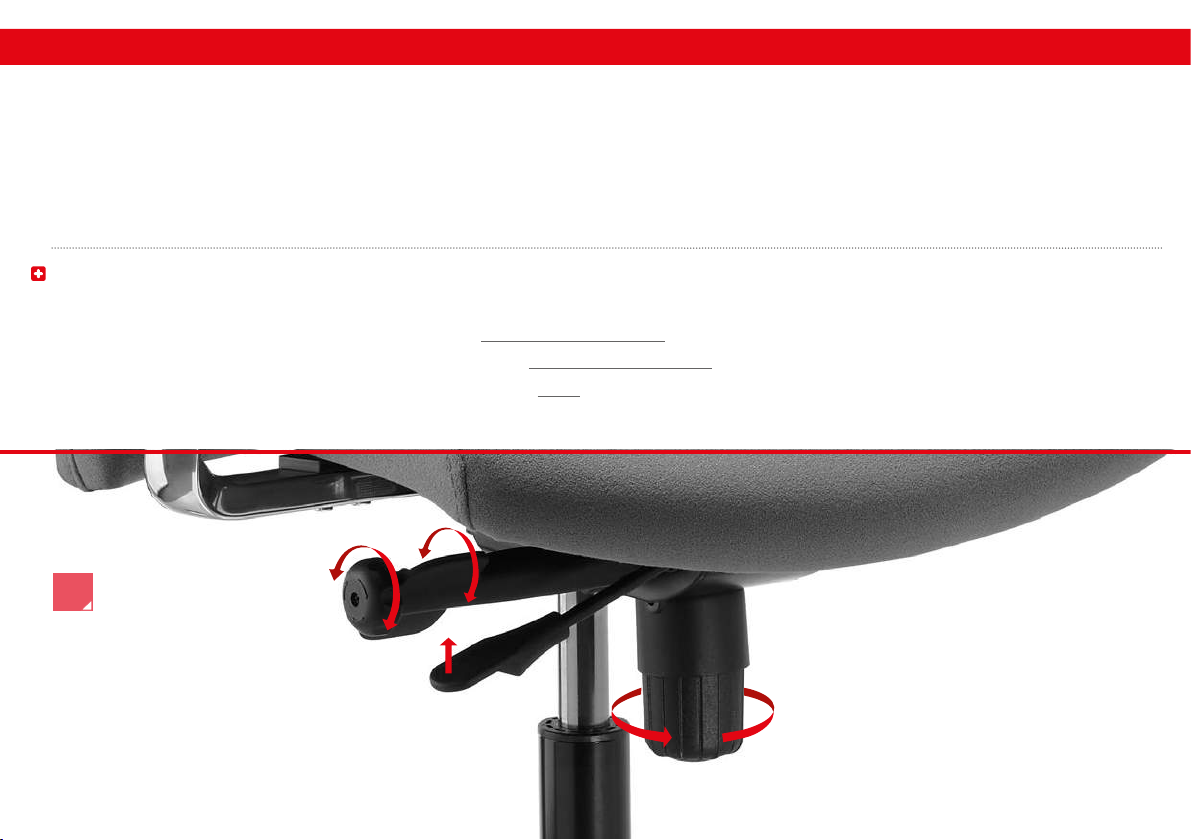

1 - Adjustment of seat height
2 - Synchronic adjustment of seat and back reclining
3 - Adjustment of backrest reclining force
4 - Adjustment of seat depth
ADDITIONAL ADJUSTMENTS AVAILABLE IN SELECTED PRODUCTS IN CONFIGURATION WITH MECHANISM W
W
24
A - Adjustable backrest height (available for armchairs: DUAL, CORR, PARTNER) – see page 22.
C - Adjustable lumbar support height (available for armchairs: JOTT) – see page 22.
B - Adjustable lumbar support depth (available for armchairs: DUAL, CORR, PARTNER) – see page 22.
This picture shows the adjustment scheme described above.

25
This picture shows the adjustment scheme described above.
OPERATION OF MECHANISM W

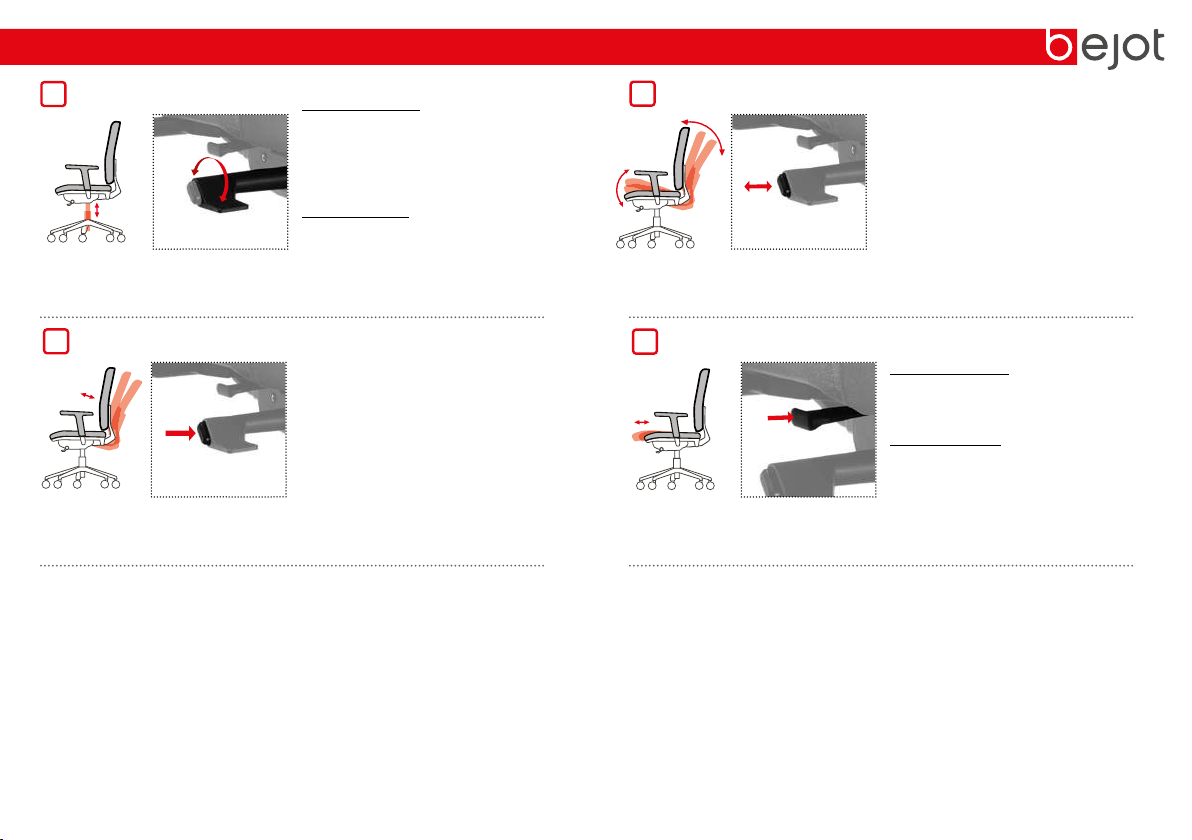

1. Unlock the synchro mechanism by
turning the knob forwards.
2. Press the backrest with your back
until you reach the requested reclining
position.
3. When you reach the requested position,
turn the lever downwards to lock the
position.
Lowering seat height:
1. Sit down in the armchair.
2. Turn the lever downwards and slightly press
the seat with your thighs (the seat will start to
lower slowly).
3. Leave the lever at the selected height to lock
the position.
Raising seat height:
1. Sit down in the armchair.
2. Turn the lever downwards and slightly lift
yourself above the seat (the seat will start to
raise slowly).
3. Leave the lever at the selected height to lock
the position.
ADJUSTMENT OF SEAT HEIGHT
1 2
WWW.BEJOT.EU
1. Get up.
2. Turn the knob to adapt the resistance
force to your weight
a. Turn the knob right to increase the
backrest resistance force (for heavier
users).
b. Turn the knob left to decrease the
backrest resistance force (for lighter
users).
ADJUSTMENT OF BACKREST RECLINING FORCE 4
3
1. Pull the lever upwards and slightly slide the
seat forwards with your thighs.
ADJUSTMENT OF SEAT DEPTH
SYNCHRONIC ADJUSTMENT OF SEAT AND BACK RECLINING

VMS
2
3
1
1 - Adjustment of seat height
INSTRUKCJA OBSŁUGI MECHANIZMU L

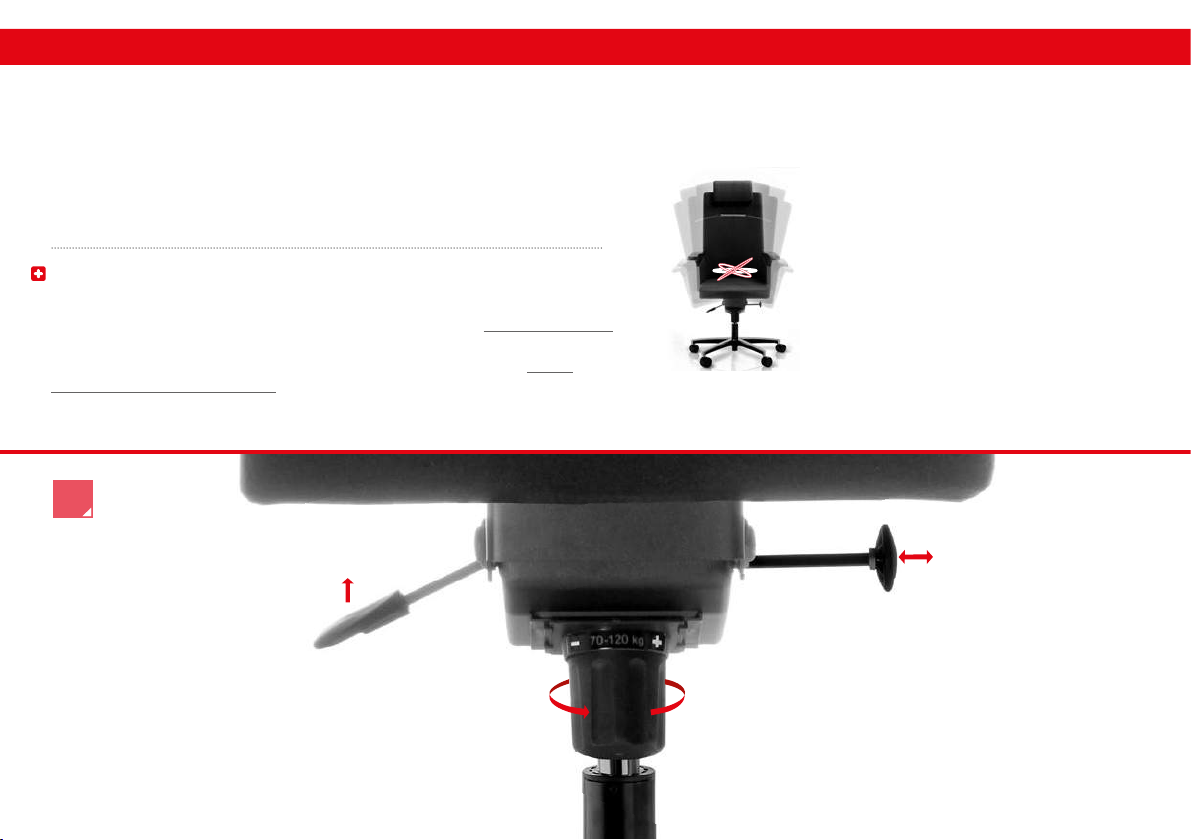

VMS ORTHOPEDIC BIODYNAMIC MECHANISM THAT ENABLES THE USER TO MOVE IN THREE DIMENSIONS
2 - Adjustable backrest and seat synchronic reclining
3 - Adjustable backrest reclining force
OPERATION OF MECHANISMVMS
This picture shows the adjustment scheme described above.
MechanismVMS is available for the following products: CEO, DUAL, IN ACCESS, PARTNER, STRING
SYSTEM VMS ORTHOPEDIC
VMS ORTHOPEDIC SYSTEM
TheVMS system guarantees the multi-
dimensional body movement.
More information about theVMS system is
available at www.zdrowesiedzenie.eu.
26
ADDITIONAL ADJUSTMENTS AVAILABLE FOR THE SELECTED
PRODUCTS IN CONFIGURATION WITH MECHANISMVMS
A – Adjustable backrest height (available for armchairs: DUAL, PARTNER) –
see page 22
B – Adjustable lumbar support depth (available for armchairs: CEO,
DUAL, IN ACCESS, PARTNER) – see page 22

27
This picture shows the adjustment scheme described above.
OPERATION OF MECHANISMVMS
Lowering seat height :
1. Sit down in the armchair.
2. Pull the lever upwards and slightly press the
seat with your thighs (the seat will start to
lower slowly).
3. Leave the lever at the selected height to lock
the position.
Raising seat height:
1. Sit down in the armchair.
2. Pull the lever upwards and slightly lift yourself
above the seat (the seat will start to raise
slowly).
3. Leave the lever at the selected height to lock
the position.
ADJUSTMENT OF SEAT HEIGHT SYNCHRONIC ADJUSTMENT OF SEAT AND BACK RECLINING1 2

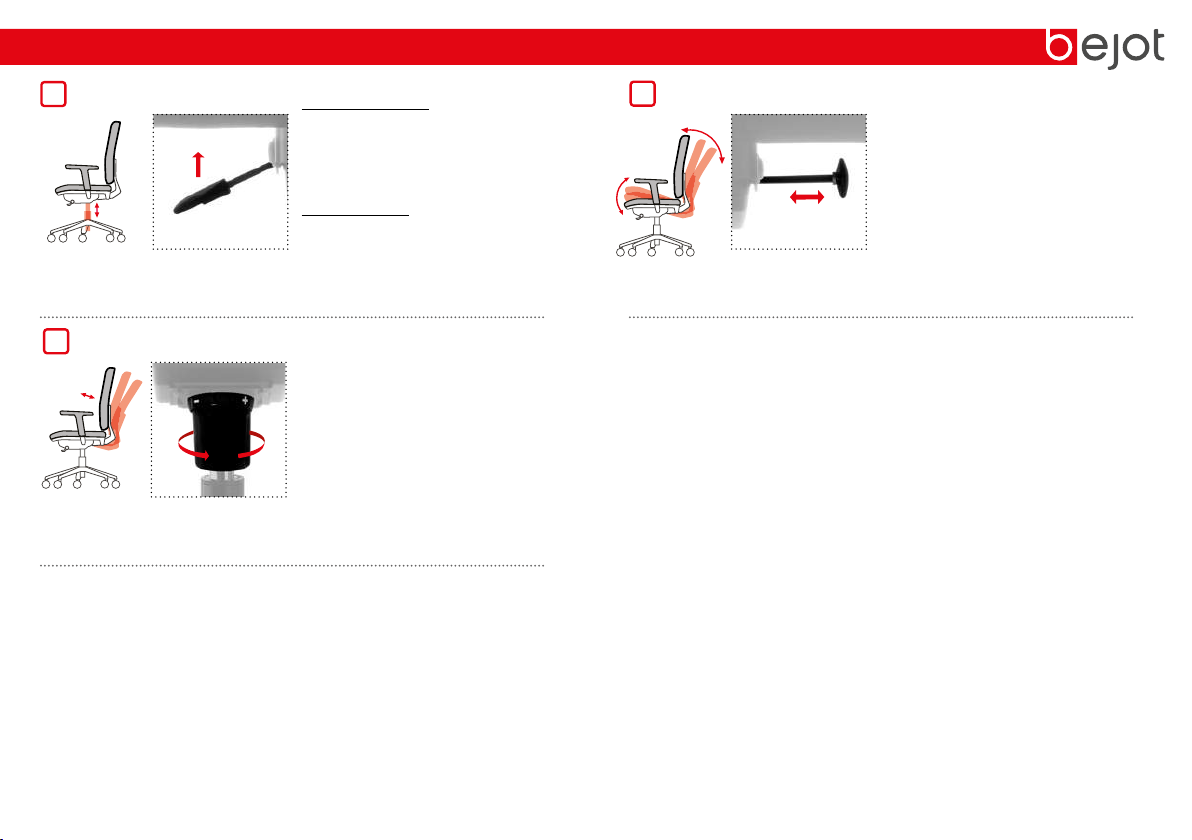

1. Unlock the synchro mechanism by
pressing the lever.
2. Lock the synchro mechanism by pulling
the lever.
ADJUSTMENT OF BACKREST RECLINING FORCE
3
1. Get up.
2. Turn the knob to adapt the resistance
force to your weight
a. Turn the knob right to increase the
backrest resistance force (for heavier
users).
b. Turn the knob left to decrease the
backrest resistance force (for lighter
users).
WWW.BEJOT.EU

28
Sliding lumbar support forwards
1. When sitting in the armchair, turn the knob
forwards.
Sliding lumbar support backwards
2. When sitting in the armchair, turn the knob
backwards.
ADJUSTMENT OF LUMBAR SUPPORT DEPTH
B
Adjustment of armchairs: Corr, Ceo, Dual, In Access, Mate, Partner, Vector
Adjustment of armchairs: Eleven
Raising backrest height:
1. Press the button with one hand and lift
the backrest with the other hand.
2. Leave the button at the selected height
(the backrest remains at the selected
height).
Raising backrest height:
1. Hold the backrest with both hands and lift it.
2. Leave the backrest at the selected height
(the backrest remains at the selected
height).
ADJUSTMENT OF BACKREST HEIGHT
A
Adjustment of armchairs: Dual, Partner Adjustment in armchair: Corr
Raising backrest height:
1. Press the button with one hand and lift
the backrest with the other hand.
2. Leave the button at the selected height
(the backrest remains at the selected
height).
Adjustment in armchair: Mate
INSTRUKCJA OBSŁUGI MECHANIZMU L
OPERATION – ADDITIONAL ADJUSTMENTS
1. Pull the lever outside.
2. Raise or lower the backrest.
3. At the selected height press the lever
inside (the backrest remains at the
selected height).
1. Hold the lumbar support with both
hands and move it upwards or
downwards, depending on the selected
height.
2. Leave the lumbar support at the
selected height (the support leaves at
the selected position).
ADJUSTMENT OF LUMBAR SUPPORT HEIGHT
C
Adjustment of armchairs: Jott, Eleven
Lowering backrest height:
1. Hold the backrest with both hands and lift it
upwards as maximum as possible – the backrest
returns to the lowest position.
Lowering backrest height
1. Press the button to return to the lowest
position.
Lowering backrest height:
1. Press the button with one hand and lower
the backrest with the other hand.

29
ARMREST P49ARMREST P48 ARMREST P52

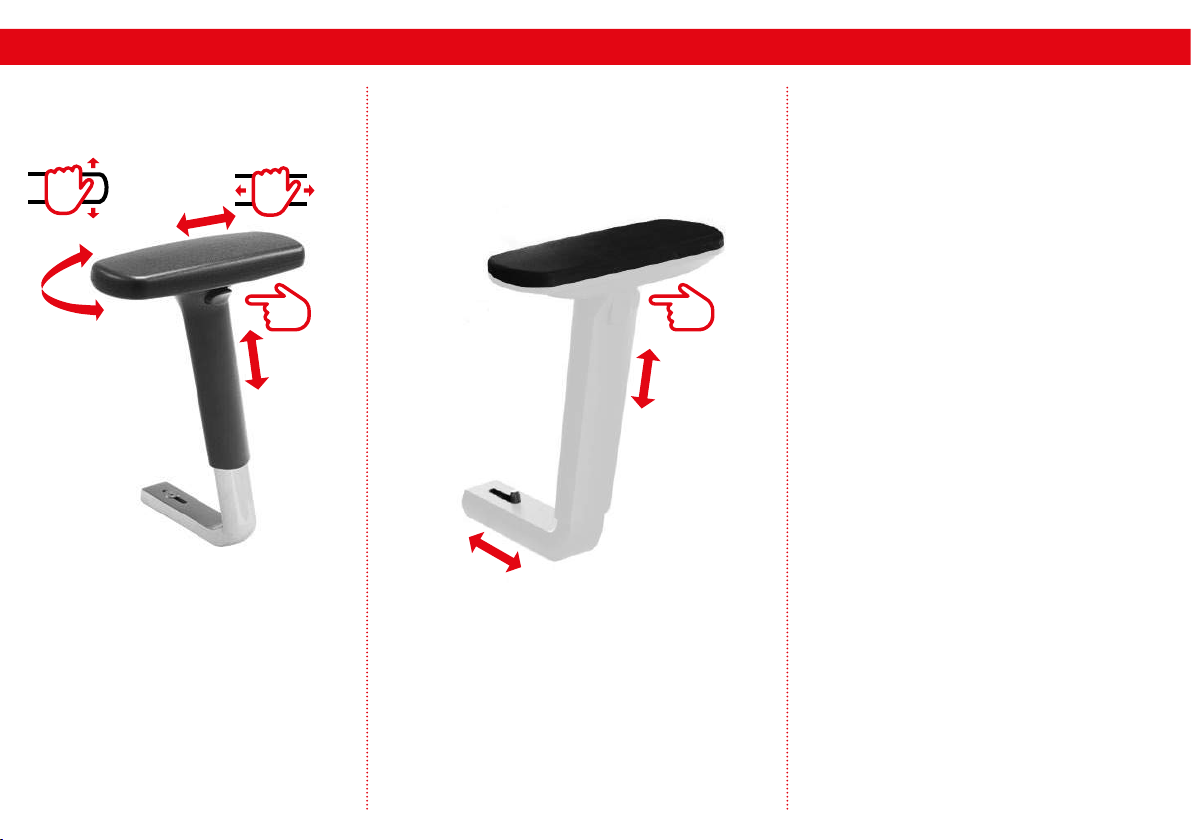

OPERATION – ADJUSTMENT OF ARMRESTS
1. Adjustable armrest height button. 1. Adjustable armrest height button.
2. Movable upper part of armrest.
3. Adjustable up and down.
1. Adjustable armrest height button.
2. Movable upper part of armrest
Adjustable up and down
3. Movable upper part of armrest
Adjustable in width
1 1
2
1
3
2

30
ARMREST P53ARMREST P11
OPERATION – ADJUSTMENT OF ARMRESTS
1. Adjustable armrest height button.
2. Movable upper part of armrest.
Adjustable up and down.
3. Movable upper part of armrest
Adjustable right and left.
1. Adjustable armrest height button.
2. Armrest framework adjustable in width.
11
2
2
3

31

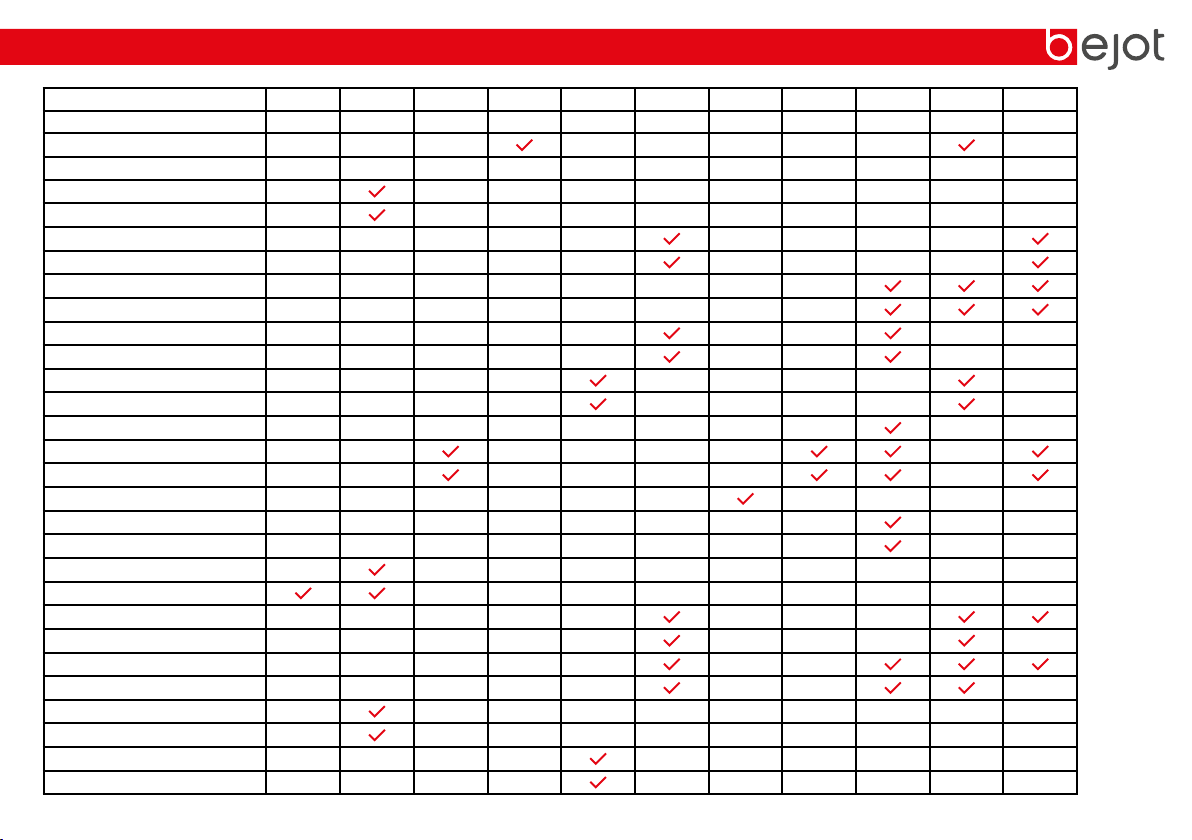

OPERATION – AVAILABILITY OF MECHANISMS FOR INDIVIDUAL MODELS
AR C E+X EF G L LPF+X M+X SW VMS W
ceo / CO 102
ceo / CO 103
ceo / CO 210
clubin / CB 102
clubin / CB 10R
corr / CJ 102
corr / CJ 103
dual / DU 102
dual / DU 103
eleven / EL 102
eleven / EL 103
in access / AC 102
in access / AC 103
in access / AC 210
jott / JT 102
jott / JT 1T2
lift 10R
mate / MT 102
mate / MT 103
orte / OR 3DH 102
occo / OC
partner / PT 102
partner / PT 103
string / SR 102
string / SR 103
umm / UM 102
umm / UM 103
vector /VT 102
vector /VT 103

32
STEP 2 STEP 3STEP 1

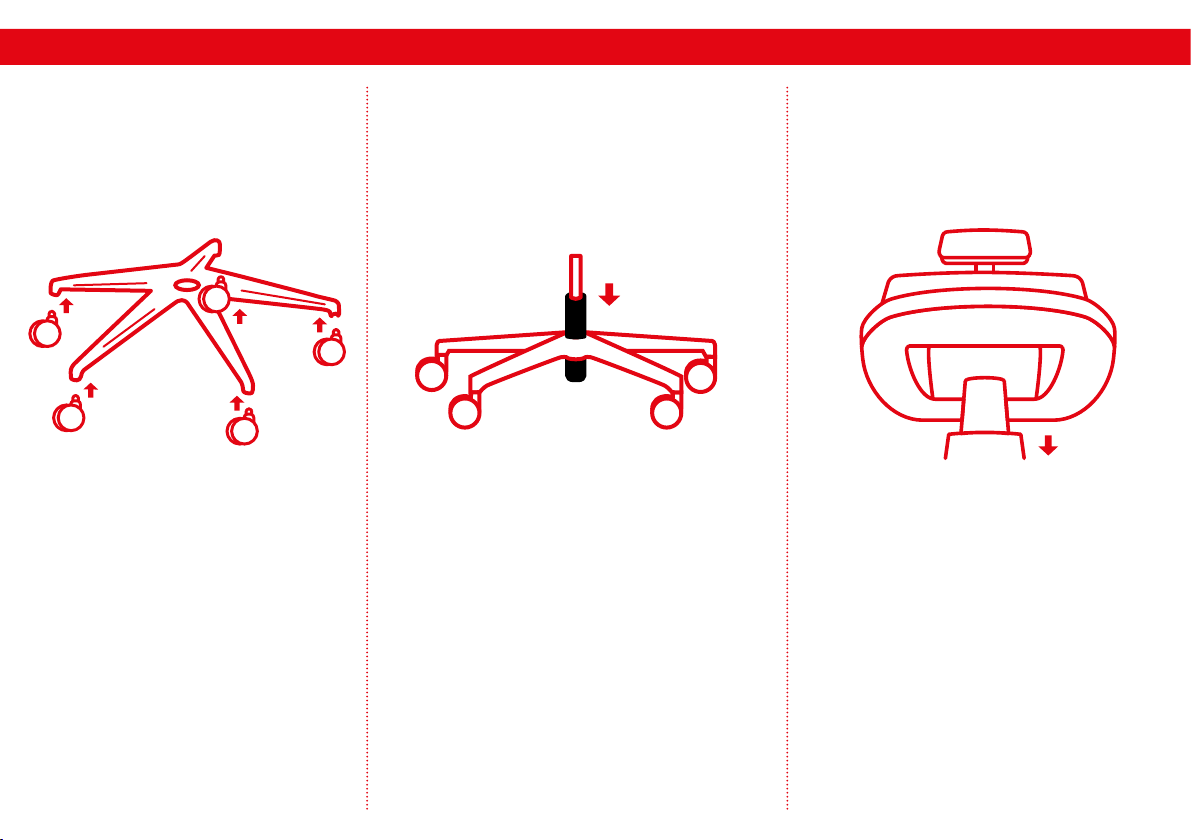

INSTALLATION OF SWIVELLING ARMCHAIR
Attach wheels to the base by inserting the
pin into the hole at the end of the each arm
of the spider.
Put the shock absorber into the base. Put the seat onto the shock absorber.

33
STEP 4
After folding, dynamically sit down in the
armchair! The dynamic press on the seat
guarantees the safe combination.
