Beko DRYPOINT RS HP50 NA Series User guide

1
EN - english
Instructions for installation and operation
High pressure compressed air refrigeration dryer

2 DRYPOINT® RS 15-550 HP50 NA
Dear customer,
Thank you for deciding in favour of the DRYPOINT®RS 15-550 HP50 NA high pressure compressed-air refrigeration
dryer. Please read these installation and operating instructions carefully before mounting and starting up the DRYPOINT®
RS 15-550 HP50 NA and follow our directions. Perfect functioning of the DRYPOINT®RS 15-550 HP50 NA and thus
reliable compressed-air drying can only be guaranteed when the provisions and notes stipulated here are strictly adhered
to.

DRYPOINT® RS 15-550 HP50 NA 3
Contents
1Name plate 5
2Safety instructions 5
2.1 Safety pictograms in accordance with DIN 4844 6
2.2 Signal words in accordance with ANSI 8
2.3 Overview of the safety instructions 8
3Proper use 10
4Exclusion from a field of application 10
5Operating instructions in accordance with the 2014/68/EU Pressure Equipment Directive 11
6Transport 11
7Storage 11
8Installation 12
8.1 Place of installation 12
8.2 Installation plan 13
8.3 Correction factors 14
8.4 Connection to the compressed-air system 15
8.5 Connection to the cooling-water network 15
8.6 Minimum cooling water requirements: 15
8.7 Electrical connections 16
8.8 Condensate drain 16
9Start-up 16
9.1 Preliminary stages 16
9.2 Initial start-up 17
9.3 Shut down and restart 18
10 Technical data 19
10.1 Technical data DRYPOINT RS 15-180 HP50 NA 1/115/60 19
10.2 Technical data DRYPOINT RS 15-550 HP50 NA 1/230/60 20
10.3 Technical data DRYPOINT RS 180-550 3phase HP50 NA 3/460/60 21
10.4 Technical data DRYPOINT RS 180-550 3phase HP50 NA 3/380/60 22
11 Technical description 23
11.1 Control panel 23
11.2 Functional description 23
11.3 Flow chart (air-cooled) 24
11.4 Flow chart (water-cooled) 24
11.5 Refrigerating compressor 25
11.6 Condenser (air-cooled) 25
11.7 Condenser (water-cooled) 25
11.8 Cooling-water regulating valve 25
11.9 Filter dryer 25
11.10 Capillary tube 25
11.11 Air-to-air heat exchanger 25
11.12 Air-to-refrigerant heat exchanger 25
11.13 Condensate separator 25
11.14 Hot-gas bypass valve 25
11.15 Refrigerant pressure switches LPS –HPS 26
11.16 Safety temperature switch TS 26
11.17 Compressor crankcase heater (RS 180-550 3phase) 26
11.18 Electronic controller DMC35 (RS 15-40) 27
11.18.1 How to switch on the dryer 27
11.18.2 How to switch off the dryer 27
11.18.3 How a service warning / alarm is displayed 27
11.18.4 How is controlled the condenser fan 28
11.18.5 How is controlled the drain solenoid valve 28
11.18.6 How to display the total hours of operation 28
11.18.7 How to change the operating parameters 28
11.19 Electronic controller DMC34 29
11.19.1 How to switch on the dryer 29
11.19.2 How to switch off the dryer 29
11.19.3 How to display the operating parameters 29

4 DRYPOINT® RS 15-550 HP50 NA
11.19.4 How a service warning / alarm is displayed 29
11.19.5 How is controlled the condenser fan 30
11.19.6 How is controlled the drain solenoid valve 30
11.19.7 How to reset the service reminder timer 30
11.19.8 Operation of the failure / alarm dry contact 30
11.19.9 How to change the operating parameters 30
11.20 Electronically level-controlled BEKOMAT condensate drain 31
12 Maintenance, troubleshooting, spare parts and dismantling 32
12.1 Checks and maintenance 32
12.2 Troubleshooting 33
12.4 Recommended spare parts 37
12.5 Maintenance works at the refrigeration cycle 38
12.6 Dismantling the dryer 38
13 Appendices 39
13.1 Dryer dimensions 39
13.1.1 Dryer dimensions DRYPOINT RS 15-40 HP50 NA 39
13.1.2 Dryer dimensions DRYPOINT RS 50-80 HP50 NA 40
13.1.3 Dryer dimensions DRYPOINT RS 100-140 HP50 NA 41
13.1.4 Dryer dimensions DRYPOINT RS 180-350 HP50 NA 42
13.1.5 Dryer dimensions DRYPOINT RS 450-550 HP50 NA 43
13.1.6 Dryer dimensions DRYPOINT RS 180-350 HP50 NA 3phase 44
13.1.7 Dryer dimensions DRYPOINT RS 450-550 HP50 NA 3phase 45
13.2 Exploded diagrams 46
13.2.1 Components of the exploded diagrams 46
13.2.2 Exploded diagram DRYPOINT RS 15-40 HP50 NA 47
13.2.3 Exploded diagram DRYPOINT RS 50-80 HP50 NA 48
13.2.4 Exploded diagram DRYPOINT RS 100-140 HP50 NA 49
13.2.5 Exploded diagram DRYPOINT RS 180-350 HP50 NA Air-Cooled 50
13.2.6 Exploded diagram DRYPOINT RS 180-350 HP50 NA Water-Cooled 51
13.2.7 Exploded diagram DRYPOINT RS 450-550 HP50 NA Air-Cooled 52
13.2.8 Exploded diagram DRYPOINT RS 450-550 HP50 NA Water-Cooled 53
13.2.9 Exploded diagram DRYPOINT RS 180-350 HP50 NA 3phase Air-Cooled 54
13.2.10 Exploded diagram DRYPOINT RS 180-350 HP50 NA 3phase Water-Cooled 55
13.2.11 Exploded diagram DRYPOINT RS 450-550 HP50 NA 3phase Air-Cooled 56
13.2.12 Exploded diagram DRYPOINT RS 450-550 HP50 NA 3phase Water-Cooled 57
13.3 Electric diagrams 58
13.3.1 Electric diagrams –list of components 58
13.3.2 Electric diagram DRYPOINT RS 15-40 HP50 NA 59
13.3.3 Electric diagram DRYPOINT RS 50-80 HP50 NA 60
13.3.4 Electric diagram DRYPOINT RS 100-140 HP50 NA 61
13.3.5 Electric diagram DRYPOINT RS 180-260 HP50 NA 62
13.3.6 Electric diagram DRYPOINT RS 350 HP50 NA 63
13.3.7 Electric diagram DRYPOINT RS 450-550 HP50 NA 64
13.3.8 Electric diagram DRYPOINT RS 180-350 HP50 NA 3phase Sheet 1/3 65
13.3.9 Electric diagram DRYPOINT RS 180-350 HP50 NA 3phase Sheet 2/3 66
13.3.10 Electric diagram DRYPOINT RS 180-350 HP50 NA 3phase Sheet 3/3 67
13.3.11 Electric diagram DRYPOINT RS 450-550 HP50 NA 3phase Sheet 1/3 68
13.3.12 Electric diagram DRYPOINT RS 450-550 HP50 NA 3phase Sheet 2/3 69
13.3.13 Electric diagram DRYPOINT RS 450-550 HP50 NA 3phase Sheet 3/3 70
Pos: 1/ Beko Technisc heD okumentation/Ü berschriften/1/Sic herheitshinweise @ 0\ mod_118363 7609261_6.doc @ 53 65

Name plate
DRYPOINT® RS 15-550 HP50 NA 5
1 Name plate
The name plate is on the back of the dryer and comprises all primary data of the device. Always refer to these when
contacting the manufacturer or the sales department.
All guarantee claims will expire in the event that the name plate is modified or removed.
2 Safety instructions
Pos: 2 /Beko T echnische Do kumentatio n/Globale T exte/Allgemei nerHi nw eisBM @ 0\mod_1 18361573731 3_6.doc @ 4 004
Pos: 3/ Beko Technisc heD okumentation/Sic herheit/Hinweis Anlei tung BEKO @ 0\ mod_1184147787 557_6.doc @ 5758
Please check whether or not these instructions correspond to the device type.
Please adhere to all advice given in these operating instructions. They include essential information which
must be observed during installation, operation and maintenance. Therefore, it must be ensured that these
operating instructions are read by the fitter and the responsible operator / certified skilled personnel prior
to installation, start-up and maintenance.
The operating instructions must be accessible at all times at the place of application of the DRYPOINT®
RS 15-550 HP50 NA high pressure compressed-air refrigeration dryer.
In addition to these operating instructions, local and national regulations need to be observed, where
required .
Ensure that operation of the DRYPOINT®RS 15-550 HP50 NA high pressure compressed-air refrigeration
dryer only takes place within the permissible limit values indicated on the name plate. Any deviation from
these limit values involves a risk for persons and for the material, and may result in malfunction or a
breakdown.
After installing the device correctly and in accordance with the instructions in this manual, the dryer is ready
to operate, further settings are not required. Operation is fully automatic and maintenance is limited to
several examinations and cleaning measures which are described in the following chapters.
This manual must be available at all times for future reference and is a constituent part of the dryer.
If you have any queries regarding these installation and operating instructions, please contact BEKO
TECHNOLOGIES GMBH.

Safety instructions
6 DRYPOINT® RS 15-550 HP50 NA
2.1 Safety pictograms in accordance with DIN 4844
Observe operating instructions
General danger symbol
Supply voltage
Danger: component or system under pressure
Hot surfaces
Non-breathable air
Do not use water to extinguish the fire
Do not operate with open cover (housing)
Maintenance works or controlling measures must only be carried out by qualified personnel1
Do not smoke
Note
Pos: 4/ Beko Technisc heD okumentation/Sic herheit/Gefahr Druc kluft @ 0\mod_11 84148143854_6.doc @ 577
6
Connection point compressed-air inlet
Connection point compressed-air outlet
Connection point condensate drain
Connection point cooling-water inlet (water-cooled)
Connection point cooling-water outlet (water-cooled)
1
Certified skilled personnel arepersons who are authorised by the manufacturer, with experience and technical training, who are well-
grounded in the respective provisions and laws and capable of carrying out the required works and of identifying and avoiding any
risks during the machine transport, installation, operation and maintenance.
Qualified and authorised operators are persons who are instructed by the manufacturer regarding the handling of the refrigeration
system, with experience and technical training, and who are well-grounded in the respective provisions and laws.
ARIA
AIR
LUFT
AIR
ARIA
AIR
LUFT
AIR

Safety instructions
DRYPOINT® RS 15-550 HP50 NA 7
Works can be carried out by the operator of the plant, provided that they are skilled accordingly2.
NOTE: Text that contains important specifications to be considered –does not refer to safety precautions.
The device was carefully designed with particular attention paid to environmental protection:
•CFC-free refrigerants
•CFC-free insulation material
•Energy-saving design
•Limited acoustic emissions
•Dryer and packaging comprise reusable materials
This symbol advises the user to observe the environmental aspects and comply with the recommendations
connected with this symbol.
2
Certified skilled personnel arepersons who are authorised bythe manufacturer, with experience and technical training, who are well-
grounded in the respective provisions and laws and capable of carrying out the required works and of identifying and avoiding any
risks during the machine transport, installation, operation and maintenance.
Qualified and authorised operators are persons who are instructed by the manufacturer regarding the handling of the refrigeration
system, with experience and technical training, and who are well-grounded in the respective provisions and laws.

Safety instructions
8 DRYPOINT® RS 15-550 HP50 NA
2.2 Signal words in accordance with ANSI
Danger!
Imminent hazard
Consequences of non-observance: serious injury or death
Warning!
Potential hazard
Consequences of non-observance: possible serious injury or death
Caution!
Imminent hazard
Consequences of non-observance: possible injury or property damage
Notice!
Potential hazard
Consequences of non-observance: possible injury or property damage
Important!
Additional advice, info, hints
Consequences of non-observance: disadvantages during operation and maintenance, no danger
2.3 Overview of the safety instructions
Certified skilled personnel
Installation works must exclusively be carried out by authorised and qualified skilled personnel. Prior to
undertaking any measures on the DRYPOINT®RS 15-550 HP50 NA high pressure compressed-air
refrigeration dryer, the certified skilled personnel shall read up on the device by carefully studying the
operating instructions. The operator is responsible for the adherence to these provisions. The respective
directives in force apply to the qualification and expertise of the certified skilled personnel.
For safe operation, the device must only be installed and operated in accordance with the indications in
the operating instructions. In addition, the national and operational statutory provisions and safety
regulations, as well as the accident prevention regulations required for the respective case of application,
need to be observed during employment. This applies accordingly when accessories are used.
Danger!
Compressed air!
Risk of serious injury or death through contact with quickly or suddenly escaping compressed air
or through bursting and/or unsecured plant components.
Compressed air is a highly dangerous energy source.
Never work on the dryer when the system is under pressure.
Never direct the compressed-air outlet or condensate drain hoses at persons.
The user is responsible for the proper installation of the dryer. Non-observance of the instructions in the
"Installation" chapter leads to the expiration of the guarantee. Improper installation may result in
dangerous situations for the personnel and/or the device.
Pos: 5/ Beko Technisc heD okumentation/Sic herheit/Maßnah menDr uckluft BM @ 0\ mod_11841482 84291_6.doc @ 5812
Pos: 6/ Beko Technisc heD okumentation/Sic herheit/Gefahr N etzspannung @ 0\ mod_1184148186 948_6.doc @ 5794
Danger!
Supply voltage!
Contact with non-insulated parts carrying supply voltage involves the risk of an electric shock
resulting in injuries and death.
Only qualified and skilled personnel are authorised to run electrically-operated devices. Prior to
undertaking maintenance measures at the device, the following requirements must be met:
Make sure that the power supply is switched off and that the device is off and marked for maintenance
measures. Please also ensure that the power supply cannot be re-established during the works.
Pos: 7/ Beko Technisc heD okumentation/Sic herheit/Maßnah menN etzspannung BM 31/32/33@ 0\mod_1216 898430699_6.d oc @ 11319
Caution!
Refrigerant!
The compressed-air refrigeration dryer uses HFC-containing refrigerants as a coolant.
Please observe the corresponding paragraph entitled "Maintenance works at the refrigeration cycle".

Safety instructions
DRYPOINT® RS 15-550 HP50 NA 9
Warning!
Refrigerant leak!
A refrigerant leak involves the danger of serious injury and damage to the environment.
The DRYPOINT®RS 15-550 HP50 NA high pressure compressed-air refrigeration dryer contains
fluorinated greenhouse gas/refrigerant.
Installation, repair and maintenance works at the refrigeration system must only be carried out by certified
skilled personnel (specialists). A certification in accordance with EC regulation 303/2008 must be
available.
The requirements of the EC 842/2006 directive must be met under all circumstances.
Please refer to the indications on the name plate as regards the type and amount of refrigerant.
Comply with the following protective measures and rules of conduct:
1. Storage: Keep the container tightly closed. Keep it in a cool and dry place. Protect it against heat and
direct sunlight. Keep it away from ignition sources.
2. Handling: Take measures against electrostatic charging. Ensure good ventilation/suction at the
workplace. Check fittings, connections and ducts for tightness. Do not inhale the gas. Avoid contact
with the eyes or the skin.
3. Prior to carrying out works on refrigerant-carrying parts, remove the refrigerant to such an extent that
safe working is possible.
4. Do not eat, drink or smoke during work. Keep out of the reach of children.
5. Breathing protection: ambient-air-independent respirator (at high concentrations).
6. Eye protection: sealing goggles.
7. Hand protection: protective gloves (e.g. made of leather).
8. Personal protection: protective clothing.
9. Skin protection: use protective cream.
In addition, the safety data sheet for the refrigerant needs to be observed!
Caution!
Hot surfaces!
During operation, several components can reach surface temperatures of more than 140°F (60°C).
There is the risk of burns.
All components concerned are installed inside of the closed housing. The housing must only be opened by certified
skilled personnel3.
Caution!
Improper use!
The device is intended for the separation of water in compressed air. The dried air cannot be used for
breathing-air purposes and is not suitable for the direct contact with food.
This dryer is not suitable for the treatment of contaminated air or of air containing solids.
3
Certified skilled personnel are persons who are authorised by the manufacturer, with experience and technical training, who are well-
grounded in the respective provisions and laws and capable of carrying out the required works and of identifying and avoiding any
risks during the machine transport, installation, operation and maintenance.
Qualified and authorised operators are persons who are instructed by the manufacturer regarding the handling of the refrigeration
system, with experience and technical training, and who are well-grounded in the respective provisions and laws.

Proper use
10 DRYPOINT® RS 15-550 HP50 NA
Note!
Contaminated intake air!
In the event that the intake air is strongly contaminated (ISO 8573.1 class 3.-3 or poorer quality), we recommend the
additional installation of a prefilter (e.g. CLEARPOINT HP50S040), to avoid clogging of the heat exchanger.
Caution!
Heating-up through fire!
In the event of a heating-up through fire, the containers and pipes of the refrigerant system can
burst.
In this case, please proceed as follows:
Switch off the refrigeration plant.
Switch off the mechanical ventilation of the machinery compartment.
Use ambient-air-independent respirators.
Containers and plants which are filled with refrigerant can burst violently in the event of fire.
The refrigerants themselves are incombustible, but they are degraded to very toxic products at high
temperatures.
Remove the container/plant from the fire zone, as there is the risk of bursting!
Cool down containers and bottles via a directed water jet from a safe position.
In the event of fire, please use an approved fire extinguisher. Water is not a suitable agent to extinguish
an electrical fire.
This must only be carried out by persons who are trained and informed about the hazards emanating
from the product.
Caution!
Unauthorised intervention!
Unauthorised interventions may endanger persons and plants and lead to malfunction.
Unauthorised interventions, modification and abuse of the pressure devices are prohibited.
The removal of sealings and leadings at safety devices is prohibited.
Operators of the devices must observe the local and national pressure equipment regulations in the
country of installation.
Pos: 8/ Beko Technisc heD okumentation/Sic herheit/Sicher heitshinweise, weitere BM ( nicht Ex) @ 0\mod _1183616103770 _6.doc @ 4009os: 9 /Beko Tec hnische Dokumentati on/Sicherheit/Z usatz Sicherheitshi nweise BM33 @ 0\mo d_12319268876 20_6.doc @ 12829s: 1 0/B eko Technische Doku mentation/Sicherh eit/Vorsicht Fehlfunktio n @ 0\mod_12143 78096290_6.doc @ 93 59
Note!
Ambient conditions!
In the event that the dryer is not installed under suitable ambient conditions, the ability of the device to
condense refrigerant gas is impaired. This can result in a higher load of the refrigerating compressor, and
in a loss of efficiency and performance of the dryer.
This in turn leads to overheated condenser fan motors, to malfunction of electric components and to a
breakdown of the dryer. Failures of this type will affect warranty considerations.
Do not install the dryer in an environment in which chemicals with a corrosive effect, explosive gases,
toxic gases, evaporation heat, high ambient temperatures or extreme dust and dirt can be found.
Pos: 12 /Beko Technisch eD okumentation/Üb erschriften/1/B estimmungsgem äßeV erwendung @ 0 \mod_118363770 6293_6.doc @ 5383
3 Proper use
This dryer was designed, manufactured and tested to separate the moisture which normally exists in compressed air.
Any other use is considered improper.
The manufacturer shall not be liable for problems occurring as a consequence of improper use. The user alone is
responsible for any damage resulting from that.
Furthermore, the correct use includes the compliance with the installation instructions, in particular in respect of:
•The voltage and frequency of the main voltage supply.
•The pressure, temperature and flow rate of the inlet air.
•The pressure, temperature and cooling-water throughput (water-cooled).
•The ambient temperature.
When delivered, the dryer is tested and fully assembled. The customer only needs to connect the device to the system
in accordance with the instructions in the following chapters.
Pos: 15/B ekoT echnische Dokument ation/Übeschriften/1/A usschluss vom Anwendungsb ereich@ 0 \mod_1236003 439359_6.doc @ 13709
4 Exclusion from a field of application
Pos: 16 /Beko Technisch eD okumentation/B estimmungsgem äßeV erwendung/ BEKOMAT/Ausschl uß Anwendung BM 31/ 32/33 @ 0\mod_12 36003837511_6.d oc @ 13736
Note!
Improper use!
The device is intended for the separation of water in compressed air. The dried air cannot be used for
breathing-air purposes and is not suitable for the direct contact with food.
This dryer is not suitable for the treatment of contaminated air or of air containing solids.

Operating instructions in accordance with the 2014/68/EU
Pressure Equipment Directive
DRYPOINT® RS 15-550 HP50 NA 11
5 Operating instructions in accordance with the 2014/68/EU Pressure Equipment Directive
The DRYPOINT® RS 15-550 HP50 NA high pressure compressed-air refrigeration dryer contains pressure equipment
in the sense of the 2014/68/EU Pressure Equipment Directive. Therefore, the entire plant needs to be registered with the
supervisory authority if required in accordance with the local regulations.
For the examination prior to the start-up and for periodic inspections, the national regulations need to be observed, such
as the industrial safety regulation in the Federal Republic of Germany. In countries outside the EU, the respective
regulations in force there need to be adhered to.
The proper use of pressure devices is the basic requirement for safe operation. As regards pressure devices, the
following points need to be observed:
•The DRYPOINT®RS 15-550 HP50 NA high pressure compressed-air refrigeration dryer must only be employed
within the pressure and temperature range limits indicated by the manufacturer on the name plate.
•No welding must be carried out on the pressure parts.
•The DRYPOINT®RS 15-550 HP50 NA high pressure compressed-air refrigeration dryer must neither be installed
in insufficiently ventilated rooms nor near heat sources or inflammable substances.
•To avoid fractures resulting from material fatigue, the refrigeration dryer should not be exposed to vibrations during
operation.
•The maximum operating pressure indicated by the manufacturer on the name plate must not be exceeded. It is the
installer's responsibility to install the appropriate safety and control devices. Prior to the start-up of the DRYPOINT®
RS 15-550 HP50 NA high pressure compressed-air refrigeration dryer, the connected pressure generator
(compressor etc.) must be set to the max. permissible operating pressure. The integrated safeguard needs to be
checked by an approved inspection agency.
•The documents related to the DRYPOINT®RS 15-550 HP50 NA high pressure compressed-air refrigeration dryer
(manual, operating instructions, manufacturer's declaration etc.) must be kept safe for future reference.
•No objects whatsoever must be installed at or placed on the DRYPOINT®RS 15-550 HP50 NA high pressure
compressed-air refrigeration dryer and the connecting lines.
•Installation of the plant in frost-free places only.
•Operation of the plant is only permissible with fully closed and intact housing and cover panels. Operation of the
plant with damaged housing/cover panels is prohibited.
6 Transport
Check the packaging for visible loss or damage. If no visible damage can be ascertained, place the unit in close proximity
to the place of installation and unpack the device.
During this procedure, the dryer must always remain in an upright position. The components may be damaged when the
unit is tilted or turned upside down.
Store the device in a dry environment and do not expose it to extreme weather conditions.
Handle with care. Strong shocks can cause irreparable damage.
7 Storage
Keep the device away from extreme weather conditions
even when packaged.
Keep the dryer in an upright position, also while it is stored.
Tilting the device or turning it upside down can cause
irreparable damage to some components.
When the dryer is not in use, it can be stored in its
packaging in a dust-free and protected place at a
temperature of up to max. 122°F (50°C) and at a specific
humidity of max. 90%. If the storage period exceeds 12
months, you should contact the manufacturer.
The packaging material is recyclable. Dispose of the material in accordance with the
directives and provisions in force in the country of destination
SCC0001

Installation
12 DRYPOINT® RS 15-550 HP50 NA
8 Installation
8.1 Place of installation
Note!
Ambient conditions!
In the event that the dryer is not installed under suitable ambient conditions, the ability of the device to
condense refrigerant gas is impaired. This can result in a higher load of the refrigerating compressor, and in
a loss of efficiency and performance of the dryer.
This in turn leads to overheated condenser fan motors, to malfunction of electric components and to a
breakdown of the dryer. Failures of this type will affect warranty considerations.
Do not install the dryer in an environment in which chemicals with a corrosive effect, explosive gases, toxic
gases, evaporation heat, high ambient temperatures or extreme dust and dirt can be found.
Minimum installation requirements:
•Choose an area which is clean and dry, free from dust and protected against atmospheric disturbances.
•The load-bearing zone must be even, horizontal and able to bear the weight of the dryer.
•Minimum ambient temperature +34°F (+1°C).
•Maximum ambient temperature +122°F (+50°C).
•Ensure a proper cooling air replacement.
•Allow a sufficient clearance on each side of the dryer for proper ventilation and to facilitate maintenance operations.
The dryer does not require attachment to the floor surface.
Do not obstruct the ventilation grille (not even partially).
Prevent any recirculation of the outgoing cooling air.
Protect the dryer against draughts.
Note!
Dryers models RS 15 –80 can be wall-mounted. See fixing dimensions on dimensional drawings in the
appendices section.
The hanging mounting inevitably causes the obstruction of the ventilation grid positioned on the panel
facing the wall fixing. This obstruction, in any case, does not prejudge the efficiency of the ventilation
inside the dryer which is guaranteed by other grids on the other panels.

Installation
DRYPOINT® RS 15-550 HP50 NA 13

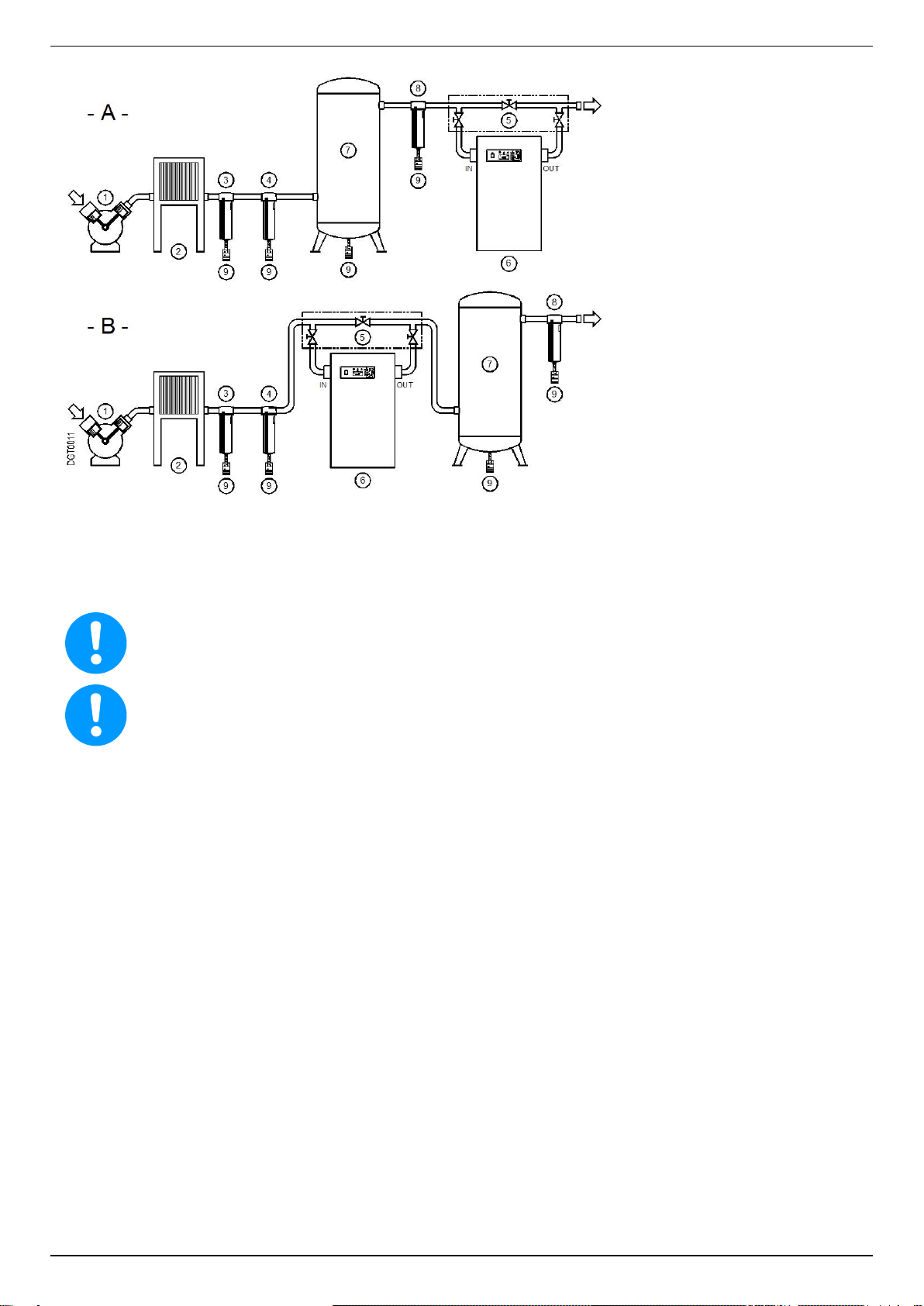

8.2 Installation plan
1
Air compressor
2
Aftercooler
3
Condensate separator
4
Prefilter
5
Bypass group
6
Dryer
7
Compressed-air tank
8
Final filter
9
Bekomat condensate drain
Installation type A is recommended when the total consumption corresponds to the throughput rate of the compressor.
Installation type B is recommended when the air consumption constantly varies, with peak values which considerably
exceed the throughput rate of the compressor. The storage capacity of the tank must be dimensioned in such a way that
a possible short-term high air demand (peak air consumption) can be compensated.
Do not obstruct the ventilation grille (not even partially).
Prevent any recirculation of the outgoing cooling air.
Protect the dryer against draughts.
Note!
Contaminated intake air!
In the event that the intake air is strongly contaminated (ISO 8573.1 class 3.-3 or poorer quality), we recommend the
additional installation of a prefilter (e.g. CLEARPOINT HP50S040), to avoid clogging of the heat exchanger.

Installation
14 DRYPOINT® RS 15-550 HP50 NA
8.3 Correction factors
Correction factor for operating pressure modifications:
Inlet air pressure psig
200
300
400
500
550
580
650
725
barg
14
21
28
34
38
40
45
50
Factor (F1)
0.53
0.71
0.84
0.94
0.98
1.00
1.05
1.10
Correction factor for ambient temperature modifications (Air-Cooled):
Ambient temperature ºF
80
90
95
100
105
110
115
122
ºC
27
32
35
38
40
43
45
50
Factor (F2)
1.11
1.09
1.06
1.00
0.94
0.87
0.78
0.69
Correction factor for inlet air temperature modifications:
Air temperature ºF
90
100
110
122
130
140
150
ºC
32
38
43
50
55
60
65
Factor (F3)
1.16
1.00
0.82
0.68
0.61
0.52
0.45
Correction factor for DewPoint modifications:
DewPoint ºF
38
41
45
50
ºC
3
5
7
10
Factor (F4)
1.00
1.08
1.20
1.36
Calculation of the actual air throughput:
Actual air throughput = air throughput acc. to planning x factor (F1) x factor (F2) x factor (F3) x factor (F4)
Example:
The DRYPOINT RS 100 HP50 NA has a planned nominal capacity of 100 scfm (170 m³/h). The highest achievable air
mass under the following operating conditions is:
−Air inlet pressure = 550 psig (38 barg)
−Ambient temperature = 115°F (45°C)
−Air inlet temperature = 122°F (50°C)
−Pressure dew point = 50°F (10°C)
Factor (F1) = 0.98
Factor (F2) = 0.78
Factor (F3) = 0.68
Factor (F4) = 1.36
Every function parameter corresponds to a numerical factor which, multiplied by the planned nominal capacity,
determines the following:
Actual air throughput = 100 x 0.98 x 0.78 x 0.68 x 1.36 = 71 scfm (121 m³/h)
71 scfm is the maximum flow rate of the dryer under the aforementioned operating conditions.
Selection of the best suitable model in accordance with the operating conditions:
Air throughput acc. to planning =
Requ.airthroughput
Factor(F1)xFactor(F2)xFactor(F3)xFactor(F4)
Example:
The following operating parameters are known:
−Required air mass = 100 scfm (170 m3/h)
−Air inlet pressure = 550 psig (38 barg)
−Ambient temperature = 115°F (45°C)
−Air inlet temperature = 110°F (43°C)
−Pressure dew point = 50°F (10°C)

Factor (F1) = 0.98
Factor (F2) = 0.78
Factor (F3) = 0.82
Factor (F4) = 1.36
To find out the correct dryer version, the required air mass must be divided by the correction factors of the parameters
indicated above:
Air throughput acc. to planning =
100
= 117 scfm (199 m³/h)
0.98x0.78x0.82x1.36
The suitable model for these requirements is DRYPOINT RS 140 HP50 NA (with a spec. nominal capacity of 140 scfm
(238 m³/h).

Installation
DRYPOINT® RS 15-550 HP50 NA 15
8.4 Connection to the compressed-air system
Danger!
Compressed air!
All works must only be carried out by qualified skilled personnel.
Never work on compressed-air systems which are under pressure.
The operator or the user must ensure that the dryer is never operated with a pressure exceeding the
maximum pressure value indicated on the name plate.
Exceeding the maximum operating pressure can be dangerous for the operator but also for the device.
The air temperature and the air flow at the inlet of the dryer must lie within the limit values indicated on the name plate.
The connecting lines must be free from dust, iron rust, shards and other contaminations and correspond to the flow rate
of the dryer. Should air with a very high temperature be treated, the installation of an aftercooler may be necessary. For
the implementation of maintenance works, the installation of a bypass system is recommended.
Note!
Pulsation and vibrations!
Pulsations and vibrations must be eliminated from the compressed air and IN/OUT piping to avoid possible
fatigue failure.
Do not use the dryer to treat air containing corrosive substances for copper and its alloys..
===== Ende der Stückli ste= ====
Note!
Contaminated intake air!
In the event that the intake air is strongly contaminated (ISO 8573.1 class 3.-3) or poorer quality, we
recommend the additional installation of a prefilter (e.g. CLEARPOINT HP50S040), to avoid clogging of
the heat exchanger.
8.5 Connection to the cooling-water network
Danger!
Compressed air and unqualified personnel!
All works must only be carried out by qualified skilled personnel.
Never work on compressed-air systems which are under pressure.
The user must ensure that the dryer is never operated with a pressure exceeding the nominal values.
Possible overpressure can be dangerous for the operator but also for the device.
The temperature and the amount of cooling water need to correspond to the limit values indicated on the name plate.
The cross-section of the connecting lines, which should preferably be flexible, must be free from dust, iron rust, shards
and other contaminations. We recommend employing connecting lines (flexible hoses, vibration-inhibiting fittings etc.)
which protect the dryer against possible vibrations in the pipework.
Note!
Contaminated intake water!
In the event that the intake water is strongly contaminated we recommend the additional installation of a
prefilter (500 micron), to avoid clogging of the heat exchanger.
8.6 Minimum cooling water requirements:
Temperature
59…86°F (15…30°C) (1)
HCO3 / SO4
>1.0 mg/l or ppm
Pressure
44...145 psig (3…10 barg) (2)
NH3
<2 mg/l or ppm
Delivery pressure
> 44 psig (3 bar) (2) (3)
Cl-
50 mg/l or ppm
Total hardness
6.0…15 dH°
Cl2
0.5 mg/l or ppm
PH
7.5…9.0
H2S
<0.05 mg/l or ppm
Conductivity
10…500 μS/cm
CO2
<5 mg/l or ppm
Residual solids
<30 mg/l or ppm
NO3
<100 mg/l or ppm
Saturation mark SI
-0.2 < 0 < 0.2
Fe
<0.2 mg/l or ppm
HCO3
70…300 mg/l or ppm
Al
<0.2 mg/l or ppm
SO42-
<70 mg/l or ppm
Mn
<0.1 mg/l or ppm
Note:
(1) –Other temperatures upon request –check the data on the name plate.
(2) –Other pressures upon request –check the data on the name plate.
(3) –Pressure difference at the water connection of the dryer at maximum water flow.
Other delivery pressures upon request.
CAUTION!
During the piping of the dryer, the inlet and outlet connections need to be supported as is shown in the
illustration.
Non-observance will cause damage.

Start-up
16 DRYPOINT® RS 15-550 HP50 NA
8.7 Electrical connections
Danger!
Supply voltage!
The connection to the electric mains should only be carried out by qualified skilled personnel and must
correspond to the legal provisions in force in your region.
Prior to connecting the device, please check the name plate to avoid exceeding the indicated values. The voltage
tolerance is +/- 10%.
DRYPOINT RS 15-550 HP50 NA dryers are supplied with a power cord and safety plug (two-pole and earth connection)
or with a junction box on the back plate.
Make sure that suitable fuses or circuit breakers in accordance with the indications on the name plate are available.
The wall socket must be equipped with a fault current circuit breaker (In=0.03A) which must be adjusted according to
the power consumption of the dryer (see nominal values on the name plate of the dryer). The cross-section of the power
supply cable must correspond to the power consumption of the dryer. In this respect, the ambient temperature, the cable
laying conditions, the length of the cables and the requirements of the local electricity supplier need to be considered.
Danger!
Supply voltage and missing earth connection!
Important: ensure that the plant is connected to earth.
Do not use plug adapters at the power plug.
Possible replacement of the power plug must only be carried out by a qualified electrician.
8.8 Condensate drain
Danger!
Compressed air and condensate under pressure!
The condensate is discharged at system pressure.
The drain pipe needs to be secured.
Never direct the condensate drain pipe at persons.
The dryer is delivered with an already integrated electronically level-controlled BEKOMAT condensate drain. Connect
the condensate drain with a collection system or container by properly screwing it on.
Do not connect the drain with pressurised plants.
Do not discharge the condensate into the environment.
The condensate accumulating in the dryer contains oil particles which were released into the air by the
compressor.
Dispose of the condensate in accordance with the local provisions.
It is advisable to install a water-oil separator, to which the total amount of condensate from the compressors,
dryers, tanks, filters etc. is supplied.
We recommend ÖWAMAT oil-water separators for dispersed compressor condensate and BEKOSPLIT
emulsion-splitting plants for emulsified condensate.
9 Start-up
9.1 Preliminary stages
Note!
Exceeding of the operating parameters!
Ensure that the operating parameters comply with the nominal values indicated on the name plate of the
dryer (voltage, frequency, air pressure, air temperature, ambient temperature etc.).
Prior to delivery, this dryer was thoroughly tested, packed and checked. Please verify the soundness of the dryer during
the initial start-up and check the perfect functioning during the first operating hours.
The initial start-up must be carried out by qualified personnel.
During the installation and operation of this device, all national regulations regarding electronics and any
other federal and state ordinances, as well as local provisions, need to be adhered to.
The operator and the user must ensure that the dryer is not operated without panels.

Start-up
DRYPOINT® RS 15-550 HP50 NA 17
9.2 Initial start-up
Note!
The dryer must not be started up more than six times an hour. Wait at least five minutes prior to every
restart.
The user is responsible for the compliance with these provisions. Irreparable damage can be caused by
starting up the device too often.
The method below should be applied during the first start-up, after longer downtimes or subsequent to
maintenance works.
The start-up must be carried out by certified skilled personnel.
Processing sequence (see Section 11.1 "Control panel")
•Ensure that all steps of the "Installation" chapter have been carried out.
•Ensure that the connection to the compressed-air system is in accordance with the provisions and that the lines are
fixed and supported properly.
•Ensure that the condensate drain pipe is fixed in accordance with the provisions and that it is connected with a
collection system or a container.
•Ensure that the bypass system (if installed) is open and that the dryer is disconnected from the compressed-air
system.
•Ensure that the manual valve of the condensate drainage cycle is open.
•Ensure that the cooling-water flow and the cooling-water temperature are in accordance with the provisions (water-
cooled).
•Remove any packaging material and other items which may block the space around the dryer.
•Establish the mains connection (plug into socket).
•RS 180-550 3phase - switch on the main switch - pos. A control panel.
•RS 180-550 3phase - wait at least two hours before starting the dryer (the crankcase heater of the compressor needs
to heat up the compressor oil).
•Start the dryer by switching on the main switch on the control panel (pos. 1).
•Make sure that the electronic control unit is switched on.
•Ensure that the power consumption complies with the values on the name plate.
•Ensure that the fan runs properly –wait for the first interventions (air-cooled).
•Wait until the dew point remains stable.
•Slowly open the air inlet valve.
•Slowly open the air outlet valve.
•Slowly close the central bypass valve of the system (if installed).
•Check the pipes for air leakage.
•Ensure the proper functioning of the condensate drain cycle (wait for the first condensate discharges).
Note!
RS 15-40 - A dew point included in the green operating area of the electronic control unit is considered to
be correct according to the possible operating conditions (flow rate, air inlet temperature, ambient
temperature etc.).
RS 50-550 - A dew point between 32°F (0°C) and +50°F (+10°C) displayed on the electronic control unit is
considered to be correct according to the possible operating conditions (flow rate, air inlet temperature,
ambient temperature etc.).
During the operation, the refrigerating compressor runs continuously. The dryer needs to be switched on during the
entire compressed-air usage time, even if the compressed-air compressor works periodically.

Start-up
18 DRYPOINT® RS 15-550 HP50 NA
9.3 Shut down and restart
RS 180-550 3phase - during short-term inactivity (max. two to three days), it is advisable to leave the dryer
and the control panel connected to the supply current circuit. Otherwise, it would be necessary at a restart
of the dryer to wait two hours, until the crankcase heater of the compressor has heated up the oil in the
compressor.
Shut down (see Section 11.1 "Control panel")
•Ensure that the dew point temperature indicated on the electronic control unit is stable.
•Interrupt the compressed-air supply.
•After a few minutes, stop the dryer by switching off the main switch on the control panel (pos. 1).
Restart (see Section 11.1 "Control panel")
•Make sure that the condenser is clean (air-cooled).
•Ensure that the cooling-water flow and the temperature are in accordance with the provisions (water-cooled).
•Check whether or not voltage is applied at the dryer.
•Start the dryer by switching on the main switch on the control panel (pos. 1).
•Ensure that the electronic control unit is switched on.
•Wait a few minutes and then check, whether or not the dew point temperature indicated on the
electronic control unit is stable and whether or not the condensate is drained off at regular intervals.
•Establish the compressed-air supply.
RS 180-550 3phase - dryer remote control ON/OFF
•Remove the jumper between terminals 1 and 2 of the terminal strip and wire a potential-free contact (see electric
diagram).
•Switch ON the main switch - pos. 1 on the control panel.
•Close the contact at terminals 1 and 2 to switch on the dryer.
•Open the contact at terminals 1 and 2 to switch off the dryer.
Only use potential-free contacts that are suitable for low voltage. Ensure the sufficient insulation of
potentially dangerous voltage-carrying components.
Caution!
Automatic restart / remote control ON/OFF. The unit may start up without any active influence!
The user will be responsible for the installation of proper protections for possible sudden power
restoration to the dryer.
During the operation, the refrigerating compressor runs continuously. The dryer needs to be switched on during the
entire compressed-air usage time, even if the compressed-air compressor works periodically.
Note!
RS 15-40 - A dew point included in the green operating area of the electronic control unit is considered to
be correct according to the possible operating conditions (flow rate, air inlet temperature, ambient
temperature etc.).
RS 50-550 - A dew point between 32°F (0°C) and +50°F (+10°C) displayed on the electronic control unit is
considered to be correct according to the possible operating conditions (flow rate, air inlet temperature,
ambient temperature etc.).
Note!
The dryer must not be started up more than six times an hour. Wait at least five minutes prior to every
restart. The user is responsible for the compliance with these provisions. Irreparable damage can be
caused when starting up the device too often.

Technical data
DRYPOINT® RS 15-550 HP50 NA 19
10 Technical data
10.1 Technical data DRYPOINT RS 15-180 HP50 NA 1/115/60

Technical data
20 DRYPOINT® RS 15-550 HP50 NA
10.2 Technical data DRYPOINT RS 15-550 HP50 NA 1/230/60
