Beko FNE 1000 User manual

EN / DE / FR / NL
FNE 1000 - FNE 1070 - FNE 1072 - FNE1073N
48 5998 0005/AO
1/4
Diepvriezer
Gebruiksaanwijzing
Freezer
User manual
Gefrierschrank
Bedienungsanleitung
Manuel d'utilisation
Congélateur

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you an
effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual





Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your refrigerator 3
2 Safety and Environment
Instructions 4
3 Installation 8
Points to be considered when re-
transporting your refrigerator.............8
....8
Electric connection...................................9
Disposing of the packaging...................9
Disposing of your old refrigerator......9
Placing and Installation...........................9
Adjusting the feet...................................10
............................... 11
...............................12
4 Preparation 13
5 Using your refrigerator 14
Setting the operating temperature.15
LED indicators and control panel......15
6 Maintenance and
cleaning 19
Protection of plastic surfaces ...........19
7 Troubleshooting 20
CONTENTS

EN
3
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.

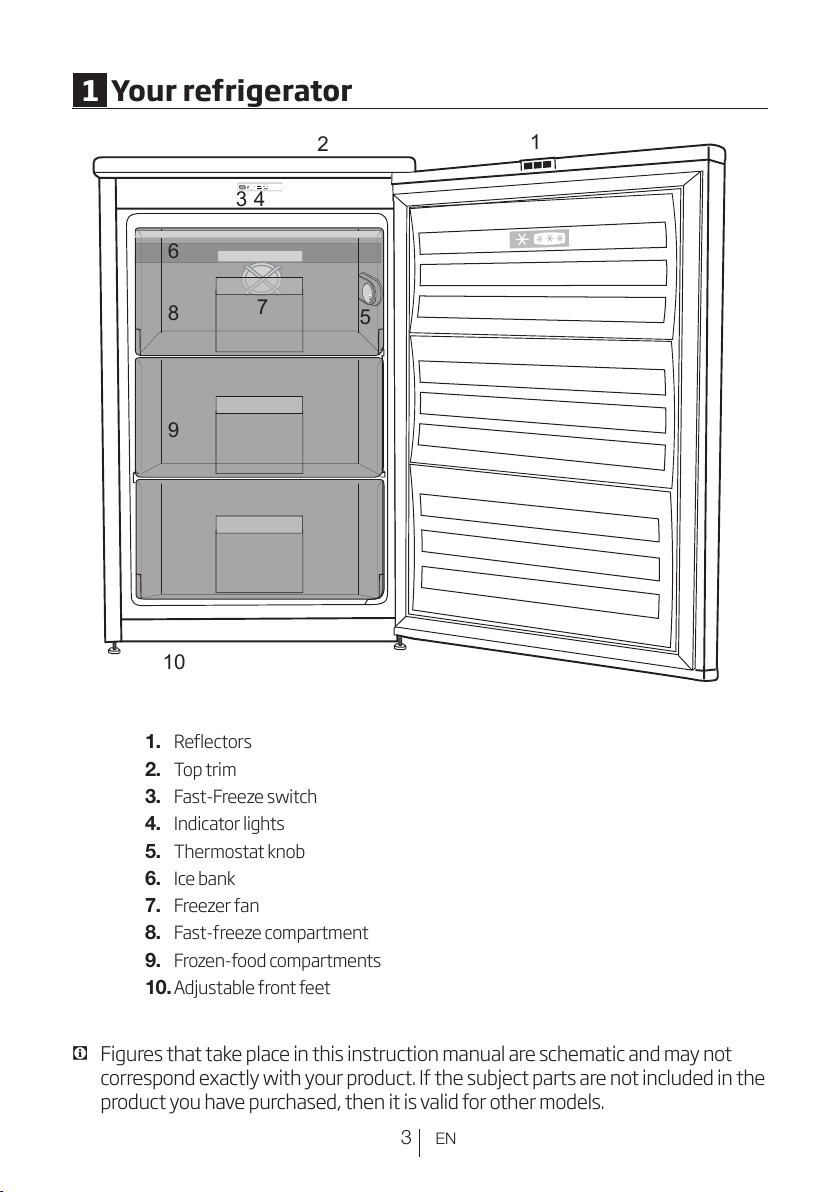

1Your refrigerator
1. 
2. Top trim
3. Fast-Freeze switch
4. Indicator lights
5. Thermostat knob
6. Ice bank
7. Freezer fan
8. Fast-freeze compartment
9. Frozen-food compartments
10. Adjustable front feet
1
6
9
7
10
4
2
3
5
8

EN
4
2Safety and Environment Instructions
This section provides the safety
instructions necessary to prevent the
risk of injury and material damage.
Failure to observe these instructions
will invalidate all types of product
warranty.
Intended use
A
WARNING:

in the appliance enclosure
or in the built-instructure,
clear of obstruction.
A
WARNING:
Do not use mechanical
devices or other
means to accelerate the
defrostingprocess, other
than those recommended
by the manufacturer.
AWARNING:
Do not damage the
refrigerant circuit.
A
WARNING:
Do not use electrical
appliances inside the food
storage compartments
of the appliance, unless
they are of the type
recommended by the
manufacturer.
A
WARNING:
Do not store explosive
substances such as aerosol
cans with a flammable
propellant in this appliance.
This appliance is intended to be used
in household and similar applications
such as
– staff kitchen areas in shops, offices
and other working environments;
– farm houses and by clients in
hotels, motels and other residential
type environments;
– bed and breakfast type
environments;
– catering and similar non-retail
applications.
1.1. General Safety
 This product should not be used by
persons with physical, sensory and
mental disabilities, without suffi-
cient knowledge and experience
or by children. The device can only
be used by such persons under su-
pervision and instruction of a per-
son responsible for their safety.
Children should not be allowed to
play with this device.
 In case of malfunction, unplug the
device.
 After unplugging, wait at least 5
minutes before plugging in again.
 Unplug the product when not in
use.
 Do not touch the plug with wet
hands! Do not pull the cable to plug
off, always hold the plug.
 Do not plug in the refrigerator if
the socket is loose.
 Unplug the product during instal-
lation, maintenance, cleaning and
repair.
 If the product will not be used for a
while, unplug the product and re-
move any food inside.

EN
5
 Do not use the product when the
compartment with circuit cards lo-
cated on the upper back part of
the product (electrical card box co-
ver) (1) is open.
1
1
 Do not use steam or steamed clea-
ning materials for cleaning the ref-
rigerator and melting the ice insi-
de. Steam may contact the electri-
fied areas and cause short circuit
or electric shock!
 Do not wash the product by spra-
ying or pouring water on it! Danger
of electric shock!
 In case of malfunction, do not use
the product, as it may cause elect-
ric shock. Contact the authorized
service before doing anything.
 Plug the product into an earthed
socket. Earthing must be done by a
qualified electrician.
 If the product has LED type ligh-
ting, contact the authorized ser-
vice for replacing or in case of any
problem.
 Do not touch frozen food with
wet hands! It may adhere to your
hands!
 Do not place liquids in bottles and
cans into the freezer compart-
ment. They may burst out!
 Place liquids in upright position af-
ter tightly closing the lid.
 Do not spray flammable substan-
ces near the product, as it may
burn or explode.
 Do not keep flammable materials
and products with flammable gas
(sprays, etc.) in the refrigerator.
 Do not place containers hol-
ding liquids on top of the product.
Splashing water on an electrified
part may cause electric shock and
risk of fire.
 Exposing the product to rain,
snow, sunlight and wind will cau-
se electrical danger. When reloca-
ting the product, do not pull by hol-
ding the door handle. The handle
may come off.
 Take care to avoid trapping any
part of your hands or body in any
of the moving parts inside the pro-
duct.
 Do not step or lean on the door,
drawers and similar parts of the
refrigerator. This will cause the
product to fall down and cause da-
mage to the parts.
 Take care not to trap the power
cable.

EN
6
1.1.1 HC Warning
If the product comprises a cooling

avoid damaging the cooling system
and its pipe while using and moving
the product. This gas is flammable. If
the cooling system is damaged, keep
the product away from sources of fire
and ventilate the room immediately.
C
The label on the inner left
side indicates the type of
gas used in the product.
1.1.2 For Models with
Water Dispenser
 Pressure for cold water inlet shall

your water pressure exceeds 80
psi(5.5 bar), use a pressure limi-
ting valve in your mains system.
If you do not know how to check
your water pressure, ask for the
help of a professional plumber.
 If there is risk of water hammer ef-
fect in your installation, always use
a water hammer prevention equ-
ipment in your installation. Consult
Professional plumbers if you are
not sure that there is no water
hammer effect in your installation.
 Do not install on the hot water in-
let. Take precautions against of
the risk of freezing of the hoses.
Water temperature operating in-
-
mum and 100°F (38°C) maximum.
 Use drinking water only.
1.2. Intended Use
 This product is designed for home
use. It is not intended for commer-
cial use.
 The product should be used to sto-
re food and beverages only.
 Do not keep sensitive products re-
quiring controlled temperatures
(vaccines, heat sensitive medica-
tion, medical supplies, etc.) in the
refrigerator.
 The manufacturer assumes no res-
ponsibility for any damage due to
misuse or mishandling.
 Original spare parts will be provi-
ded for 10 years, following the pro-
duct purchasing date.
1.3. Child Safety
 
children’s reach.
 Do not allow the children to play
with the product.
 If the product’s door comprises a
lock, keep the key out of children’s
reach.
1.4. Compliance with WEEE
Directive and Disposing
of the Waste Product
This product complies with
EU WEEE Directive (2012/19/EU). This
product bears a classification symbol
for waste electrical and electronic
equipment (WEEE).
This product has been
manufactured with high
qualityparts andmaterials
which can be reused and
are suitable for recycling.

EN
7
Do not dispose of the waste product
with normal domestic and other
wastes at the end of its service life.
Take it to the collection center for the
recycling of electrical and electronic
equipment. Please consult your local
authorities to learn about these
collection centers.
1.5. Compliance with
RoHS Directive
 This product complies with EU

does not contain harmful and pro-
hibited materials specified in the
Directive.
1.6. Package Information
 Packaging materials of the product
are manufactured from recyclab-
le materials in accordance with our

Do not dispose of the packaging
materials together with the do-
mestic or other wastes. Take them
to the packaging material collecti-
on points designated by the local
authorities.

EN
8
3Installation
and the wall in order to allow the air
circulation. (The illustrated figure is
only an example and does not match
exactly with your product.)
3. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
4. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
even if the compressor is not
running and this is quite normal.
5. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation
BPlease remember that the
manufacturer shall not be held
liable if the information given in the
instruction manual is not observed.
Points to be considered
when re-transporting your
refrigerator
1. Your refrigerator must be
emptied and cleaned prior to any
transportation.
2. Shelves, accessories, crisper and
etc. in your refrigerator must be
fastened securely by adhesive tape
against any jolt before repackaging.
3. Packaging must be tied with thick
tapes and strong ropes and the rules
of transportation printed on the
package must be followed.
Please do not forget…
Every recycled material is an
indispensable source for the nature
and for our national resources.
If you wish to contribute to recycling
the packaging materials, you can
get further information from the
environmental bodies or local
authorities.
Before operating your
refrigerator

check the following:
1. Is the interior of the refrigerator dry
and can the air circulate freely in the
rear of it?
2. Please install the 2 plastic wedges
as illustrated in the figure. Plastic
wedges will provide the required
distance between your refrigerator
1
2
3
3
3
1

EN
9
Electric connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
 The connection must be in
compliance with national
regulations.
 The power cable plug must be easily
accessible after installation.
 The specified voltage must be equal
to your mains voltage.
 Extension cables and multiway
plugs must not be used for
connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is danger of
electric shock!
Disposing of the packaging
The packing materials may be
    
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with
the waste instructions. Do not dispose
of them along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator
without giving any harm to the
environment.
 You may consult your authorised
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.

cut out the electric plug and, if there
are any locks on the door, make
them inoperable in order to protect
children against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be
installed is not wide enough for the
refrigerator to pass through, then
call the authorised service to have
them remove the doors of your
refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place
that allows ease of use.
2. 
heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to
be placed in a recess in the wall,
there must be at least 5 cm distance
with the ceiling and at least 5 cm
with the wall. If the floor is covered
with a carpet, your product must be
elevated 2.5 cm from the floor.
4. Place your refrigerator on an even
floor surface to prevent jolts.

EN
10
Adjusting the feet
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs as shown in the
illustration below. The corner where
thelegexistsisloweredwhen youturn
it in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone
to slightly lift the refrigerator will
facilitate this process.

EN
11
1
60°
9
14
60°
16
10
2
3
4
5
8
7
7
12
12
11
11
6
6
15
13
Reversing the doors
Proceed in numerical order

EN
12
1
2
55 mm
595 mm
820 mm
3
4
a
ac
b
bd
e
b b
840 mm
Reversing the doors
Proceed in numerical order

EN
13
4Preparation
CYour refrigerator should be installed
at least 30 cm away from heat
sources such as hobs, ovens, central
heater and stoves and at least 5
cm away from electrical ovens and
should not be located under direct
sunlight.
CThe ambient temperature of
the room where you install your
refrigerator should at least be 10°C.
Operating your refrigerator under
cooler conditions than this is not
recommended with regard to its
efficiency.
CPlease make sure that the interior
of your refrigerator is cleaned
thoroughly.
CIf two refrigerators are to be
installed side by side, there should
be at least 2 cm distance between
them.
CWhen you operate your refrigerator
for the first time, please observe the
following instructions during the
initial six hours.
- The door should not be opened
frequently.
- It must be operated empty without
any food in it.
- Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in

the problems” section.
COriginal packaging and foam
materials should be kept for future
transportations or moving.

EN
14
5Using your refrigerator
1 = Lowest cooling setting (Warmest
setting)
MAX. = Highest cooling setting
(Coldest setting)
Please choose the setting according
to the desired temperature.
The interior temperature also
depends on ambient temperature,
the frequency with which the door is
opened and the amount of foods kept
inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The normal storage temperature of
your appliance should be -18 °C (0 °F).
Lower temperatures can be obtained
by adjusting the thermostat knob
towards Position MAX.
We recommend checking the
temperature with a thermometer
to ensure that the storage
compartments are kept to the desired

the reading immediately since the
thermometer temperature will rise
very rapidly after you remove it from
the freezer.

EN
15
Setting the operating
temperature
4 2 31 5
LED indicators and control
panel
There are three coloured indicator
lights located on the front of the
appliance which shows the operating
mode of the freezer.
Green Indicator (1): Illuminates
when the appliance is connected to
the mains and will glow as long as
electricity is available. The green light
will not glow if the thermostat is set
to ‘0’ position. The green indicator
does not give any indication of the
temperature inside the freezer.
Amber Indicator (2):This indicator
will glow when the fast freeze switch
is on and will continue to glow until
the fast freeze switch is turned off.
The compressor will run continuously
while fast freeze switch is on. Fast
freeze operation is for freezing fresh
food.
Red Indicator (3) Illuminates:
a) If the pre-set temperature can not
be maintained.
b) If excessive amounts of fresh food
are placed inside.
c) If the appliance door is left open
accidentally.
Thermostat knob (5) Thermostat
knob is located on the indicator light
set.
IMPORTANT: When you press the
fast freeze switch, there may be a
short delay before the compressor
starts to operate. This is normal and
does not indicate a compressor fault.

EN
16
The operating temperature is
regulated by the temperature control.
Warm Cold
1 = Lowest cooling setting (Warmest
setting)
4 = Highest cooling setting (Coldest
setting)
(Or)
Min. = Lowest cooling setting
(Warmest setting)
Max. = Highest cooling setting
(Coldest setting)
Please choose the setting according
to the desired temperature.
The interior temperature also
depends on ambient temperature,
the frequency with which the door is
opened and the amount of food kept
inside.
Frequently opening the door causes
the interior temperature to rise.
For this reason, it is recommended
to close the door again as soon as
possible after use.
The normal storage temperature
of your appliance should be -18 °C (0
°F). If the thermostat knob is turned
counter clockwise from position
1, the appliance will be switched
off and “click” sound will be heard.
Lower temperatures can be obtained
by adjusting the thermostat knob
towards Position 4.
We recommend checking the
temperature with a thermometer to
ensurethatthestoragecompartments
are kept to the desired temperature.
    
immediately since the thermometer
temperature will rise very rapidly after
you remove it from the freezer.
Freezing food
The freezing area is marked with
symbol on the door liner.
You can use the appliance for
freezing fresh food as well as for
storing pre-frozen food.
Please refer to the recommendations
given on the packaging of your food.
AAttention
Do not freeze fizzy drinks, as the
bottle may burst when the liquid in it
is frozen.

as coloured ice-cubes.
Do not exceed the freezing capacity
of your appliance in 24 hours. See the
rating label.
In order to maintain the quality of the
food, the freezing must be effected as
rapidly as possible.
Thus, the freezing capacity will not
be exceeded, and the temperature
inside the freezer will not rise.
AAttention
    
always separated with freshly placed
food.

EN
17
When deep-freezing hot food, the
cooling compressor will work until the
food is completely frozen. This can
temporarily cause excessive cooling
of the refrigeration compartment.
If you find the freezer door difficult
to open just after you have closed it,
don’t worry. This is due to the pressure
difference which will equalize and
allow the door to open normally after
a few minutes.
You will hear a vacuum sound just
after closing the door. This is quite
normal.
Making ice cubes
Fill the ice-cube tray 3/4 full with
water and place it in the freezer.
As soon as the water has turned into
ice, you can take out the ice cubes.
Never use sharp objects such as
knives or forks to remove the ice
cubes. There is a risk of injury!
Let the ice cubes slightly thaw
instead, or put the bottom of the tray
in hot water for a short moment.
Fast freeze
If large amounts of fresh food are
going to be frozen, push the fast
freeze switch 24 hours before putting
the fresh food in the fast freeze
compartment.
It is strongly recommended to keep
fast freeze switch on 24 hours to
freeze maximum amount of fresh food
declared as freezing capacity. Take
special care not to mix frozen food and
fresh food.
Defrosting of the appliance
Excessive build-up of ice will affect
the freezing performance of your
appliance.
It is therefore recommended that you
defrost your appliance at least twice
a year, or whenever the ice build-up
exceeds 7 mm.
Defrost your appliance when there is
only little or no food in it.
Take out the deep-frozen food from
the drawers. Wrap the deep-frozen
food in several layers of paper, or a
blanket, and keep it in a cold place.
Unplug the appliance or switch
off the circuit breaker to start the
defrosting process.
Take out the accessories (like shelf,
drawer etc.) from the appliance and
use a suitable container to collect the
thawing water.
1-
4-
-2
-3

EN
18
Use a sponge or a soft cloth to
remove thawing water if necessary
    
defrosting.
For quicker defrosting, place
containers with warm water inside
the appliance.
Never use electrical devices,
defrosting sprays or pointed or sharp-
edged objects such as knives or forks
to remove the ice.
After the defrosting is done, clean
the inside.
    
mains. Place the frozen food into the
drawers and slide the drawers into the
freezer.

EN
19
6Maintenance and cleaning
A Never use gasoline, benzene or
similar substances for cleaning
purposes.
B We recommend that you unplug the
appliance before cleaning.
B Never use any sharp abrasive
instrument, soap, household
cleaner, detergent and wax polish
for cleaning.
B For non-No Frost products,
water drops and frosting up to a
fingerbreadth occur on the rear wall
of the Fridge compartment. Do not
clean it; never apply oil or similar
agents on it.
B Only use slightly damp microfiber
cloths to clean the outer surface
of the product. Sponges and other
types of cleaning cloths may scratch
the surface.
C Use lukewarm water to clean the
cabinet of your refrigerator and wipe
it dry.
C Use a damp cloth wrung out in
a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe
it dry.
B Make sure that no water enters the
lamp housing and other electrical
items.
B If your refrigerator is not going to
be used for a long period of time,
unplug the power cable, remove all
food, clean it and leave the door ajar.
C Check door seals regularly to ensure
they are clean and free from food
particles.
A To remove door racks, remove all the
contents and then simply push the
door rack upwards from the base.
A Never use cleaning agents or water
that contain chlorine to clean the
outer surfaces and chromium coated
parts of the product. Chlorine causes
corrosion on such metal surfaces.
A Do not use sharp, abrasive tools,
soap, household cleaning agents,
detergents, kerosene, fuel oil,
varnish etc. to prevent removal and
deformation of the prints on the
plastic part. Use lukewarm water
and a soft cloth for cleaning and
then wipe it dry.
Protection of plastic
surfaces
CDo not put the liquid oils or oil-
cooked meals in your refrigerator
in unsealed containers as they
damage the plastic surfaces of your
refrigerator. In case of spilling or
smearing oil on the plastic surfaces,
clean and rinse the relevant part
of the surface at once with warm
water.
