Beko CH146100 X User manual

CH146100 X
CH146100 X_1
CH146100 X_2
CH146100 D
CH146100 DX
CH146100 D_1
CH146100 D/1_TRB
CH146100 D_2
Refrgerator
Congélateur/Réfrigérateur

Please read this user manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
Therefore, read this entire user manual carefully before using the product and
keep it as a reference. If you handover the product to someone else, give the user
manual as well.
The user manual will help you use the product in a fast and safe way.
• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
CImportant information or useful tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
3
1 Your refrigerator 4
2 Important Safety Warnings 5
Intended use .....................................5
General safety ..................................5
For products with a water dispenser;.9
Child safety........................................9
Compliance with WEEE Directive and
Disposing of the Waste Product: .......9
Package information........................10
HC warning .....................................10
Things to be done for energy saving 10
3 Installation 12
Points to be paid attention to when the
relocation of the refrigerator.............12
Before you start the refrigerator,.......12
Electrical connection........................12
Disposing of the packaging .............13
Disposing of your old refrigerator .....13
Placing and Installation ....................13
Adjusting the legs ............................14
Installing the lower ventilation cover .14
Replacing the interior lamp .............14
Turbo Cooling Fan ...........................15
Icematic and ice storage container ..15
Reversing the doors ........................16
Reversing the doors ........................17
CONTENTS
4 Preparation 18
5 Using your refrigerator 19
Thermostat setting button................19
Defrost ............................................19
Water Dispenser..............................20
*optional..........................................20
6 Maintenance and cleaning 22
Protection of plastic surfaces ..........22
7 Troubleshooting 23

EN
4
1Your refrigerator
1. Interior light
2. Thermostat knob
3. Fan
4. Adjustable body shelves
5. Crisper cover
6. Salad crisper
7. Ice bank
8. Icebank tray
9. Freezer compartment
10.Air grille
11.Adjustable front feet
12.Adjustable door shelves
13.Egg holders
14.Bottle shelf
15.Water dispenser
16.Fridge compartment
17.Freezer compartment
CFigures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
4
6
1
12
15
16
17
13
3
7
2
5
9
11
10
8
14
15
4
7
5
1
13
15
16
17
14
3
8
2
6
10
12
11
9
15

EN
5
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will become
invalid.
The service life of your
product is 10 years. During
this period, original spare
parts will be available
to operate the product
properly.
Intended use
This product is intended
to be used
• indoors and in closed
areas such as homes;
• in closed working
environments such as
stores and offices;
• in closed
accommodation areas
such as farm houses,
hotels, pensions.
• It should not be used
outdoors.
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the

EN
6
freezer compartment.
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.
• Unplug your refrigerator
before cleaning or
defrosting.
• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your refrigerator such as
the door as a means of
support or step.
• Do not use electrical
devices inside the
refrigerator.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
• Do not cover or block
the ventilation holes on
your refrigerator with any
material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Place the beverage with
higher proofs tightly
closed and vertically.
• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.

EN
7
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
• Contact authorized
service when there is a
power cable damage to
avoid danger.
• Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specifications is located
on the left wall inside the
refrigerator.
• Never connect your
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.

EN
8
• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.
• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.
• Avoid causing damage

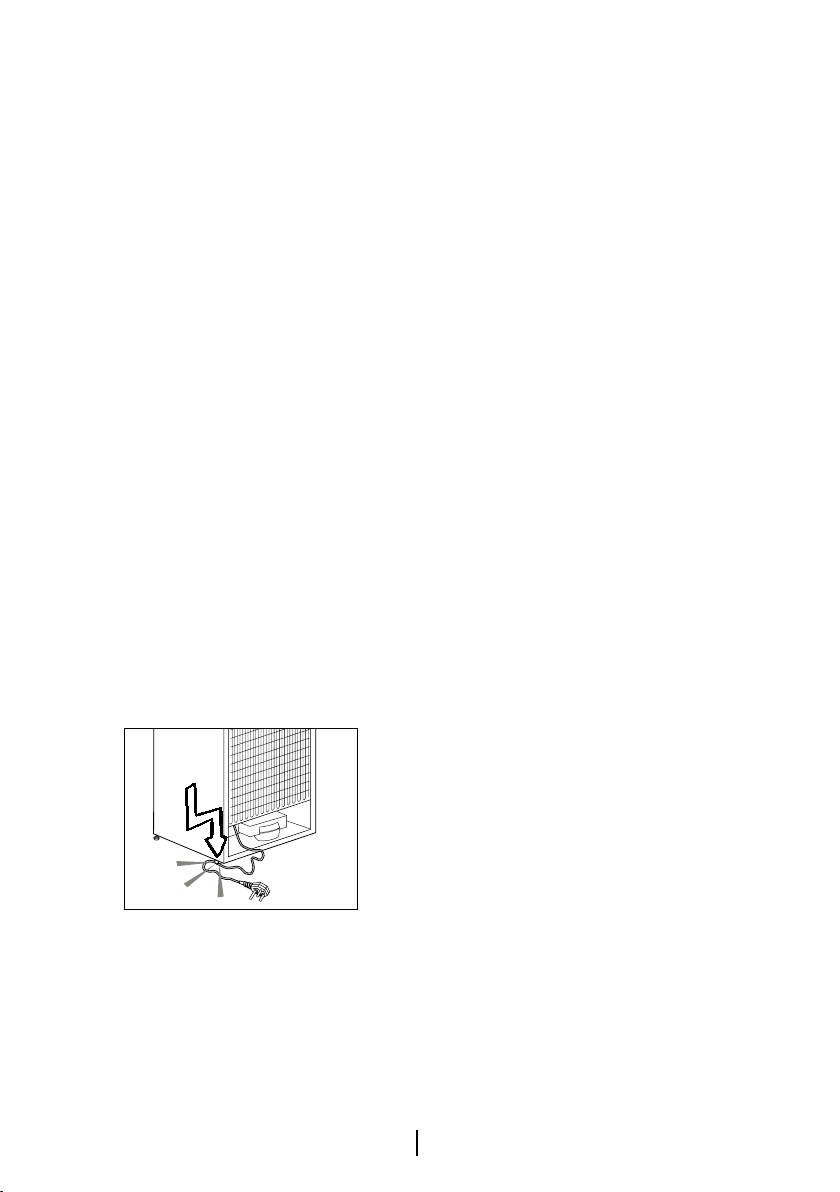

on power cable when
transporting the
refrigerator. Bending
cable may cause fire.
Never place heavy
objects on power cable.
• Do not touch the plug
with wet hands when
plugging the product.
• Do not plug the
refrigerator if the wall
outlet is loose.
• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
• Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.
• Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.
• Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator's door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
• If not to be used for a
long time, refrigerator
should be unplugged.

EN
9
A possible problem in
power cable may cause
fire.
• The plug's tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.
• Refrigerator may move
if adjustable legs are not
properly secured on the
floor. Properly securing
adjustable legs on the
floor can prevent the
refrigerator to move.
• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
• When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
For products with a
water dispenser;
• In order to operate
the water circuit
of the refrigerator
smoothly, the water
mains pressure must
be between 1-8 bars.
For conditions where
water mains pressure
exceeds 5 bars a
pressure regulator
should be used. If the
water mains pressure
exceeds 8 bars then
the refrigerator’s water
circuit should not be
connected to the water
mains. If you lack the
knowledge of how to
measure the water
mains pressure, please
seek a professional
support.Use drinking
water only.
• Use only potable water.
Child safety
• If the door has a lock, the key should
be kept away from reach of children.
• Children must be supervised to
prevent them from tampering with the
product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).

EN
10
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children's safety, cut
the power cable and break the locking
mechanism of the door, if any, so that it
will be non-functional before disposing
of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and our
national asset wealth.
If you want to contribute to the re-
evaluation of the packaging materials,
you can consult to your environmentalist
organizations or the municipalities
where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the product
catch a fire and ventilate the room in
which the unit is placed.
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.

EN
11
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
12
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged, shelves,
accessories, crisper, etc. inside your
refrigerator should be fixed with
adhesive tape and secured against
impacts. Package should be bound
with a thick tape or sound ropes
and the transportation rules on the
package should be strictly observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the
refrigerator,
Check the following before you start
to use your refrigerator:
1. Attach 2 plastic wedges as illustrated
below. Plastic wedges are intended
to keep the distance which will ensure
the air circulation between your
refrigerator and the wall. (The picture
is drawn up as a representation and it
is not identical with your product.)
2. Clean the interior of the refrigerator as
recommended in the “Maintenance
and cleaning” section.
3. Connect the plug of the refrigerator
to the wall socket. When the fridge
door is opened, fridge internal lamp
will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is
not running and this is quite normal.
5. Front edges of the refrigerator may
feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.
• Extension cables and multi plugs
must not be used for connection.

EN
13
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated by
the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the doors
of your refrigerator and pass it sideways
through the door.
1. Install your refrigerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources, humid places and direct
sunlight.
3. There must be appropriate air
ventilation around your refrigerator
in order to achieve an efficient
operation. If the refrigerator is to be
placed in a recess in the wall, there
must be at least 5 cm distance with
the ceiling and at least 5 cm with the
wall. Do not place your product on
the materials such as rug or carpet.
4. Place your refrigerator on an even
floor surface to prevent jolts.

EN
14
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning its front legs as illustrated in the
figure. The corner where the leg exists is
lowered when you turn in the direction
of black arrow and raised when you
turn in the opposite direction. Taking
help from someone to slightly lift the
refrigerator will facilitate this process.
Replacing the interior lamp
Should the light fail to work, proceed
as follows.
1. Switch off at the socket outlet
and pull out the mains plug.You may
find it useful to remove shelves for
easy access.
2. Use a flat tipped screwdriver to
remove the light diffuser cover.
3. First check that the lamp
hasn’t worked loose by ensuring it
is screwed securely in the holder.
Replace the plug and switch on.
4. If the lamp works, replace the
light cover by inserting the rear lug
and pushing up to locate the front
two lugs.
5. If the light still fails to work, switch
off at the socket outlet and pull out
the mains plug. Replace the lamp
with a new 15 watt (max) screw cap
(SES) lamp.
6. Carefully dispose of the burnt-out
lamp immediately.
7. Replacement light lamp can
easily be obtained from a good local
electrical or DIY store.
Installing the lower
ventilation cover
You can install the lower ventilation
cover as illustrated in the figure.

EN
15
Turbo Cooling Fan
“Turbo cooling fan is designed to
ensure homogenous distribution and
circulation of the cold air inside your
refrigerator. Operation time of the turbo
cooling fan may vary depending on
the properties of your product. While
the turbo fan works only with the
compressor in some products, the
control system determines its operation
time in some products in accordance
with the cooling requirement. This
situation is explained on a separate
warning and information label attached
on the refrigerator in products equipped
with turbo fans running under different
conditions than the compressor.”
Icematic and ice storage
container
*optional
Using the Icematic
Fill the Icematic with water and place
it into its seat. Your ice will be ready
approximately in two hours. Do not
remove the Icematic from its seating to
take ice.
Turn the knobs on the ice reservoirs
clockwise by 90 degrees.
Ice cubes in the reservoirs will fall
down into the ice storage container
below.
You may take out the ice storage
container and serve the ice cubes.
If you wish, you may keep the ice
cubes in the ice storage container.
Ice storage container
Ice storage container is only intended
for accumulating the ice cubes. Do not
put water in it. Otherwise, it will break.

EN
16
Reversing the doors
25
24
1
6
3
17
18
7
9
10
23
22
22
2
4
5
4
26
19
16
180°
20
19
12
13
11
27
11
14
15
27
45°
8
21

EN
17
Reversing the doors
25
24
1
6
3
17
18
7
9
10
23
22
22
2
4
5
4
26
19
16
180°
20
19
12
13
11
27
11
14
15
27
45°
8
21

EN
18
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended with
regard to its efficiency.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.

EN
19
5Using your refrigerator
Thermostat setting button
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonaltemperatures,
• Frequentopeningofthedoorand
leaving the door open for long
periods,
• Foodputintotherefrigerator
without cooling down to the room
temperature,
• Thelocationoftherefrigeratorinthe
room (e.g. exposing to sunlight).
• Youmayadjustthevaryinginterior
temperature due to such reasons
by using the thermostat. Numbers
around the thermostat button
indicates the cooling degrees.
• Iftheambienttemperatureishigher
than 32°C, turn the thermostat button
to maximum position.
• Iftheambienttemperatureislower
than 25°C, turn the thermostat button
to minimum position.
Defrost
Fridge compartment
Fridge compartment performs full-
automatic defrosting. Water drops and
a frosting up to 7-8 mm can occur
on the inner rear wall of the fridge
compartment while your refrigerator
cools down. Such formation is normal
as a result of the cooling system.
The frost formation is defrosted by
performing automatic defrosting with
certain intervals thanks to the automatic
defrosting system of the rear wall. User
is not required to scrape the frost or
remove the water drops.
Water resulting from the defrosting
passes from the water collection groove
and flows into the evaporator through
the drain pipe and evaporates here by
itself.
Deep freezer compartment does not
perform automatic defrosting in order
to prevent decaying of the frozen food.
The freezer compartment defrosts
automatically.

EN
20
Water Dispenser
*optional
The water dispenser is a very useful
feature allowing cold water on tap
without opening the door of your
refrigerator .As you will not have to
open your refrigerator door frequently,
you will have saved energy.
Using the water dispenser
Push the arm of the water dispenser
with your glass. The dispenser will
cease operating once you release the
arm.
When operating the water dispenser,
maximum flow can be obtained by
pressing the arm fully. Please remember
that the amount of flow from the
dispenser is subject to the degree you
press the arm.
As the level of the water in your glass/
container rises, slightly lessen the
pressure on the arm to prevent the
overspill. If you slightly press the arm,
the water will drip; this is quite normal
and not a failure.
Filling the water dispenser's tank
Open the cover of the water tank as
shown in the figure. Fill in the pure and
clean drinking water. Close the cover.
To avoid flowing of water by mistake,
we recommend you to lock the water
dispenser .
Warning!
• Do not fill the water tank with any
other liquid except for water such as
fruit juices, carbonated beverages
or alcoholic drinks which are not
suitable to use in the water dispenser.
Water dispenser will be irreparably
damaged if these kinds of liquids are
used. Warranty does not cover such
usages. Some chemical substances
and additives contained in these
kinds of drinks/liquids may damage
the water tank.
• Use clean and pure drinking water
only.
• Capacity of the water tank is 2.2
Litres (3.8 pints); do not overfill.
